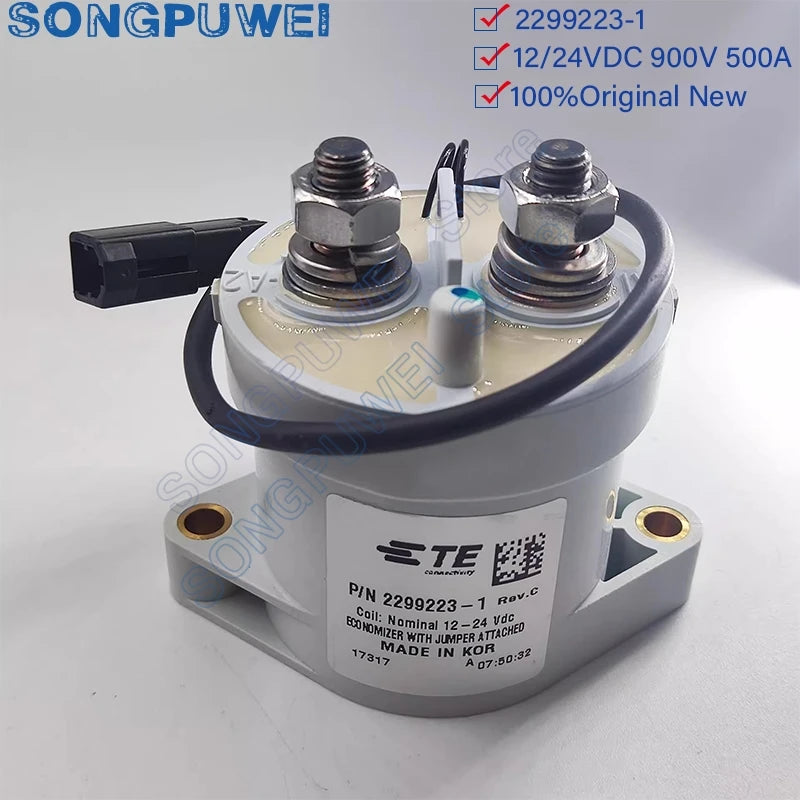

EV200AAANA EV200HAANA LEV100A4ANG Automotive Relays TE 12V-24VDC 500A 900V High Power High Voltage Contactor 100% Original New

EV200AAANA

$210.29

Sale price $210.29 Regular price $0.00

Skip to product information

EV200AAANA EV200HAANA LEV100A4ANG Automotive Relays TE 12V-24VDC 500A 900V High Power High Voltage Contactor 100% Original New

EV200AAANA EV200HAANA LEV100A4ANG Automotive Relays TE 12V-24VDC 500A 900V High Power High Voltage Contactor 100% Original New

$210.29

Sale price $210.29 Regular price $0.00

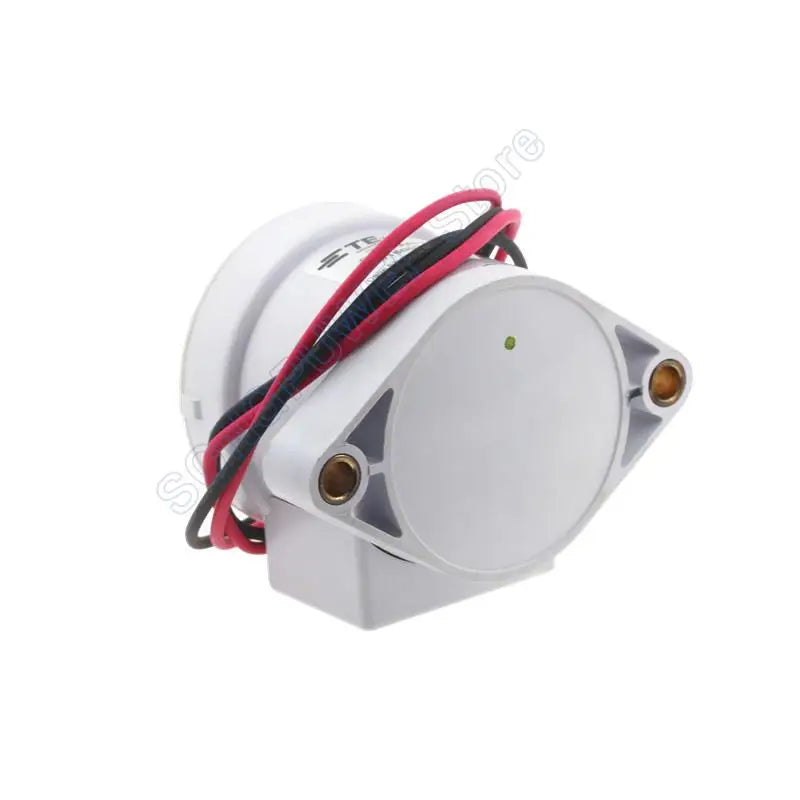

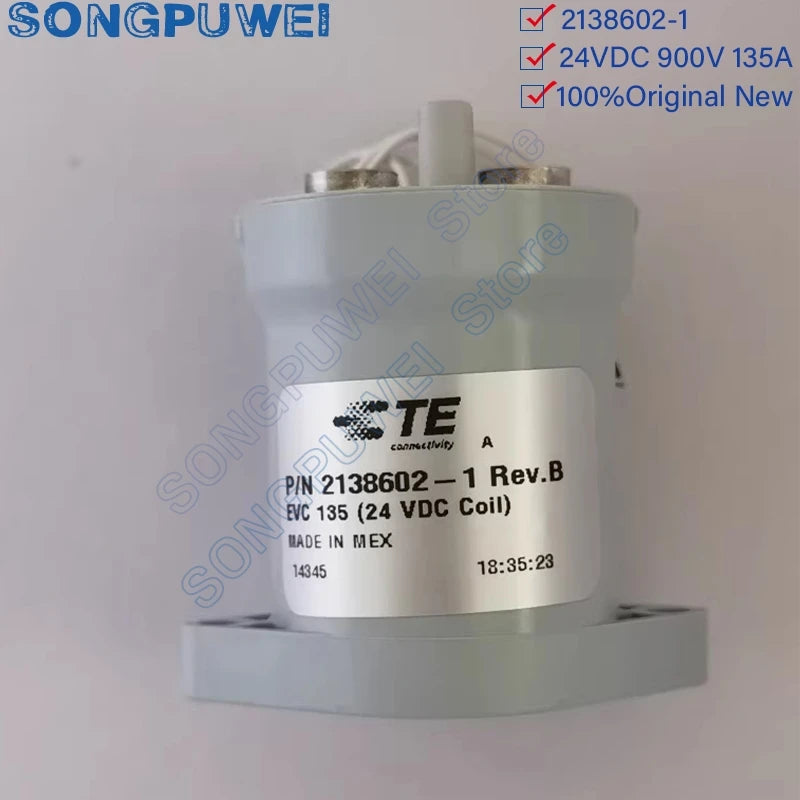

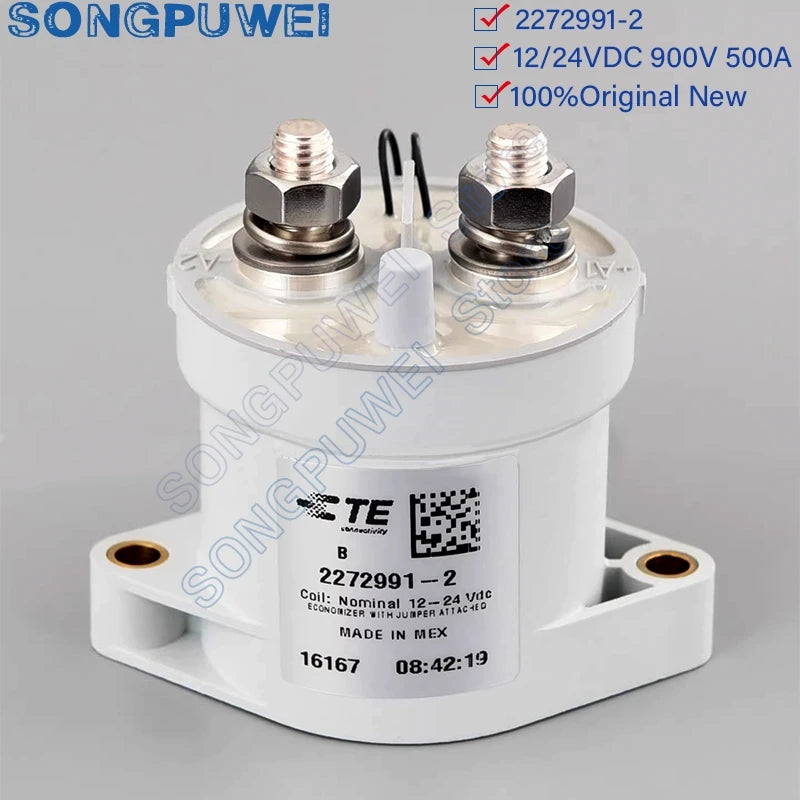

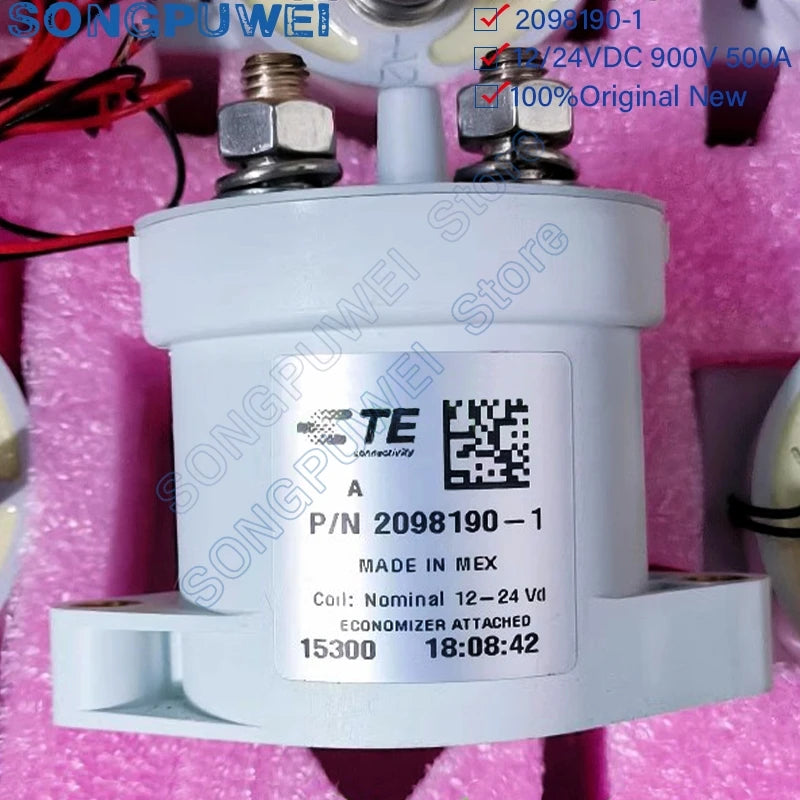

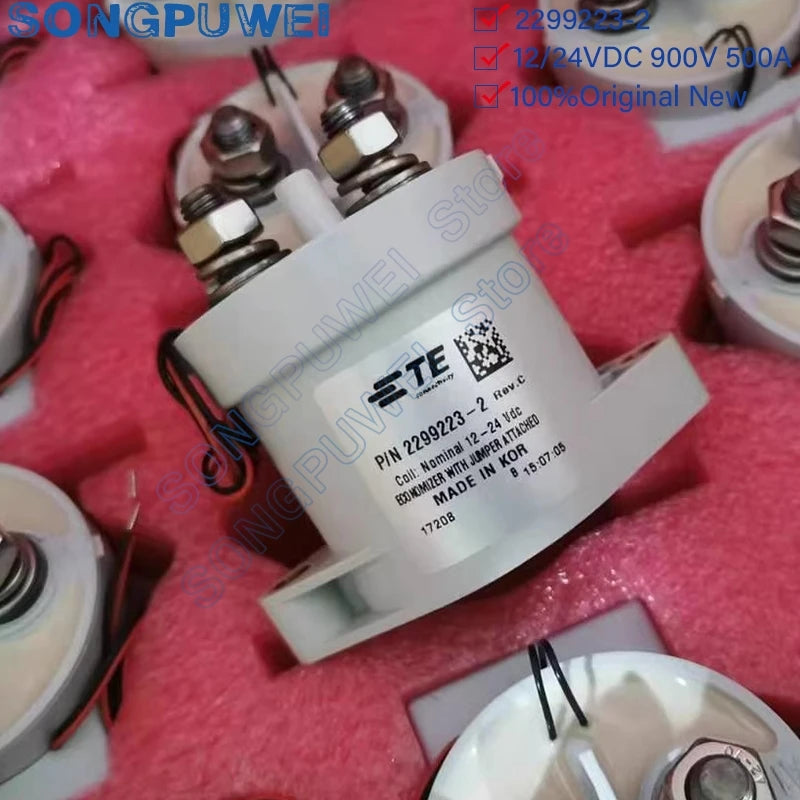

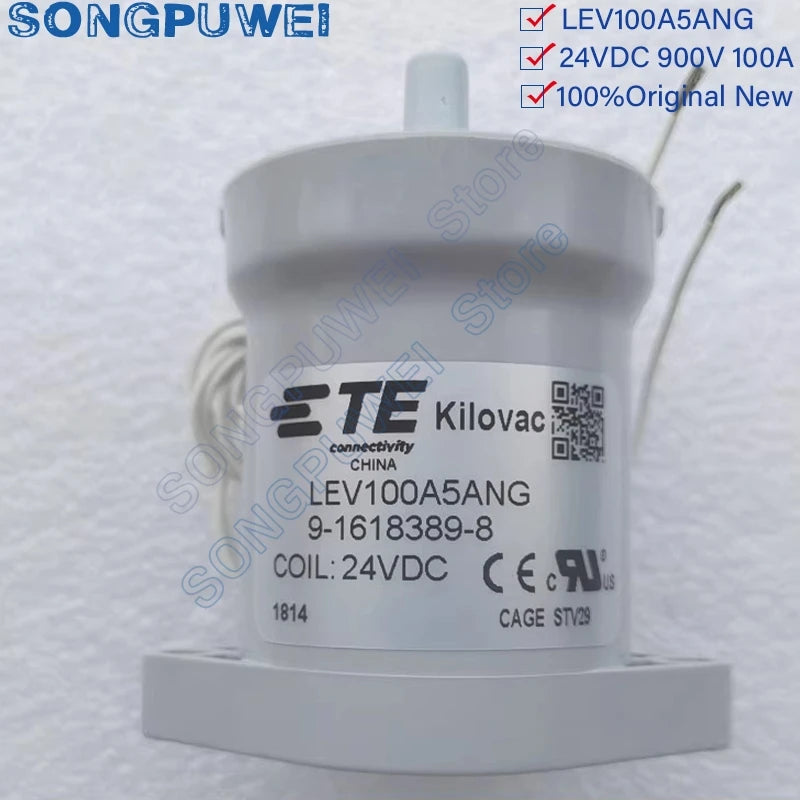

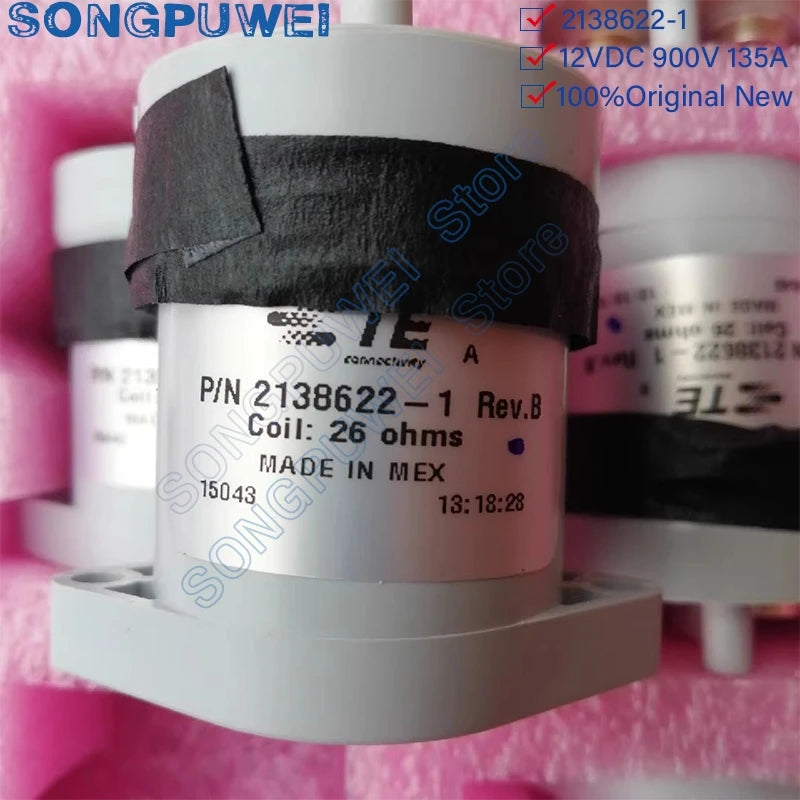

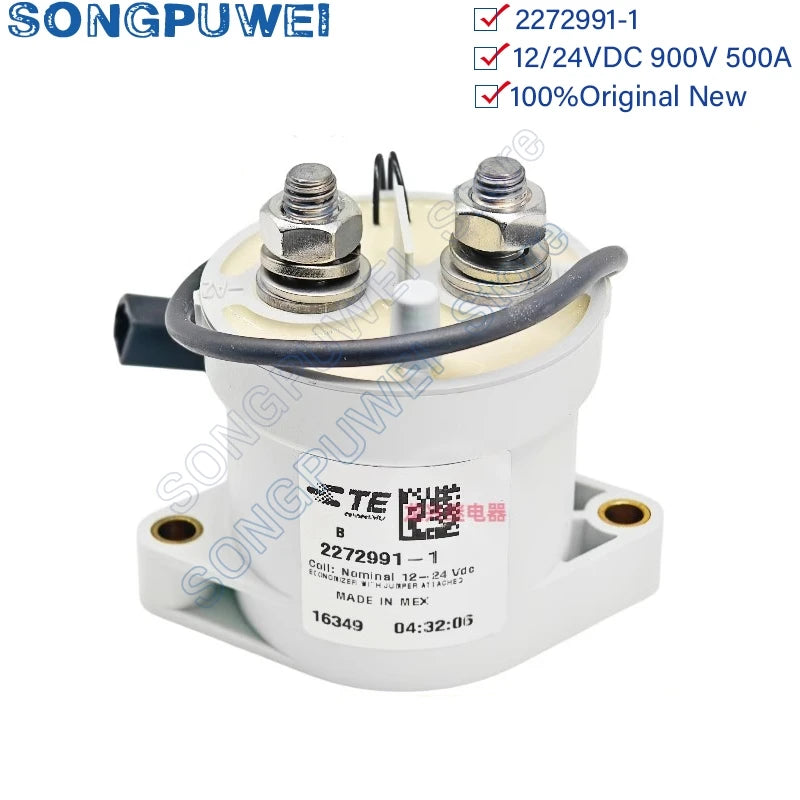

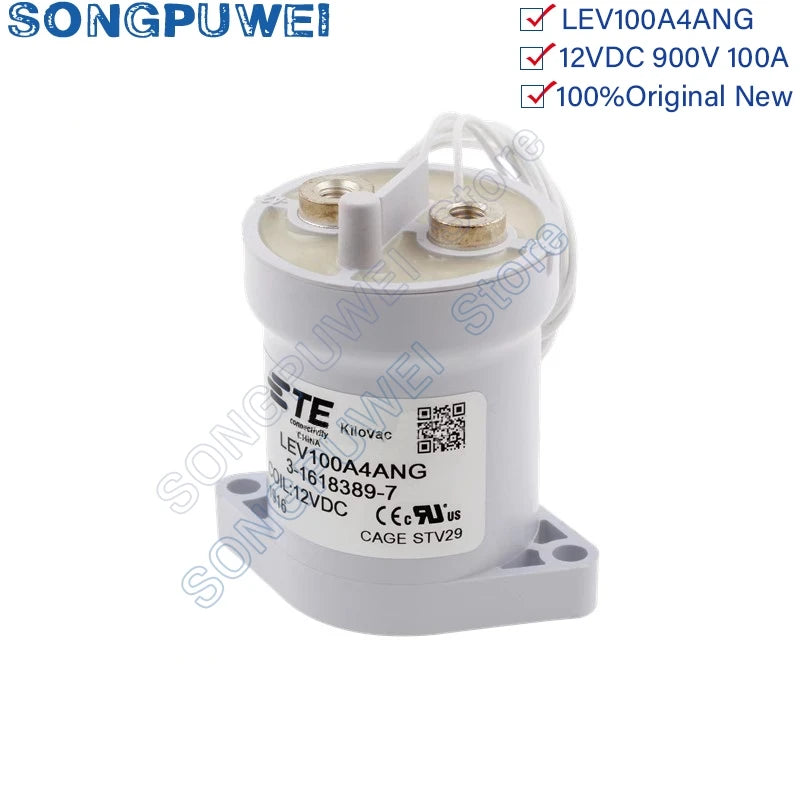

Size EV200AAANA EV200HAANA 2138602-1 2138622-1 LEV100A4ANG LEV100A5ANG 2272991-1 2272991-2 2299223-1 2299223-2 2098190-1

Description

SPECIFICATIONS

Brand Name: NONE

Certification: RoHS,CE,UL

Contact Load: High Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: EV200AAANA

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Solid State Relay

Use: Protective

Voltage: 36V

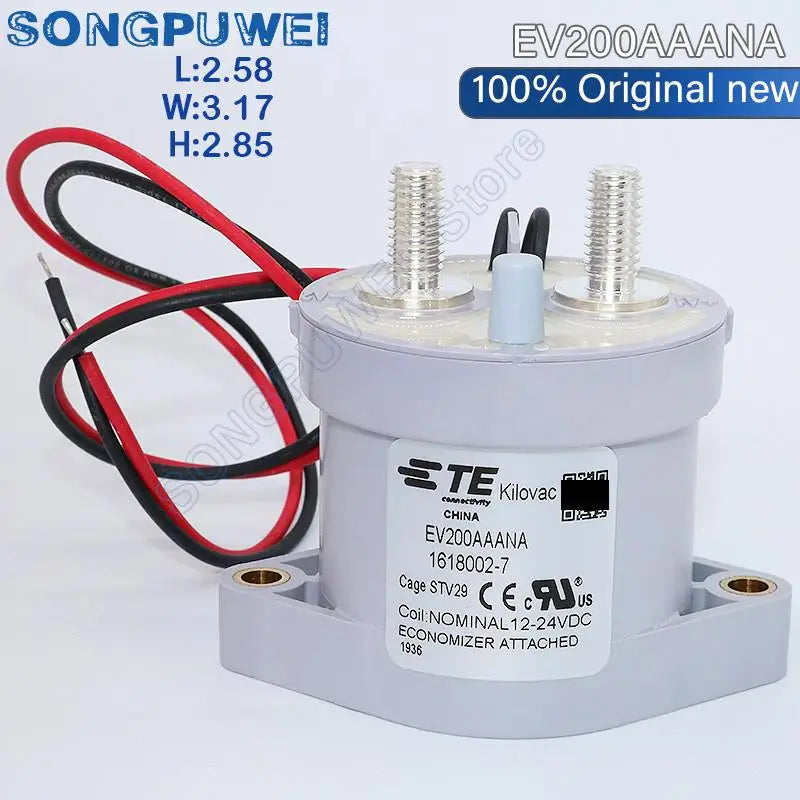

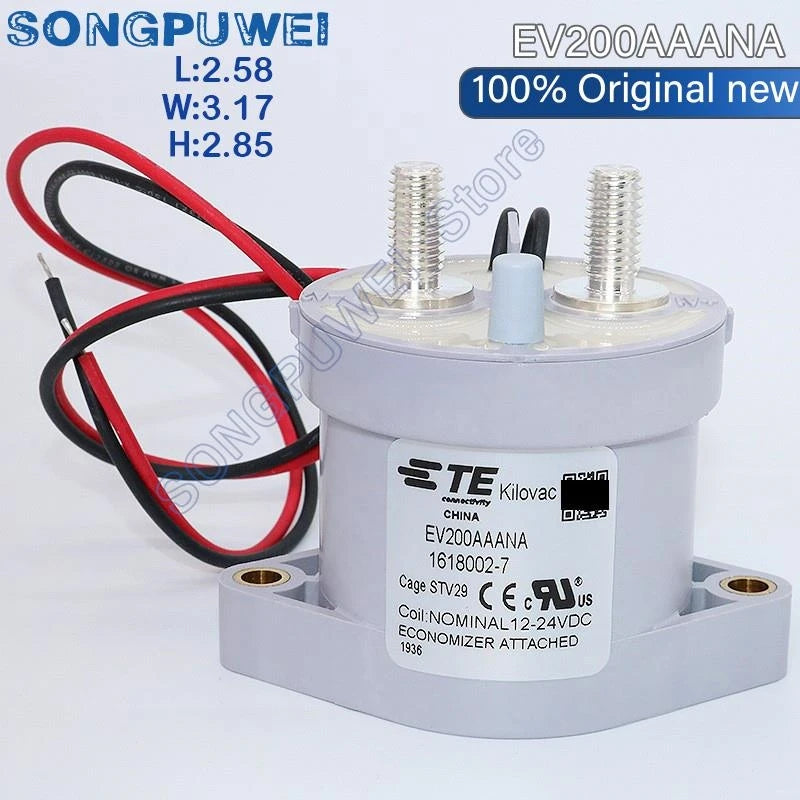

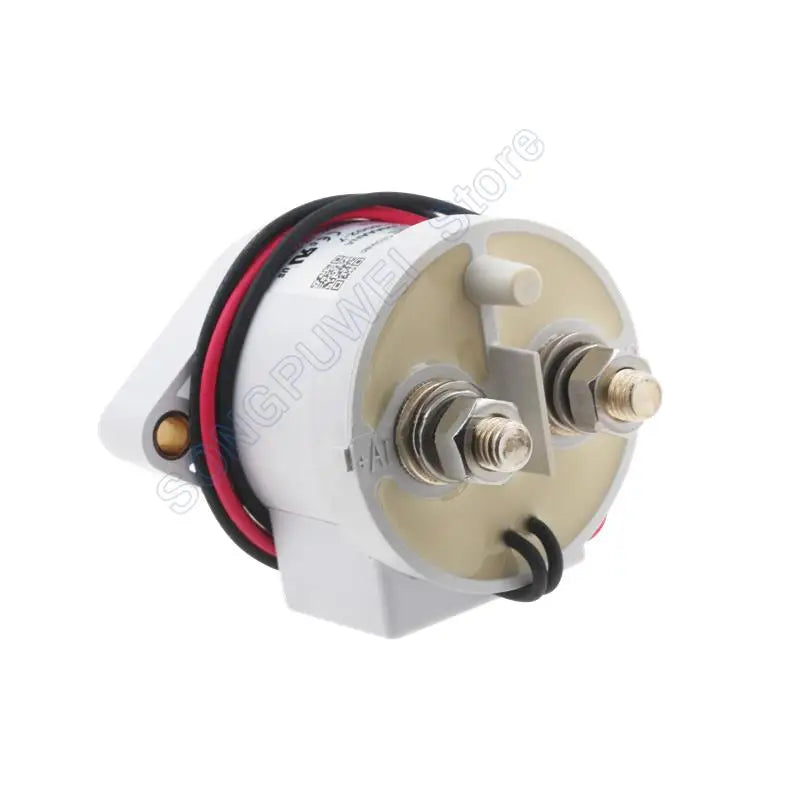

Original authentic Tyco relay EV200AAANA

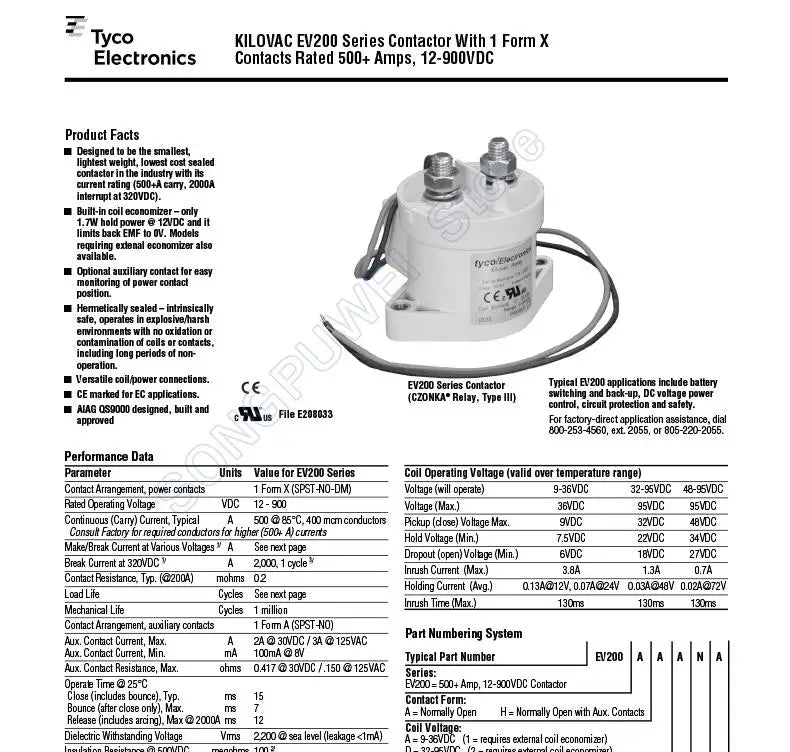

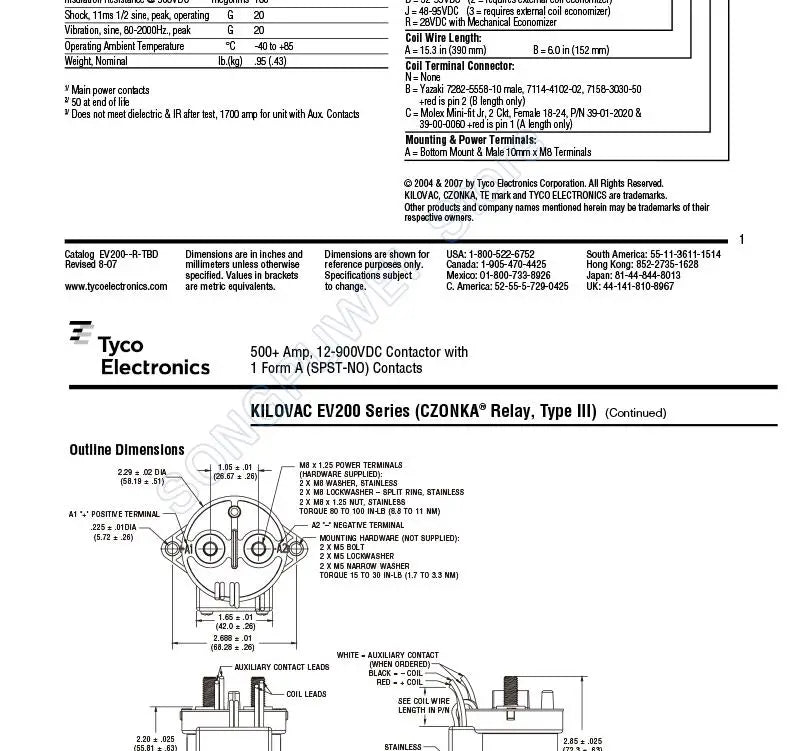

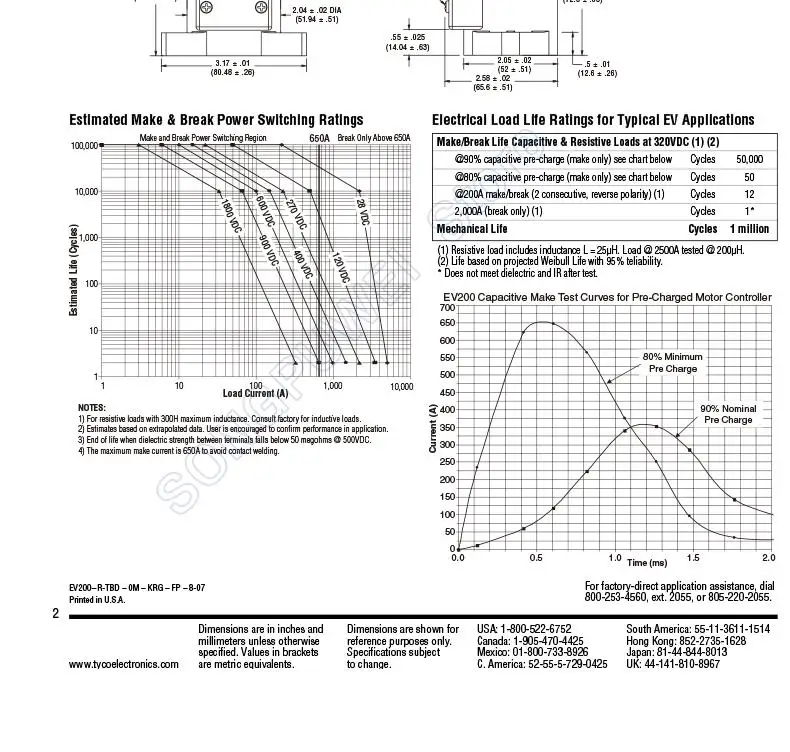

Due to EV200relaySmall size, contact current is quite high, therefore suitable for batteryswitchBackup DCVoltageThe power control circuit, protection and security applications. The built-incoilSave the device in the 12Vdc, only 1.7W to maintain power, so the backward EMF limit to zero voltage. The coil connection can be realized through the connector jumper or optional. Optional auxiliary contacts can be used to monitor the electrical contact position. The life of the mechanical EV200relay for the 1 million time, the normal operating temperature range of -40 to 85 DEG C. These relays meet CE requirements for EC applications, they also comply with the AIAG QS9000 index, through the United States and Canada UL E208033 document authentication. Dimensions: 2.58 "x 3.17" x 2.85 "tall

Due to EV200relaySmall size, contact current is quite high, therefore suitable for batteryswitchBackup DCVoltageThe power control circuit, protection and security applications. The built-incoilSave the device in the 12Vdc, only 1.7W to maintain power, so the backward EMF limit to zero voltage. The coil connection can be realized through the connector jumper or optional. Optional auxiliary contacts can be used to monitor the electrical contact position. The life of the mechanical EV200 relay for the 1 million time, the normal operating temperature range of -40 to 85 DEG C. These relays meet CE requirements for EC applications, they also comply with the AIAG QS9000 index, through the United States and Canada UL E208033 document authentication. Dimensions: 2.58 "x 3.17" x 2.85 "tall

Main purpose: electric vehicle / ship / industrial equipment / test equipment for high power / mining machinery / power equipment / environmental control / light electric vehicle, electric vehicles, electric commercial vehicles, electric off-road vehicles, electric buses etc.

EV200 seriesThe following is the specific model
EV200AAANA
EV200ADANA
EV200ADANA

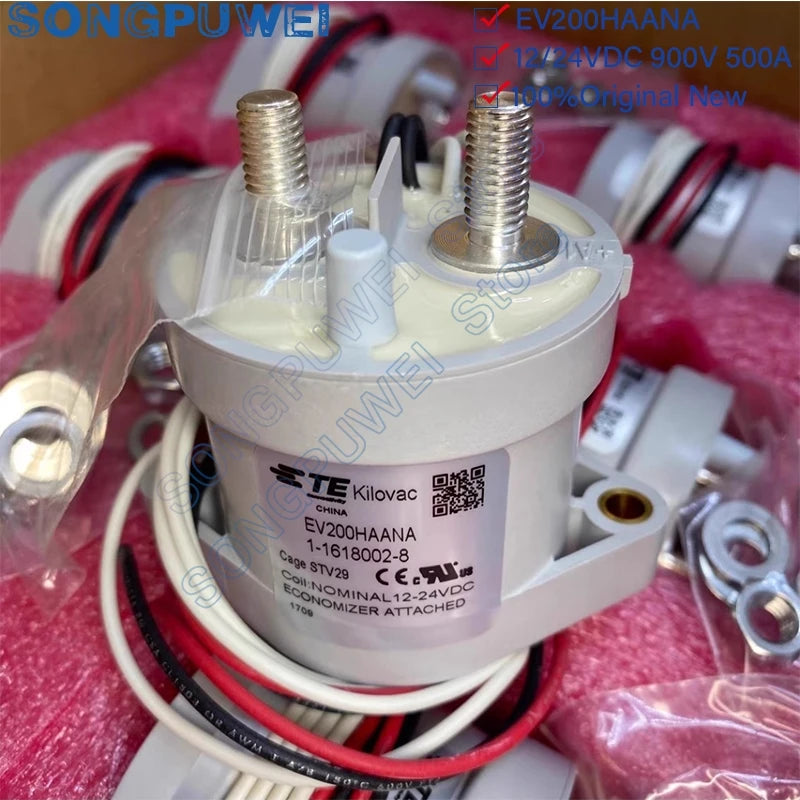

EV200HAANA
9-1618389-5
EV200HDANA
EV200HJANA
EV200HRANA
EV200A1XXA03
EV200AAACA02
EV200AAAJA01
EV200AXANA02
EV200B5ANA
EV200BAANA
EV200GAANA
EV200HRANA02
EV200P4ANA

series Series		LEV100/200	EV200	EV250	EV500	K61/81
model Type		LEV100 (200): A4 LEV100 (200): A5 LEV100 (200): A6 LEV100 (200): H4 LEV100 (200): H5 LEV100 (200): H6	EV200AA--- EV200AD--- EV200AJ--- EV200HA--- EV200HD--- EV200HJ---	EV250-1A EV250-1B EV250-2A EV250-2B EV250-5A	EV500-4A EV500-4B EV500-5A EV500-5B	K61A--- K61B--- K61C--- K81C---
Safety certification Agency Approval		-		-	-	-
contact form Contact Form		A= normally open H= normally open + auxiliary contacts A=Normally Open H=Normally Open with Aux. Contacts		-	4= auxiliary contact 5= assistant contact 4=No Aux. Contacts 5=with Aux. Contacts	A=SPST-NO B=SPST-NC C=SPDT
Rated Voltage Rated Operating Voltage		12-900 VDC	12-900 VDC	28-1800VDC	28-1800VDC	10KV/ K61 25KV/ K81
Continuous carrying electric current Continuous (Carry) Current, Typical		500Amps 65 C	500Amps 85 C	400Amps 500Amps/6 minutes	600A270VDC, 85 C 1600A/10 seconds	6AmpsDC/60Hz
Disconnect current 320VDC Break Currents		2000Amps	2000Amps	2500Amps	3300Amps	-
Typical / maximum contact resistance Contact Resistance, Typ./ Max.		0.2 200A M.	0.2 200A M.	0.0003.	0.0002.	0.05 / 0.5.
Mechanical life Mechanical Life		100000 times	1000000 times	-	-	-
auxiliary contactThe maximum contact current Aux. Contact Current Max.		2A30VDC 3A125VAC	2A30VDC 3A125VAC	-	-	-
The minimum contact current of auxiliary contacts Aux. Contact Current, Min.		100mA8V	100mA8V	-	-	-
auxiliary contactMaximum contact resistance Aux. Contact Resistance Max.		0.41730VDC 0.150125VAC	0.41730VDC 0.150125VAC	-	-	-
insulation resistance500VDC Insulation Resistance		100 M.	100 M.	100 M.	100 M.	-
temperature range Operating Ambient Temperature		-40 ~ 65 C	-40 ~ 85 C	-40 ~ 85 C	-40 ~ 85 C	-55 ~ 85 C
The nominal weight (kg) Weight, Typical		Zero point six zero	Zero point four three	0.7 kg / 0.8 kg	1.53kg	-
coil data Coil Operating Voltage	nominal Voltage Coil Voltage	4=12VDC 5=24VDC 6=48VDC	A=9-36VDC D=32-95VDC J=48-95VDC	A=12VDC B=24VDC	A=12VDC B=24VDC	2=12VDC 3=26.5VDC 5=115VDC
	VoltageRange Voltage (will operate)	9.6-13.2VDC 19.2-26.9VDC 38.4-52.8VDC	A=9-36VDC D=32-95VDC J=48-95VDC	-	-	-
	The maximum voltage Voltage Max.	15VDC 30VDC 60VDC	36VDC 95VDC 95VDC	-	-	-
	The maximum pick up Voltage Pickup (close) Voltage Max.	9.6VDC 19.2VDC 38.4VDC	9VDC 32VDC 48VDC	-1A/B: 8.3/ 16.6VDC -2A/B: 9/ 18VDC -5A: 9VDC	9.9VDC 19.7VDC	8VDC 16VDC 80VDC
installation Mounting Terminals		Bottom / side Bottom/ Side		bottom Bottom		pc board PC Board
Connection mode Terminal Options		Bolt / lead Male 10mm * M8 Threaded Terminals/ Wires		Bolt Male 10mm * M8 Threaded Terminals		Lead wire, pin Wires/ Pin Terminals
