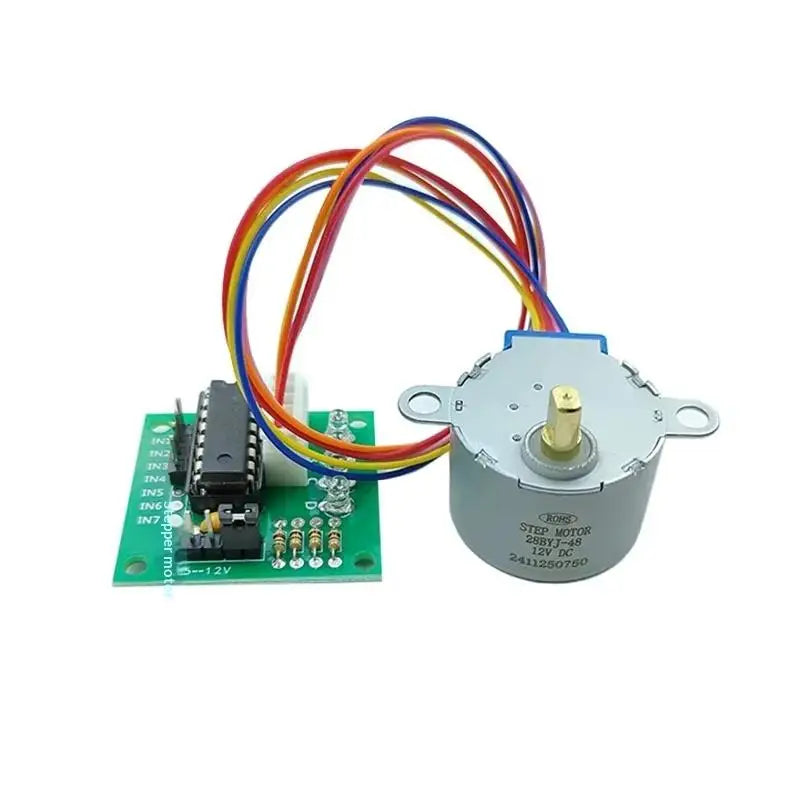

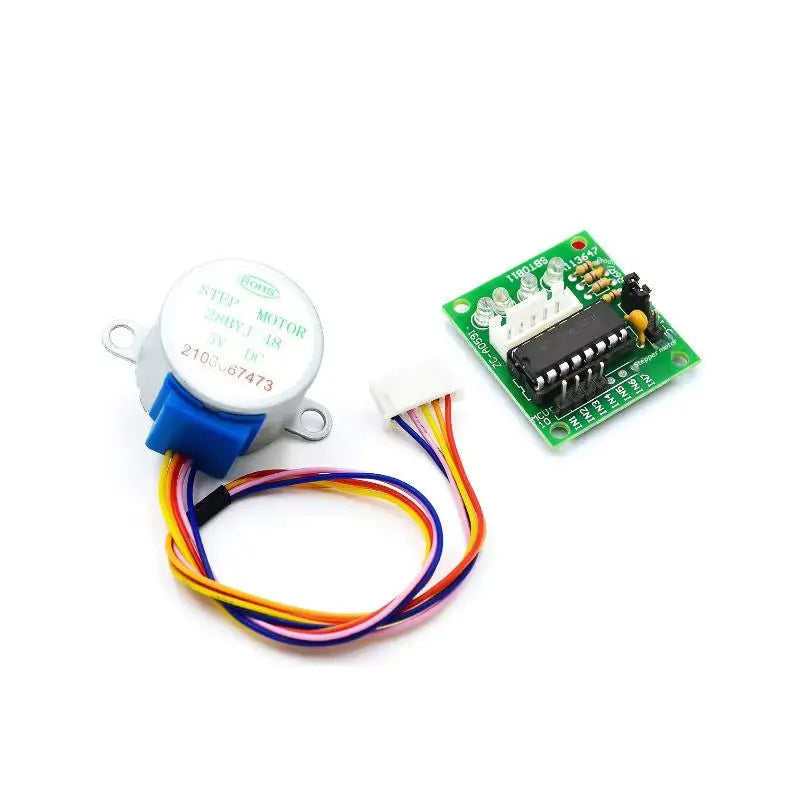

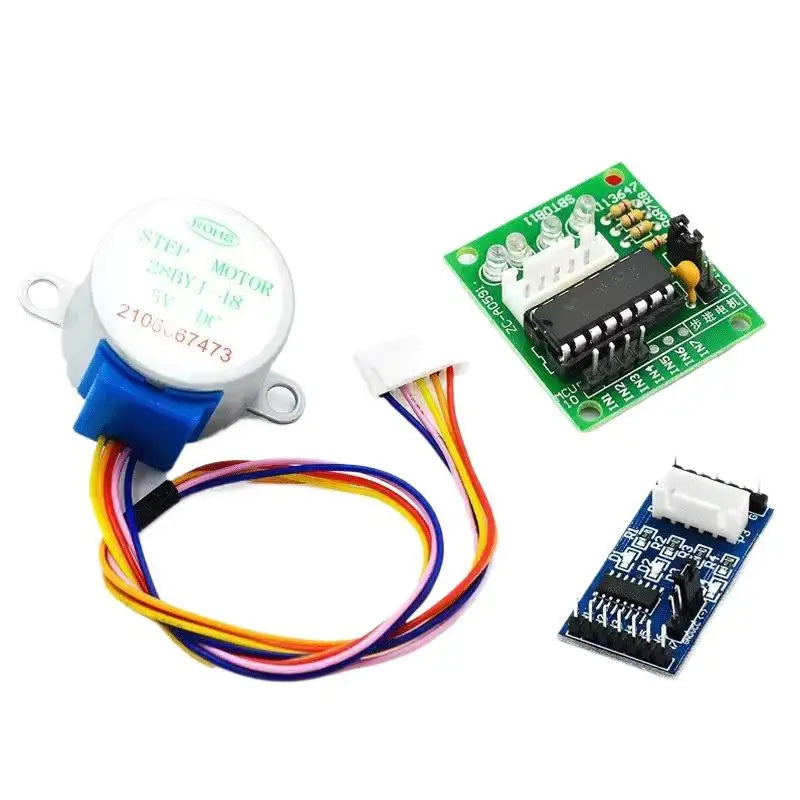

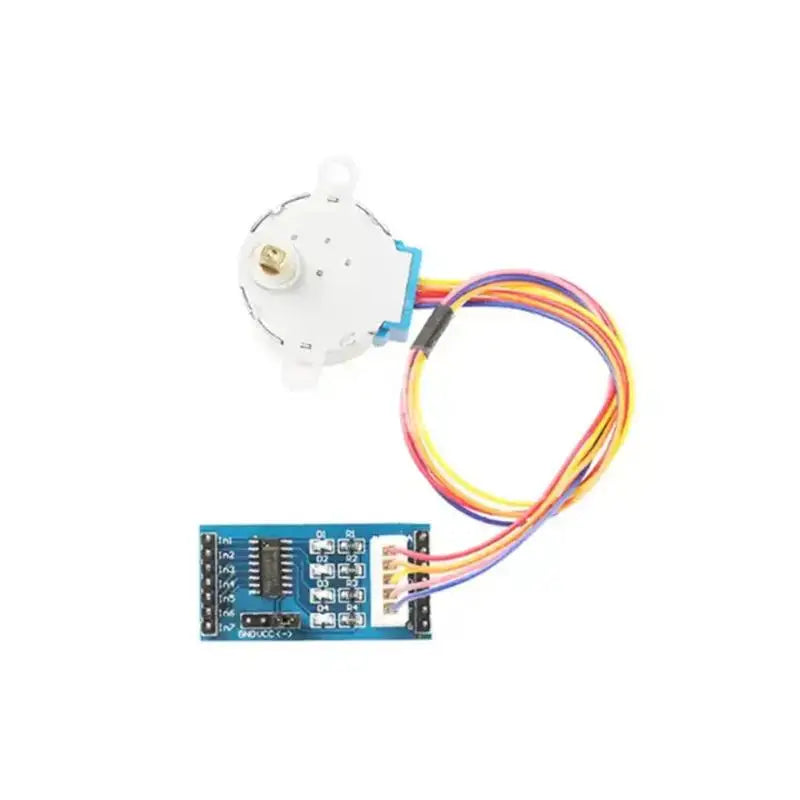

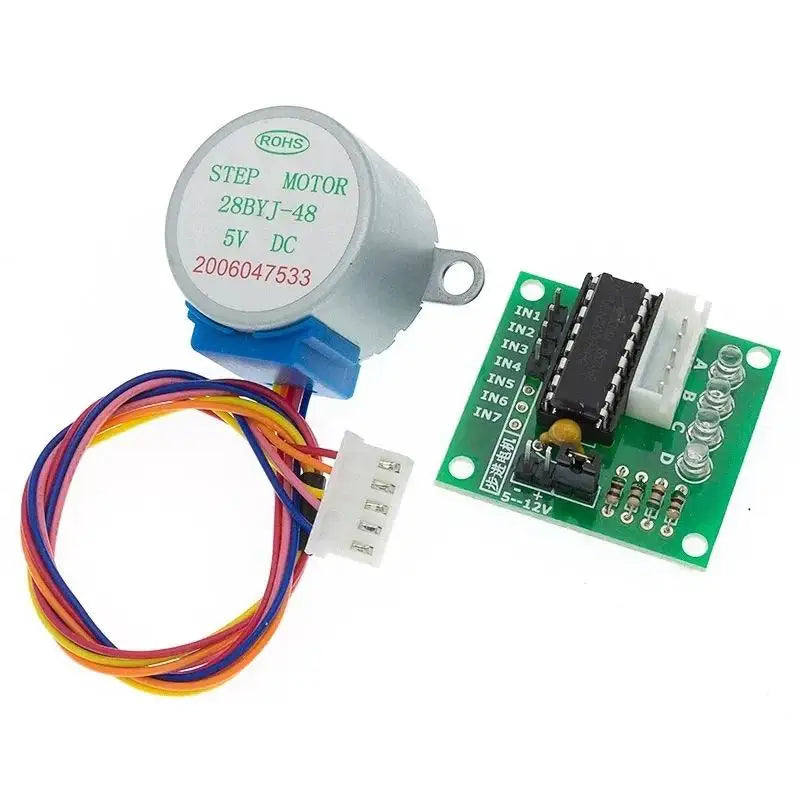

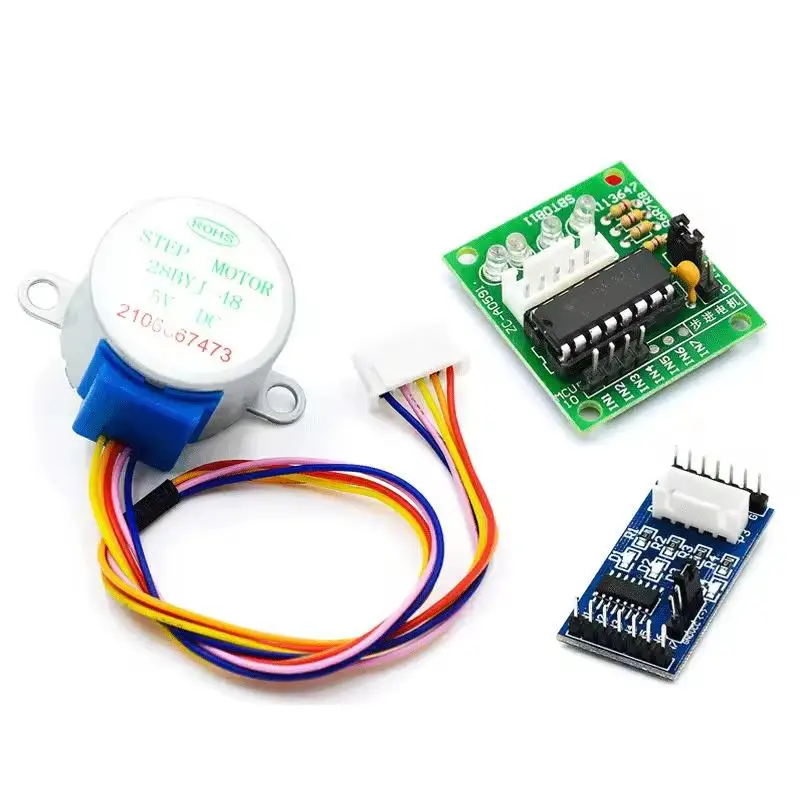

DC 5V 28BYJ48 Stepper Motor Lead 25cm Reduction Step Gear Stepper Motor 4 Phase 28byj48 for Arduino Diy Kit ULN2003 Driver Board

uln2003 drive, motor with gear reduction, very low noise, smooth running 5V can be driven, convenient single

Chip developers use open interfaces, can also drive stepper motors through this board suitable for 51/avr/arm and platforms, robot design and development is essential

Product Parameters

Material: Plastic+Metal

Packing: 1 set

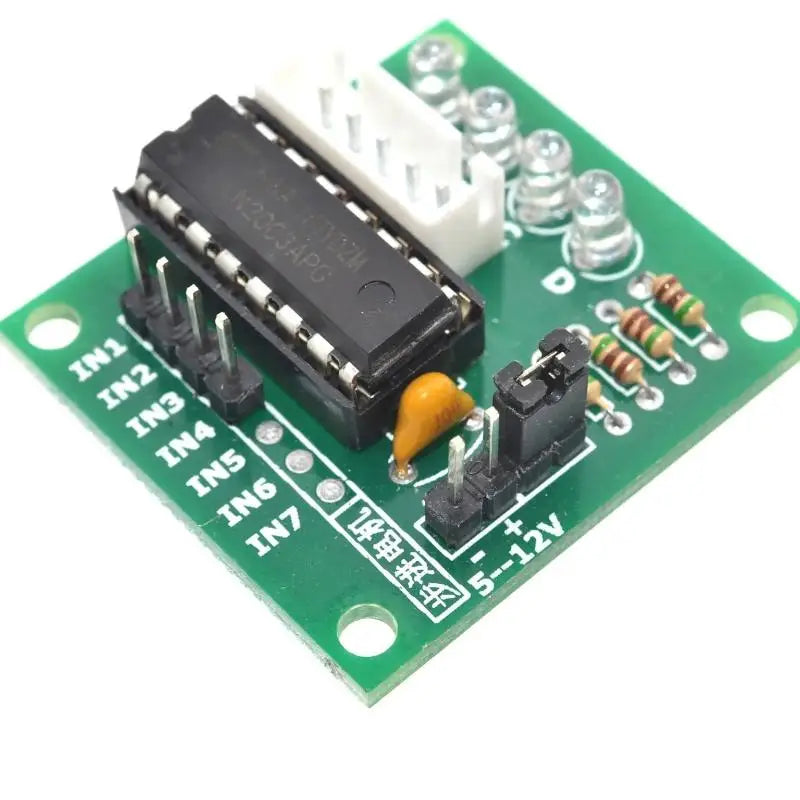

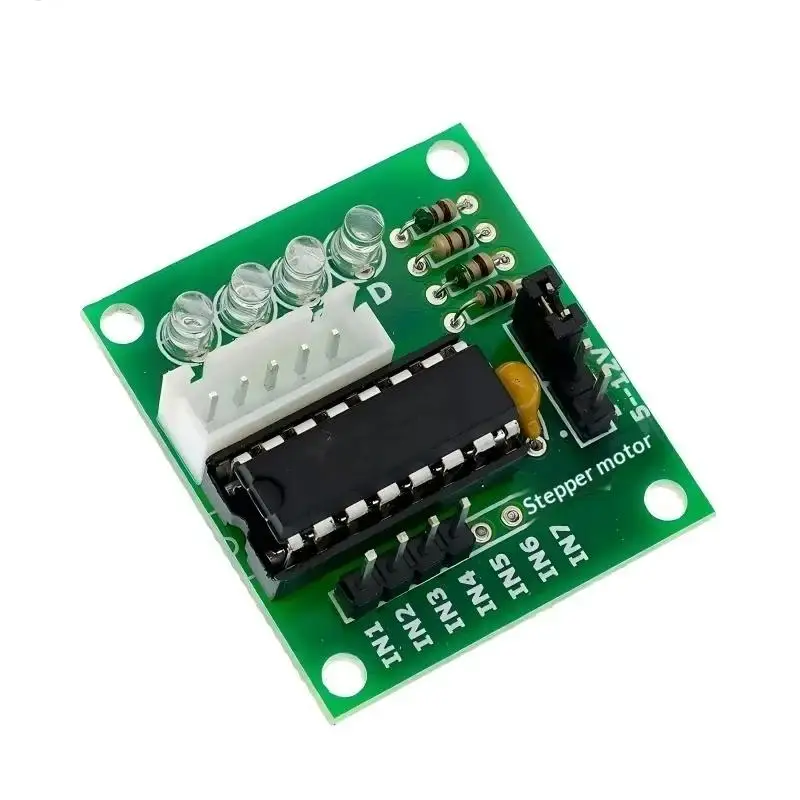

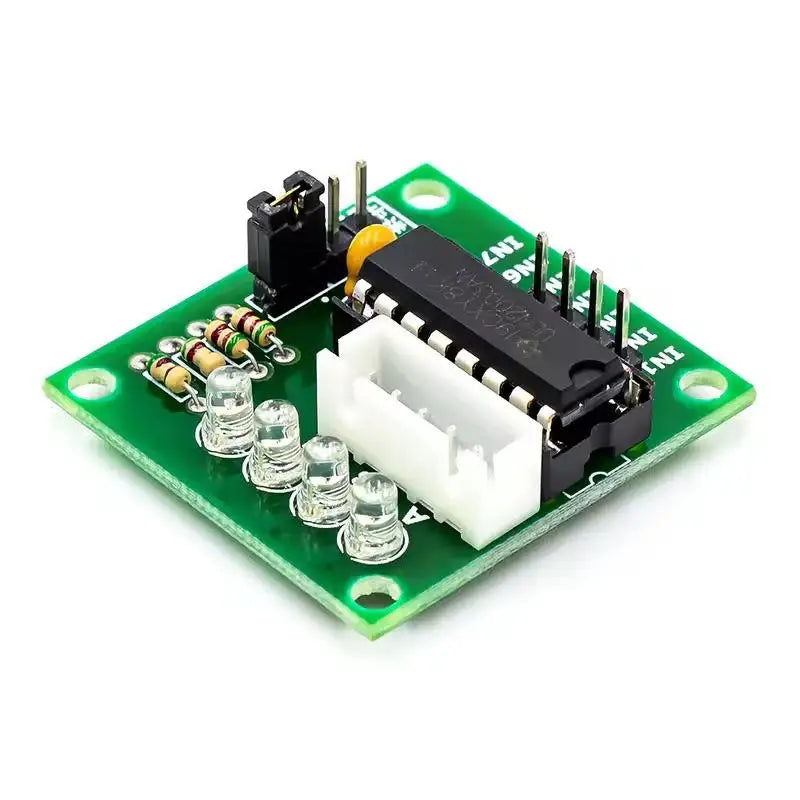

ULN2003 driver board (green):

Using ULN2003 high-power chip drive stepper motor A, B, C, D light emitting diodes indicate the state of the four-phase stepper motor when working with the standard interface of the stepper motor.

It can be directly inserted and removed when in use. ULN 2003 module is commonly used to drive small five-wire four-phase motors, LED is the stepper motor operating status indicator.

Connection mode: + connect to positive 5V. - Connect to negative terminal. IN1-IN4 connected to microcontroller 10. The white terminal block is inserted into the five-wire four-phase stepping motor.

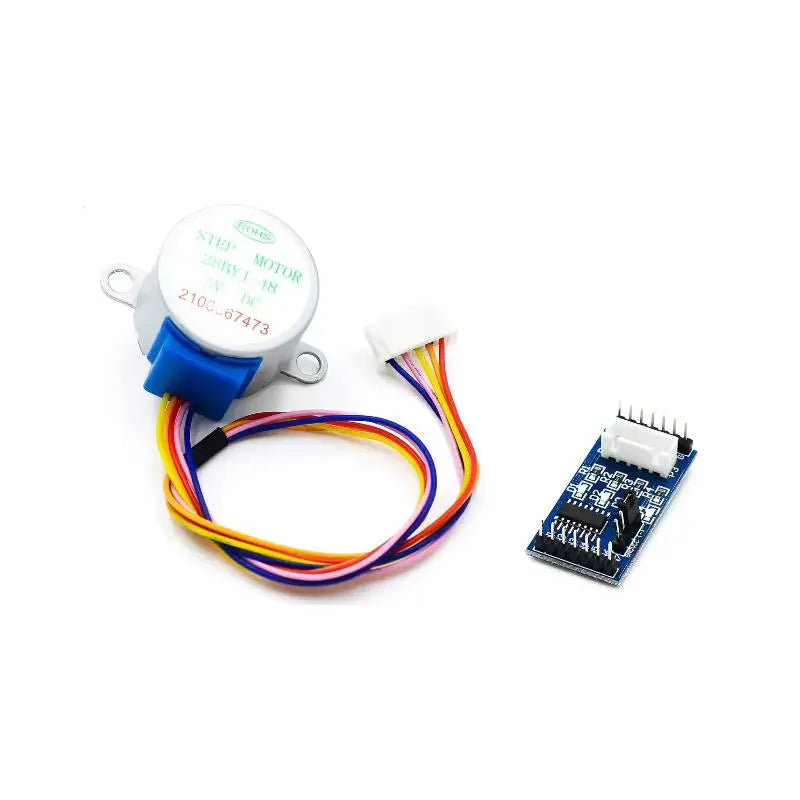

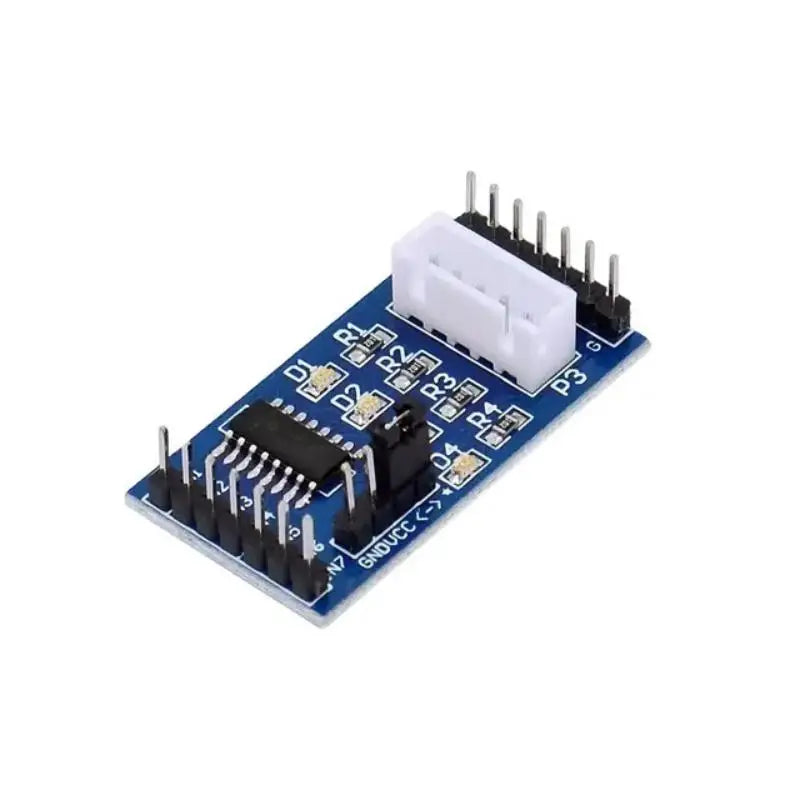

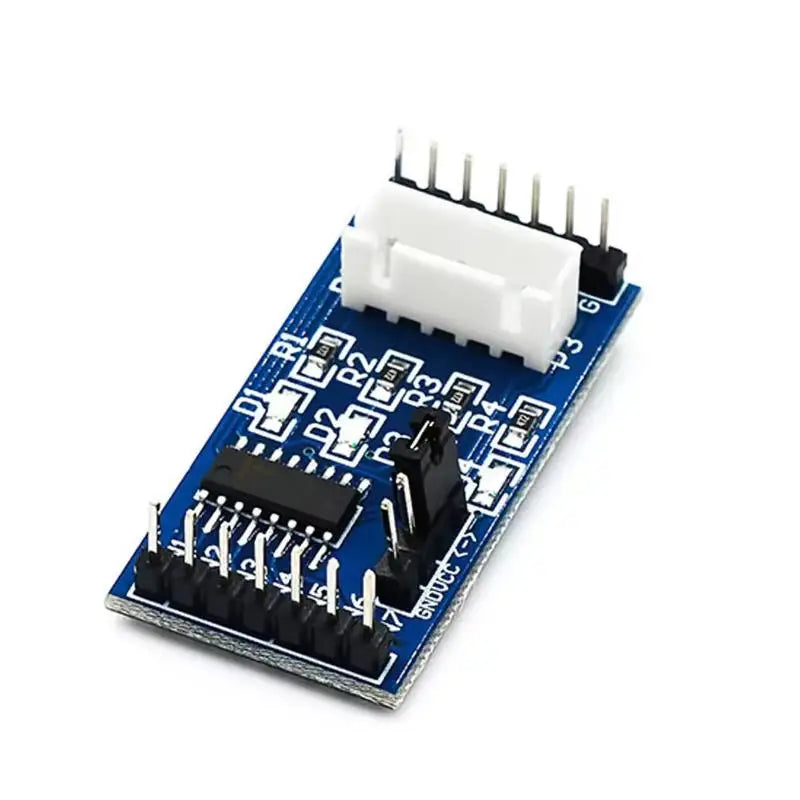

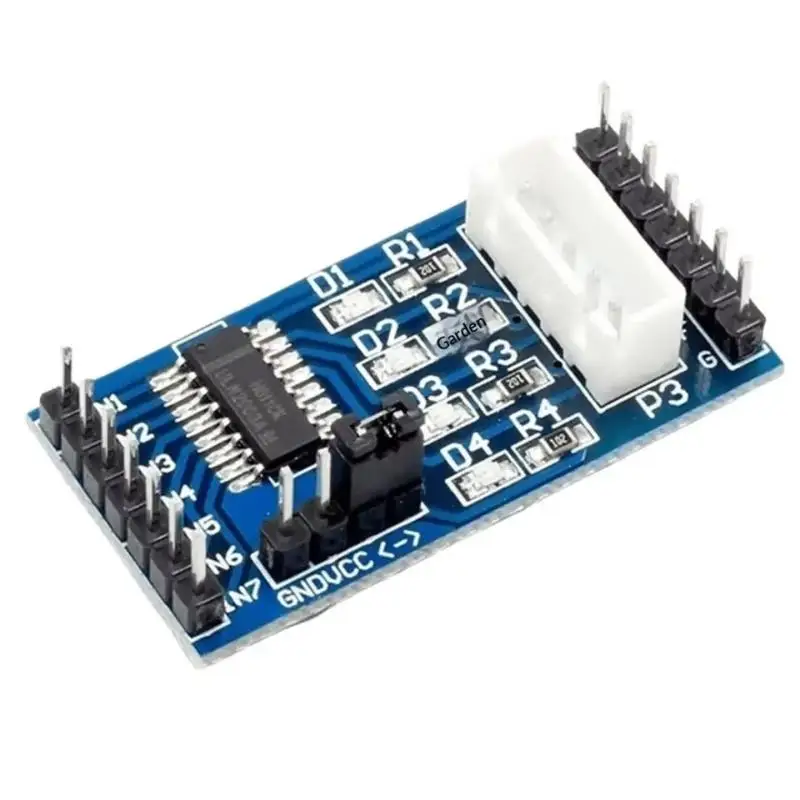

ULN2003 driver board (blue):

1. On-board ULN2003A motor drive chip

2. All pins of the chip have been drawn out for easy connection and use

3. Pin 5-12V power supply

4. onboard 4 signal indicator light

5. onboard XH-5P socket, can be directly connected to 28BYJ-48 type stepper motor

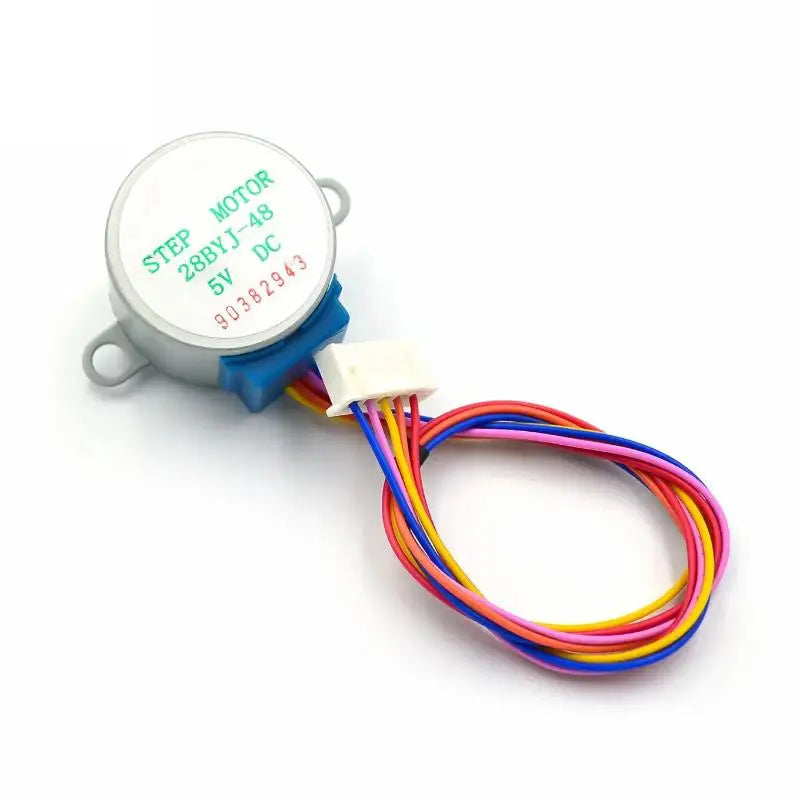

5V stepper motor:

Voltage: 5V

Step Angle: 5.625/64

Deceleration ratio: 1/64

5-wire 4-phase can be driven by ordinary uln2003 chip, can also be connected into 2-phase use, can be matched. The development board is used, directly inserted, easy to use, and the stepper motor is used on the development board

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
