SPECIFICATIONS

Brand Name: MKronRC

Choice: yes

Colour: Black

For Vehicle Type: Helicopters

Four-wheel Drive Attributes: Shell/Chassis/Wing/Head

High-concerned chemical: none

Material: Composite Material

Model Number: ELRS PP 2.4GHz RX Receiver

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: RECEIVERS

Recommend Age: 12+y,14+y

Remote Control Peripherals/Devices: RECEIVERS

Size: 10x10mm

Technical parameters: KV1100

Tool Supplies: Battery

Upgrade Parts/Accessories: ELRS PP 2.4GHz RX Receiver

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

semi_Choice: yes

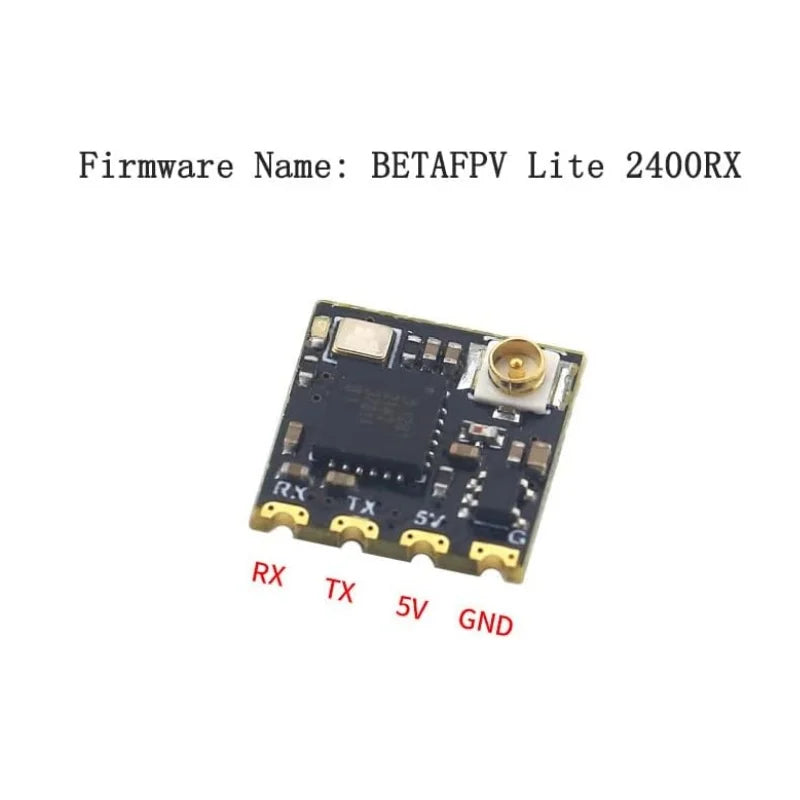

ExpressLRS ELRS 2.4GHz SX1280 Nano Receiver 10x10mm Nano Long Range Receiver for BETAFPV Lite 2400 RX FPV Drones RC Quadcopter EP1 Compatible

1. 🚀 ExpressLRS Nano with PA+LNA for Ultimate Range
Powered by the SX1280 RF chip with integrated power amplifier and low-noise amplifier, this nano receiver delivers a robust 100mW telemetry link and exceptional long-range sensitivity, keeping your control solid even in extreme FPV flights.

2. ⚡ 500Hz Max Refresh Rate, Ultra-Low Latency
Experience lightning-fast response with a refresh rate adjustable from 25Hz up to 500Hz. The CRSF protocol ensures seamless communication with Betaflight, giving racers and freestyle pilots the competitive edge they demand.

3. 🌐 Hassle-Free WiFi Firmware Updating
No adapters, no drivers needed! Power up the receiver, connect to its built-in WiFi hotspot (password: expresslrs), and simply upload the latest ELRS firmware via a web browser at 10.0.0.1 – truly plug and upgrade.

4. 🪶 Micro 10x10mm Size, Only 0.42g

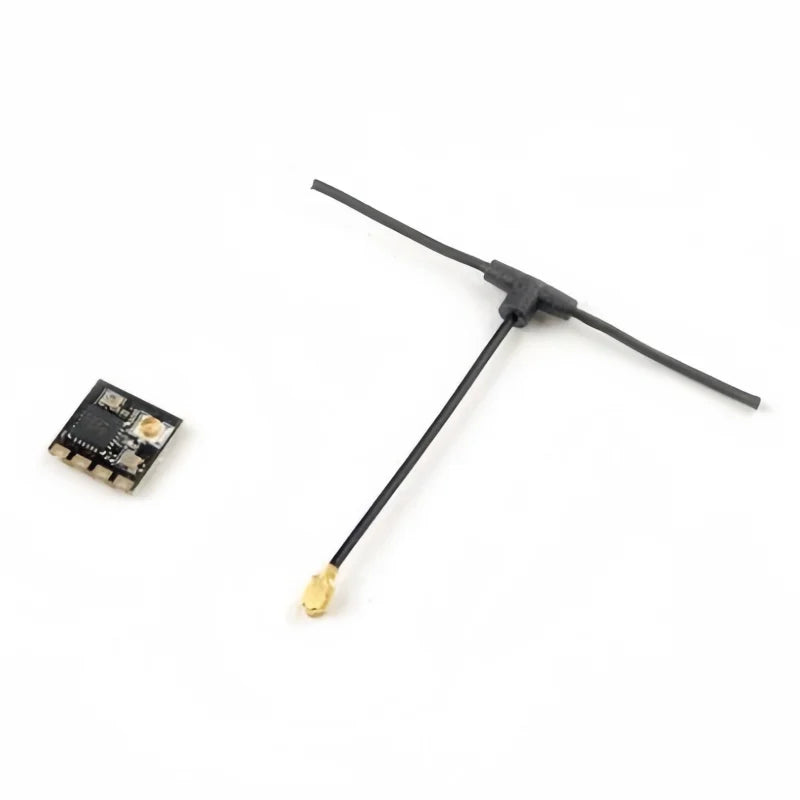

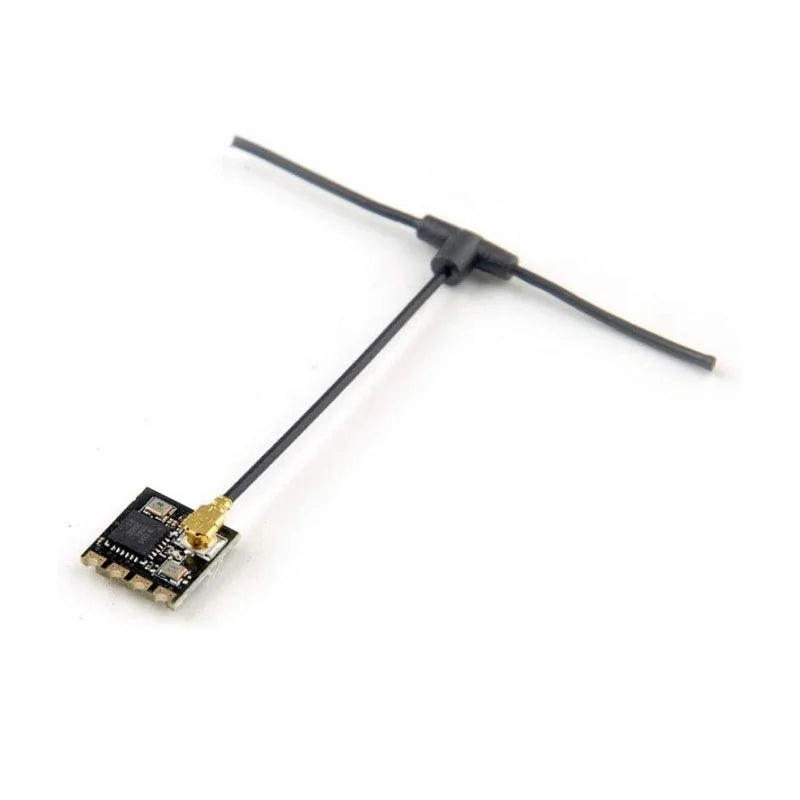

Ultra-compact and feather-light, this receiver disappears into the tightest toothpick or micro drone builds. The included custom-tuned IPEX dipole T-antenna is professionally tested to guarantee both strength and durability without adding weight.

5. 🔗 Wide Compatibility & 3-Cycle Smart Binding
Seamlessly works with BETAFPV Lite, EP1, and any 2.4GHz ExpressLRS transmitter. Binding is foolproof: simply power-cycle the receiver three times until the LED double-flashes, then run the ELRS.LUA script on your radio – takes seconds.

Specifications:

ELRS MINI 2

Type: ISM

ESP8285 processor

2.4GHz Omnidirectional T Antenna

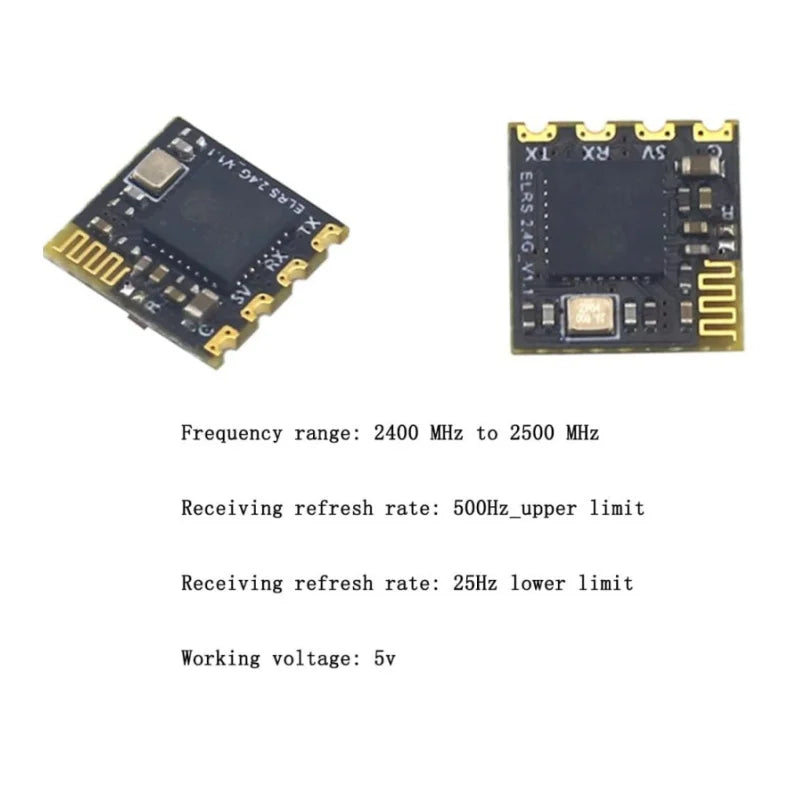

Frequency range: 2400 MHz to 2500 MHz

Receiving refresh rate: 500Hz_upper limit

Receiving refresh rate: 25Hz lower limit

Working voltage: 5v

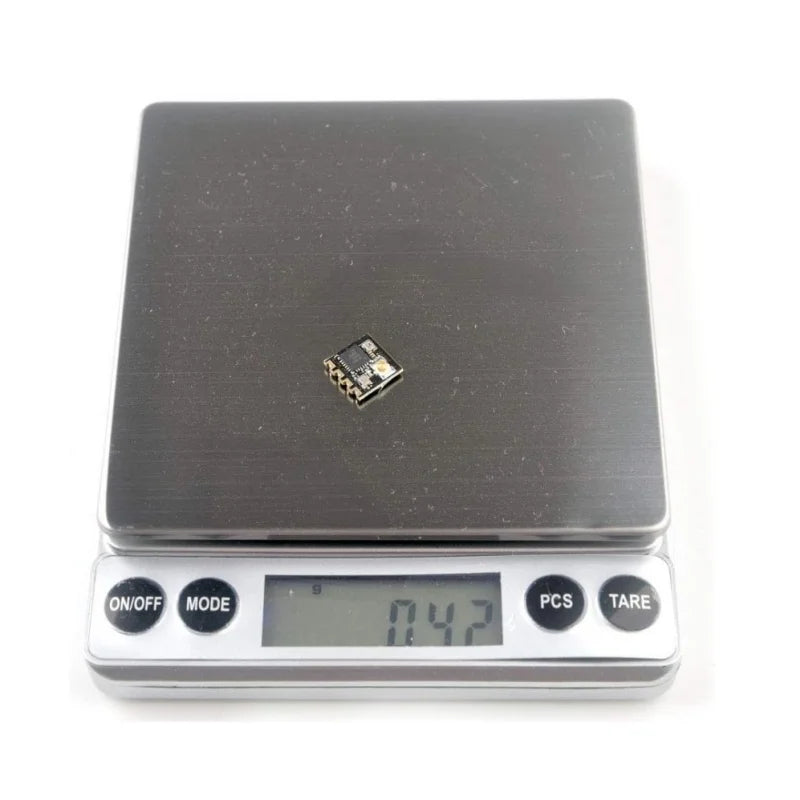

Weight: 0.42g (without antenna)

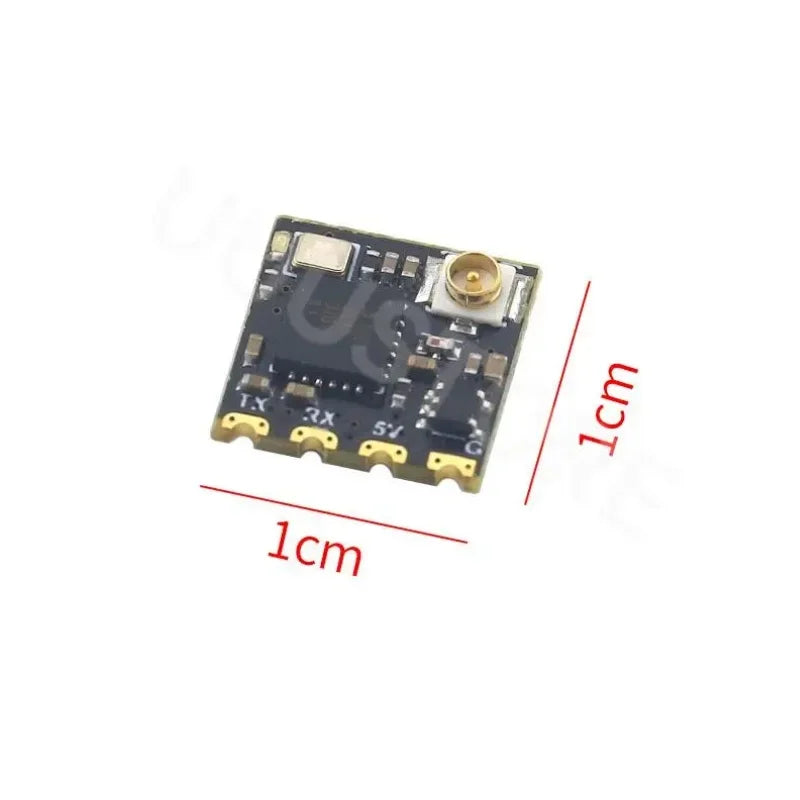

Size: 10mm*10mm*3mm Working Agreement: CRSF(Betaflight)

Product Introduction

CYCLONE series receivers are based on ExpressLRS open source architecture and programs, we

3 types of RX receiver modules are released. Both use ESP8285 MCU. you

Firmware can be upgraded via WIFI, which is very friendly. Usually you just give the receiver

After the power is supplied and the remote control is turned off, the ExpressLRS can be found hot after 60s by default.

Click, connect to this hotspot through a computer or mobile phone, the password is expresslrs, then

Then you can visit 10.0.0.1 to upload the receiver firmware.

Product Difference

Nano 2400RX receiver with power amplifier (PA+LNA). Therefore, it has .

100mW telemetry output and better sensitivity at longer distances with IPEX Gen 1 antenna

base, with external dipole T-type antenna (customized by professional factory, each antenna is specially

Industry instrument testing, to ensure quality and light and durable) is currently not on the shelves!

Due to the low latency and high refresh rate RF modules of the ELRS Nano receivers, they are ideal for

Combined FPV competition and remote FPV. At the same time these receivers have ultra-light and ultra-small dimensions.

There is no PA/LNA on the ELRS mini 1 receiver _ so its telemetry power is the same as the RF chip

The SX1280 has the same power at 17mW. Using high-efficiency pagoda ceramic antenna, in

Efficient acceptance sensitivity in limited space

There is no PA/LNA on the ELRS mini 2 receiver, so its telemetry power is the same as the RF chip

The SX1280 has the same power at 17mW. Adopt IPEX 1st generation antenna base, with dipole

Sub-T antenna (customized by professional factory, each antenna has been tested by professional instruments to ensure

quality and lightweight and durable)

Bind Procedure:

1. After the receiver is connected to the flight controller, power supply to the flight controller by connecting the USB. Insert for the first time

After USB, disconnect the USB as soon as you see the LED light on the receiver goes out. repeat the operation once,

When the USB is plugged in for the third time, the LED will start to flash twice, which means the receiver is in pairing mode.

2. Connect the ES24TX module or DIY 2.4G ELRS tuner module to the remote control correctly

After that, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD

Card/Scripts/tools, then run ELRS.LUA for Bind operation.

3. After the binding is successful, the LED on the receiver will be always on, and the telemetry signal can also be received.

No.

4. Receiver LED status meaning:

PP receiver: always on, the frequency pairing is successful or the connection and communication are normal, the LED double flashes are in the frequency pairing, the LED slow flashing cannot receive the transmitter signal

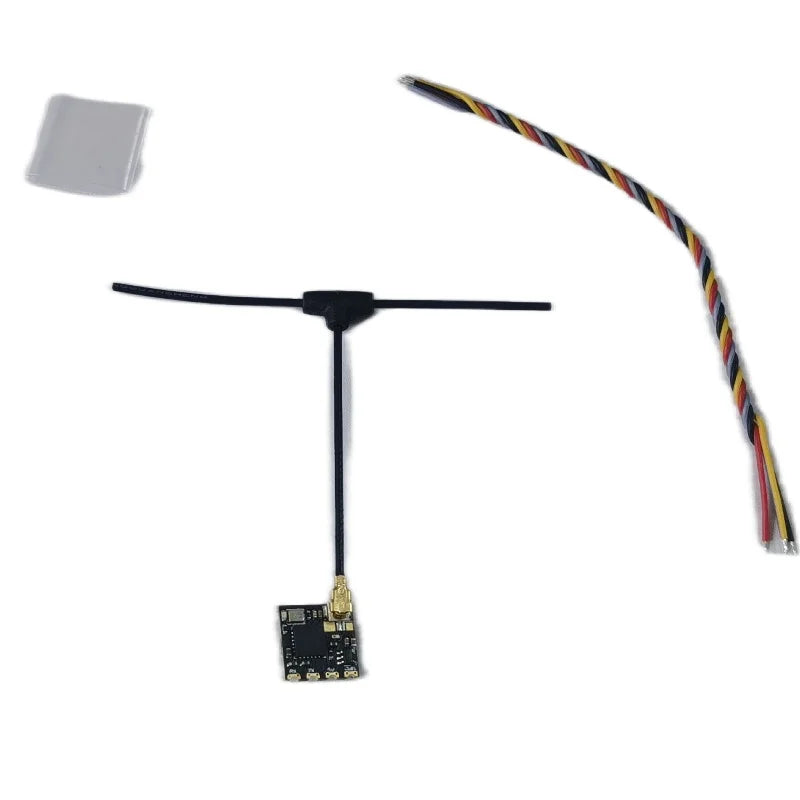

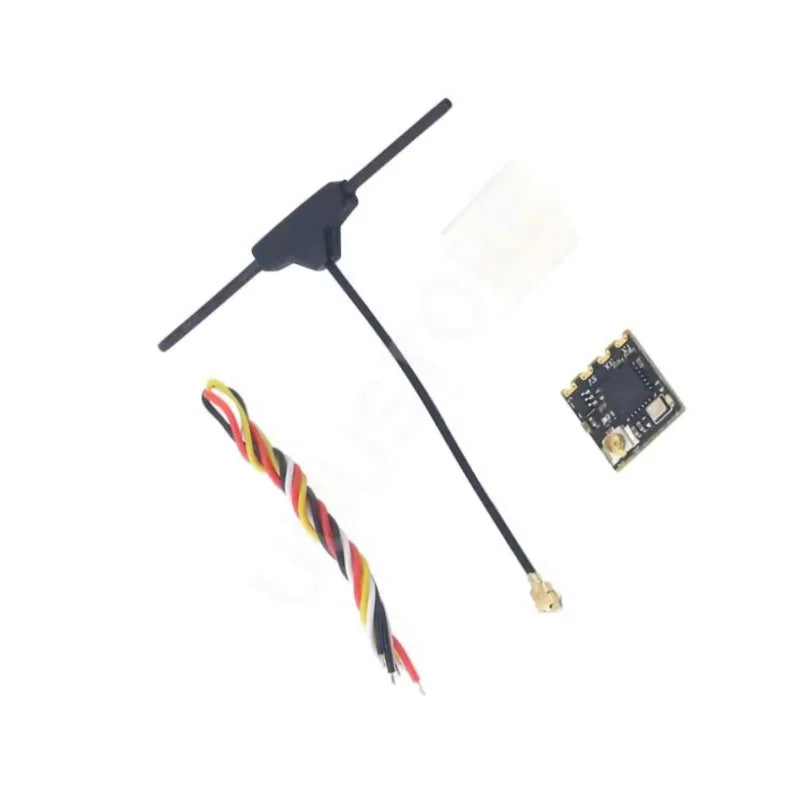

Packing List:

• Brand New

• ELRS PP 2.4GHz RX Receiver
