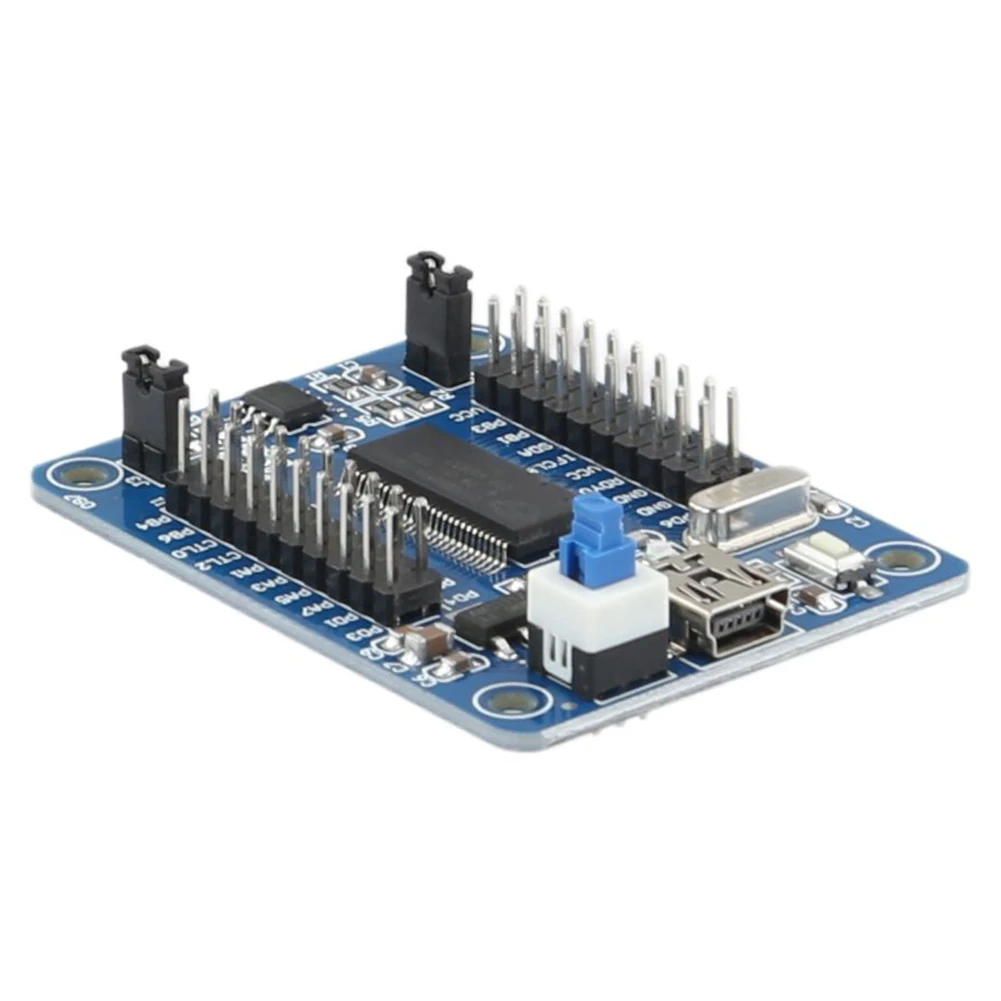

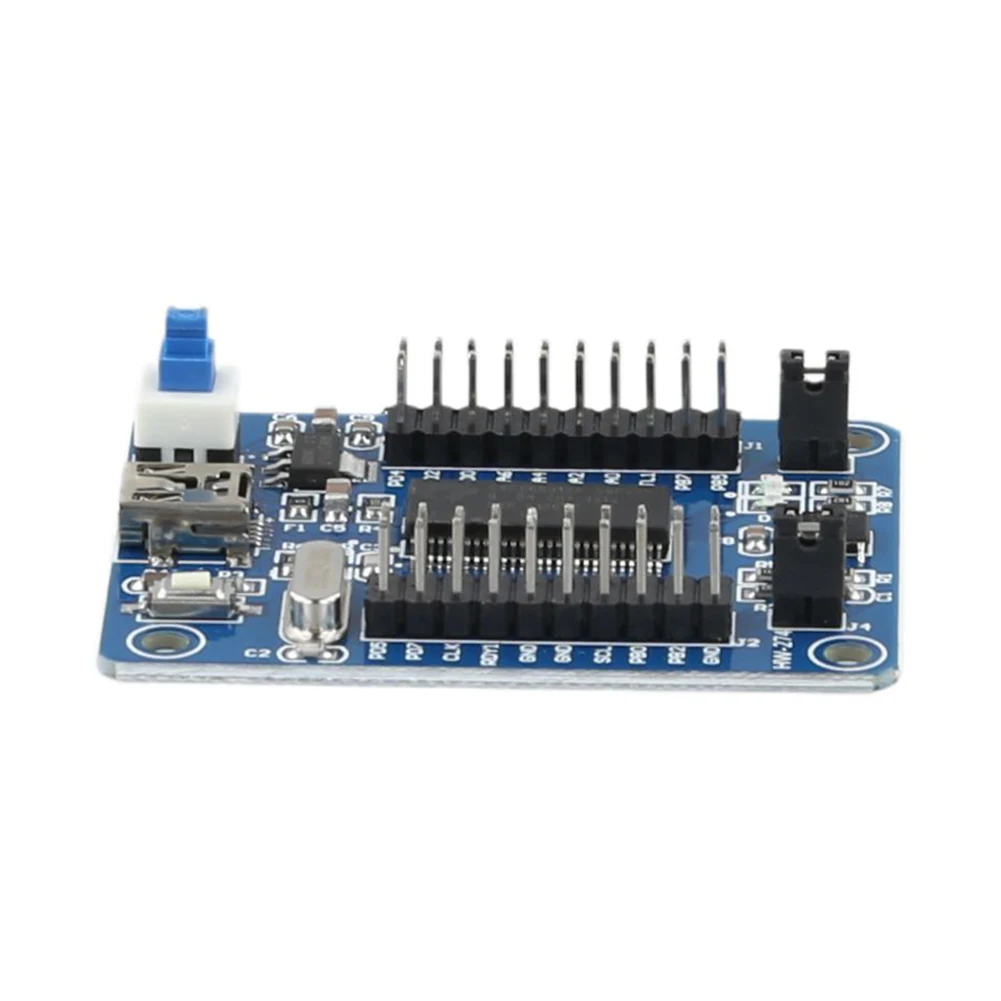

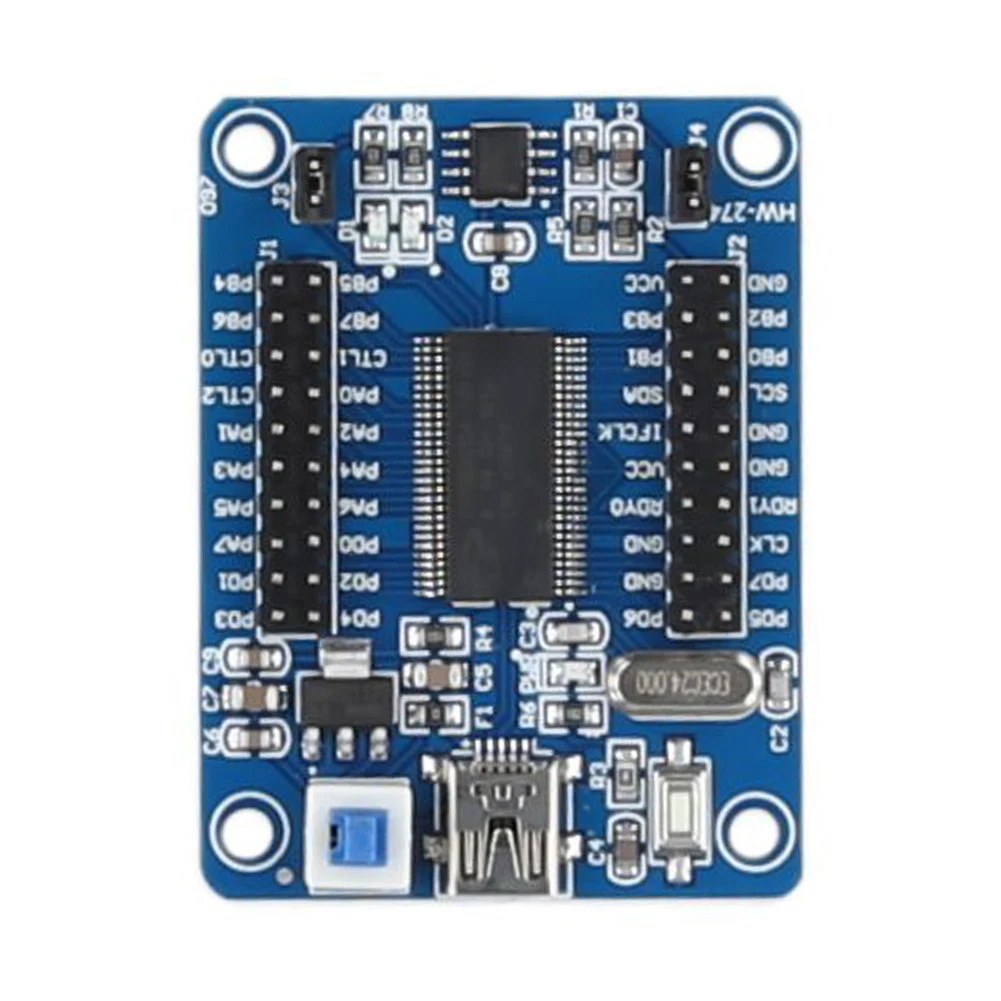

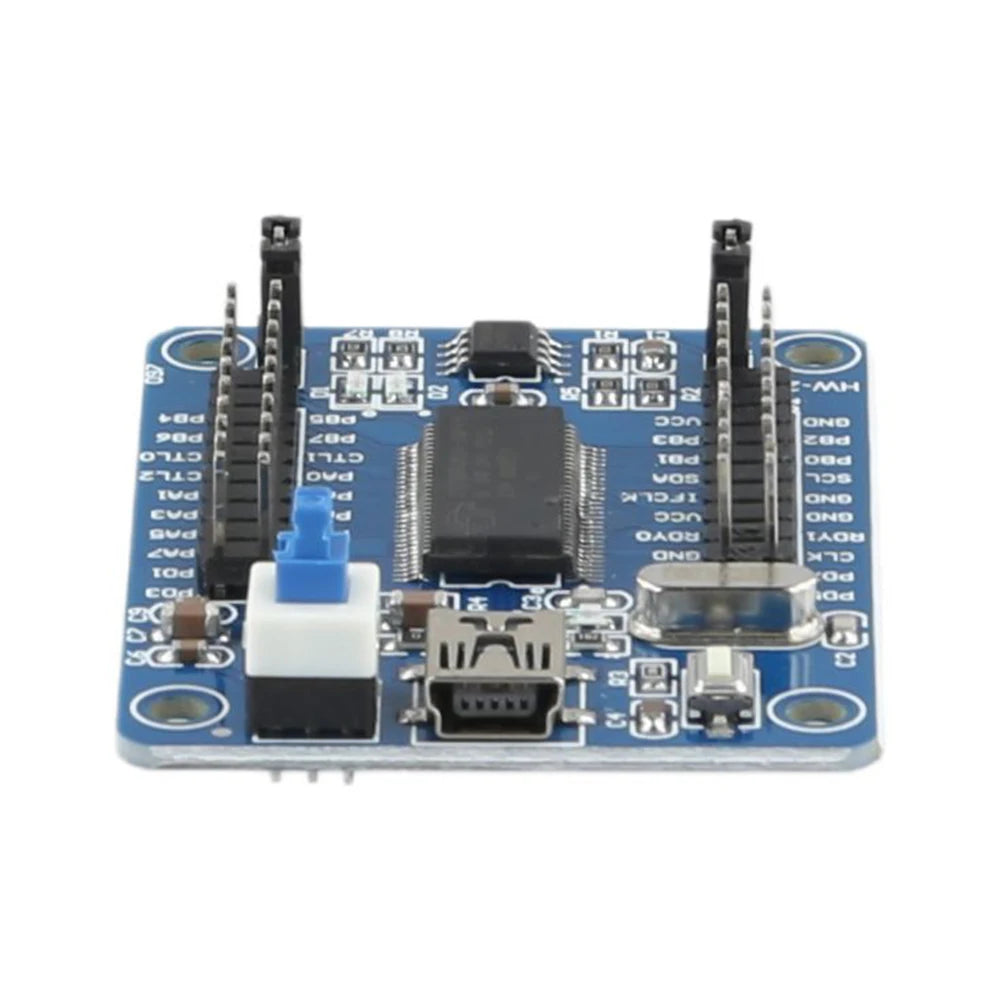

EZ-USB FX2LP CY7C68013A USB2.0 Core Board Logic Analyzer Logic Analyze Mini USB Core Board Development Board Logic Analyzer Board Module Development Board Module
Feature:
1. Utilizes CY7C68013A-56 Chip: Low-power enhanced 51 core with 16KB program data space, USB development board operating at a frequency of 48MHz for efficient performance.
2. High-Speed 480Mbps Transfer: Compliant with USB 2.0 specifications, core board logic analyzer supporting a fast transfer rate of 480Mbps, while also backward compatible with USB 1.1.
3. Firmware and EEPROM: Provides a complete in-system programming solution, mini USB core board development board allowing firmware to be directly downloaded via USB connection. Equipped with a built-in 16K (24LC128) program memory (EEPROM) for storing VID/PID and USB firmware, meeting the needs of CY7C68013A.
4. Standardized GPIO Pins: All GPIO pins are conveniently located and accessible through a 2.54mm standard interface, development board module enabling easy expansion and customization for learners and designers.
5. Enables Core Functionality with Compatible Board Firmware: When used in conjunction with the corresponding board firmware, this logic analyzer development board module allows you to achieve essential functionality and perform advanced analysis tasks.

Specification:
Chip: CY7C68013A-56
Frequency: 48 Mhz
High Speed Transmission Protocol Standard: 480 Mbps
Interface: Conforms To The Usb2.0 Specification And Is Backward Compatible With Usb1.1

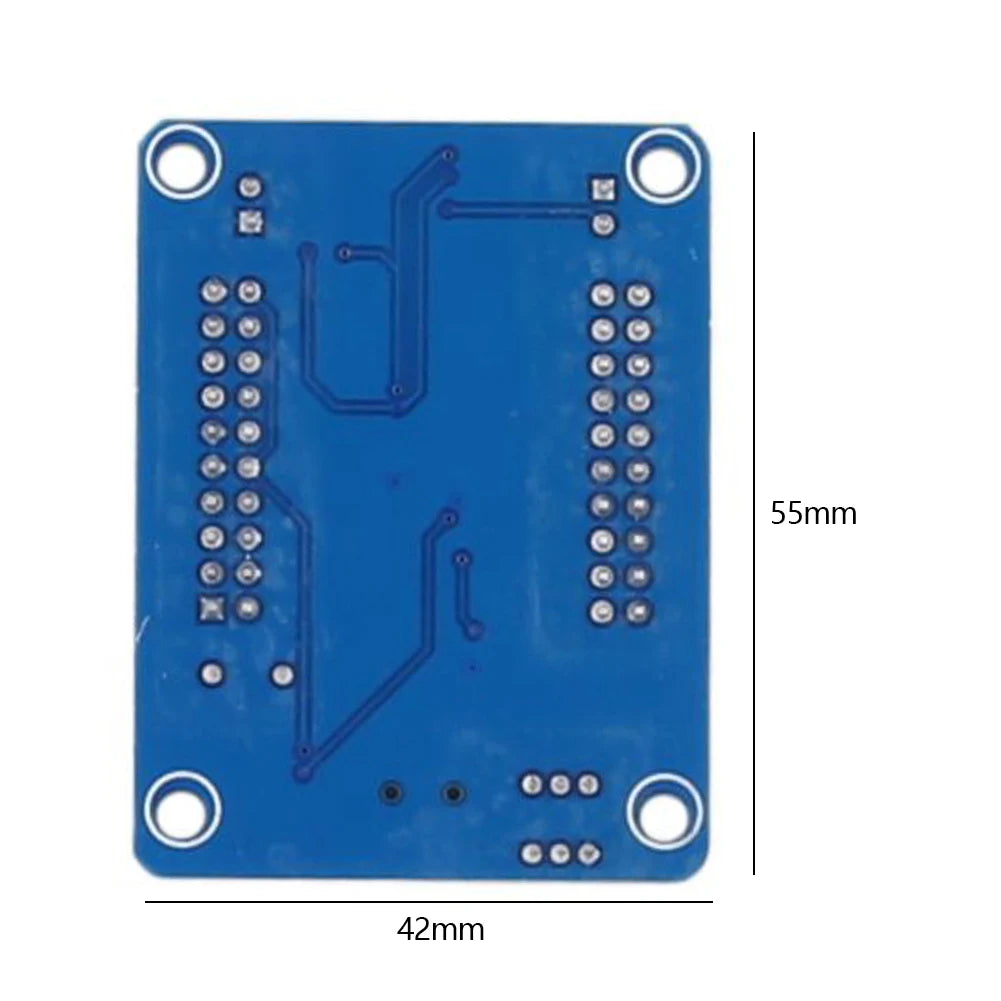

Dimensions: 55 X 42 X 13 MM/2.16 X 1.65 X 0.51 In
Type: Module
Condition: New

Note:
Due To The Different Monitor And Light Effect, The Actual Color Of The Item Might Be Slightly Different From The Color Showed On The Pictures. Thank You!
Please Allow 1-2 CM Measuring Deviation Due To Manual Measurement.

1 X EZ-USB FX2LP CY7C68013A USB Development Board
