SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: Programmer

High-concerned chemical: none

Operating Temperature: Programmer

Origin: Mainland China

Type: Module

is_customized: Yes

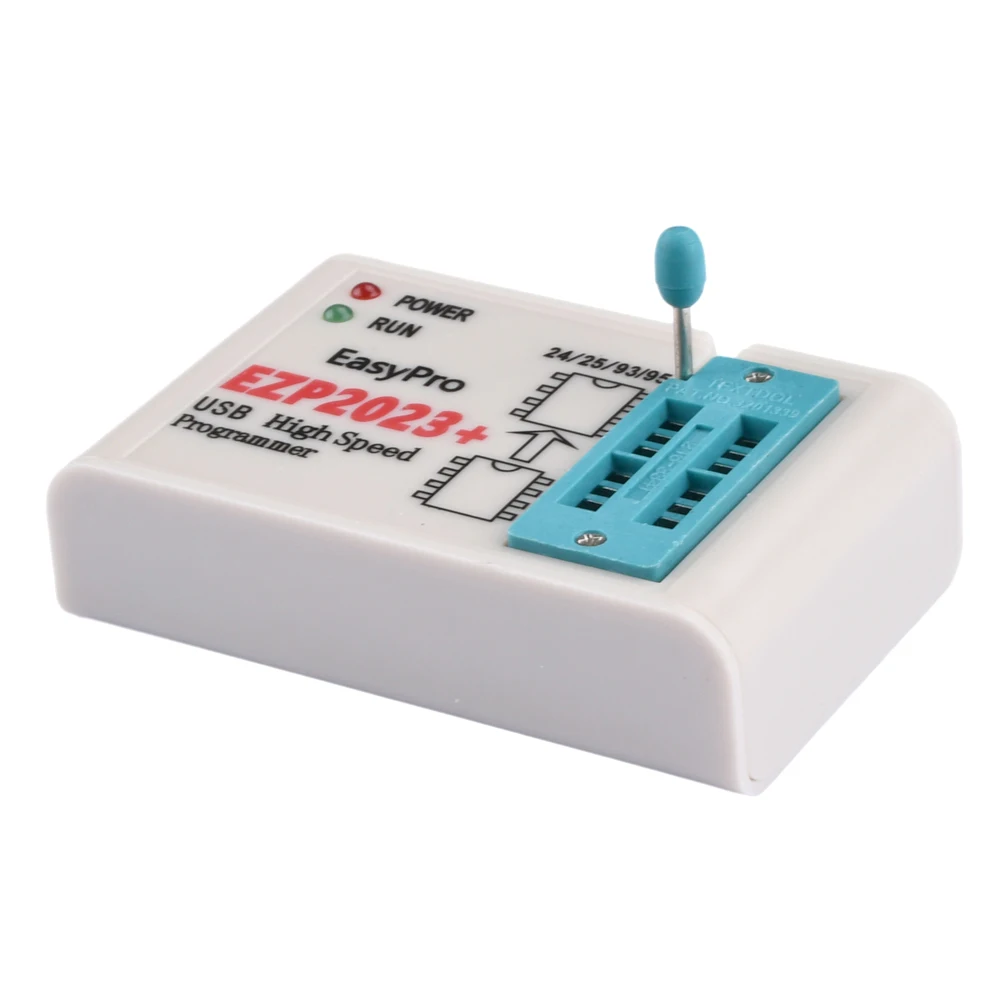

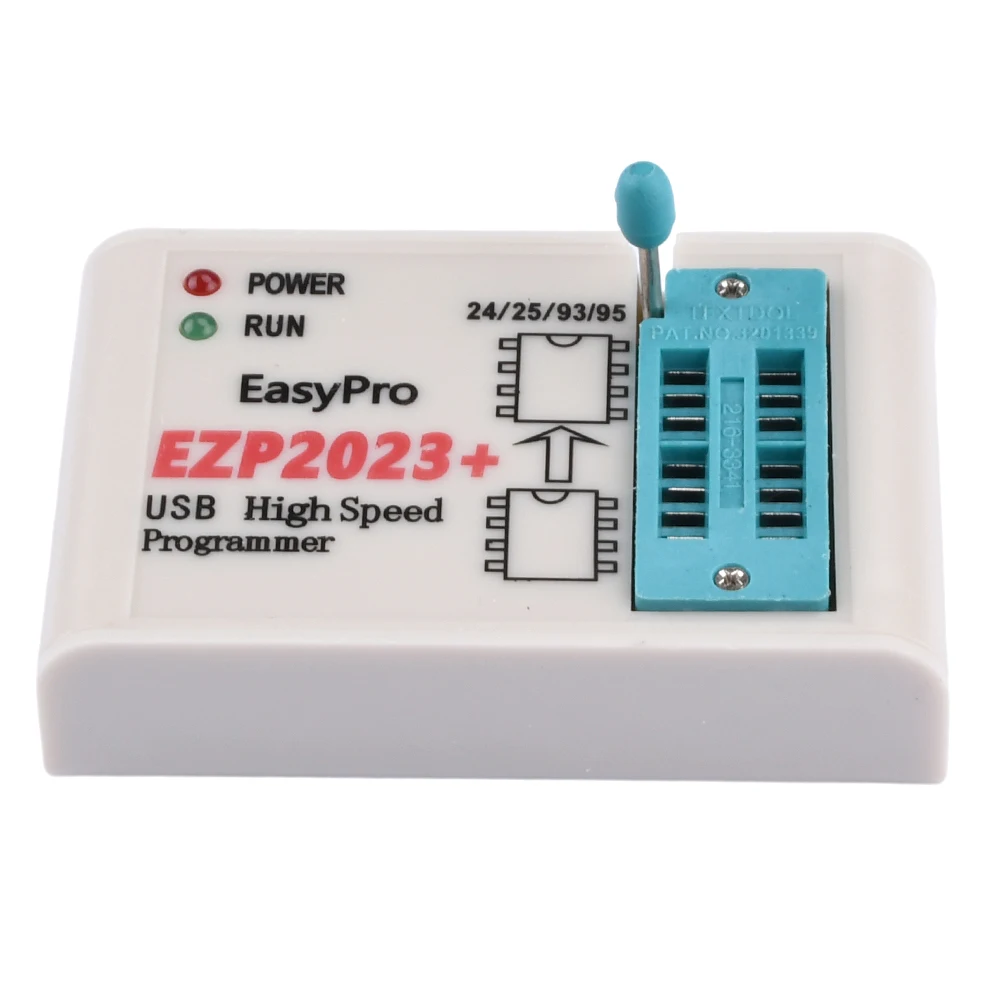

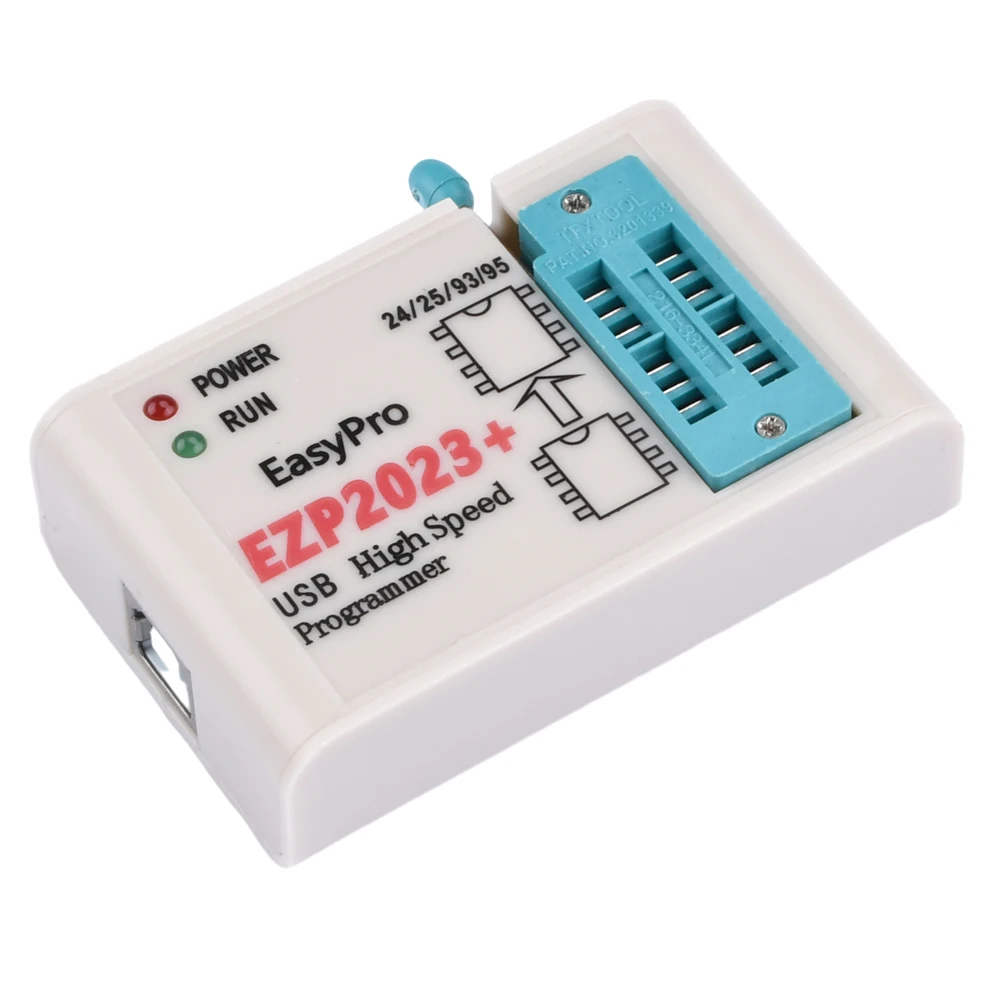

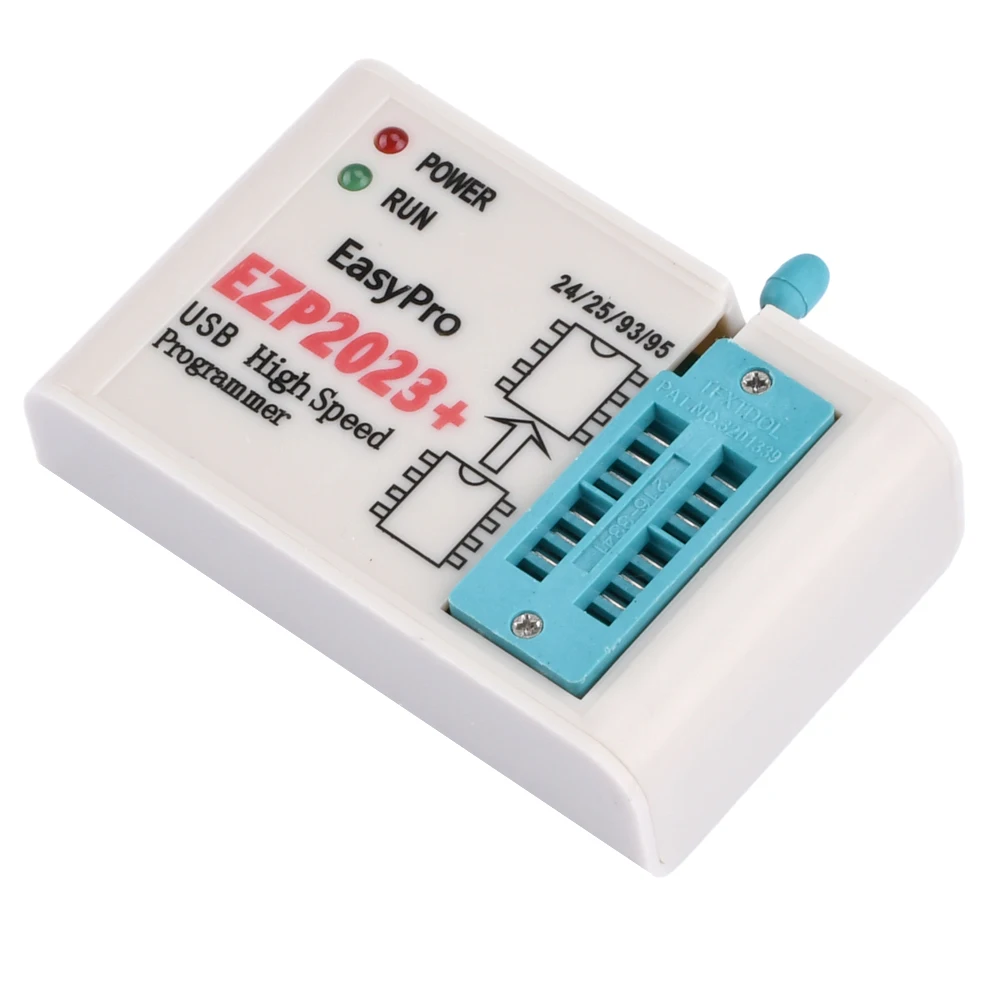

EZP2023+High speed SPI FLASH Programmer with Burning Stand Expansion Board Kit Support 24 25 26 93 95 EEPROM 25 Flash Bios

Product features:

1. Faster read and write speed, reading EN25T80 only takes 3 seconds and writing EN25T8 only takes 9 seconds. It is currently the fastest BIOS chip programmer on the market.

2. It can automatically identify the chip model (mainly for 25 series chips, requiring manual selection of 24/25/93/25/95 EEPROM).

3. Support automatic detection of whether the chip is placed.

4. The chip power supply voltage is automatically selected.

5. Fully supports 25 SPI FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM, 95 EEPROM and other series of storage chips.

Performance characteristics:

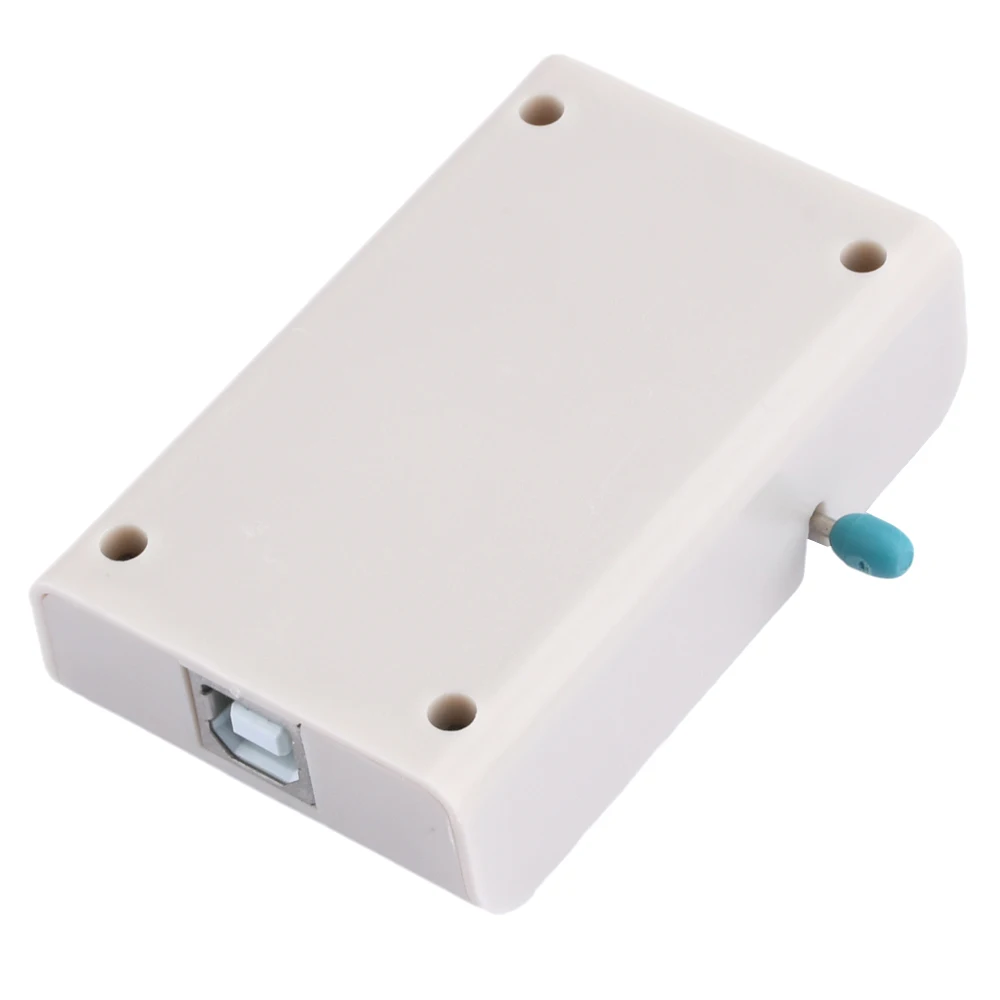

1. USB 2.0 interface, with a speed of up to 12Mbps.

2. Ultra fast read and write speed, reading EN25T80 only takes 3 seconds and writing EN25T80 only takes 9 seconds, making it the fastest BIOS chip programmer on the market currently.

3. Automatically identify the chip model.

4. Automatically detect whether the chip is properly placed.

5. Automatically select the chip power supply voltage.

6. Automatic offline copying.

7. Support PC software and programmer firmware upgrades.

8. Fully supports storage chips such as 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM, and other series.

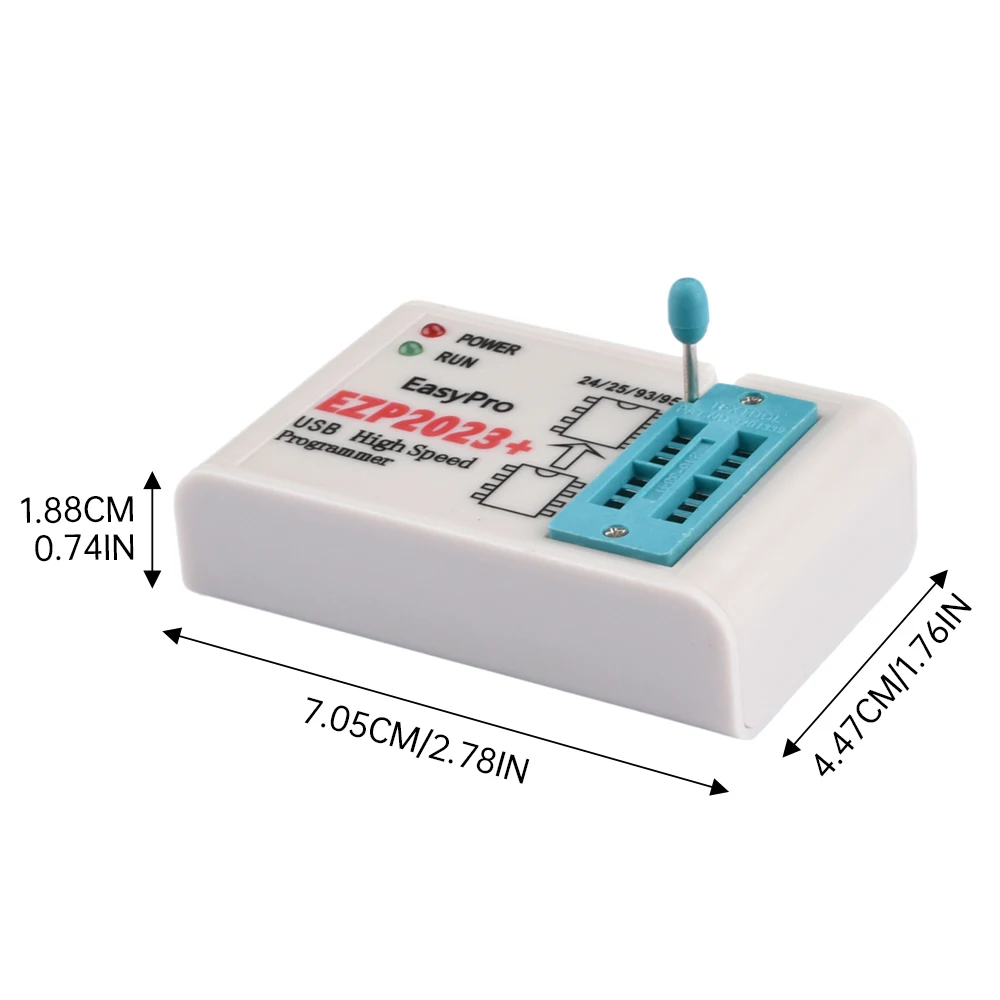

9. Approximately 7.1mm x 4.3mm x 2mm in size, compact and easy to carry, about the size of a regular business card.

10. List of supported chip models: Supports almost all manufacturers' 24, 25, and 93 series chips on the current market!

Application areas:

1. Home appliance maintenance: Suitable for flashing storage chips on color TVs, DVDs, computer motherboards, and hard drives in the home appliance maintenance industry.

2. Product development: Burn test chips during the company's product development process.

3. Factory mass production: The fully automatic offline copying function is particularly suitable for factory batch burning of memory chips.

Product List:

Package 1:

1. Programmer host: 1 unit

2. One high-speed shielded USB communication cable

3. Product CD * 1

4. SOP8/SOP16-DIP8 SMT adapter socket * 2 pieces

5. Pin arrangement * 4

Package 2:

1. Programmer host: 1 unit

2. One high-speed shielded USB communication cable

3. Product CD * 1

4. SOP8/SOP16-DIP8 SMT adapter socket * 2 pieces

5. SOP8 150mil * 1 piece

6. SOP8 200-209mil * 1 piece

7. SOP16 to DIP8 300mil * 1 piece

8. Needle arrangement * 4

Package 3:

1. Programmer host: 1 unit

2. One high-speed shielded USB communication cable

3. Product CD * 1

4. SOP8/SOP16-DIP8 SMT adapter socket * 2 pieces

5. SOP8 150mil * 1 piece

6. SOP8 200-209mil * 1 piece

7. SOP16 to DIP8 300mil * 1 piece

8.1.8V adapter board * 1

9. Needle arrangement * 4

Package 4:

1. Programmer host: 1 unit

2. One high-speed shielded USB communication cable

3. Product CD * 1

4. SOP8/SOP16-DIP8 SMT adapter socket * 2 pieces

5. SOP8 150mil * 1 piece

6. SOP8 200-209mil * 1 piece

7. SOP16 to DIP8 300mil * 1 piece

8.1.8V adapter board * 1

9. SOP8/16 adapter socket * 1

10. SOP8 clip wire * 1 piece

11. Four needles per row

Package 5:

1. Programmer host: 1 unit

2. One high-speed shielded USB communication cable

3. Product CD * 1

4. SOP8/SOP16-DIP8 SMT adapter socket * 2 pieces

5. SOP8 150mil * 1 piece

6. SOP8 200-209mil * 1 piece

7. SOP16 to DIP8 300mil * 1 piece

8.1.8V adapter board * 1

9. SOP8/16 adapter socket * 1

10. SOP8 clip wire * 1 piece

11. Two WSON8 patch adapters

12. SOP8-16 patch adapter * 1

13. TSSOP106/8 adapter socket * 1

14. LCD/LED chip burning wire holder * 1

15. Needle arrangement * 10 pieces

16. One EDID cable

Package 6:

1. Programmer host: 1 unit

2. One high-speed shielded USB communication cable

3. Product CD * 1

4. SOP8/SOP16-DIP8 SMT adapter socket * 2 pieces

5. SOP8 150mil * 1 piece

6. SOP8 200-209mil * 1 piece

7. SOP16 to DIP8 300mil * 1 piece

8.1.8V adapter board * 1

9. SOP8/16 adapter socket * 1

10. SOP8 clip wire * 1 piece

11. Two WSON8 patch adapters

12. SOP8-16 patch adapter * 1

13. TSSOP106/8 adapter socket * 1

14. LCD/LED chip burning wire holder * 1

15. Needle arrangement * 10 pieces

16. One EDID cable

17. QFN8 Test Stand * 2

18. SOP8 adapter board * 1

Attention: Due to the large number of accessory models, the color of each batch of accessories may vary, but it does not affect their use!
