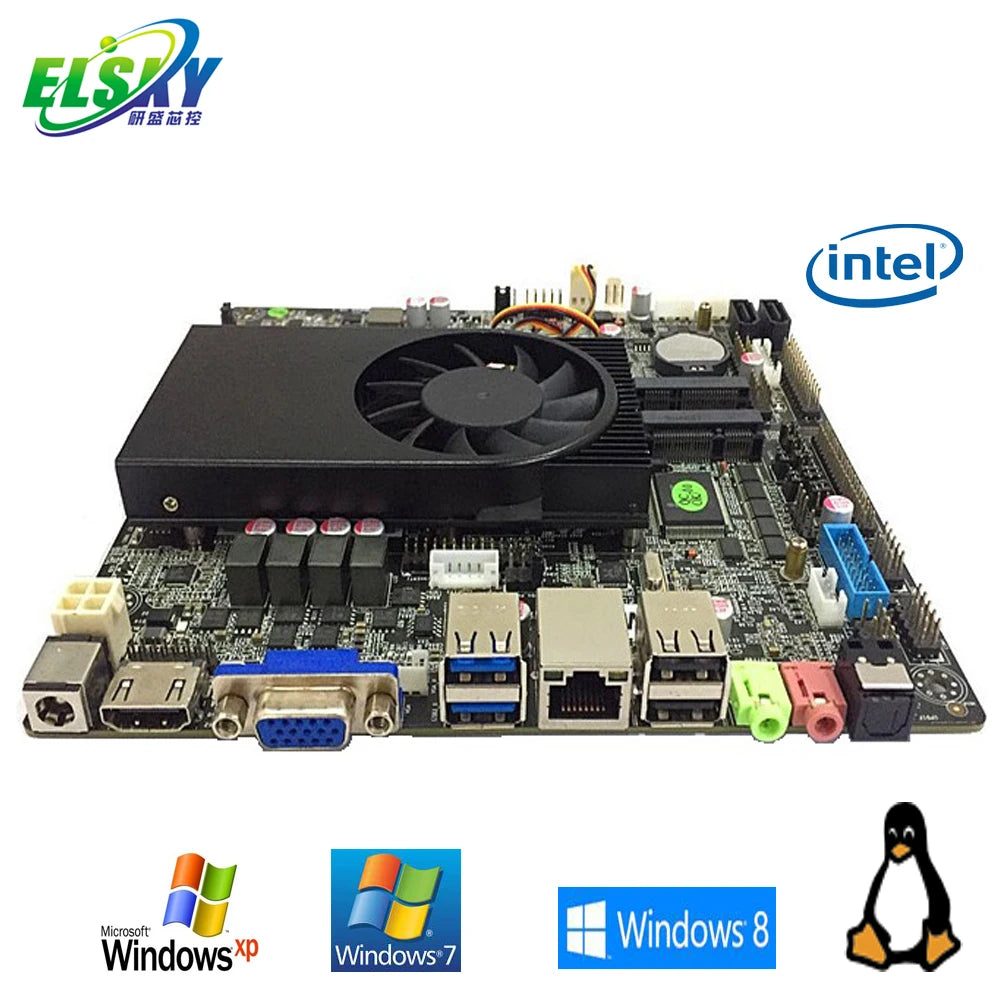

SPECIFICATIONS

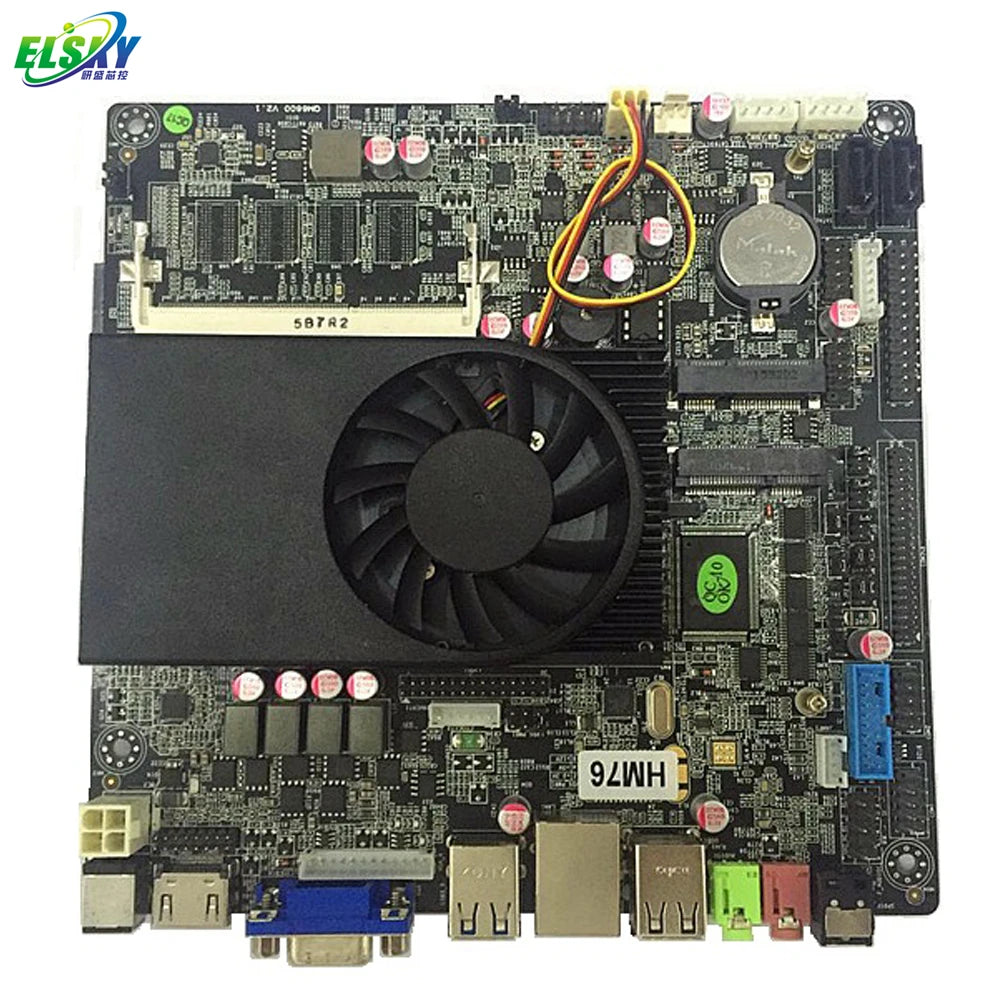

Motherboard size

170mm(L)*170mm(W)*26mm(H)

CPU

Support 988B pin 2nd and 3rd generation full series of notebook CPUs

Chipset

6 Series chipset:HM65,HM67,QM67

7 Series chipset:HM70,HM76,HM77,QM77

Power supply

1*DC_IN

Support 12V voltage input, the inner diameter of the DC head is 2.5MM

Full-load power consumption of the motherboard: about 60W. It is recommended to use 12V7A or above power supply

1*DC_PWR

Memory

1* NB-DDR3 memory slot, support 1333/1600M memory, maximum support 8GB

Display

2nd generation integrated ® HD3000 graphics controller, support single display, dual display copy, dual display expansion, single display under DOS

3rd generation integrated ® HD4000 graphics controller, support single display, dual display copy, dual display expansion, single display under DOS

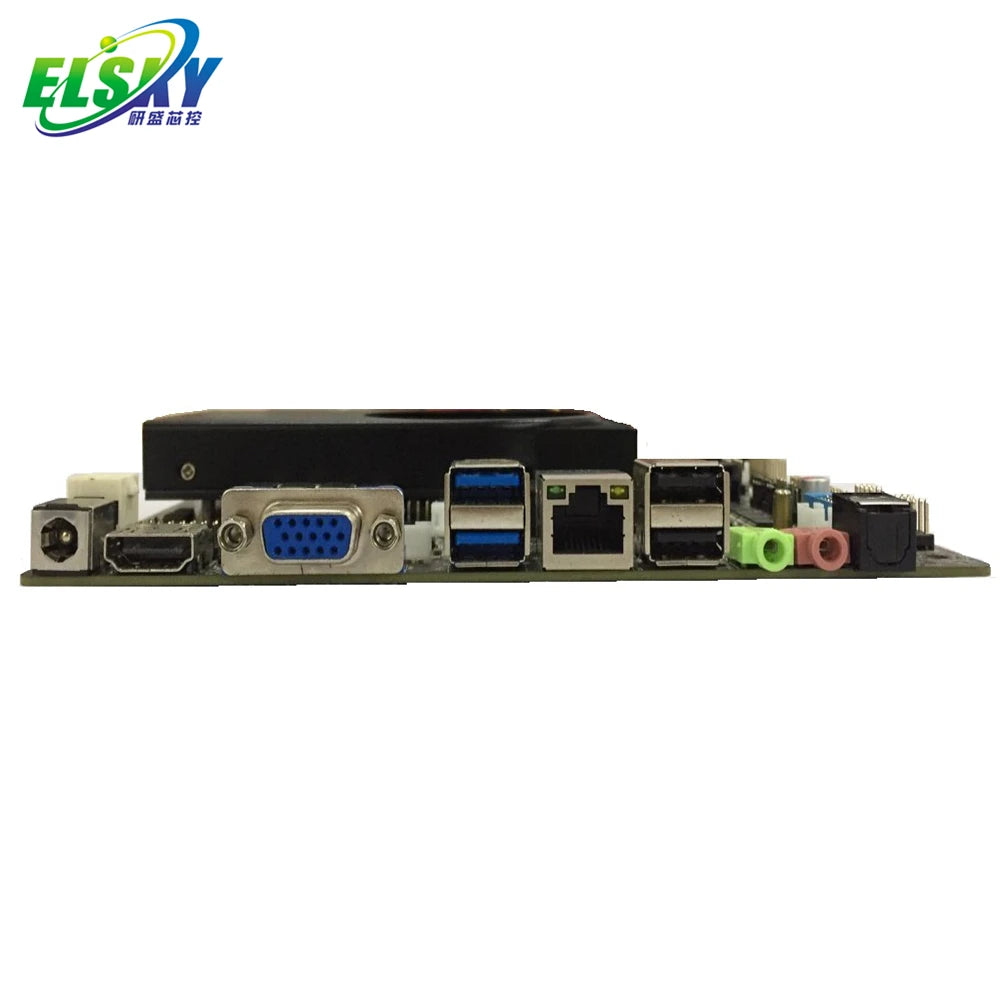

1*VGA port

Support resolution 1920*1200@60HZ

1*VGA_Hpin

1920*1200@60HZ             (12Pin,1*12Pin,2.0mm)

1*HDMI 1.4 port

Support resolution 1920*1080@60HZ

1*JHDMI pin

Support resolution 1920*1080@60HZ        (16Pin,2*8Pin,2.0mm)

1*LVDS pin

Support resolution 1920*1080@60HZ       (30Pin,2*15Pin,2.0mm)

1*LVDS_PWR1pin

LVDS voltage control pin                       (6Pin,2*3Pin,2.54mm)

1*INVERT pin

LVDS backlight switch control pin                      (6Pin,1*6Pin,2.0mm)

Network

1/2*LAN port

Support 100M Realtek 8015E network card and Gigabit Realtek 8111F Gigabit card optional;

Support Wake on LAN, PXE diskless boot function

1*MINI_PCIE port

Support WIFI/3G/4G (the motherboard has no SIM card slot by default, it can be changed, after the change, it supports 3G/4G)

Hard disk

1*SATA1 port

Standard SATA3.0 hard disk interface, maximum transfer speed 6.0 Gbps

1*SATA2 port

Standard SATA2.0 hard disk interface, maximum transmission speed 3.0 Gbps

1*MSATA port

Support MINI_SATA disk, support MSATA 3.0

2*SATA_PWR pin

Hard disk power supply pin, available for 5V, 12V     (4Pin,1*4Pin,2.54mm)

Sound

Integrated Cmedia HS-100B high-fidelity USB audio chip;

1*LIN_OUT port

Support audio output (green)

1*MIC_IN port

Support microphone input (pink)

1*JAMP pin

Support 8 ohm 5 watt speaker output          (4Pin,1*4Pin,2.0mm)

USB

2*USB3.0 port

Rear standard USB3.0 interface

2*USB2.0 port

Rear standard USB2.0 interface

1*F_USB pin

Front USB2.0 pins, one set has 2*USB2.0      (9Pin,2*5Pin,2.54mm)

1*F_USB2 pin

Front USB2.0 pins, one set has 2*USB2.0     (9Pin,2*5Pin,2.54mm)

The default F_USB2 pin 1/3/5/7 has no signal, and the USB signal of the USB sound card is one of the two

1*F_USB3.0 pin

Front USB3.0 pin, one set has 2*USB3.0 (19Pin,2*10Pin,2.0mm)

Front USB3.0 pin, one set has 2*USB3.0

Switch function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin (9Pin,2*5Pin,2.54mm)

1*AT_ATX pin

Hardware control power-on pin                       (3Pin,1*3Pin,2.54mm)

Other I/O

COM1 pin

Serial port, support standard RS232        (9Pin,2*5Pin,2.54mm)

COM2 pin

Serial port, support standard RS232/RS422/RS485       (9Pin,2*5Pin,2.54mm)

6C motherboard supports RS232/RS422/RS485 optional by default; 2C motherboard does not support by default, it can be changed to support;

COM3~6 pin

Serial port, support standard RS232                      (39Pin,2*20Pin,2.0mm)

JPCOM1 pin

Control COM1 pin 9 voltage 0V/5V/12V optional    (6Pin,2*3Pin,2.0mm)

JPCOM2 pin

Control COM2 pin 9 voltage 0V/5V/12V optional     (6Pin,2*3Pin,2.0mm)

1*SIM Card slot (optional)

Support SIM card, SIM card is required when using 3G/4G (default is none)

1*LPT pin

Parallel port, standard print port pin                     (25Pin,2*13,2.54mm)

1*CLR_CMOS pin

Motherboard reset and discharge pins       (3Pin,1*3Pin,2.54mm)

1*PS/2 pin

PS/2 keyboard and mouse pins             (7Pin,1*7Pin,2.0mm)

2*FAN pin

Fan pin, full speed, does not support temperature control                (3Pin,1*3Pin,2.54mm)

Operating environment

Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing

BIOS

AMI BIOS,Support power-on boot, timing boot, remote switch machine ligent identification

Watch Dog

Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 10,Windows 8,Windows 7,Windows XP,LINUX
