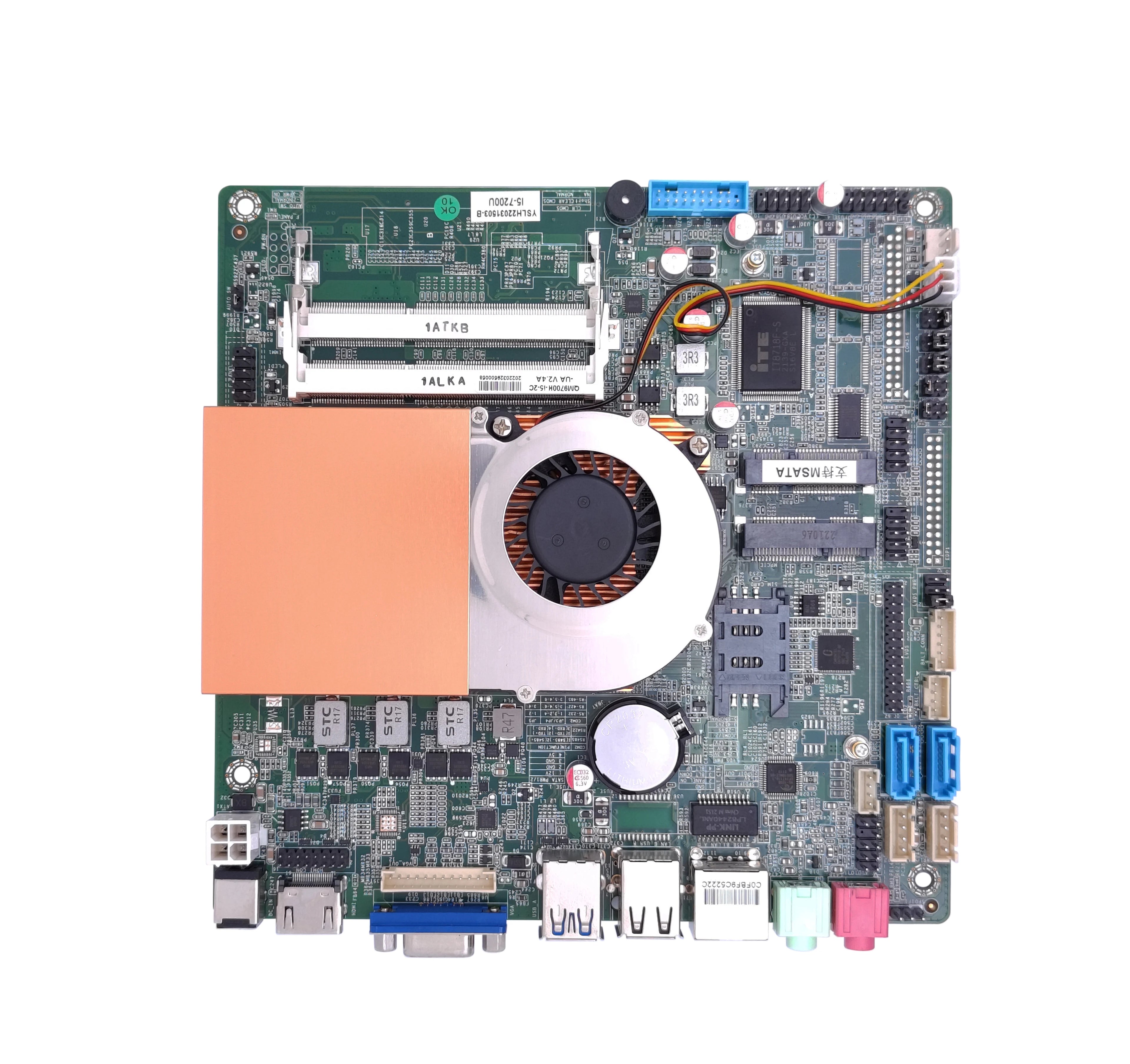

Factory X86 Mini-ITX Motherboard and Processor Kabylake 7th Generation Core I3 I5 I7 DDR 16GB VGA HD-MI EDP/LVDS

Factory X86 Mini-ITX Motherboard and Processor Kabylake 7th Generation Core I3 I5 I7 DDR 16GB VGA HD-MI EDP/LVDS

$820.98

$820.98 $0.00

Description

SPECIFICATIONS

Brand: Elsky

Brand Name: NONE

LAN: 1 OR 2LAN optional

Operating System: Support Android\Linux\Ubuntu System

Origin: Mainland China

Ports: WiFi

Processor: I3/I5/i7

Product Name: QM9600H

Products Status: Stock

Size: MINI-ITX 170mm

Test condition: 100% Test--ed

Warranty: 1 Year

application: Desktop

brand name: ELSKY

chipset: in-tel

chipset manufacturer: In-tel

cpu type: Intel

form factor: Mini-ITX

graphics card type: Integrated

hard drive interface: SATA

item condition: New

maximum ram capacity: 16 GB

memory bank: 2 DDR3 DIMM

memory channel: Double

memory type: DDR3

package: Yes

place of origin: Guangdong, China

ports: Wi-Fi, SATA, VGA , PCI-Express X16, PCI-Express X8, PCI-Express X4, USB 2.0, PS2, Fiber, Display Port, Ethernet, M.2, USB 3.0, HDMI

private mold: Yes

products status: New

socket type: Onboard

with cpu: Yes

Factory X86 Mini-ITX Motherboard and Processor Kabylake 7th Generation Core i3 i5 i7 DDR 16GB VGA HDMI EDP/LVDS

Specifications:

Models	QM9600H-UA, QM9700H-UA

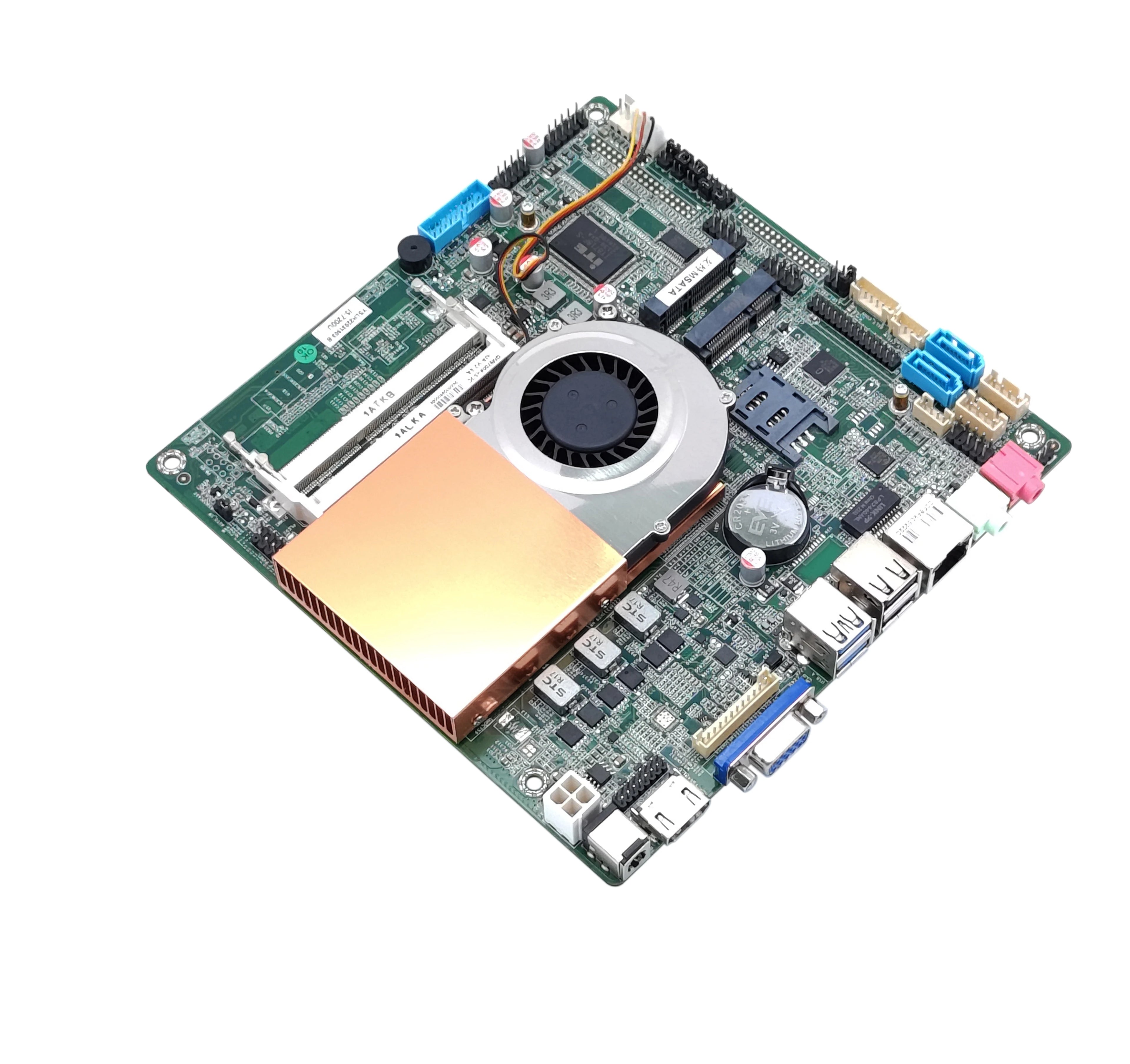

Form Factor	Thin Mini-itx; 170mm(L)x170mm(W)x22mm(H)
Cooling System	With fan
Option Processors	QM9600H-UA: Support 6th Generation Skylake Celeron 3855U, 3955U, Core i3-6100U, i5-6200U, i7-6500U,etc.
	QM9700H-UA: Support 7th Generation Kaby Lake Celeron 3865U, 3965U, Core i3-7100U, i5-7200U, i7-7500U,etc.
Chipset	Skylake,Kabylake express Chipset
Memory	2xSODIMM 1600MHz 1.35V DDR3 Memory slots, up to 32GB RAM.
Power Supply	1xDC_IN	v Support DC 12V or 19V ; DC jack size: 5.5x2.5mm; v Power consumption: 40W(CPU TDP:15W); v Power consumption: 60W(CPU TDP:28W); v Recommend 12V 7A and above power adapter; v Recommend 19V 5A and above power adapter.
	1xDC_ATX
CPU Graphics	Integrated ® HD Graphics 510/520/540/550/610/620/640/650 in CPU.
Display Function	Support single display, dual/triple display copy, dual/triple display expansion, single display under DOS.

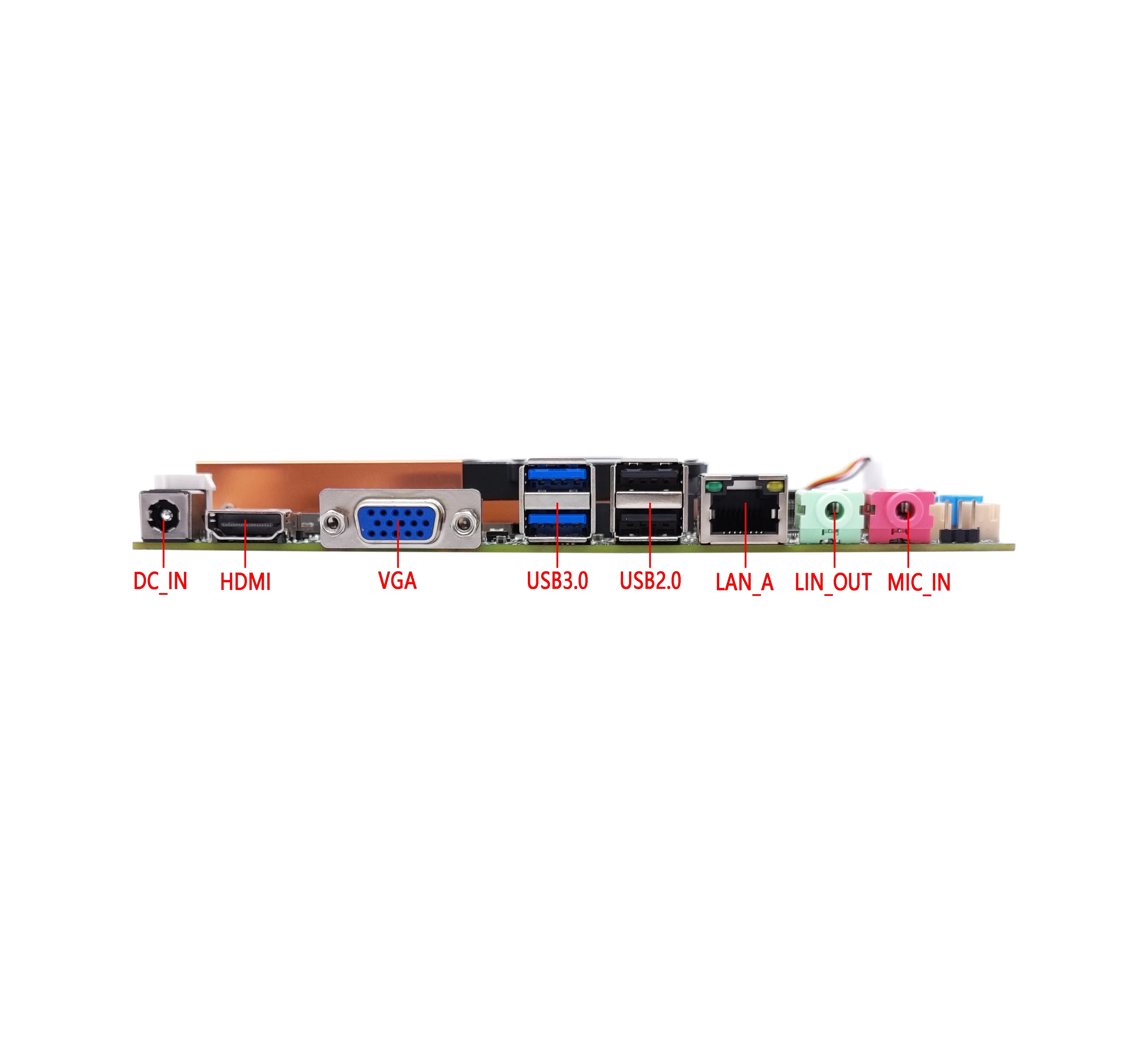

	1xVGA DB15 interface	Support resolution 1920x1080@60Hz
	1xVGA_OUT pin	Support resolution 1920x1080@60Hz (12Pin,1x12Pin,2.0mm)
	1xHDMI 1.4 interface	Support 4K resolution 4096/3840x2160@30Hz
	1xHDMI_CON pin	Support 4K resolution 4096/3840x2160@30Hz (16Pin,2x8Pin,2.0mm)

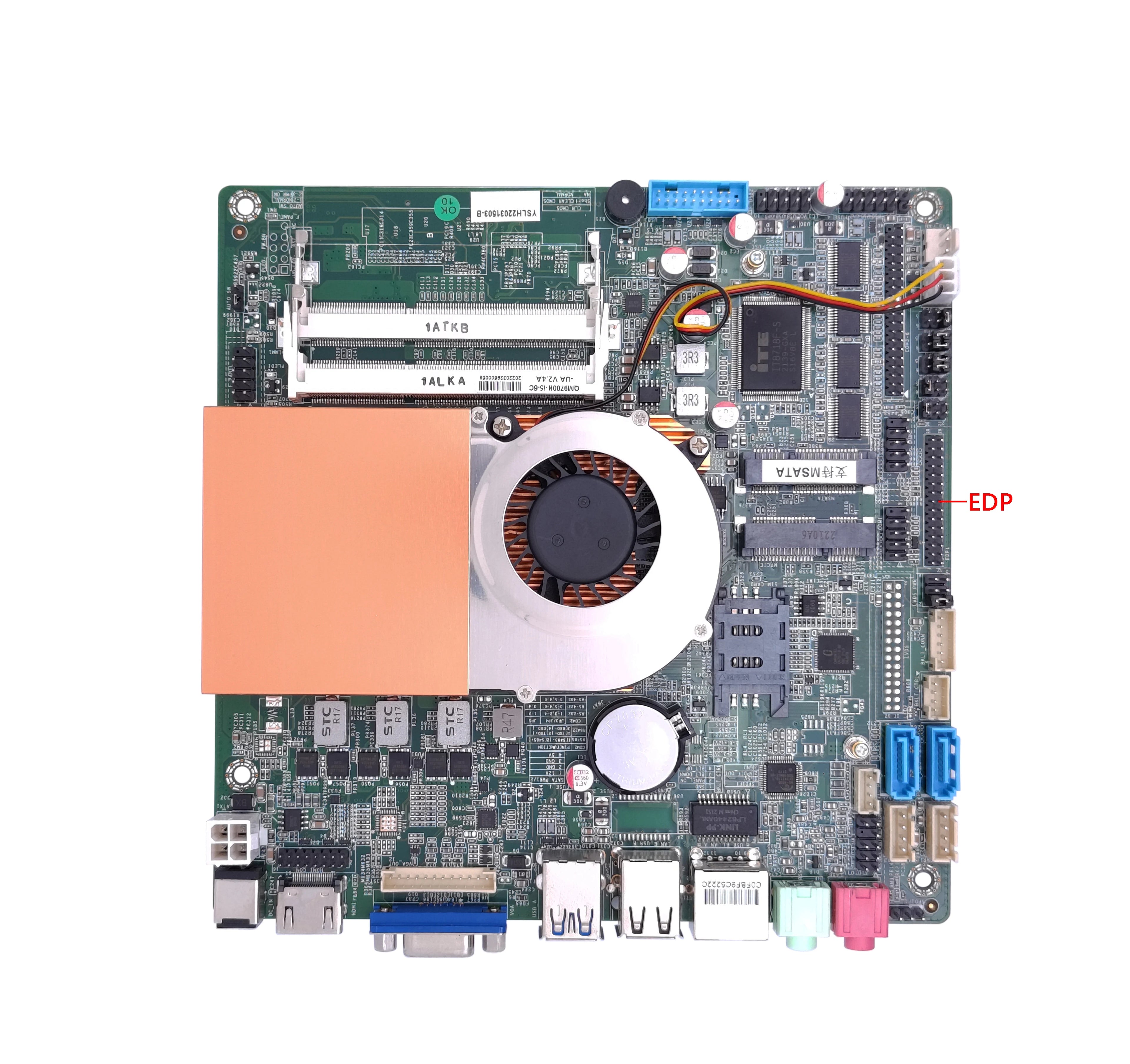

	1xEDP pin	Support 4K resolution 4096/3840x2160@60Hz (30Pin,2x15Pin,2.0mm)
	1xLVDS pin	Support resolution 1920x1080@60Hz (30Pin,2x15Pin,2.0mm)
	The LVDS,EDP pins cannot exist at the same time. By default, LVDS works, EDP doesn't work; Option EDP.
	1xLVDS_PWR pin	LVDS/EDP voltage control pin (6Pin,2x3Pin,2.54mm)
	1xBKLT_CONN pin	LVDS/EDP backlight switch control pin (6Pin,1x6Pin,2.0mm)
	1xBKLT_CTRL pin	LVDS Backlight brightness adjustment pin (4Pin,1x4Pin,2.0mm)

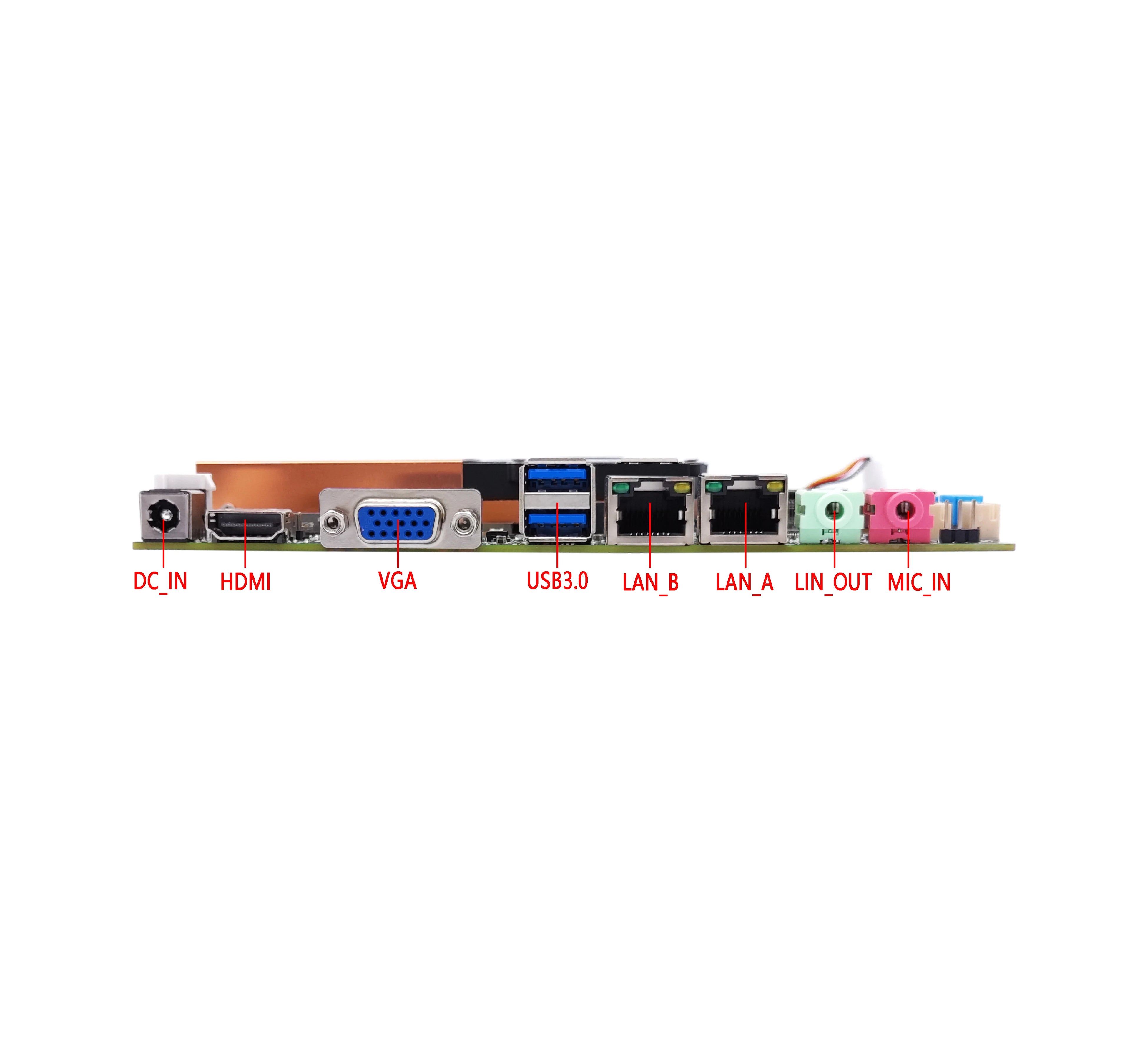

Ethernet	Support Wake-on-LAN and PXE function
