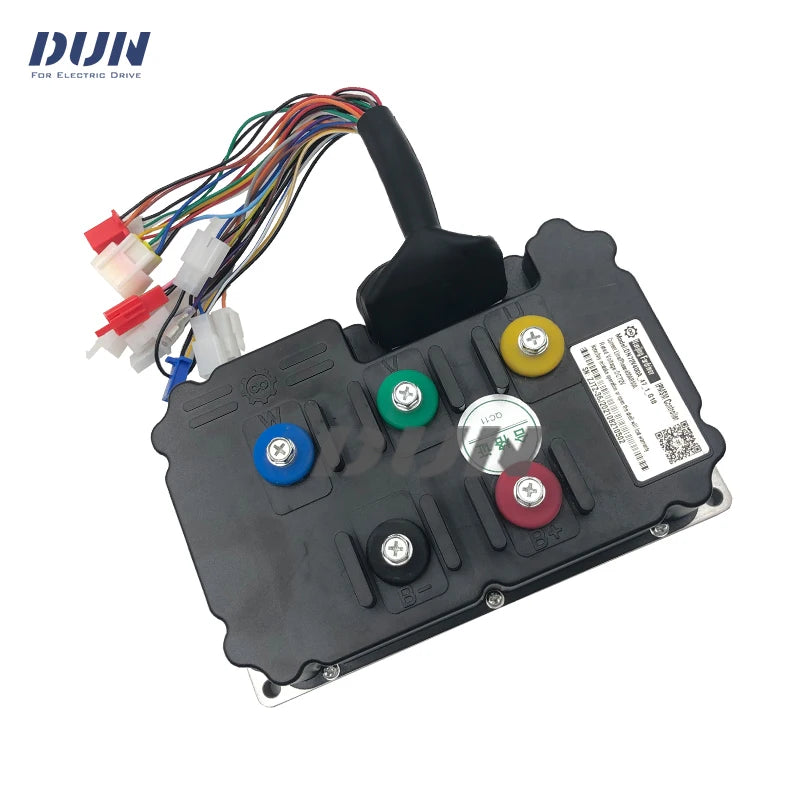

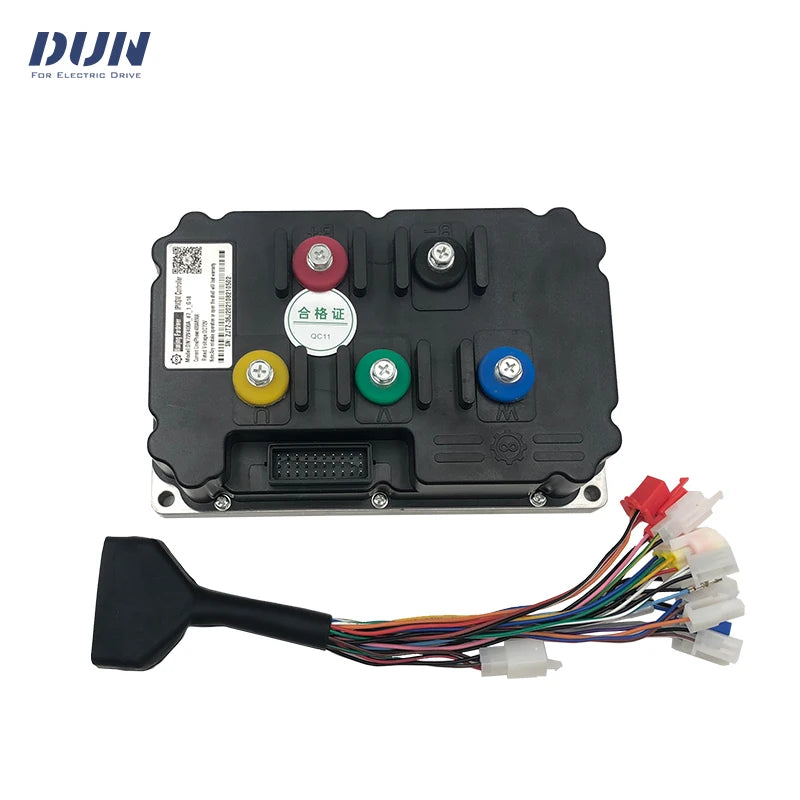

Fardriver ND72850 DC 450A Peak 850A 48-72v Hall Sensor BLDC Sine Wave Controller with DKD Display for 8000W Motor

Fardriver ND72850 DC 450A Peak 850A 48-72v Hall Sensor BLDC Sine Wave Controller with DKD Display for 8000W Motor

$2,083.68

$2,083.68 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Displacement: none

Fuel Tank Capacity: none

High-concerned chemical: none

Maximum Torque: none

Maximum Wattage: 8000W

Maxpower＞250W: Yes

Maxspeed>25km/h: Yes

Model Name: ND72850

Number Of Cylinders: none

Origin: Mainland China

Start Mode: Electric

Stroke: none

Weight: none

Wheelbase: none

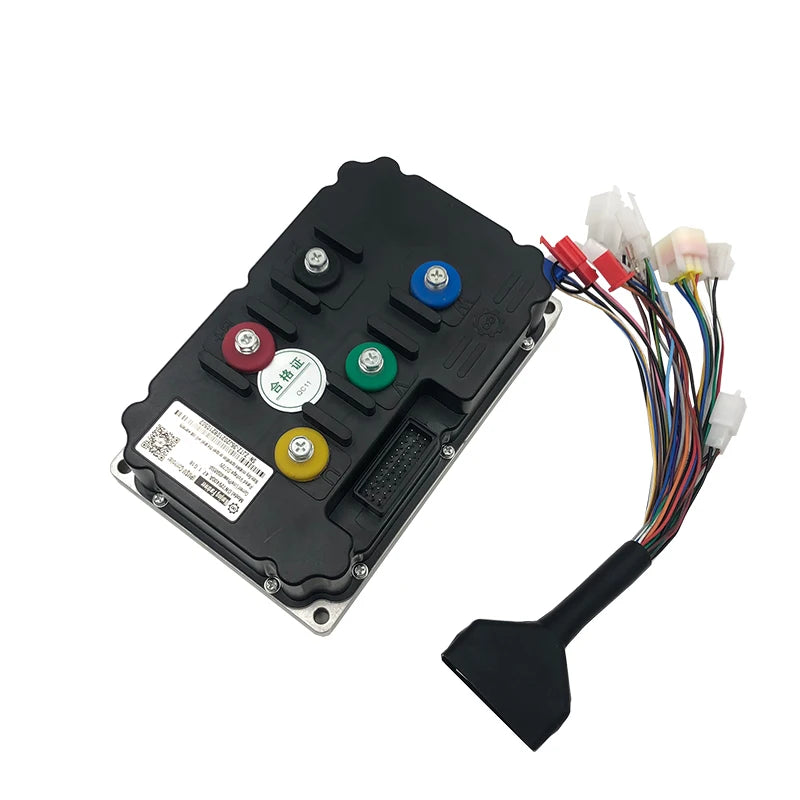

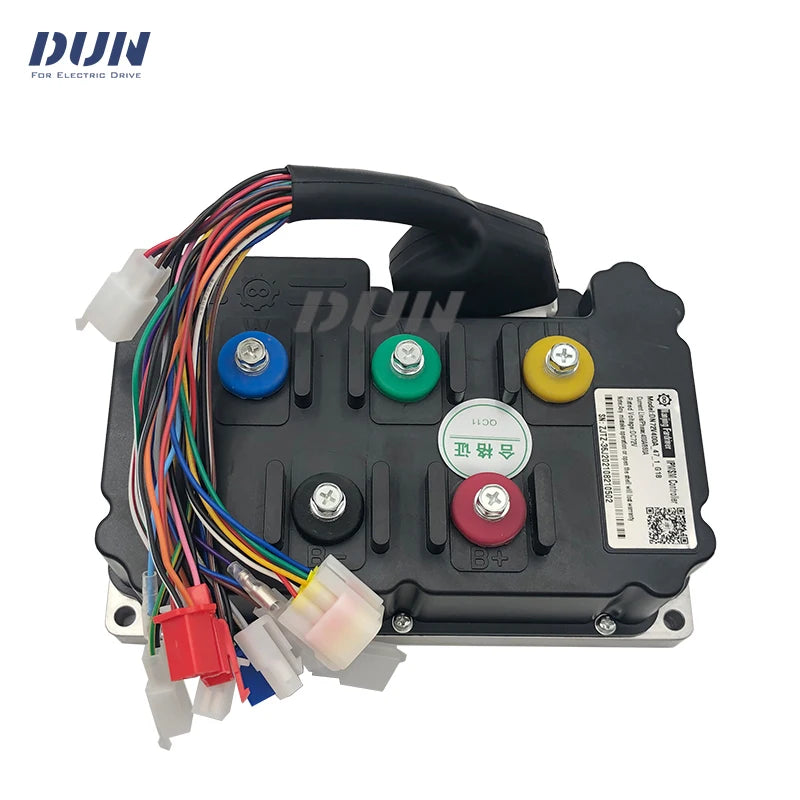

Fardriver ND72850 DC 450A Peak 850A 48-72v Hall Sensor BLDC Sine Wave Controller with DKD Display for 8000W Motor

This controller is sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS/Yuma Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

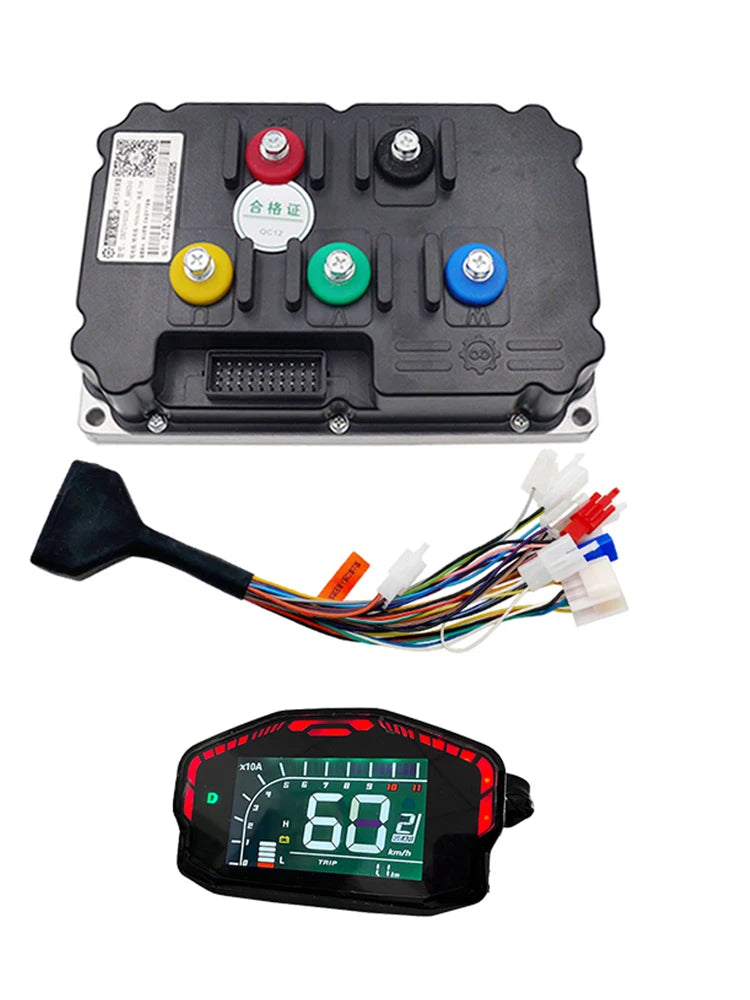

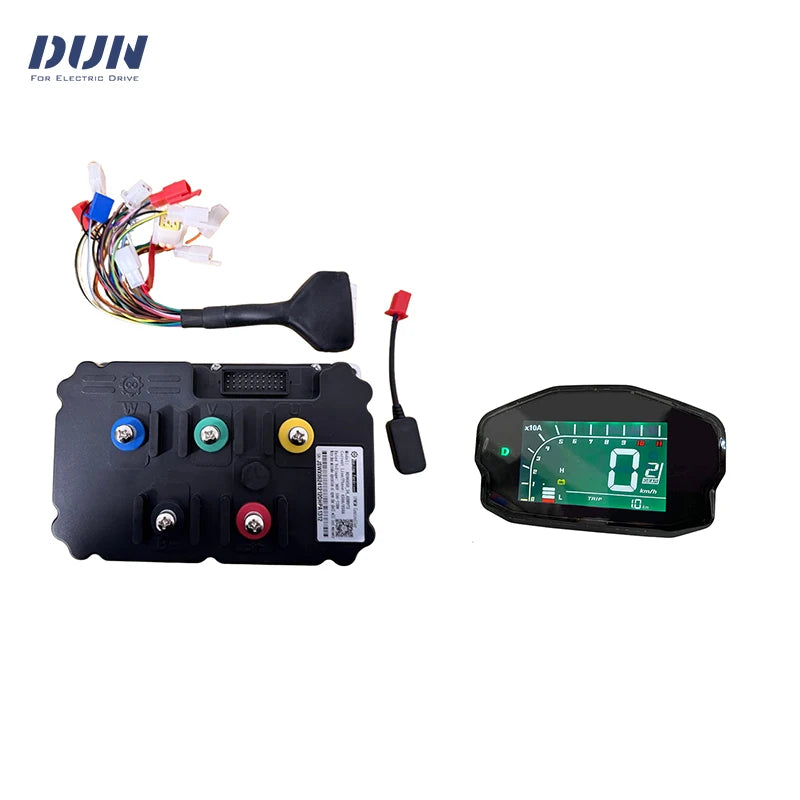

-Package Include-

1 pc x ND72850 Controller
1 pc x Bluetooth Adapter
1pc x DKD display

- Order Guide -

1) Pls. check your motor type, does it BLDC or PMSM Motor? with Hall or encoder?
2) Pls. check the controller functions if it's suitable for you or not.
3) Pls. check the controller size if it's ok or not for installation.

-Key Features-

Fardriver ND series controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence.
It is suitable for vehicle applications of various Hall motors.It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware
architecture and software implementation are perfectly matched and refined.

-Motor Spec-

Nanjing Fardriver Controller
1 Model: ND72850
2 Working Communication: Hall Sensor
3 Available Rated Battery Voltage: 48V/60V/72V
4 Peak Battery Voltage: 88V
5 Available Motor Power: 8000W
6 Defaut Throttle Working Voltage: 0V - 5V
7 Peak DC Current: 450A
8 Peak Phase Current: 800A - 850A
9 Mosfets Detail: 36 FET
10 Weight: 3.5kgs
11 Instaliing Size: 222mm * 142mm * 71mm
12 Controller Design: Sine Wave BLDC
13 Case Material: Aluminum
14 Support Programmable: PC & Phone
15 Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

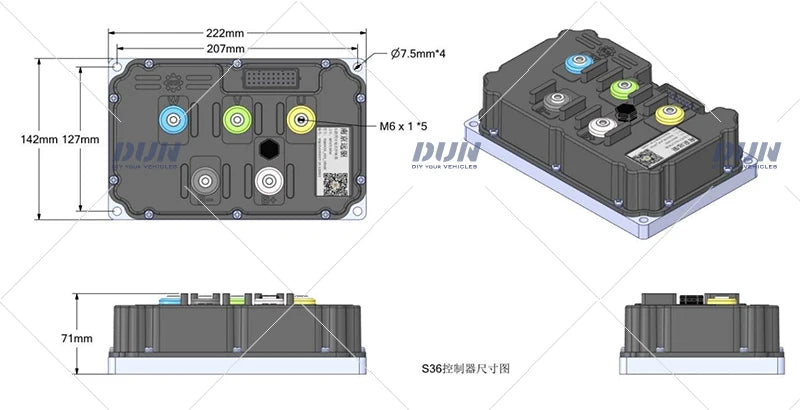

-Drawing-

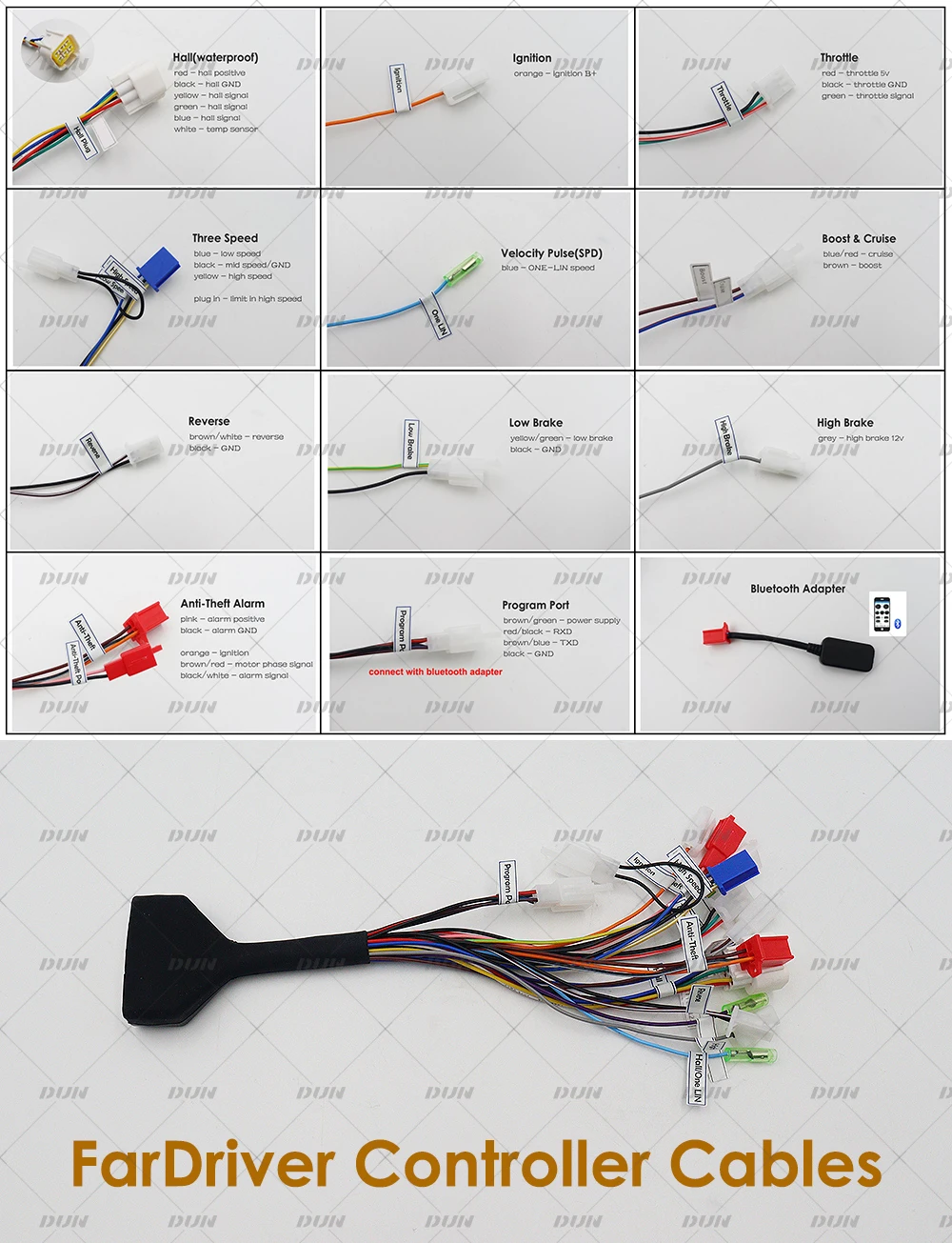

-wiring-

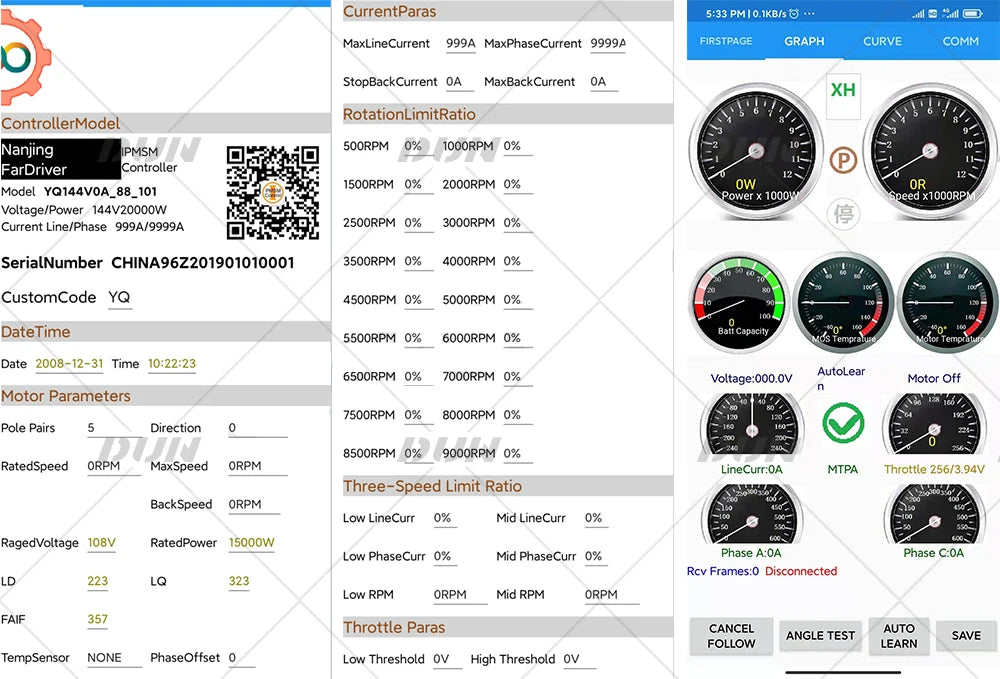

-App Information-

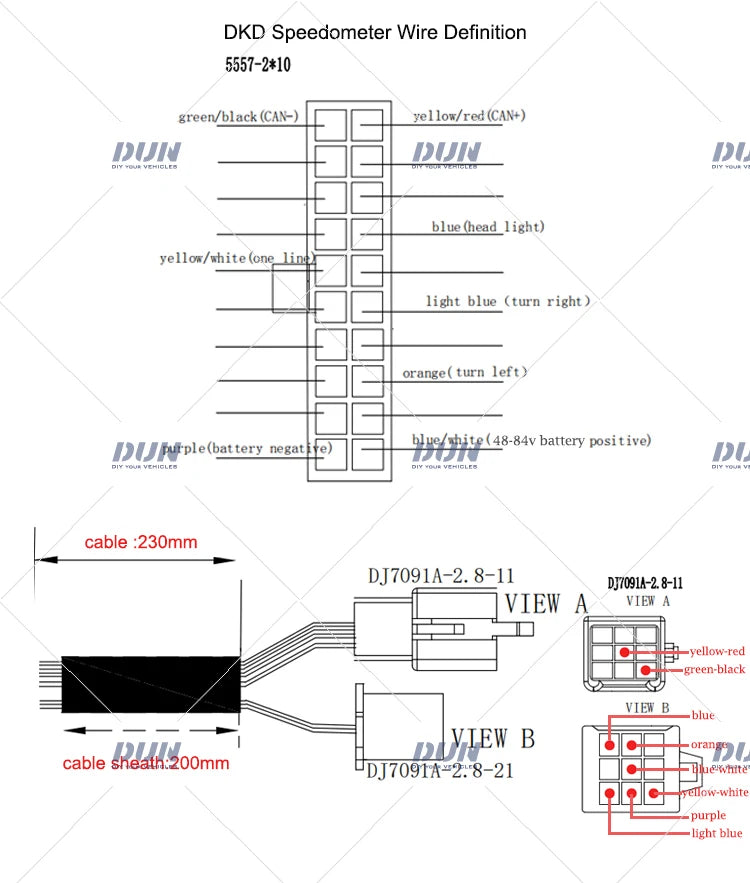

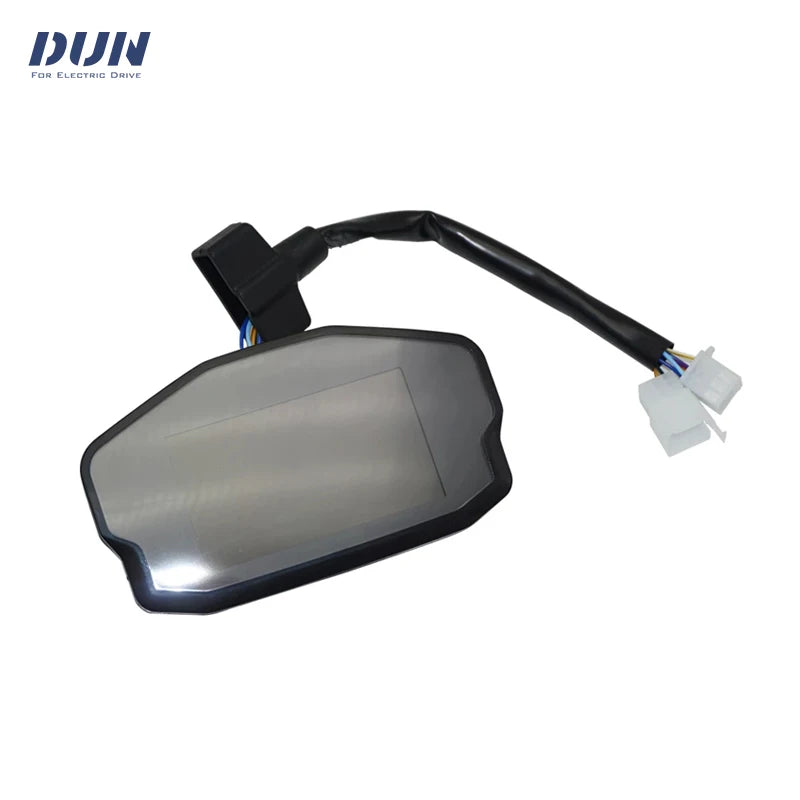

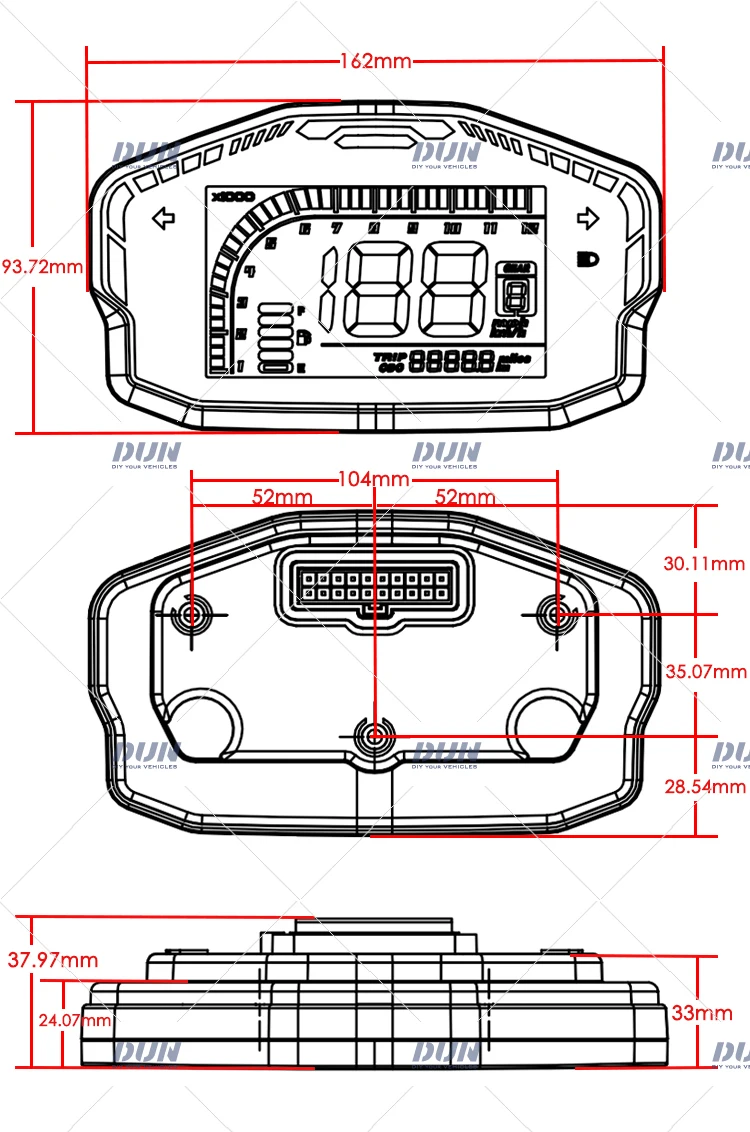

-DKD Display-

1) After power on, the self-test of the display is completed, then press and hold the left button for 10 seconds to enter the background and enter the password;
2) Left-click to adjust data, right-click to shift;
3) Password 153, set the perimeter(mm), the number of motor pole pairs, the offset, the unit mm is CC 1413mm (18inch tire perimeter) by default, after the setting is completed, long press the right button to enter the number of motor pole pairs(PL 24-10, pole pair number 24 by default) and offset(10);
4) Password 256, high and low gear (E, S gear) and normal gear selection, -2 is high and low gear, -0 is normal gear display;
5) Password 372, clear ODO, limited to 3 times;
6) Password 856, 48V, 60V, 72V, 96V for selection, synchronized with the grid number, the lithium battery automatically takes the SOC, and automatically switches. If the lithium battery is changed to the other battery, and it must be powered on again;
7) Password 879, fixed voltage calibration, 48V, 60V, 72V, 96V, corresponding to the volatge setting;
8) Password 824, self-input voltage calibration;
9) Password 974, KMH/MPH switch setting;
10) Password 928, D gear light, N gear light off setting, can be turned off when only the liquid crystal display gear is needed
11) Password 919, to change the value of overvoltage and undervoltage. Front is overvoltage, back is undervoltage.

-Match Work-

-FAQ-

Q: How about the Duty & Tax ?
A: All products are sent in DDU term, the total price does not include tax and duty. The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance, please ensure that you have the ability to clear the goods before purchasing.

Q: About the functions and interfaces of the controller
A: The most controllers we sell are universal versions, not customized for a specific brand. Therefore, after installation, some auxiliary functions of the original vehicle may not work normally (such as speedometer display)
Most functional interfaces need to be modified, not plug and play.
Before refitting, please carefully check the function line on the original vehicle and the communication signal of the speedometer.

Q: How long is the delivery time ?
A: For some stock controller and motor, we could ship it out within 24 hours. If no stock, the delivery time normally in 6 -10 working days (some customized products will take more days).

Q: About delivery timeliness
A: The time limit of commitment of AliExpress shipping channel is 60 days (Goods can usually be received within 3 weeks, but it may take longer for some special countries).
If you want to make fast delivery, please select FedEx, DHL or UPS.

Q: How about the warranty ?
A: We offer 1 year warranty for motors and controllers, but the buyer has to pay the return shipping cost for repairing or replacing a new one.
If you have any problems, please feel free to contact us, and we will try our best to help you.
If you don't have any knowledge on electric kits assembly, please make prudent choice to buy it or not ! There is no warranty for man-made damage.

Q: About the shipping way
A: Sometimes the online shipping cost and shipping way is not best, we will choose the most convenient shipping way to you and will inform you before shipping. Thank you for your understanding.
