SPECIFICATIONS

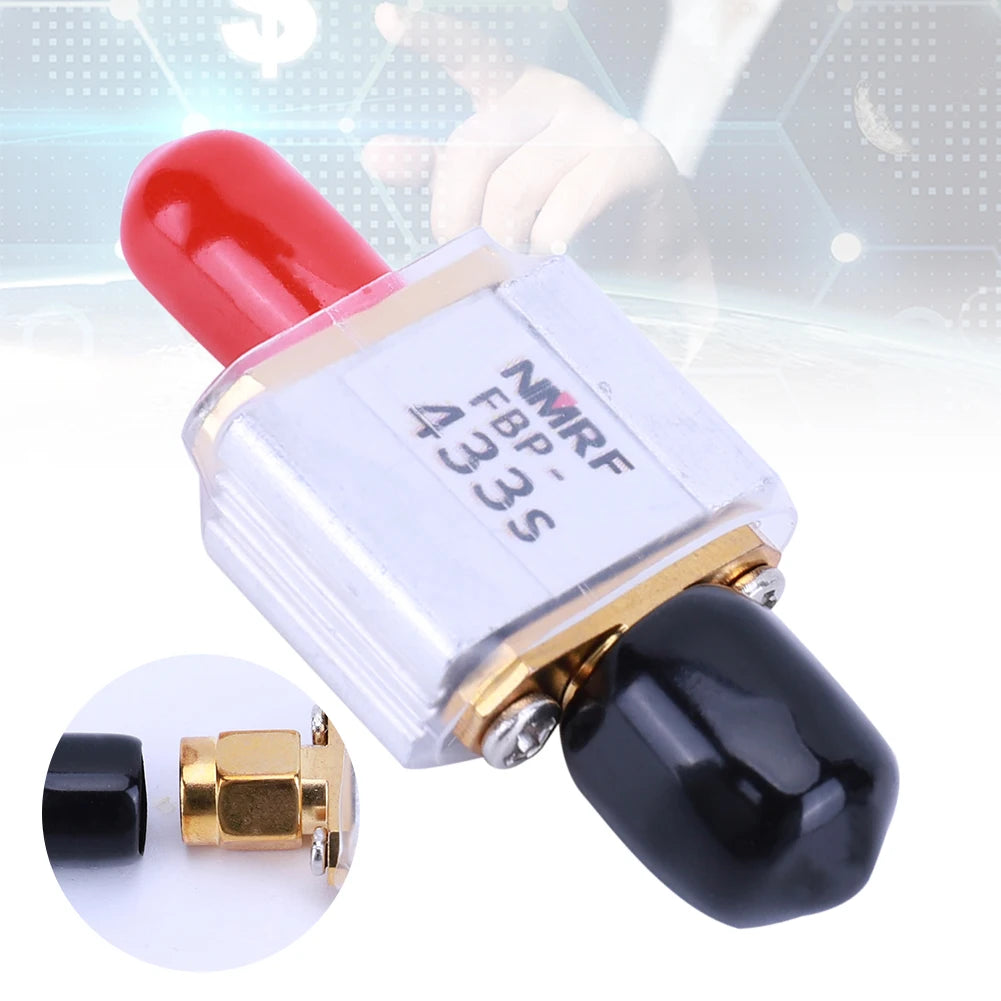

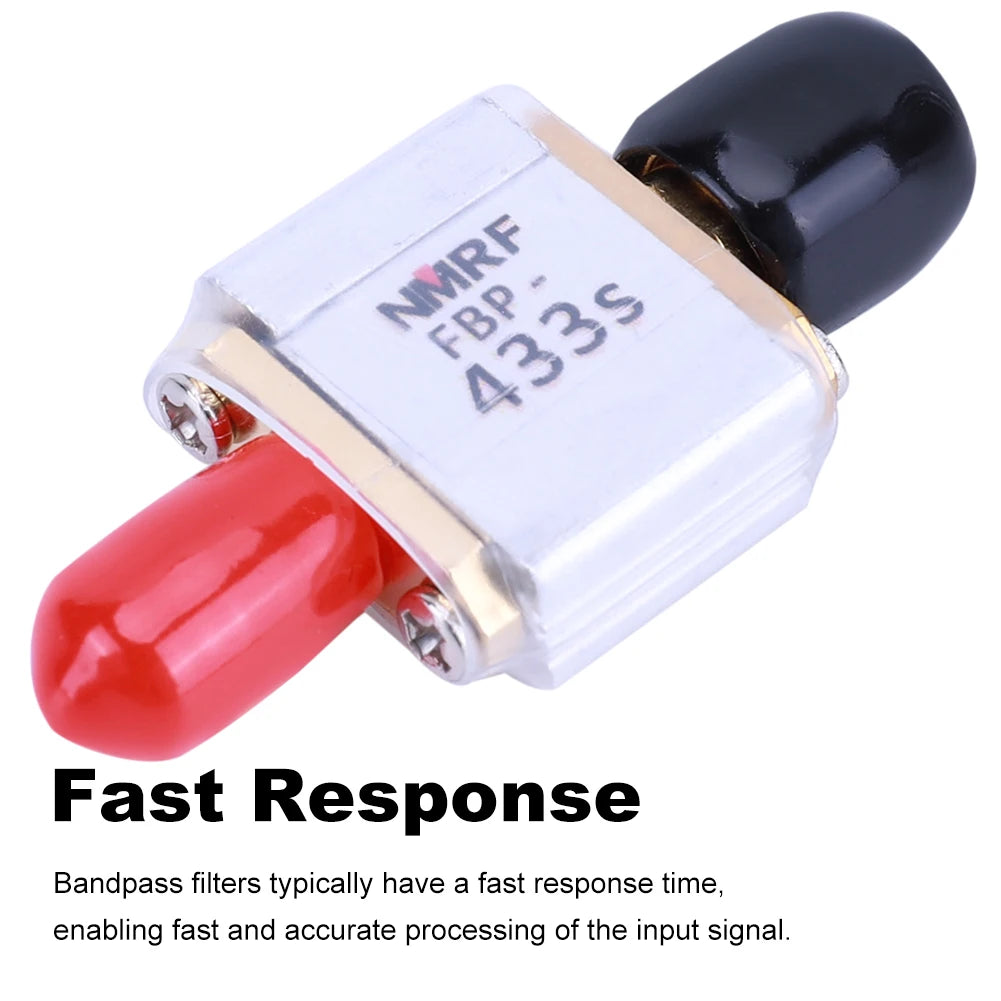

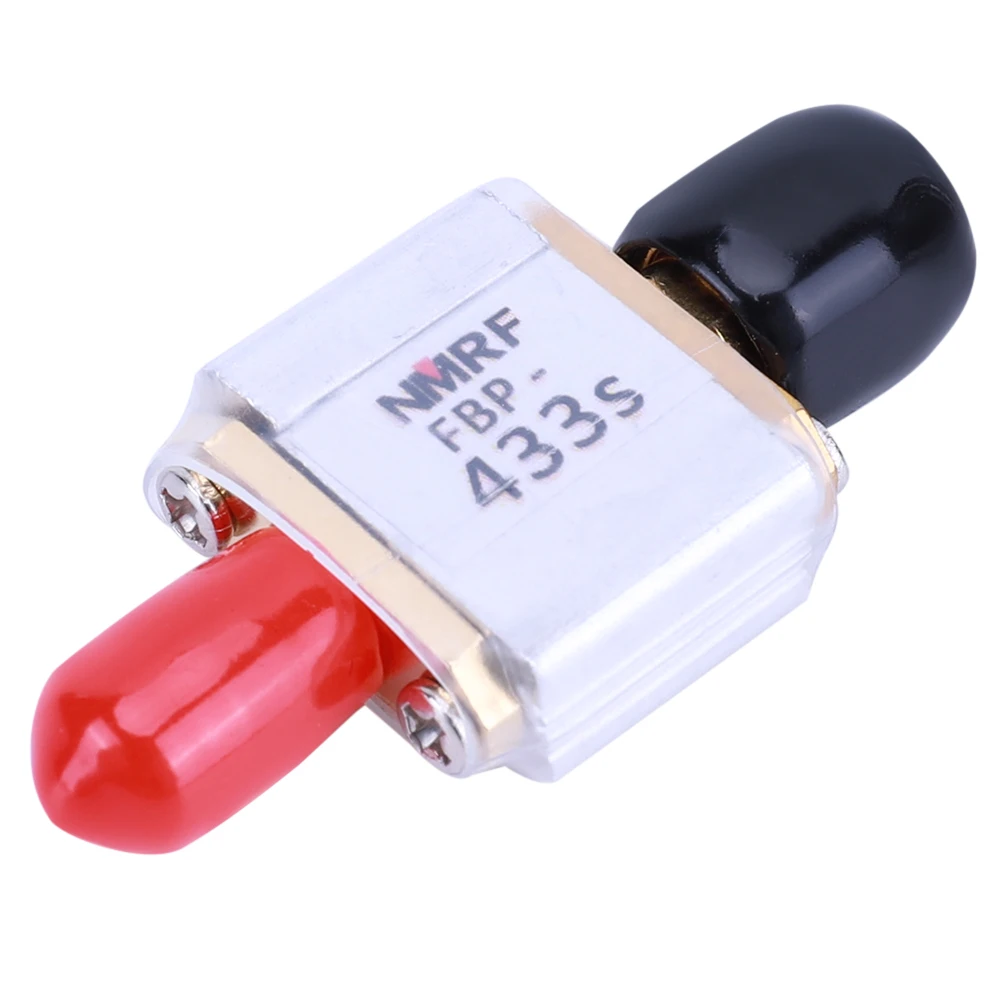

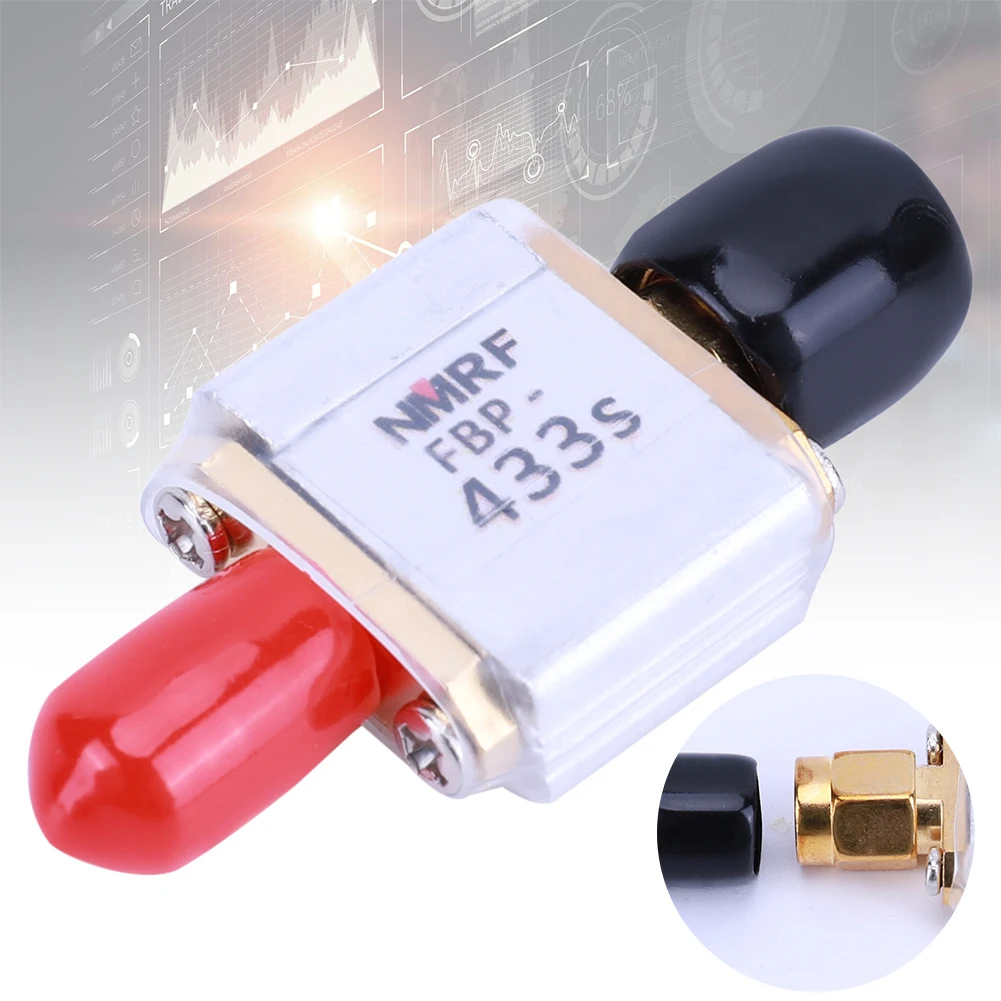

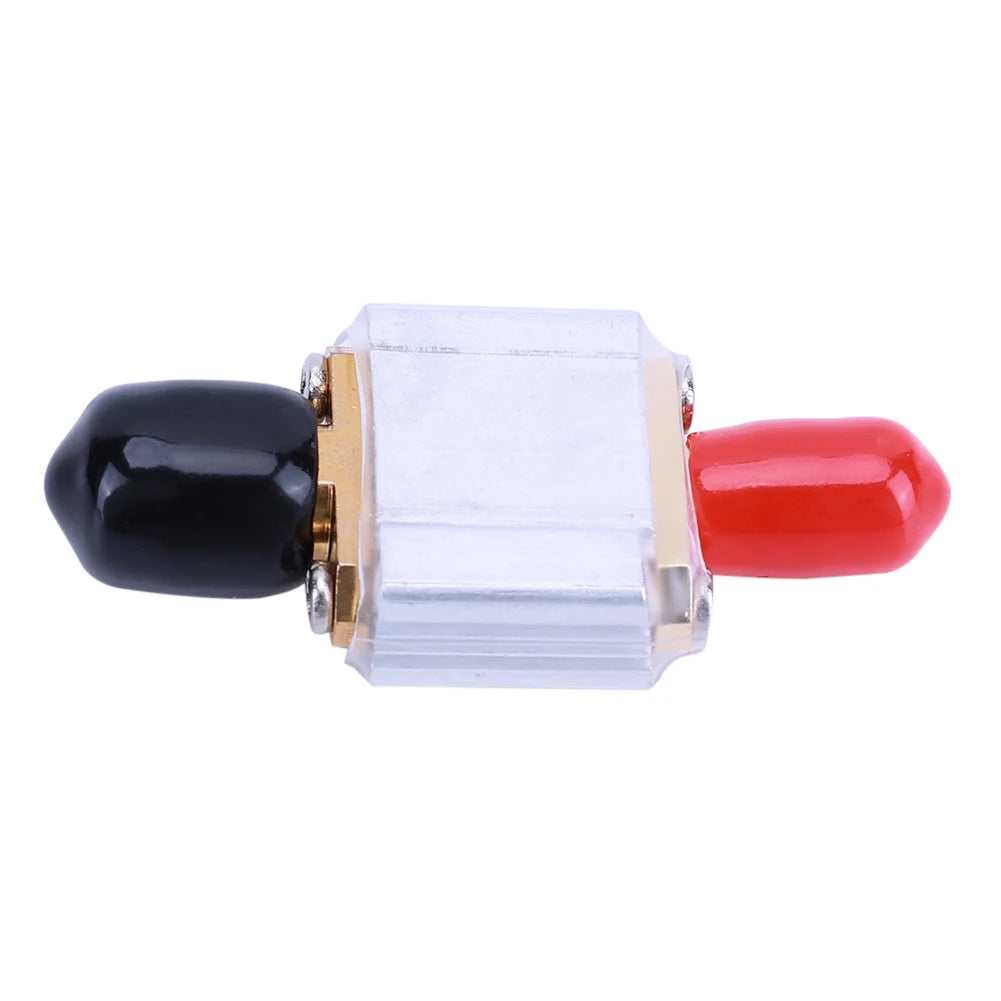

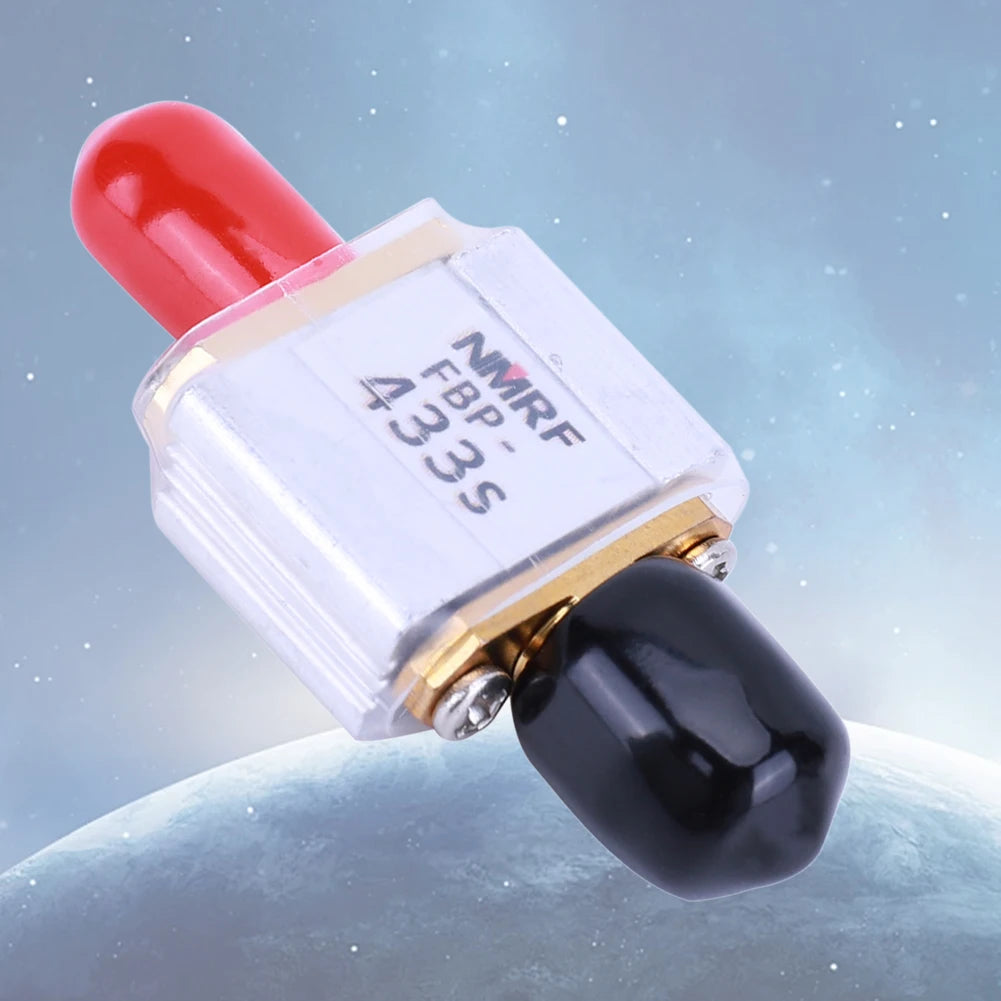

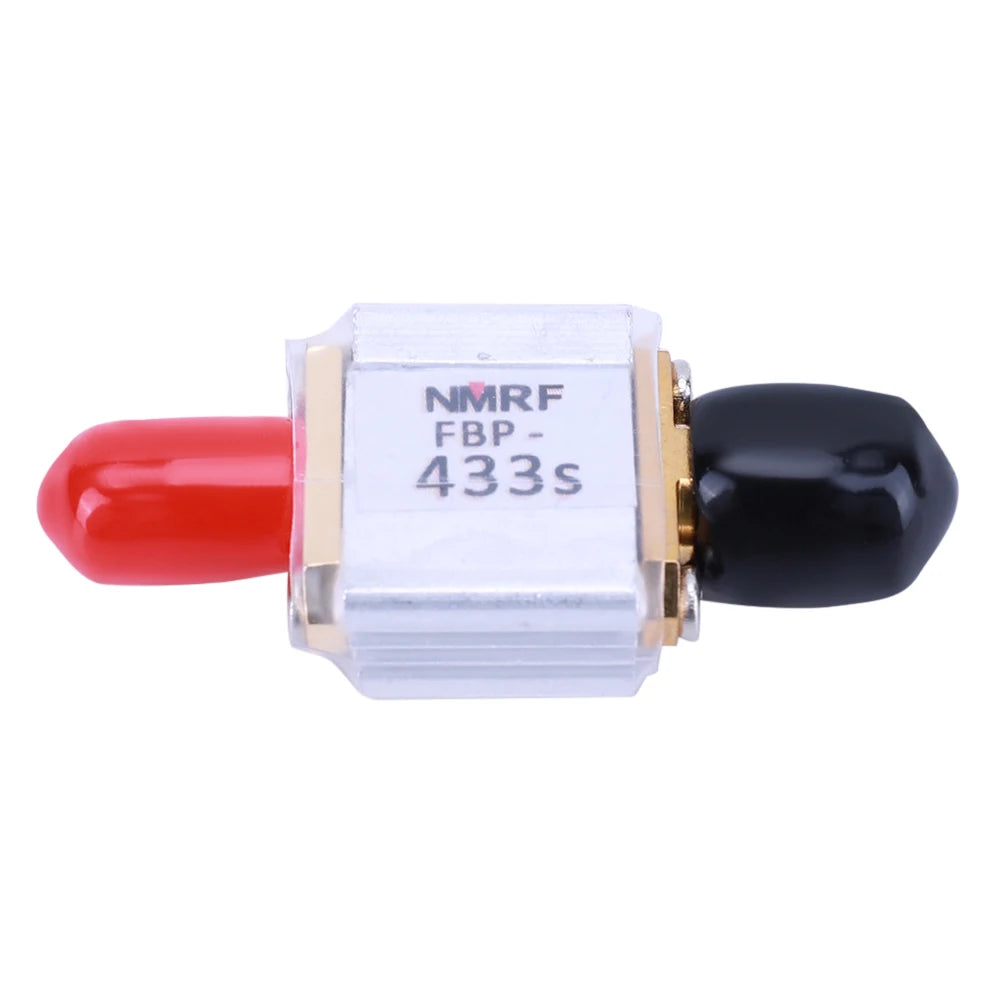

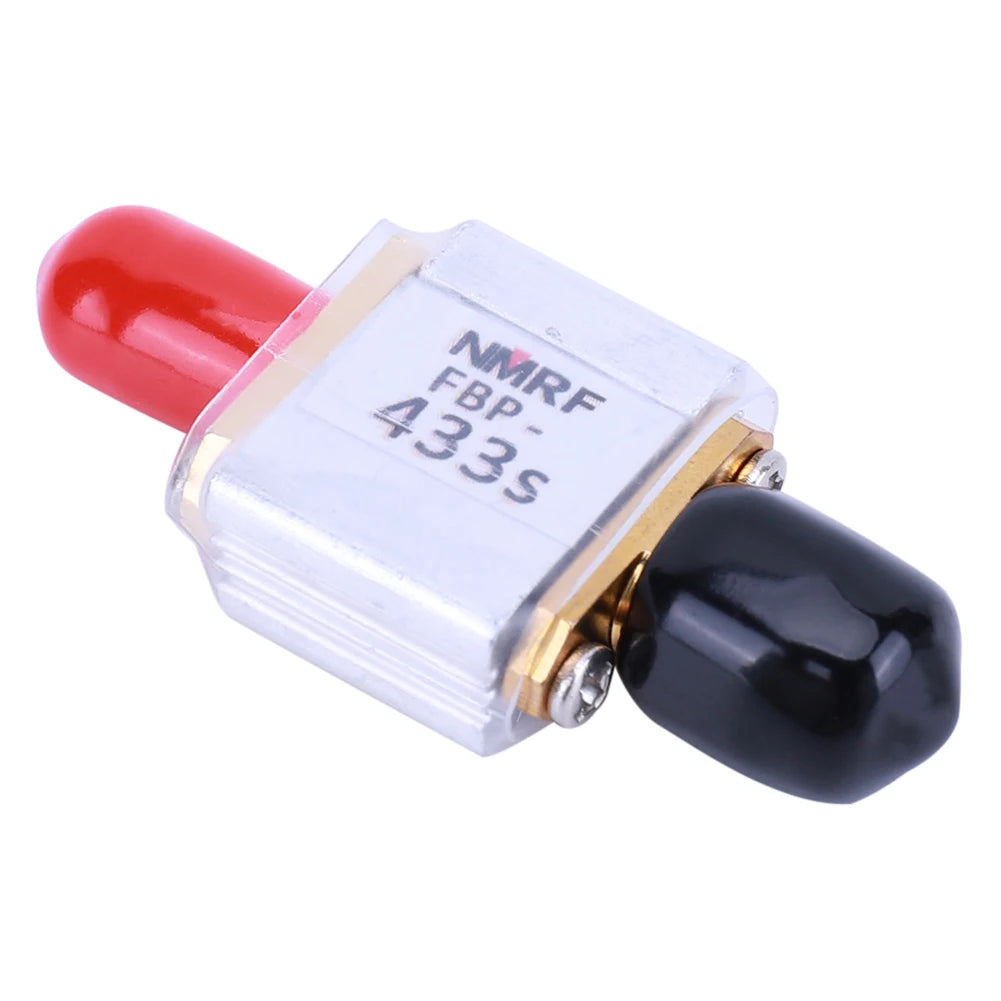

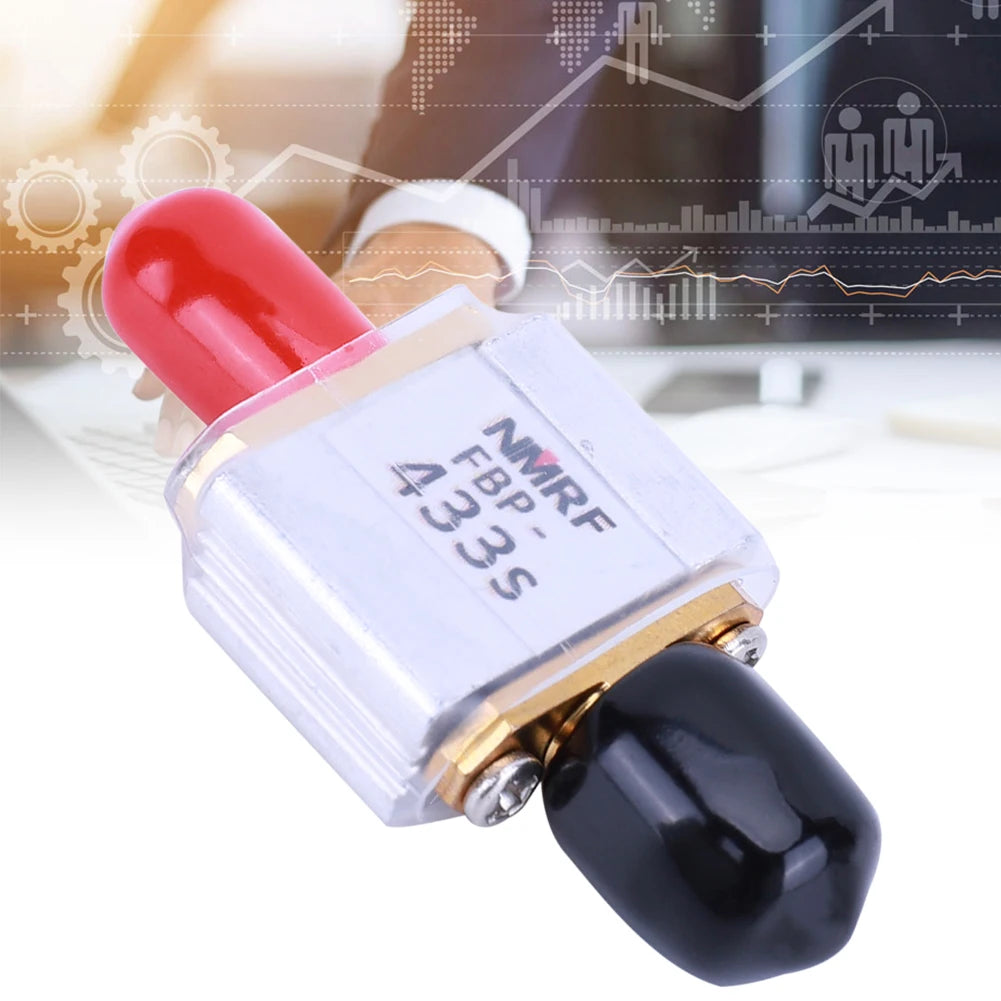

FBP-433s Telecontrol Band Pass Filter SMA M F Interface 433MHz Passband Bandpass Filter Aluminum Casing Bandwidth 20MHz Reduce Noise Band Pass Filter for Aircraft UAV
Feature:
1. Superior Internal Design: This telecontrol band pass filter, features an ultra-thin PCB board inside, providing excellent suppression capabilities for distant out-of-band signals, making it more efficient and reliable.
2. Outstanding Performance: With its superior design and technology, our bandpass filter outperforms those made from bare PCB boards, ensuring an excellent signal quality for your devices.
3. Aluminium Alloy Shielding Shell: The bandpass filter module is encased in an aluminium alloy shield, which offers exceptional anti-interference capabilities and prevents stray out-of-band responses, enhancing the overall efficiency in all environments.
4. Compact and Sturdy: Our passband bandpass filter is designed to be compact and sturdy, making it ideal for a wide variety of applications while withstanding the rigors of everyday use.
5. Ease of Use: This reduce noise band pass filter is user-friendly and can be easily integrated into your existing system, offering simplicity without compromising on performance.



Specification:
Origin: Mainland China
Type: RC Filter
Transfer Function: Band Pass
Model: FBP-433s
Impedance: 50 Ohms
Center frequency: 433.92 MHz
3 dB pass band: 422-446 MHz
Insertion loss: < 1.8 dB @ 430-438 MHz
Maximum carrying power: 100 mW (20 dBm)

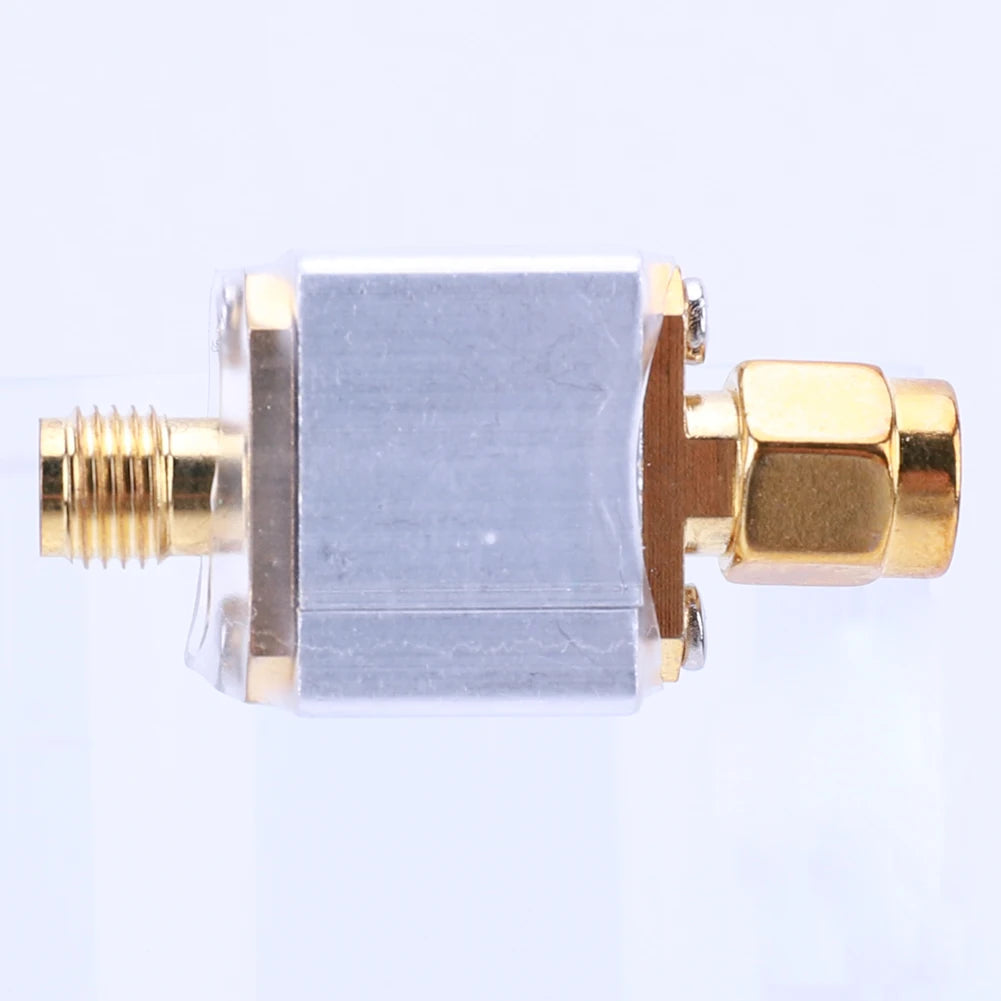

Interface: SMA-M, SMA-F

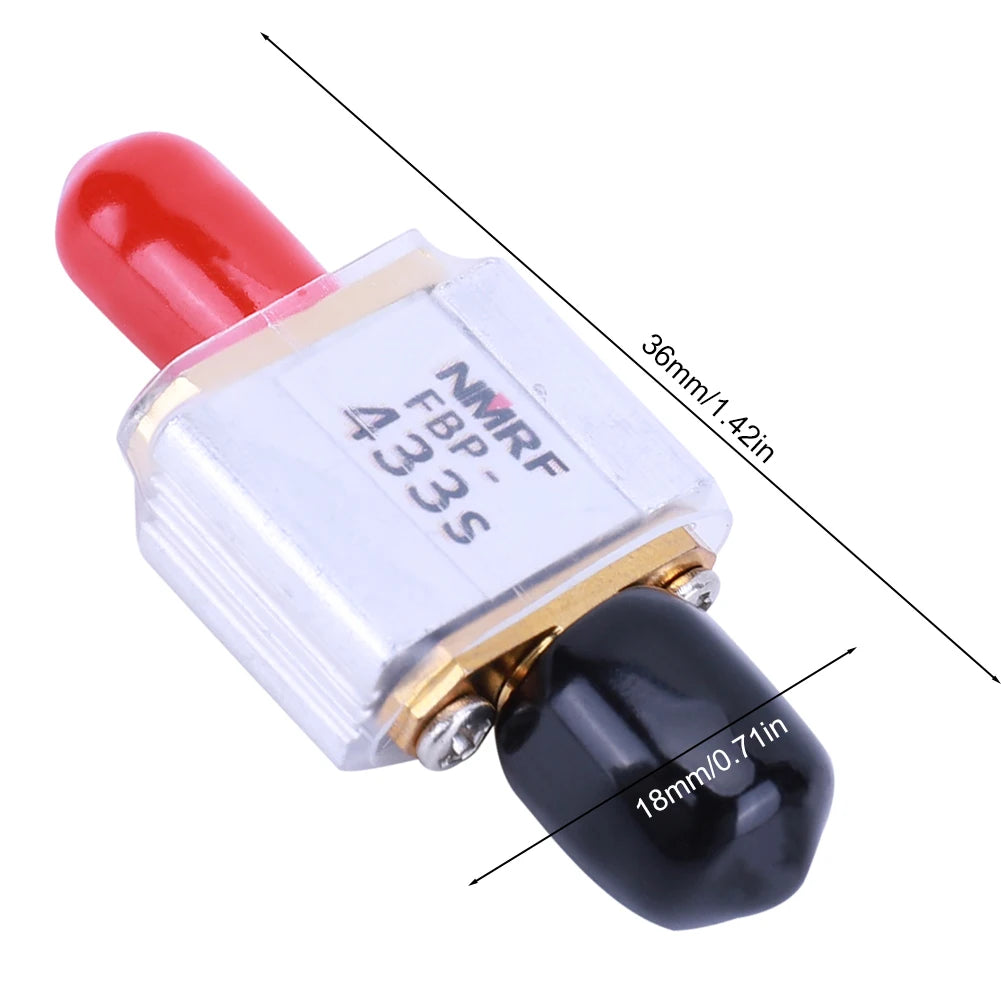

Product size: 36.00x18.00x8.00mm
Product size: 1.42x0.71x0.31inch

This filter has low in-band insertion loss and steep cut-off characteristics. It is specially used to optimize the performance of 433MHz image transmission (model aircraft, drone aerial photography) receiving equipment. It can effectively filter out-of-band signals, reduce noise, and increase dynamic range.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 x 433MHz Telecontrol Band Pass Filter
