Description

SPECIFICATIONS

Applicable Product: FPC

Application Scenarios: Electronic Development & Debugging, Embedded Systems, Industrial Control, Instrument Repair, Smart Home Modification, Maker DIY

Base Material: Copper

Board Type: Flexible Flat Cable Adapter Board

Brand Name: NONE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

FFC/FPC Connector Pitch: 0.5mm

Flame Retardant Rating: V0 Board

High-concerned chemical: none

Insulating Resin: Epoxy Resin (EP)

Insulation Layer Thickness: Standard

Insulation Material: Organic Resin

Layers: Double-Sided

Mechanical Rigidity: Rigid

Model: FPC

Origin: Mainland China

Output Interface: 2.54mm DIP Pin Header (Pre-Soldered)

Processing Technology: Electrolytic Foil

Reinforcement Material: Glass Fiber Cloth Base

Specification: 6,8,10,12,18,20,24,26,30,34,40,45,50,60,80(Pin)

Voltage: 自定义编辑

Product Overview

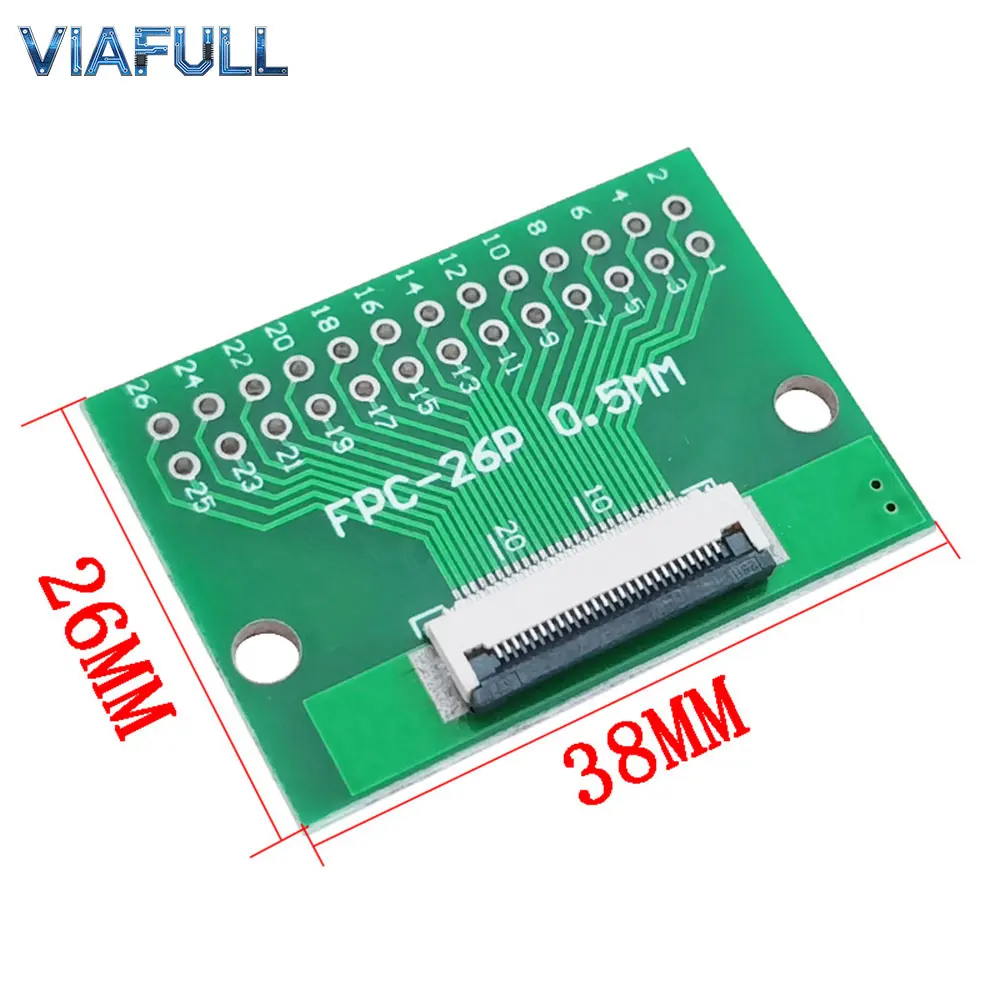

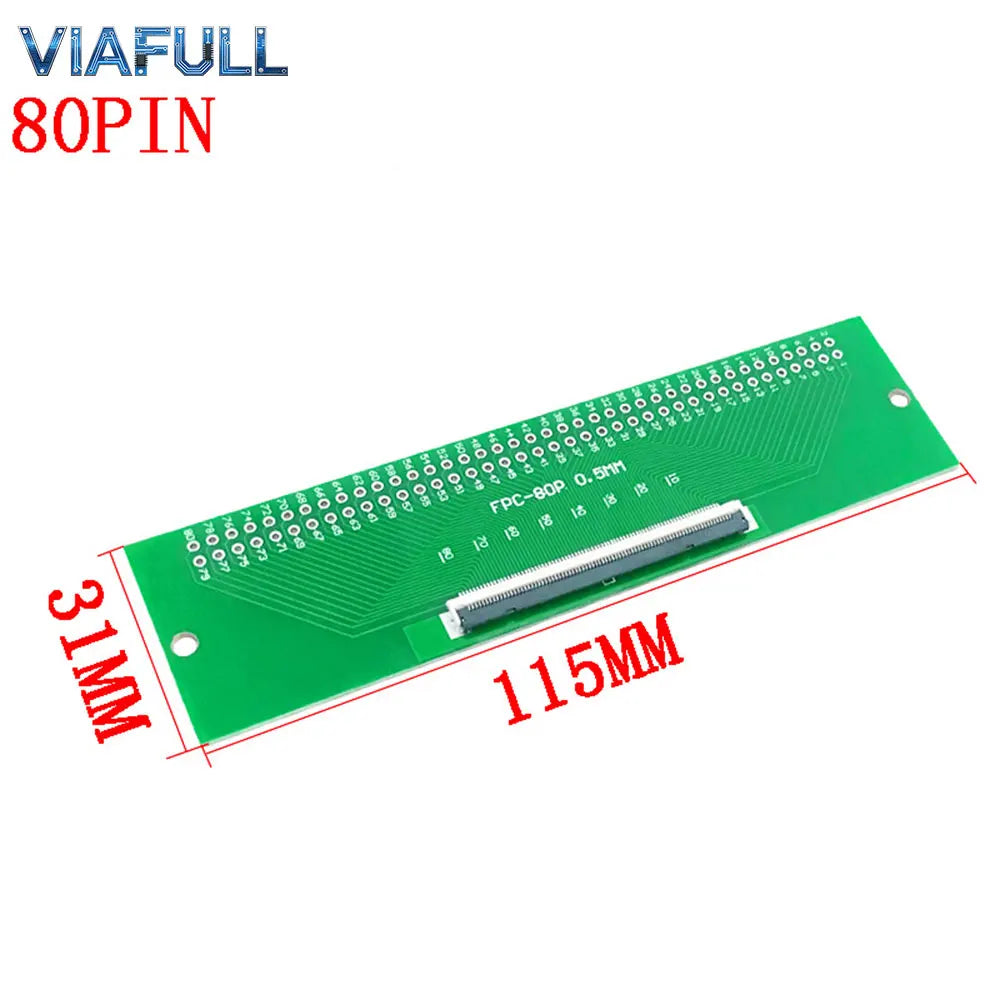

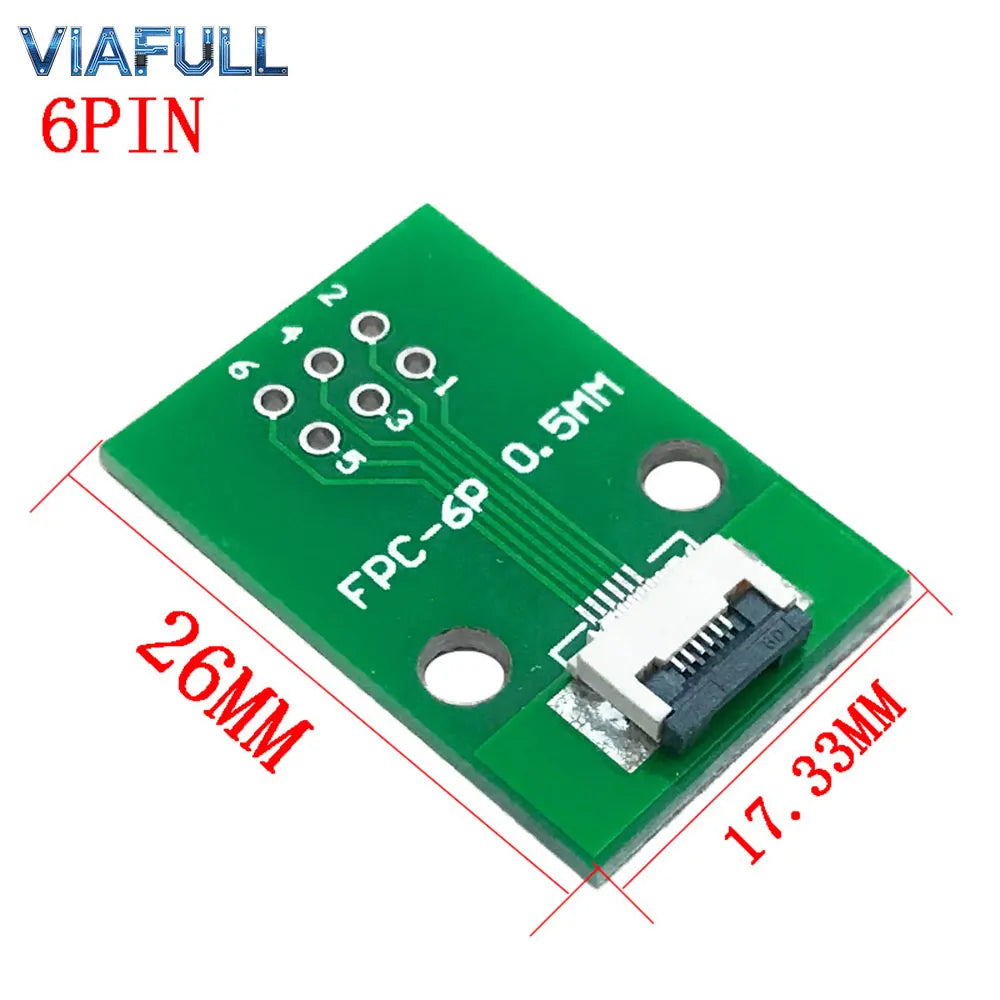

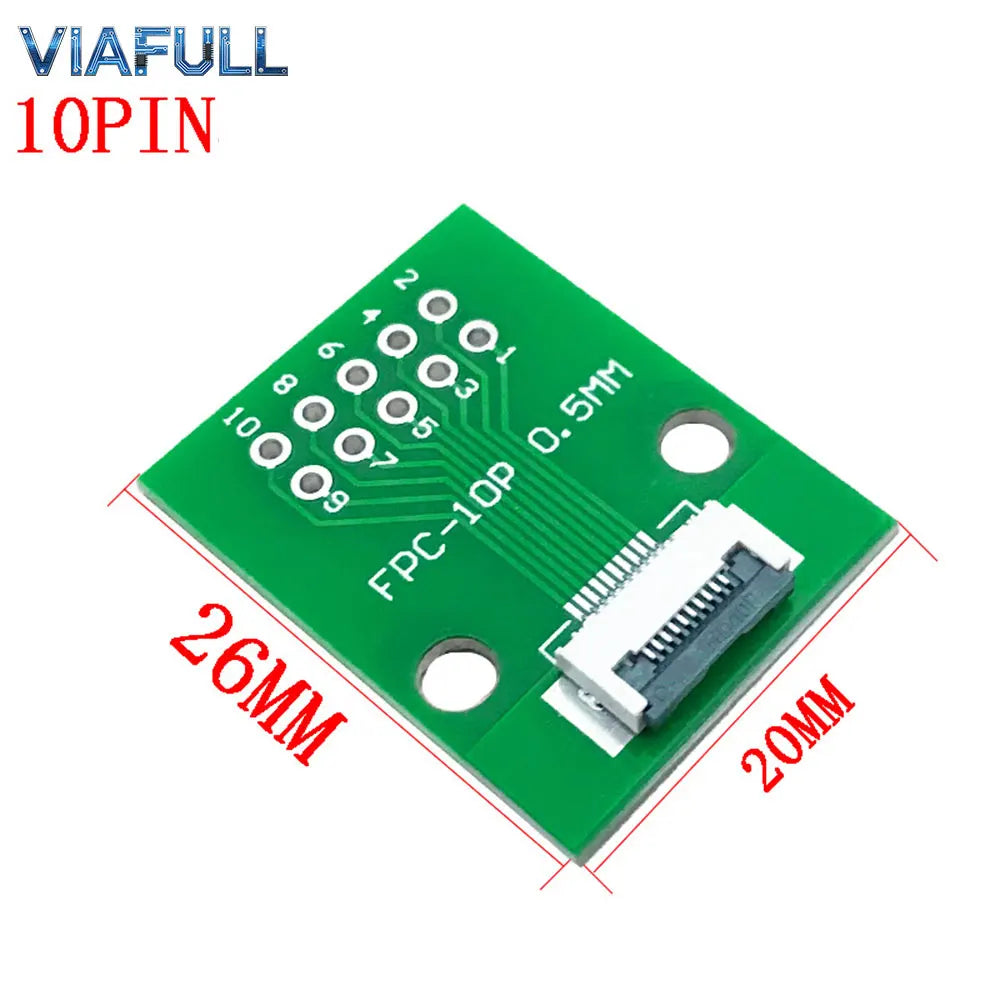

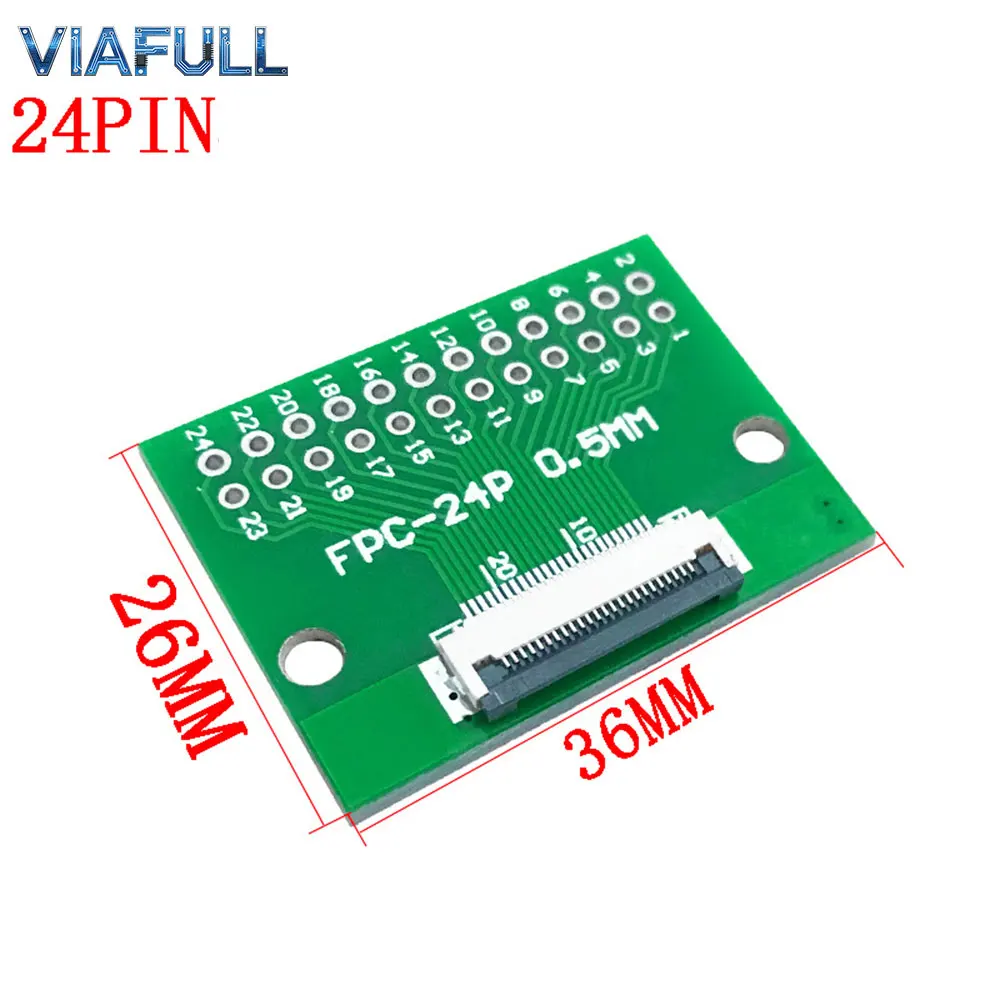

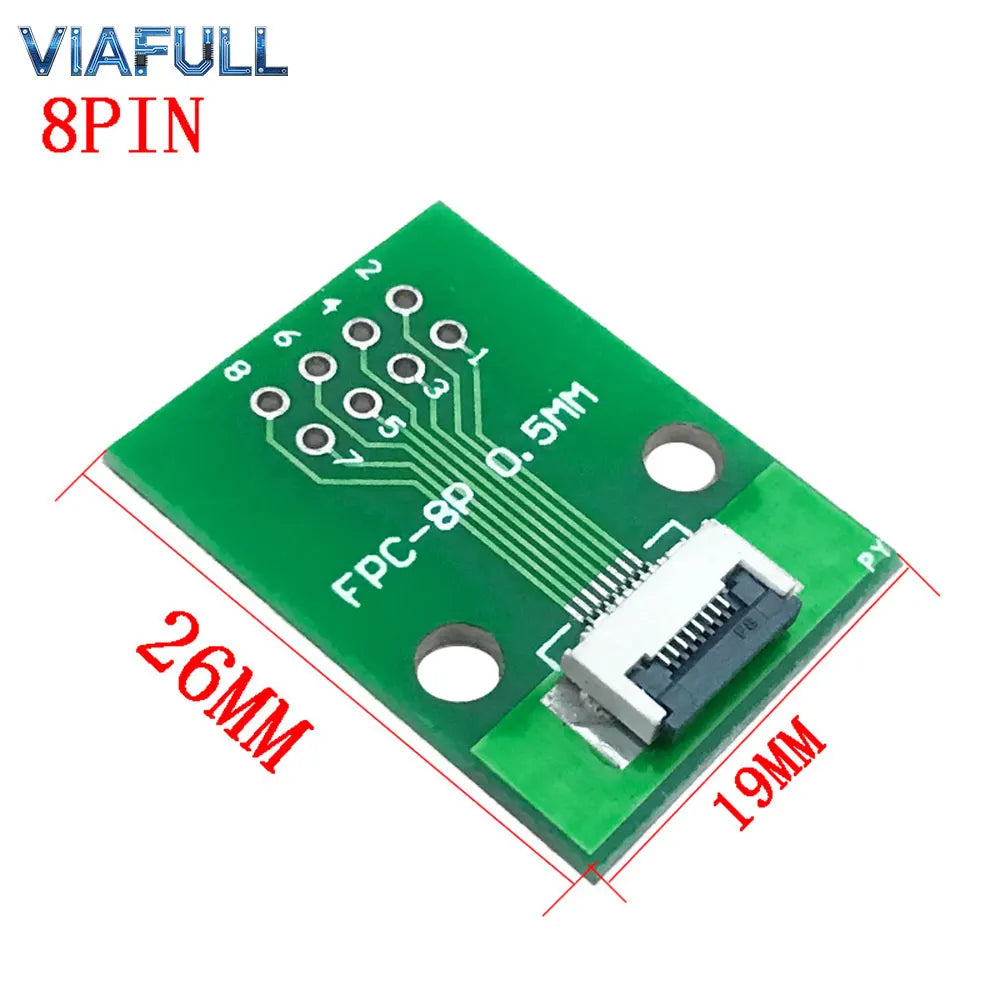

The FFC/FPC to 2.54mm DIP adapter board is a ready‑to‑use breakout PCB that converts ultra‑fine 0.5mm pitch flexible flat cables (FFC/FPC) to standard 2.54mm male pin headers. The board features a soldered FPC connector on one side and dual‑row DIP pins on the other, making it perfect for connecting ribbon cables to breadboards, Arduino projects, or industrial test jigs without soldering. Manufactured on a double‑sided FR4 fiberglass board with epoxy resin and rated V0 flame retardancy, this adapter provides a reliable, professional‑grade solution for prototyping and production.

Core Technical Parameters

Input Interface: FFC/FPC Connector, 0.5mm Pitch (Soldered)

Output Interface: 2.54mm DIP Male Pin Header (Dual Row, Soldered)

Board Type: Double-Sided Rigid PCB

Base Material: Copper Clad Laminate

Reinforcement: Glass Fiber Cloth

Insulation: Epoxy Resin (EP)

Flame Retardant Rating: V0

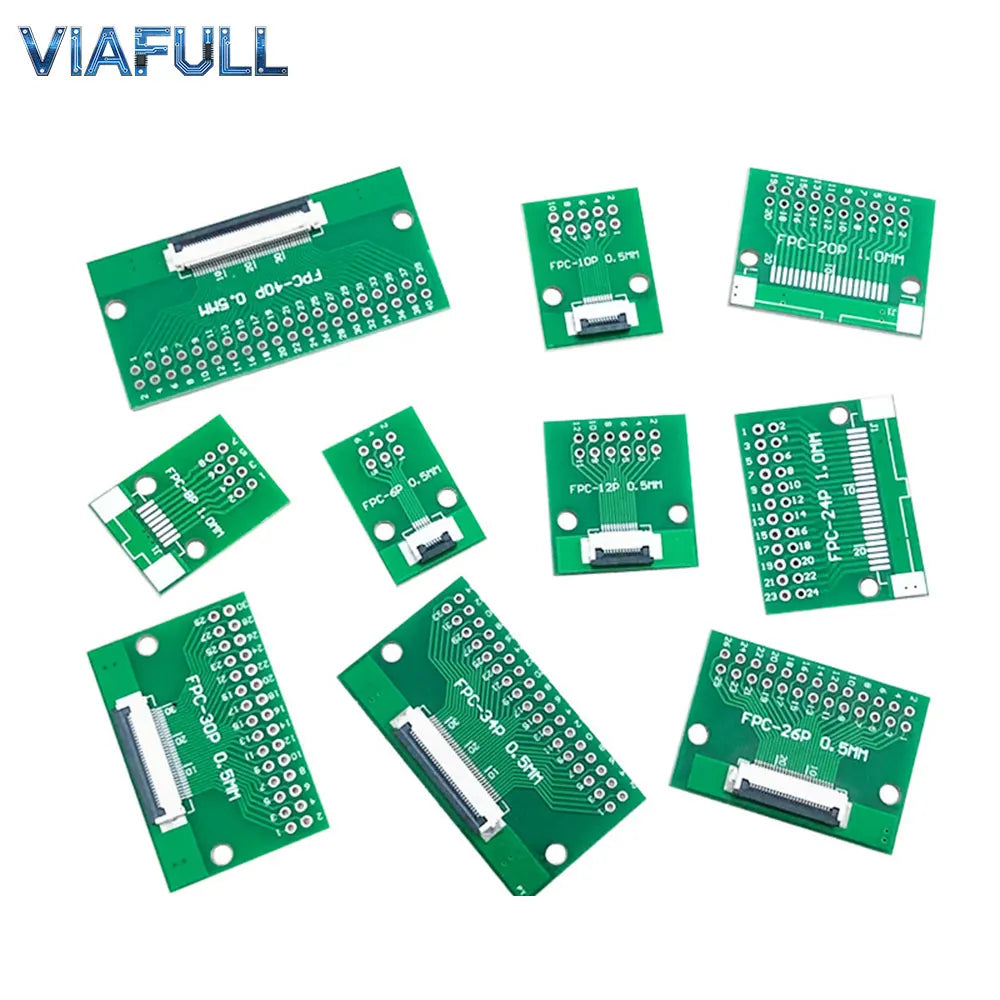

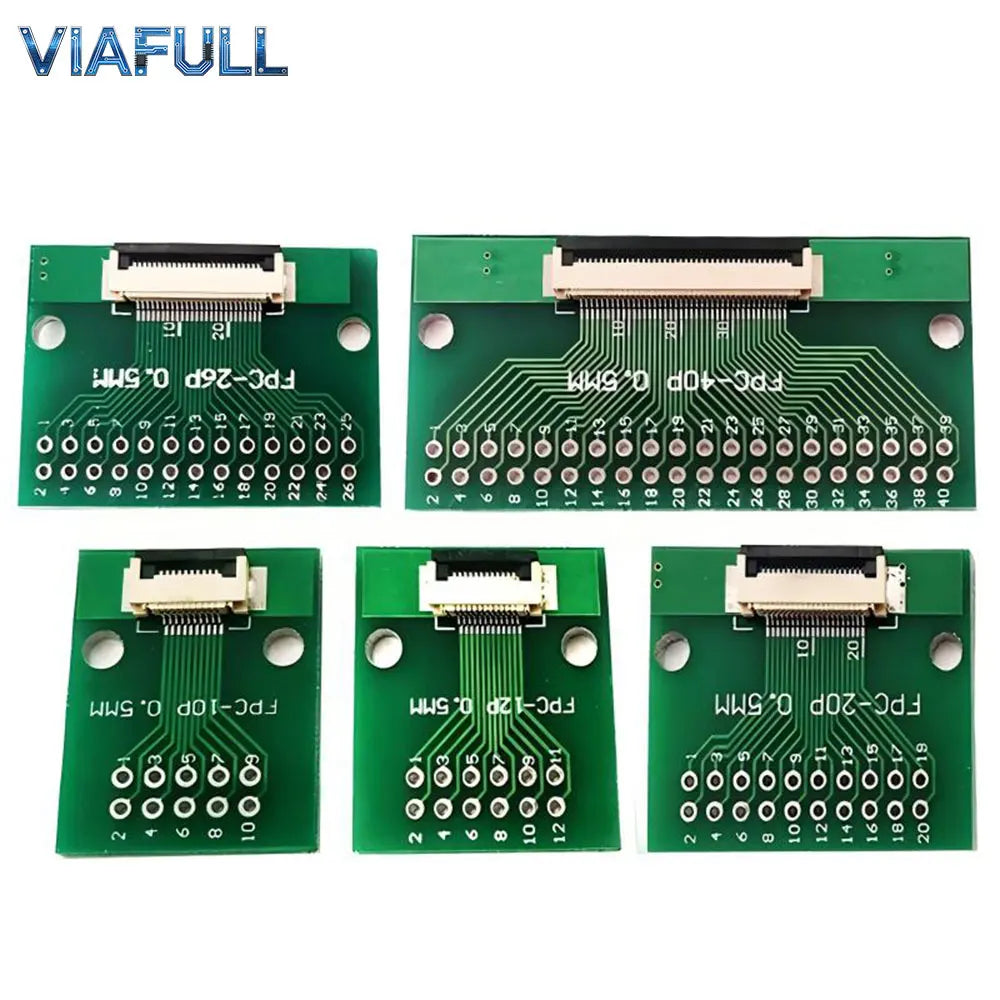

Available Pins: 4, 6, 8, 10, 12, 14, 15, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 40, 42, 45, 50, 54, 60, 80

Application Scenarios

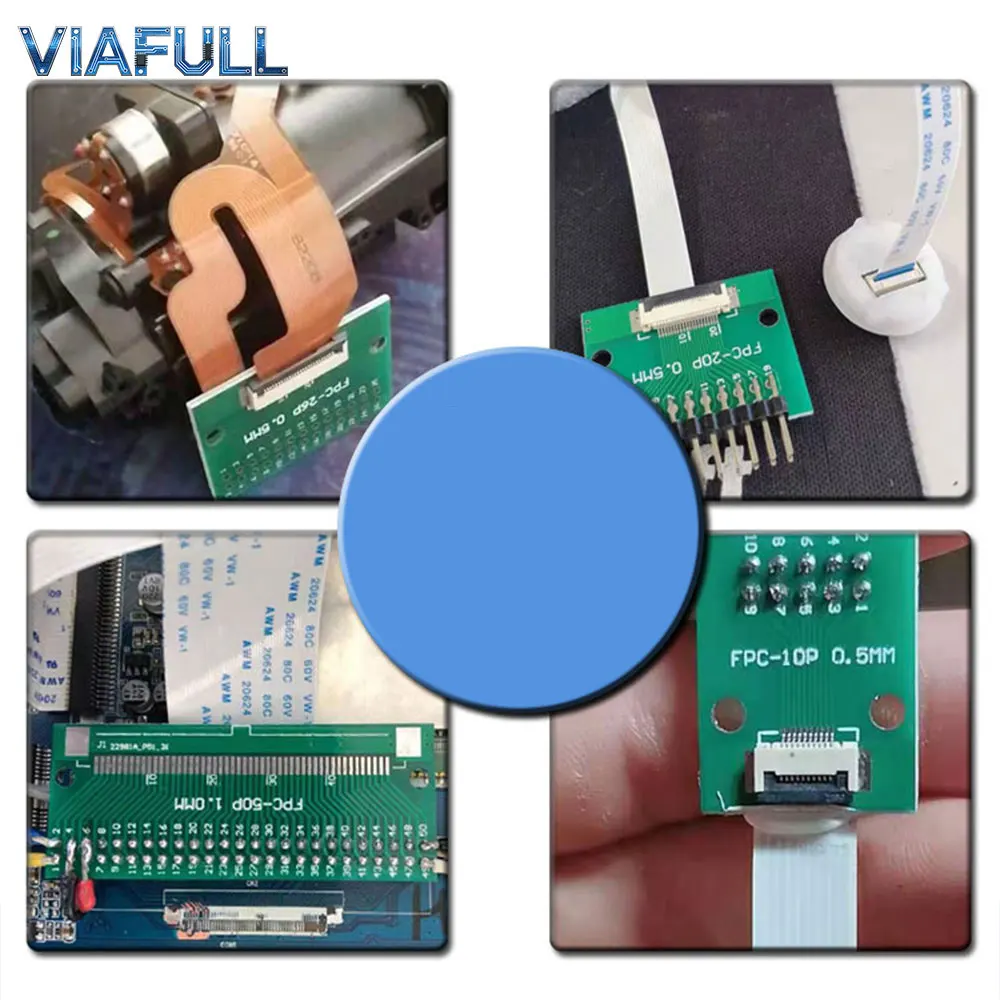

Display & LCD Repair: Extend or convert delicate FFC cables from laptop screens, monitors, or industrial displays to standard test points.

Arduino & Raspberry Pi Projects: Break out FPC signals from camera modules, touch screens, or sensors to breadboards for rapid prototyping.

Embedded System Debugging: Connect logic analyzers or oscilloscopes to fine‑pitch FFC signals without risking damage to the original cable.

Industrial Automation: Integrate FPC‑based sensors or actuators into standard PLC or terminal block wiring in control cabinets.

Maker & DIY Electronics: Use as a universal converter in home automation, robotics, or custom keyboard builds where FPC cables need to be extended or terminated.

If you need a custom pin count, different pitch, or volume pricing, please contact our support team. We are a factory‑based supplier with 10+ years of PCB experience and are committed to providing professional solutions within 24 hours.
