SPECIFICATIONS

After-sales Service Provided: Online support

Applicable Industries: Machinery Repair Shops, Home Use, Printing Shops

Application 1: Lighting

Application 2: Pump Source

Brand Name: NONE

Feature 1: Compact Design

Feature 2: Stable Output Power

Feature 3: High Efficiency

High-concerned chemical: none

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Origin: Mainland China

Package Type: Fiber Coupled

Power: 40W

Showroom Location: None

Type: Laser Diode

Video outgoing-inspection: Provided

Wavelength: 808nm

Working Mode: Fiber Coupled

condition: New

key selling points: Long Service Life

place of origin: Zhejiang, China

spare parts type: diode

Welcome to our store! For product specs, bulk pricing, or custom sourcing, feel free to contact us anytime. 📱 WA Contact: +86 181 6360 1436 📦 Shipping Notice (for large or heavy items): If the system-calculated shipping cost appears unusually high, it's due to default settings and not the actual freight. Contact us for an accurate quote. We look forward to supporting your machining and sourcing needs!

Product Description



808nm 40W Uncooled Multimode Fiber-coupling Laser Diode Module

We deliver 808nm 40W Uncooled Multimode Fiber-coupling Laser Diode Module employing professional coupling technology, that enjoy multiple advantages.This laser diode modules can provide a unique solution for the market,offering powerful technical attributes in a cost-effective package.

Multiple advantages:


◆ compact design ◆ stable output power ◆ high power

◆ high efficiency ◆ long lifetime ◆ convenient packaging

                       Wide applications:

                      ● Medical                ●  Lighting

                      ● Pump Source      ● Material Processing

Output Power	40W	Centre Wavelength	808nm
Spectral Width	3.5nm	Operating Voltage	10.8V
Threshold Current	1.2A	Operating Current	9.5A
Convention Efficiency	40%	95% Power	0.18NA
Wavelength shift vs. Temperature	0.3nm/℃	Slop Efficiency	5.8W/A
Storage Temperature	-30~70℃(Non-Condensing)	Operating Temperature	15~35℃
Fiber Bend Radius	75.0mm	Core Diameter	200μm
Numeric Aperture	0.22	Fiber Connector	FC/ST/SMA

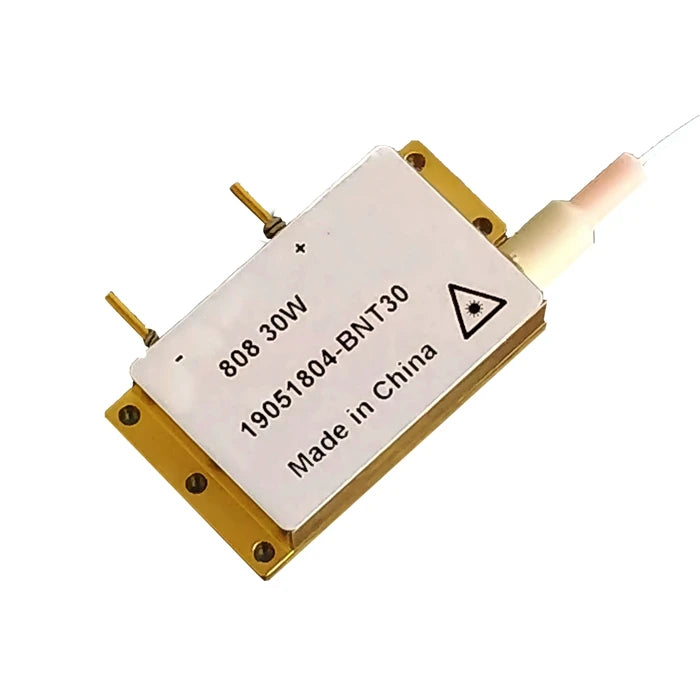

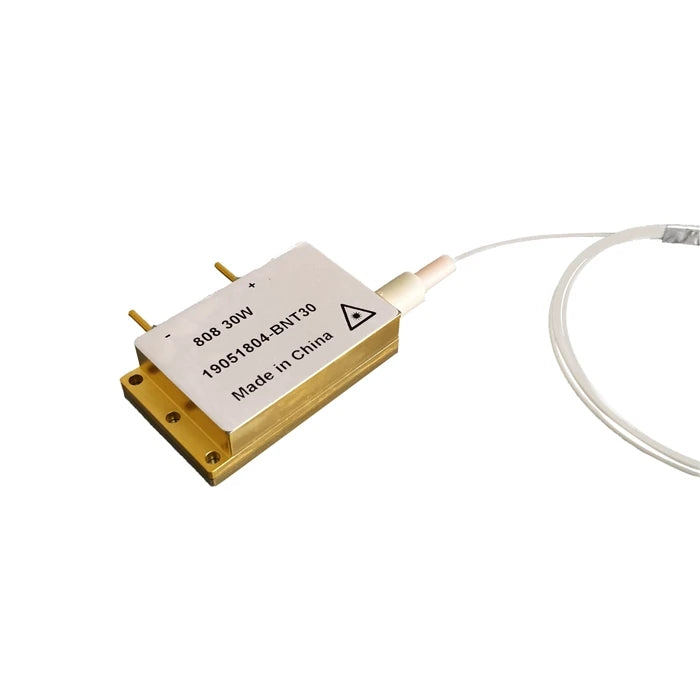

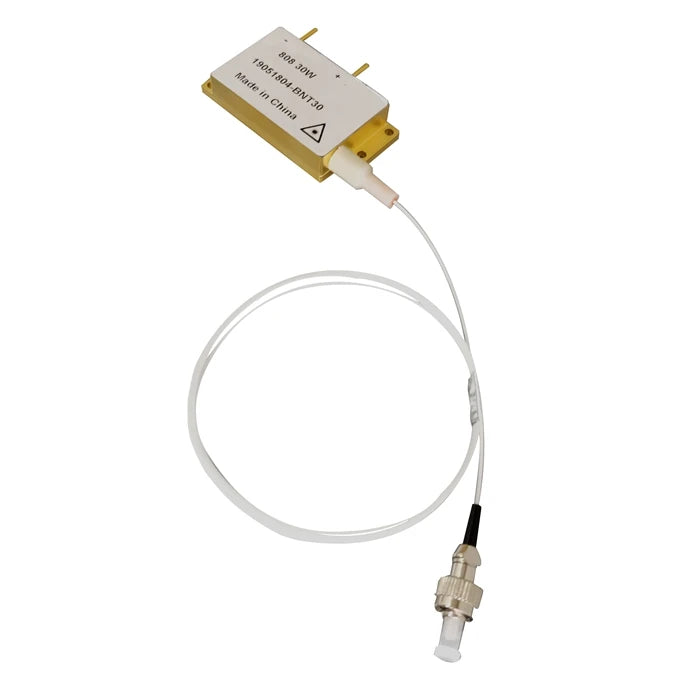

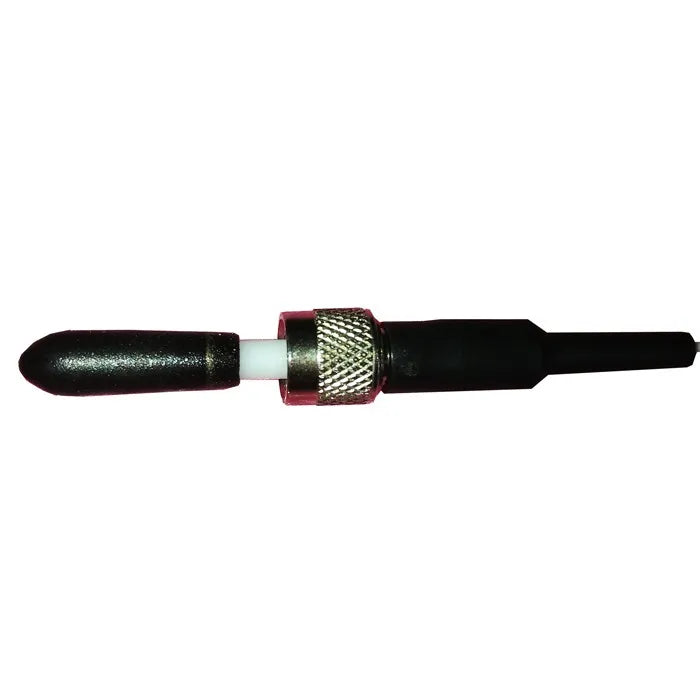

Detailed Images

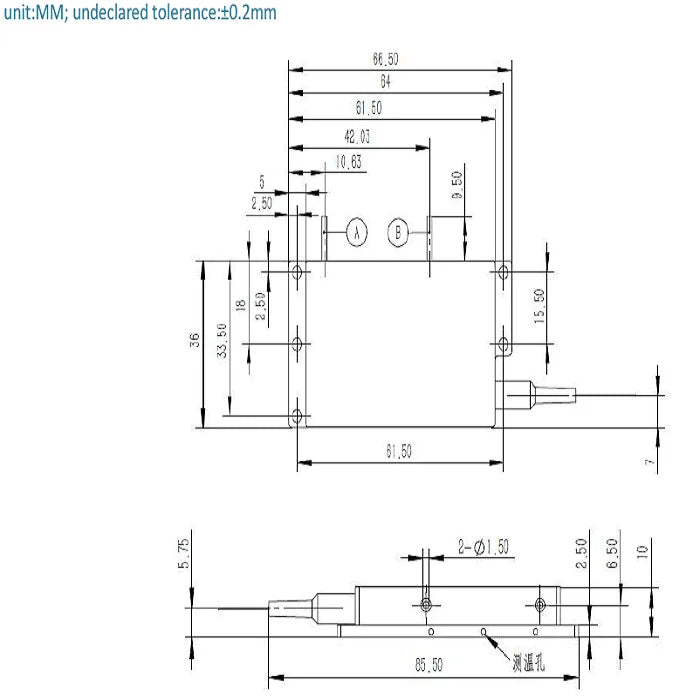

Dimension
