FCOB RGBW LED Strip Light 5pin 12mm DC12V 24V 896 LED Flexible FOB RGBCW COB RGBWW Lights High Density RA90 Linear Dimmable 16W

FCOB RGBW LED Strip Light 5pin 12mm DC12V 24V 896 LED Flexible FOB RGBCW COB RGBWW Lights High Density RA90 Linear Dimmable 16W

$122.72

$122.72 $0.00

Color RGB CW DC24V RGB NW DC24V RGB WW DC12V RGB CW DC12V RGB NW DC12V RGB WW DC24V

Length 5m 3m

Description

SPECIFICATIONS

Attention 1: Must work with pwm Controller and 12v/24v Power

Attention 2: Every 0.5 meter with Solder Joints

Average Life (hrs): 50,000

Brand Name: BTF-LIGHTING

Certification: ce,FCC,ROHS,UL

Color Temp(K): WW 2700-3000K; CW 6000-6500K; NW 4000-4500K

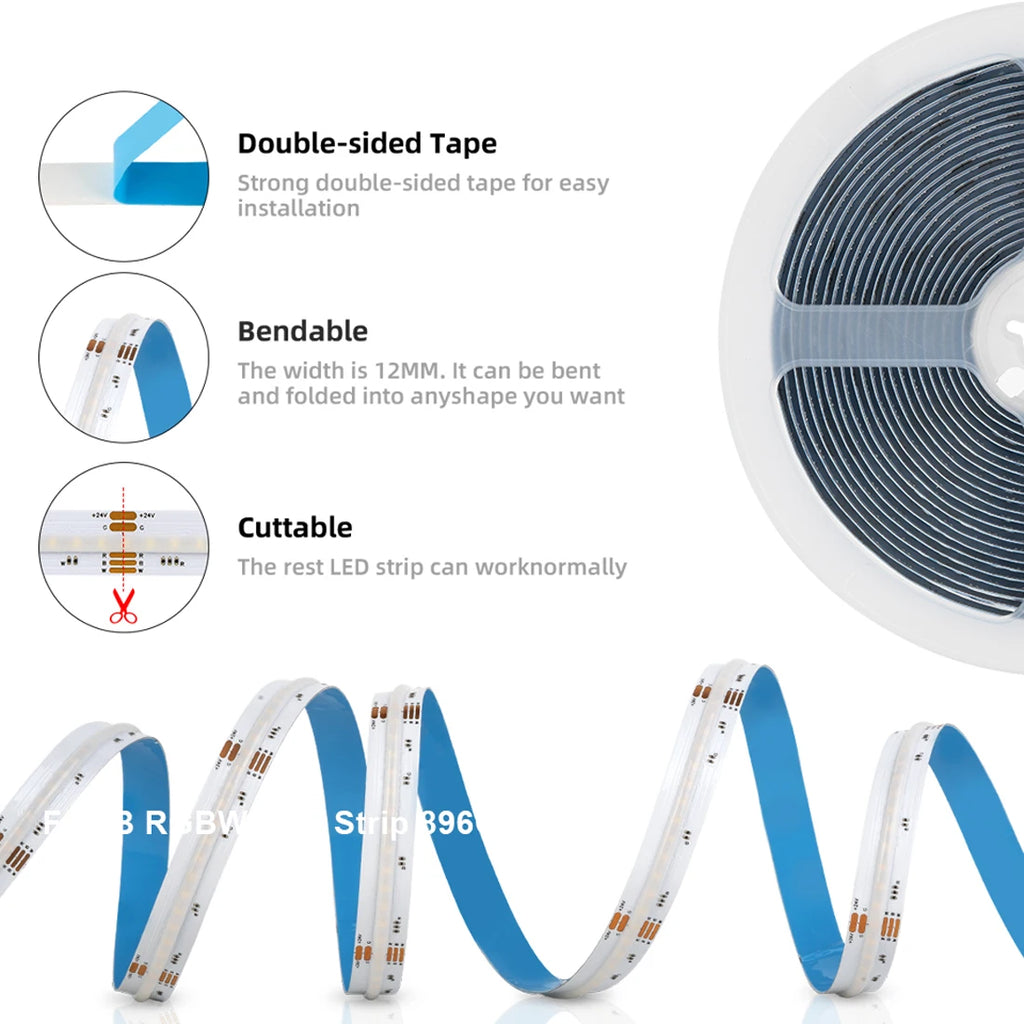

Cuttable: DC12V-every 29.4mm; DC24V-every 62.5mm

FPCB Width: 12mm

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Model: RA90

LEDs Number/M: 896 LEDs

Luminous Flux: 2000-82000

Model Number: BTF-FCOB RGBW

Nominal Voltage: 12V/24V

Occasion: Bedroom

Optional Length: 3m/5m

Origin: Mainland China

Package Including: Only LED Lights ( No power and pwm controller )

Power Source: DC

Specifications (light beads / m): 896 LEDs

Strip type: COB

Theoretical Power: 16W/M

Voltage: 12V/24V

Waterproof: No

FCOB RGBW LED Strip Light 5pin 12mm DC12V 24V 896 LED Flexible FOB RGBCW COB RGBWW Lights High Density RA90 Linear Dimmable 16W

Features:

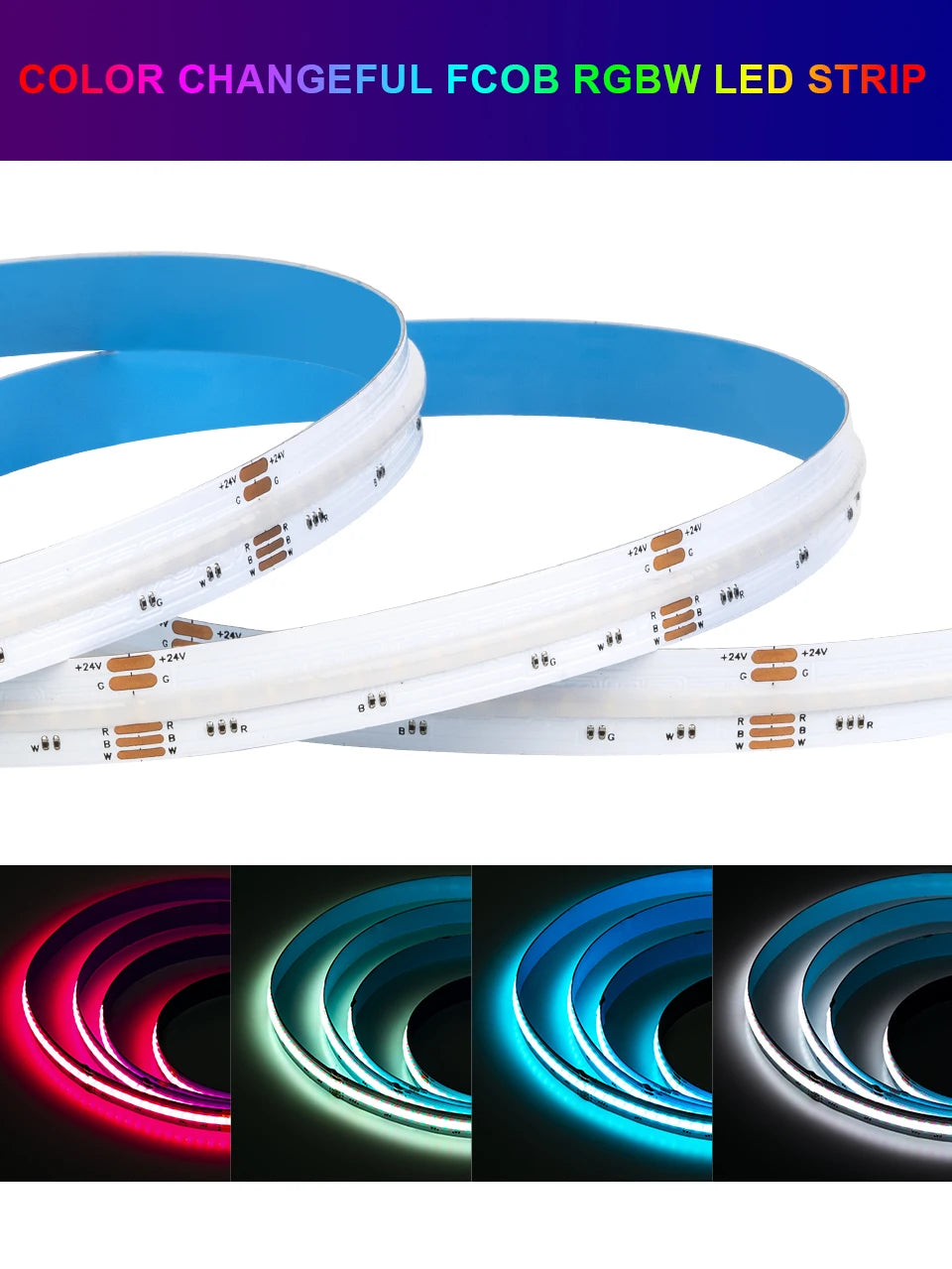

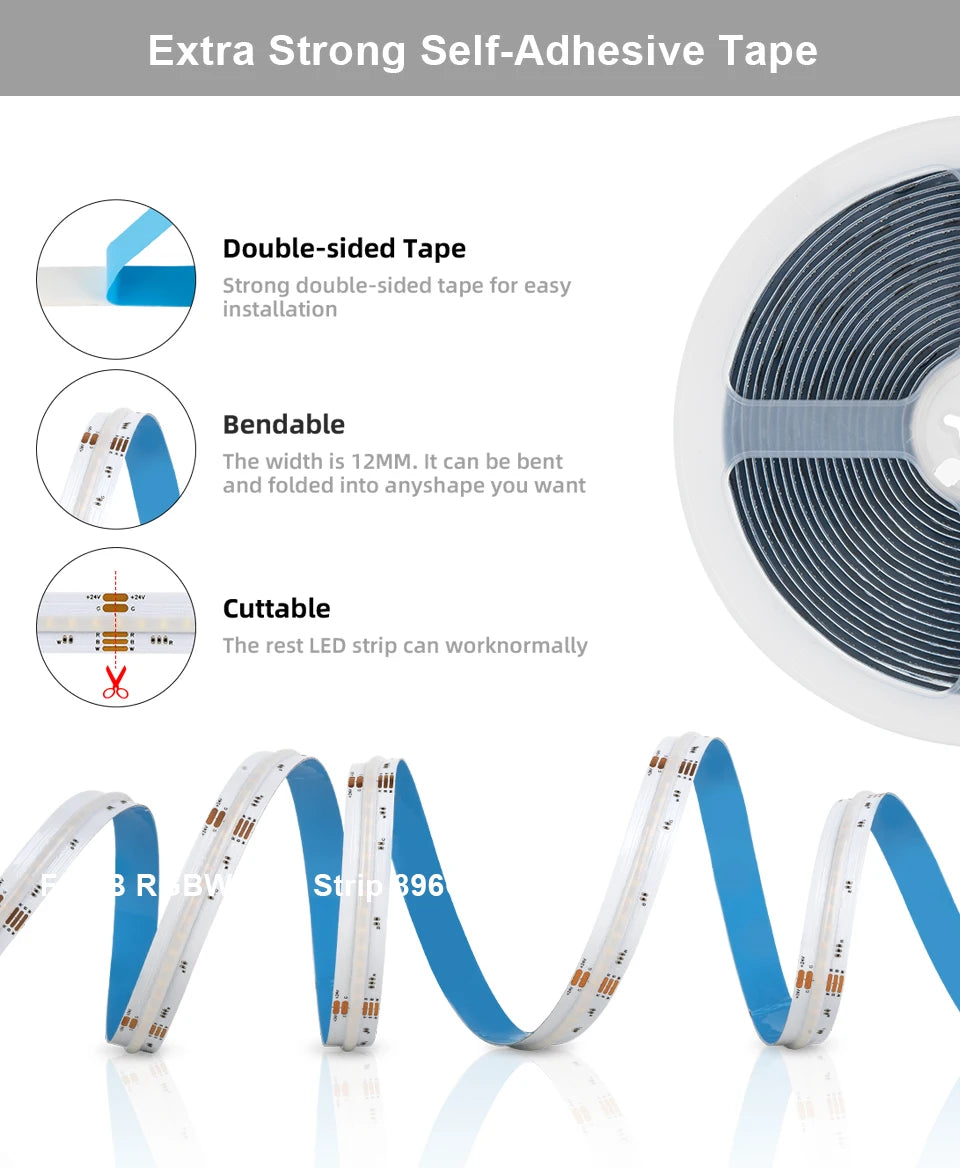

Using mini 0402 LED as light source, and glue on surface to make the lights more evenly and uniform.
Up to 896 LEDs each meter, only around 4.5mm distance between same color LEDs.
Double layer FPCB, balancing the voltage dropping, heat dissipation and flexibility.
Compatible with most of the RGBW controllers in the markets.

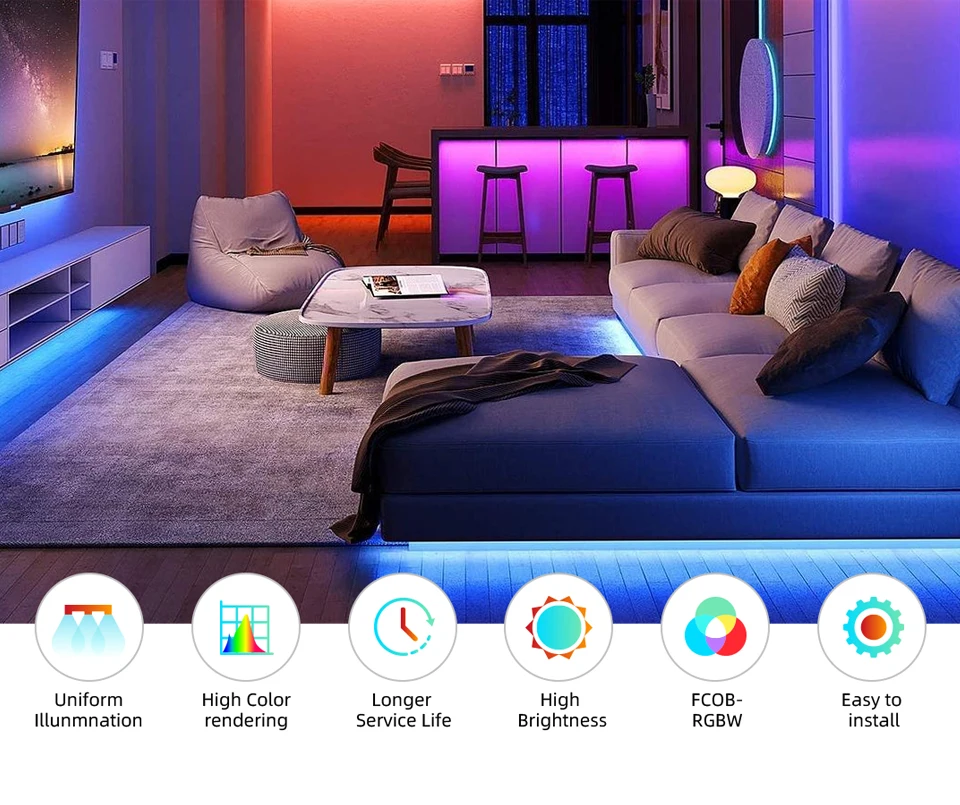

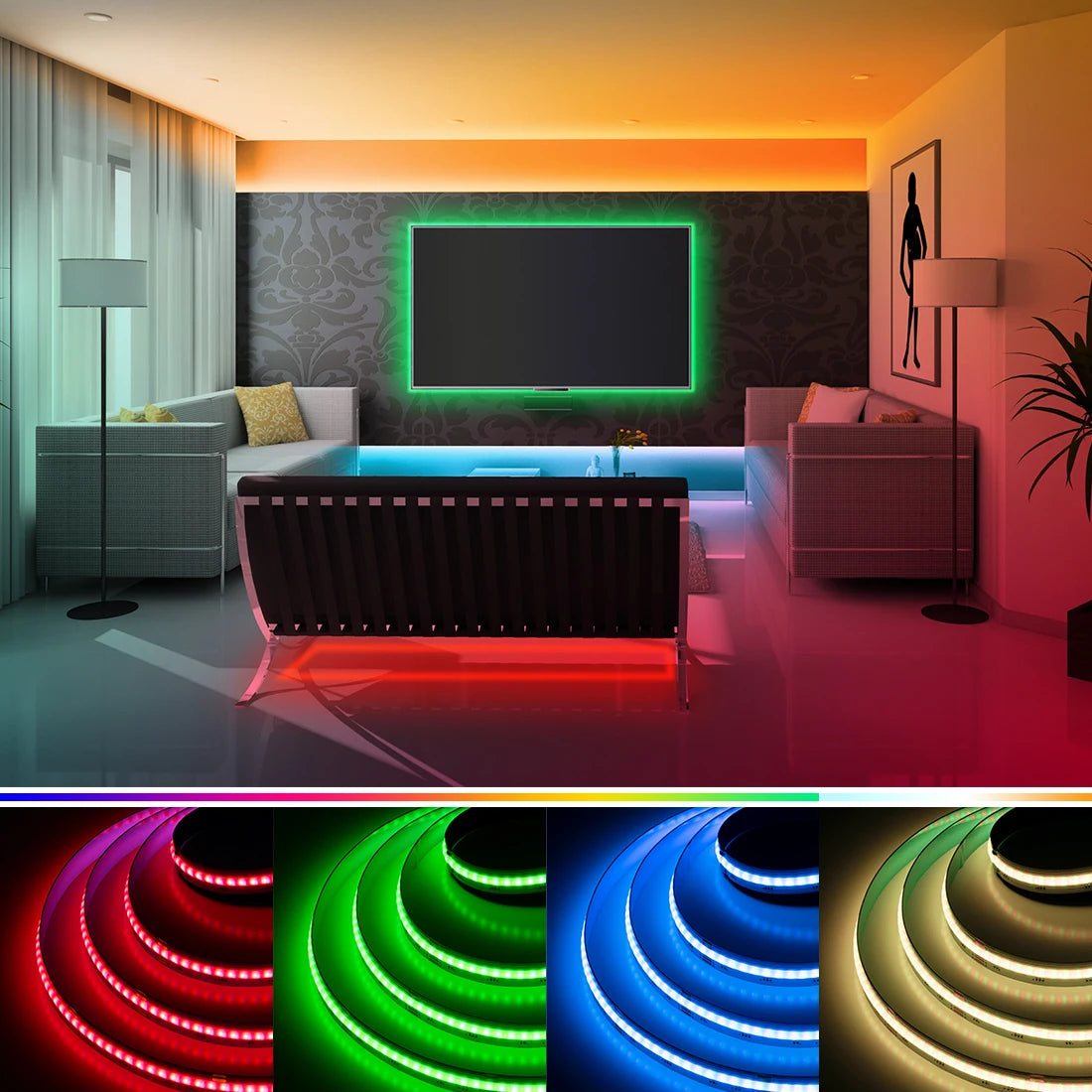

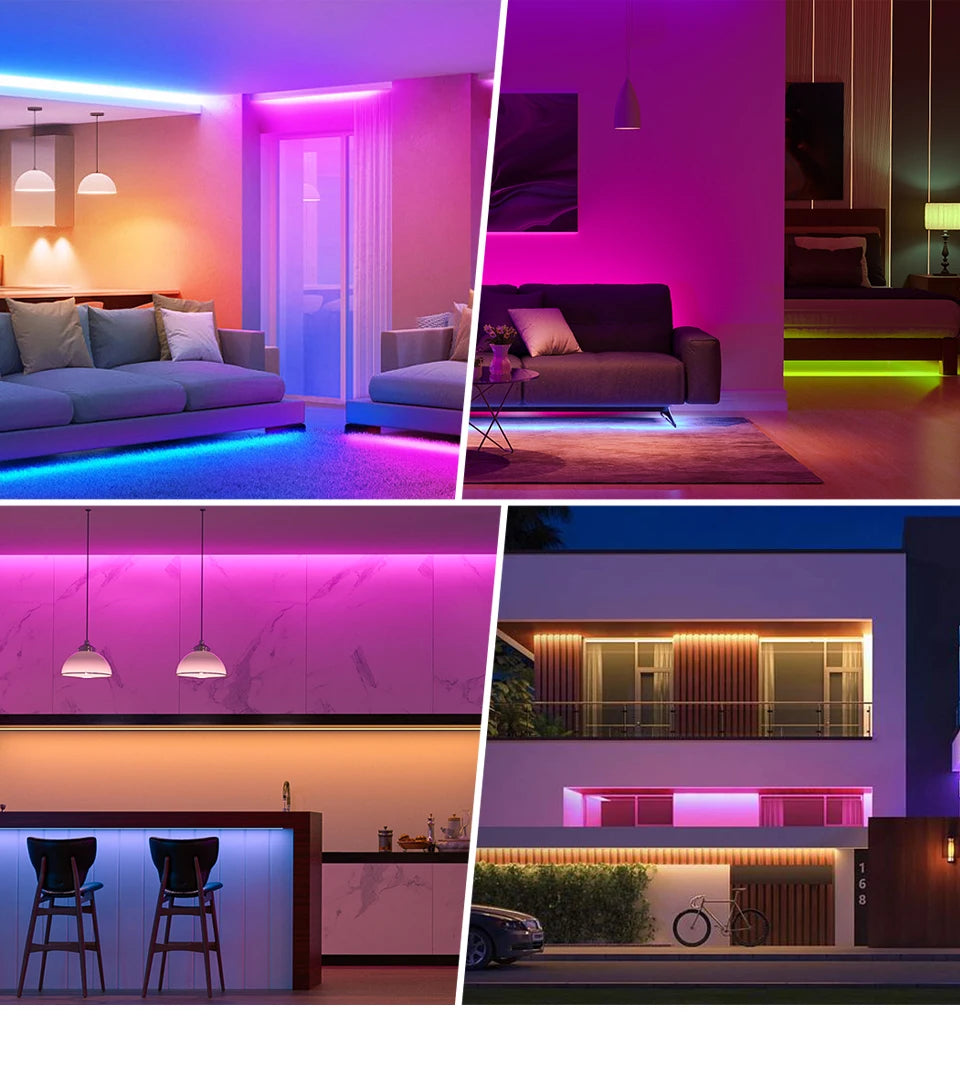

Applications, Residential lighting, decorative lighting.
This LED lights need work with RGBW controller.

Specification:
Input Voltage: DC12V / DC24V.
Theoretical power: 16W/M.
FPCB width: 12mm.
FPCB height: 1.6mm.
LED quantity: 896LEDs/M.

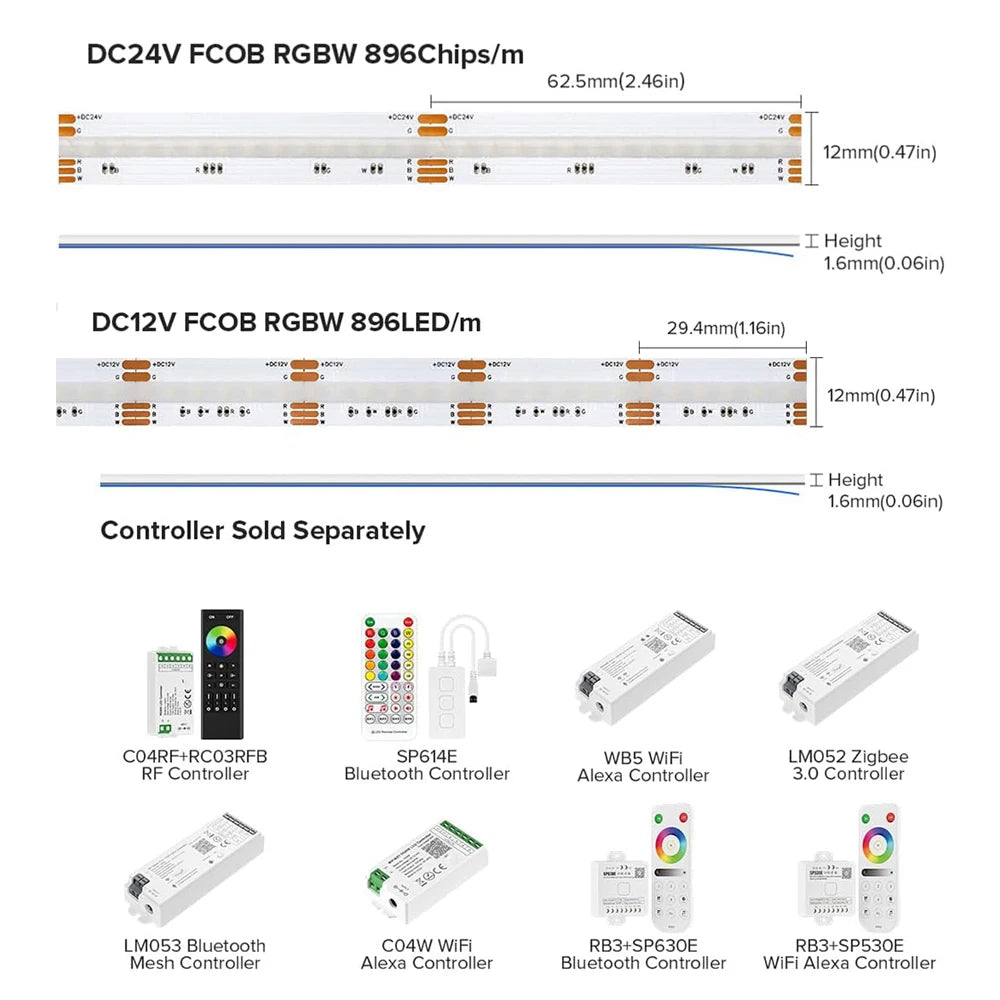

Cutting length: DC12V-every 29.4mm; DC24V-every 62.5mm.

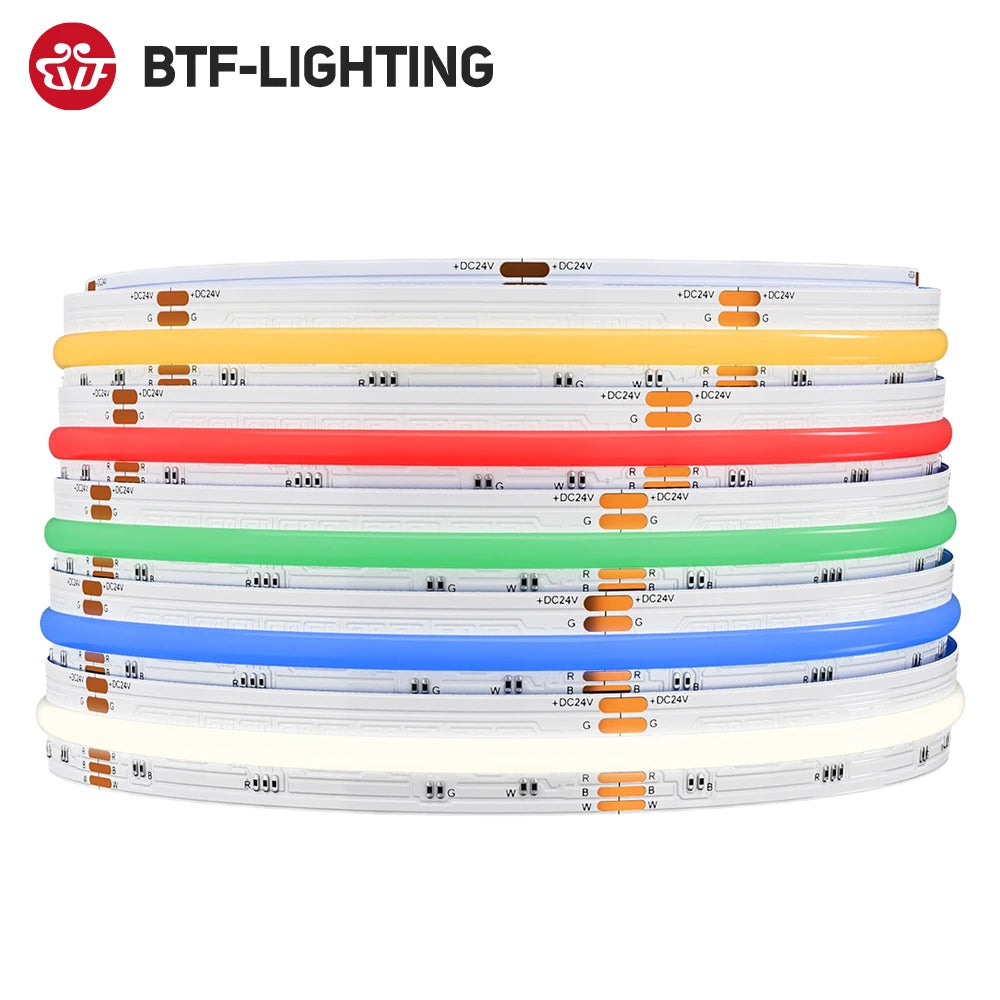

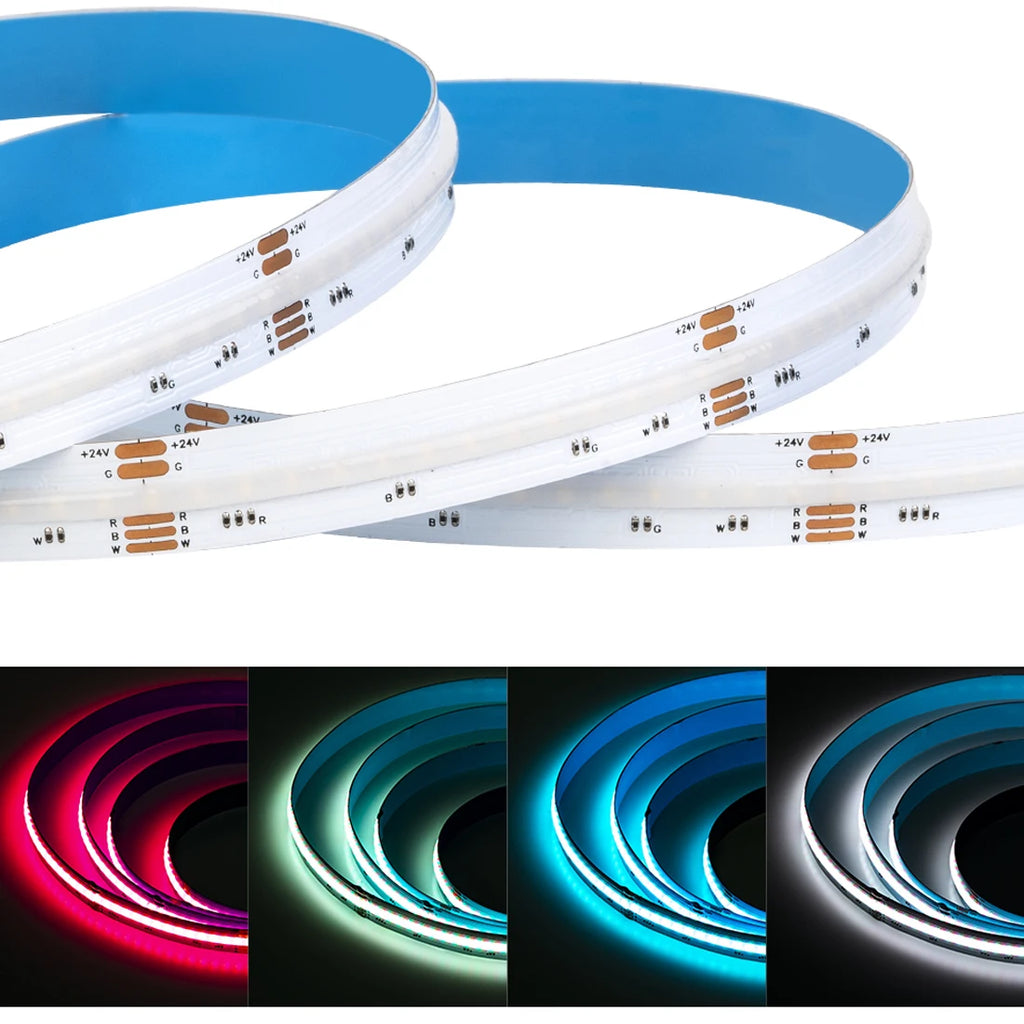

Colors: RGBW, Any Colors Changeable.
Color Rendering Index: Ra＞90.
Operation temperature: -20℃-+45℃.
Storage temperature: -20℃-+60℃.
Lighting Color: RGBW (WW-Warm White; CW-Cool White; NW-Natural White).

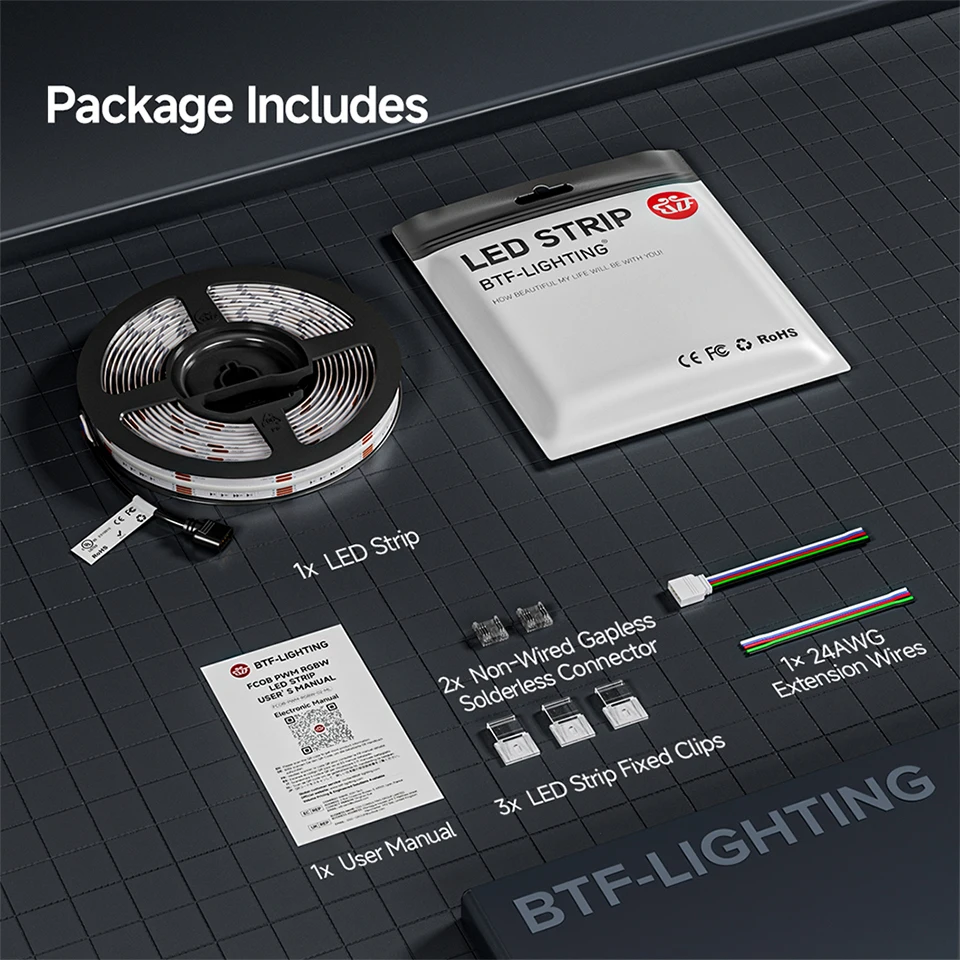

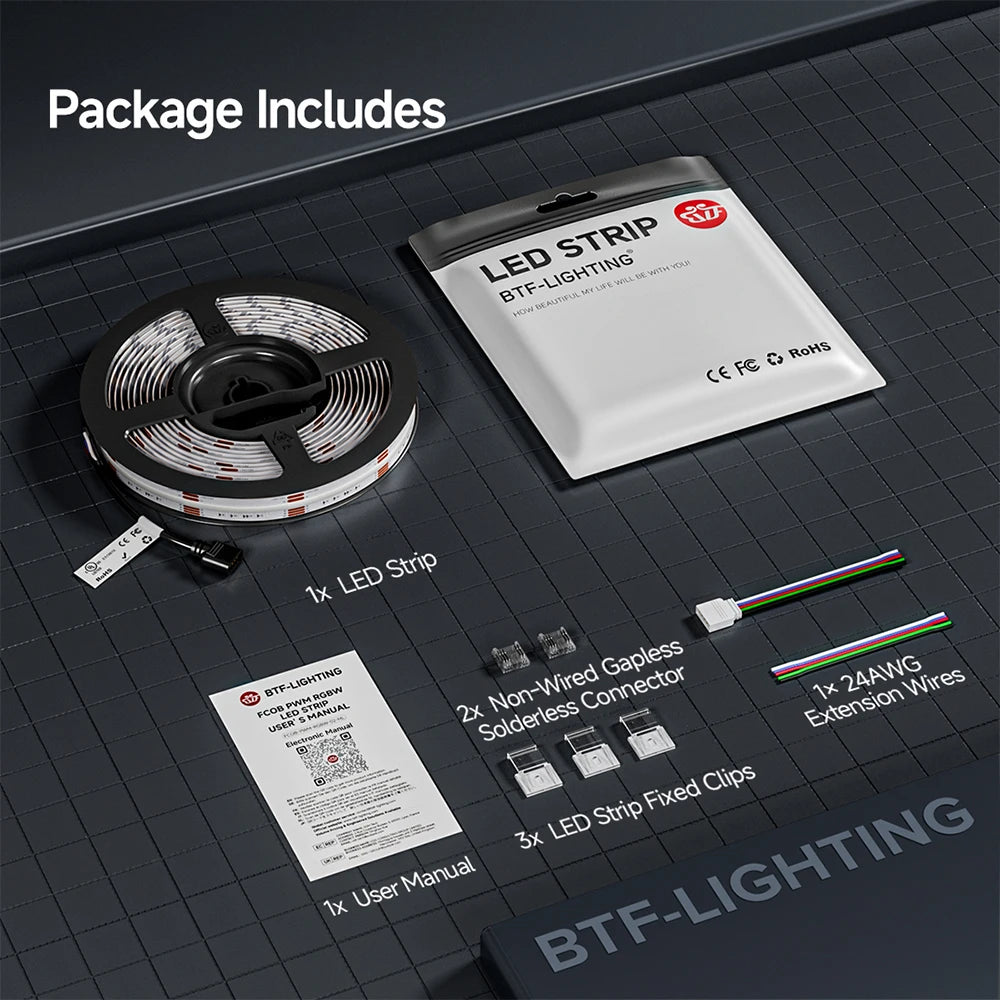

Package:
1 * FCOB RGBW LED strip ( power supply and controller is not included ).

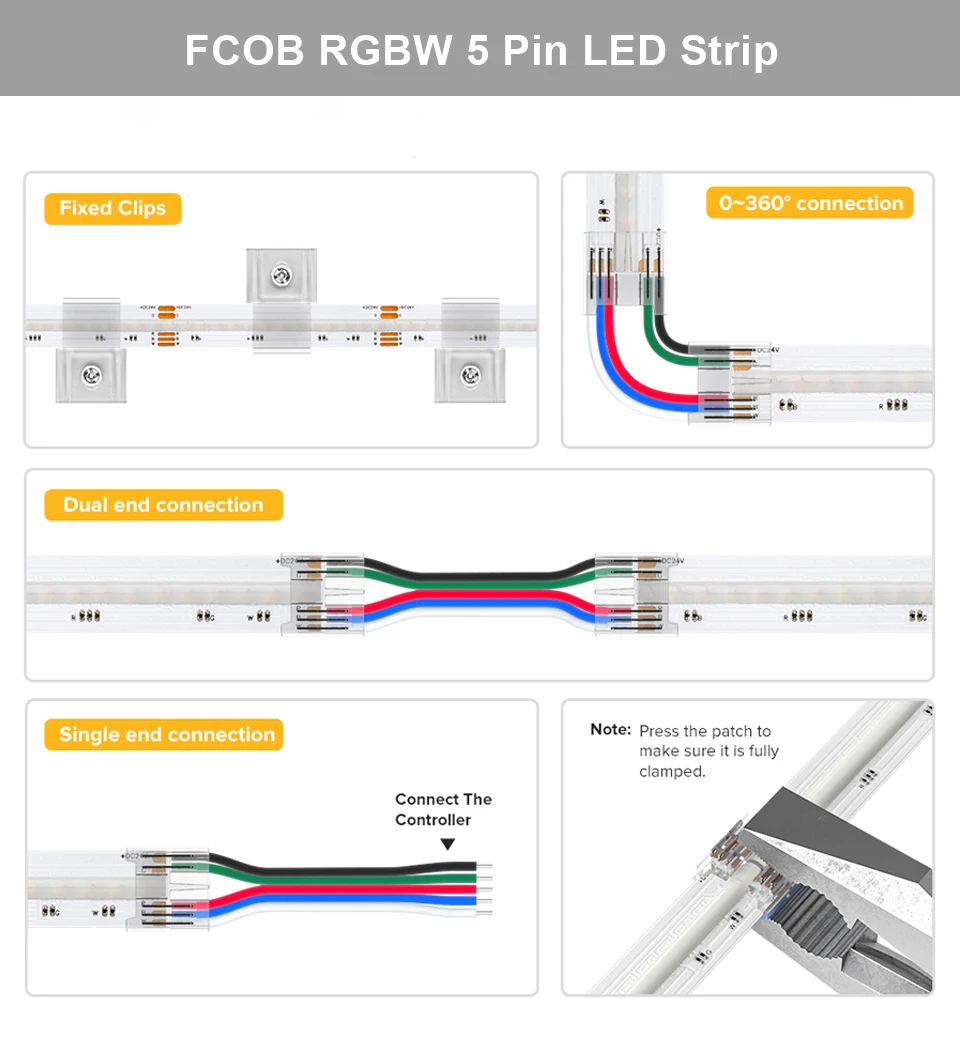

Installation Ways:
1, For powering on one side, the recommend running length is 5 meters, for over 6 meters please connect in parallel.
2, Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.
3, Match the polarities according to the marks in the PCB while connecting.
