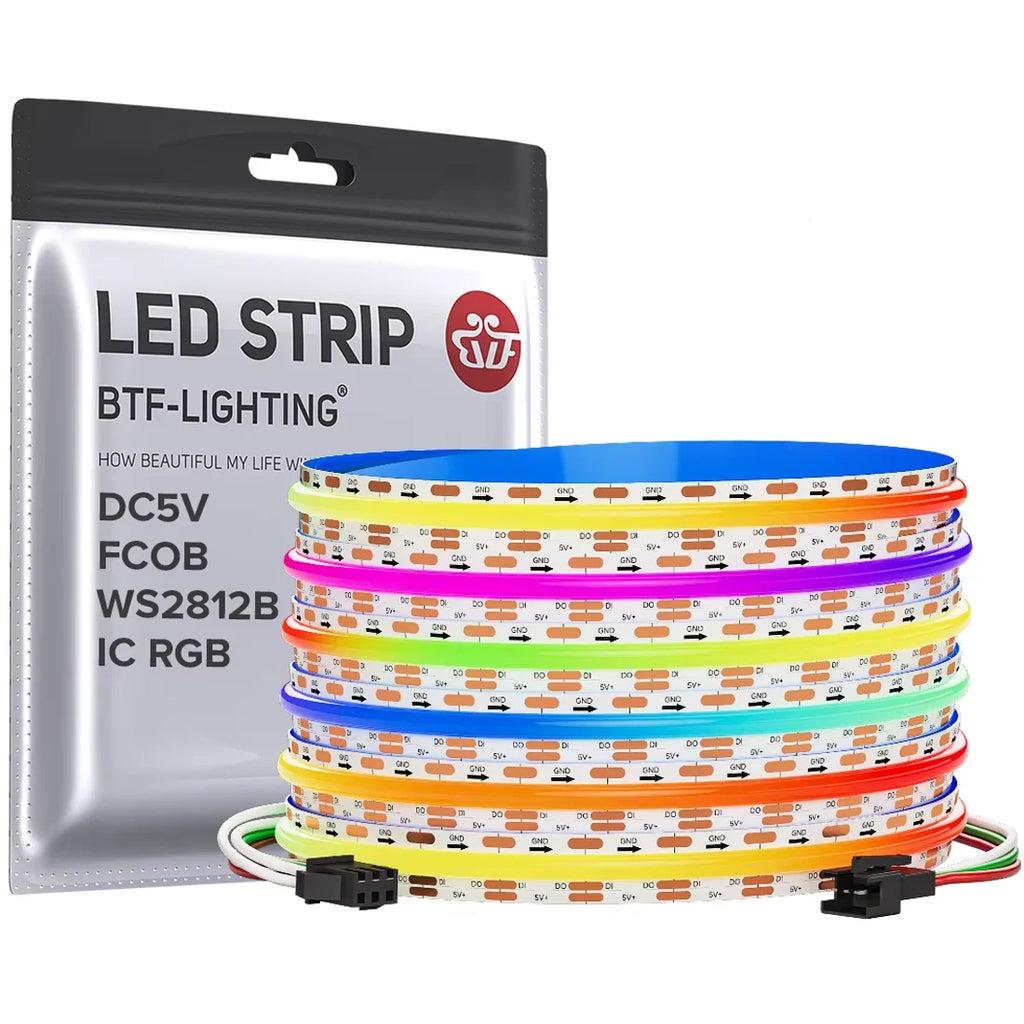

FCOB SPI RGB IC LED Light Strip DC5V WS2812B Individually Addressable 160 LEDs Smart Pixels Magic Flexible COB Light IP30

FCOB SPI RGB IC LED Light Strip DC5V WS2812B Individually Addressable 160 LEDs Smart Pixels Magic Flexible COB Light IP30

$88.07

$88.07 $0.00

Length 4m 5m 3m 1m 2m

Description

SPECIFICATIONS

Addressable: 1 IC drives 1 LEDs

Attention 1: Must work with Pixels Controller and DC5v Power

Attention 2: Every 0.5 meter with Solder Joints

Average Life (hrs): 50,000

Brand Name: BTF-LIGHTING

Certification: ce,FCC,ROHS,UL,CE,RoHs

Color Temp(K): SPI RGB IC

Cutting length: Every 12.5mm (Each 2 LEDs)

High-concerned chemical: none

Is Batteries Included: no

Item Type: Strip

LEDs Number/M: 160

Luminous Flux: 2000-82000

Model Number: BTF-FCOB SPI RGB 5V

Nominal Voltage: 5V

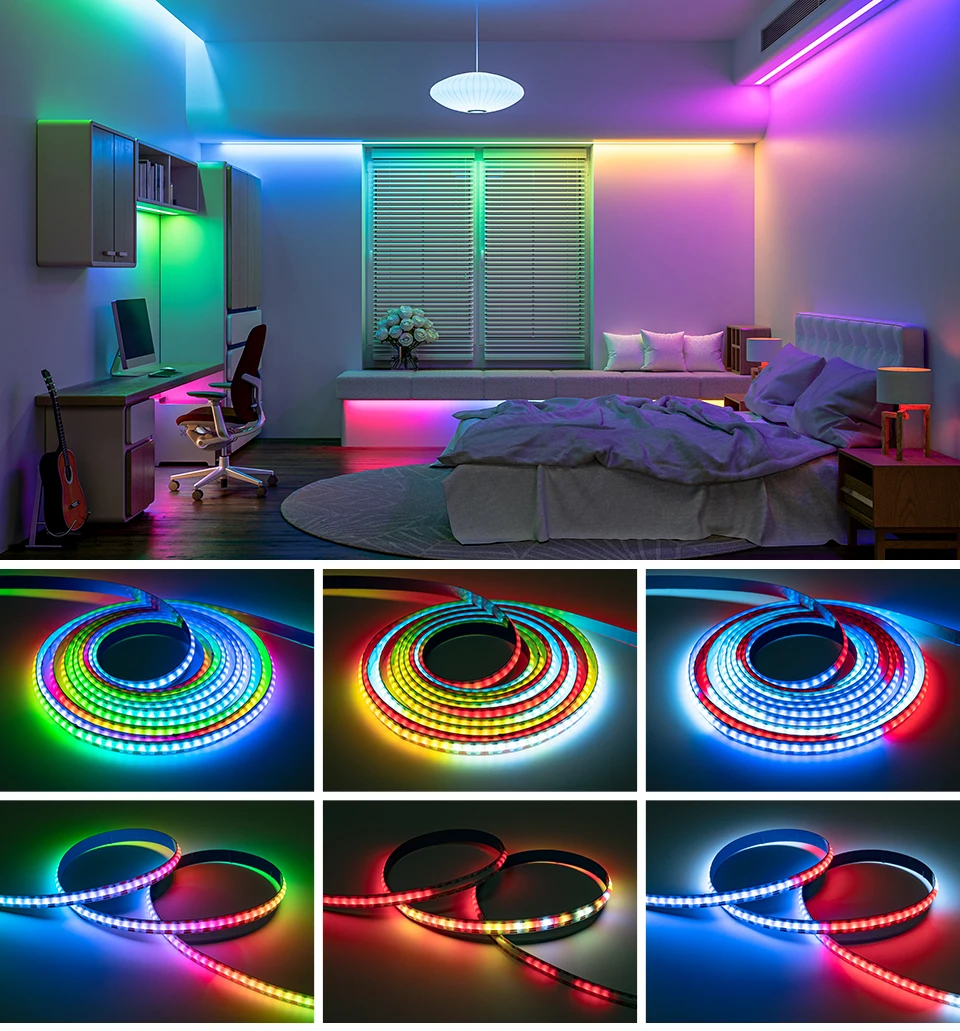

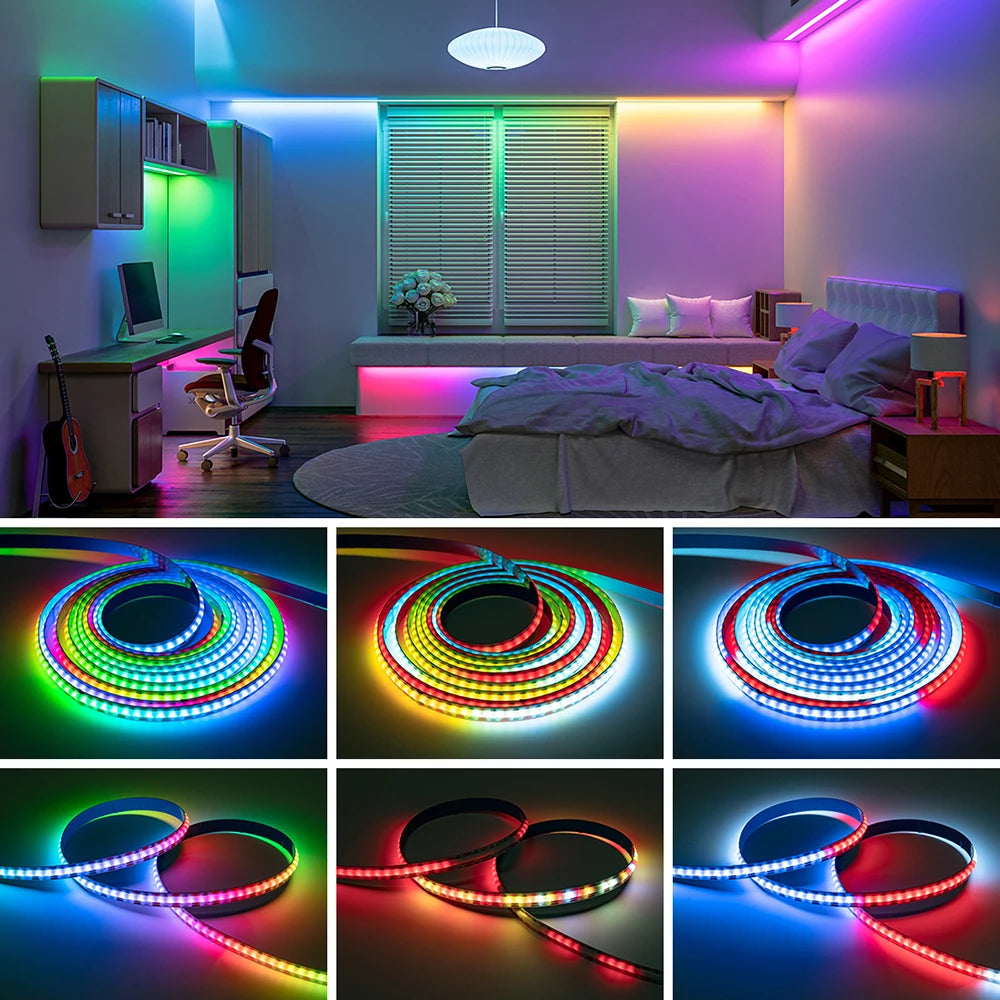

Occasion: Living room

Origin: Mainland China

Package Including: Only LED Lights ( No power and pixels controller )

Power Source: DC

Specifications (light beads / m): 160

Strip type: COB

Theoretical Power: 5W/M-13W/M

Voltage: DC5V

Waterproof: No

FCOB SPI RGB IC LED Light Strip DC5V WS2812B Individually Addressable 160 LEDs Smart Pixels Magic Flexible COB Light IP30

Please Pay Attention:
1, The Price is Only LED Strip, Not Included Power Supply and Pixels Controller.

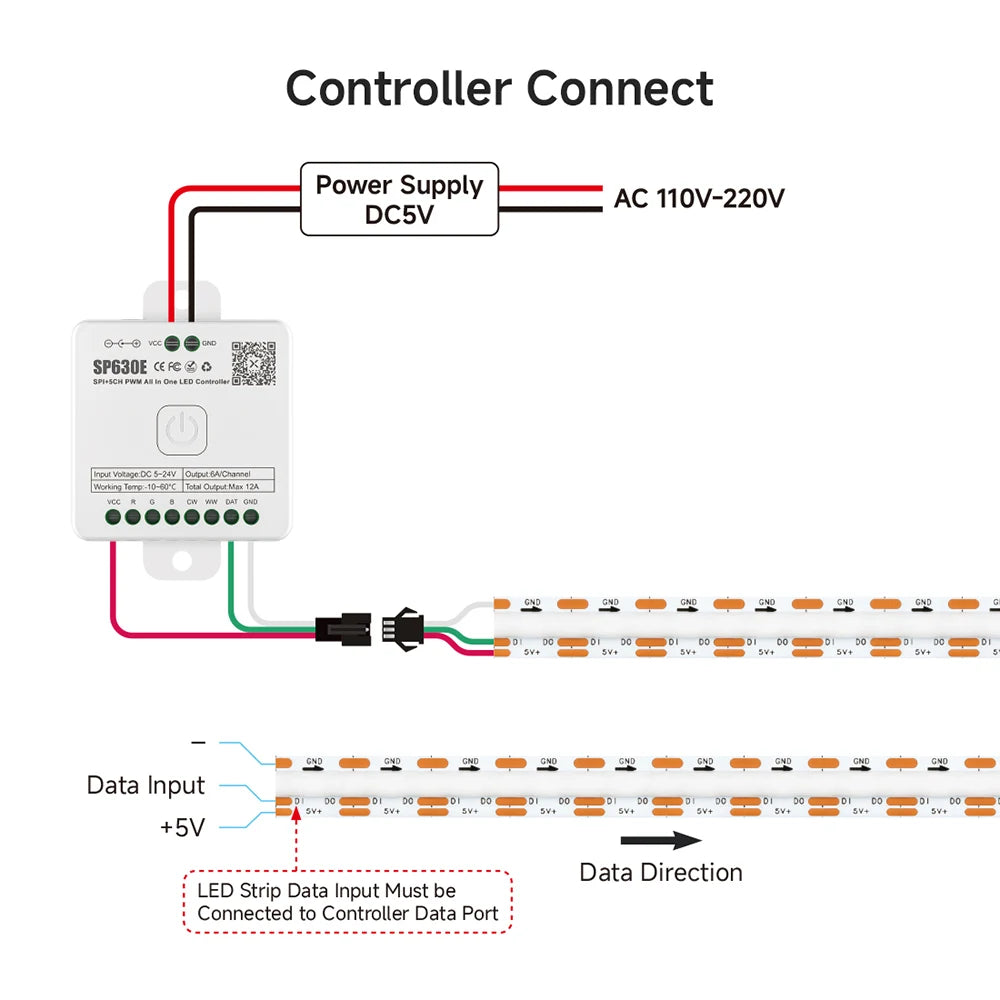

2, This WS2812B LED Strip Must Use DC5V Power Supply and Pixels Controller to Control.
3, Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.
4, This LED Strip Can Be Cut Between Each 2 LEDs To Create Custom Lengths, Do Not Bend LED Strip Sharply.

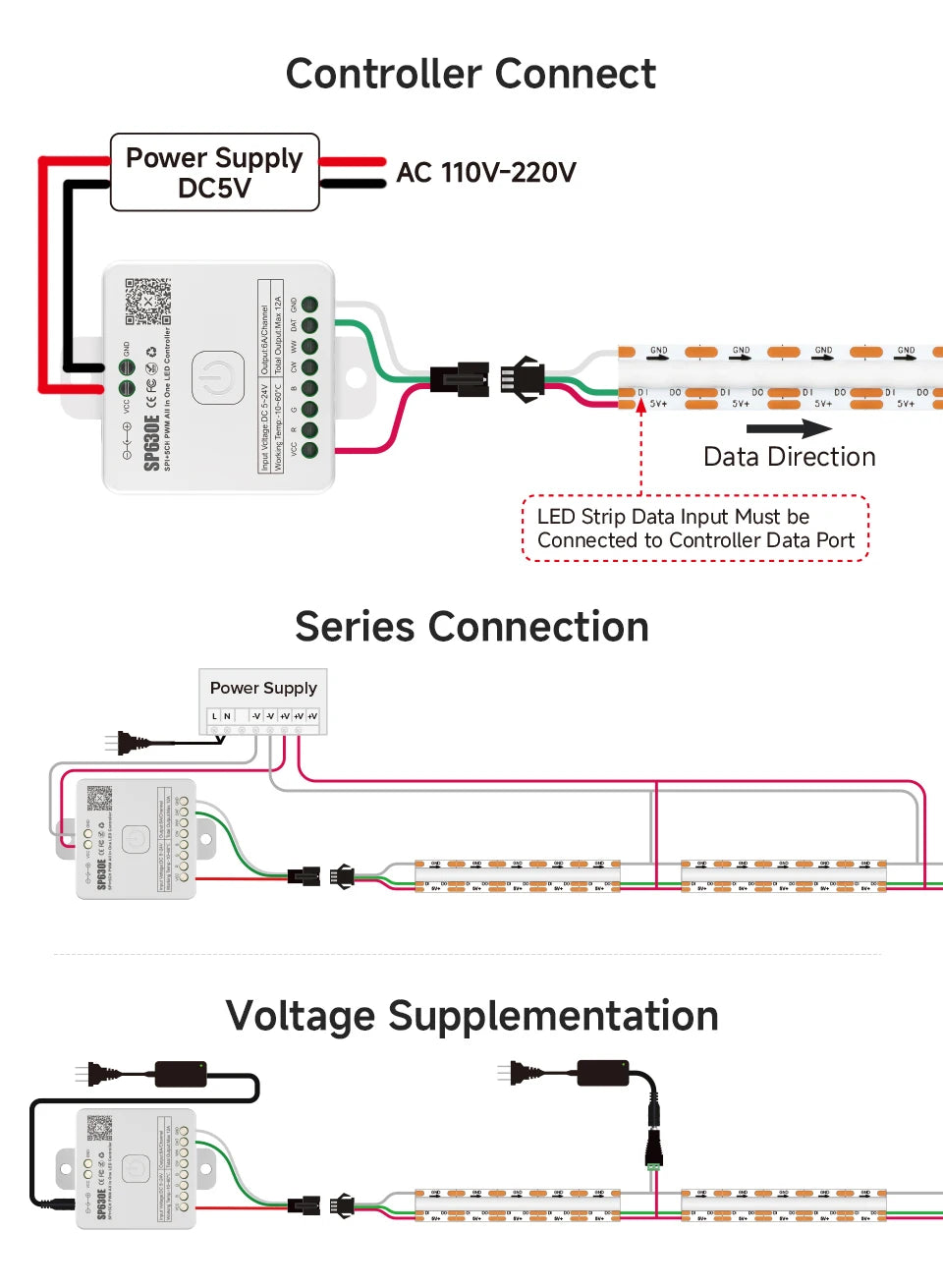

5, The 3 Pin SM Connectors of LED Strip Included: Red: VCC, White: GND, Green: DATA.
6, The LED Strip Has Adhesive Tape On The Back of PCB. Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.
7, Longer LED Strip Runs, Please Add More Power to 2 Pin Power Wire of Both Ends To Reduce Voltage Drop.

Specification:
Input Voltage: DC5V.
IC Type: WS2812B.
Addressable: 1 IC drives 1 LEDs.
Wattage: 5W/M-13W/M.

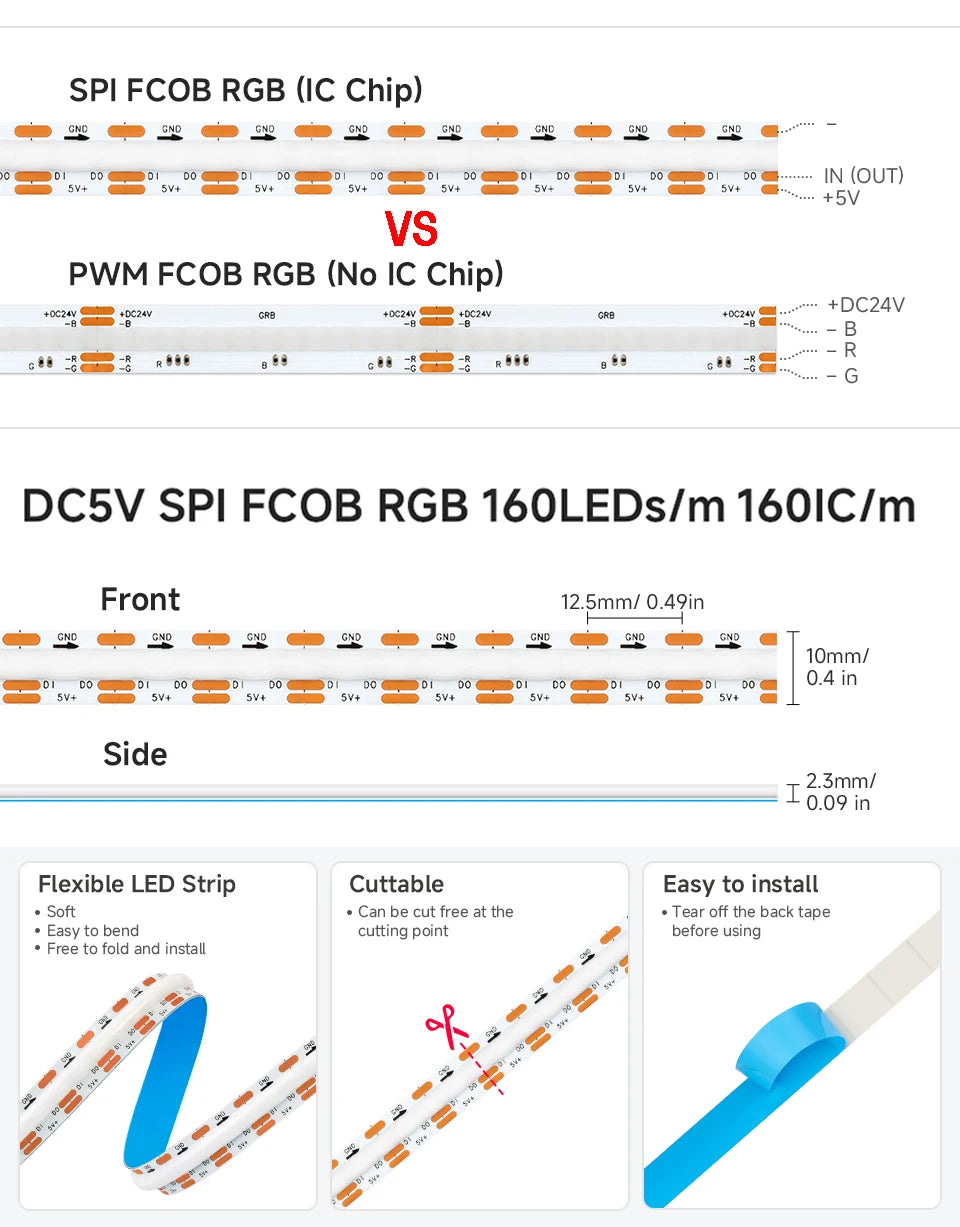

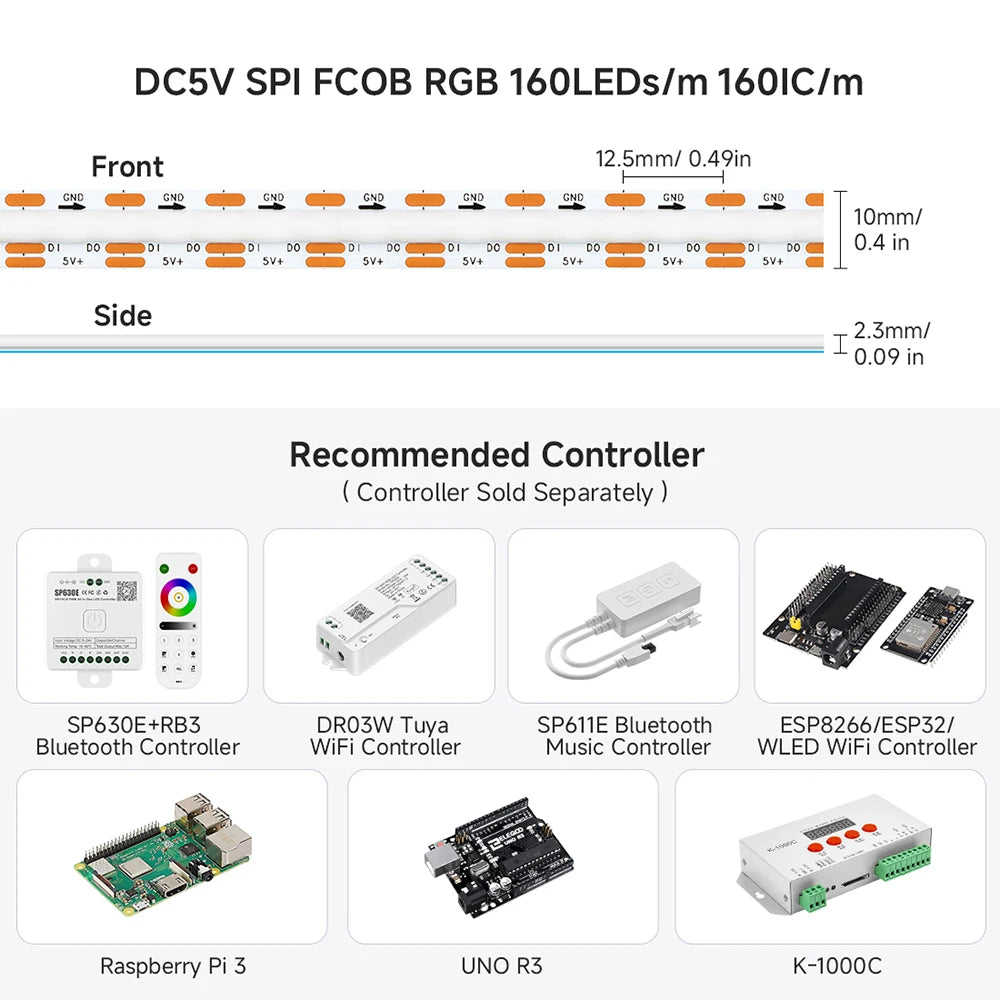

FPCB Width: 10mm.
LED Quantity: 160LEDs/M (160IC/M).
Cutting Length: 12.5mm (Each 2 LEDs).
Colors: SPI RGB IC full Colors.
Operation Temperature: -20℃-+45℃.
Storage Temperature: -20℃-+60℃.
View Angle: 180°.

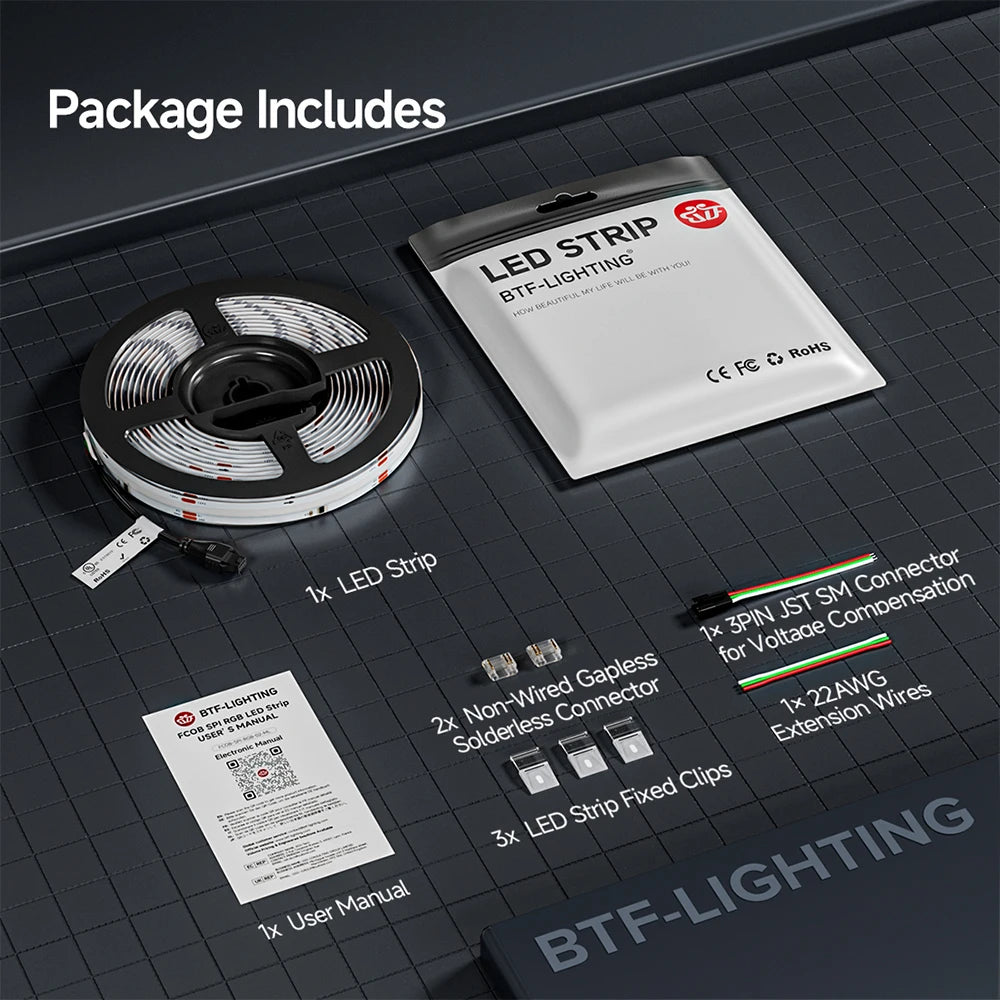

Package:
1 pcs FCOB SPI RGB IC 160 LED Strip ( power supply and pixels controller is not included ).
