SPECIFICATIONS

Age Range: 14 Years & up

Application: Robotics

Brand Name: NONE,FEETECH

Certificate: ROHS

Description: Potentionmeter 360°

Feature: TTL Level Multi Drop/485

Function: Magnetic Encoder TTL 485 available

Gender: Unisex

High-concerned chemical: none

Model Number: FE-SNIS-C001

Origin: Mainland China

Place of Origin: Hubei, China

Product name: USB to RS485 Converter Adapter

Product size: 50*34.5*28mm

SKU: FE-SNIS-C001

Torque: 60kg

Type: Robotics/Industry

Use: Vehicles & Remote Control Toys

voltage: 6V~12V

Product Description

1. About the manual 1.1 INTRODUCTION This manual is used to explain the operation and use of fe-snis-c001 produced by Shenzhen Feite Model Co., Ltd. 1.2 product function introduction Fe-snis-c001 is an industrial RS485 communication signal conversion module with isolation function, which isolates the input RS485 signal level and converts the output RS485 and TTL single bus signal level. The isolated and converted signal can simultaneously control the RS485 and TTL single bus steering gear of feetech brand. This product is suitable for industrial scenes with strong anti-interference ability, input power reverse connection protection, electrostatic protection and surge EFT protection. 1.3 version information Manual version Hardware version Software version date Modify record V1.0 two thousand one hundred and five three establish 2. Technical specifications 2.1 functional parameters (1) Meet rs-485tia / EIA standards. (2) The maximum data transmission rate of 1Mbp / S is supported. (3) Working voltage: dc6-24v, maximum current: 3A. (4) Level signal optocoupler isolation, DC-DC power isolation. (5) Operating ambient temperature - 20 ° - 85 ° 2.2 meaning of indicator light (1) The red LED (D3) is always on, indicating that the power supply is supplying power. (2) The red LED (TX) flashes to indicate data transmission. (3) The red LED (Rx) flashes to indicate that data is received. 2.3 interface description (1) The working voltage supports dc6 ~ 28V power supply, and the power input interface has reverse connection protection function. (2) There is an xh-4awd RS485 communication interface, which outputs one RS485 and one TTL single bus signal after isolation and conversion. (3) One 5264-3awd steering gear interface (TTL level) and one xh-4awd steering gear interface (RS485 level). The communication between these two ports does not support interworking.

Details Images

Performance

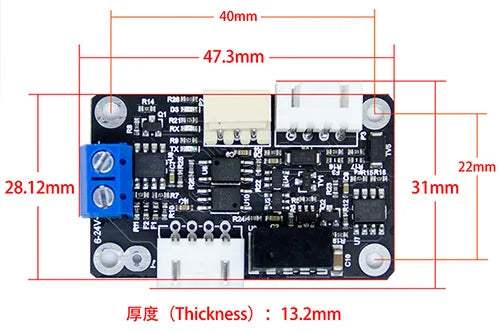

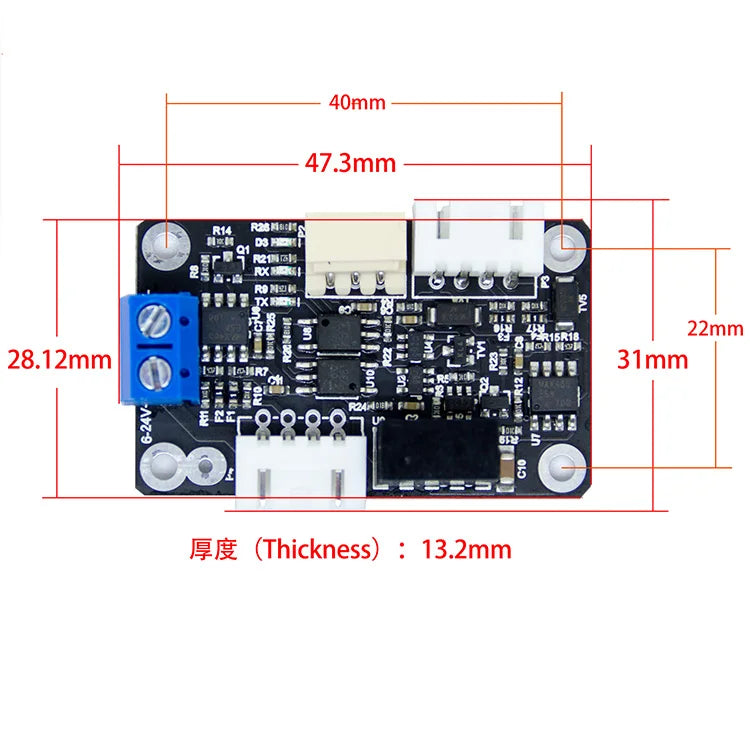

Product Size
