SPECIFICATIONS

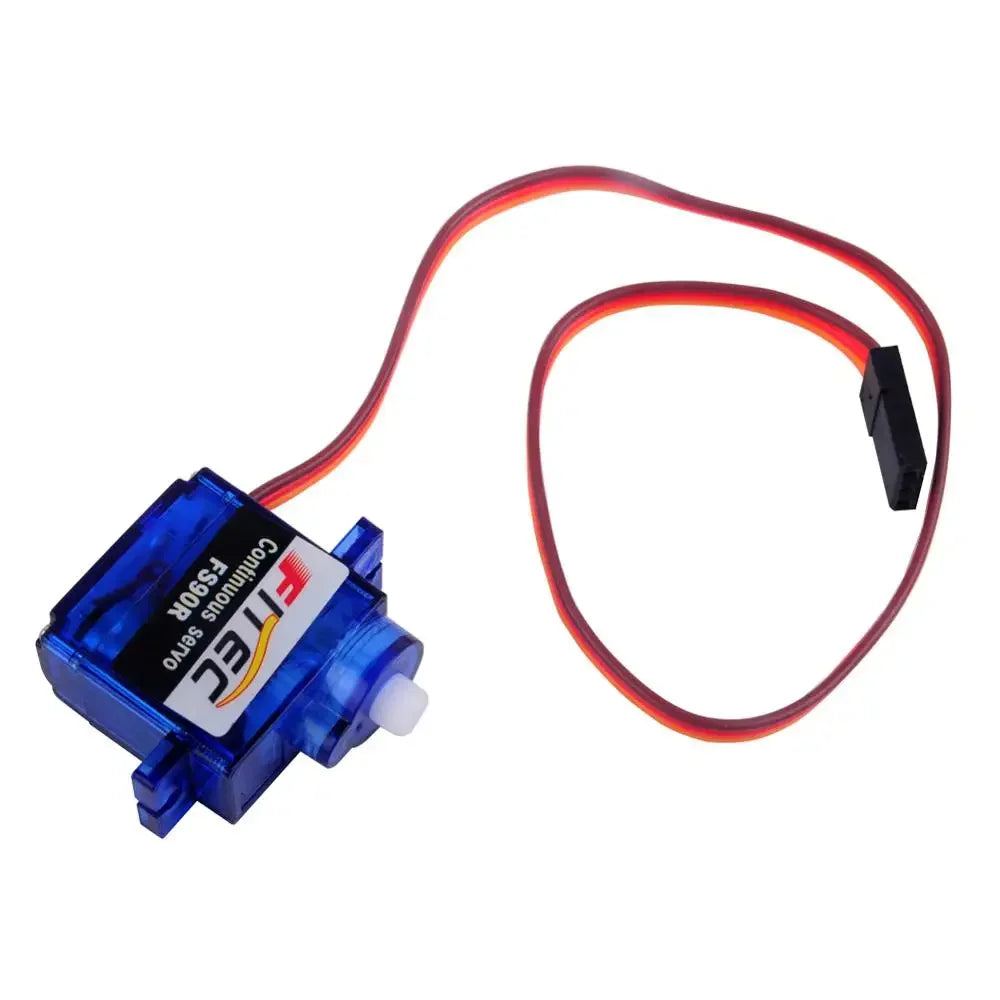

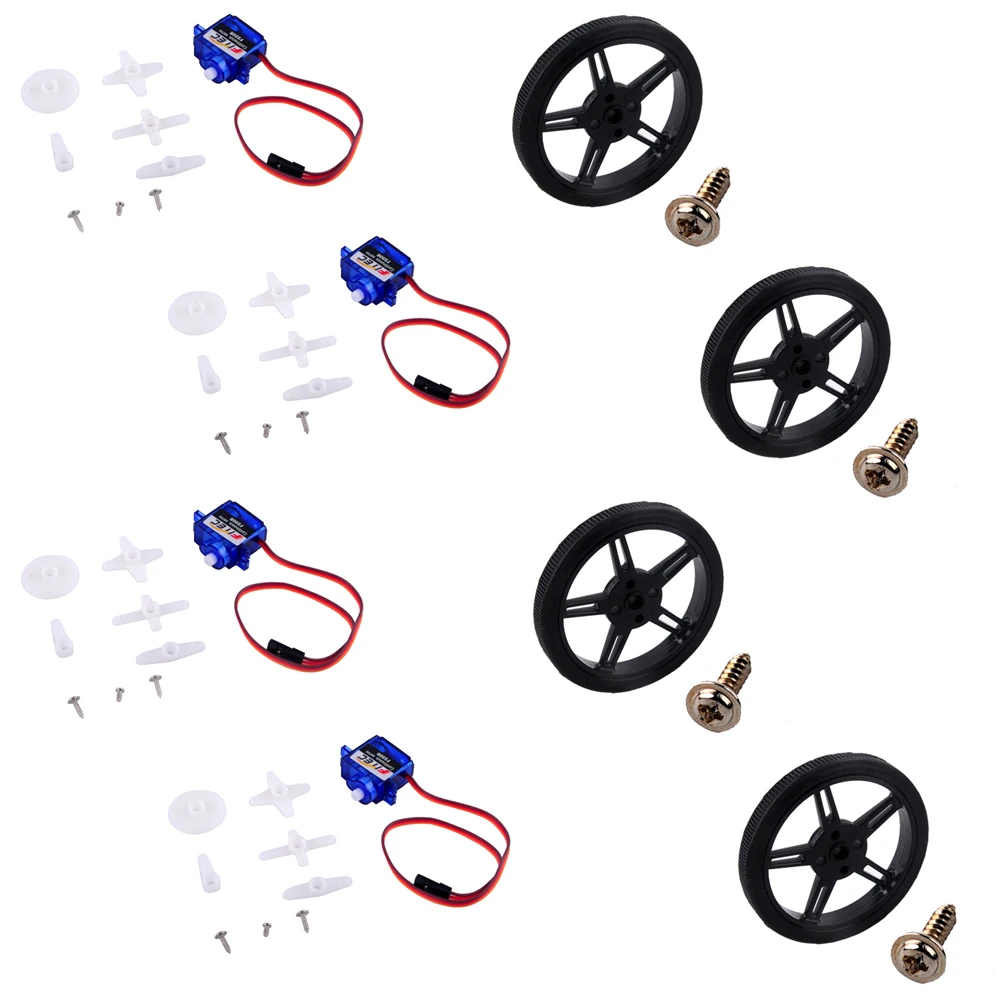

Feetech FS90R RC Servo 360 Degree Continuous Rotation Micro Servo Motor 4.8-6V 1.5KG Wheel for Smart Car Robot Microbit

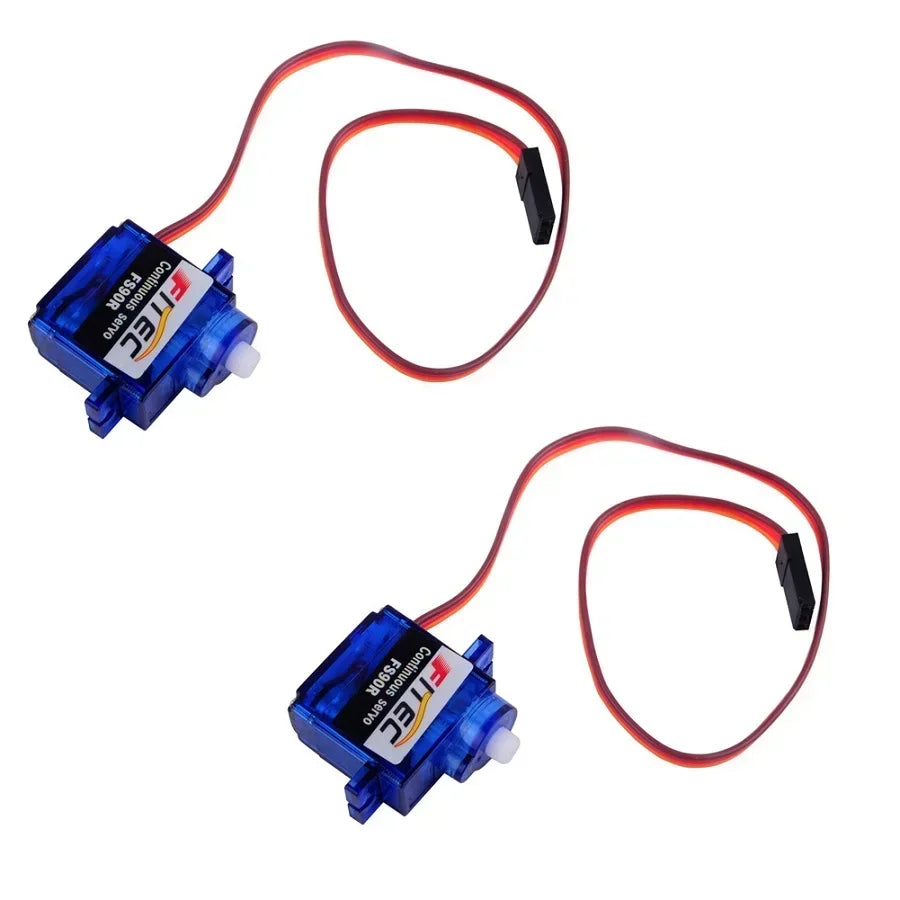

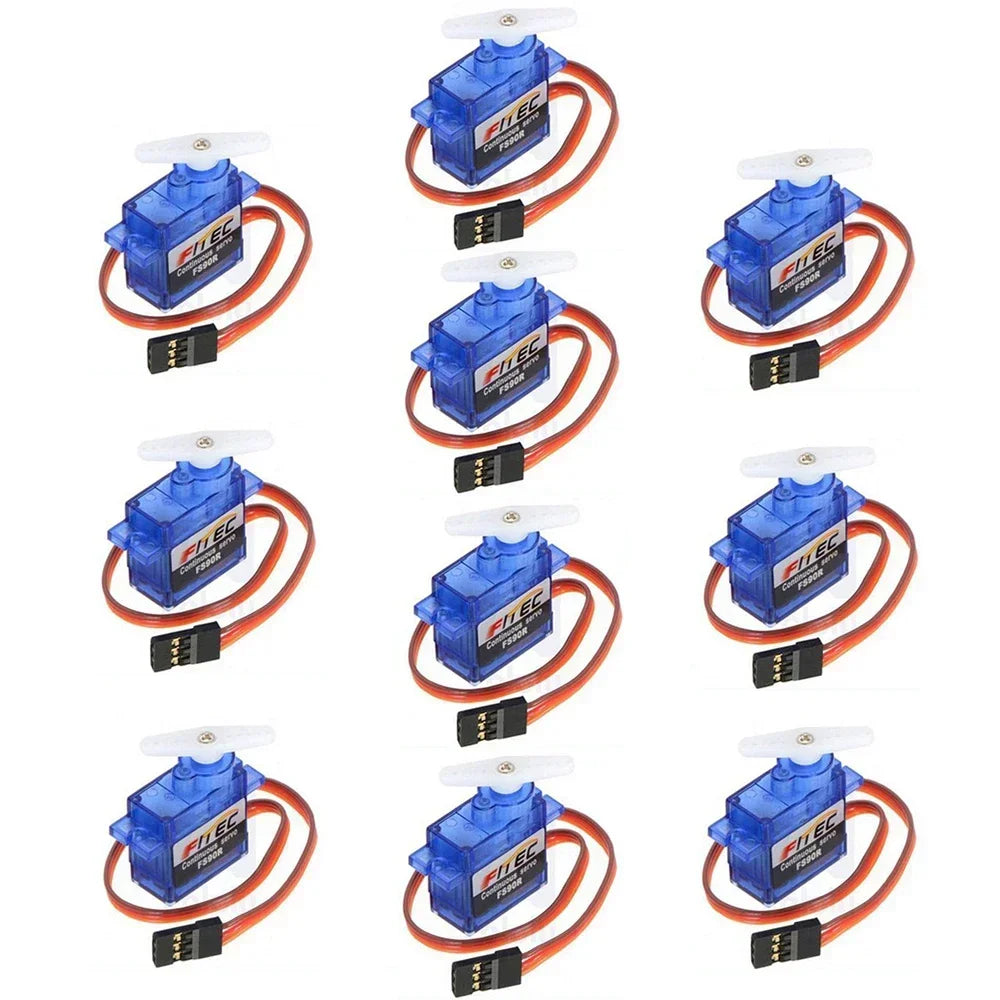

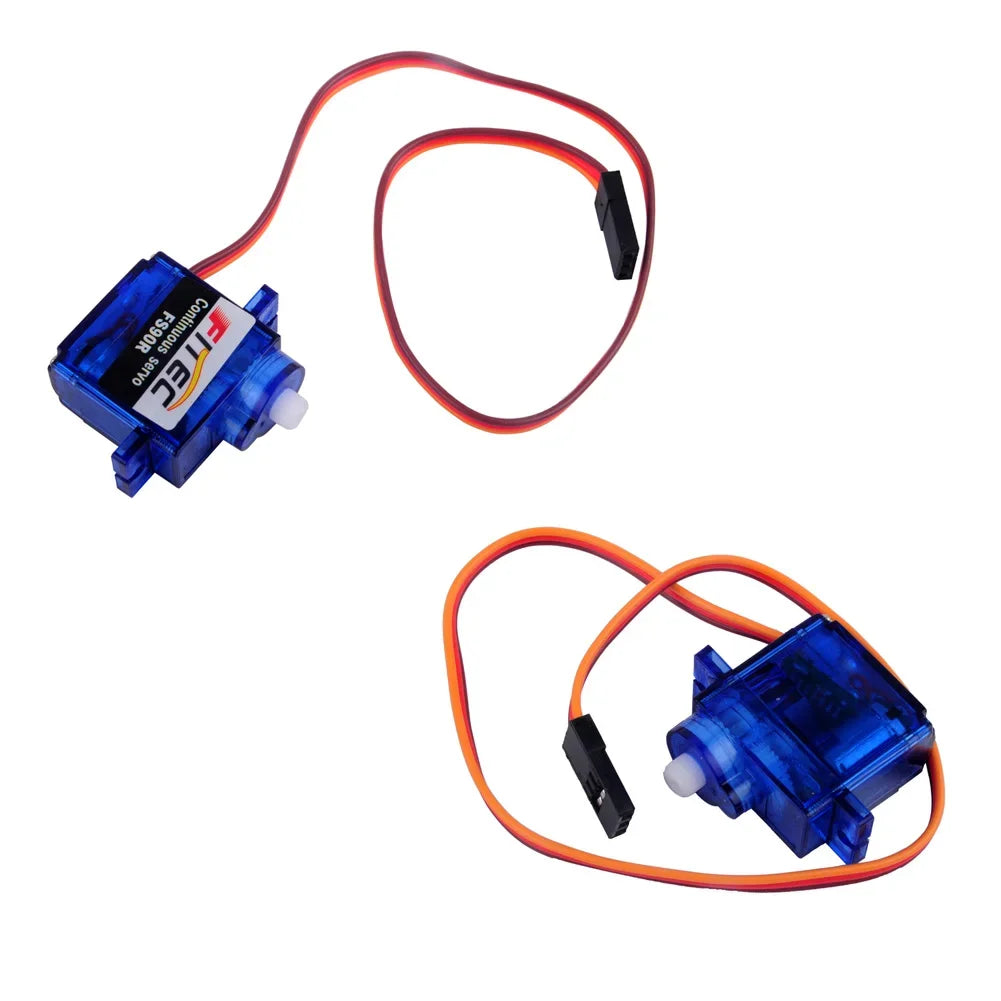

Description of FS90R Servo:

Dimensions:23.2 × 12.5 × 22 mm

Weight:9 g

Operating Speed :

110RPM (4.8V)

130RPM (6V)

Stall Torque :

1.3kg.cm/18.09oz.in(4.8V)

1.5kg.cm/20.86oz.in(6V)

Operating Voltage: 4.8V~6V

Control System: Analog

Direction: CCW

Operating Angle: 360degree

Required Pulse: 900us-2100us

Bearing Type: None

Gear Type: Plastic

Motor Type: Metal

Connector Wire Length: 20 cm

Certification: CE, ROHS

FAQ

Q: Hello, can you help me please. I'm looking for a servo motor that is not for rc cars (it should not rotate continuously). It should rotate 360 degrees and be able to rotate to a specific angle as i program it. Can you help me with that?

A: This reference is not suitable

Q: Purchased for an automated drape project i'm working on and but never checked if they can go in reverse... are they omni-directional?

A: Yes, it can go in reverse, please download specification from this link, you can check the Rotating direction in this file

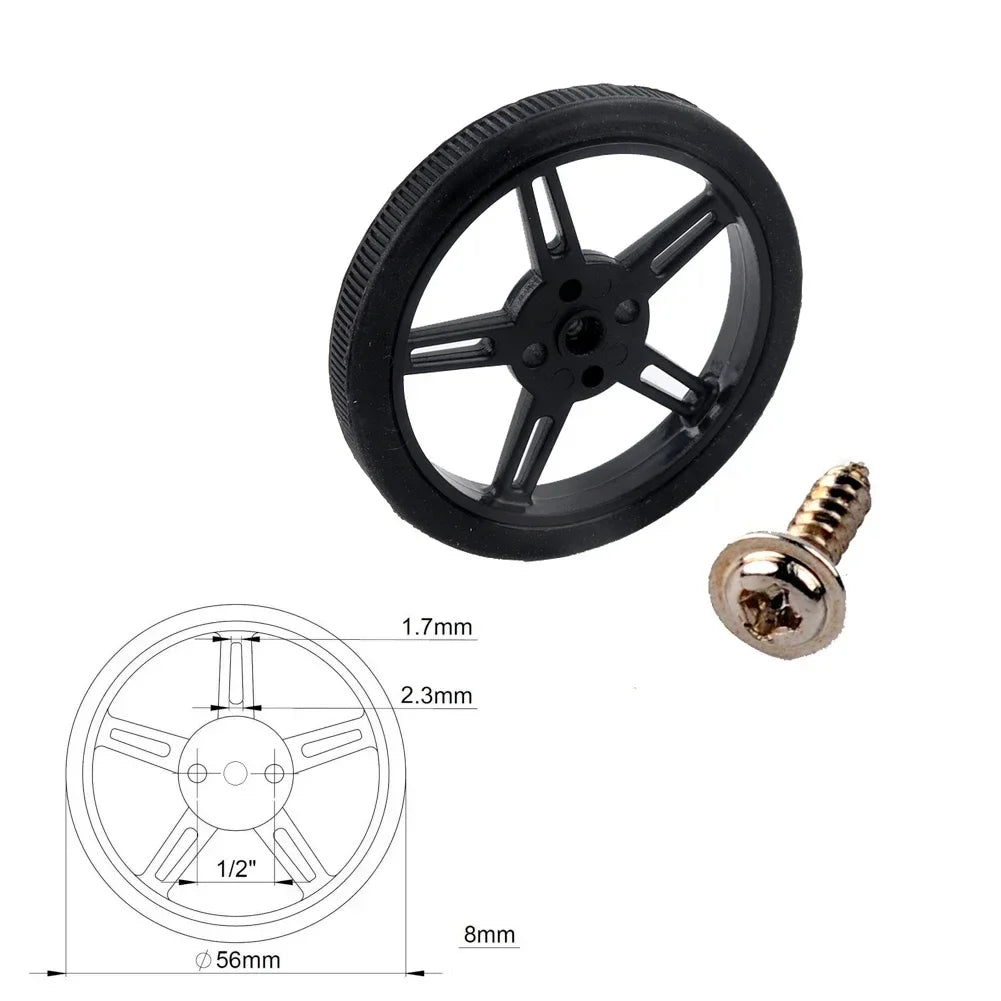

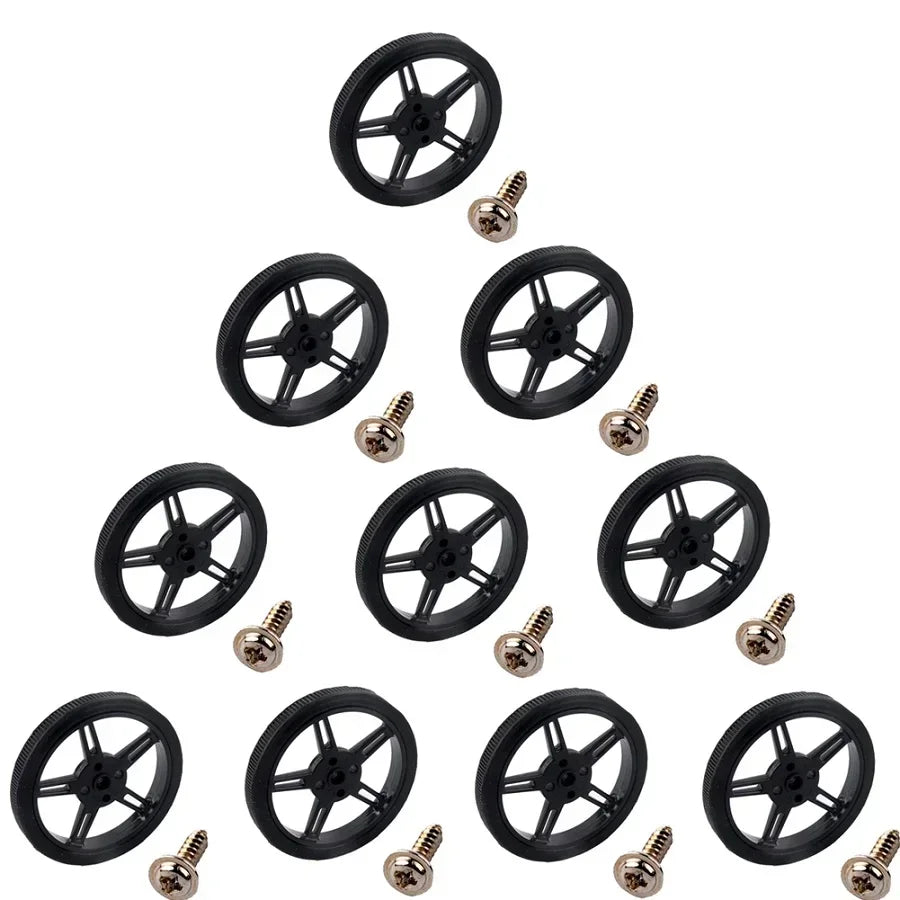

Description of wheel:

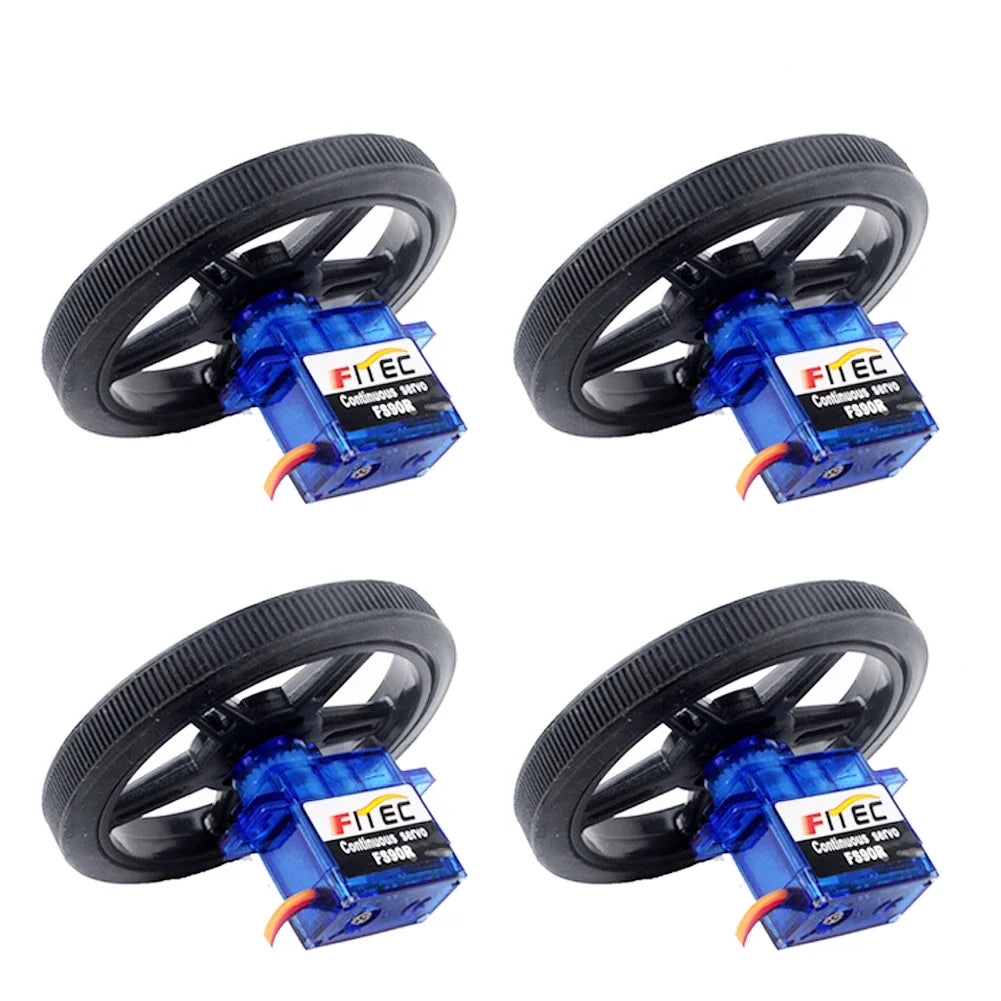

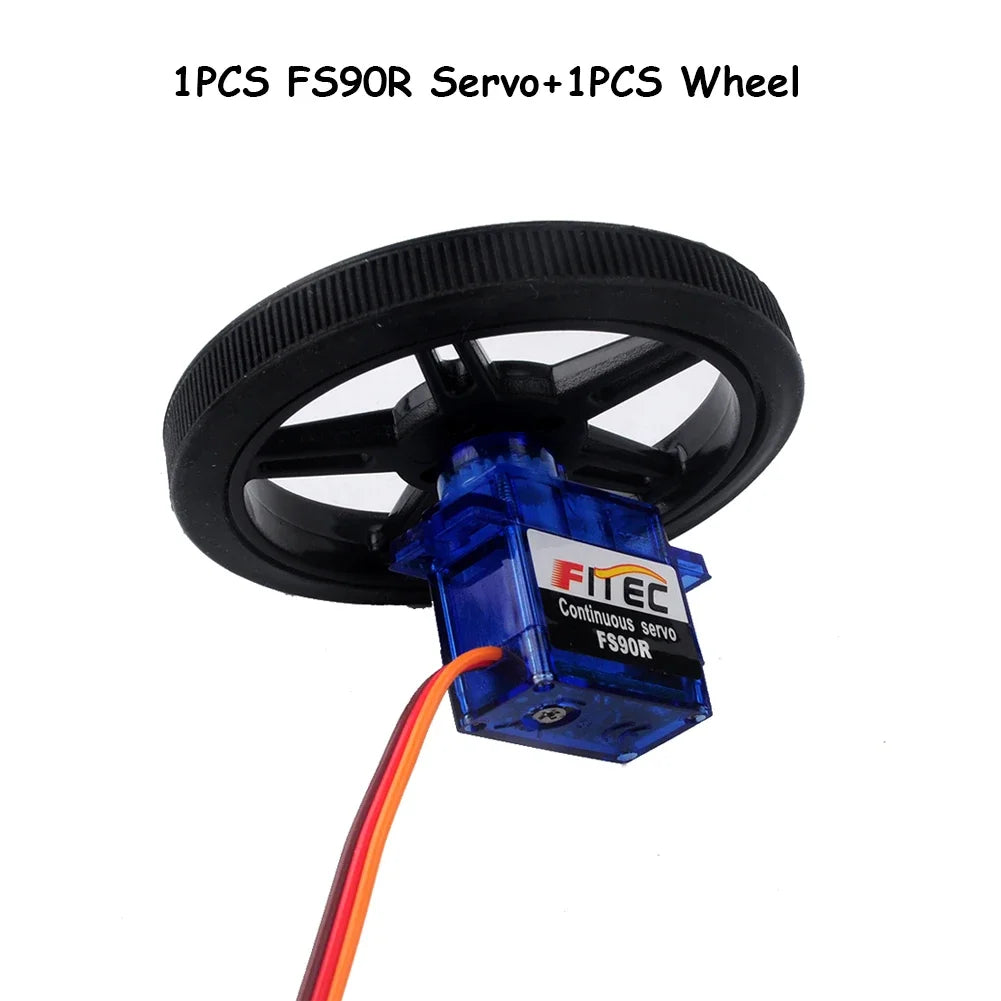

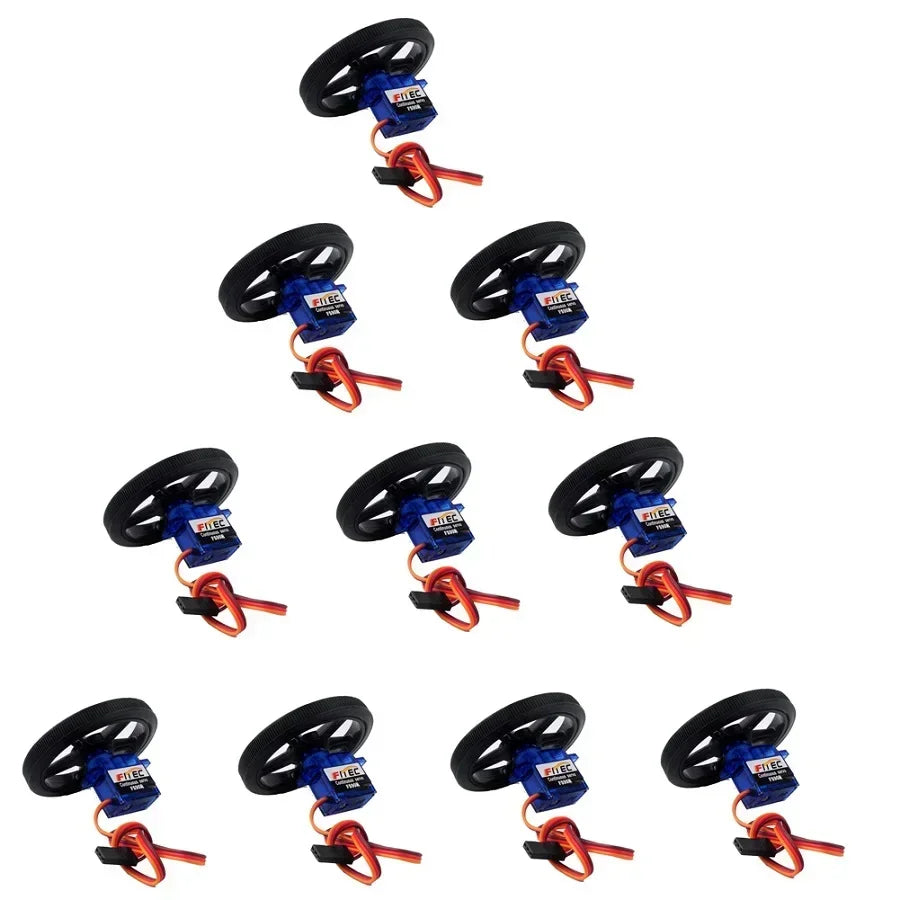

This black plastic wheel is press-fit onto the FS90R output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and measure 60 mm (2.36″) in diameter. Two additional mounting holes for 3-40 screws make it possible to use the wheel with several of mounting hubs.
