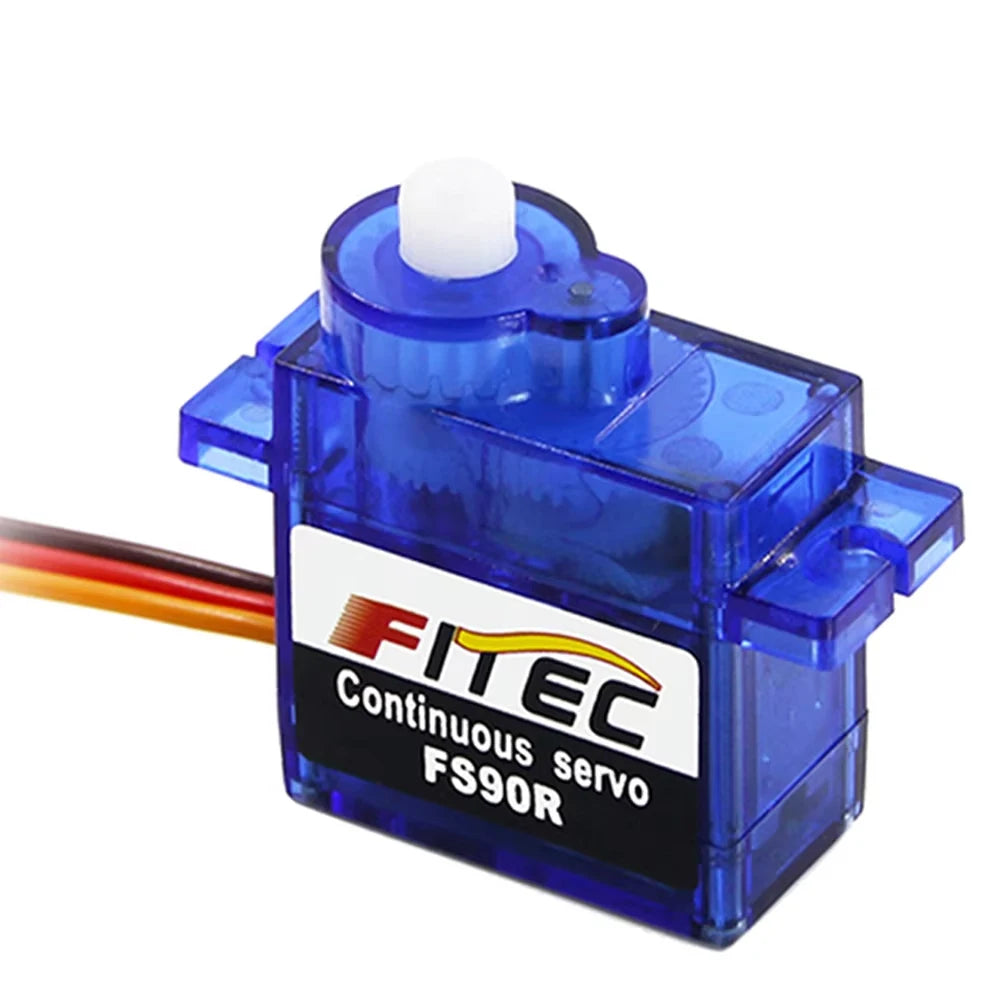

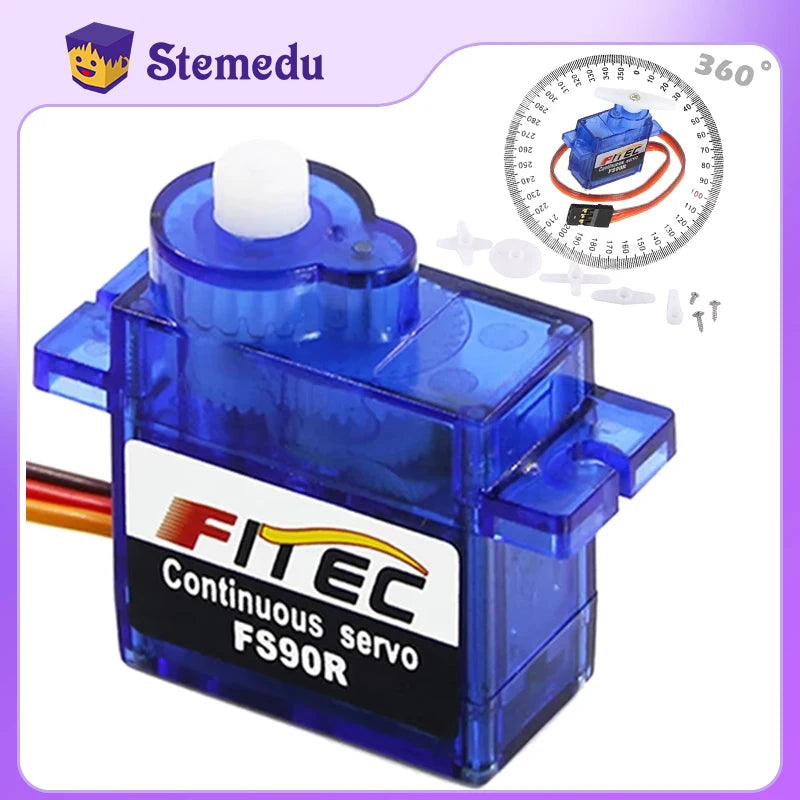

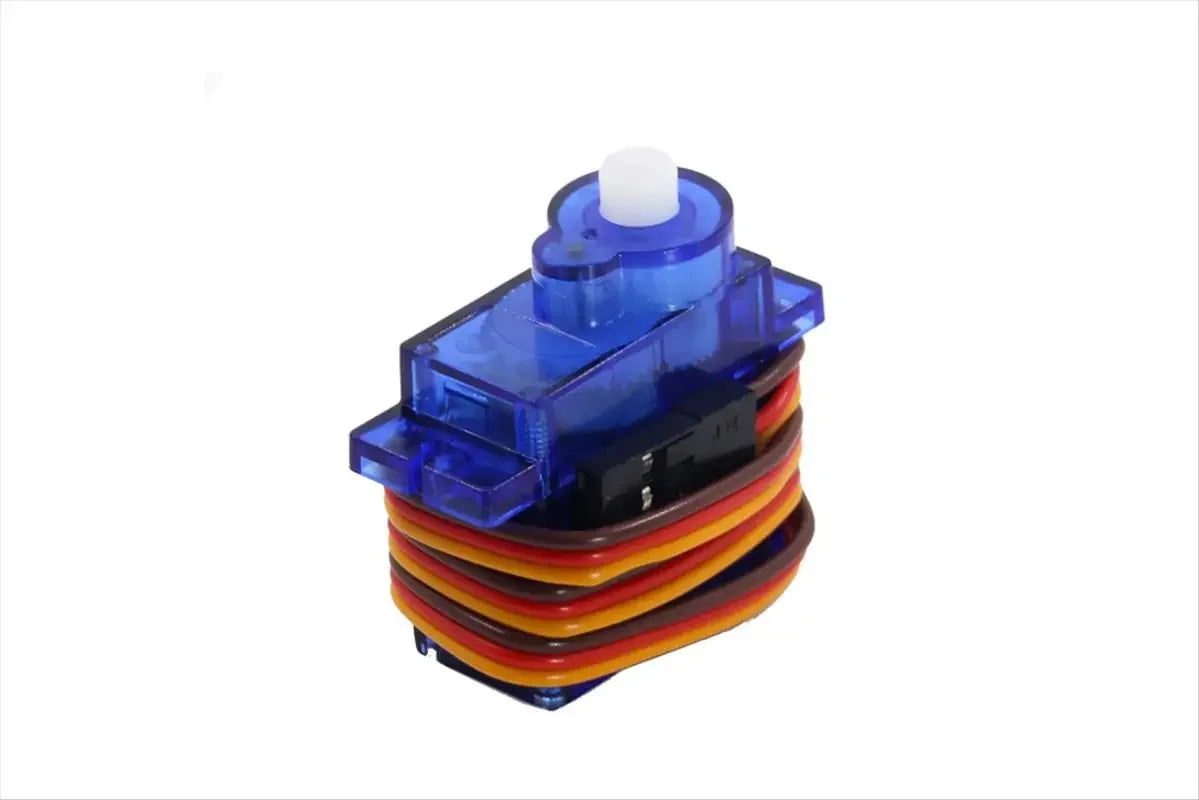

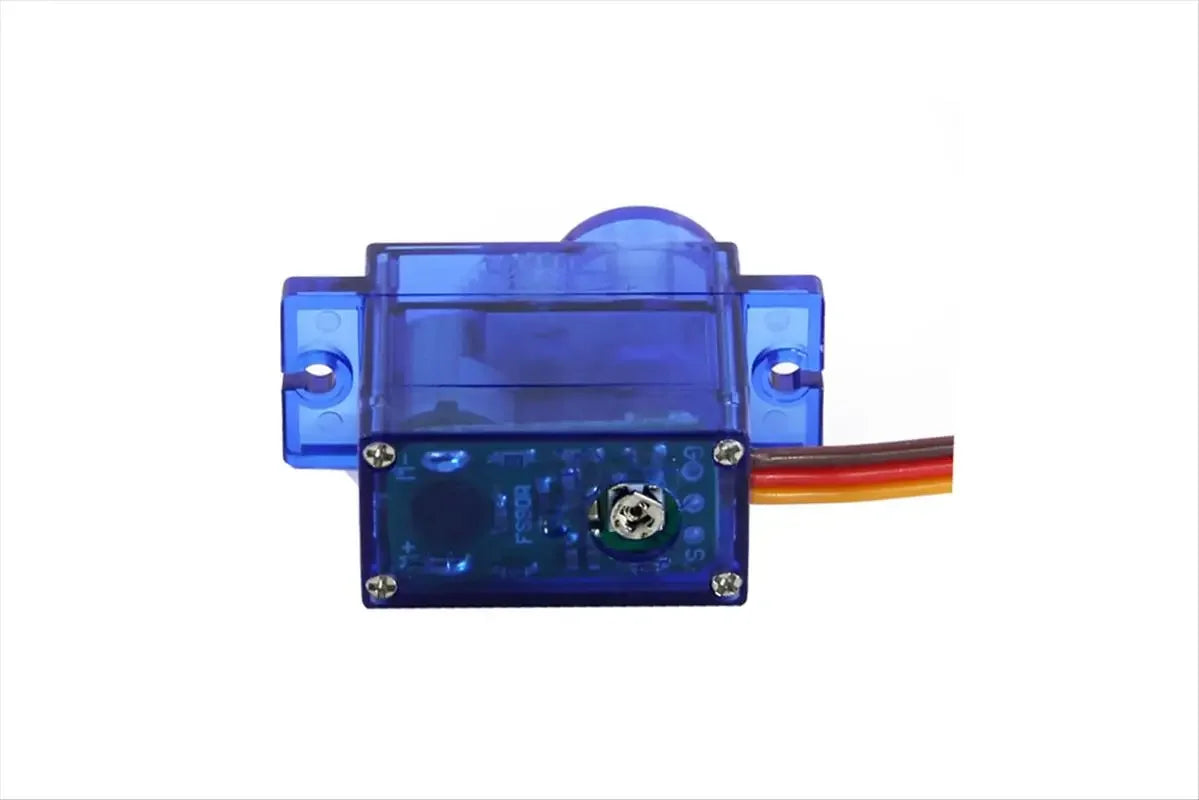

Feetech Mini FS90R Micro Servo 360 Degree Continuous Rotation RC Servo Motor 9g for Arduino Robotic Helicopter Airplane Boat DIY

Feetech Mini FS90R Micro Servo 360 Degree Continuous Rotation RC Servo Motor 9g for Arduino Robotic Helicopter Airplane Boat DIY

$188.04

$188.04 $0.00

Color 10PCS 8PCS 1PCS 4PCS 2PCS

Description

SPECIFICATIONS

Brand Name: stemedu

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Motors

High-concerned chemical: none

Material: Plastic

Model Number: FS90R

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Servo Accessories

Recommend Age: 14+y

Remote Control Peripherals/Devices: Servos

Size: 23.2*12.5*22mm

Technical parameters: KV1100

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Gear

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

semi_Choice: yes

1/2/4/8/10 PCS Feetech FS90R Micro Servo 360 Degree Continuous Rotation RC Servo Motor 9g for Arduino Robotic Helicopter Airplane Boat

Description:

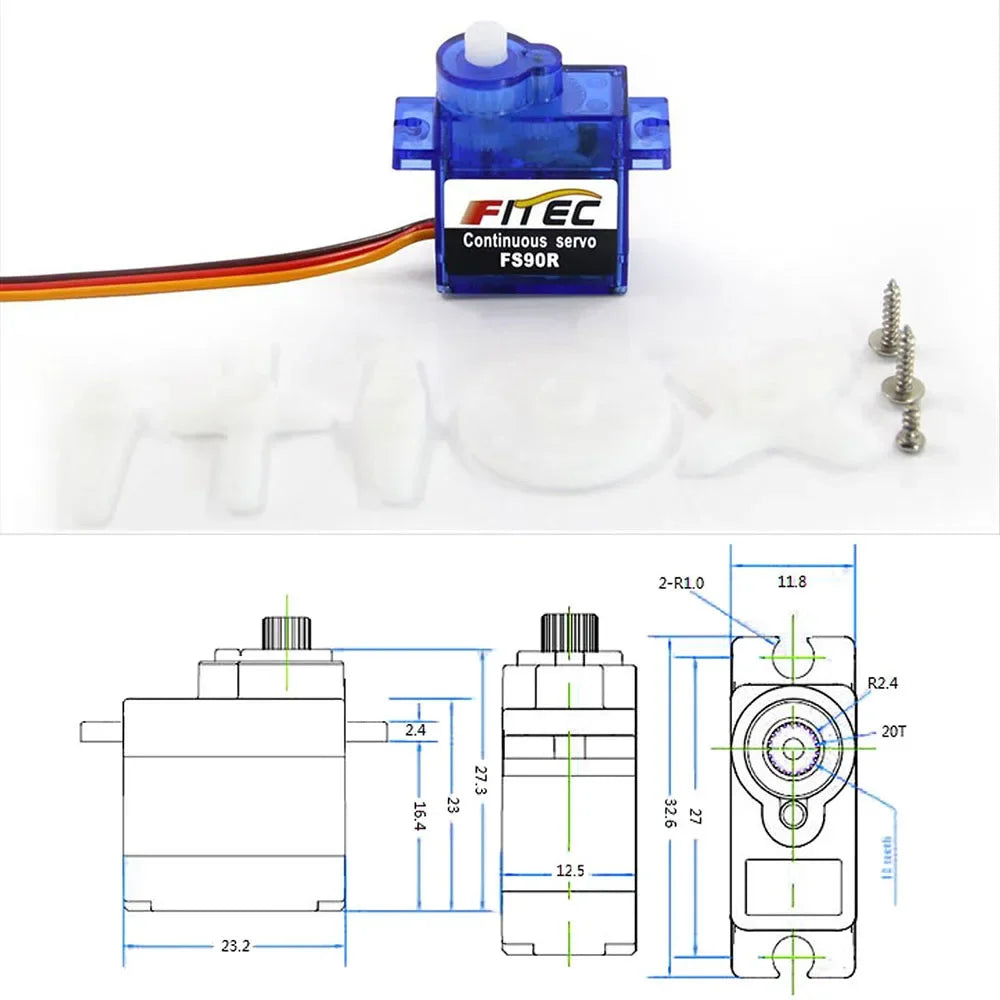

Dimensions:23.2 × 12.5 × 22 mm
Weight:9 g
Operating Speed :
110RPM (4.8V)
130RPM (6V)
Stall Torque :
1.3kg.cm/18.09oz.in(4.8V)
1.5kg.cm/20.86oz.in(6V)
Operating Voltage: 4.8V~6V
Control System: Analog
Direction: CCW

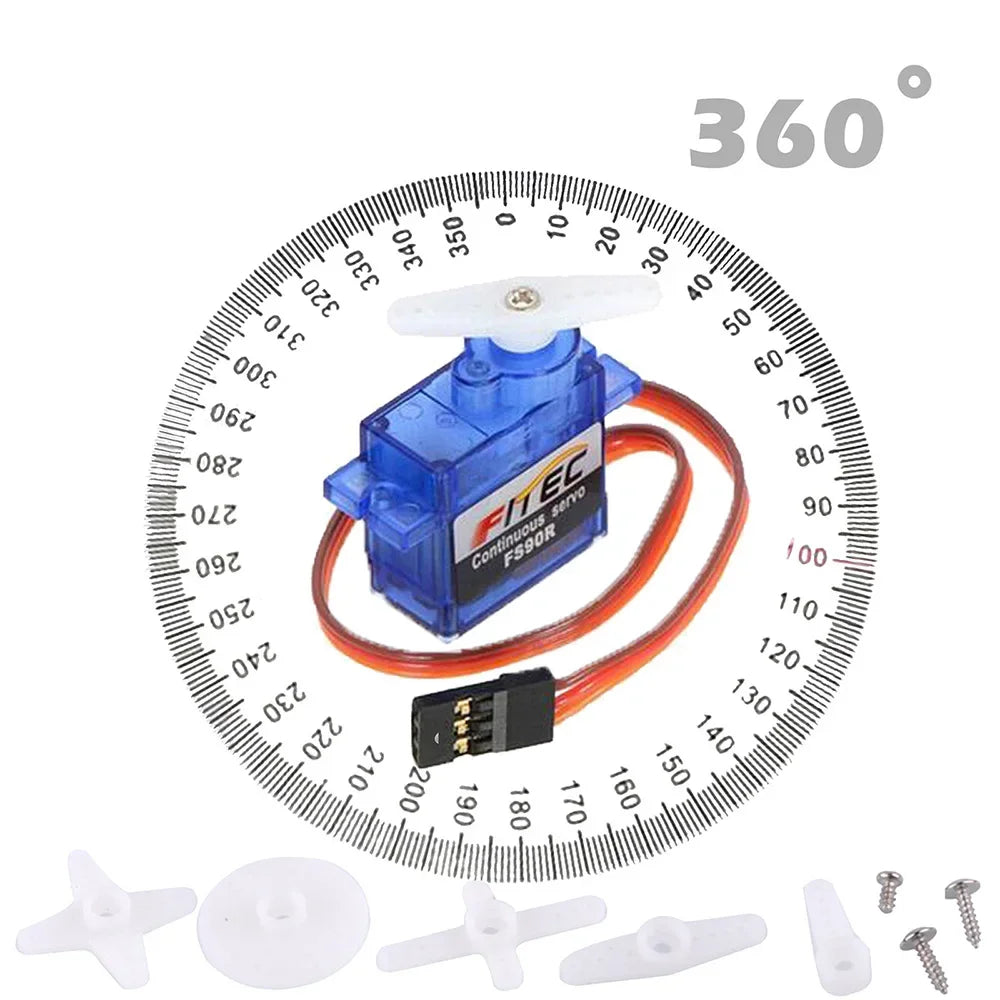

Operating Angle: 360degree
Required Pulse: 900us-2100us
Bearing Type: None
Gear Type: Plastic
Motor Type: Metal
Connector Wire Length: 20 cm
Certification: CE, ROHS

Package Inlcuding:

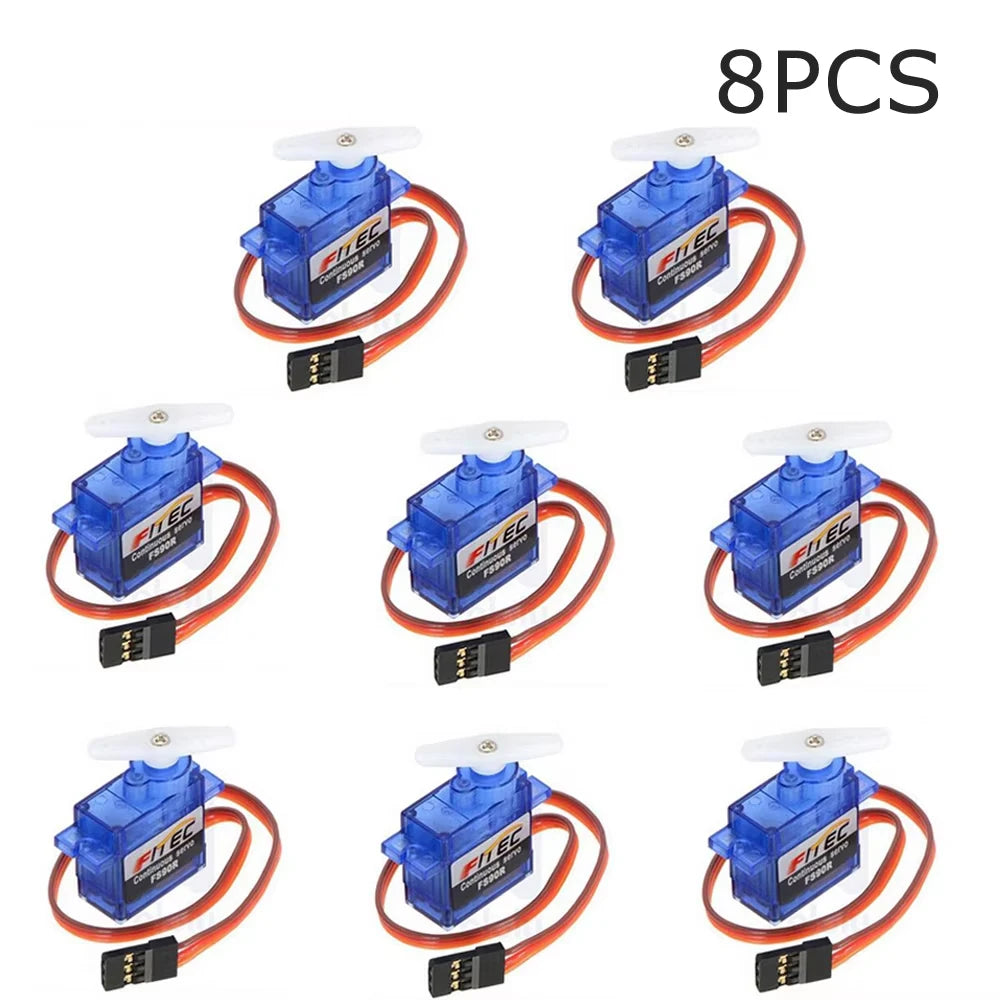

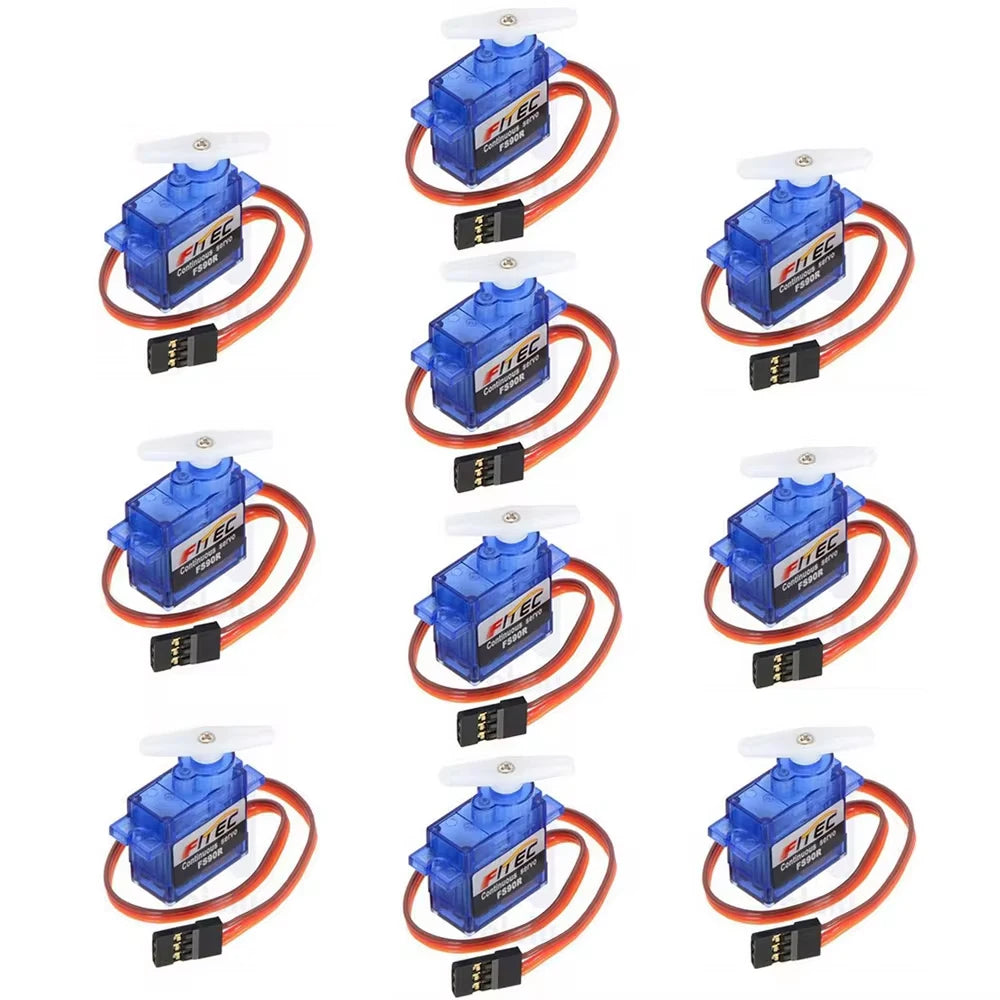

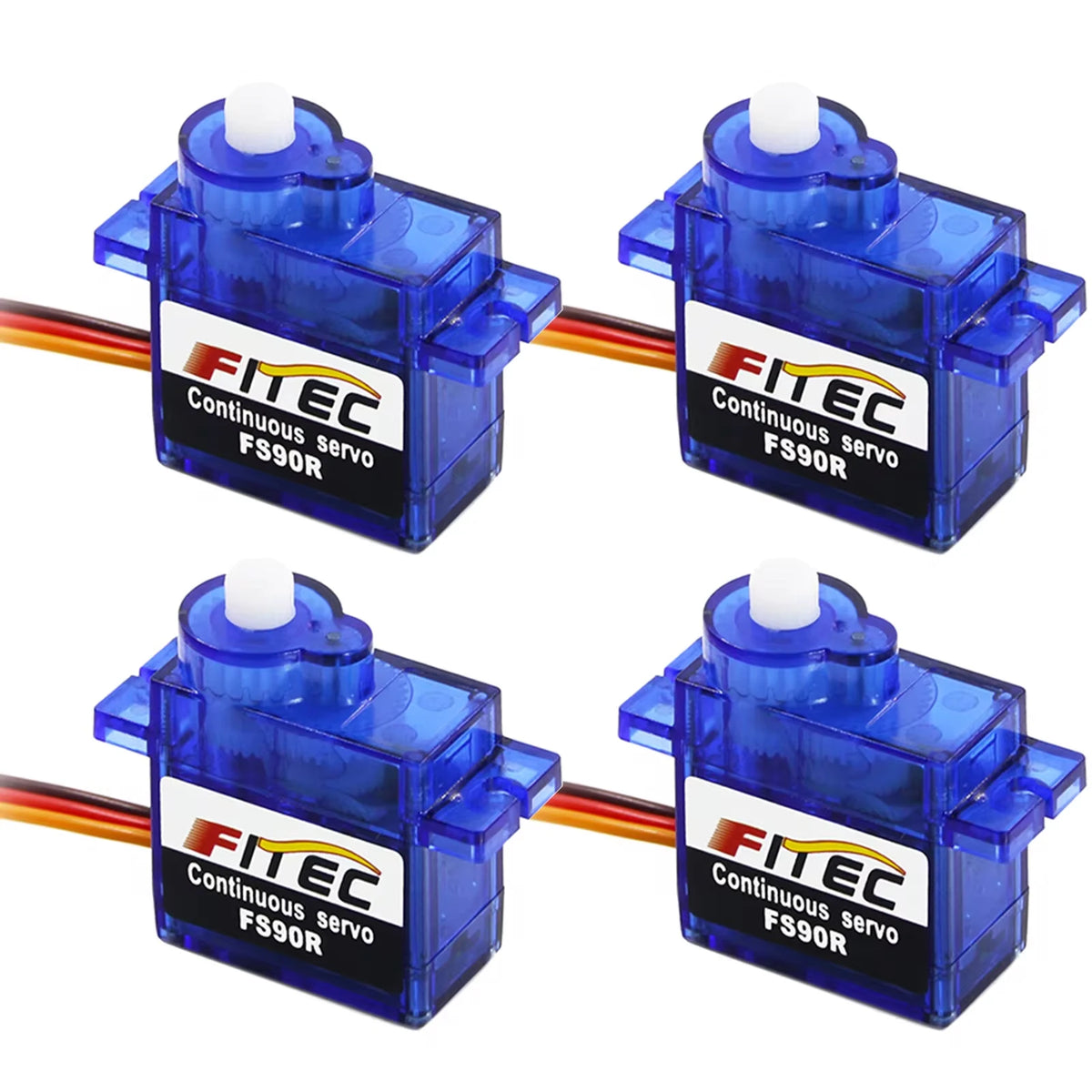

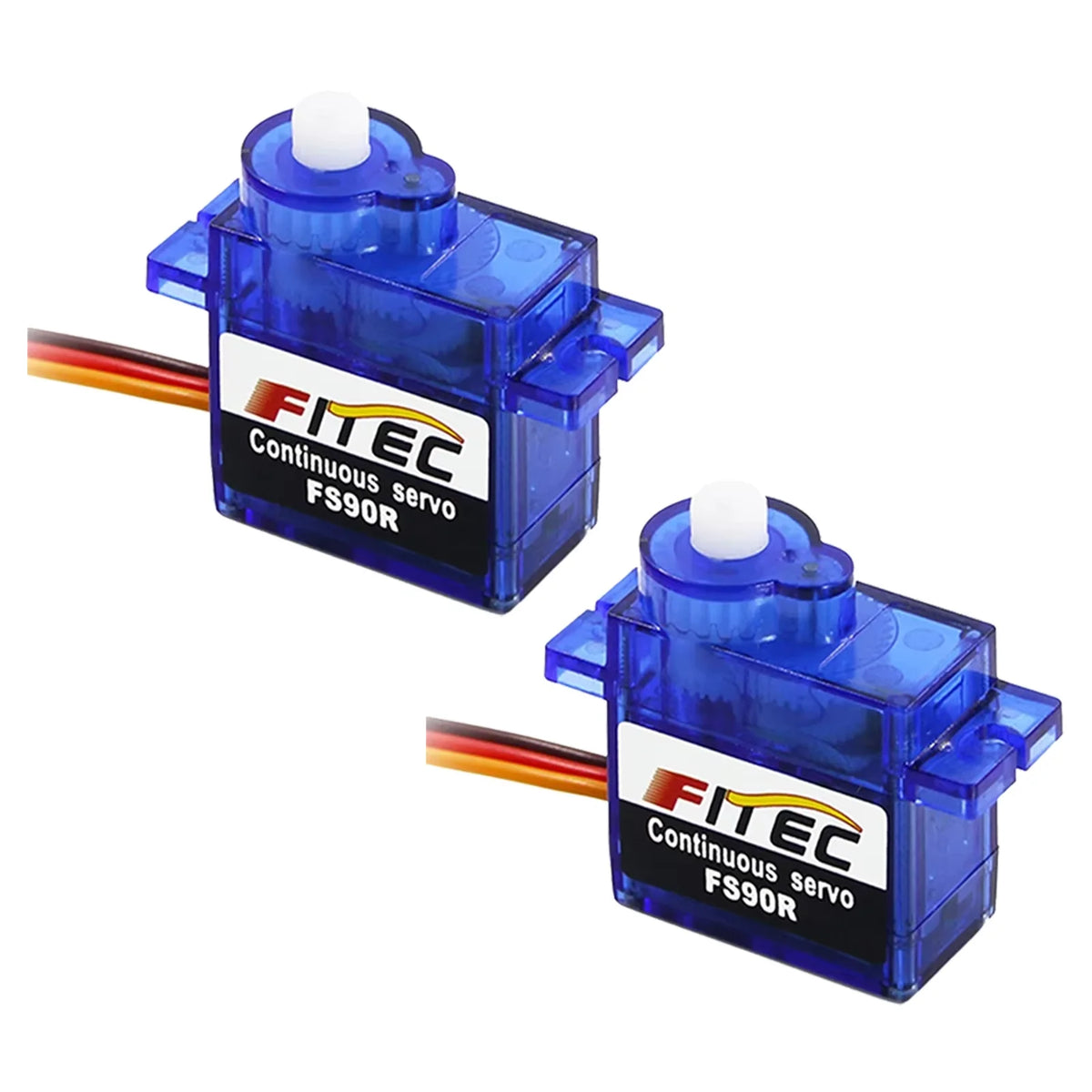

1/2/4/8/10 X Feetech FS90R Servo
1/2/4/8/10 X Accessory kit

FAQ
Q: Hello, can you help me please. I'm looking for a servo motor that is not for rc cars (it should not rotate continuously). It should rotate 360 degrees and be able to rotate to a specific angle as i program it. Can you help me with that?
A: This reference is not suitable

Q: Purchased for an automated drape project i'm working on and but never checked if they can go in reverse... are they omni-directional?
A: Yes, it can go in reverse, please download specification from this link, you can check the Rotating direction in this file
