Description
SPECIFICATIONS
Brand Name: stemedu
Certification: CE
High-concerned chemical: none
Model Number: STS3250
Origin: Mainland China

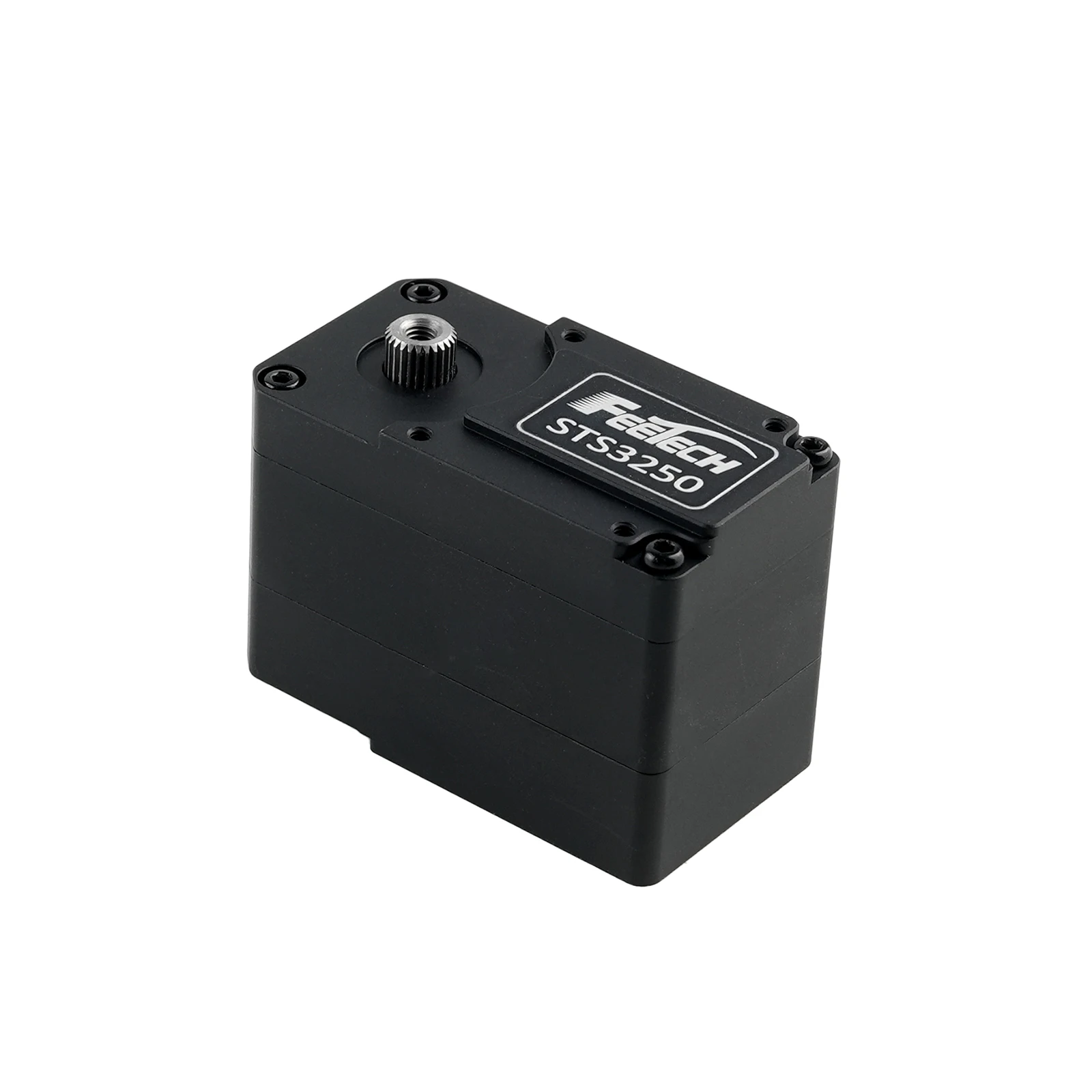

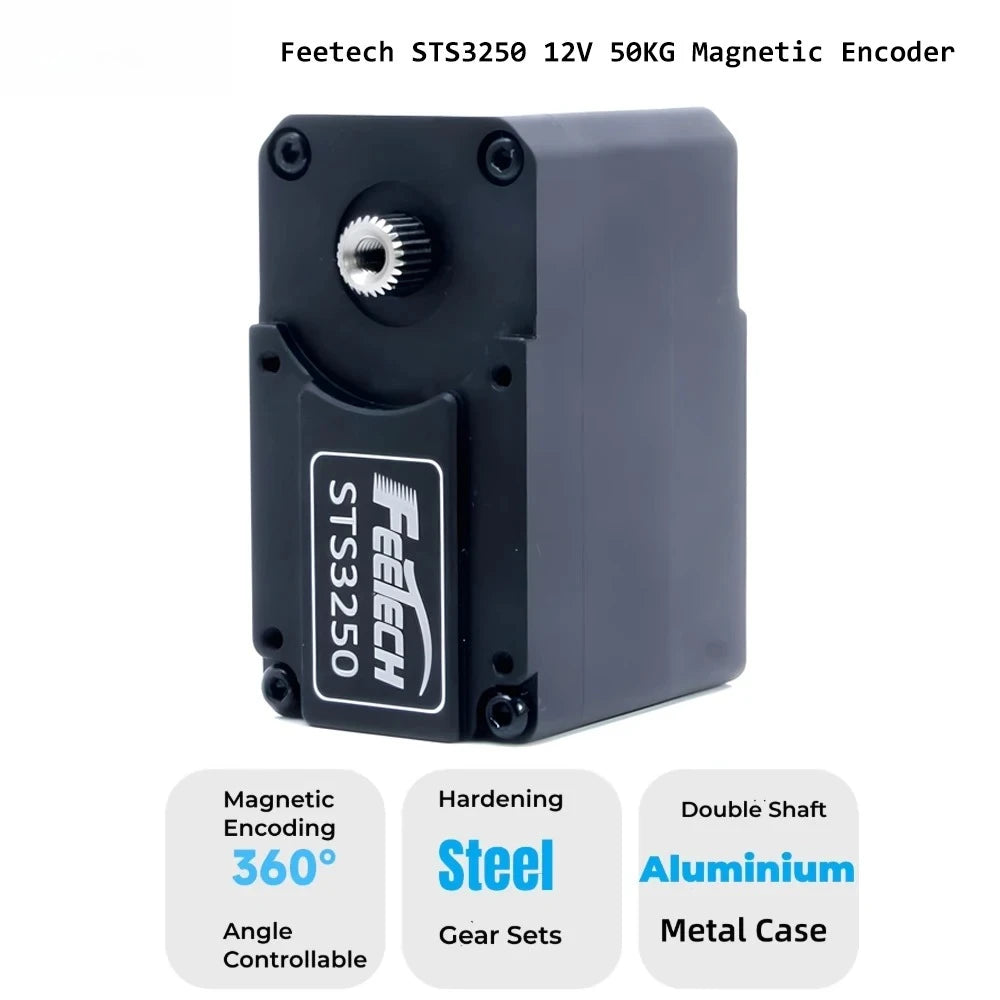

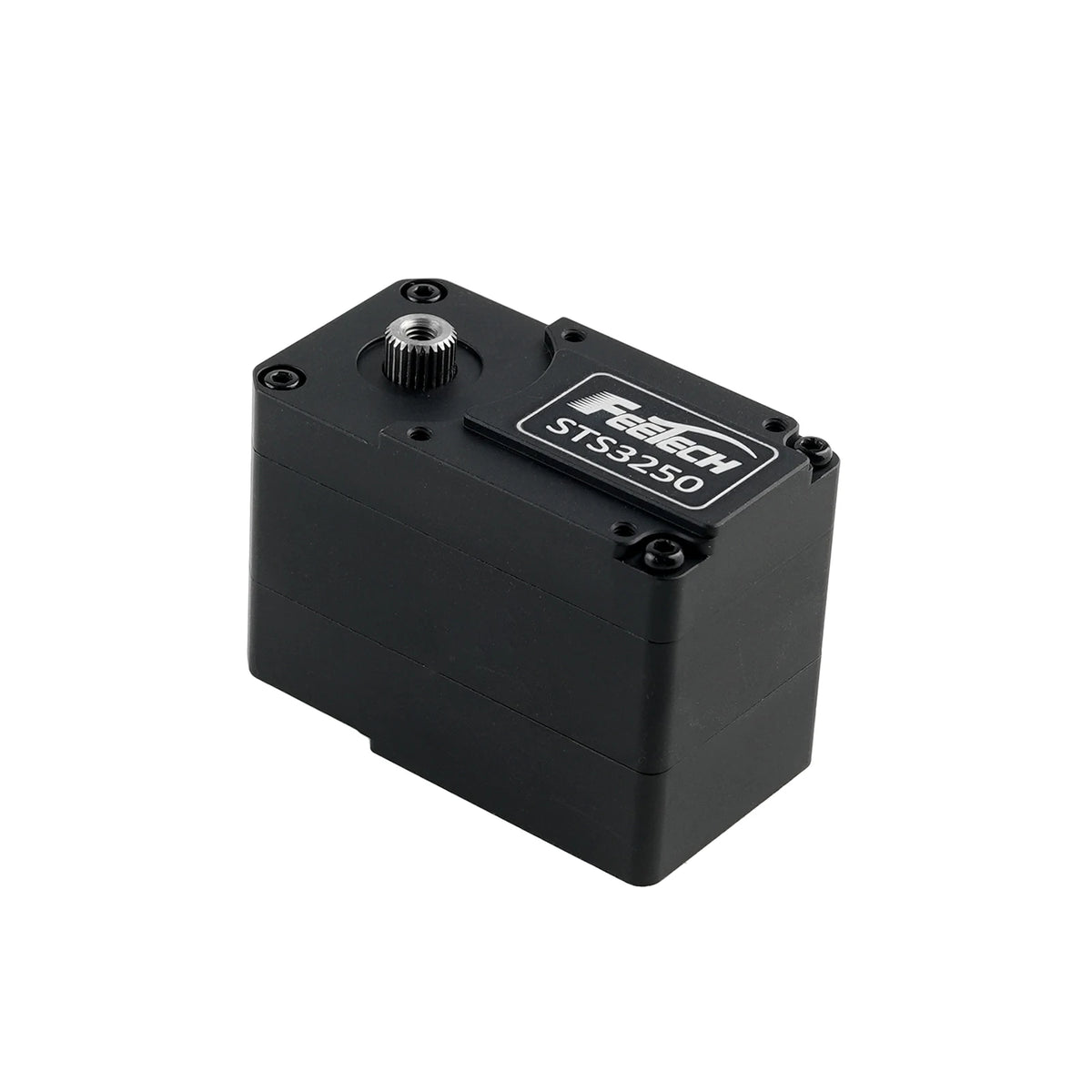

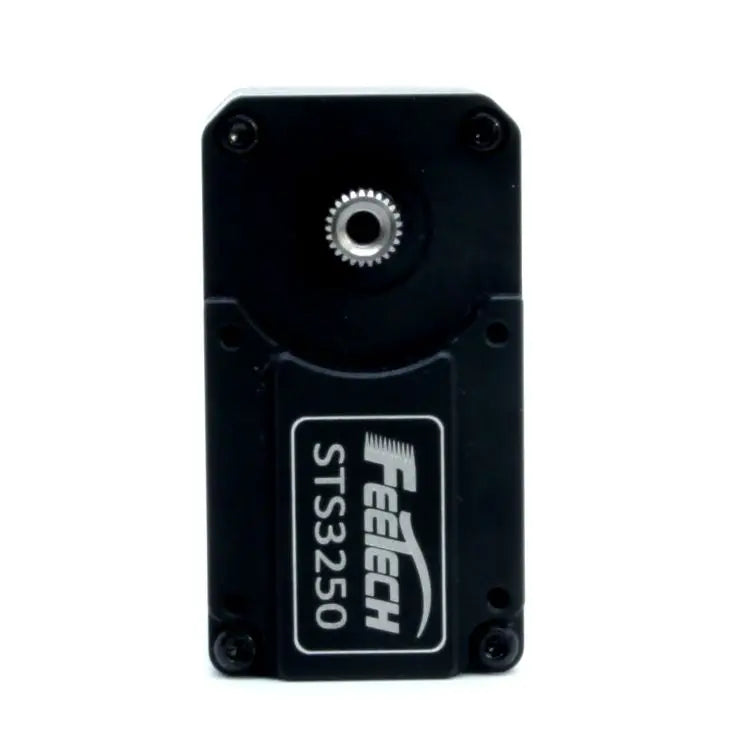

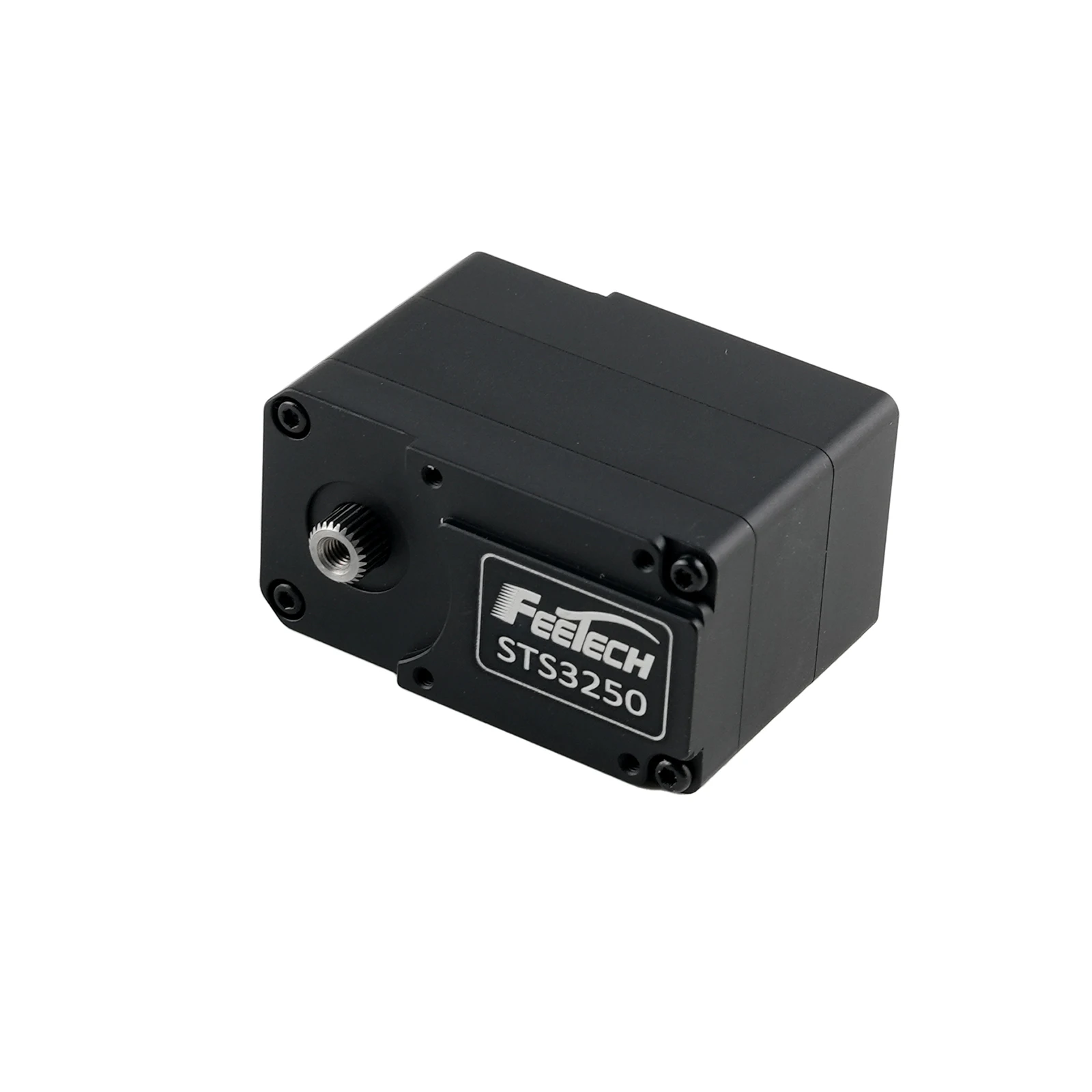

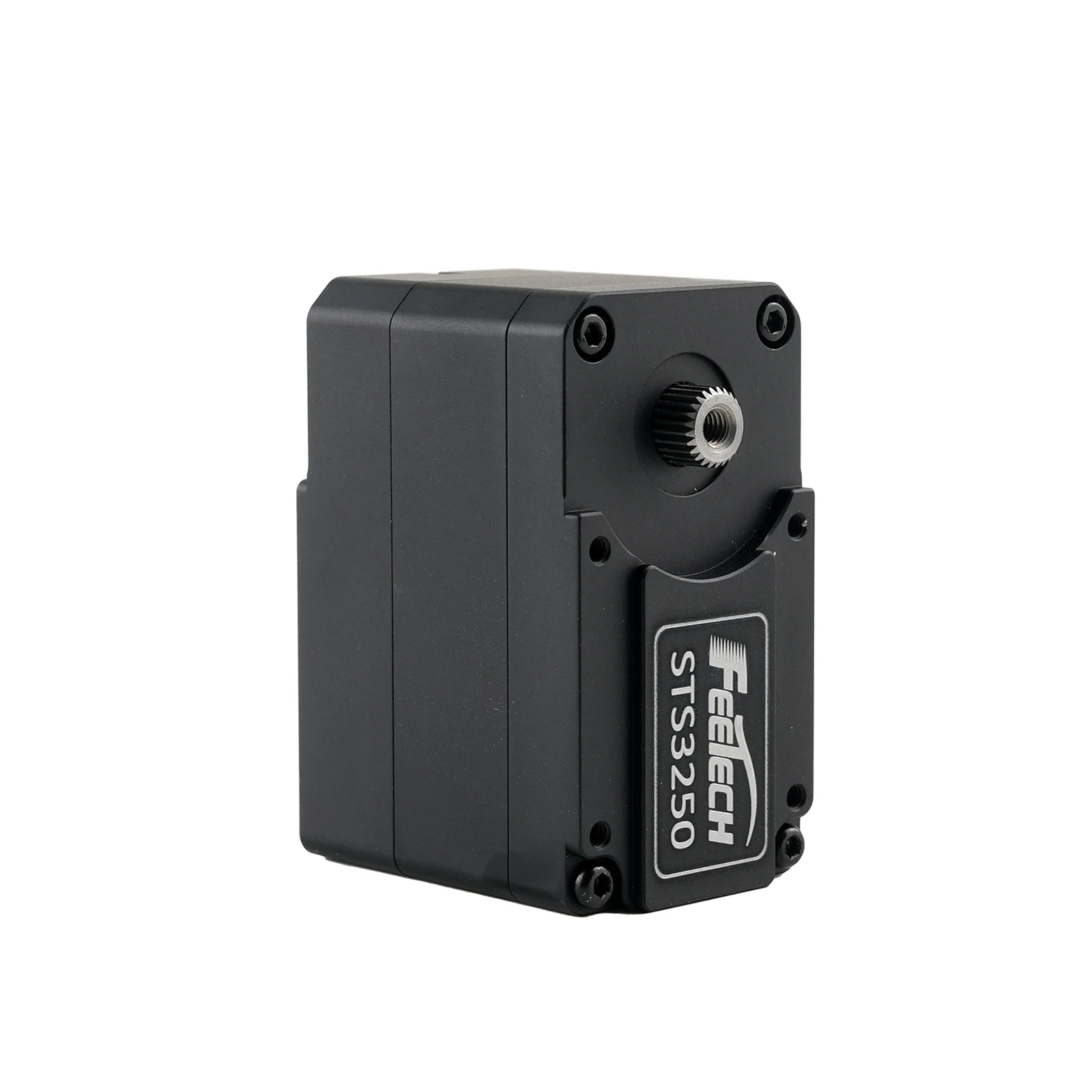

Feetech STS3250 12V 50KG Magnetic Encoder Double Shaft TTL Servo Coreless Motor Aluminum Case 360 Degrees Serial Bus Smart Servo for Robot

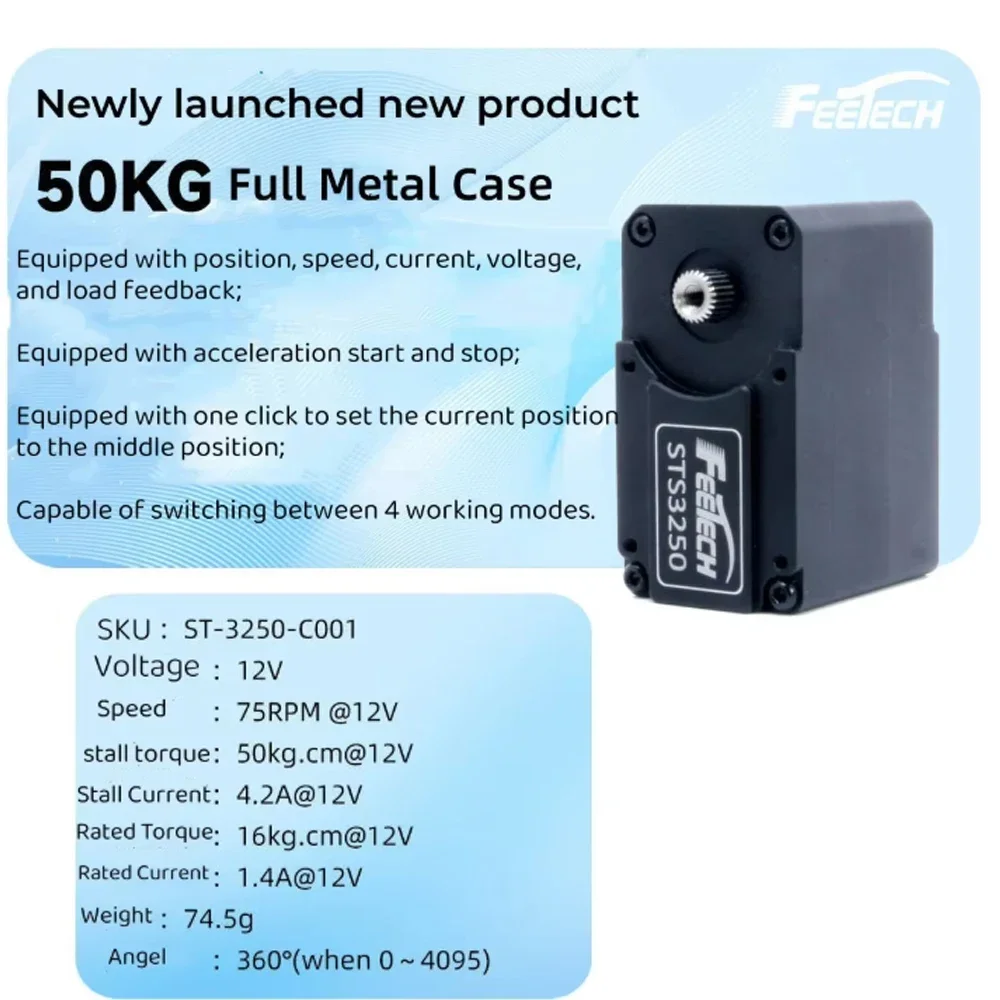

STS3250 is 12V 50kg serial bus smart servo, aluminum alloy case is used, coreless motor, metal gearbox 、Feetech self researched and developed TTL control board，12 bit high precision magnetic coding sensor. The stall torque is 50kg.cm，can achieve 0-360 degrees any angle controllable, multi-turn continuous operation mode, it can realize the function of setting the middle point with one key, acceleration slow start and slow stop, can feedback position, speed, voltage, current, temperature, load parameters, thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios.
STS3250 is 12V 50kg serial bus smart servo, aluminum alloy case is used, coreless motor, metal gearbox 、Feetech self researched and developed TTL control board，12 bit high precision magnetic coding sensor. The stall torque is 50kg.cm，can achieve 0-360 degrees any angle controllable, multi-turn continuous operation mode, it can realize the function of setting the middle point with one key, acceleration slow start and slow stop, can feedback position, speed, voltage, current, temperature, load parameters, thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios.
Model： |
ST-3250-C001 |
Product Name: |
12V 50KG Magnetic Encoder Double Shaft TTL Servo |
Storage Temperature Range |
-30℃～80℃ |
Operating Temperature Range: |
-20℃～60℃ |

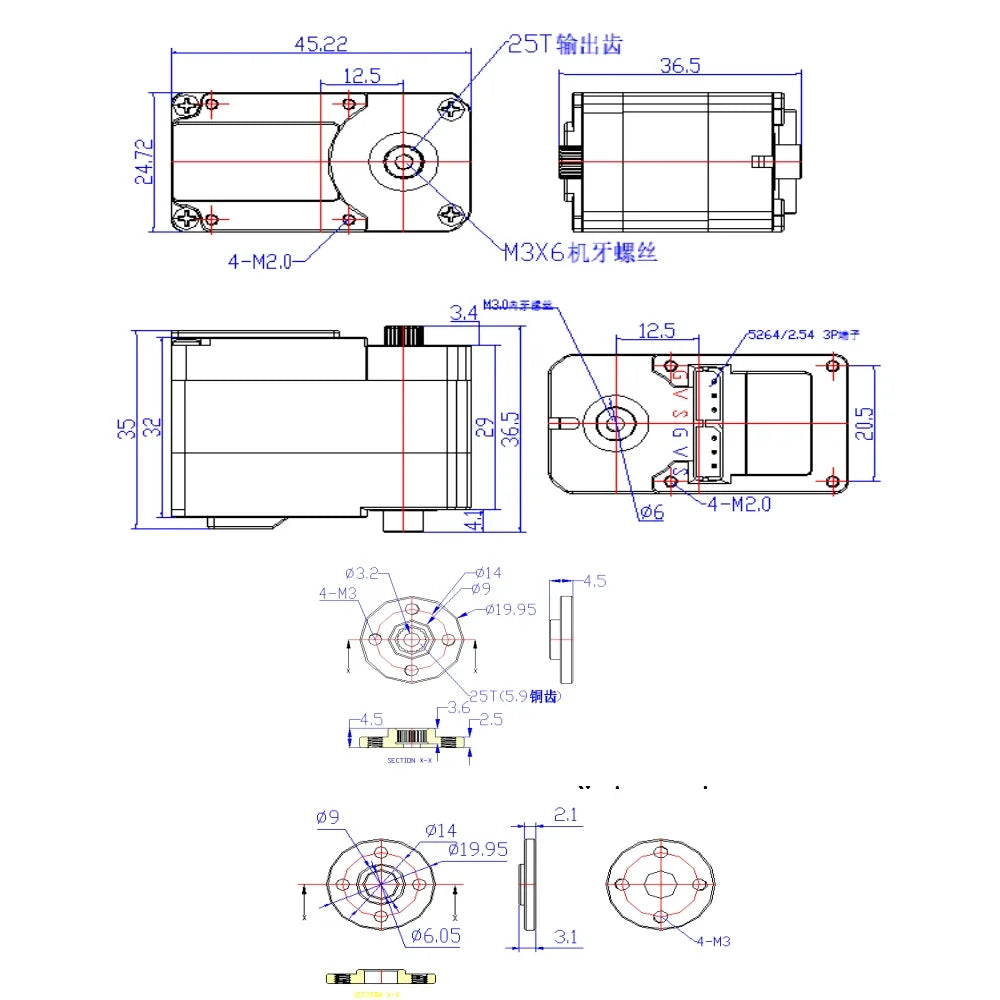

Size: |
A：45.22mm B：24.72mm C：35mm |
Weight: |
74.5± 1g |
Gear type: |
steel Gear |
Limit angle: |
NO limit |
Bearing: |
Ball bearings |
Horn gear spline: |
25T/OD5.9mm |
The rocker phantom： |
0° |
Case: |
Aluminium |
Connector wire: |
15CM |
Motor: |
Coreless Motor |
Operating Voltage Range: |
6-12V |
No load speed: |
0.133sec/60°@12V |
Runnig current(at no load) : |
280mA@12V |
Peak stall torque: |
50kg.cm@12V |
Rated torque: |
16kg.cm@12V |
Stall current: |
4.2A@12V |
Command signal: |
Digital Packet |
Protocol Type: |
Half Duplex Asynchronous Serial Communication |
ID range: |
0-253 |
Communication Speed: |
38400bps ~ 1 Mbps |
Running degree: |
360° (when 0~4096) |
Neutral Position： |
180°（2048） |
Feedback: |
Load, Position, Speed, Input Voltage, Temperature |
