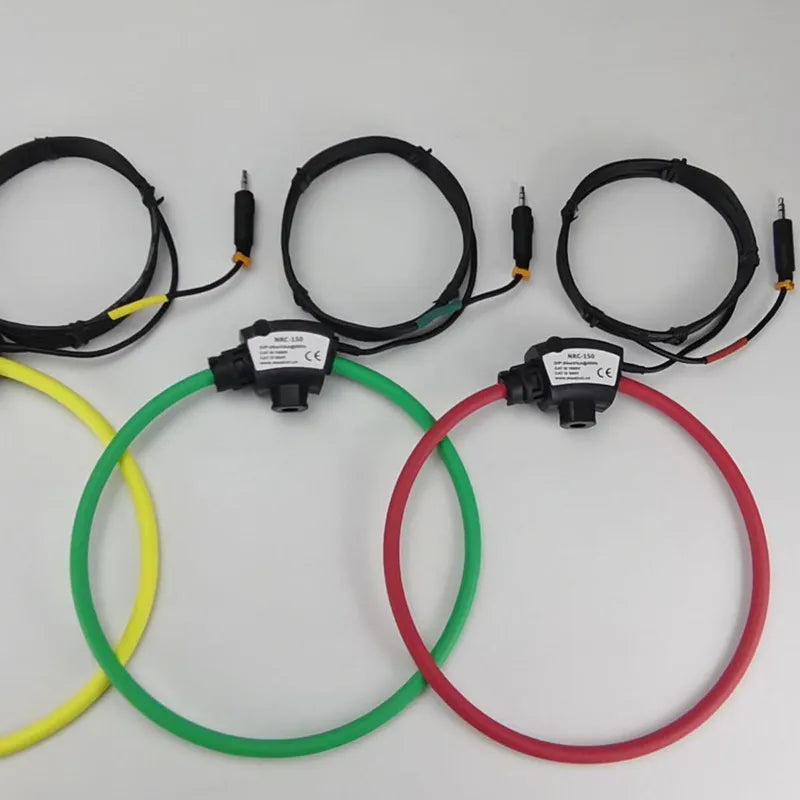

Flexible CT Current Clamp 100mV/kA Air-Cored Current Sensor Transformer Rogowski Coil With Cable Ties NRC
SPECIFICATIONS
Accuracy: Calibrated <0.5% (central position, 25℃)
Battery Included: no
Brand Name: PLSUP
Certification: CE,FCC
DIY Supplies: Metalworking
High-concerned chemical: none
Linearity: ±0.2% of reading
Model Number: PLS-NRC
Origin: Mainland China
Output: 50mV/kA@50Hz, 85mV/kA@50Hz, 100mV/kA@50Hz
Position Error: ±1% maximum
Semi-finishedproduct: No
Usage: AC current detection and measurement
warranty: 1year
Flexible CT Current Clamp 100mV/kA Air-Cored Current Sensor Transformer Rogowski Coil With Cable Ties PLS-NRC

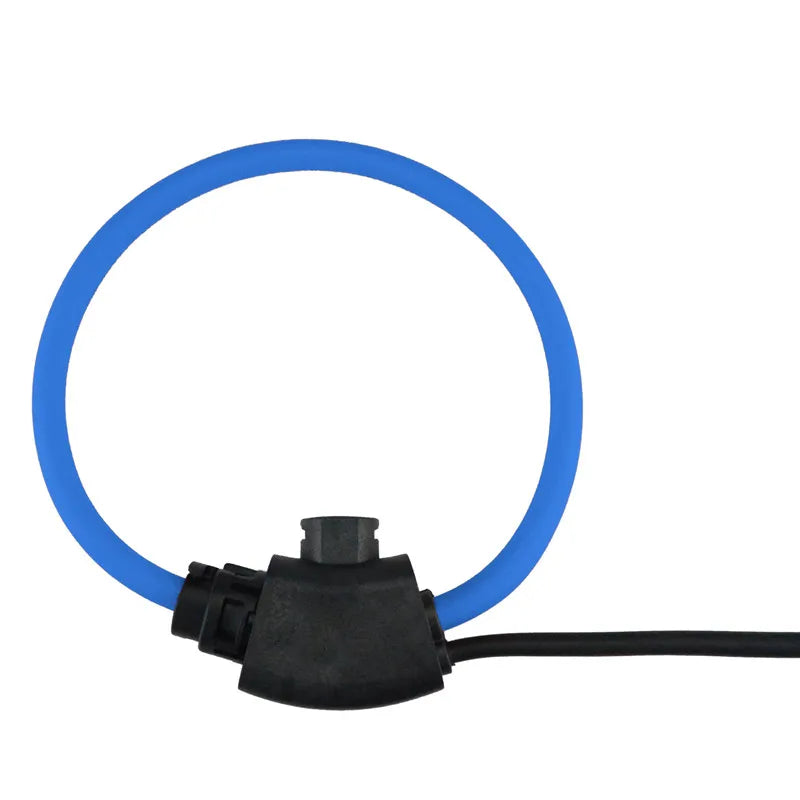

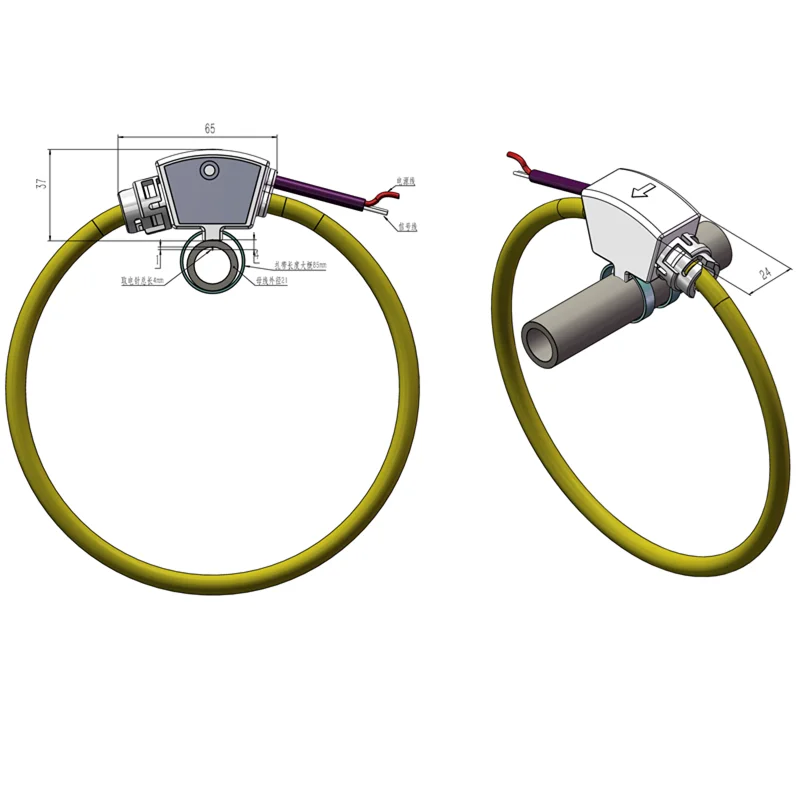

Ø8 screw type flexible Rogowski coil

* Excellent linearity
* Wide dynamic range
* Not damaged by large overloads
* Excellent degree of rejection to the external current conductor
* No danger from open-circuited secondary
* Zero power consumption
* Small position error

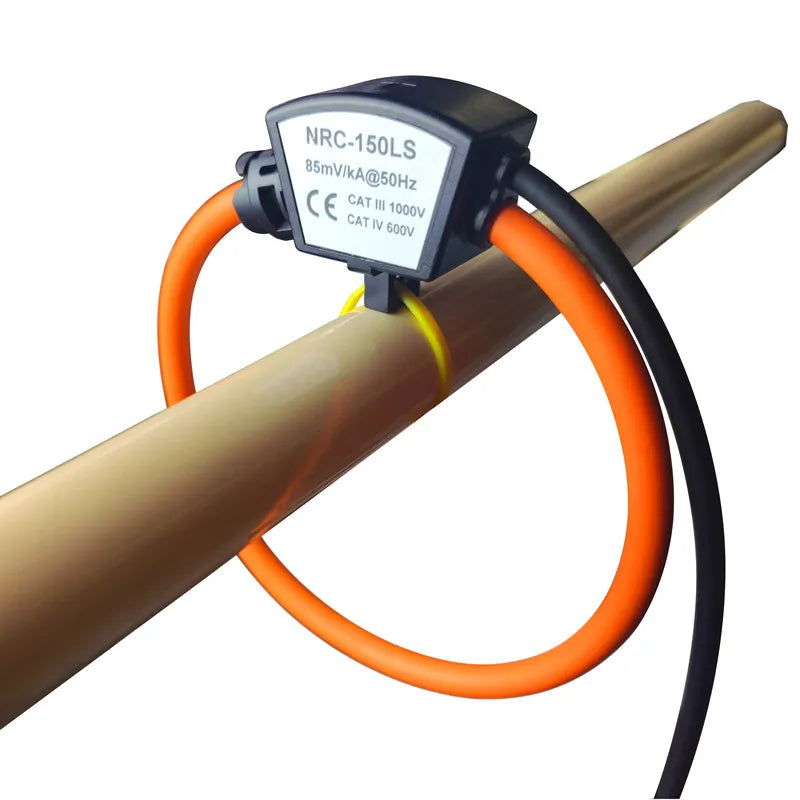

* Soft and light, easy to install
* Long-term stability
* Wide dynamic range
* IP68 protection level

* Rectifier current measurement
* Power quality analysis
* Motor overload/short circuit protection
* Current monitoring of power frequency and intermediate frequency welding machine
* Medium and high voltage switchgear protection system
* Remote Terminal Unit (RTU)
* Synchronous Phasor Measurement Unit (PMU)
* Current measurement on the secondary side of the electric furnace

MODEL |
NRC-100 |
NRC-150 |
NRC-200 |
Coil length |
395mm |
525mm |
665mm |
Window size |
100mm |
150mm |
200mm |
Reference Rated current |
1000A |
3000A |
6000A |
Ratio |
Calibrated:85±0.5mV/kA@50Hz 100±0.5mV/kA@50Hz |
||
Uncalibrated:105±5mV/kA@50Hz | |||

Reference Rated current |
100A,600A,3000A,6000A...(Unlimited) |
|
Ratio @50Hz
|
Calibrated
(Manufacturing tolerance<0.5%) |
... 22.5mV/kA 50mV/kA 85mV/kA 100mV/kA ... |
Sensitivity temperature drift coefficient
|
Uncalibrated, <50ppm/℃ |
|
Calibrated, <100ppm/℃ | ||
Internal resistance temperature drift coefficient1) |
Uncalibrated, <3800ppm/℃ |
|
Read Accuracy |
0.5%class (Vertically centered position) |
|
Internal resistance |
50~250 Ω |
|
Position Error 2) |
<1% |
|
Output on 0A (zero drift) |
<0.05mV |
|
Phase error |
<0.5°(45Hz~65Hz) |
|
Linearity |
±0.1% (1%~100%) |
|
Bandwidth(3dB) |
1Hz~20kHz |
|
Operating temperature |
-40℃~85℃ |
|
Coil Section |
8mm |
|
Lead length(default) |
2 meter |
|
For other requirements, please contact us for customization. | ||
