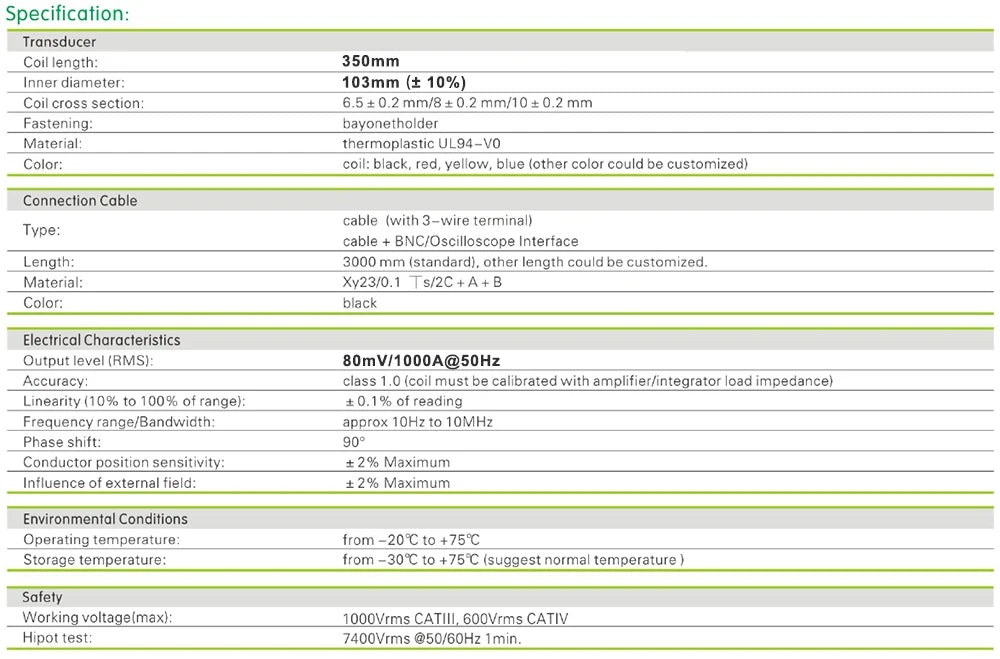

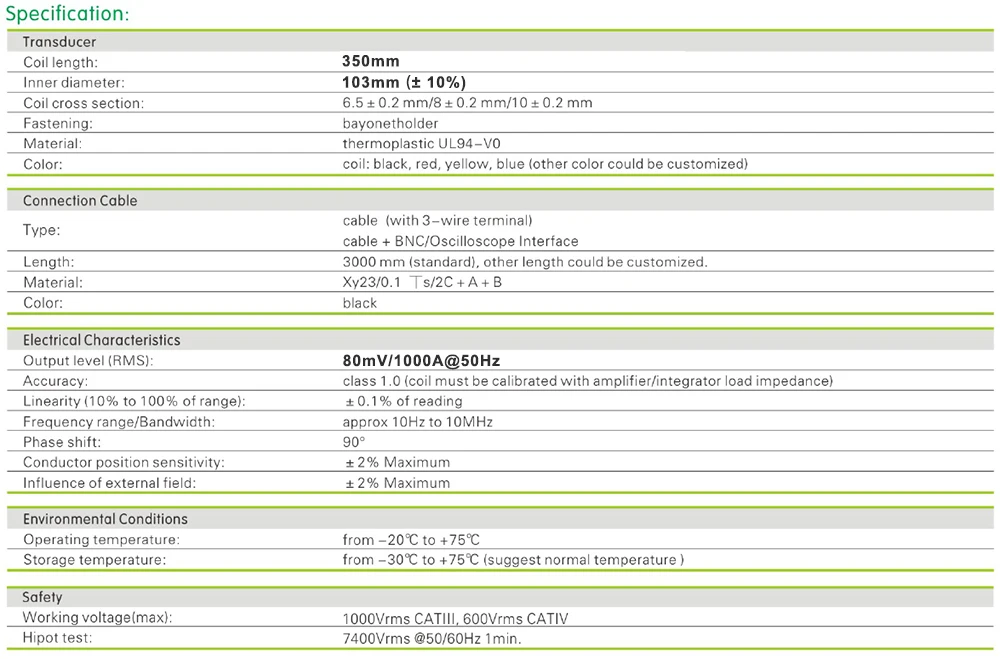

SPECIFICATIONS

* 1000A/80mV@50Hz means FRC350 flexible rogowski coil output 80mV when input 1000A at 50Hz.

* As core of Rogowski is not same with common current transformer, it doesn't have upper limit of current measurement(Not saturated). The secondary voltage output increases or decreases in proportion to the primary current input. Thus when input 2000A, FRC350 output 160mV at 50Hz and so on.

* But attention, it has limit of withstand voltage, 3000V currently. You can't use FRC350 into the application with working voltage up than 3000v.

For more inquiry please send message or email to jakegao2020@hotmail.com

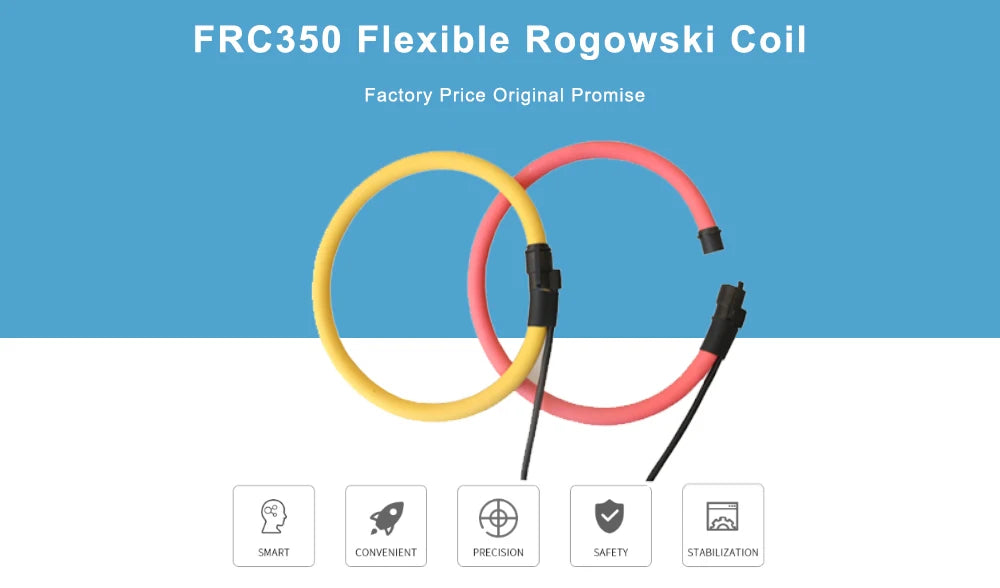

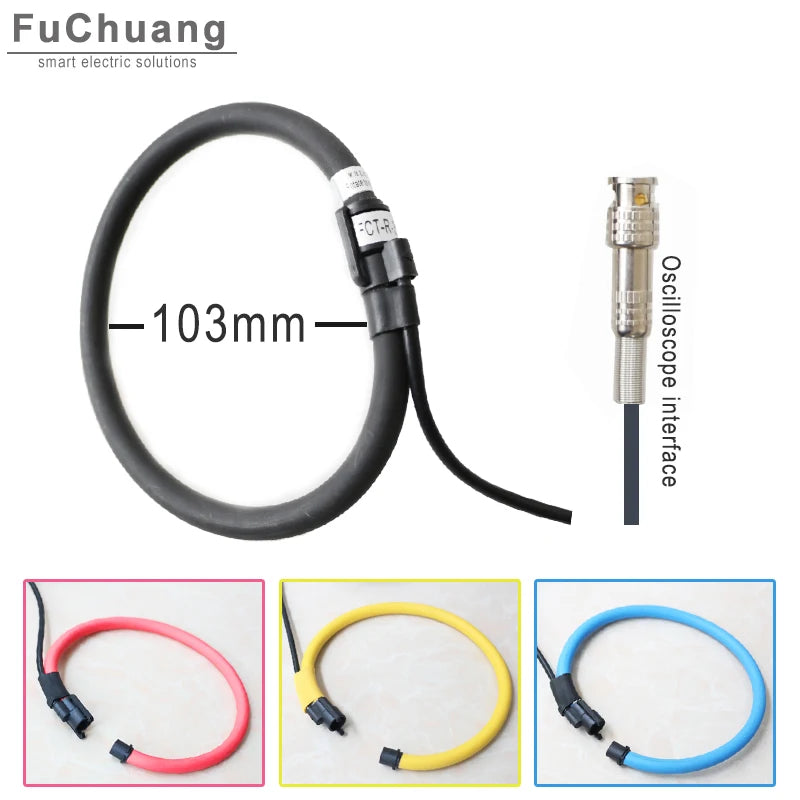

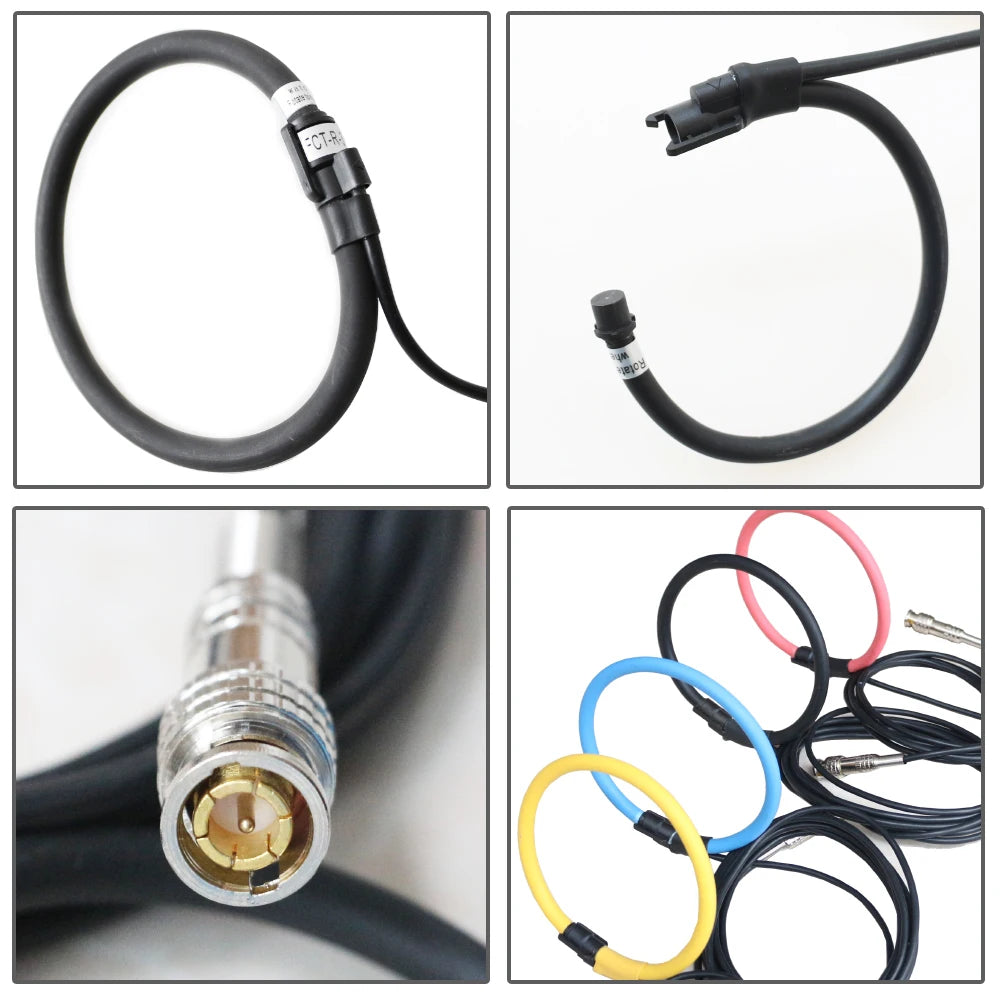

FRC350 is a flexible current transducer based on Rogowski principle, particularly suitable for measurement in combination with portable devices. Besides FRC350, Rogowski coils series are available in different sizes and can be supplied according to customer's design, therefore they can be used in all those applications, in which traditional transducers are not fitting due to its size and/or weight. Due to its specific features, flexible rogowski coil is an extremely confortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.

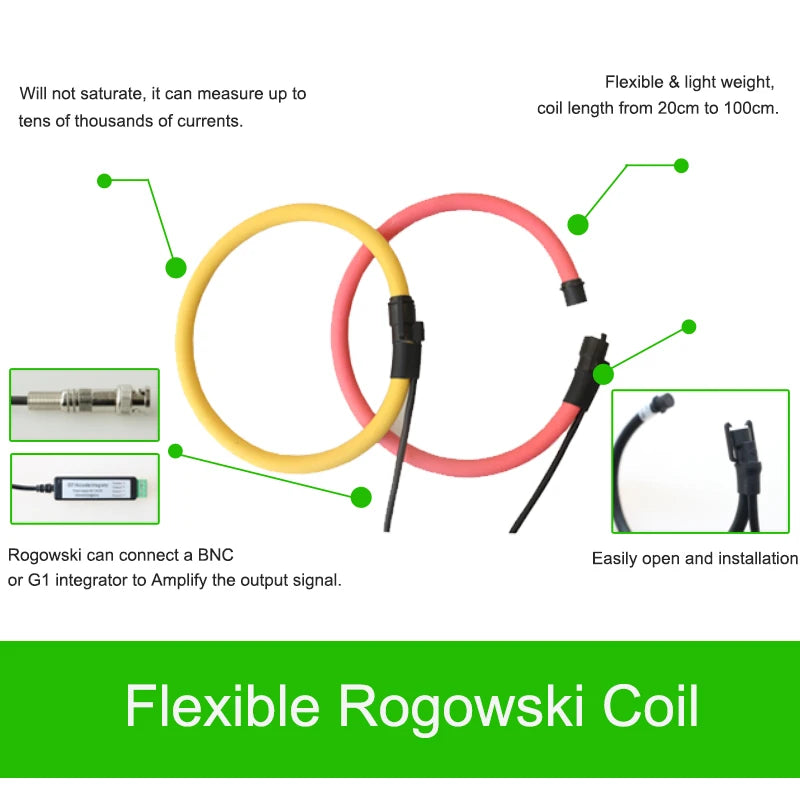

FEATURES:
• Suitable to measure currents from A to hundreds of kA.

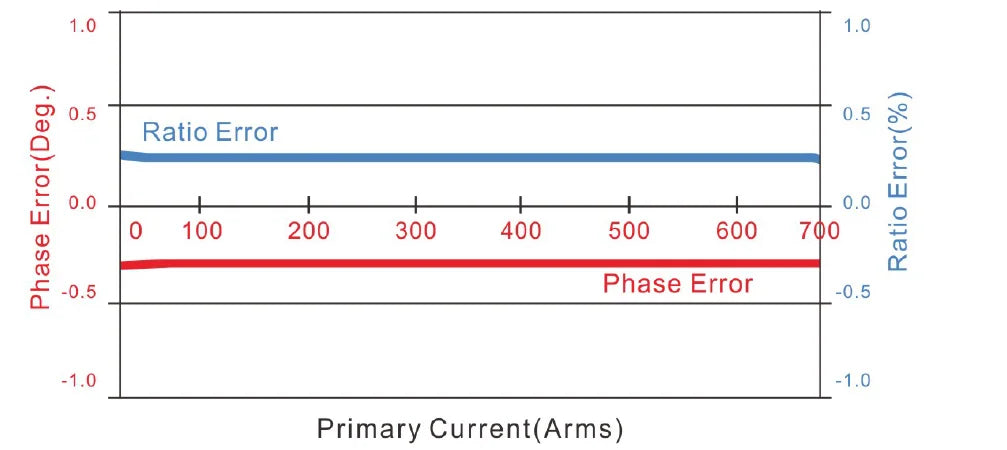

• High linearity.
• The absence of magnetic core grants a wide frequency response to be suitable for measurement of harmonic content and transients.
• Very useful with large size or awkward shaped conductors or in places with limited access.
• Non-intrusive, no power drawn from the main.
• Not damaged by large overloads.
• There is no danger from open-circuited secondary.

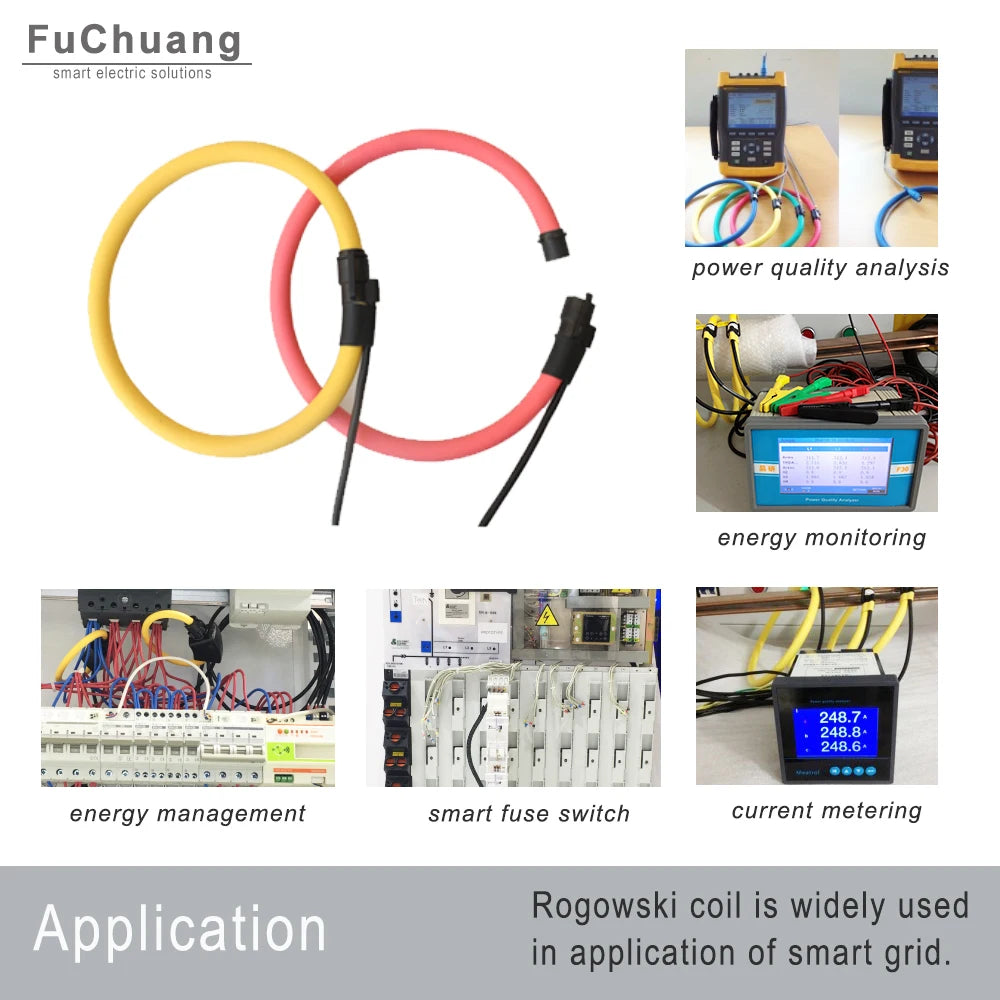

APPLICATIONS
• Measuring device, lab instruments
• Harmonics and transients monitoring
• High current sensoring and metering
• Power quality analysis
• Energy management system
• Electric furnace
• Relay protection
