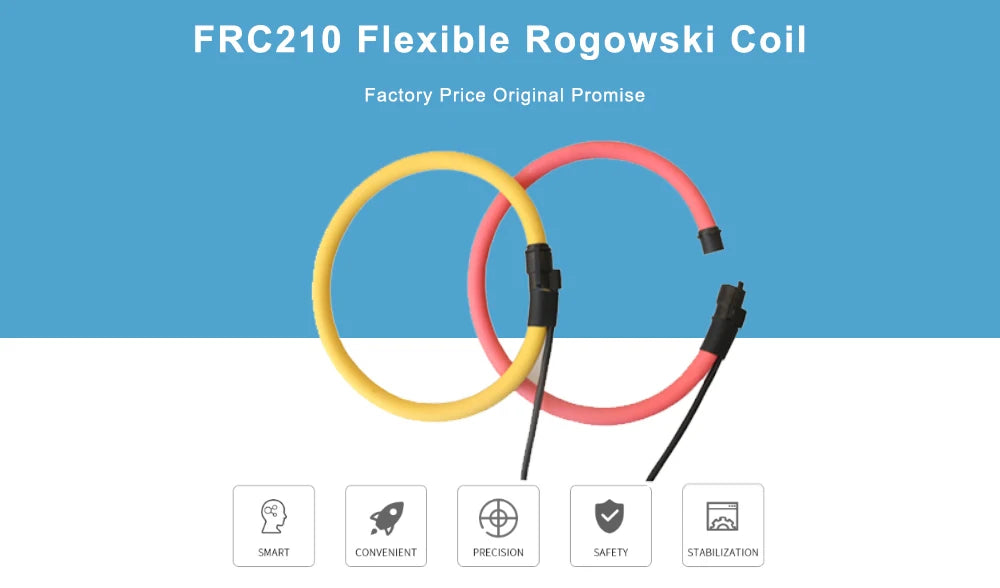

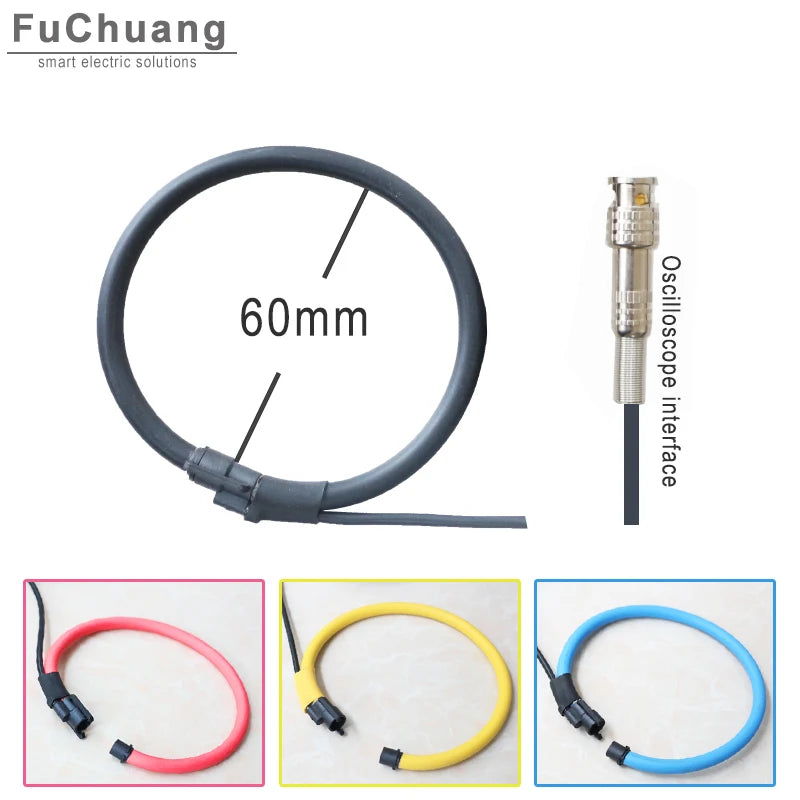

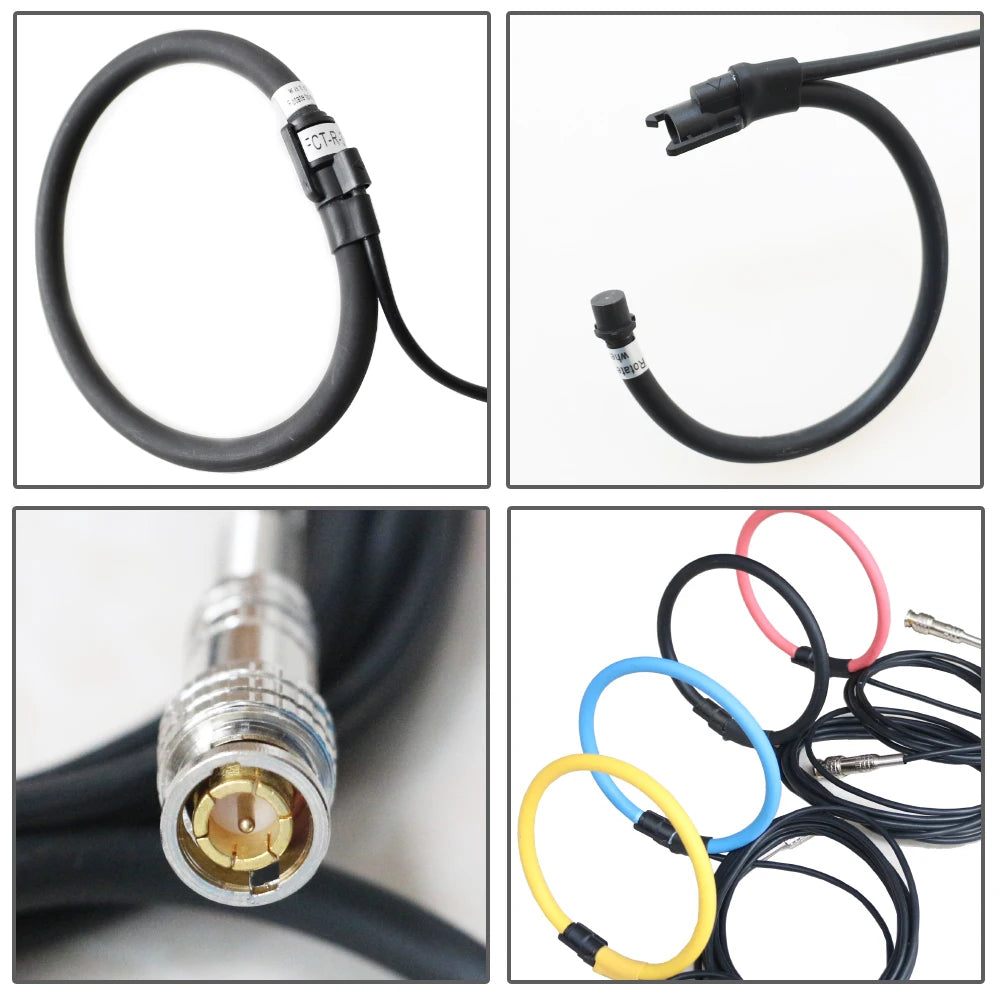

Flexible Rogowski Coil FRC210 with Oscilloscope interface BNC 1000A/40mV 50Hz Rope CT for Energy Monitoring and Analysis

Flexible Rogowski Coil FRC210 with Oscilloscope interface BNC 1000A/40mV 50Hz Rope CT for Energy Monitoring and Analysis

$400.77

$400.77 $0.00

Description

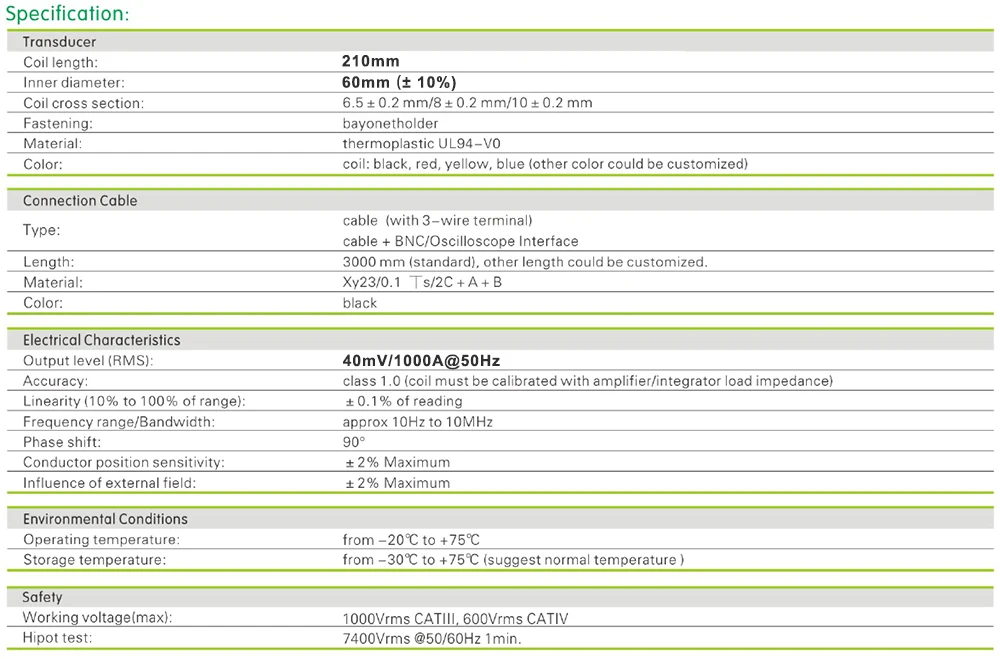

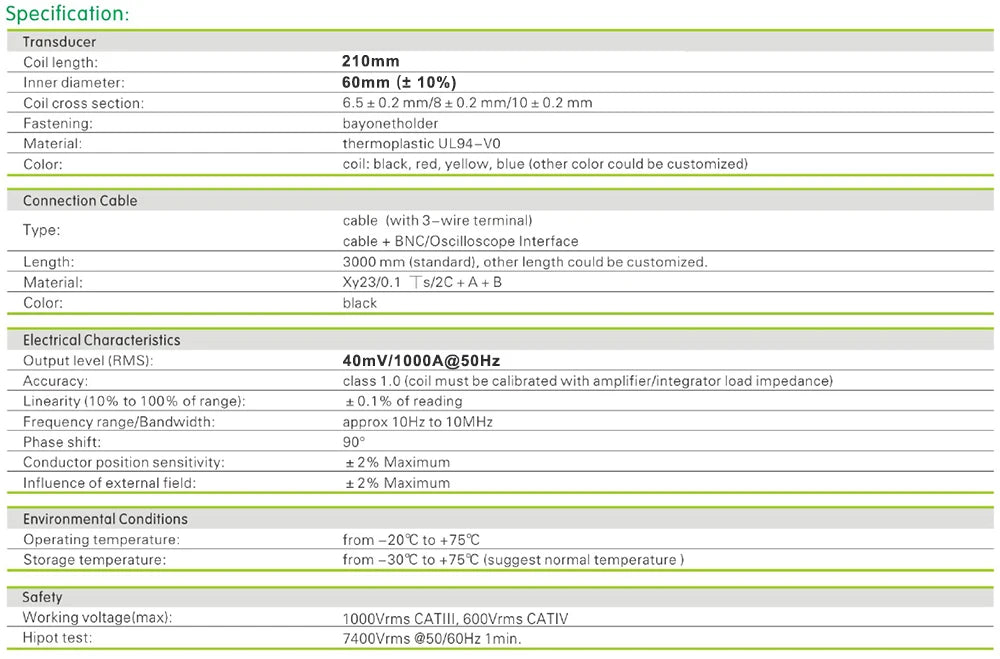

SPECIFICATIONS

Accuracy: about CL 1.0

Brand Name: NONE

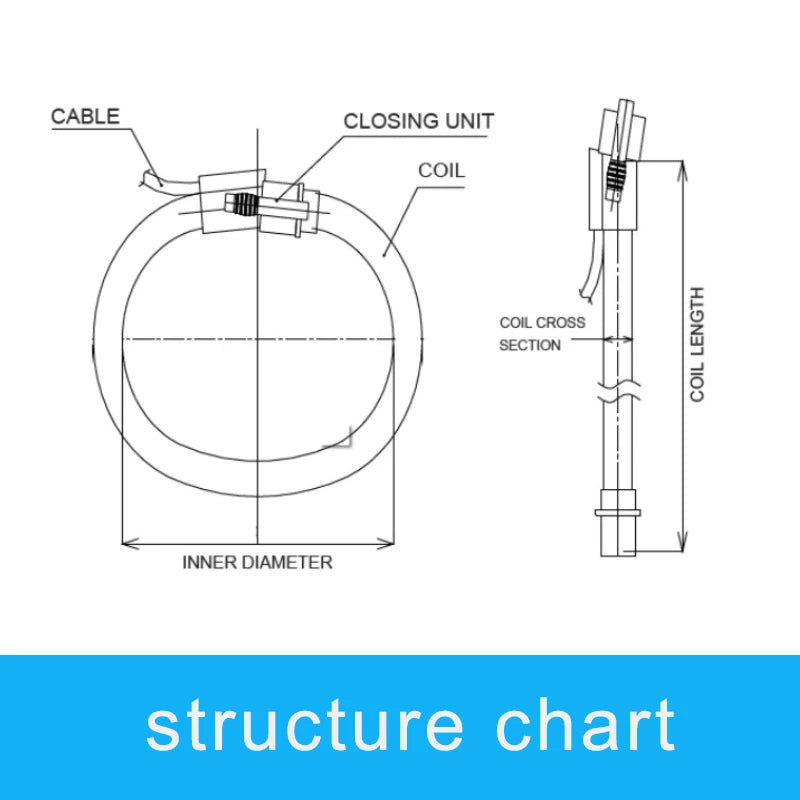

Coil cross section: 6.5mm +- 0.2 mm

Coil innor hole: 60mm +- 10%

Coil perimeter: 210mm +- 2%

Color: Black, Red, Yellow, Blue

Connection: Oscilloscope interface

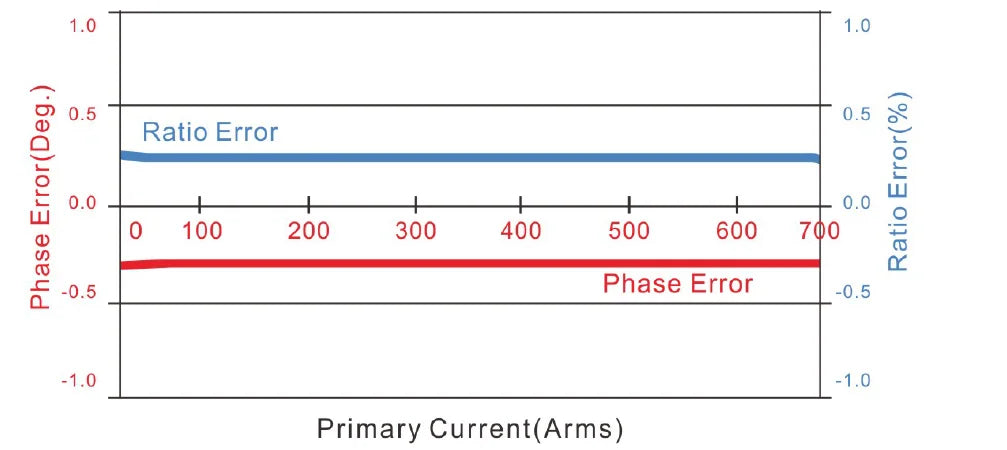

Linearity(10%-100% of range): +- 0.1% of reading

Model Number: FRC-210

Operation Temperature: -25C to 75C

Origin: Mainland China

Phase shift: 90 degree

Ratio: 1000A/40mV@50Hz (No upper limit of measurement)

Storage temperature: -30C to 75C (suggest normal temperature)

Type: Flexible Rogowski Coil

Working voltage(max): 1000Vrms CATIII, 600Vrms CATIV

is_customized: Yes

* 1000A/40mV@50Hz means FRC210 flexible rogowski coil output 40mV when input 1000A at 50Hz.

* As core of Rogowski is not same with common current transformer, it doesn't have upper limit of current measurement(Not saturated). The secondary voltage output increases or decreases in proportion to the primary current input. Thus when input 2000A, FRC210 output 80mV at 50Hz and so on.

* But attention, it has limit of withstand voltage, 3000V currently. You can't use FRC210 into the application with working voltage up than 3000v.

For more inquiry please send message or email to jakegao2020@hotmail.com

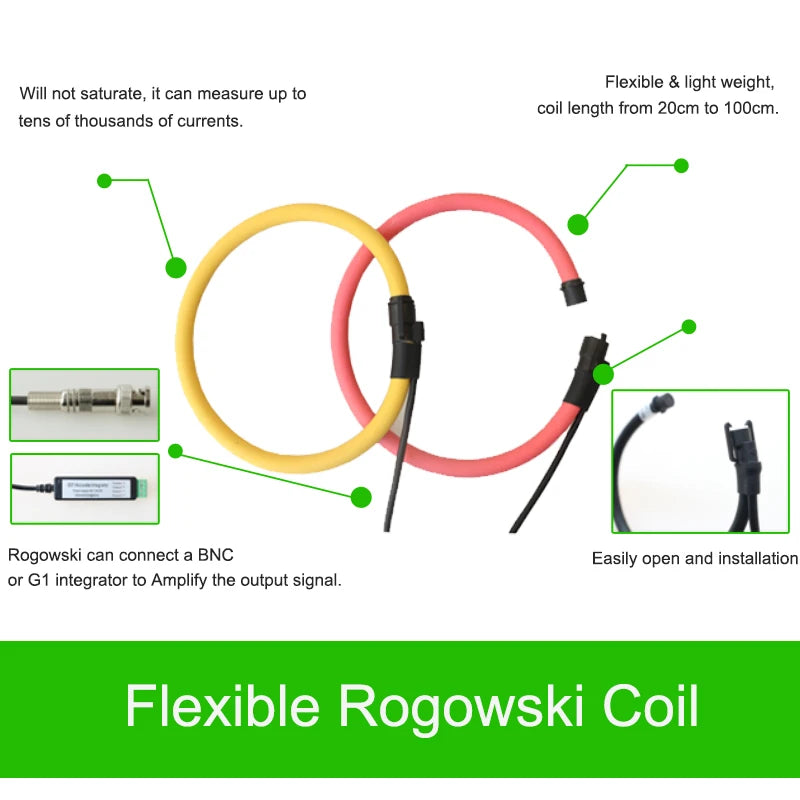

FRC210 is a flexible current transducer based on Rogowski principle, particularly suitable for measurement in combination with portable devices. Besides FRC210, Rogowski coils series are available in different sizes and can be supplied according to customer's design, therefore they can be used in all those applications, in which traditional transducers are not fitting due to its size and/or weight. Due to its specific features, flexible rogowski coil is an extremely confortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.

FEATURES:
• Suitable to measure currents from A to hundreds of kA.
• High linearity.
• The absence of magnetic core grants a wide frequency response to be suitable for measurement of harmonic content and transients.

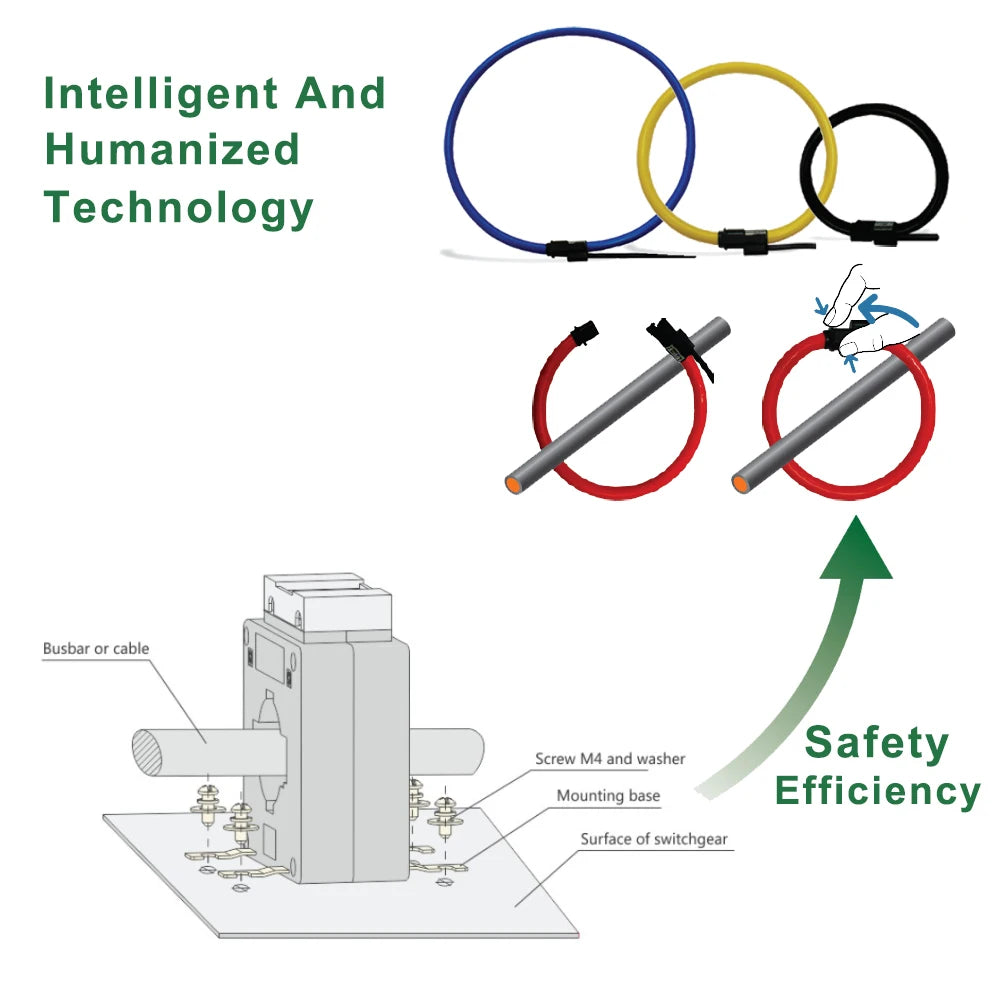

• Very useful with large size or awkward shaped conductors or in places with limited access.
• Non-intrusive, no power drawn from the main.
• Not damaged by large overloads.
• There is no danger from open-circuited secondary.

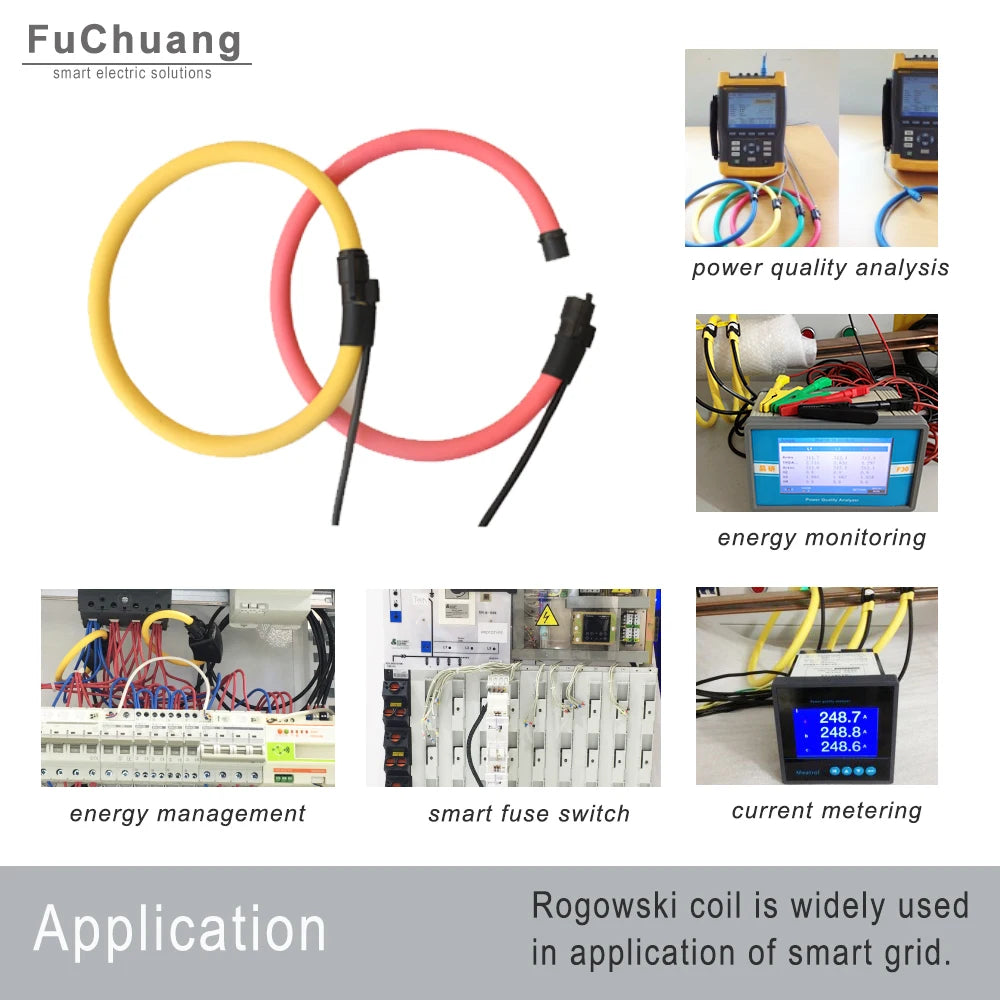

APPLICATIONS
• Measuring device, lab instruments
• Harmonics and transients monitoring
• High current sensoring and metering
• Power quality analysis
• Energy management system
• Electric furnace
• Relay protection

1.FuChuang will send your order within several days. If product is customised, you may receive message for requireing extend time, attention please.

2.If you do not receive your purchase within 60 days, you can ask for a full refund before order completion.

3.The shipping cost does not include any import taxes,buyers are responsible for customs duties.

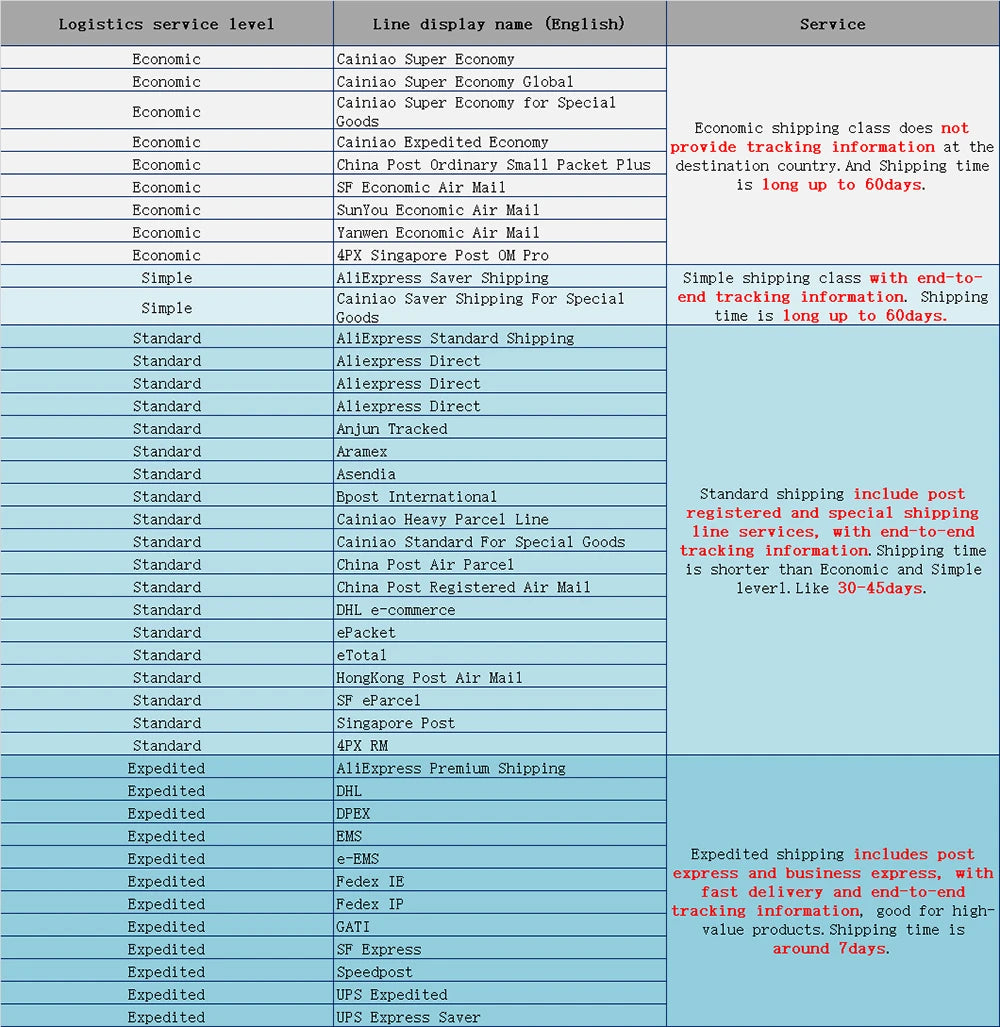

4. As Economic and Simple level Logistics takes very long time and easy missing parcel, I suggest you choose Standard or Expedited level. (See the table below for details).
