SPECIFICATIONS

Brand Name: FDROBOT

High-concerned chemical: none

Origin: Mainland China

Type: others

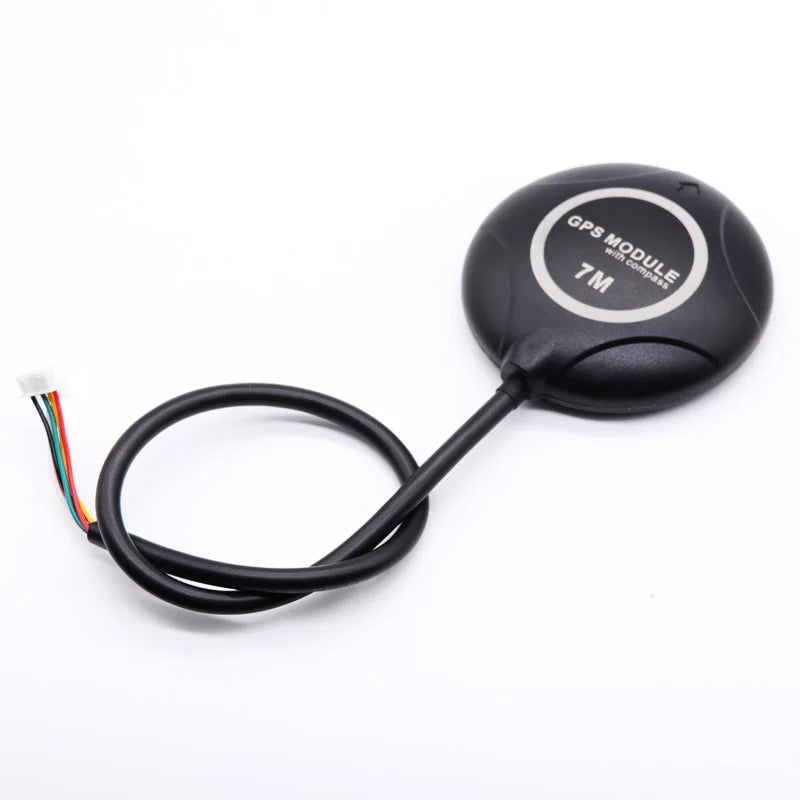

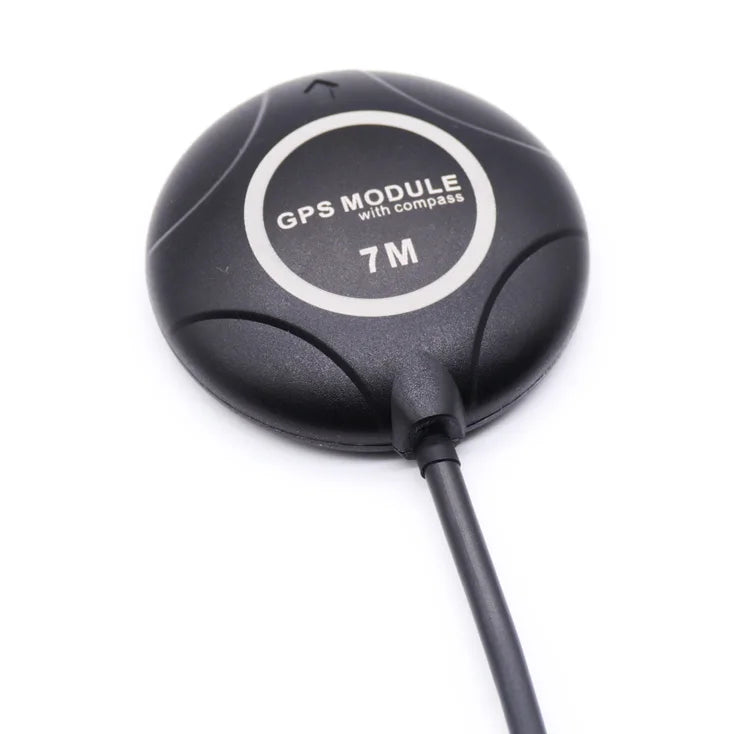

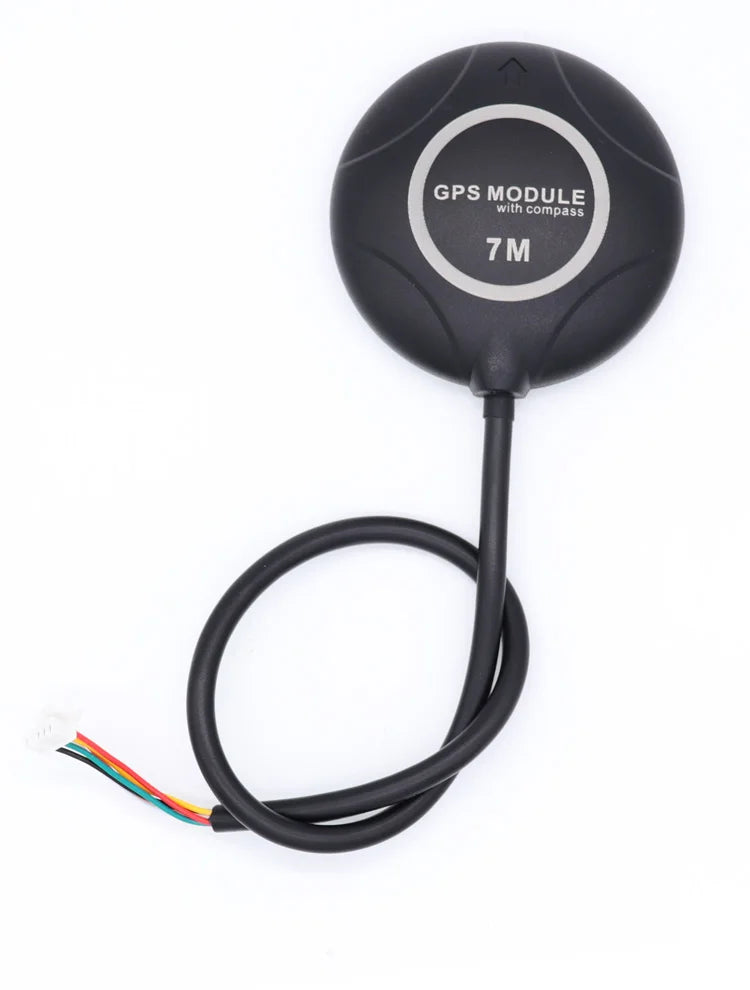

UBLOX neo-7m new generation GPS 6M updated satellite search speed and satellite number accuracy are improved if you think the M8N is too expensive, why not try this 7MGPS.

The refresh rate of DALRC is improved to 10Hz, 6M and 6H, all of which are 5Hz. The star search speed is fast, and the cold start speed is twice as fast as 6M and 6H.Positioning accuracy 2.5m, built-in high-precision electronic compass.

The neo-7 series is the latest addition to the u-blox standalone GPS/GNSS module.Thanks to the ultra-high performance of the u-blox 7 multi-gnss (GPS, GLONASS, Galileo, QZSS and SBAS) engines, the neo-7 series offers highly sensitive positioning in the shortest capture time available in the industry's recognized NEO packaging form.

The neo-7 series provides maximum sensitivity while maintaining minimum system power consumption.Neo-7m is suitable for low-cost applications, while the neo-7n provides optimal performance and easier RF integration.Industry-recognized NEO packaging makes previous generations of NEO modules portable.Advanced RF architecture and interference suppression ensure optimal performance even when GPS signals are weak.

Multi GNSS engine supporting GPS, GLONASS, Galileo and QZSS

An optimized version of cost and performance

With ultra-low power consumption and ultra-high sensitivity

Easy integration with u-blox's wireless modules

Compatible with the neo-6 and neo-5 series

Receiver type

Channel u-blox 7 engine

GPS L1 C/A,GLONASS L1 FDMA

QZSS L1 C/A

Hardware support Galileo E1B/C,Compass

SBAS: WAAS and EGNOS, MSAS

The maximum update rate is 10 Hz

Precision GPS/GLONASS

Location: 2.5m CEP / 4.0m

SBAS 2.0 m CEP/n.a.

Capture GPS/GLONASS

Cold start :29 s / 30 s

Auxiliary boot :5 s/n.a.

Recapture: 1 s / 3 s

Sensitivity GPS/GLONASS

Trace: -- 162 dBm / -- 158 dBm

Cold start: -- 148 dBm / -- 140 dBm

Warm start: -- 148 dBm / -- 145 dBm

auxiliary

AssistNow Online

AssistNow Offline

AssistNow Autonomous

OMA SUPL and 3GPP specifications

Oscillator :TCXO (neo-7n), common crystal (neo-7m)

RTC crystal: built-in

Anti-interference: active CW detection and clearance

Storage: onboard ROM (neo-7m) or Flash (neo-7n)

Antenna support: active and passive antennas

Specifications:

GPS antenna size: 25*25*4mm

Shell size: 54x15mm (diameter x height)

Cable length: 200mm

Weight: 29 g

Connection: compass 4-pin/GPS (pixhawk 6-pin /APM 5-pin)
