SPECIFICATIONS

Brand Name: HawkSpeed

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: FlyFishRC M10 Mini GPS

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: GPS Module

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: NA

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: GPS

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

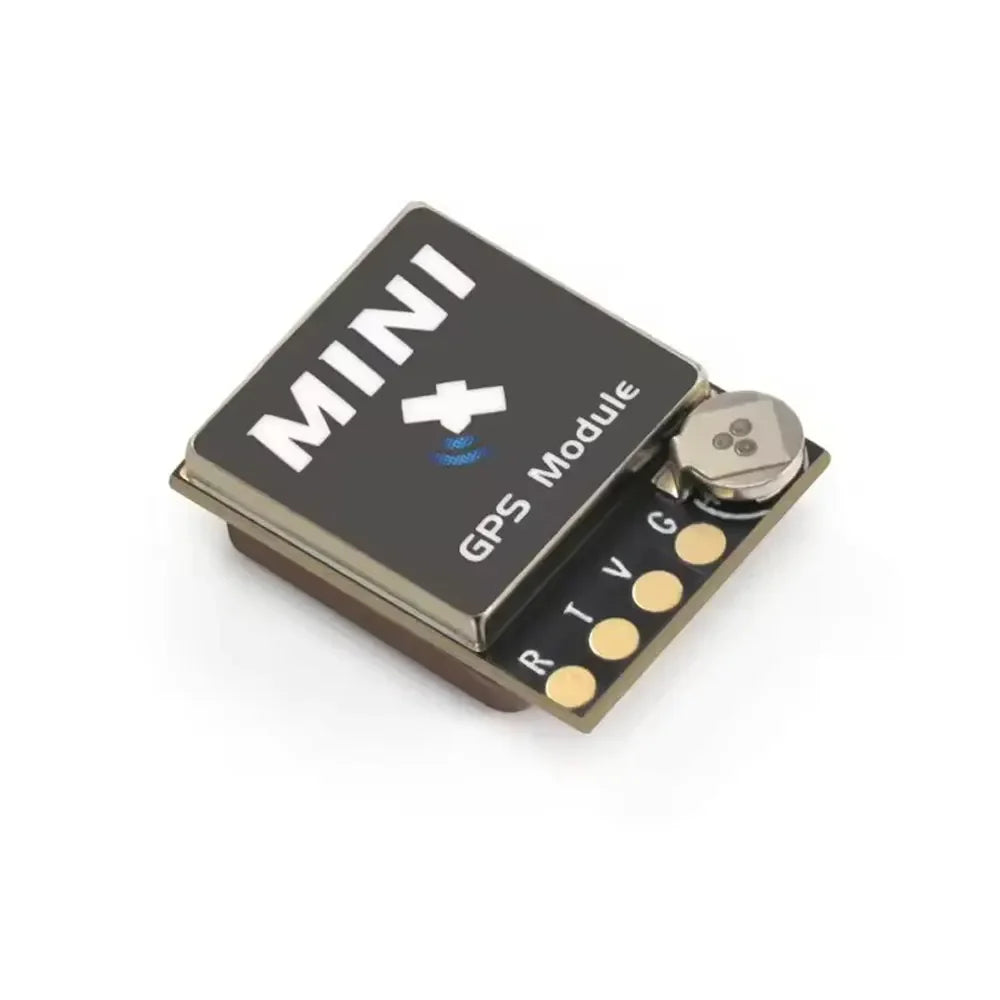

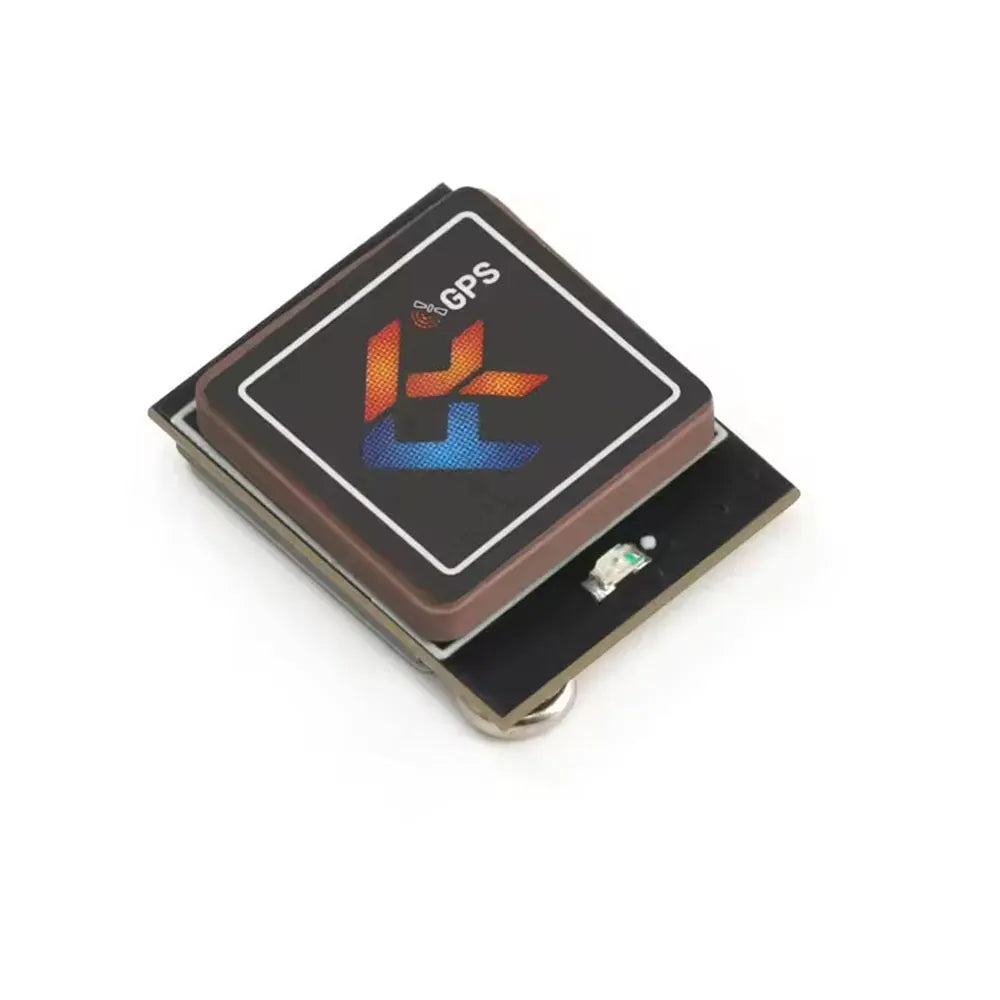

FlyfishRC-M10 Mini is a GPS that is small in size, fast in speed, and easy to use. It features an 12*12mm RHCP ceramic patch antenna that provides excellent reception and highly stable connectivity. The UBLOX 10th generation chip allows for skipping minor changes in altitude, improving stability.

Spec：
GPS Module Protocol: Ublox/NMEA
Speed Accuracy: 0.05m/s
Cold Start: 30 s
Hot Start: 1-3 s
Tracking Sensitivity: -167dBm
Input Voltage: 3.3~5.5V (typical value 5V)
Maximum Altitude: 50000m
Maximum Speed: 500m/s
Maximum Acceleration: ≤4G
Baud Rate: 4800-115200bps (recommended 115200bps)

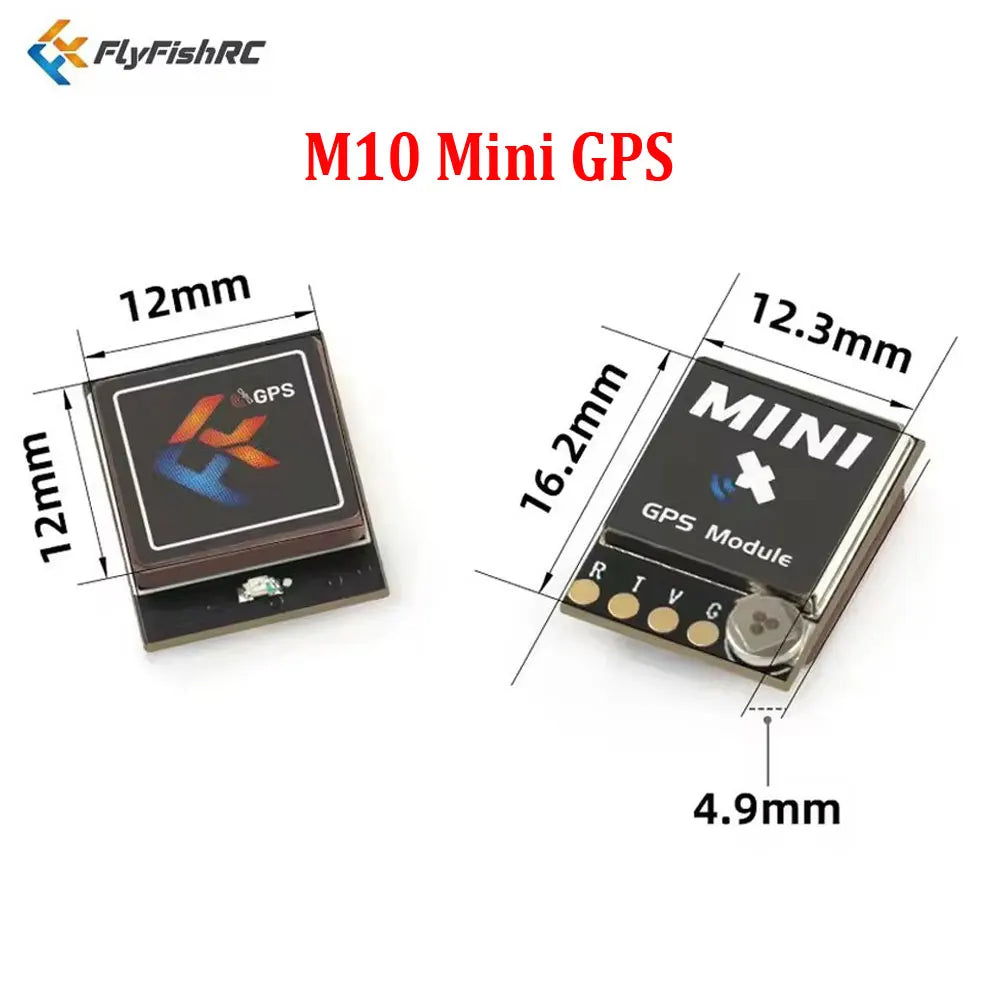

GPS Module Size: L16.2x W12.3x H4.9mm
GPS Ceramic Size: 12*12mm

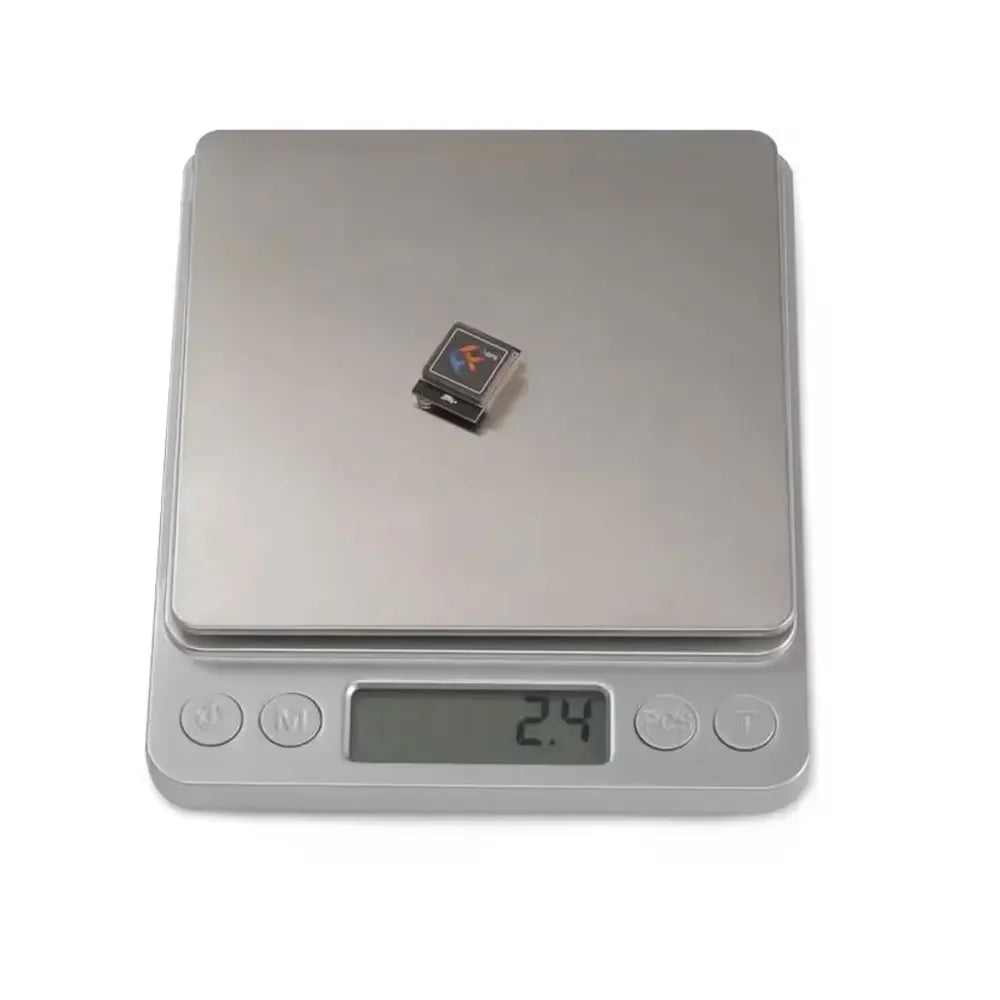

Weight: 2.4g (±0.5g)

Pin Definition:
VCC: System main power supply, voltage is 5V, current is about 40mA during operation
GND: Ground
RXD: Data input
TXD: Data output

Includes:
1x FlyFishRC M10 Mini GPS Module
4x #30 Silicone Cable
1x GPS Manual
