SPECIFICATIONS

Brand Name: MKronRC

Certification: NONE

Channel: 4 CH

Choice: yes

For Vehicle Type: Helicopters

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Material: Composite Material

Model Number: FLYSKY FS2A 4CH AFHDS 2A

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: RECEIVERS

Recommend Age: 12+y,14+y

Remote Control Peripherals/Devices: Remote Controller

Size: 25x11mm

Technical parameters: KV1100

Tool Supplies: Battery

Upgrade Parts/Accessories: FLYSKY FS2A 4CH AFHDS 2A Receiver

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

semi_Choice: yes

Flysky FS2A 4CH AFHDS 2A Mini Receiver PWM Output for FS-i6 i6X i6S Transmitters RC Quadcopter Drone FPV Aircraft

FLYSKY FS2A 4CH AFHDS 2A Receiver Mini Compatible PWM Output for FS-i6 FS-i6X FS-i6S Transmitter RC Quadcopter

• FS2A 4CH AFHDS 2A Mini Receiver for Flysky i6 i6X i6S / FS-i6 FS-i6X FS-i6S Transmitter.

• Support: for FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter.

• Distance: 400+ meters ; Working current: 20MA ; Dimensions: 11 * 25MM.

• Frequency : 2.408-2.475GHZ ; Band width: 135 ; Receiver sensitivity: -92DBM.

• The Receiver Can Normally Receive The Transmitter Signal, Push The Rocker To The The Fail Set, Long Press The Receiver Bind Button, The Blue Light Flashes Quickly Several Times And Then Bright , Fail Settings Is Successful.

FS2A 4CH AFHDS 2A Mini Compatible Receiver PWM Output for Flysky i6 i6X i6S Transmitter Remote Controller

Bind:

1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.

2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.

3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.

Failsafe settings:

The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.

Channels:	4CH
Output signal:	PWM
Frequency range:	2.408-2.475GHZ
Band width:	135
Receiver sensitivity:	-92DBM
2.4G mode:	AFHDS 2A
Failfe:	Yes

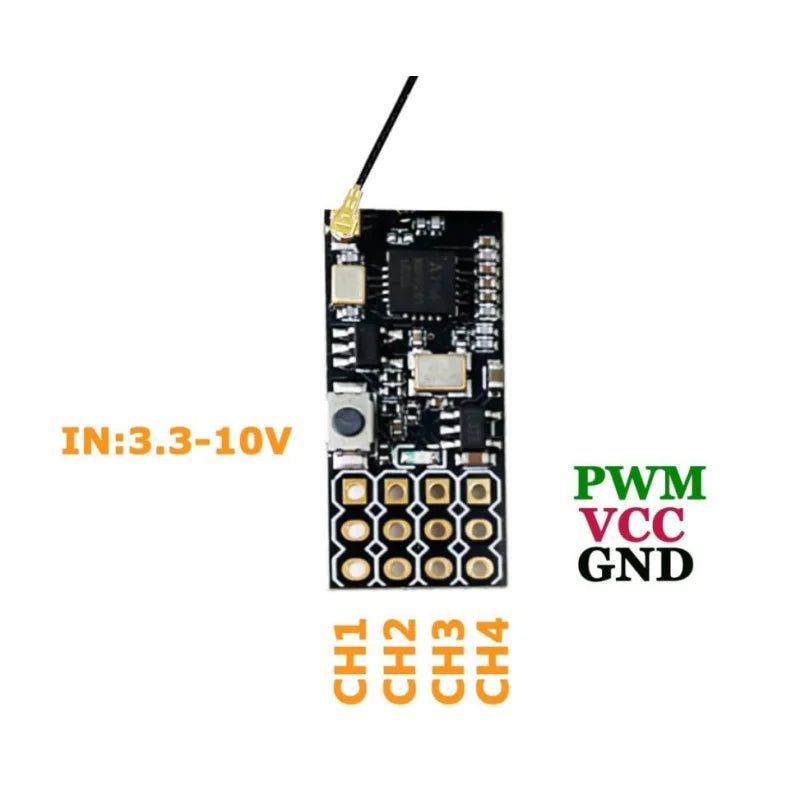

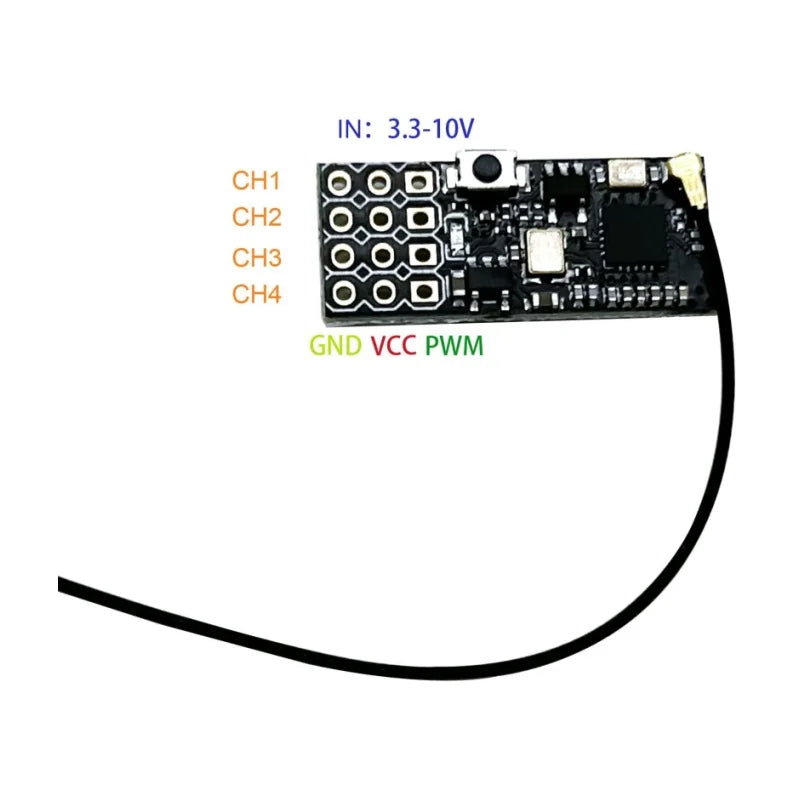

Supply voltage:	3.3-10V
Distance:	400+ meters
Working current:	20MA
Size:	11 * 25MM
Weight:	0.9 grams
Support:	FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter

Specifications:
Item name: Flysky FS2A 4CH receiver
Channels: 4CH
Output signal: PWM
Frequency : 2.408-2.475 GHZ
B a n d width: 135
Receiver sensitivity: -92DBM
2.4G mode: AFHDS 2A
Failfe: Yes
Supply voltage: 3.3-10 V
Distance: 400 + meters
Working current: 20MA
Size: 11 * 25 MM
Weight: 0.9 grams
Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitters

Tie:
1. Press and hold the button on the receiver and connect the power to the receiver. The blue light on the receiver flashes, received in bindind mode.
2, Set the transmitter in bind mode (confirms AFHDS 2A protocol). After getting in bind mode, the receiver changes light from flashing to flash to slow it down.
3, transmitter out of bind mode, then the receiver blue light will be bright. Indicates that the signal received is successful.

Fail settings:
The receiver can usually receive the transmitter signal, push the rocker to the fail, set, long press the receiver tying button,
the blue light will flash quickly several times and then bright, fail settings will succeed.

Package Information:
Package Size: 5*4.5*3cm
Package Weight: 10g
Plastic Package

Package List:

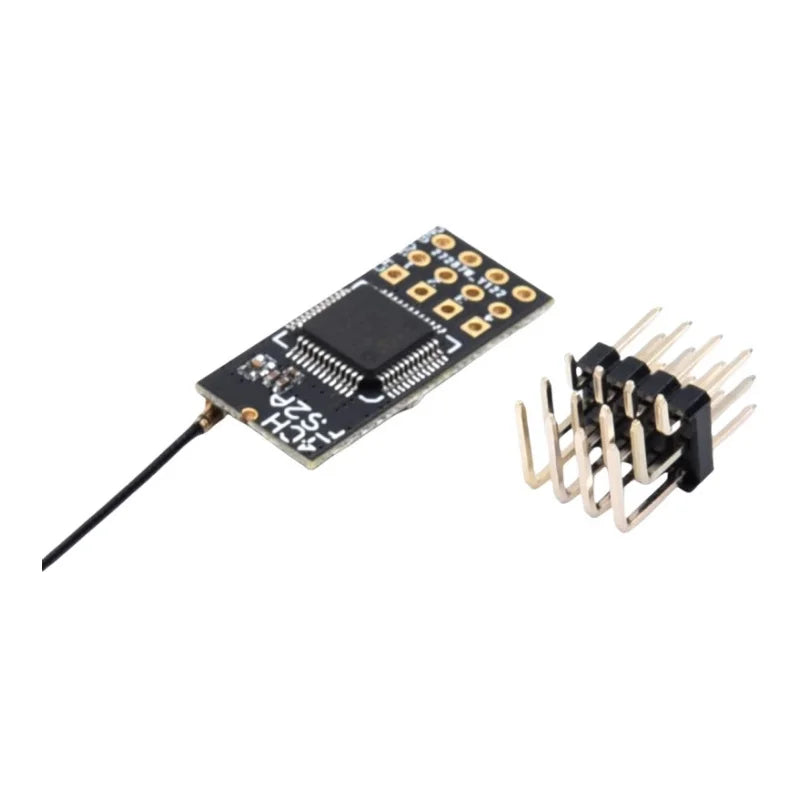

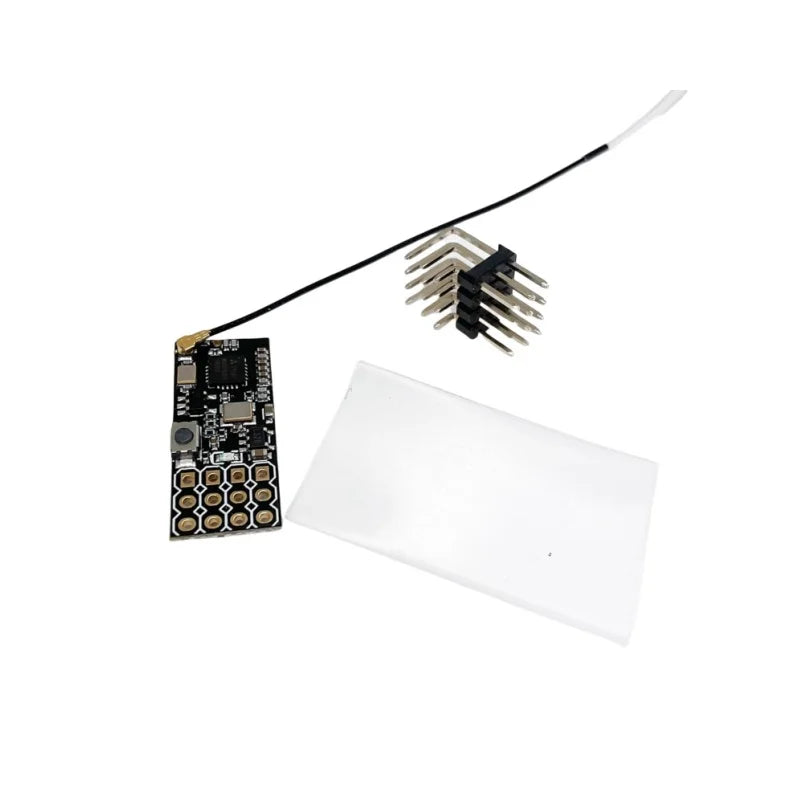

1* FS2A 4CH AFHDS 2A Mini Compatible Receiver
