SPECIFICATIONS

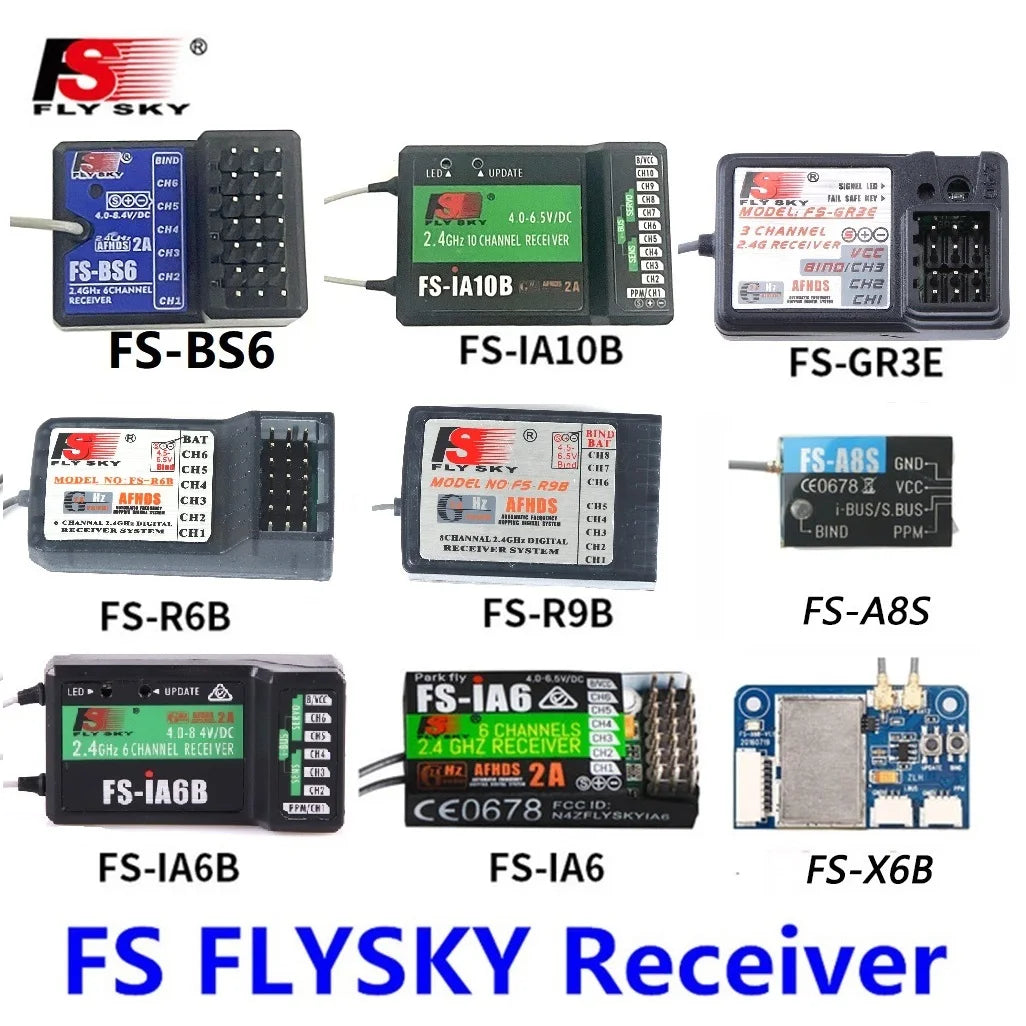

Flysky FS-GR3E FS-A6 FS-R6B FS-X6B FS-iA6 FS-iA6B FS-A8S FS-R9B FS-iA10B Rc Receiver for Flysky Transmitter

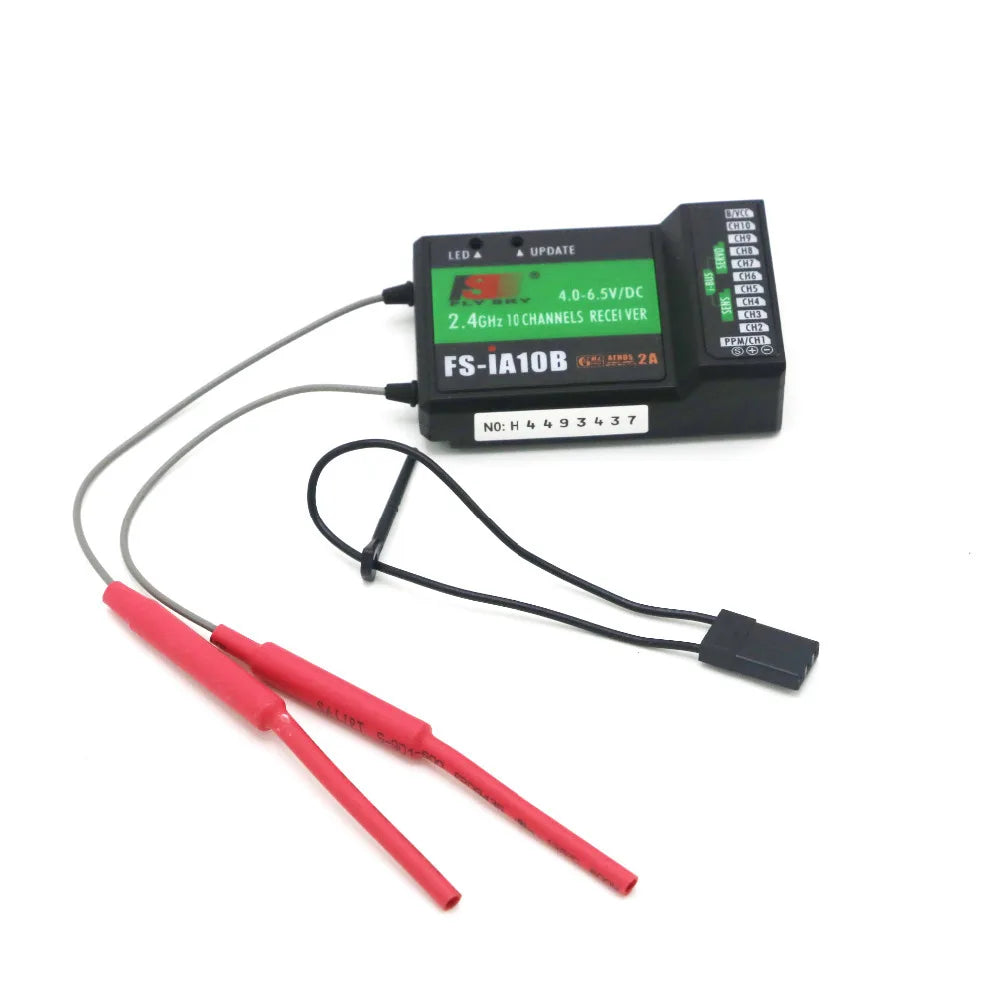

FS--IA10B:
Number of Channels: 10
Suitable models: Airplane / glider / helicopter Health
Frequency range :2.4-2 .48 GHz
Number of newspapers: 160
Transmitting power: not more than 20dBm
Receiver sensitivity:-105dBm
2.4G modes: automatic frequency second generation digital system
Encoding: GFSK
Antenna length: 26 mm * 2 (dual antenna)
Weight: 19.3 g
Input power :4.0-6 .5 V DC
Dimensions: 47 * 33.1 * 14.7 mm
Color: Black
Certification: CE0678, FCC
i-BUS Interface: Yes
Data acquisition interface: Yes

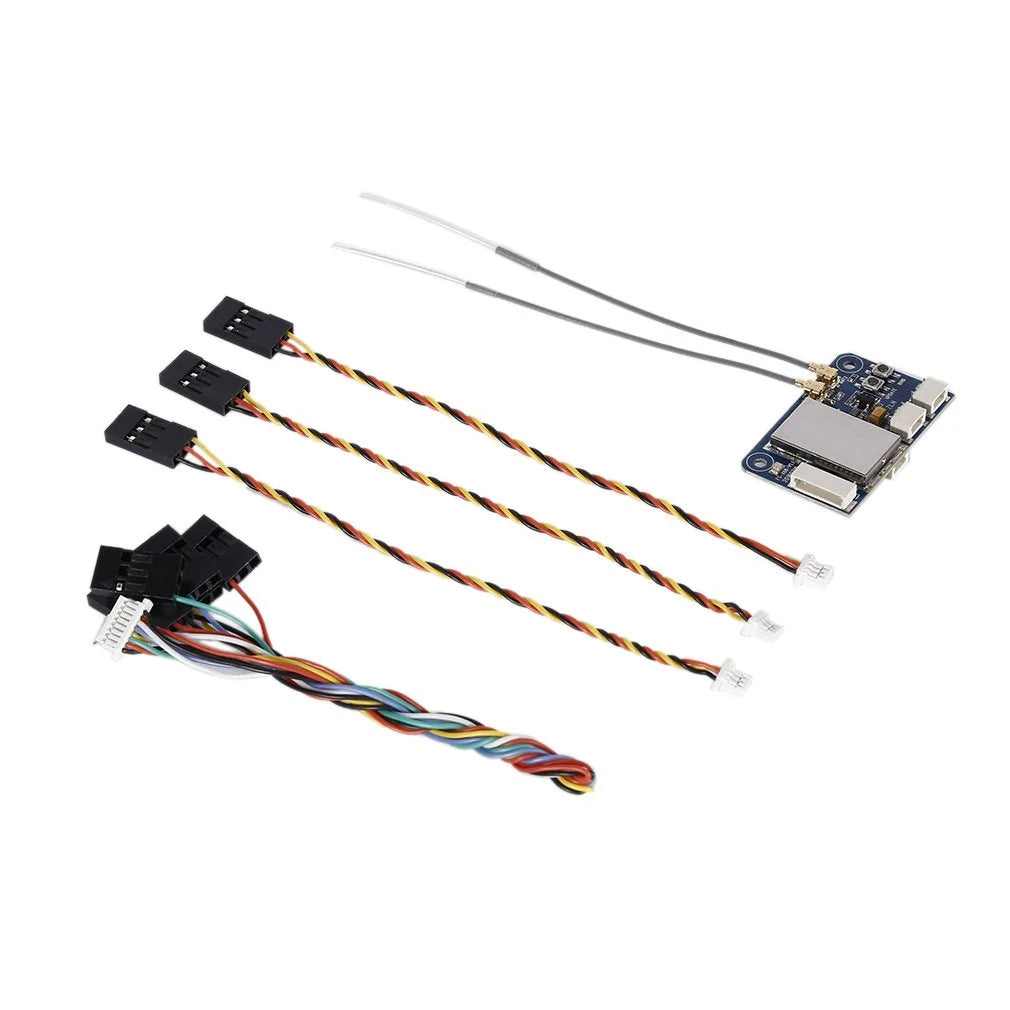

FS-X6B:
Specification:
Channels 6（PWM）,8（PPM）,18（i-BUS）
Model Multi-Rotor
RF range 2.408-2.475 GHz
Band width 500 KHz
Number of bands 135
RF power No more than 20 dBm
RX sensitivity -95dBm
2.4GHz protocol AFHDS 2A
Modulation type GFSK
Stick resolution 1024
Low voltage alarm Yes
DSC port PPM/PWM/i-BUS
Antenna length 93mm（Dual Antenna）
Power input 4.0-8.4V
On-line update Yes(Wireless)
Range >300m
Weight 4.5g
Size 36*22*7.5mm
Certification CE0678,FCC ID：N4ZX6B00

Channels: 8

Model Type: Multi Rotor

Data Output: PPM/i-Bus

Frequency Range: 2.408-2.475GHz

Brandwidth: 500KHz

Number of Bands: 135

Transmission Power: <20dBm

Receiver Sensitivity: -92dBm

2.4GHz Protocol: AFHDS 2A

Modulation: GFSK

Low voltge alarm: None

Chargeable: None

Antenna length: 93mm

Input Power: 4.0-8.4V

Online Update: None

No ground interference(Transmitting and receiving 1m from the ground): >300m

Operating current: 50mA

Dimensions: 32x22.5x7.5mm

Weight: 3.7g

Certification: CE , FCC

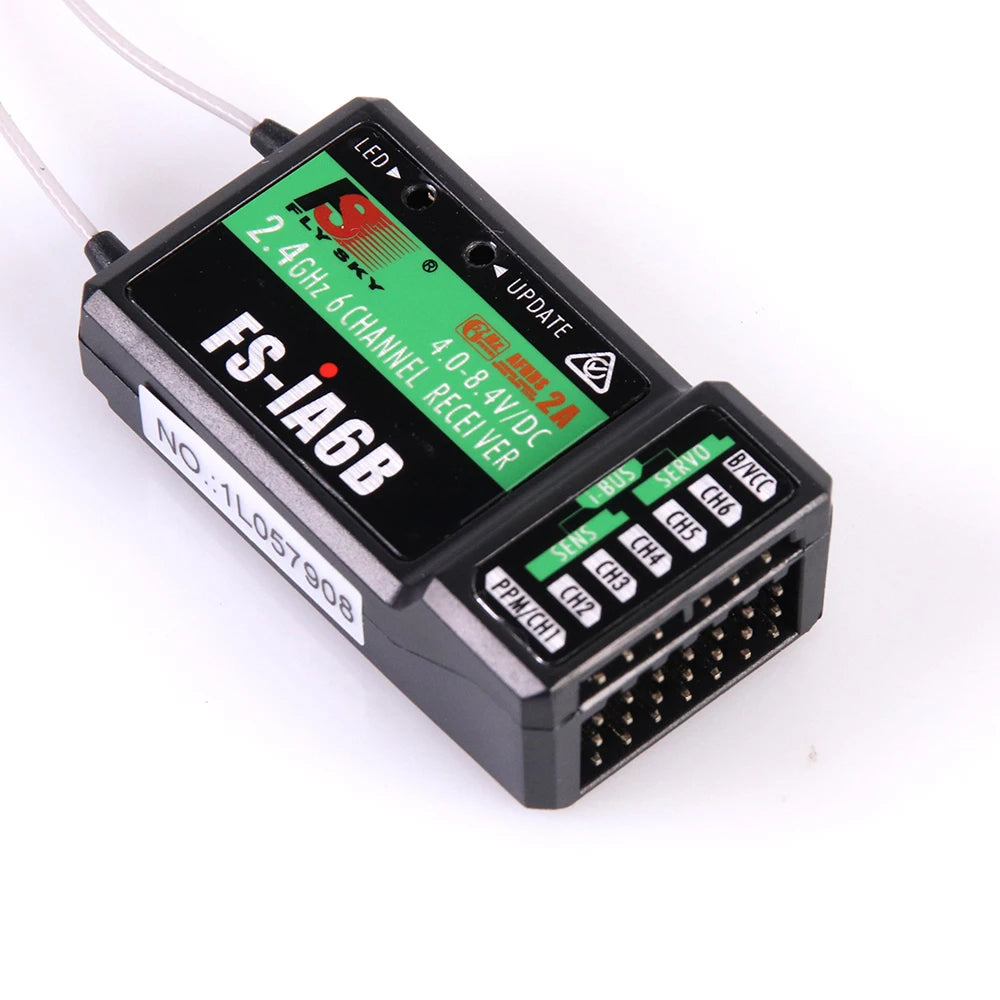

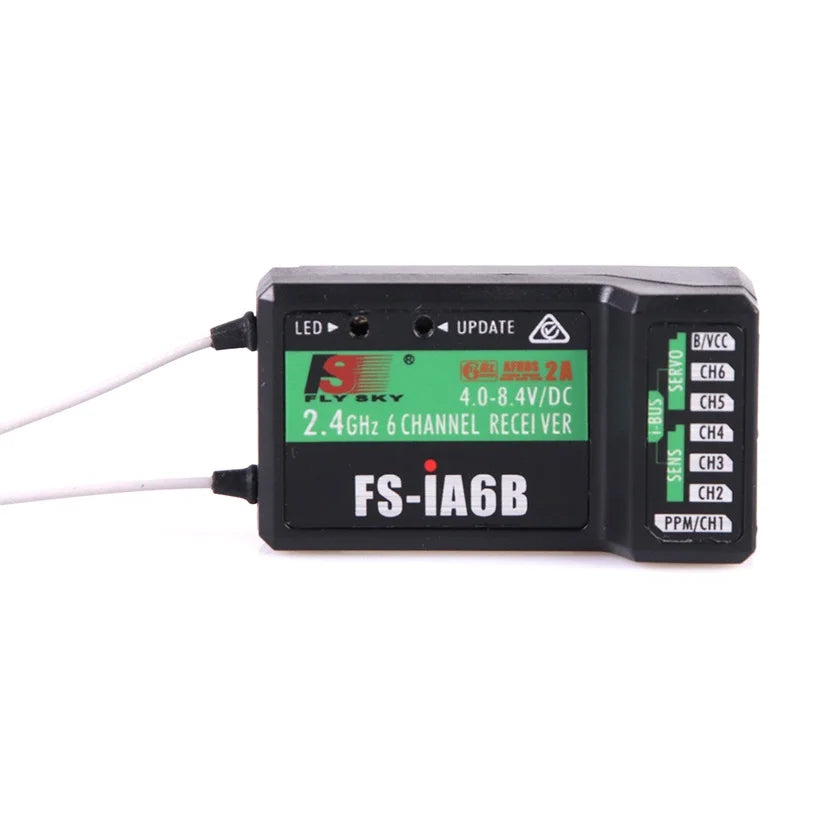

FS-IA6B:
Description:
Brand Name: Flysky
Item Name: FS-iA6B
Channel: 6
Frequency Range: 2.4055--2.475GHZ
b and Width Number: 140
Transmitting Power: ≤ 20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 14.9g
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

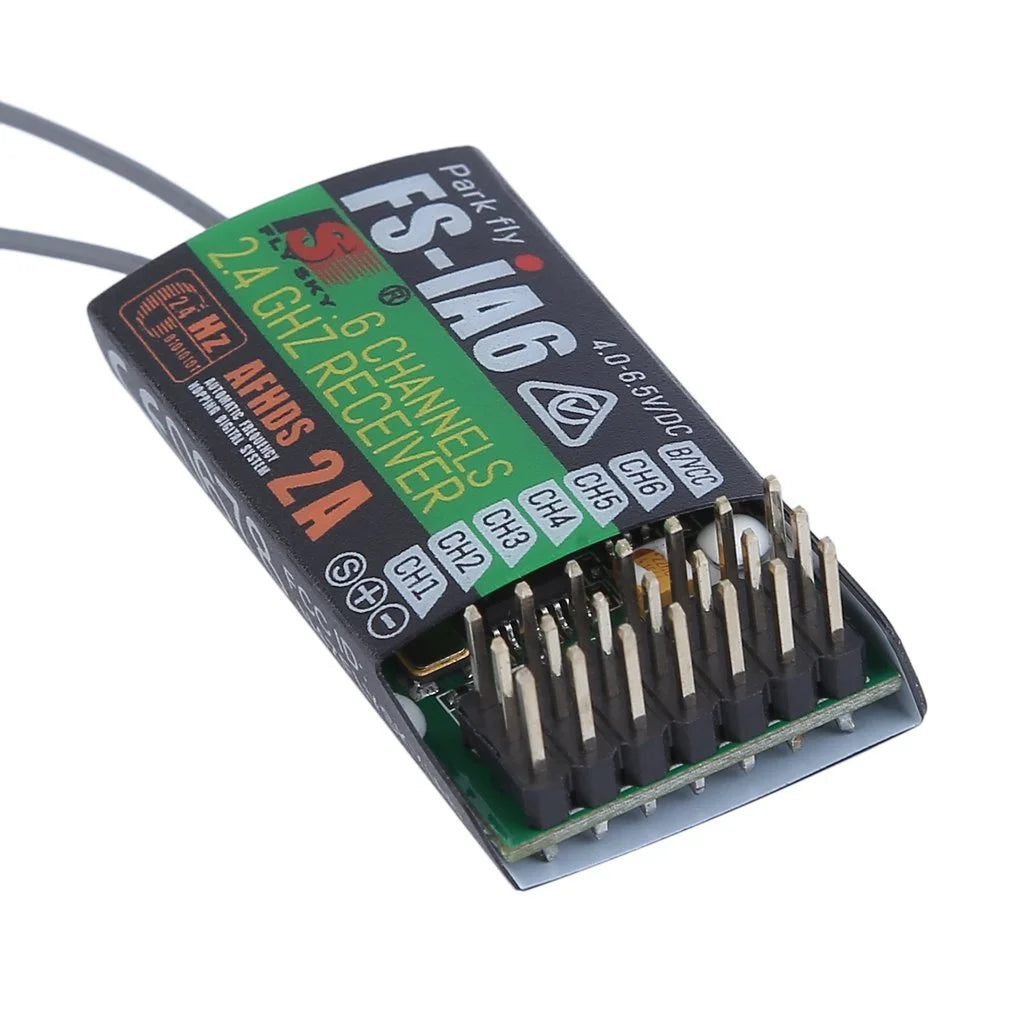

FS-IA6 :
2.4GHz AFHDS 2A system
2.4G modes: Automatic frequency second generation digital systems
Encoding: GFSK
i-BUS Interface: No
Data Acquisition Interface: No
Certification: CE0678,FCC
Usage: Suitable for RC Airplane / glider / helicopter
Compatible Transmitter: for Flysky FS-iA6
Channels: 6
Frequency Range :2.4-2 .48 GHz
Number of Band: 140
Transmitting Power: not more than 20dBm
Receiver Sensitivity:-105dBm
Input Power :4.0-6 .5 V DC
Color: Black
Size: 40 x 20x 13mm (not including cable length)
Cable length: 180mm
Net Weight: 8g
Package weight: 10g

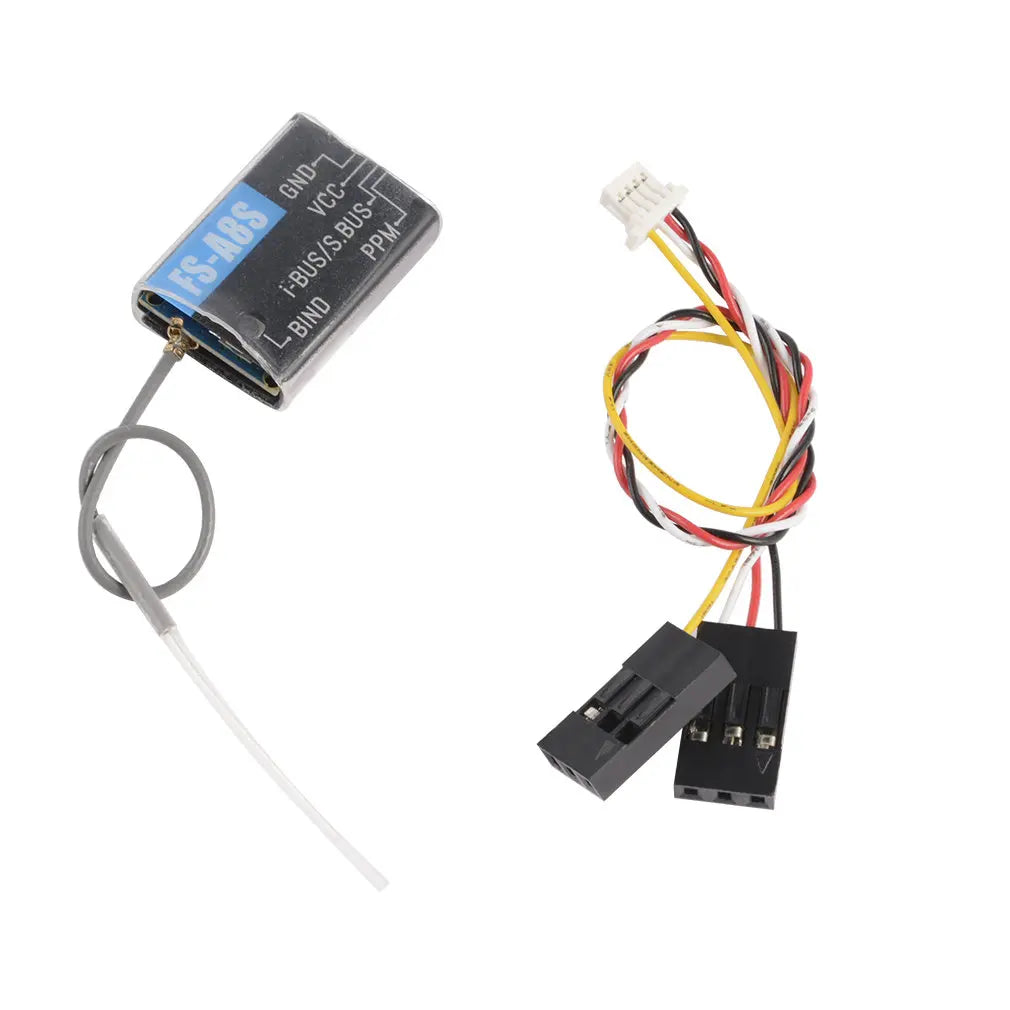

FS-A8S:
Description:
Brand Name:Flysky
Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
b and width: 500KHz
b and number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS
Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Size: 20*14*5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID: N45ZA8S00
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2

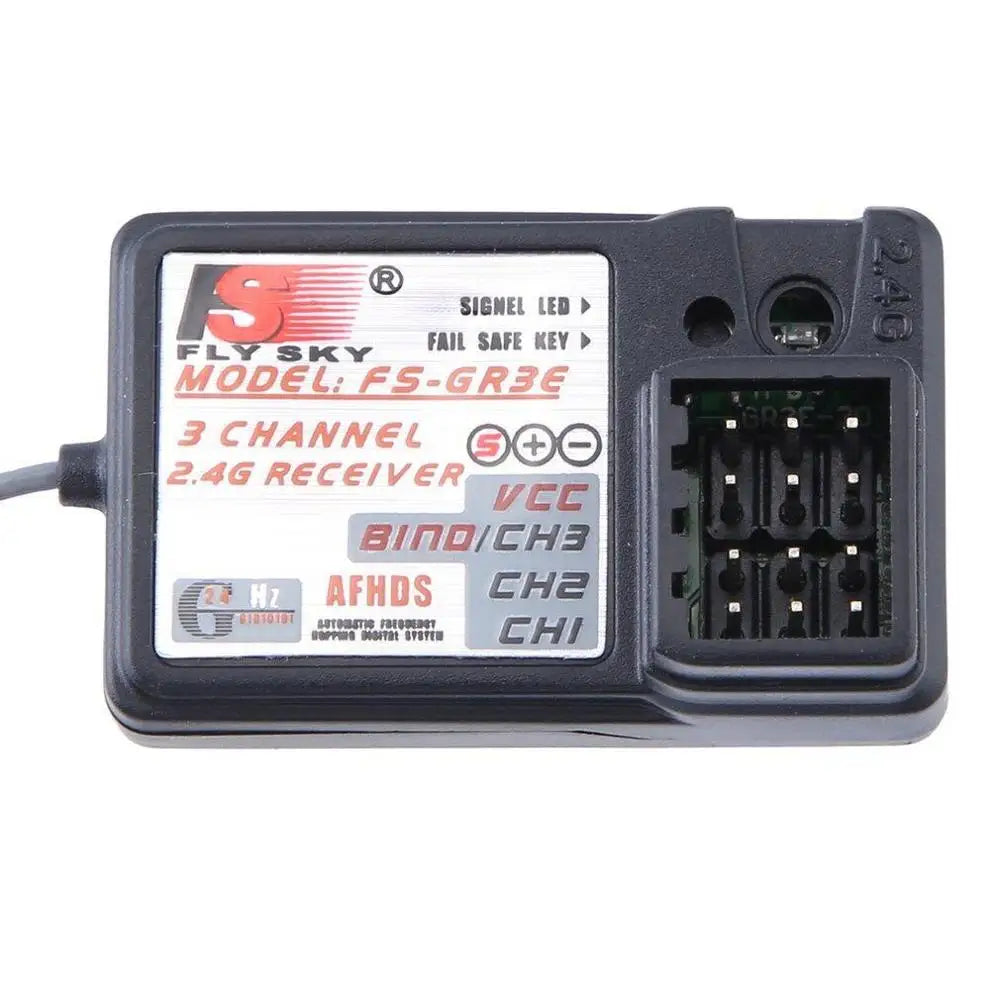

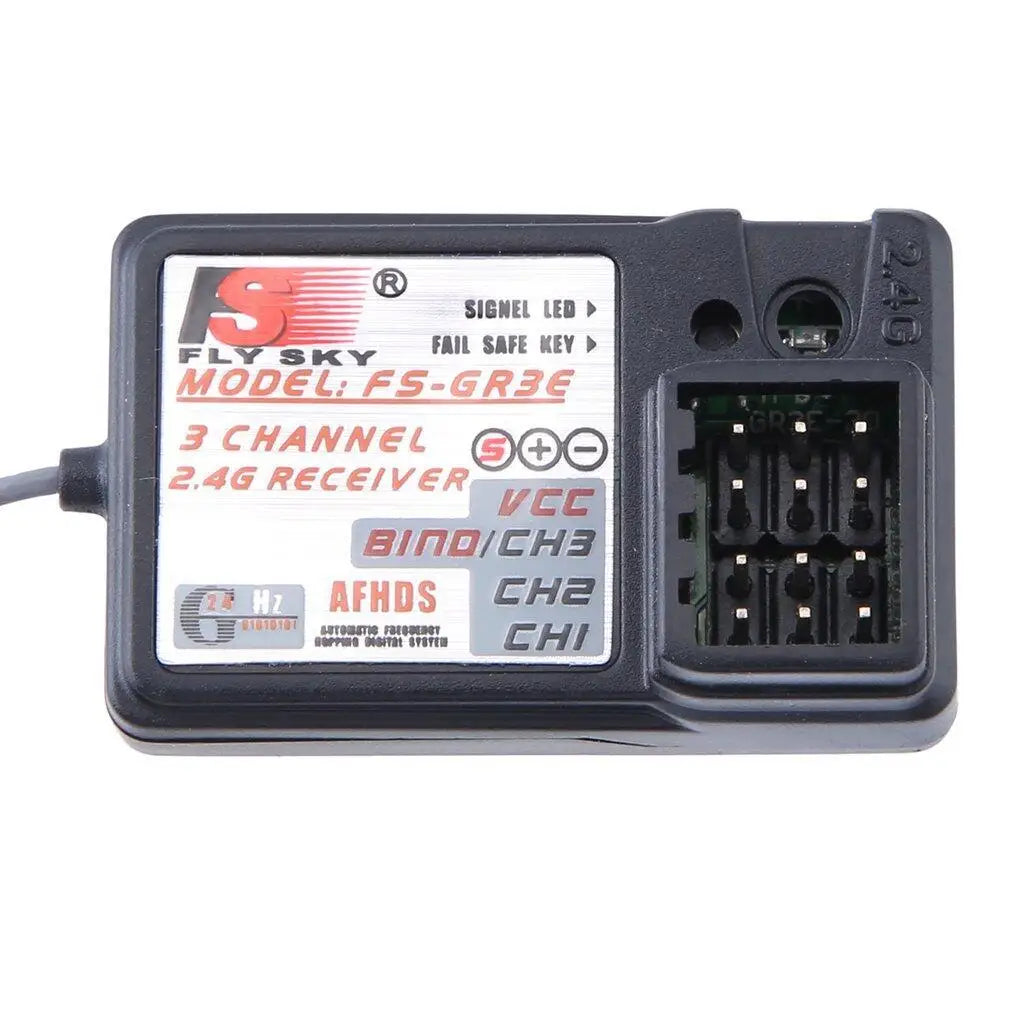

FS-GR3E:
The Standard 2.4Ghz 3-Channel Receiver for RC car and boat .
Compatible with FS 2.4Ghz Surface Transmitter, very easy to bind.
channels: 3 channels
model type:airplane,glid
modulation:GFSK
code type:PPM
frequency:2.4G
certificate: CE FCC
power:5V DC(1.5AAA x 4) (not included)
Original box: NO
size:35.5 x 22 x 13mm
Ant lenght :180mm
Color : Black
Net Weight:2g
Package weight:8g
Matching(Code)
A. Install the battery to 2.4G transmitter and shut it down.
B. Insert the matching lines to the channel BIND/CH3 port of the receiver.
C. Connect the receiver battery to VCC port of the receiver, on the same time the two LED are
flashing and this means the receiver are going to the matching status.
D. Press and hold the button on the transmitter, and then switch on the power supply.
E. Observe the LED on the receiver, if find that the LED is not flash anymore and that means successful Matched. (This process about 5s)
F. Release the match button on the transmitter, take out the match line.
G. Install the server and then test.
H. If the tests fail, please repeat the action above.
G. If the tests success, then insert the power supply port into VCC, match complete.
(The above ways of match is only suitable for FLYSKY 2.4G products)

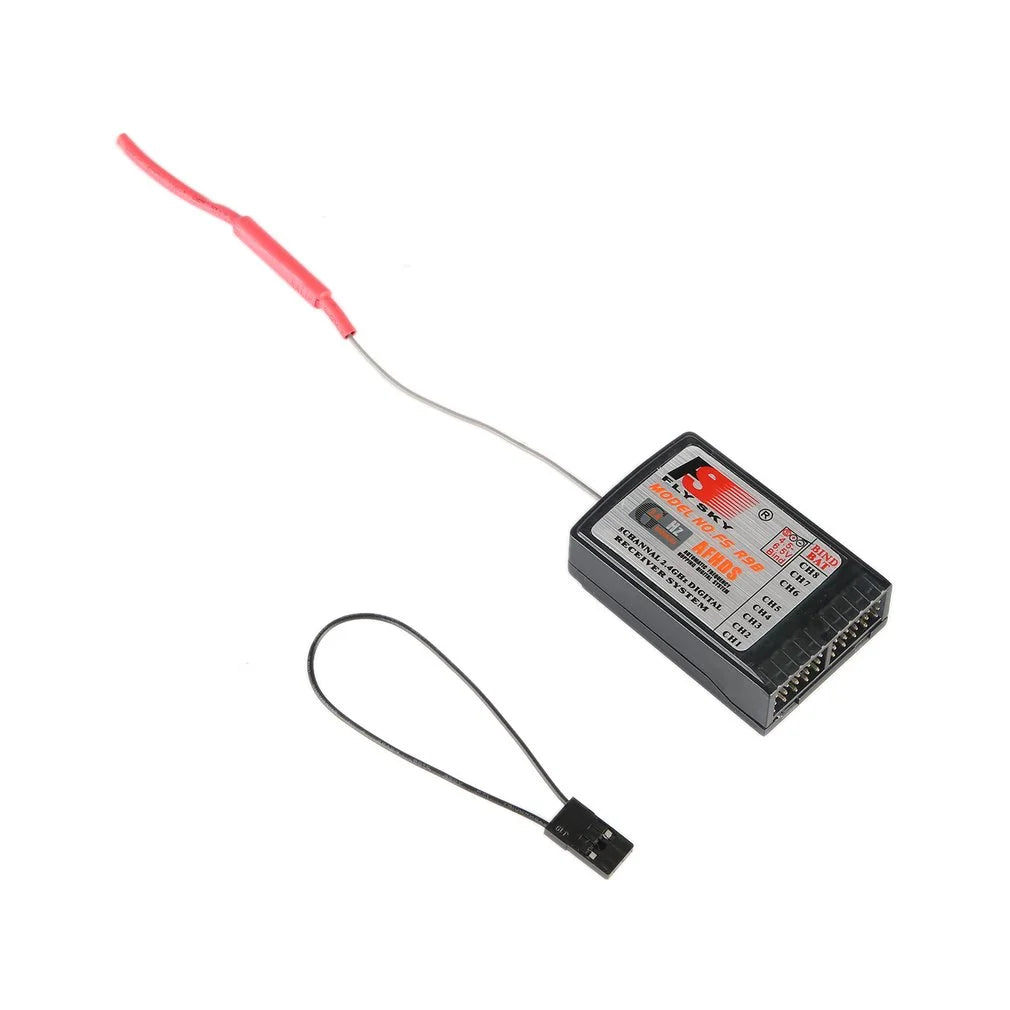

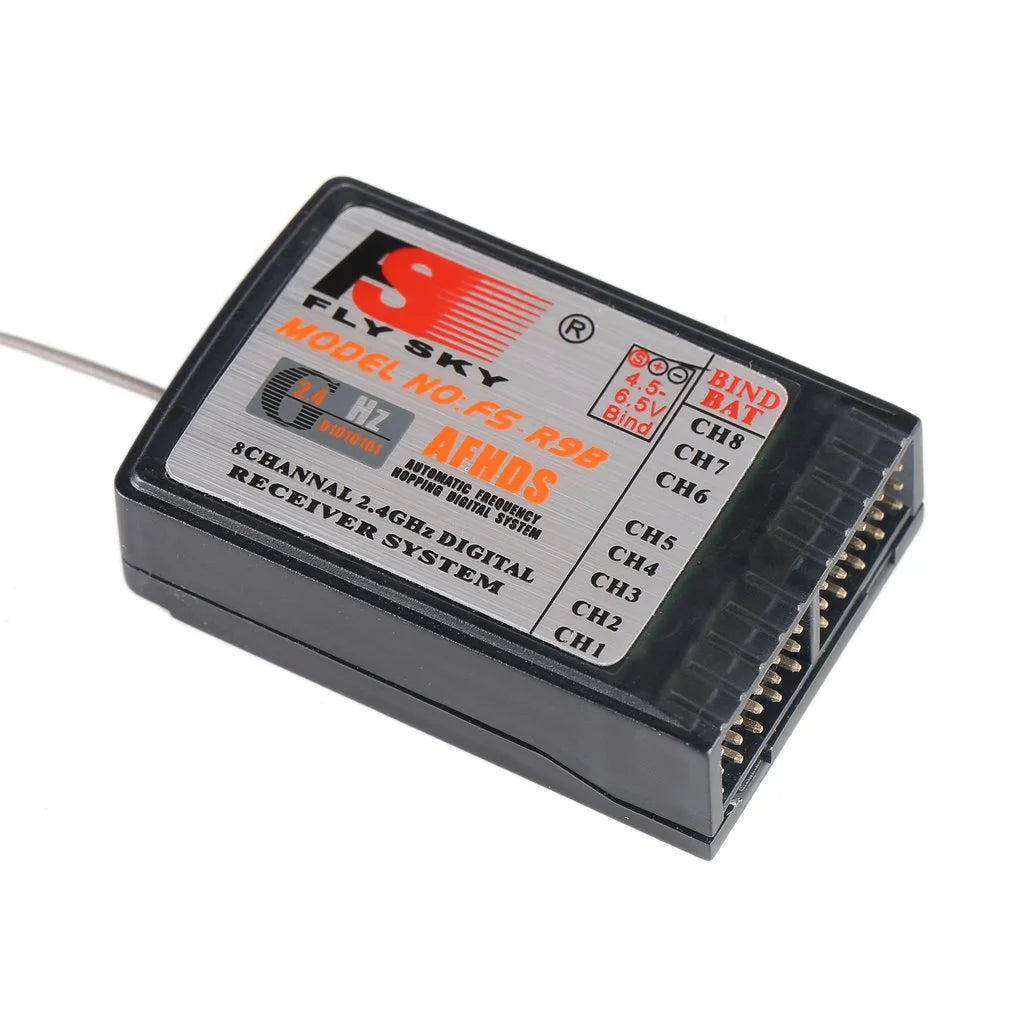

FS-R9B:
Description:
Brand Name: FlySky
Item Name: RC Receiver
Channels: 8channels
Receiving Sensitivity: -105dBm
Frequency Range: 2.4-2.48GHz
Frequency Width: 500KHz
Wave Band: 160
Modulation: GFSK
2.4G Mode: Automatic FM digital system
Channel Resolution: 1024 classes
Power: 4.0-6.55V DC
Weight: 18g
Antenna Length: 26mm
Size: 52*35*15mm
Usage: suit for Fixed-wing copters, helicopters, etc
Package size: 10 * 10 * 2 cm / 4 * 4 * 0.8 in
Package weight: 21 g / 0.7 oz

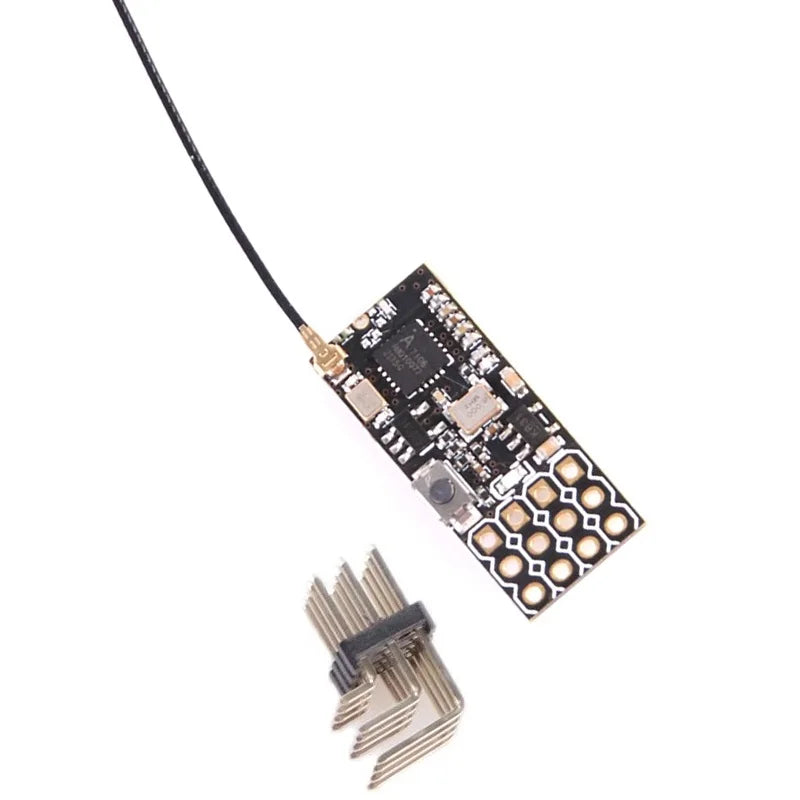

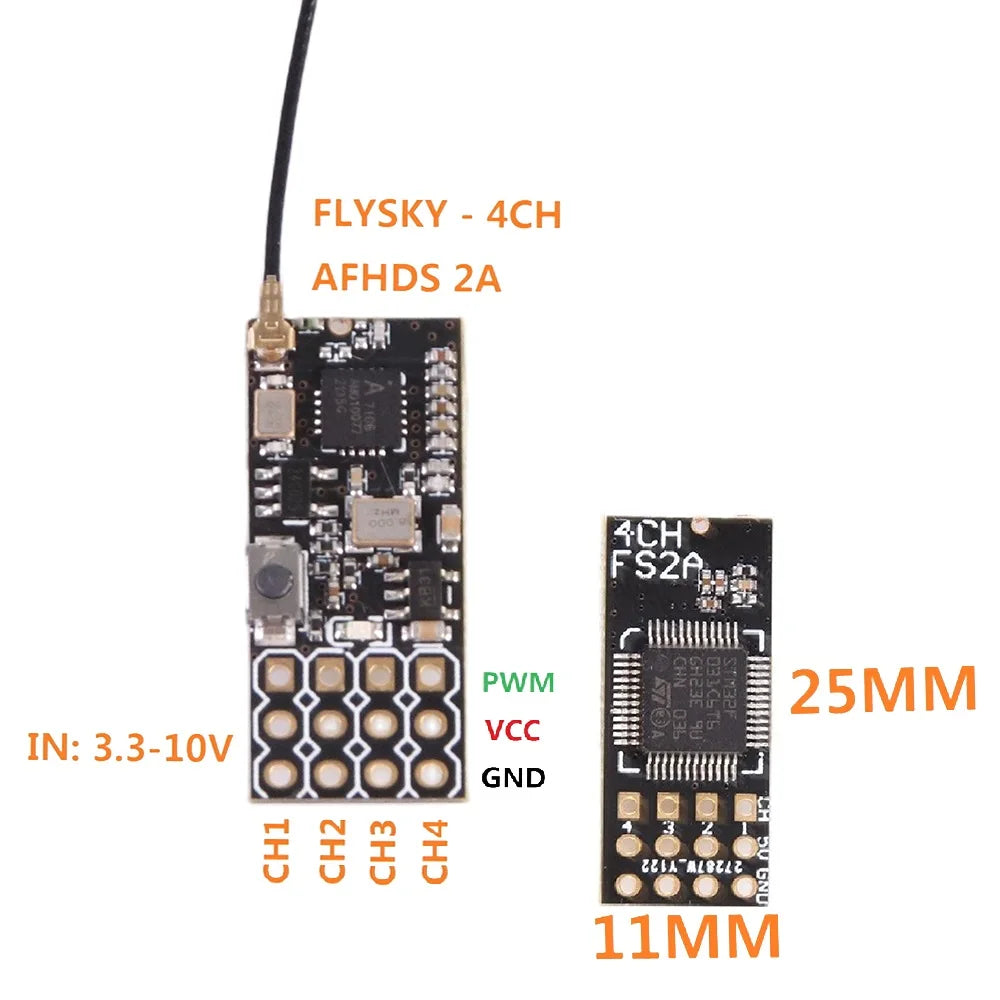

FS2A 4CH Receiver:

Channels: 4CH

Output signal: PWM

Frequency range: 2.408-2.475GHZ

Band width: 135

Receiver sensitivity: -92DBM

2.4G mode: AFHDS 2A

Failfe: Yes

Supply voltage: 3.3-10V

Distance: 400+ meters

Working current: 20MA

Size: 11 * 25MM

Weight: 0.9 grams

Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter

Bind:

1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.

2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.

3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.

Failsafe settings:

The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.
NOTE:
a.Import duties,taxes and charges are not included in the item price or shipping charges.These charges are the buyer\'s responsibility.
b.Please check with your country\'s customs office to determine what these additional costs will be prior to bidding/buying.

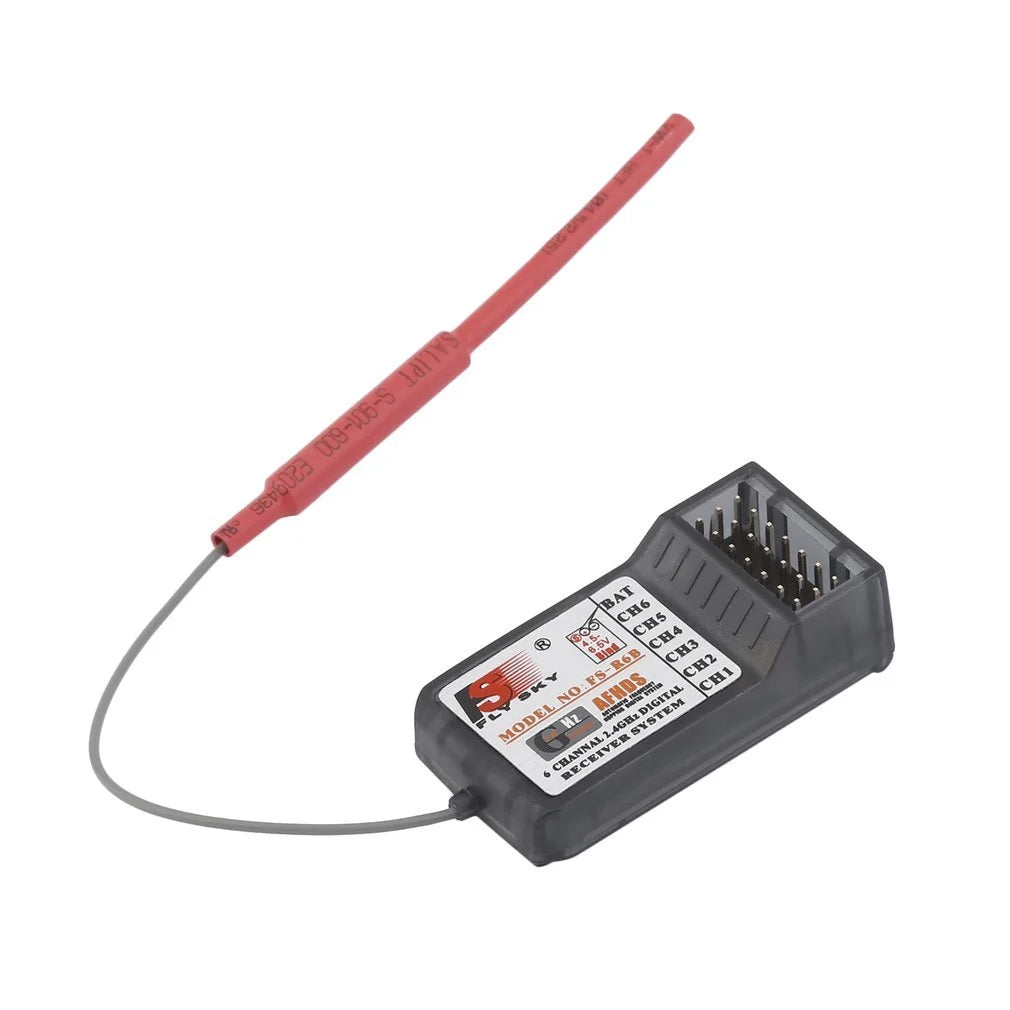

FS-R6B:

Specifications:

Channels: 6 Channels

Model Type: Heli, Airplane, Gliders

RF Power: Less than 20db

Modulation: GFSK

Code Type: PCM

Sensitivity: 1024

Low Voltage Warning: LED

DSC Port: Yes

Charger Port: Yes
