FlySky Receiver FS-iA10B FS-iA6B FS-iA6 FS-A8S A6 A3 FS-GR3E R6B X6B Compatible with FS-i6 I10 CT6B T6 TH9X Transmitter RC Parts

FlySky Receiver FS-iA10B FS-iA6B FS-iA6 FS-A8S A6 A3 FS-GR3E R6B X6B Compatible with FS-i6 I10 CT6B T6 TH9X Transmitter RC Parts

$48.40

$48.40 $0.00

Color FS-IA6 FS-GR3E FS-X6B FS-A3 FS-A8S FS-R6B FS-IA10B FS-IA6B

Voltage/Plug TypeNo plug

Description

SPECIFICATIONS

Brand Name: NONE

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: FS

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Connectors/Wiring

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: FS-IA10B IA6B IA6 A8S A6 A3 GR3E R6B T6 X6B

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Adapter

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

RC Radio Receiver Parts, FlySky FS-iA6B iA10B A8S GR3E R6B X6B Fit FS-i6 i10 CT6B TH9X Transmitter

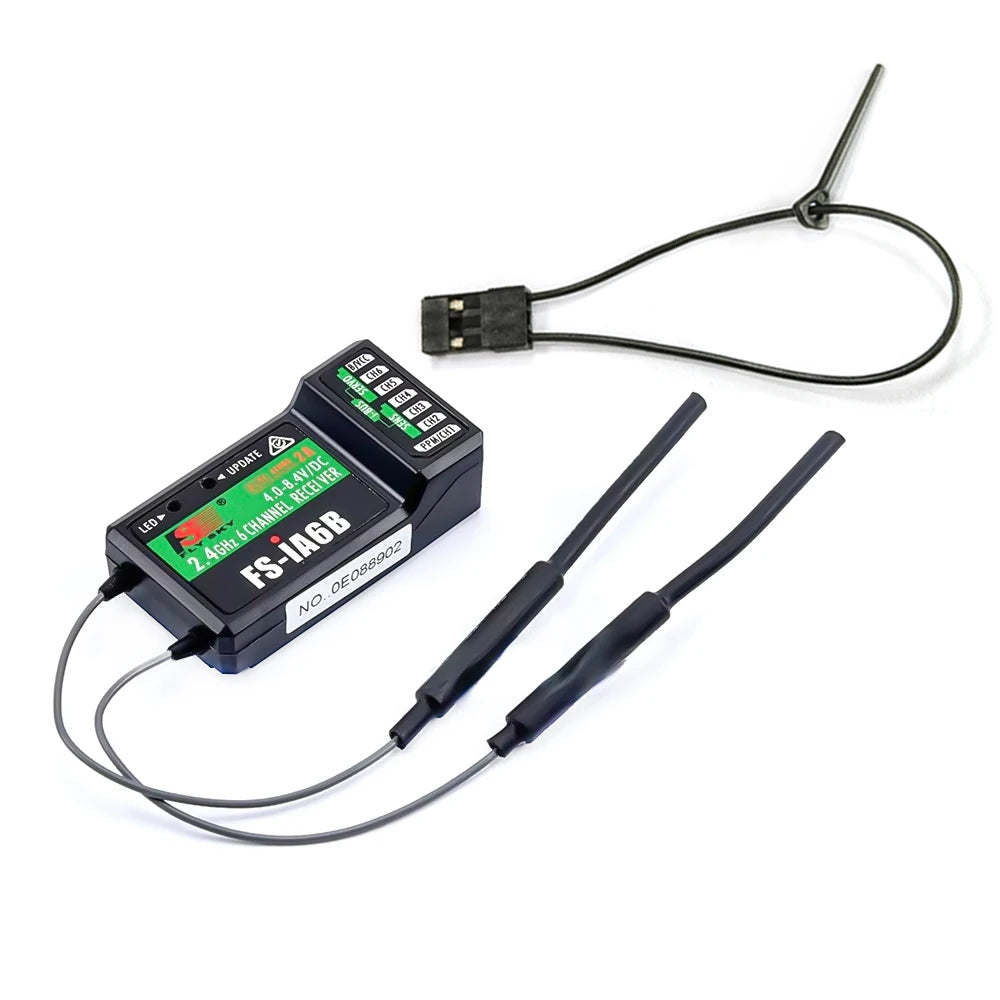

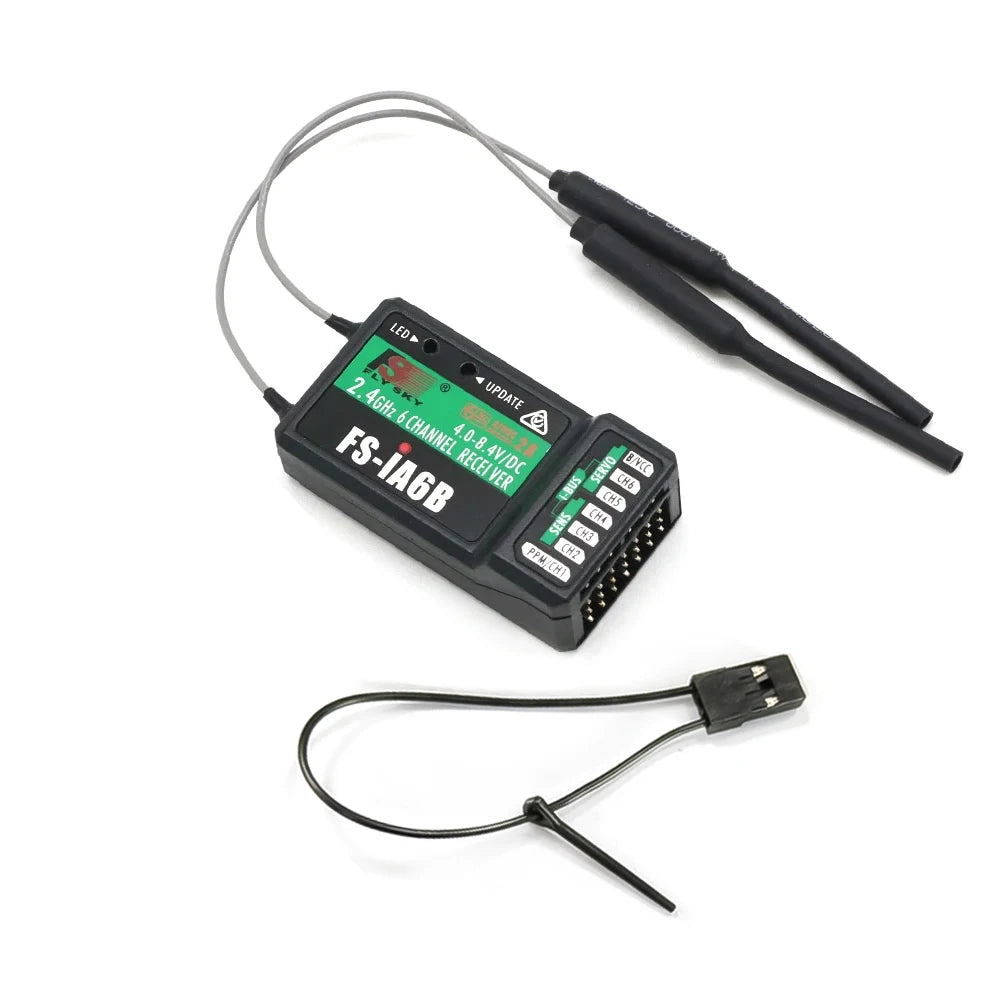

FS-iA6B Specifications:

Brand Name: Flysky

Item Name: FS-iA6B

Channel: 6

Frequency Range: 2.4055--2.475GHZ

band Width Number: 140

Transmitting Power: ≤ 20dBm

RF Receiver Sensitivity: -105dbm

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Encoding: GFSK

Antenna Length: 26mm * 2 (dual antenna)

Input Power: 4.0-6.5V DC

Dimension: 47 x 26.2 x 15mm

Weight: 14.9g

Color: Black

i-Bus Interface: Yes

Data Acquisition Interface: Yes

Model Type: Airplane / Glider / Helicopter

Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

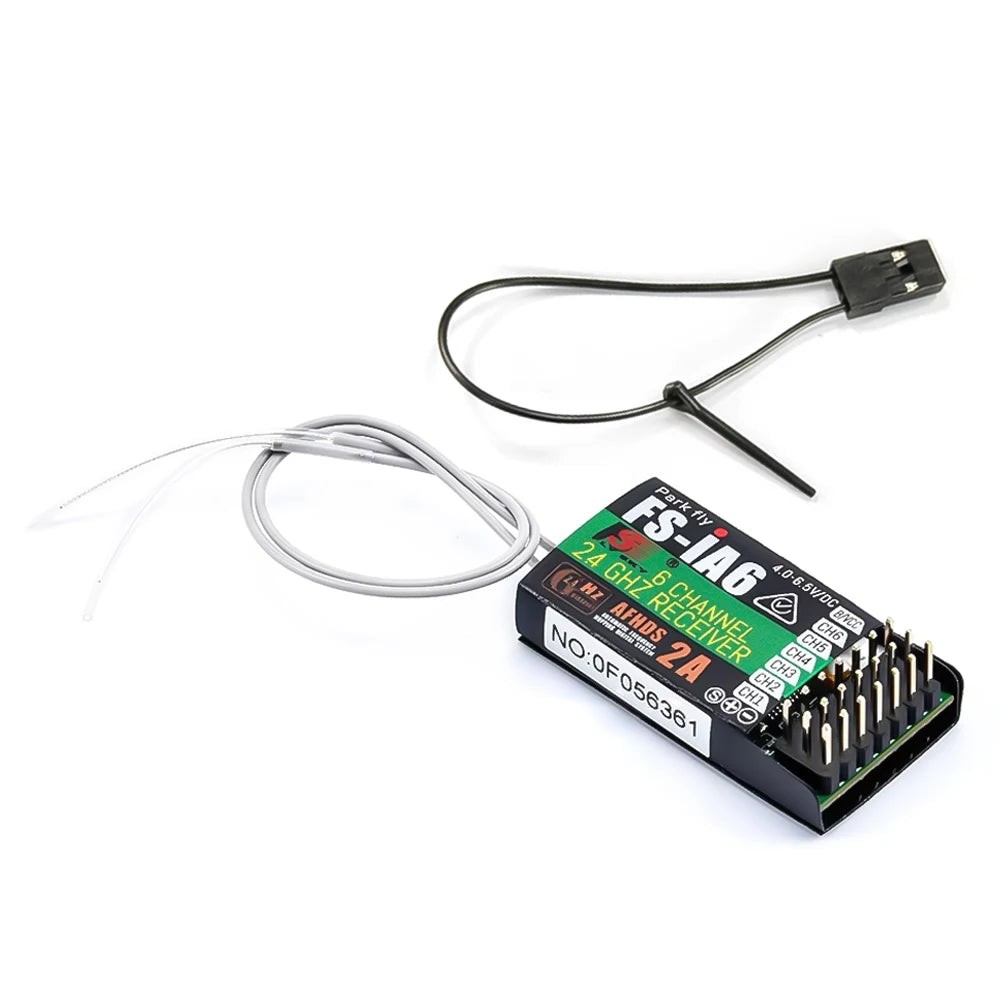

FS-iA6 Specifications:

Channels: 6
Frequency Range :2.4-2 .48 GHz
Number of Band: 140
Transmitting Power: not more than 20dBm
Receiver Sensitivity:-105dBm
2.4G modes: Automatic frequency second generation digital systems
Encoding: GFSK
Weight: 6.4g
Input Power :4.0-6 .5 V DC
Dimensions: 40.4 x 21.1 x 7.35 mm
Color: Black
i-BUS Interface: No
Data Acquisition Interface: No
Certification: CE0678,FCC
Usage: Suitable for RC Airplane / glider / helicopter
Compatible Transmitter: Flysky FS-i10,FS-i6,FS-i4,FS-GT2F,FS-GT2E,FS-GT2B

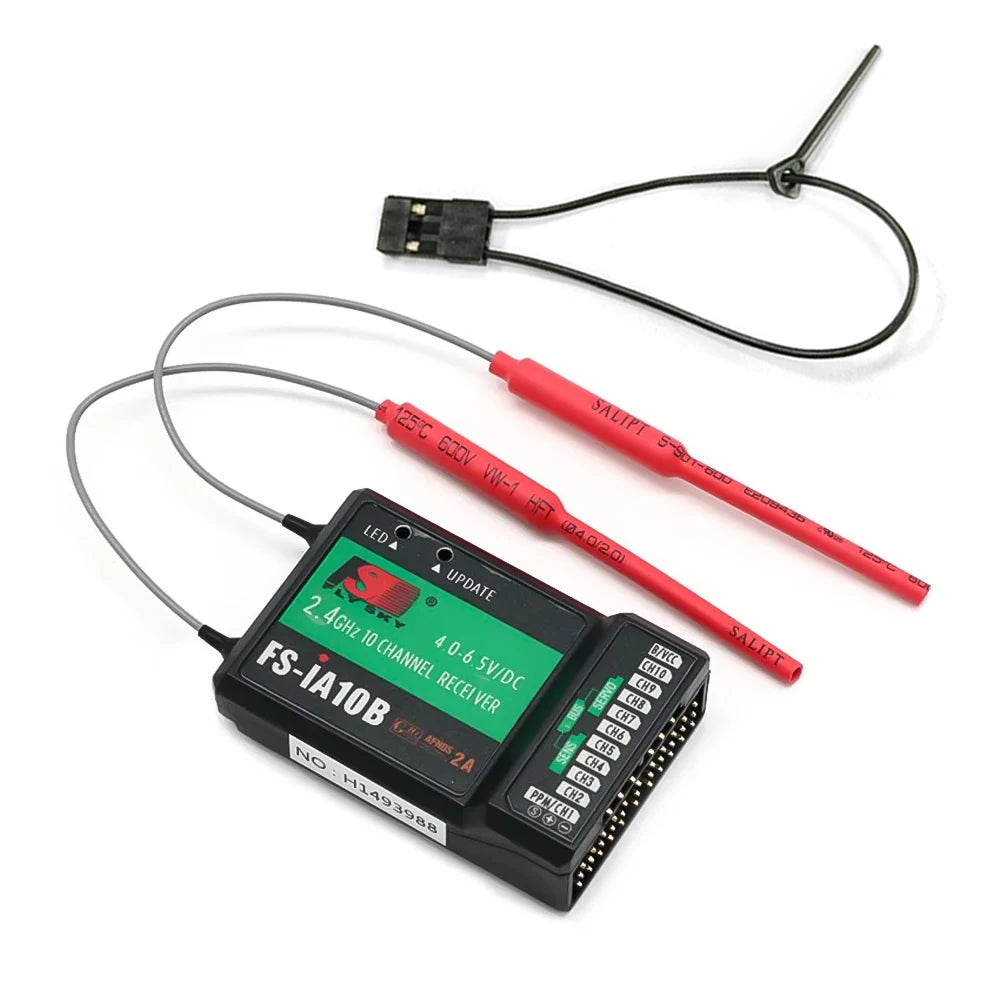

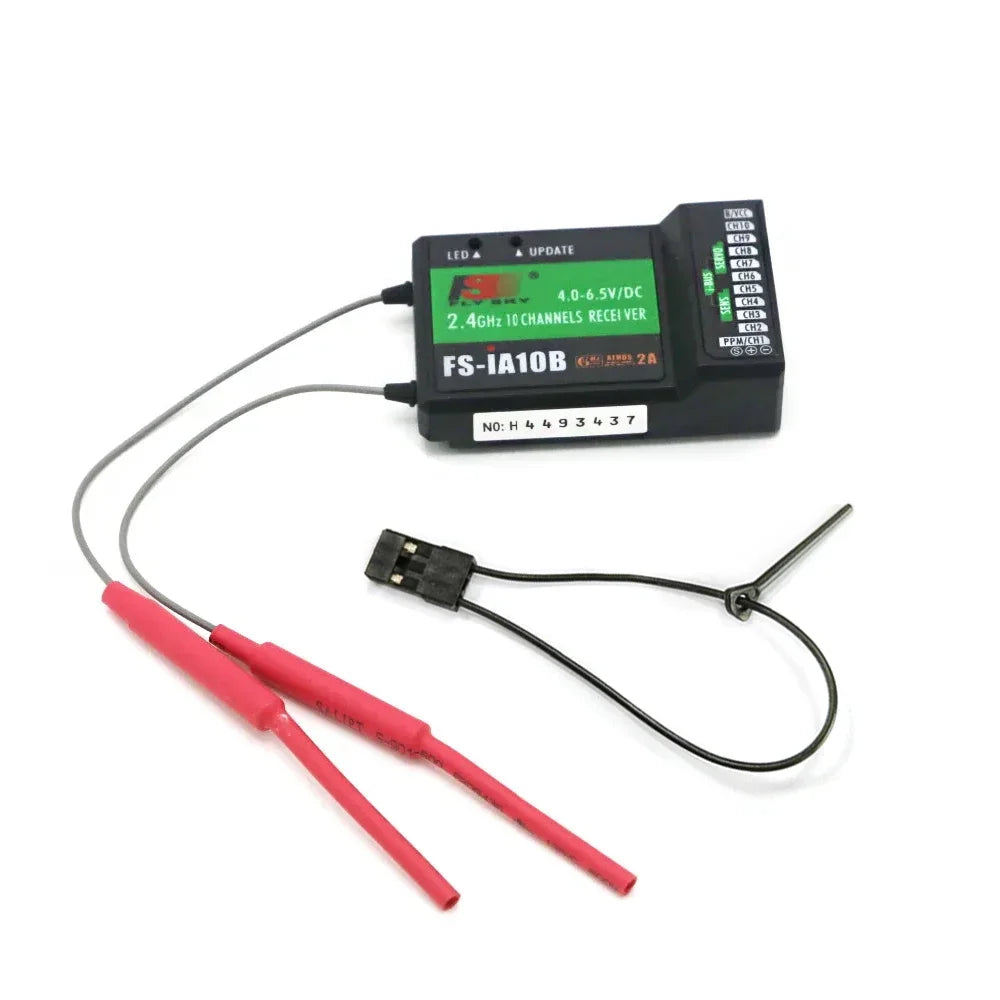

FS-iA10B Receiver Specifications:

Brand Name: Flysky

Item Name: FS-iA10B
Channel: 10
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Weight: 19.3g
Size: 51mm*34mm*15mm
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4, FS-i6,FS-i6S, FS-i10,FS-iT4S

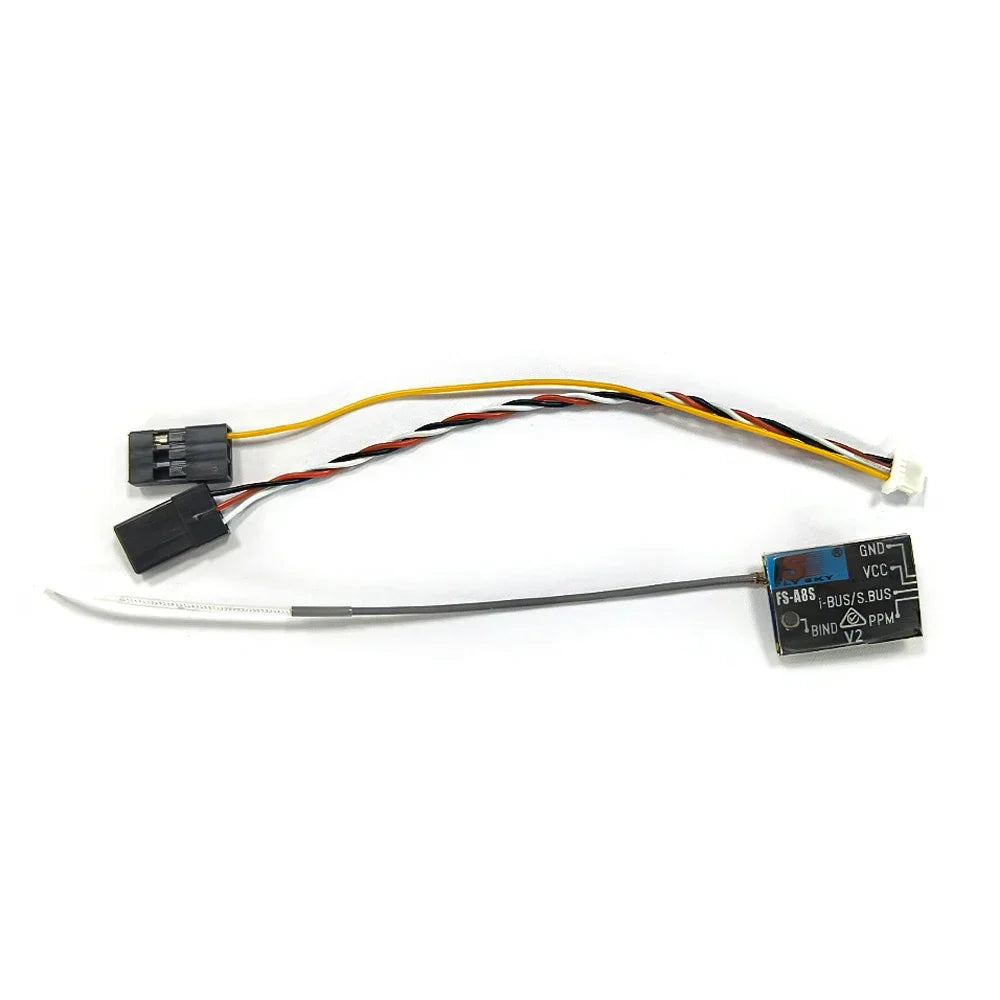

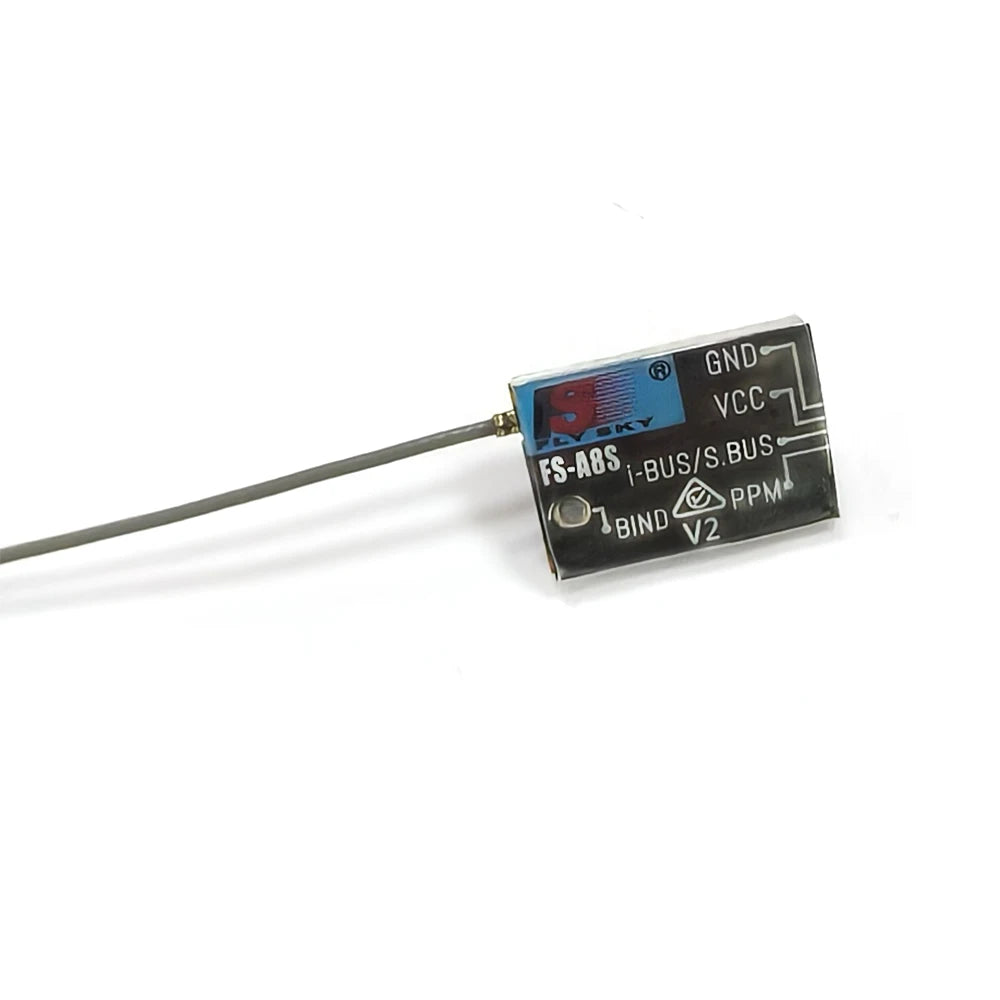

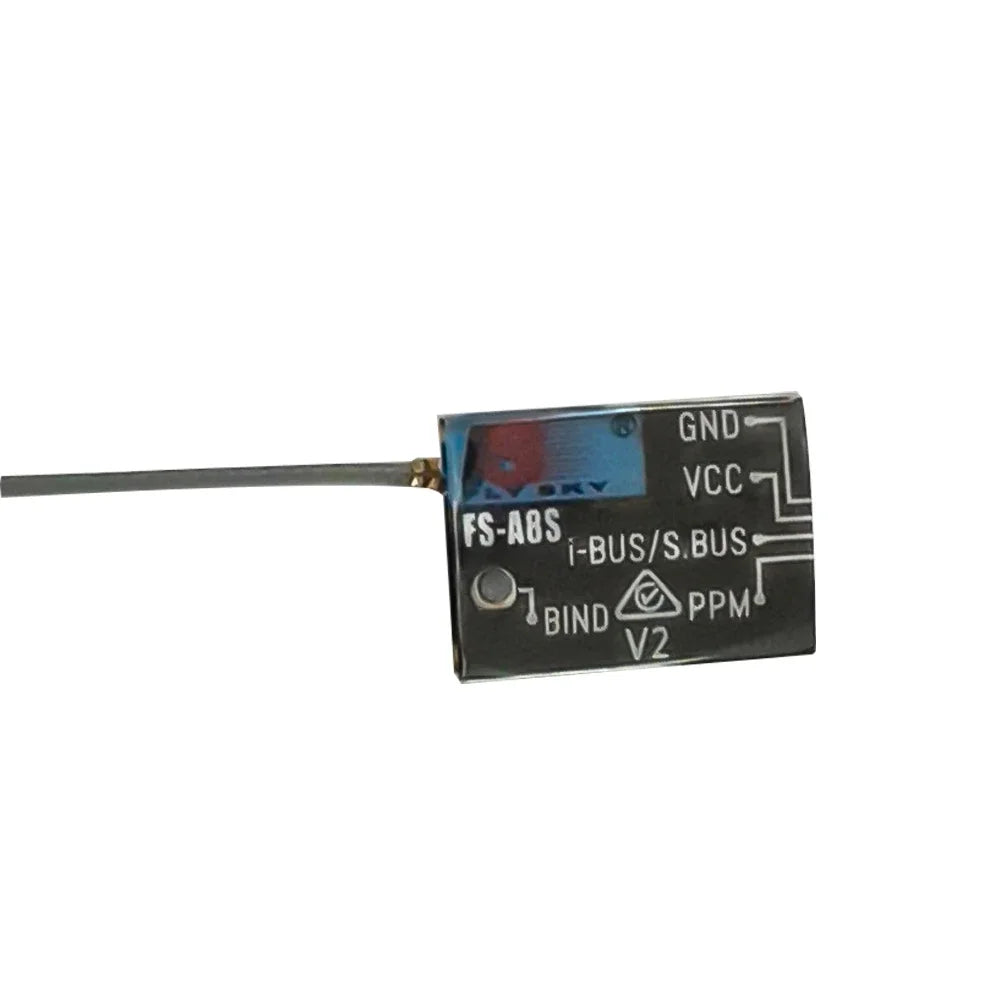

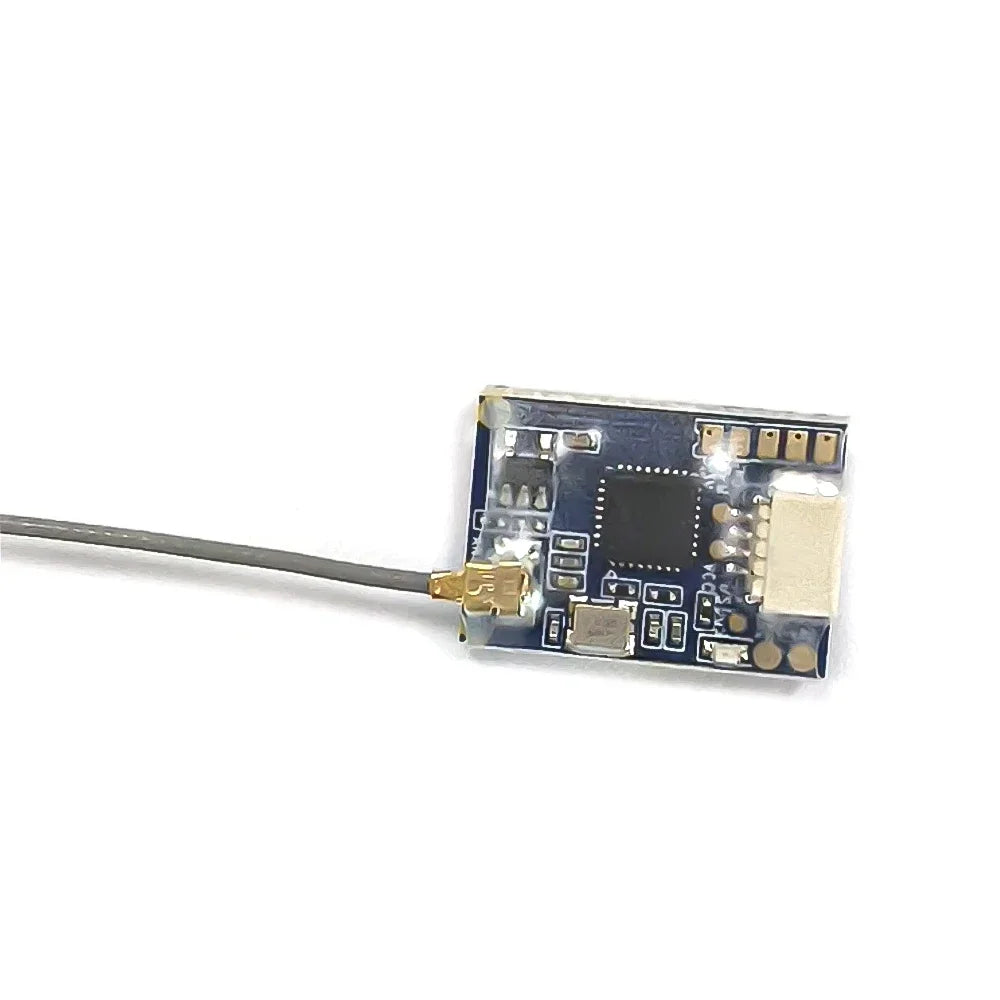

FS-A8S Specifications:

Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS
Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Size: 20*14*5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID: N45ZA8S00
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

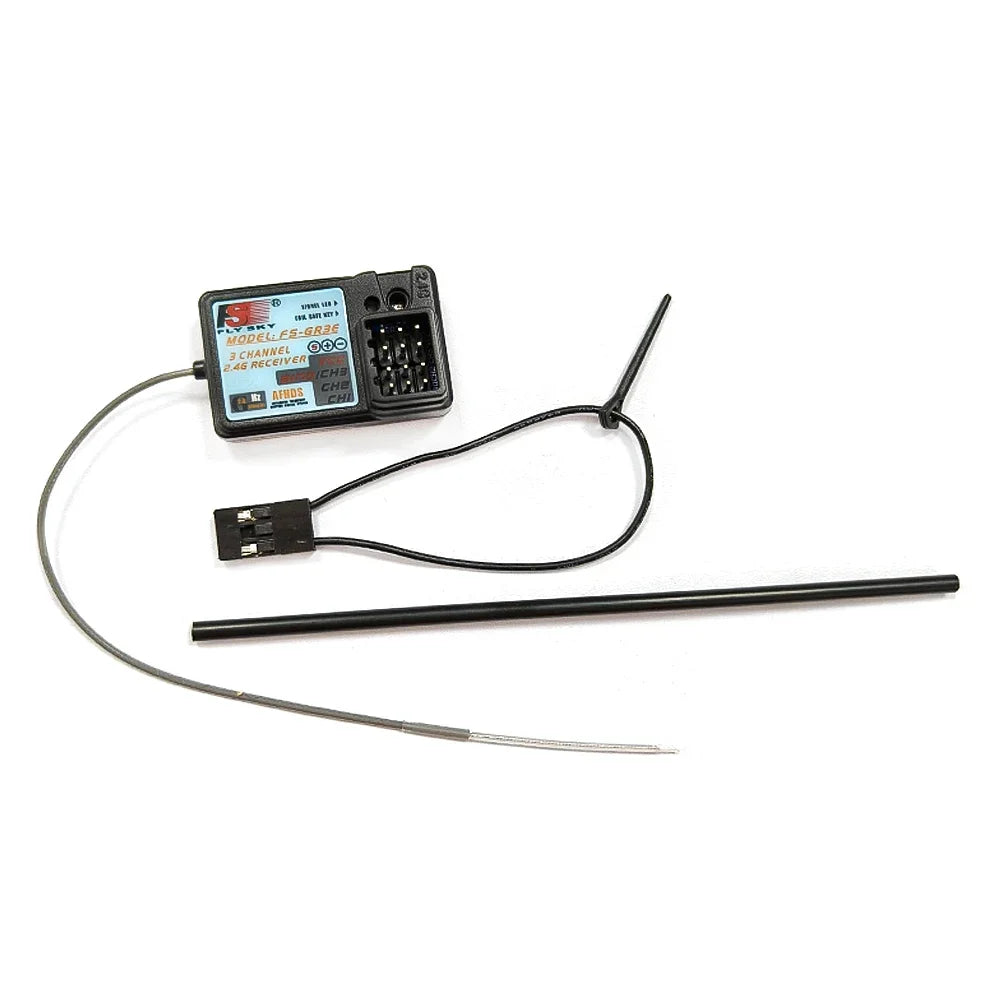

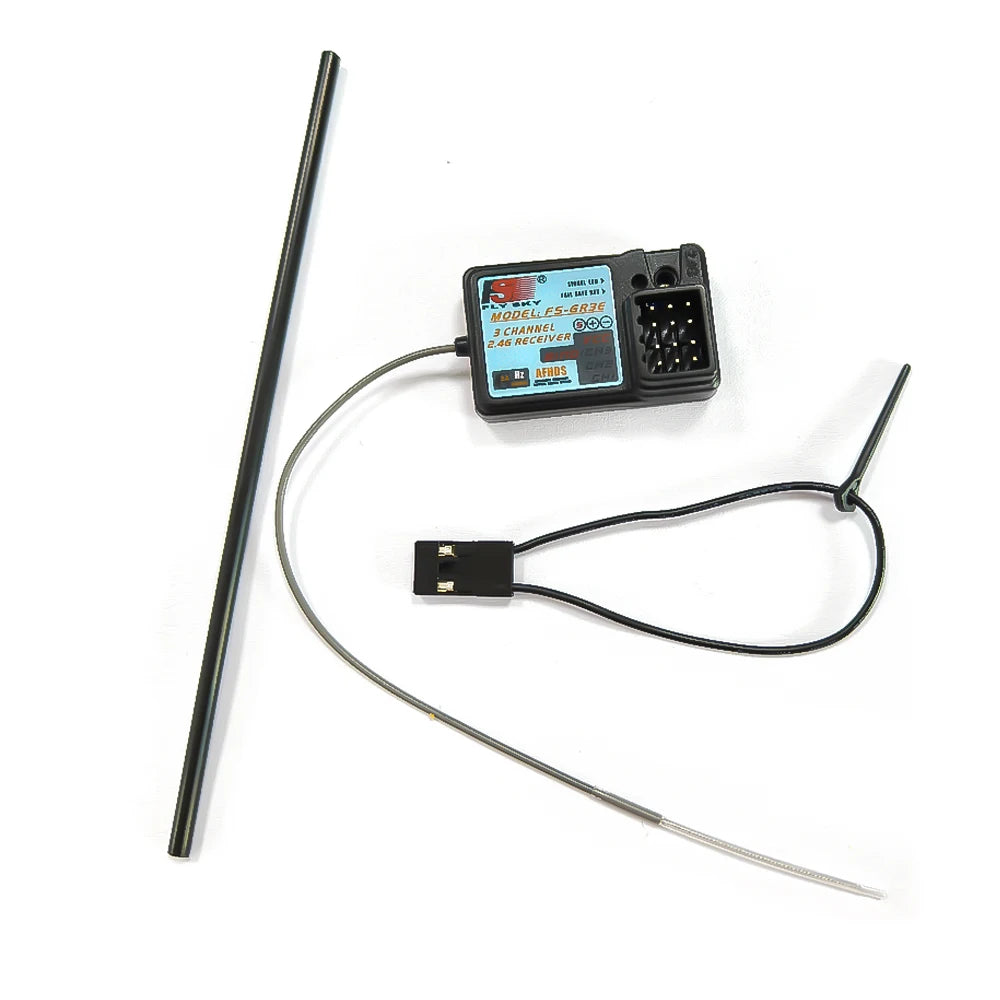

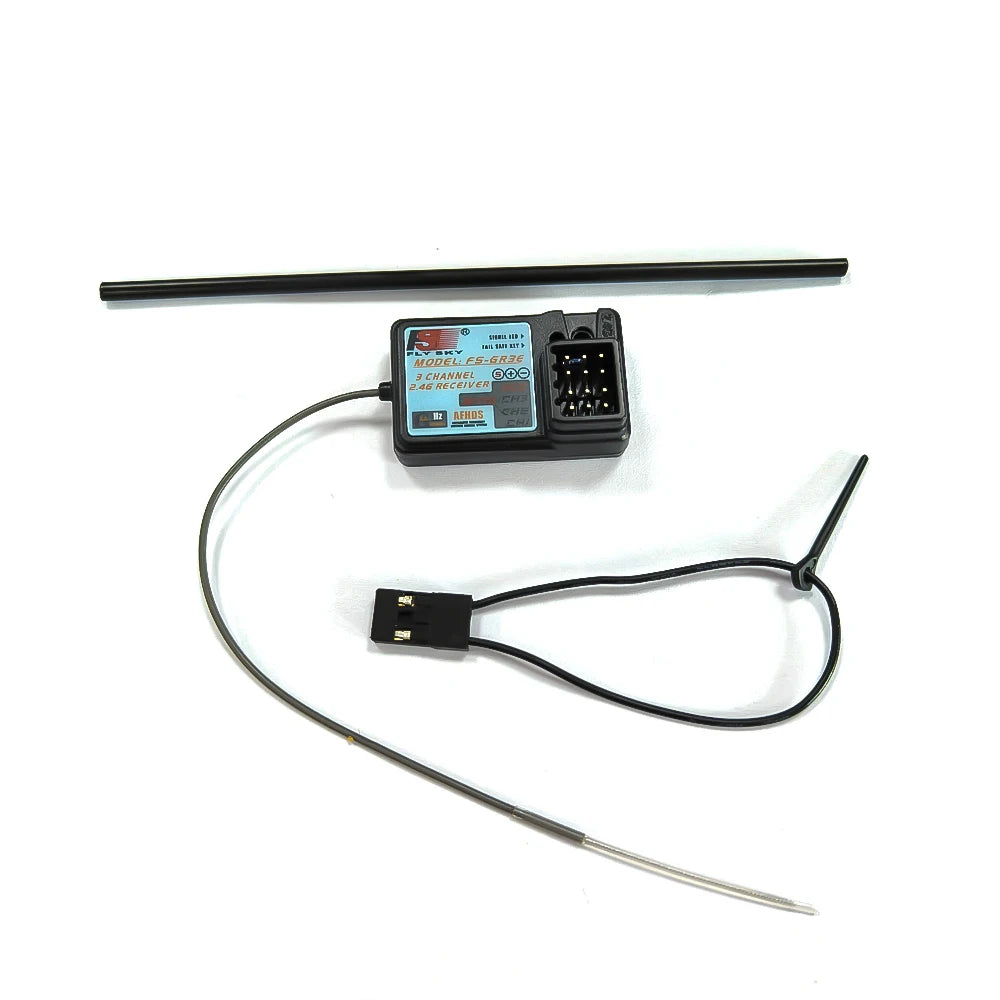

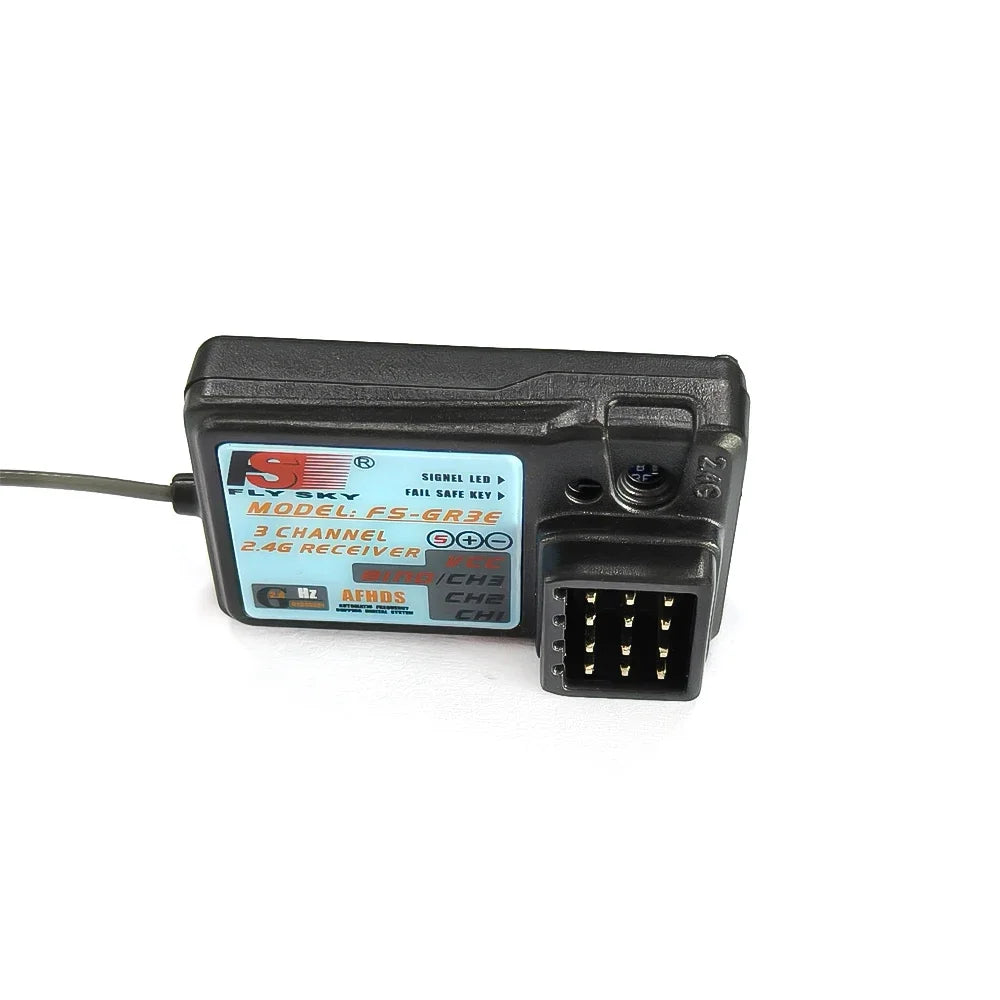

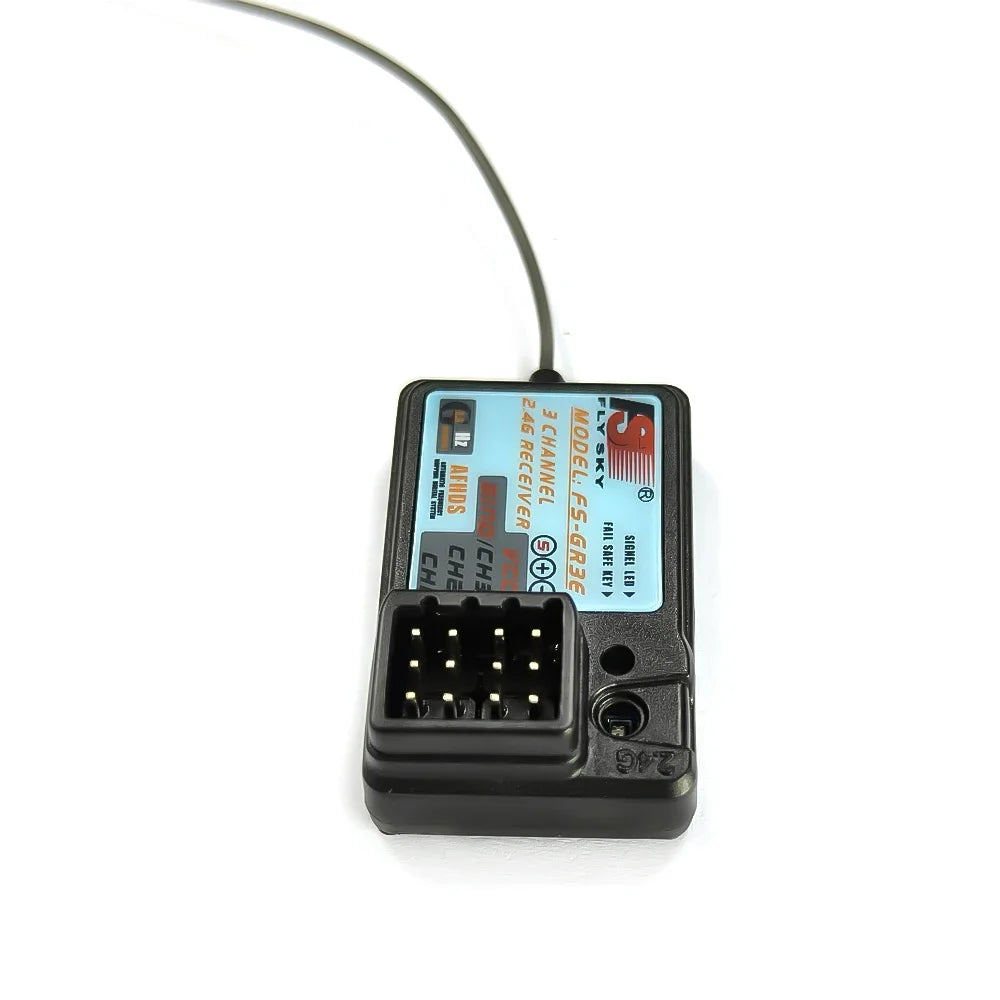

FS-GR3E Specifications:

Channel: 3 channel
High frequency mode: 2.4 G
High frequency modulation mode: GFSK
Frequency difference: No
Frequency: 2.4 G
Power supply: 5 V DC1.5 V AAA * 4
Weight: 25 g
Antenna length: 26 mm
Size: 30 * and * 8 mm
Color: black
The authentication: CE, FCC, RoHS

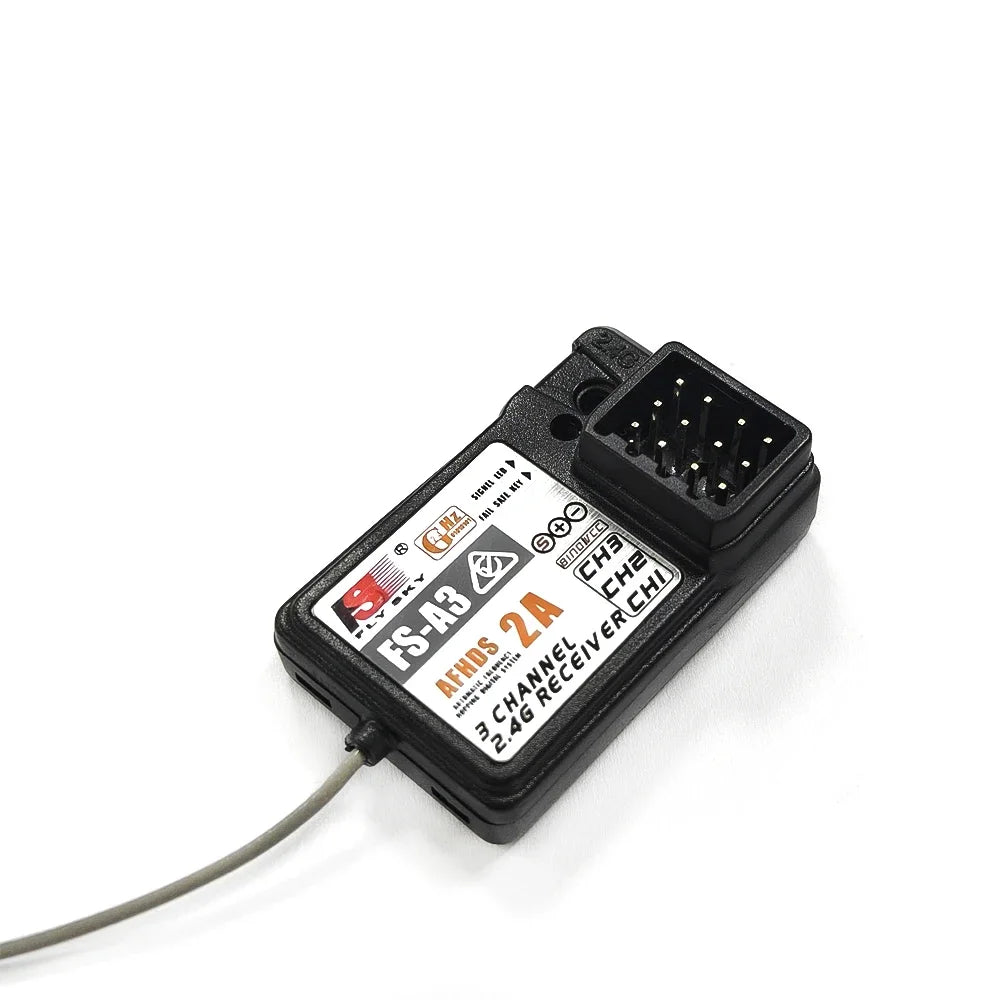

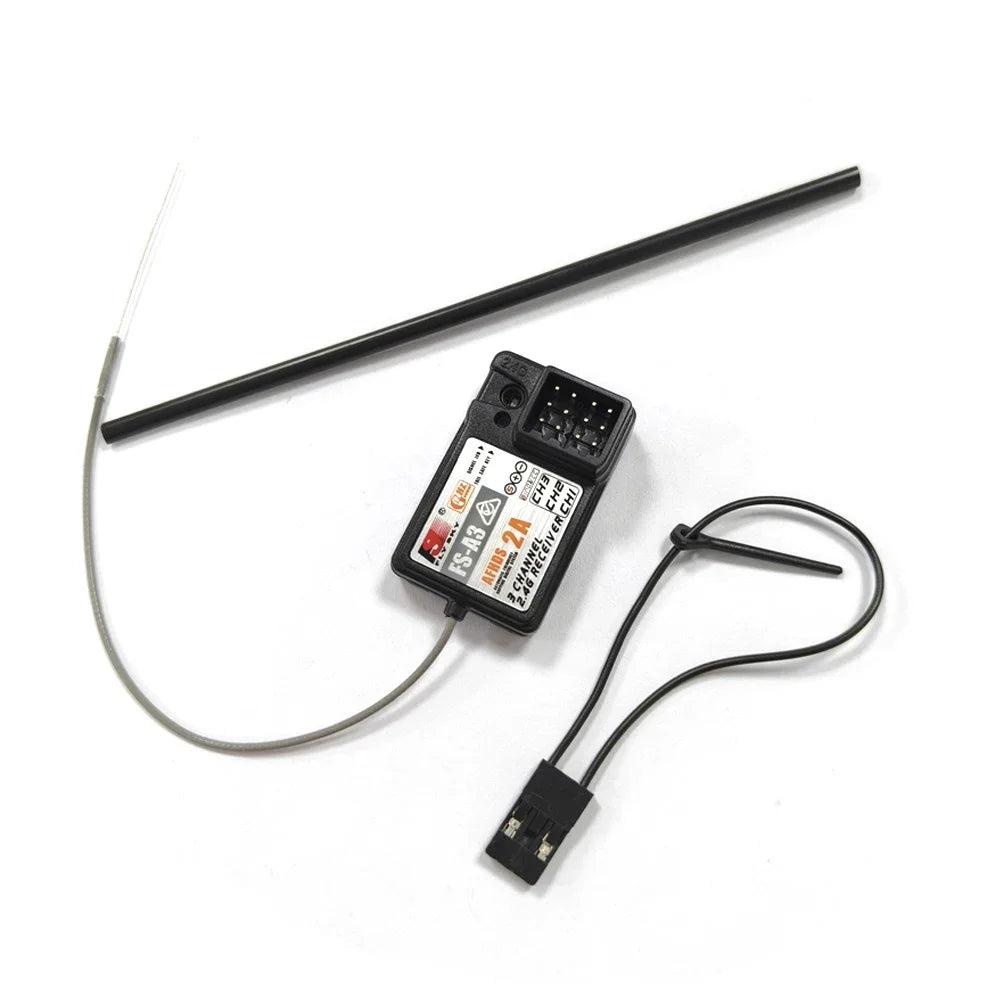

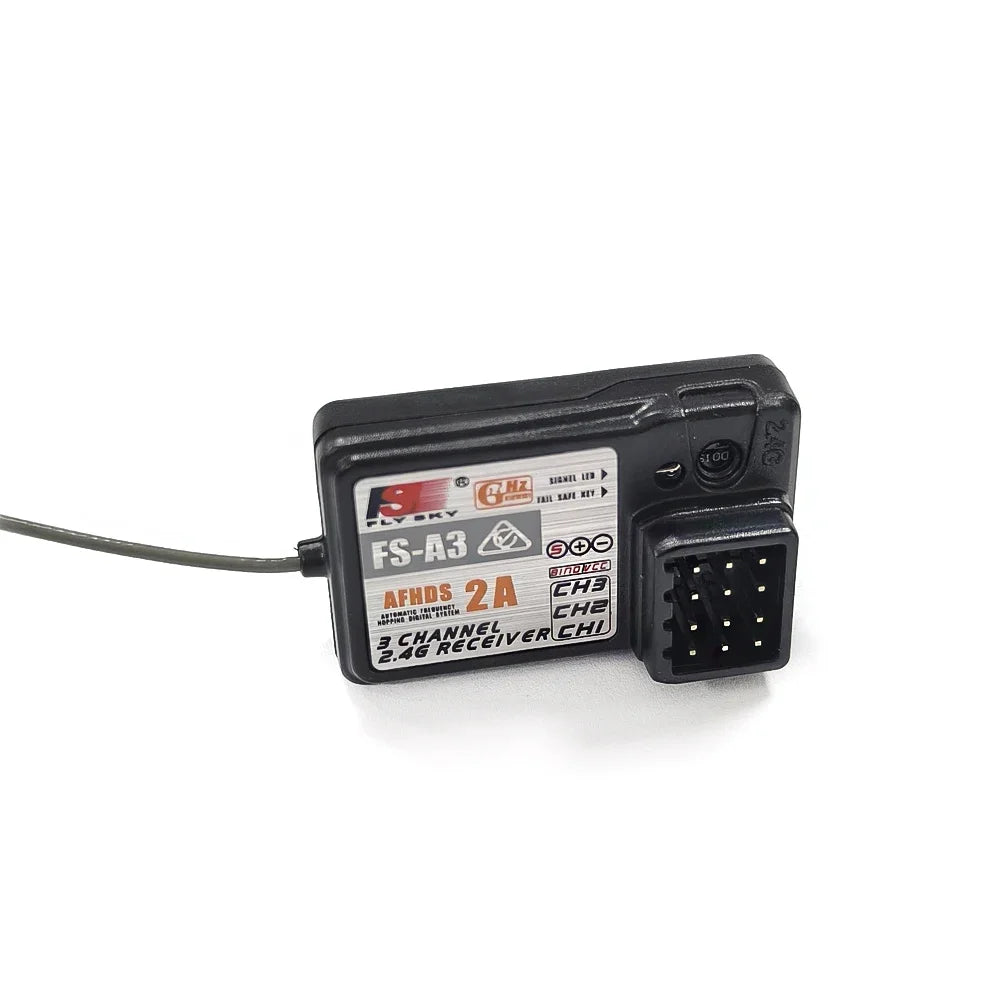

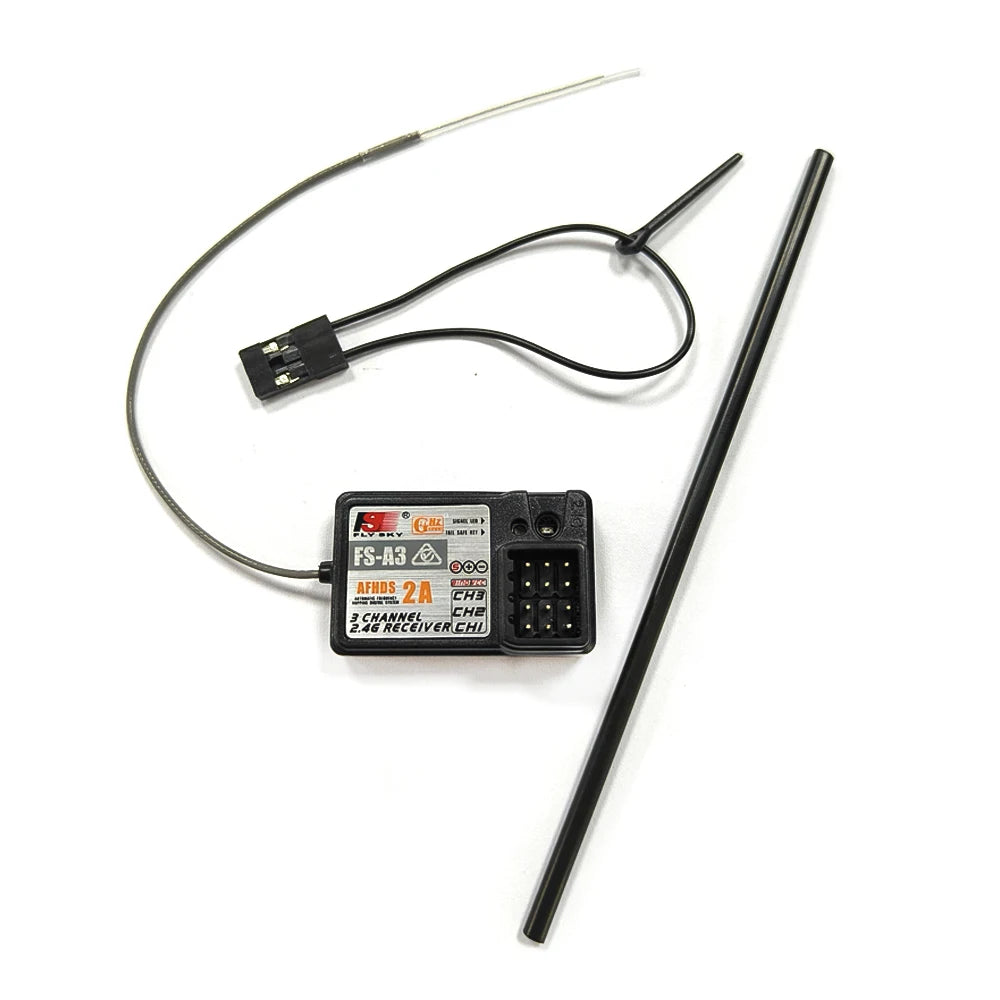

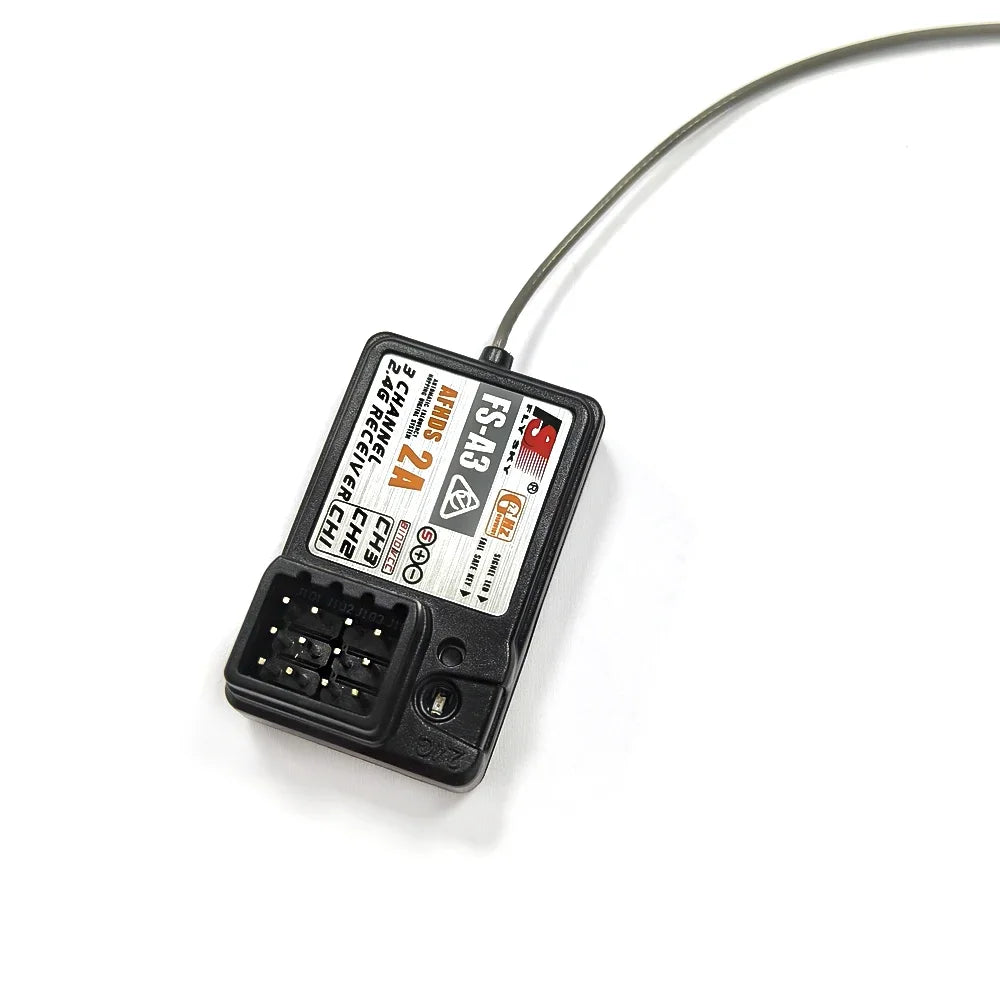

FS-A3 Specifications:

Channels: 3 Channels
Model type: car/boat
Frequency range: 2.4055--2.475GHZ
Band width: B500KHz
Band width number: 140
RF receiver sensitivity: -105dbm
Modulation: GFSK
System type: AFHDS2A
Channel definition: 4096 grade
Input power: 4.0-6.5V DC
Antenna length: 26mm
Weight: 6g
Dimension: 35 * 22 * 12mm
Color: black
