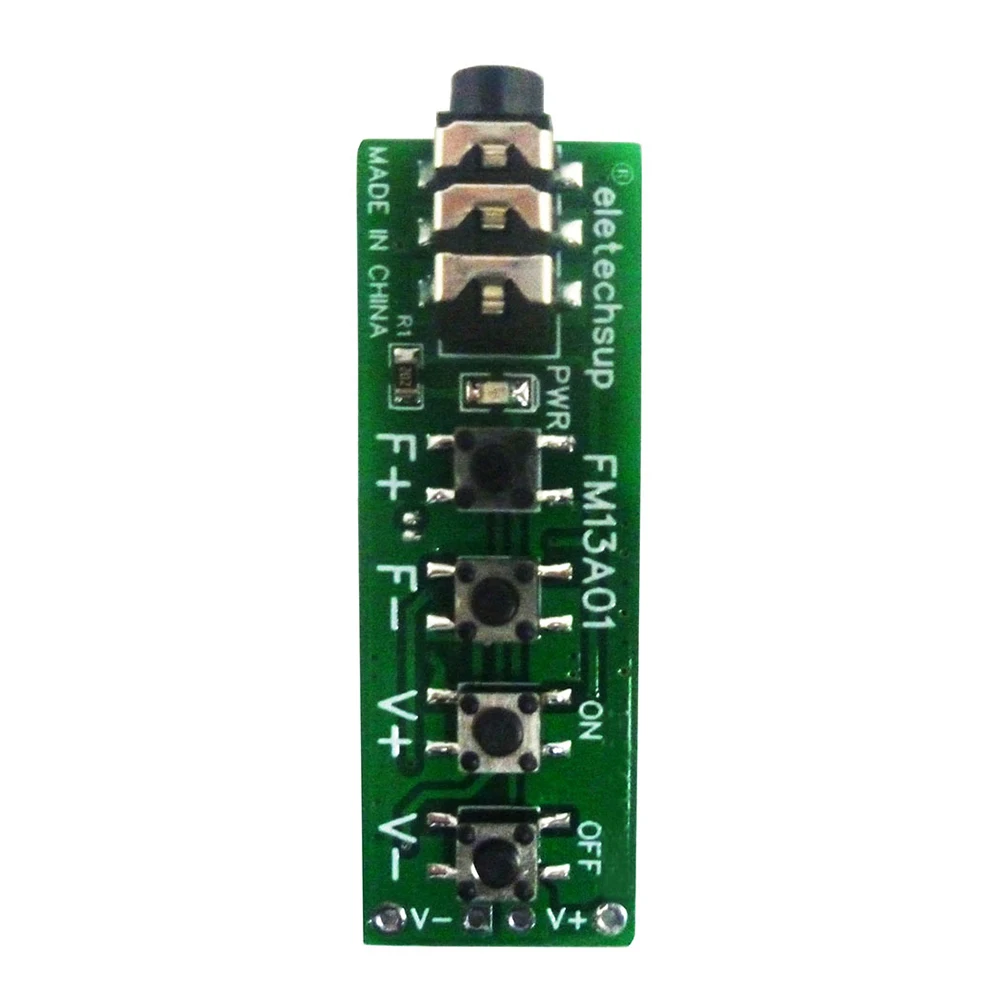

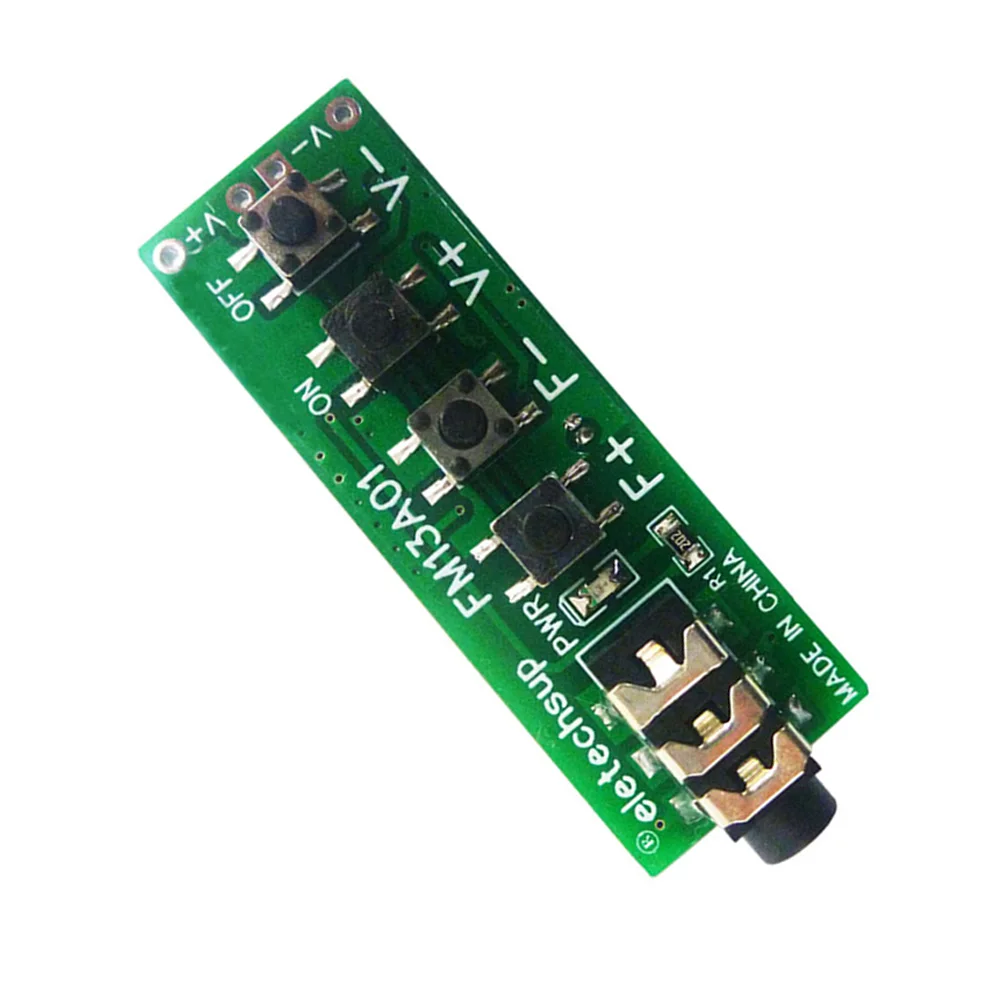

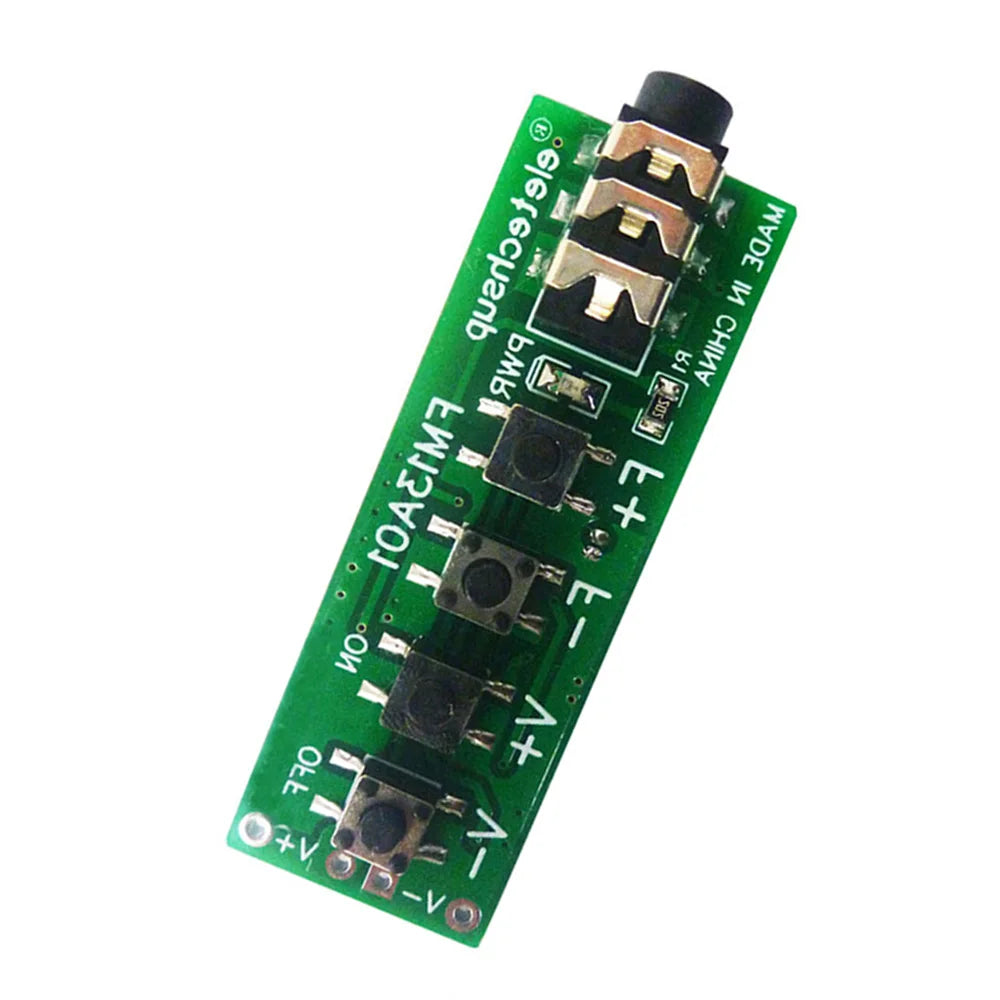

FM13A01 Two-channel Stereo VHF FM Radio Module FM Receiver Board 76MHz~108MHz DC 3.7V-18V

FM13A01 Two-channel Stereo VHF FM Radio Module FM Receiver Board 76MHz~108MHz DC 3.7V-18V

$14.22

$14.22 $0.00

Description

SPECIFICATIONS

Accuracy Class: High

Battery Included: no

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

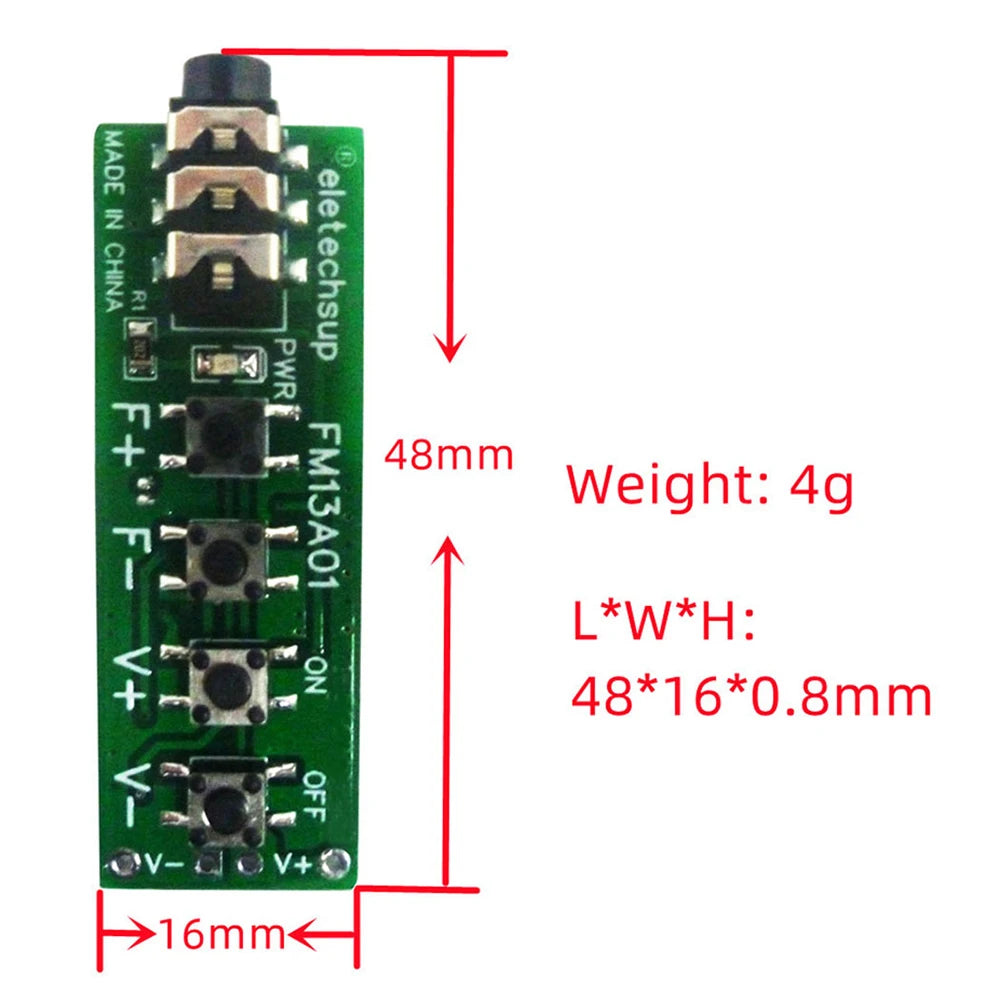

Dimensions: 48x16mm

Display Type: Analog Only

High-concerned chemical: none

Measuring Range: 76MHz~108MHz

Model Number: FM13A01 Two-channel Stereo VHF FM Radio Module

Operating Temperature: -40℃-85℃

Origin: Mainland China

Description:

1. Use high-quality materials, durable

2. Small and exquisite appearance

3. Easy to use

4. The module has input reverse connection function

5. Wide application range

Parameters:

Shutdown current:~90uA

Working current:~23.5mA

Power supply support: DC 3.7V~18V

Receiving frequency range: 76MHz~108MHz

Volume: There are 9 levels to choose from, 0=mute, 8=maximum volume

Audio output: 3.5mm headphone jack, which can directly drive headphones

Button: 4.5mm light touch switch, supporting long press and short press

Functions: ①: automatic power-on; ②: Low power consumption mode; ③: Shutdown mode; ④: Normal working mode; ⑤: Power-off memory function

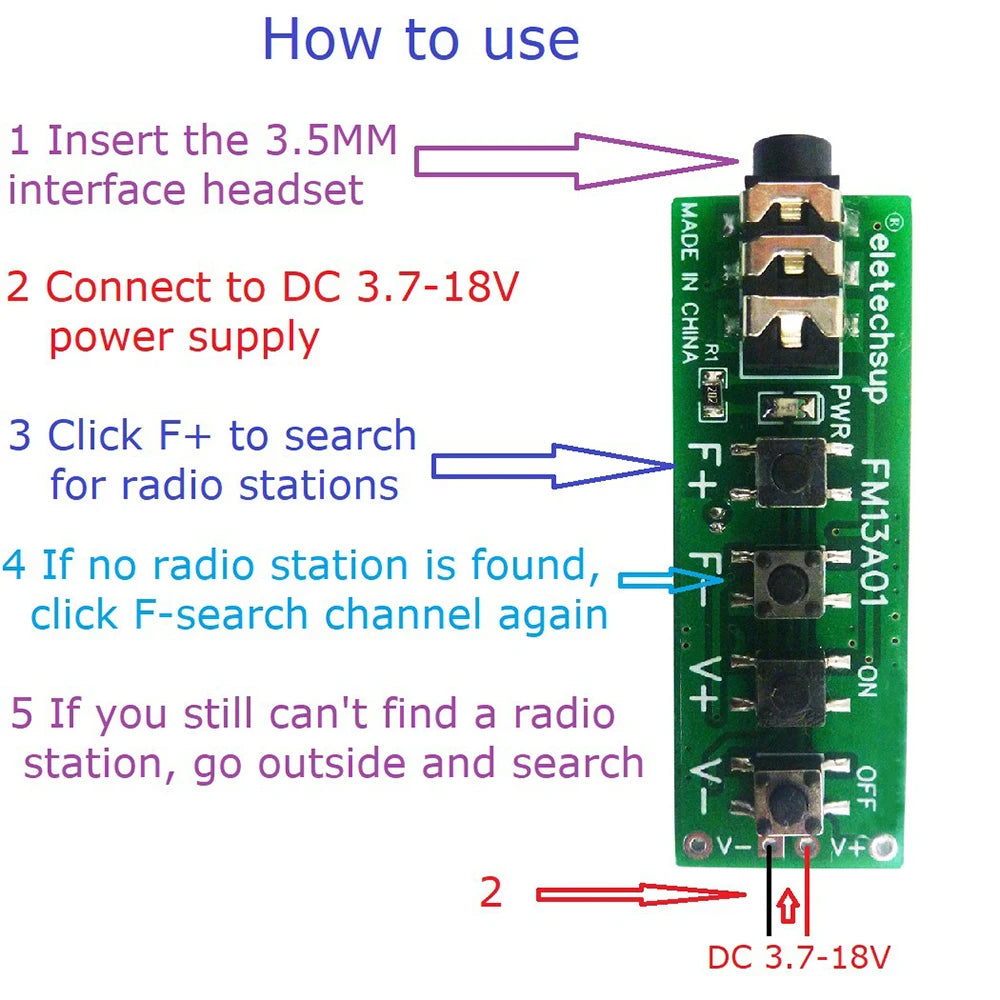

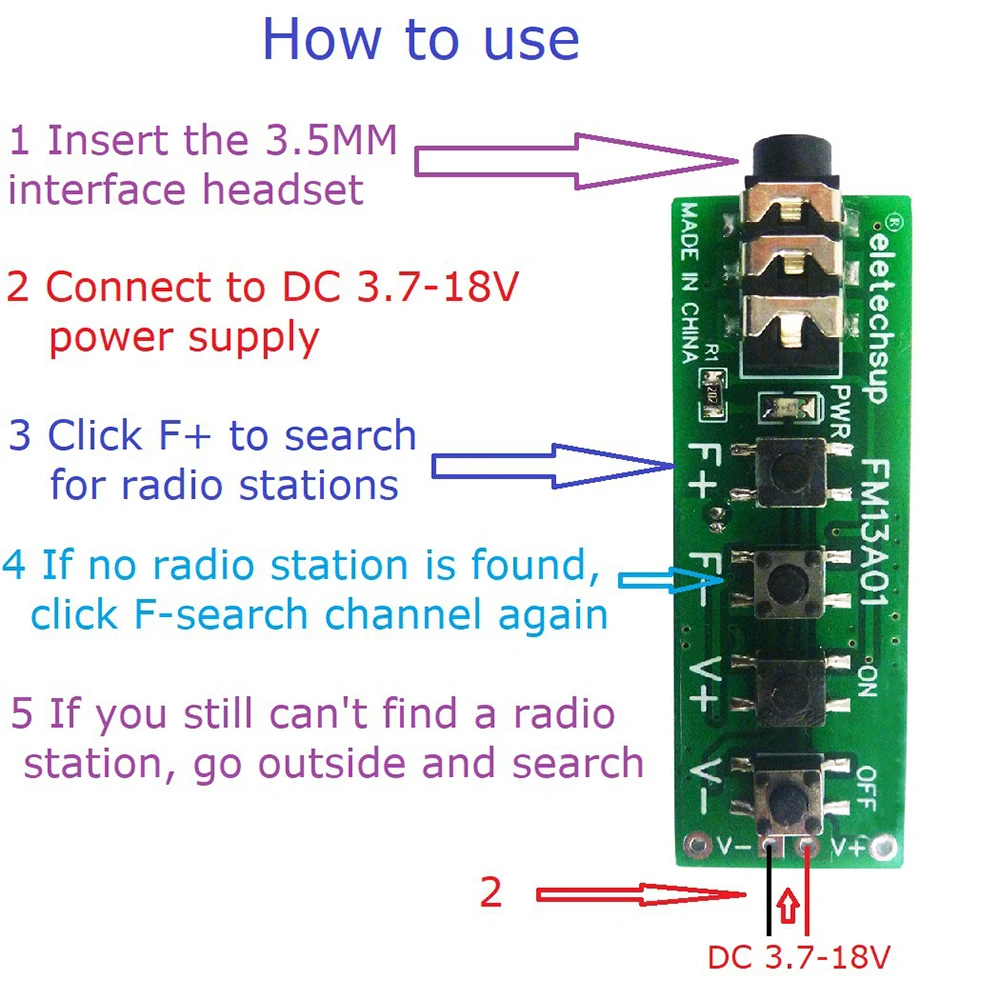

How to use:

1. Plug in 3.5MM connector headset

2. Connect to DC 3.7-18V power supply

3. Click F+to search for a station

4. If no radio station is found, click F again to search for the channel

Notification:

1.30 seconds later, the LED light goes out and enters the energy-saving state (audio is normal). Click the V+/ON button to exit the energy-saving state

2. Do not press and hold the V -/OFF button. If it is held for more than 3 seconds, it will close.

Function description:

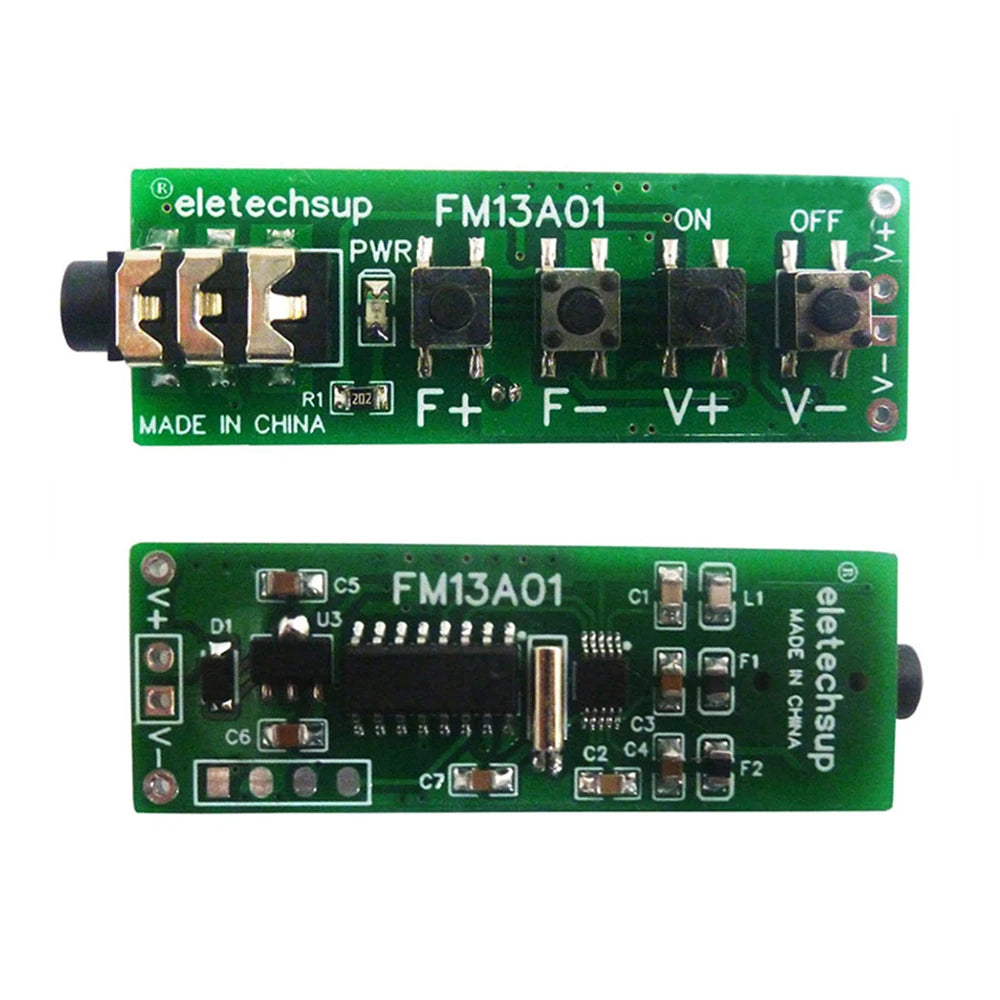

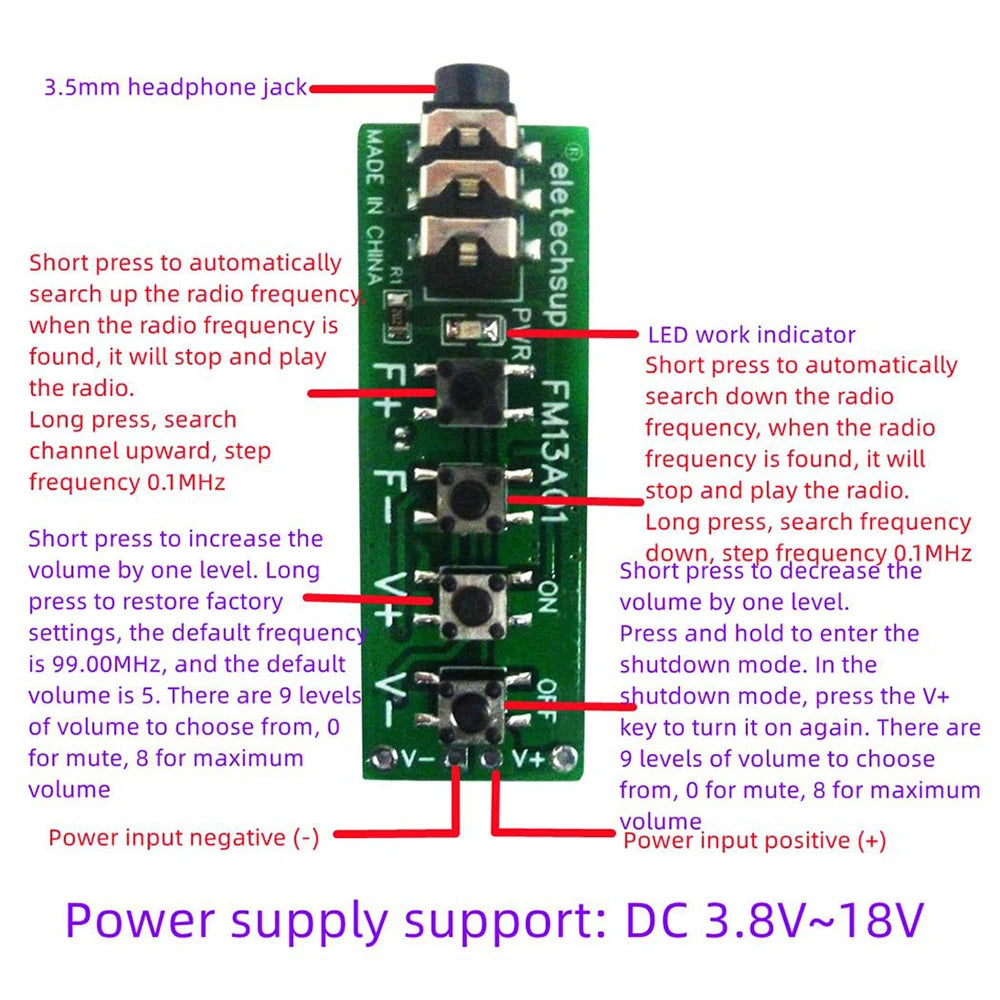

F+key: press briefly to search up the radio frequency automatically. When the radio frequency is found, it will stop and play the radio station. Long press and hold to search up the channel, step by 0.1MHz

F key: Short press to automatically search for radio frequency. When radio frequency is found, it will stop and play radio. Press and hold, the search frequency decreases, and the step frequency is 0.1MHz

V+key: press briefly to increase the volume by one level. Press and hold to restore the factory settings. The default frequency is 99.00MHz and the default volume is 5. There are 9 volume levels to choose from, 0=mute, 8=maximum volume

V key: Press briefly to lower the volume by one level. Press and hold to enter the shutdown mode. In the shutdown mode, press the V+key to turn on the power again. There are 9 volume levels to choose from, 0=mute, 8=maximum volume

3.5mm headphone jack: audio output channel, headphone cable can also be used as antenna

Note:

If you do not perform any key operation within 30 seconds, it will automatically enter the low-power mode. In this state, the module works normally and the peripheral circuit will enter the sleep state.

Package included:

1 x FM13A01 Two-channel Stereo VHF FM Radio Module FM Receiver Board 76MHz~108MHz DC 3.7V-18V
