SPECIFICATIONS

Application: Laptop

Battery Included: no

Brand Name: WIRCARD

Card Type Device: 4G Card

Certification: CE,FCC

High-concerned chemical: none

Kind: Internal

Model Number: FM350-GL

Origin: Mainland China

Package: Yes

Telecomcableconnected: No

Type: WireLess

Wireless Protocol: LTE 5G

For

HP Wireless Interface N00181-005 is compatible in the following HP Models:

HP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (Ultron)

HP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N1AV) - 797F9PAHP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N1AV) - 7A213PAHP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N2AV) - 797F8PAHP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N5AV) - 71L45PAHP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N5AV) - 7A215PAHP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N6AV) - 71L42PAHP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N6AV) - 7A211PAHP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N6AV) - 7A212PAHP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N7AV) - 71L43PAHP Dragonfly Folio 13.5 inch G3 2-in-1 Notebook PC (5A2N9AV) - 71L41PA

HP Dragonfly 13.5 inch G4 Notebook PC (Sandwalker)

HP Dragonfly 13.5 inch G4 Notebook PC (6Q259AV) - 7Z3B1AAHP Dragonfly 13.5 inch G4 Notebook PC (6Q261AV) - 7Z3B0AA

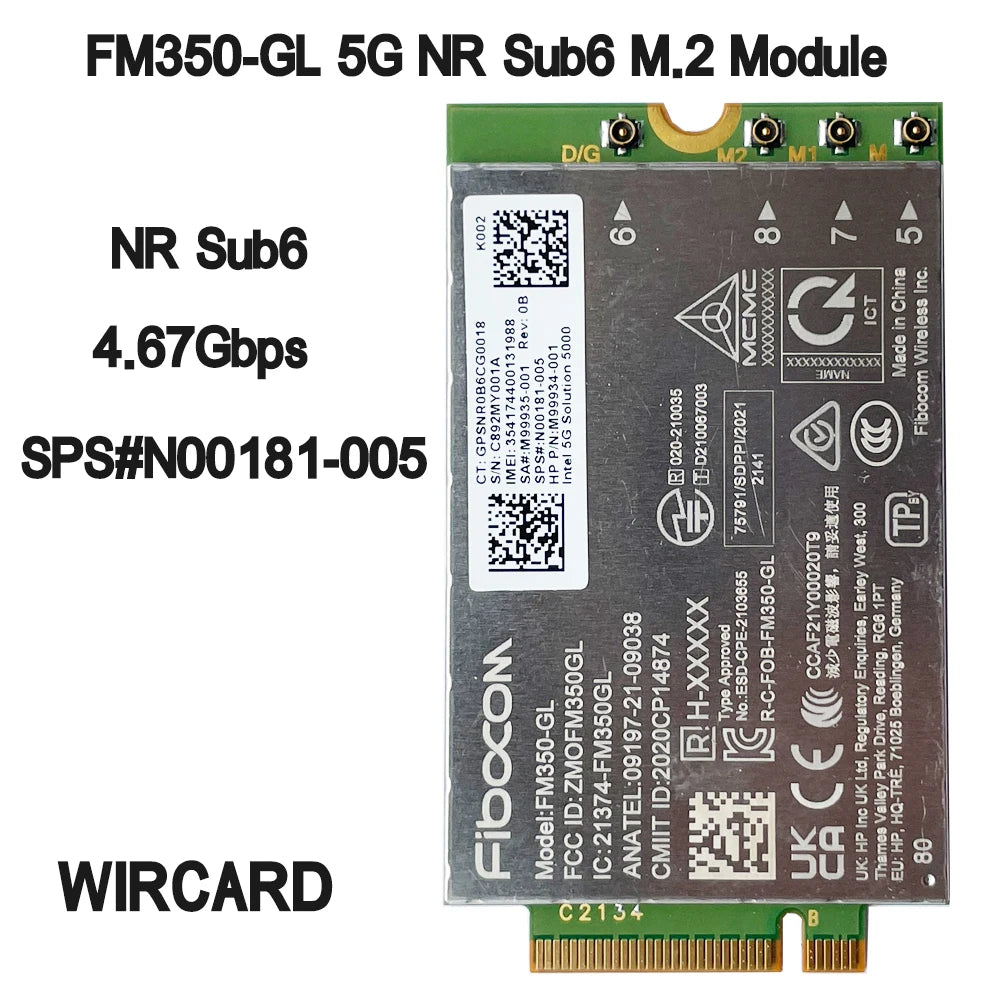

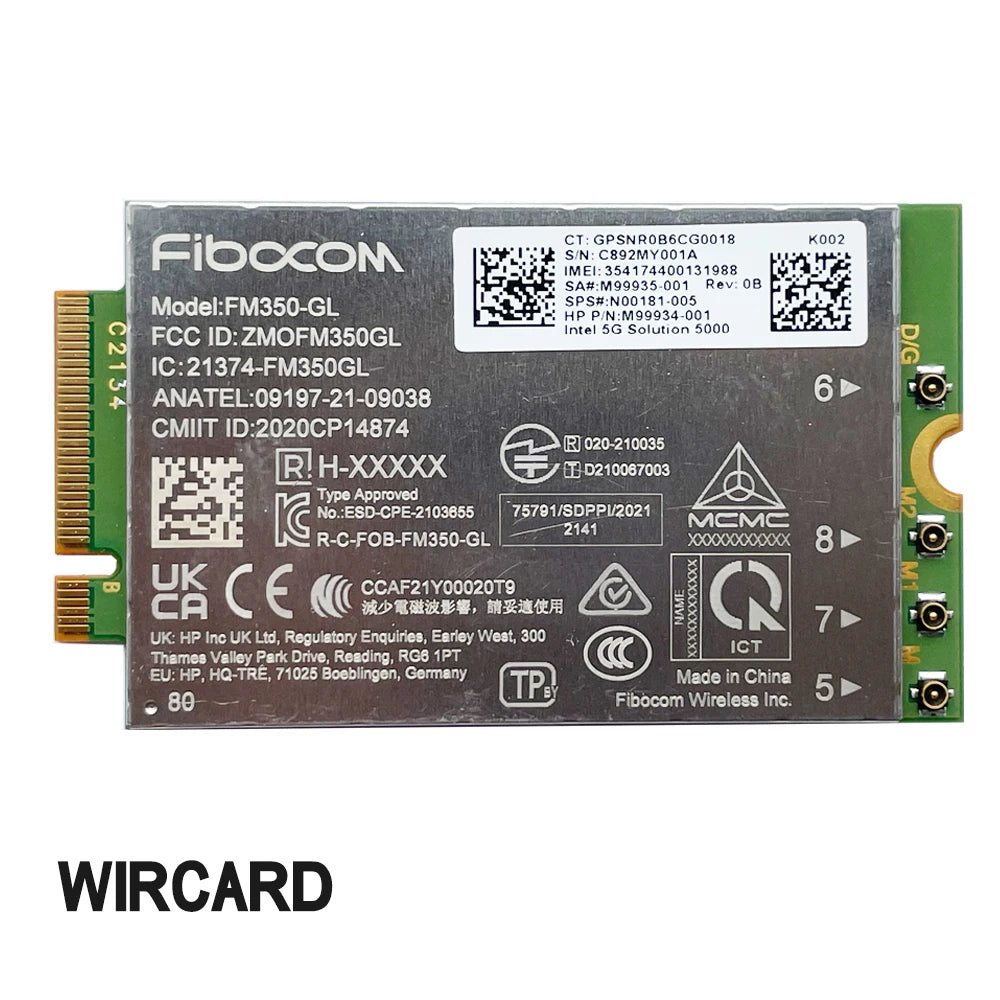

The FM350-GL is a multimode 5G, LTE, and WCDMA module that provides Gigabit speed, unleashing the potential of cellular technology to meet high speed bandwidth application demand.

With a rich selection of the frequency bands, FM350-GL provides global mobile network coverage to facilitate product with one SKU, reduces complexity in end product configuration.

The FM350-GL supports 5G NR Sub6 network with up to 4.67Gbps on the downlink and 1.25Gbps on the uplink. It also provides fallback to LTE & WCDMA network.

The FM350-GL is designed with the M.2 30*52 form factor which is ideally suited for integration with Personal Computer (Laptop, Desktop, Tablet, etc.), IoT Gateway and Routers that run Windows, and Linux OS.

Product Features

NR FR1 (Sub6):

n1, n2, n3, n5, n7, n8, n20, n25, n28a, n28b, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79

LTE：

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28(a&b), B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

LAA：Band 46

WCDMA：Band 1, 2, 4, 5, 8

NR CA: DL 2CC/ UL 2CC

LTE CA: DL 5CC/ UL 2CC

NR DL 4x4 MIMO:

n1, n2, n3, n7, n25, n30, n38, n40, n41(full), n48, n66, n77, n78, n79

LTE DL 4x4 MIMO:

B1, B2, B3, B4, B7, B25, B30, B34, B38, B39, B40, B41(full), B42, B43, B48, B66

UL 2x2 MIMO: n41, n77, n78, n79

SRS :n41, n77, n78, n79, Support: 1T2R, 1T4R, 2T4R

CBRS: B48

HPUE: B41, n41, n77, n78, n79

Basic Parameters

GNSS:GPS, GLONASS, BeiDou, Galileo, QZSS

Assisted GNSS (A-GNSS)

Built-in SIM

Body SAR

Antenna Tunner

Operating Voltage: 3.315V ~ 4.4V, Typical 3.3V

Operation Temperatur: -10 ~ 55 ℃

Storage Temperature: -40 ~ +85℃

Form Factor: M.2 S3 Key-B

Size :30*52*2.3mm

TX Power:

NR & LTE: 23dBm

WCDMA: 23.5 dBm

RX Sensitivity: NR & LTE: -98dBm ~ 102dBm

Data

Downlink

NR FR1 (Sub6) Peak: 4.67Gbps MIMO 4x4, 256QAM

LTE: 1.6Gbps MIMO 4x4, 256QAM

ENDC Peak: 3.74Gbps MIMO 4x4, 256QAM

Uplink

NR FR1 (Sub6) Peak: 1.25Gbps MIMO: 2x2, 256QAM

LTE: 211Mbps MIMO 1x1, UL 256QAM

ENDC Peak: 835Mbps MIMO 1x1, NR: 256QAM; LTE: 256QAM

Interfaces

USIM 1.8V, 3V

PCIe Gen 3.0

I2C

Body SAR

MIPI Tuner

Tunable Antenna

OS Drivers

Operating System Windons 10, Linux

Approval

Carriers

AT&T, Verizon, T-Mobile, Vodafone, Telefonica, Swisscom, DTAG, CMCC, CUCC, CTCC, Telstra, Optus, Docomo, KDDI, Softbank

Regulatory/ Industry

GCF, PTCRB, CCC, CTA, SRRC, CE, IC, FCC, CBRS, JATE, TELEC, RCM
