Product Overview:

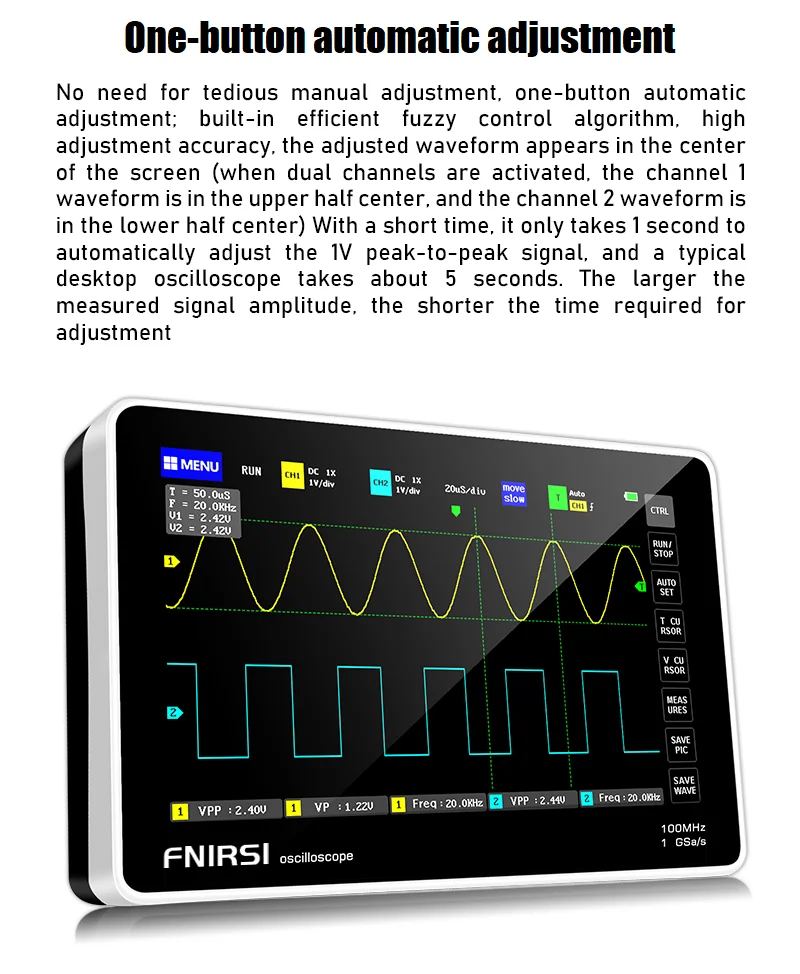

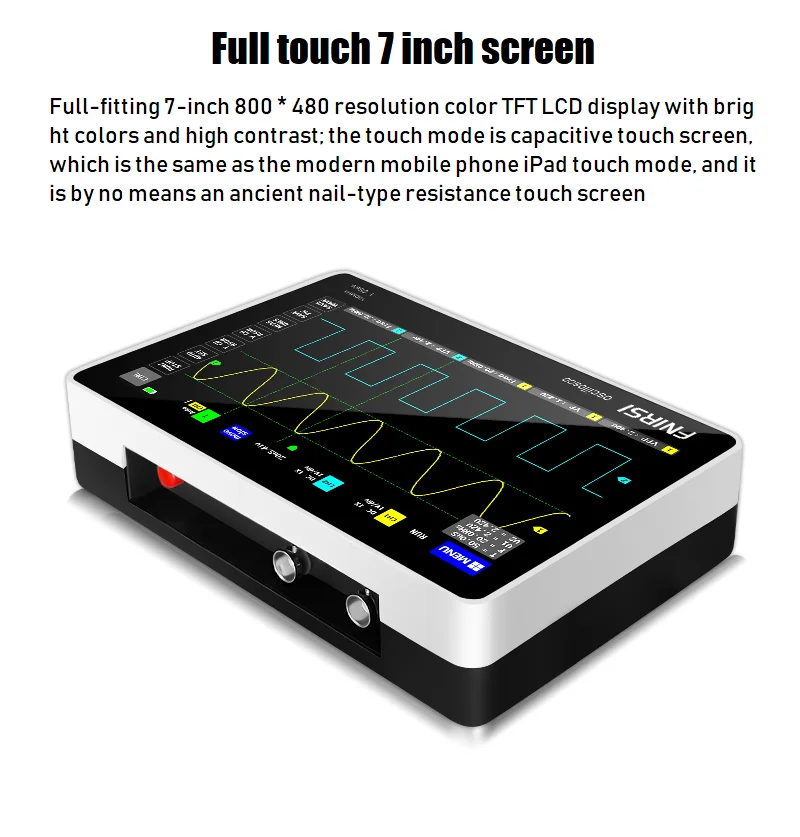

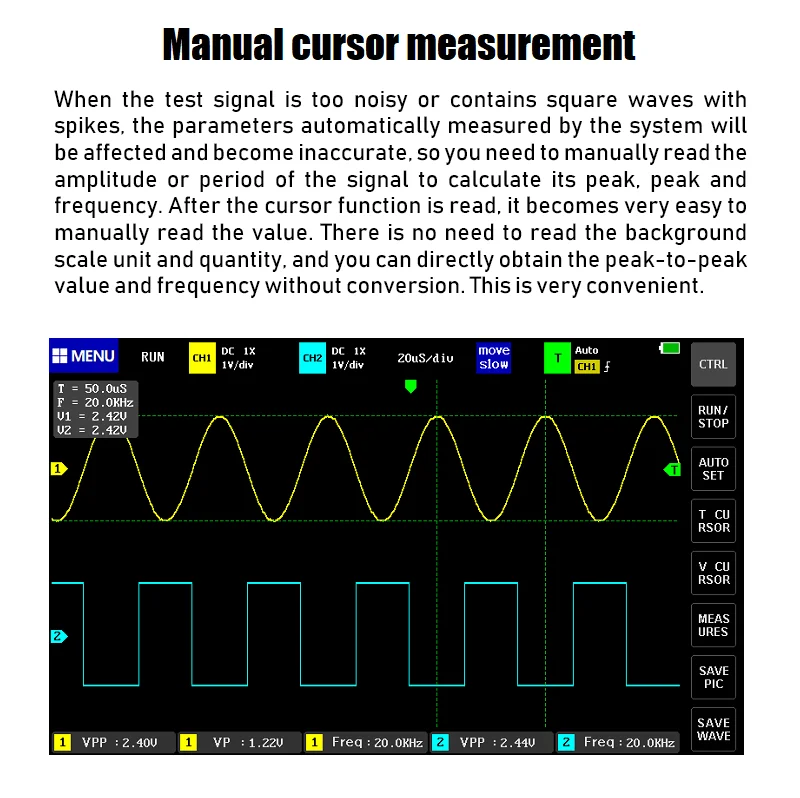

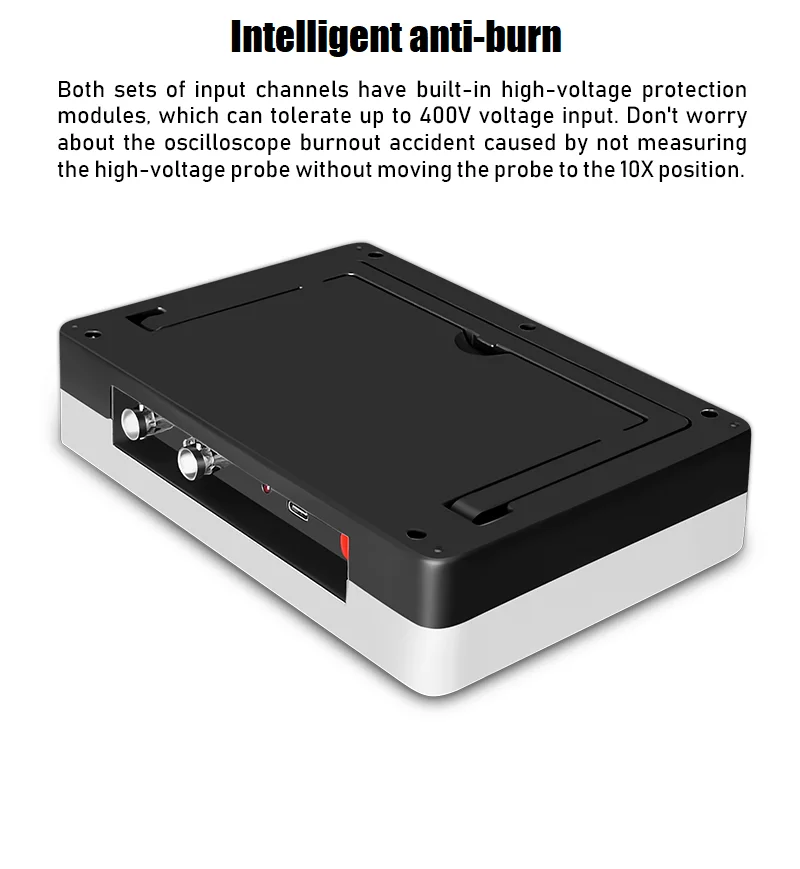

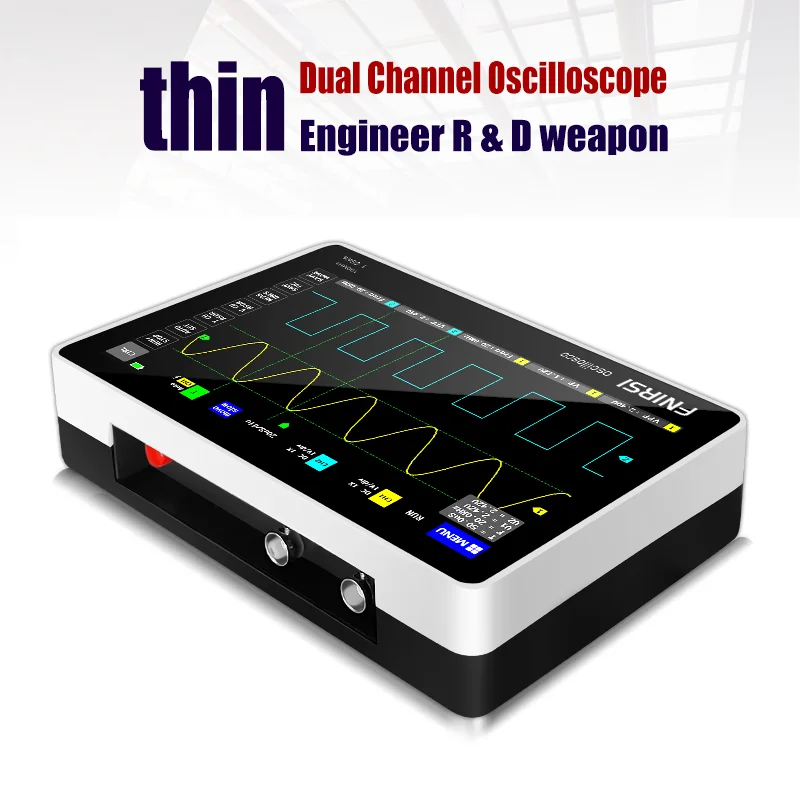

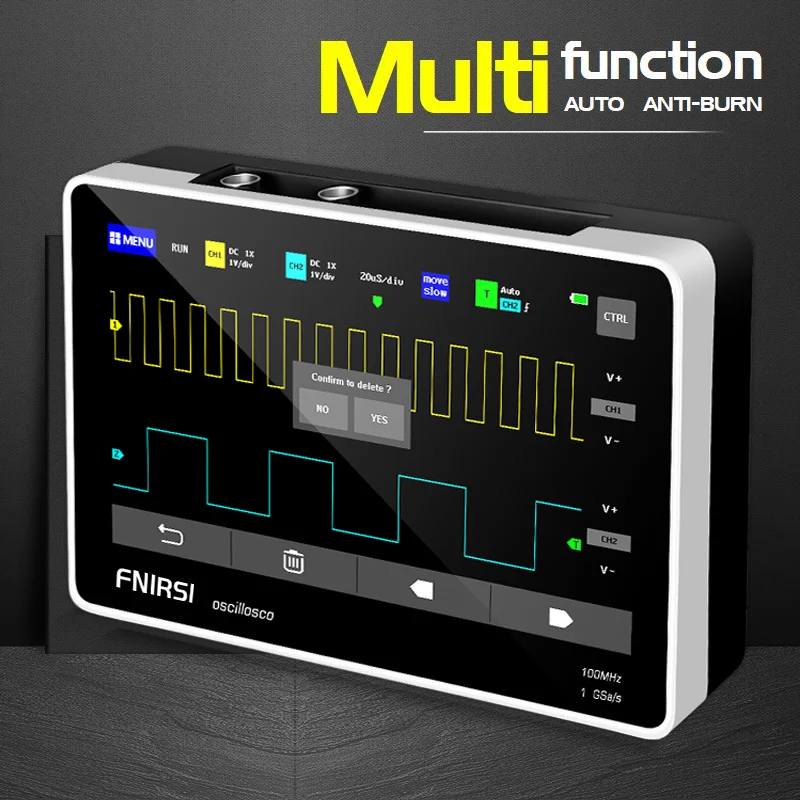

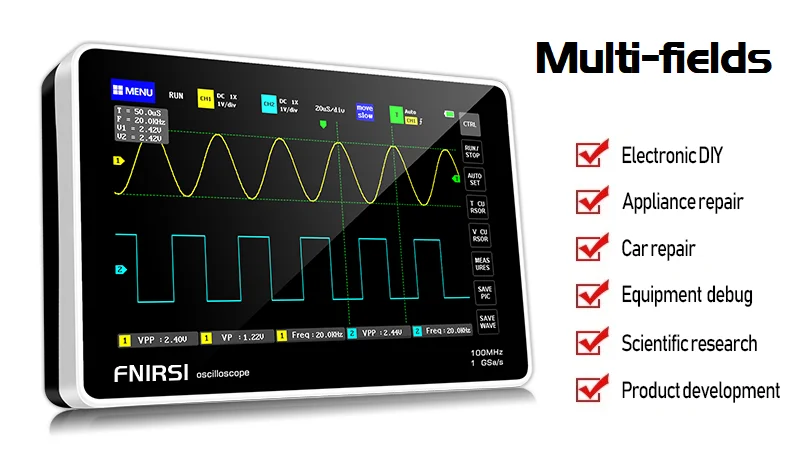

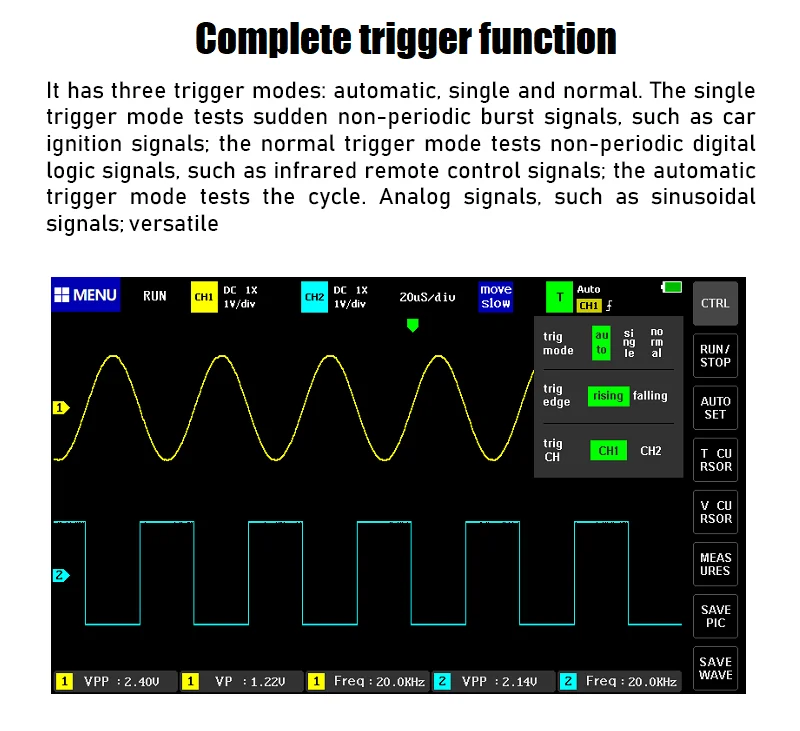

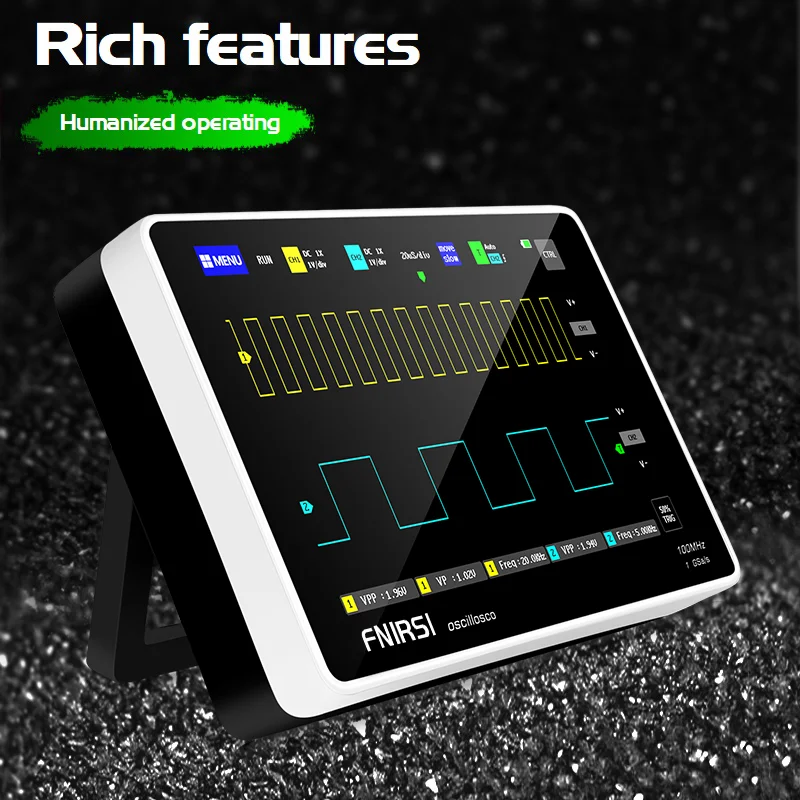

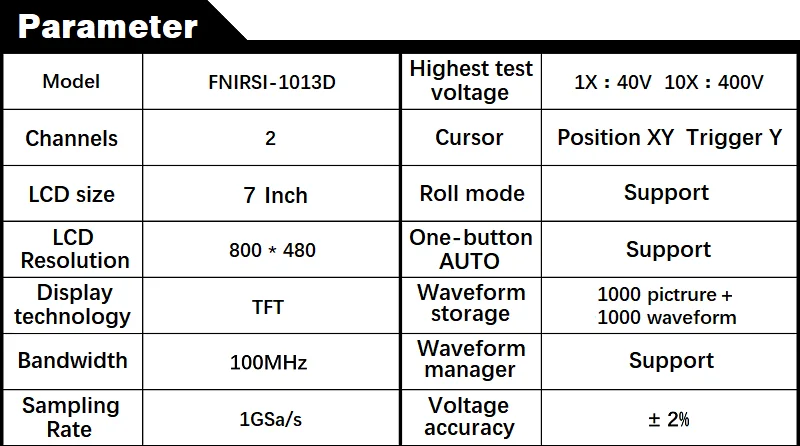

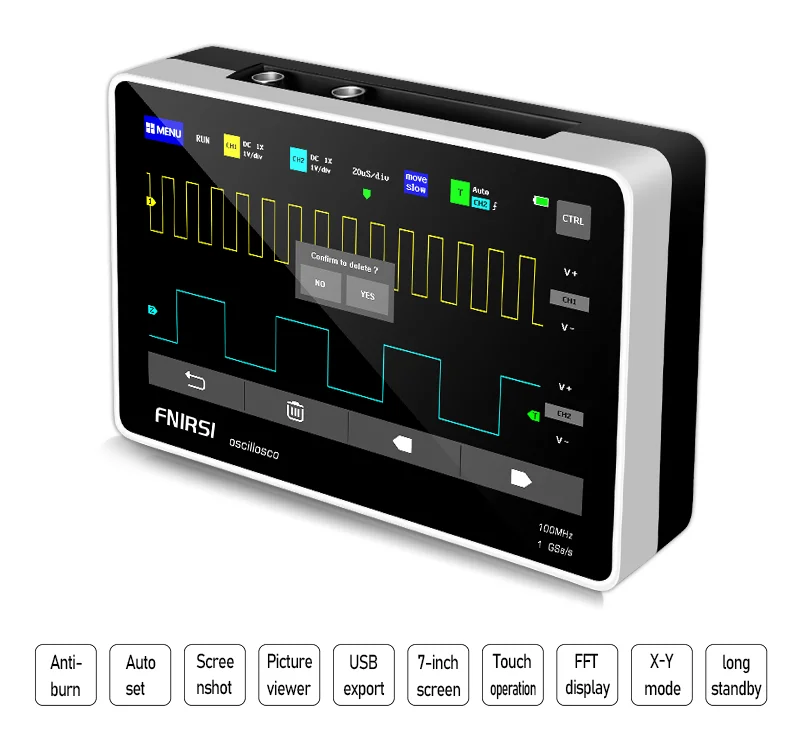

The 1013D is a cost-effective, dual-channel tablet oscilloscope launched by FNIRSI, designed with comprehensive functionality and high practicality for professionals in the repair and R&D sectors. It features a real-time sampling rate of up to 1 GSa/s and an analog bandwidth of 100 MHz (dual-channel). With complete triggering capabilities (Single, Normal, and Auto modes), it handles both periodic analog signals and non-periodic digital signals with ease. A built-in high-voltage protection module tolerates continuous voltages up to 400V, eliminating concerns about damaging the oscilloscope when measuring high voltages without switching the probe to the 10X setting. A "Roll" mode for large time bases allows for monitoring slow level changes, while an efficient one-key auto-adjustment function displays the measured waveform instantly without tedious manual configuration. The device sports a 7-inch, 800x480 resolution HD LCD screen and supports capacitive touch and gesture controls for exceptional ease of use. Cursor measurement functions allow for direct reading of peak-to-peak values and frequency without the need to manually interpret background grid scales or perform conversions. Convenient screenshot and waveform storage features—backed by 1GB of internal memory—allow for saving up to 1,000 screenshots and 1,000 sets of waveform data; saving the current waveform is as simple as a single press, with no complex prompts or menus. A powerful waveform manager supports thumbnail browsing, detailed viewing, page navigation, deletion, and waveform manipulation (zooming and panning) for convenient post-analysis. A USB port enables connection to a computer for sharing screenshots and data, further facilitating analysis. Additional features include Lissajous figure display for comparing the amplitude, frequency, and phase of two signals; FFT analysis for examining signal harmonic components; and a high-quality 6000mAh lithium battery that provides 4 hours of continuous use on a full charge and supports simultaneous charging and operation, much like a laptop.

Picture Details Introduction:
