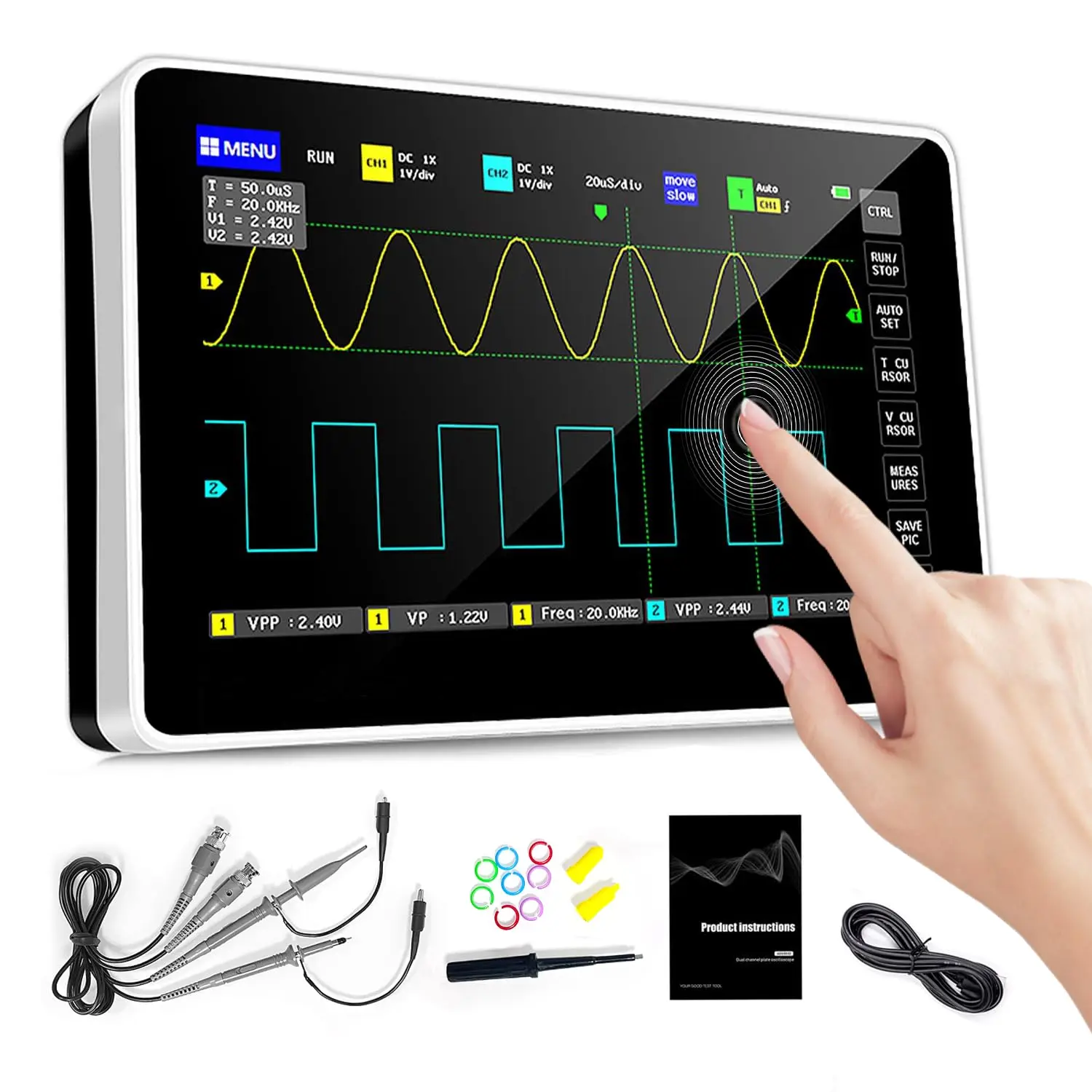

Dual-Channel Digital Oscilloscope -100MHz Bandwidth 1GS/s Sampling Rate 7-inch Portable Tablet Oscilloscope FNIRSI-1013D

Feature

☽【Pro-Level Performance】: Experience the ultimate in signal processing with 2 channels, a 100MHz bandwidth, and a rapid 1GSa sampling rate. Ideal for circuit analysis, signal characterization, and troubleshooting. Whether it's single, normal, or automatic trigger options, this oscilloscope has you covered.

☽【Intuitive Touchscreen Display】7-inch touchscreen provides a smartphone-like experience, allowing you to effortlessly view and analyze waveforms, measurements, and graphical data. No lag, just seamless interaction.

☽【Save & Share with Ease】Capture electric waveform signal pictures with a single touch and save them automatically. With 1GB of storage, you can save up to 1000 pictures and waveform data. Connect via USB-C to export and share data with your computer for further analysis.

☽【Advanced Signal Analysis】Dive deeper into complex signals with features like Lissajous graphic display, FFT (Fast Fourier Transform) viewing, cursor measurement, and X-Y mode. Gain a deeper understanding and simplify your analysis.

☽【Reliable and Portable】Oscilloscope integrated a high-voltage protection module, ensuring it can handle continuous voltages up to 400V. The built-in 6000mAh rechargeable battery offers up to 4 hours of uninterrupted usage. At just 960g, it's lightweight and easy to carry, making it perfect for laboratory work, field tasks, and on-site troubleshooting.

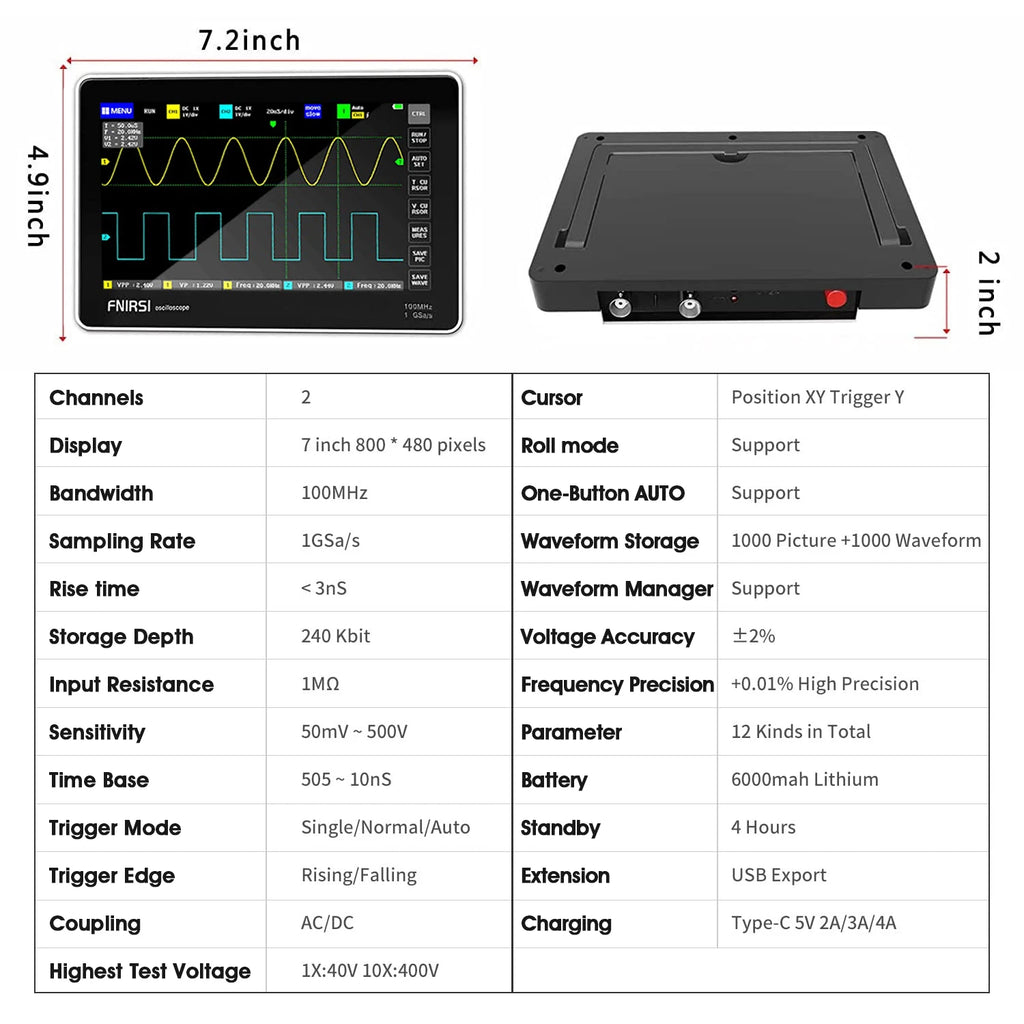

Specification

Number of channels: 2 channels

Analog band width: 100MHz * 2

Frequency Accuracy: +0.01%

Maximum real time sampling rate: 1GSa/s

Highest Test Voltage 1X:40V; 10x:400V

Voltage Accuracy: ±2%

Vertical sensitivity: 50 mV/div ~ 500 V/div

Storage depth: 240Kbit

Input resistance: 1M

ADC precision: 8bits

Coupling mode: AC/DC

Trigger mode: Single, Normal, Auto

Trigger edge: Rising edge/Falling edge

Display: 7inch 800 x 480pixels

1GB Storage

FFT Function

Lissajous Figures

Cursor Measurement

Pictures Save & USB Export

Package Includes:

1* Oscilloscope

1* 5V/2A Charger

1* USB Cable

1* User Manual

！！The details of the package attachment are mainly described, and the pictures do not represent all！！
