FNIRSI DLA‑16/32 Plus High‑Speed Logic Analyzer 1GHz Sampling 16/32CH USB3.0 4Gbit Stream Buffer 120+ Protocol Decoder Embedded

FNIRSI DLA‑16/32 Plus High‑Speed Logic Analyzer 1GHz Sampling 16/32CH USB3.0 4Gbit Stream Buffer 120+ Protocol Decoder Embedded

$897.84

$897.84 $0.00

Description

SPECIFICATIONS

Acquisition Modes: Buffer / Stream / Roll

Battery Included: no

Brand Name: FNIRSI

Certification: CE,RoHS,KC,FCC

Channels: 16CH / 32CH

DIY Supplies: Electrical

Display Size: 2.9 Inches & Under

High-concerned chemical: none

Input Frequency: Up to 200MHz

Input Voltage Range: -40V to +40V

Item model number: DLA-16

Min Pulse Width: 2ns

Model Number: DLA-16

Origin: Mainland China

PC Interface Connection: USB Type-C

PWM Output: 4CH, 3.3V, 1Hz-20MHz

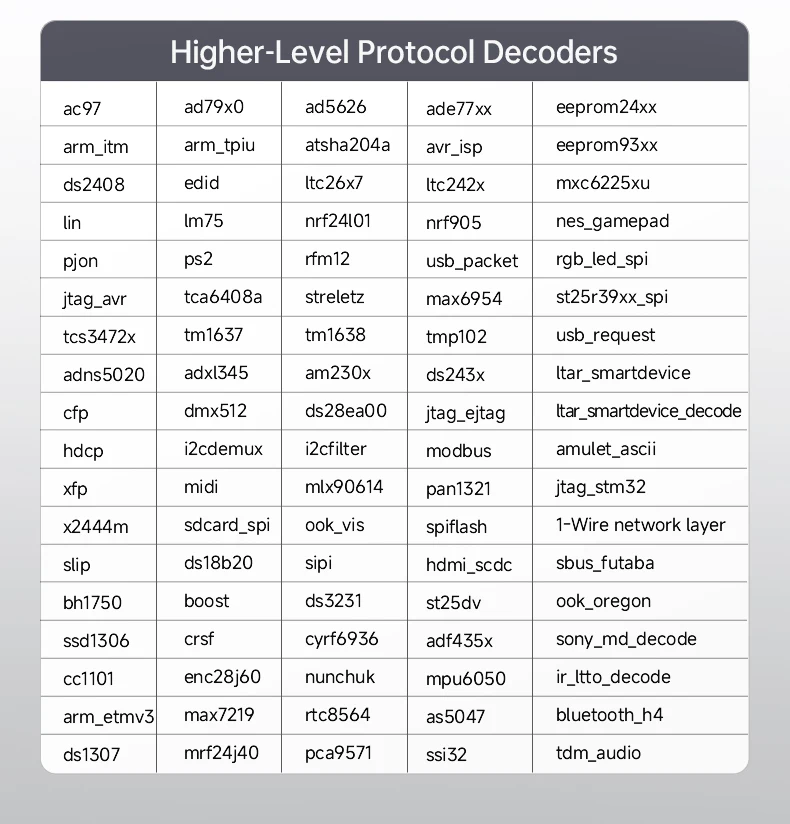

Protocol Decoding: 120+ Protocols

Sampling Depth: Up to 4Gbit

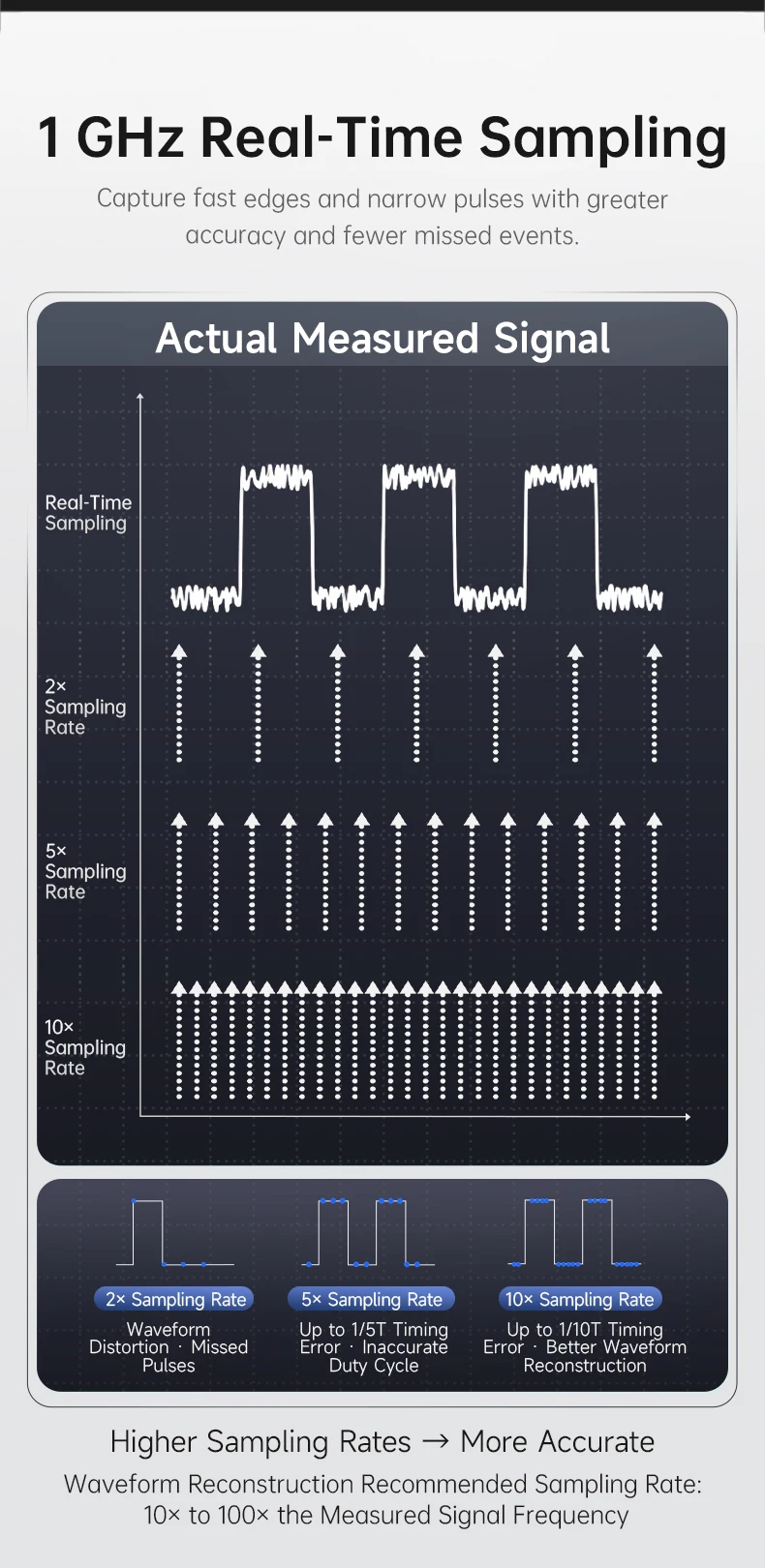

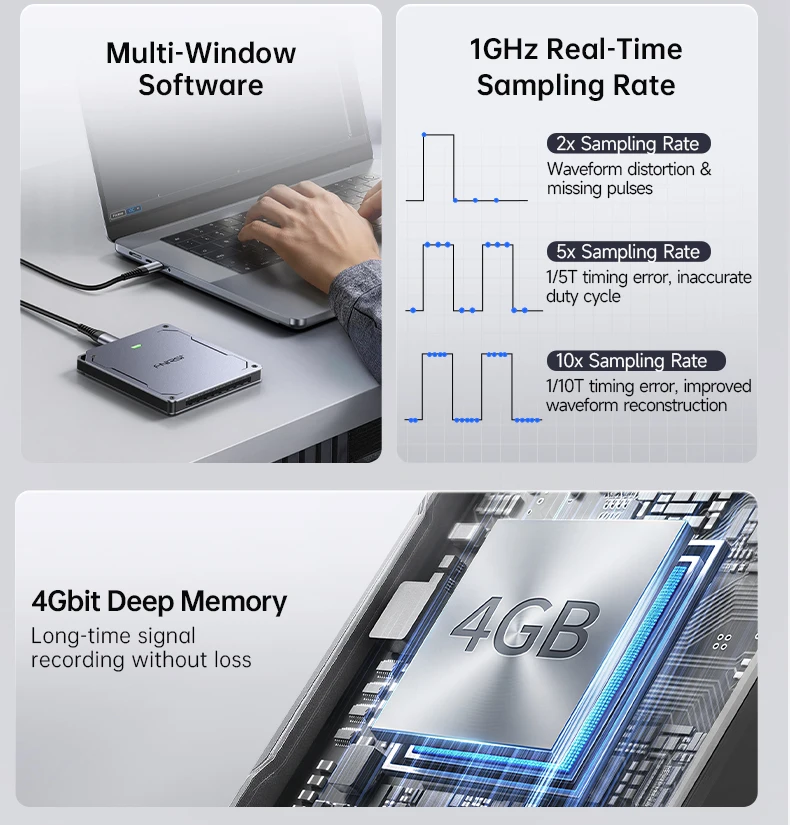

Sampling Rate: Up to 1GHz

Semi-finishedproduct: No

Trigger Modes: Rising / Falling / High / Low / Any Edge

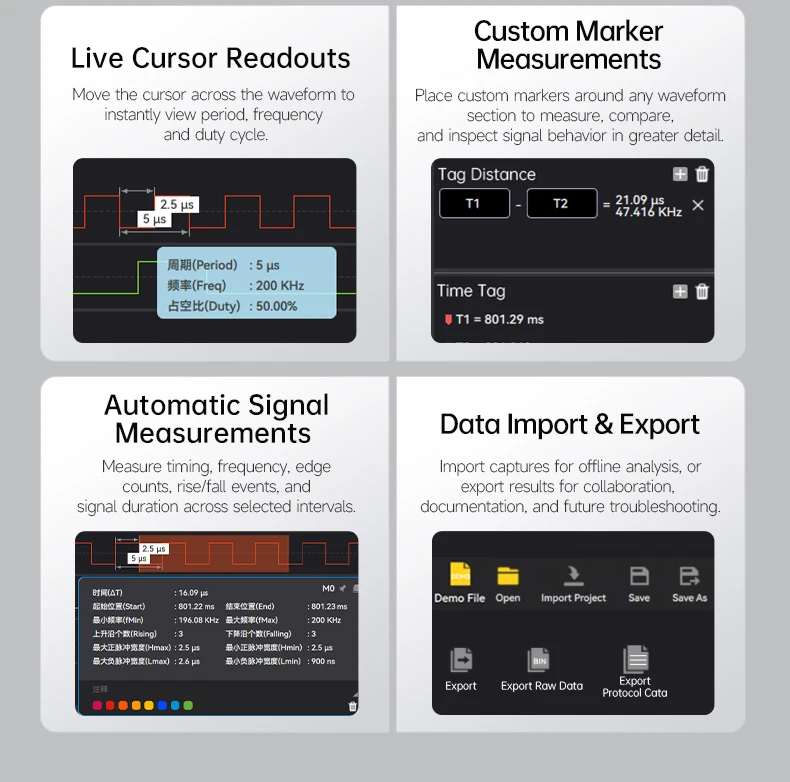

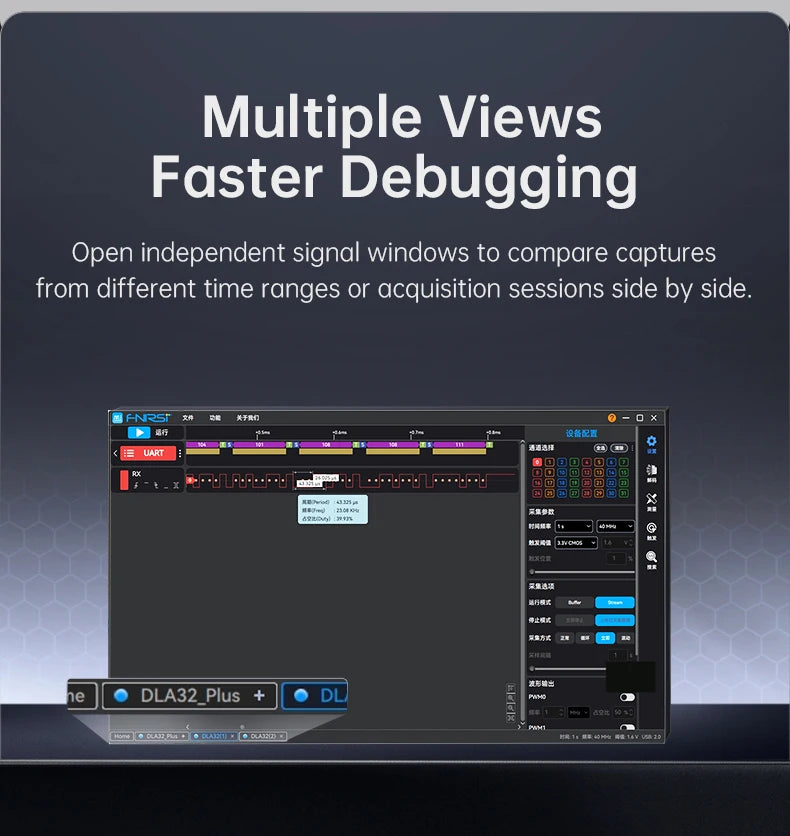

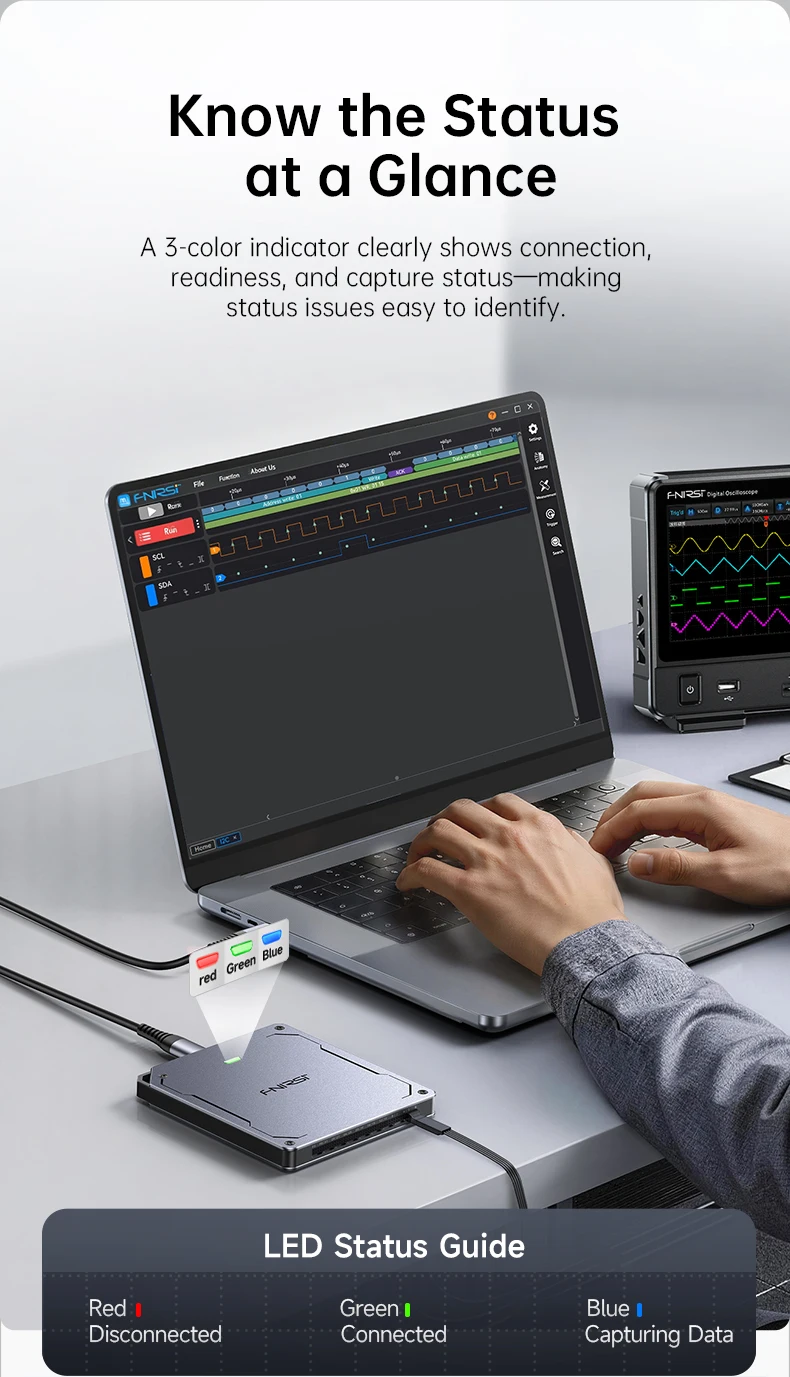

The FNIRSI DLA-16 Plus / DLA-32 Plus USB Logic Analyzer is designed for capturing, displaying and analyzing digital circuit signals.

With up to 1GHz sampling rate, 16/32 input channels, 120+ protocol decoding, deep memory and multiple acquisition modes, it helps users analyze timing and waveform data, diagnose circuit faults, verify digital designs and improve debugging efficiency.

It is suitable for MCU development, FPGA debugging, embedded systems, digital circuit testing, communication protocol analysis and electronic engineering applications.

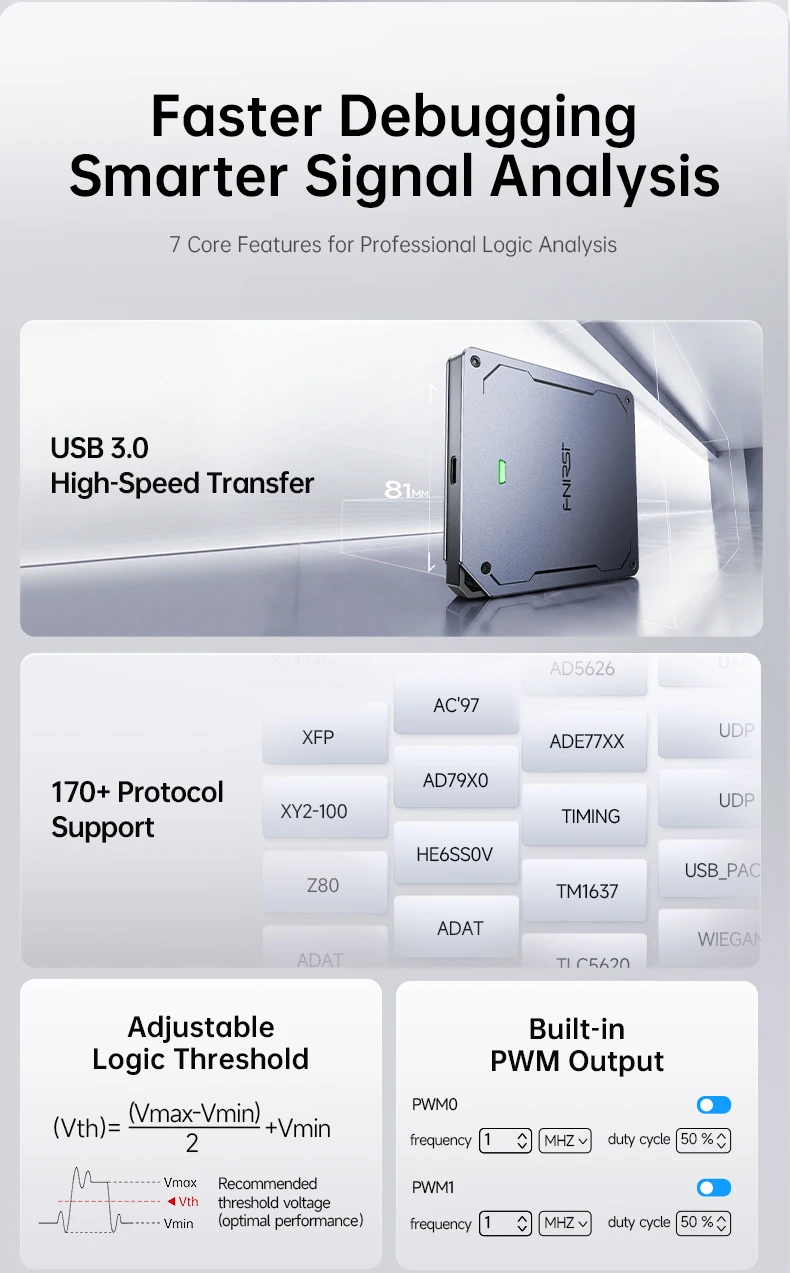

Highlights

◉ Up to 32CH / 1GHz High-Speed Sampling

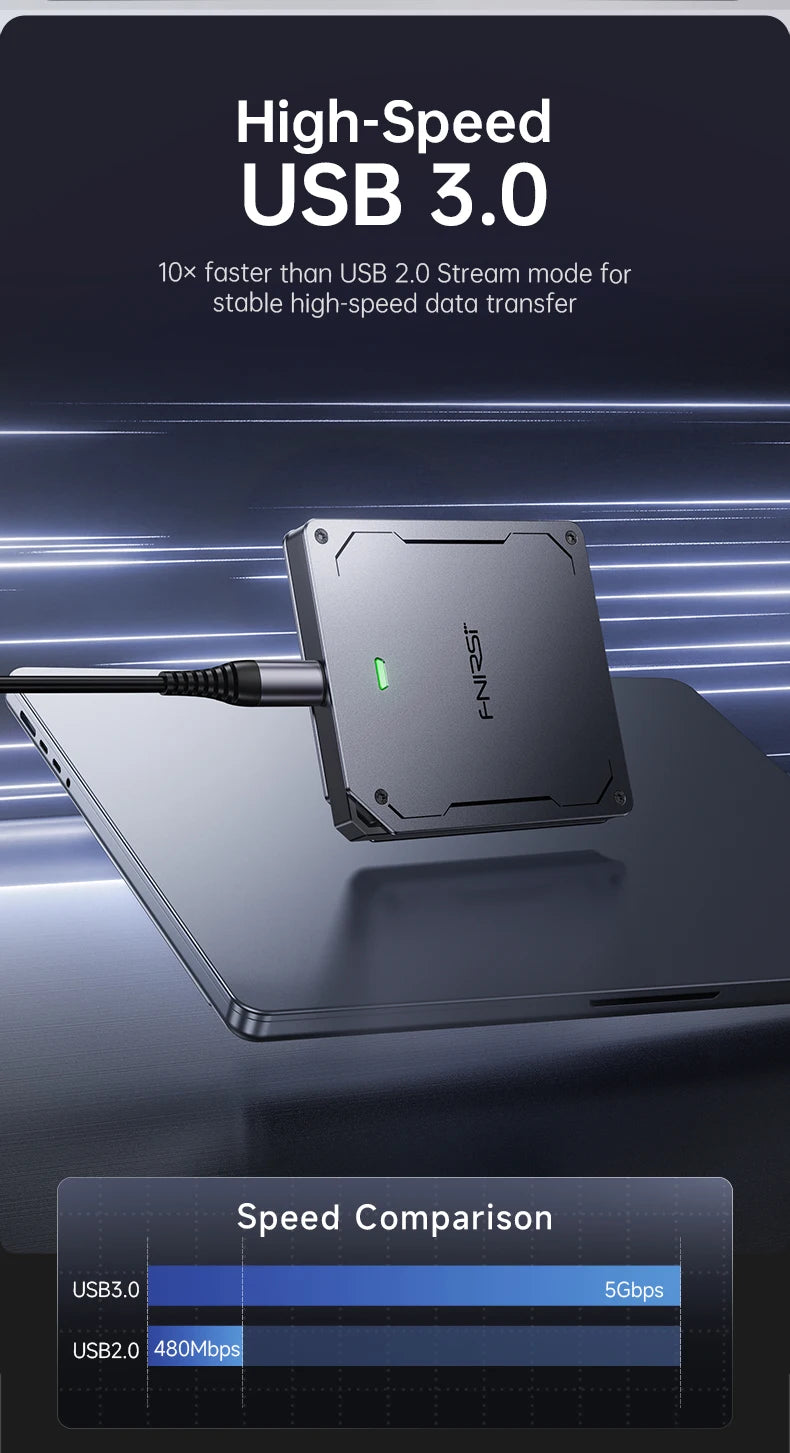

◉ USB 3.0 Up to 5Gbps High-Speed Data Transfer

◉ 4Gbit Hardware Memory for High-Speed Buffer Capture

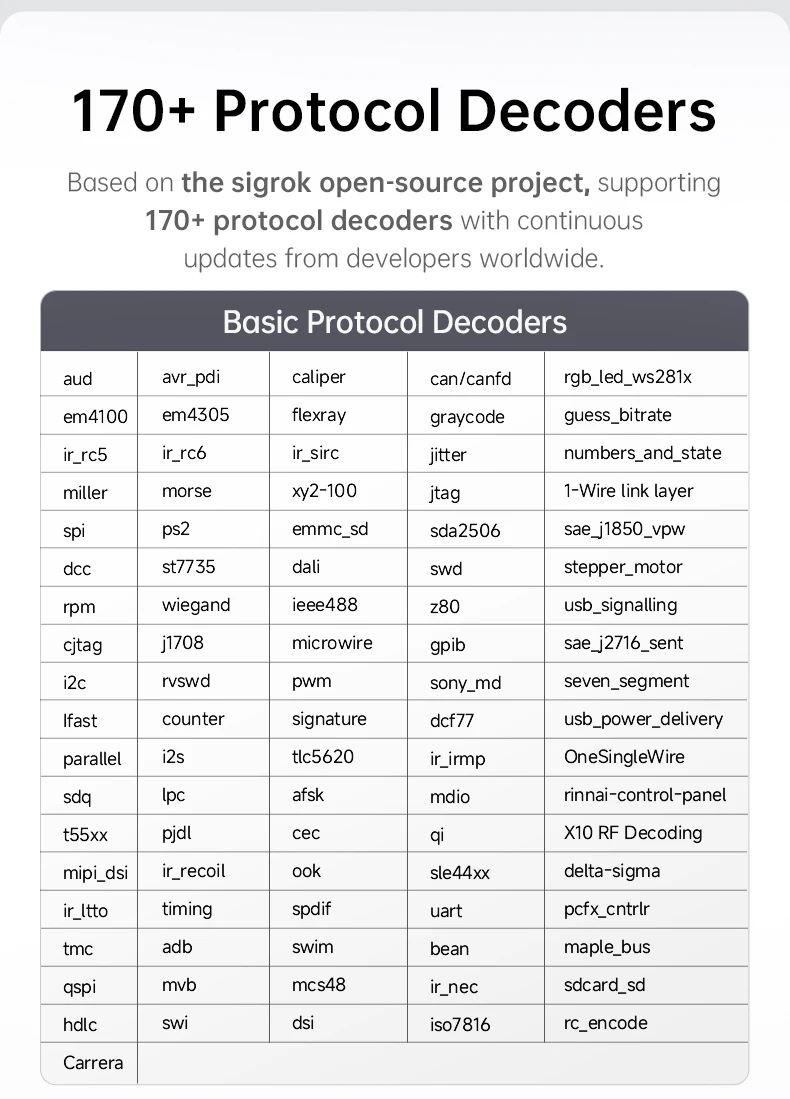

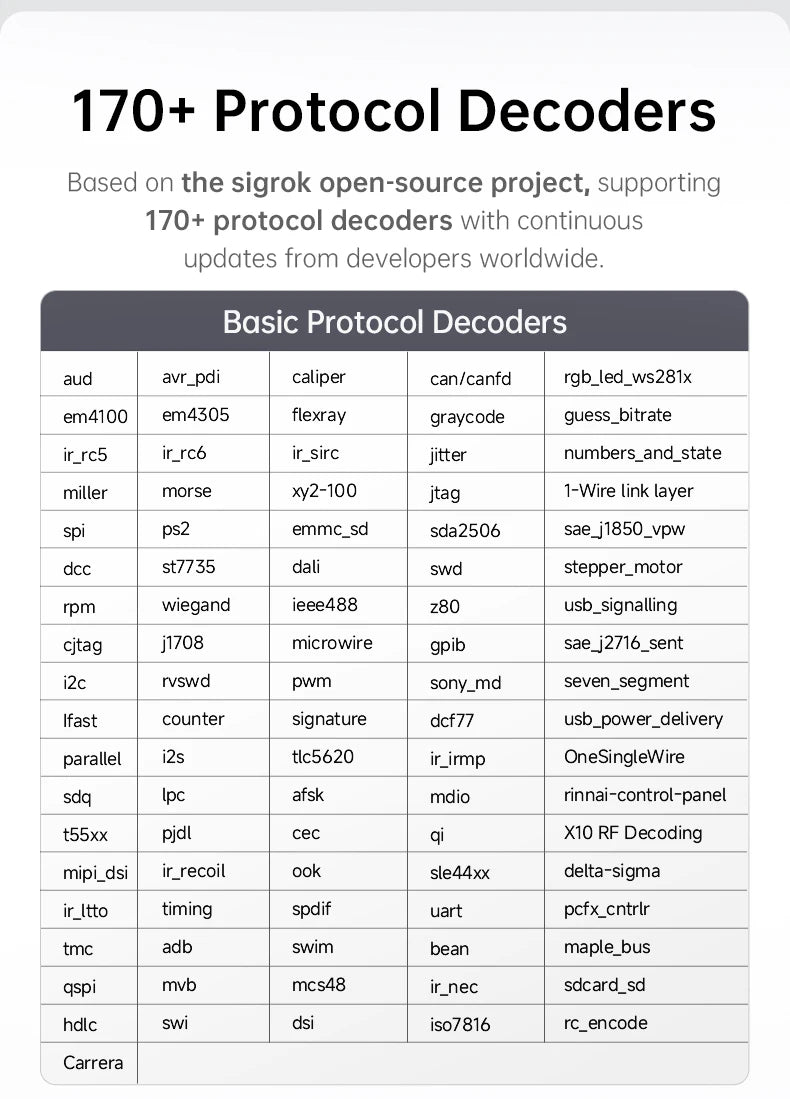

◉ 170+ Protocol Decoders with Custom Protocol Support

◉ 4-Channel PWM Output, 3.3V, 1Hz–20MHz

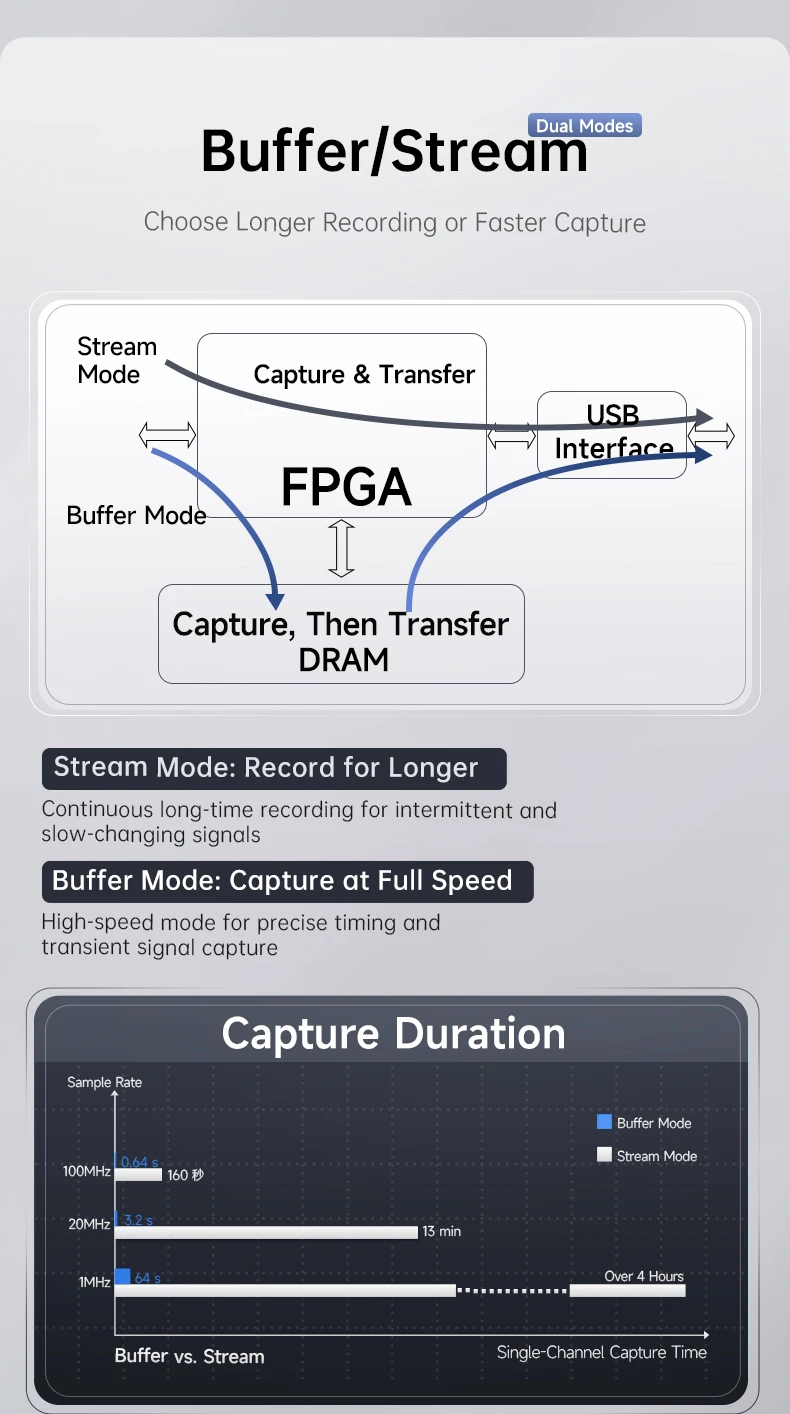

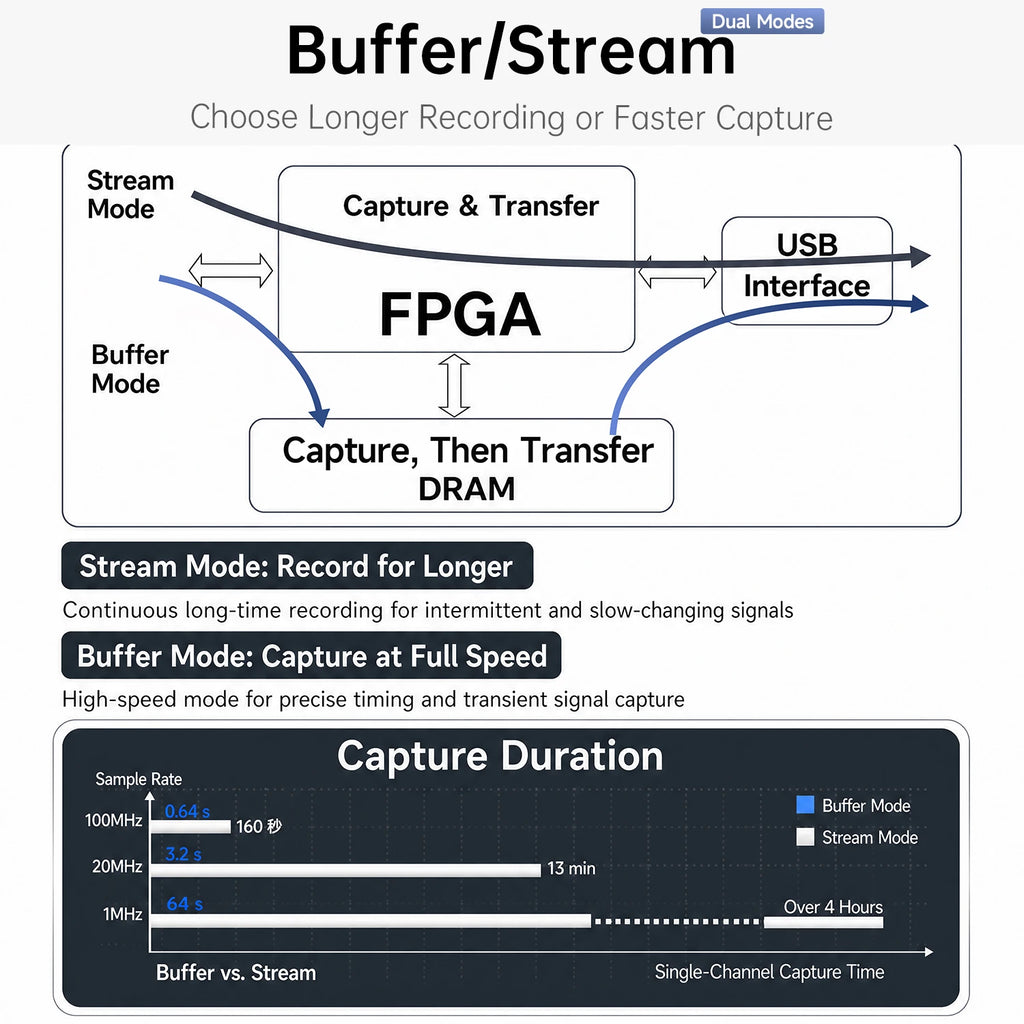

◉ Buffer / Stream / Roll Modes for Flexible Acquisition

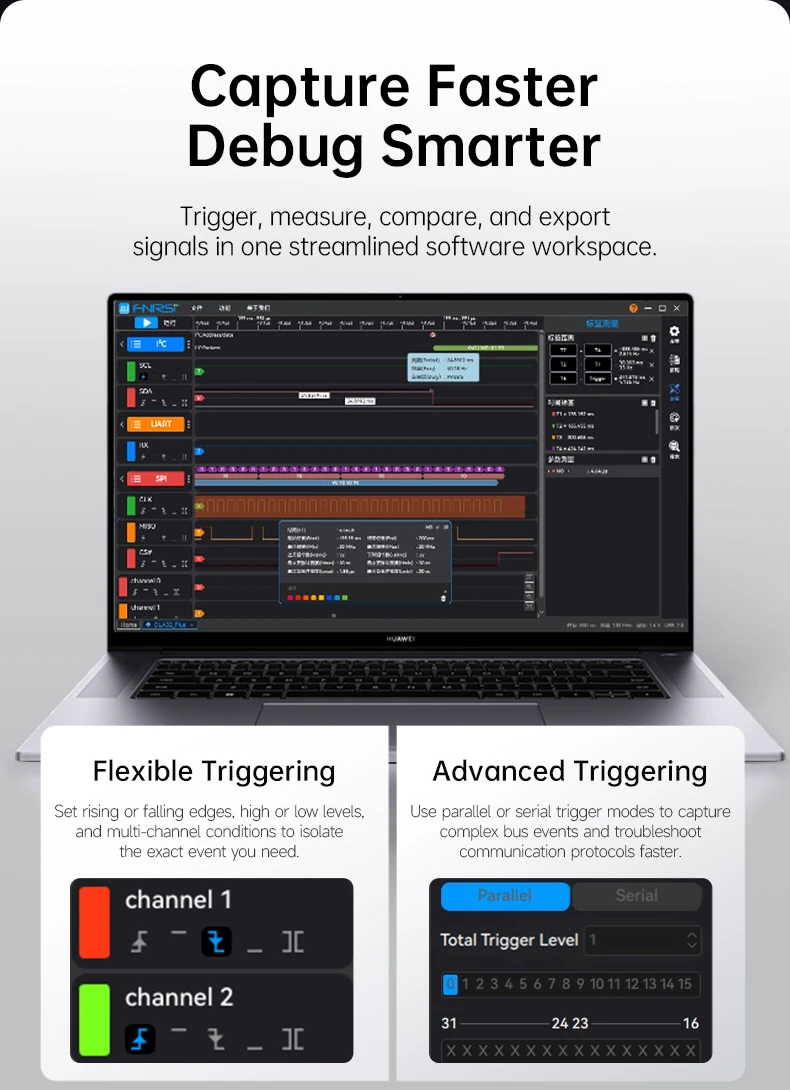

◉ Advanced Serial & Parallel Trigger Functions

◉ Product Type: USB Logic Analyzer

◉ Model: DLA-16 Plus / DLA-32 Plus

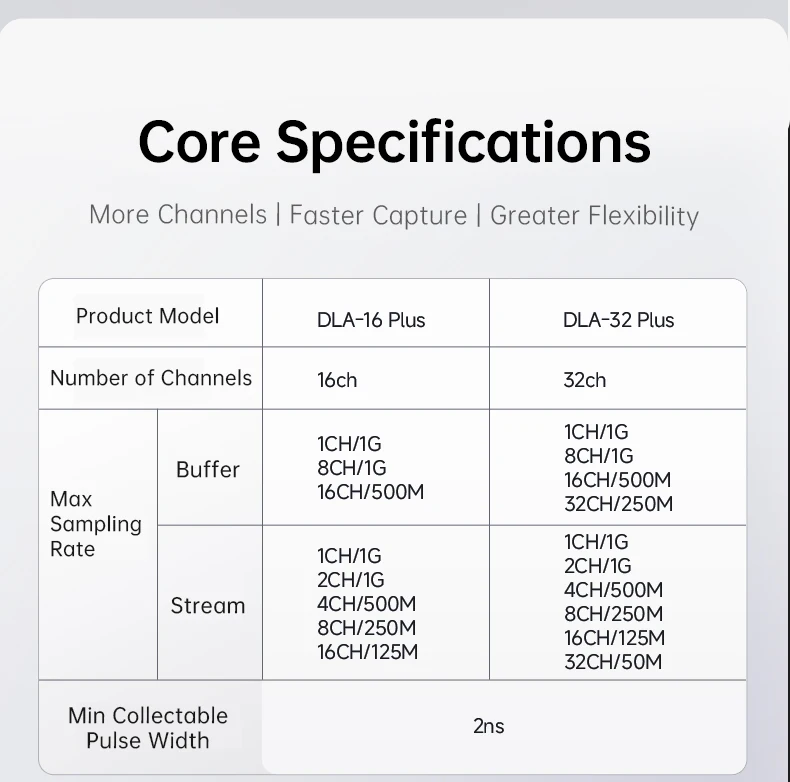

◉ Channels: 16CH / 32CH

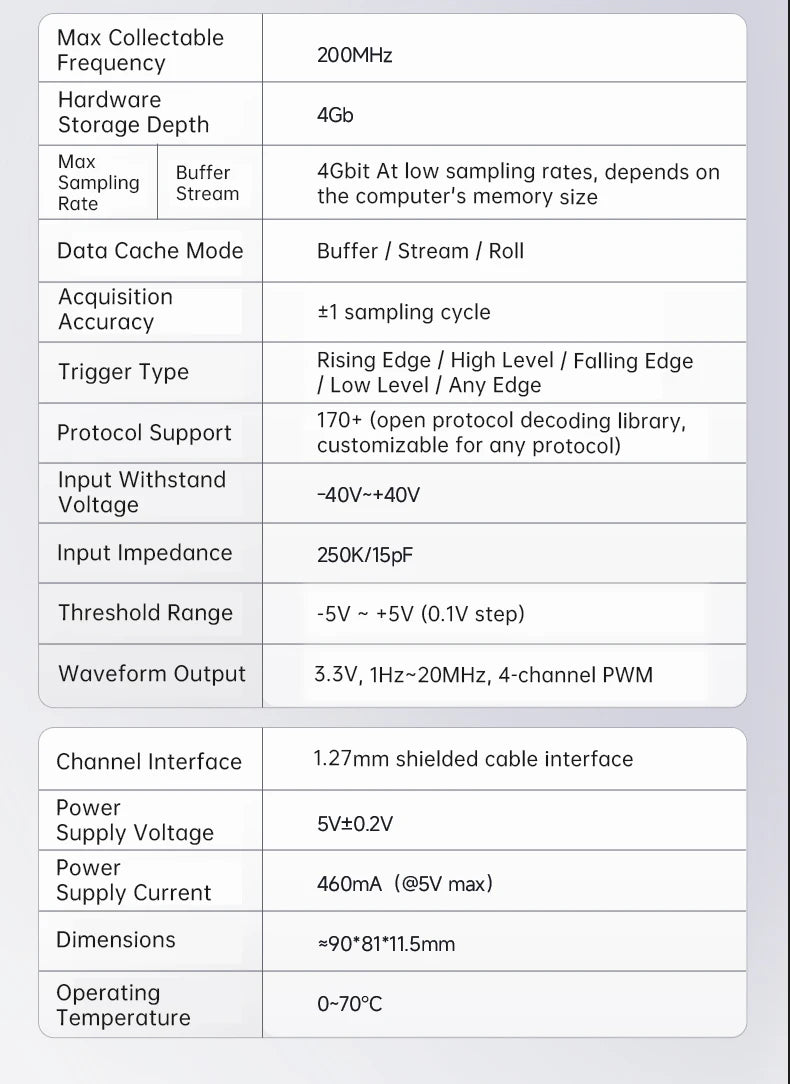

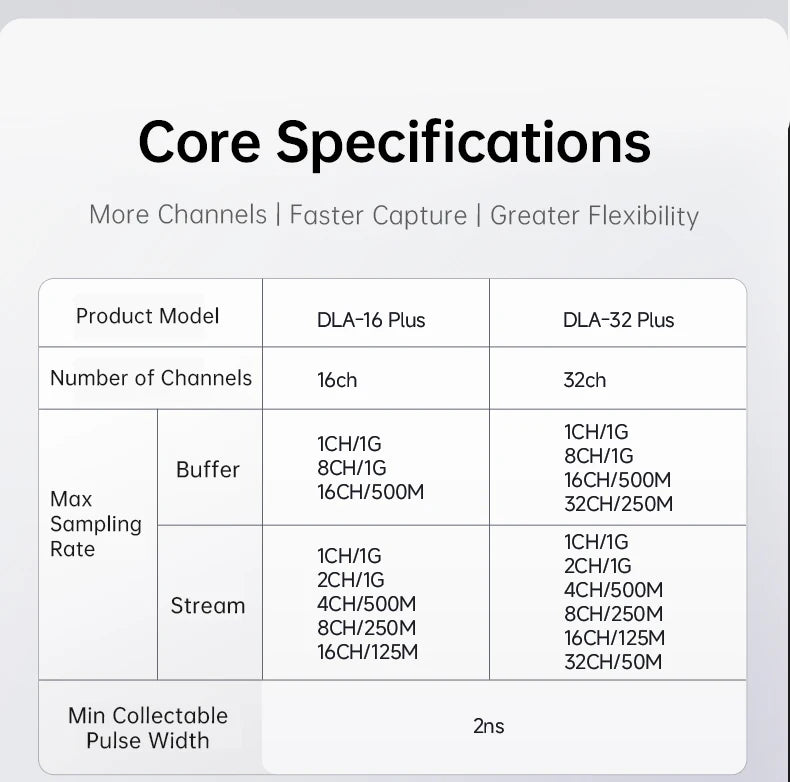

◉ Max Sampling Rate: Up to 1GHz

◉ Max Input Frequency: 200MHz

◉ Min Detectable Pulse Width: 2ns

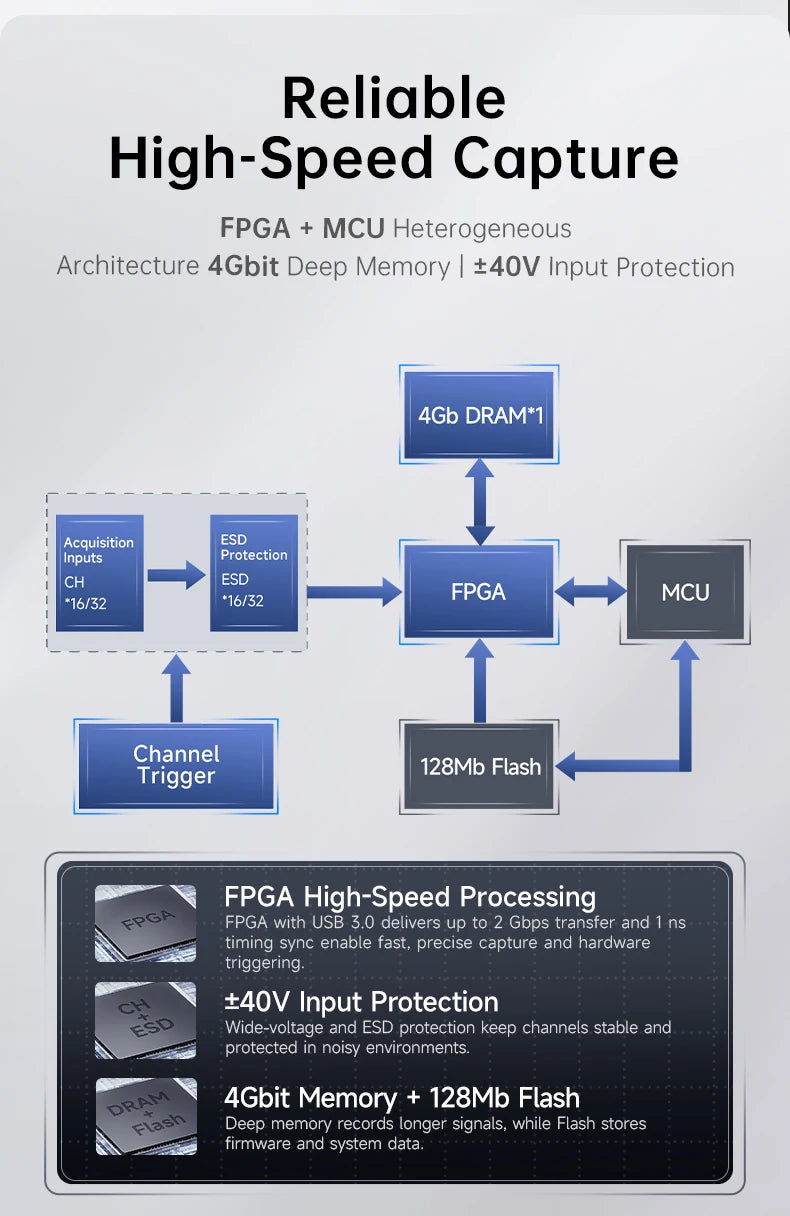

◉ Hardware Memory Depth: 4Gb

◉ Max Sampling Depth: Up to 4Gbit

◉ Acquisition Modes: Buffer / Stream / Roll

◉ Acquisition Resolution: ±1 Sample Period

◉ Protocol Support: 120+ Protocols, Custom Protocol Supported

◉ Trigger Types: Rising Edge / Falling Edge / High Level / Low Level / Any Edge

◉ Input Voltage Rating: -40V to +40V

◉ Input Impedance: 250KΩ / 15pF

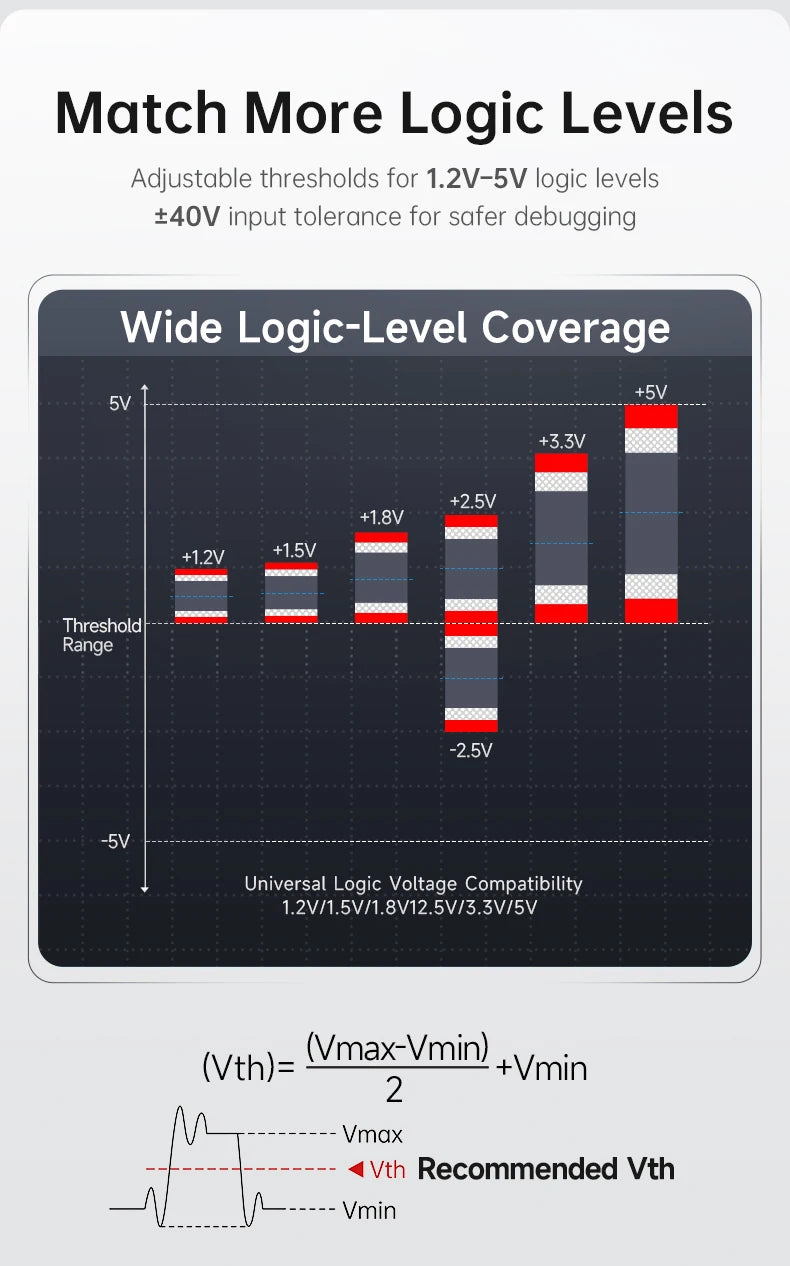

◉ Threshold Voltage Range: -5V to +5V, Adjustable in 0.1V Steps

◉ Waveform Output: 3.3V, 1Hz–20MHz, 4-Channel PWM

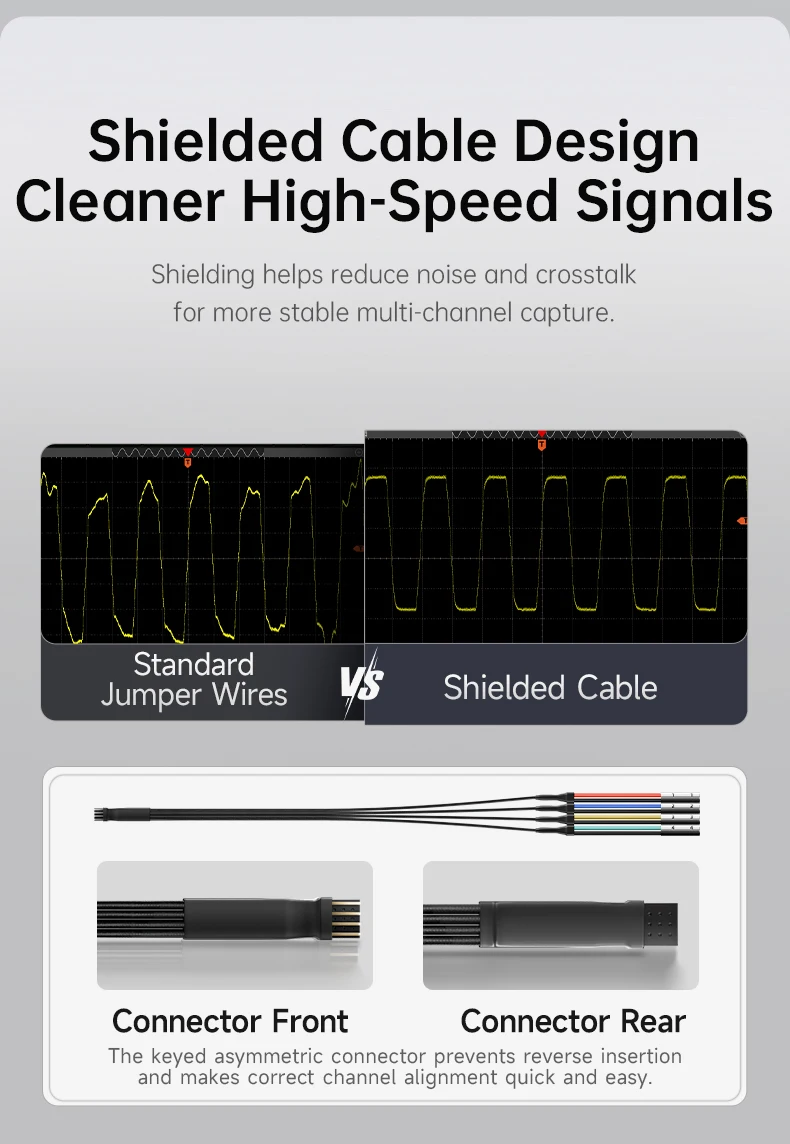

◉ Channel Interface: 1.27mm Shielded Cable Connector

◉ PC Connection: USB Type-C, USB 3.0 Port Recommended

◉ Supply Voltage: 5V ±0.2V

◉ Supply Current: 460mA Max @ 5V

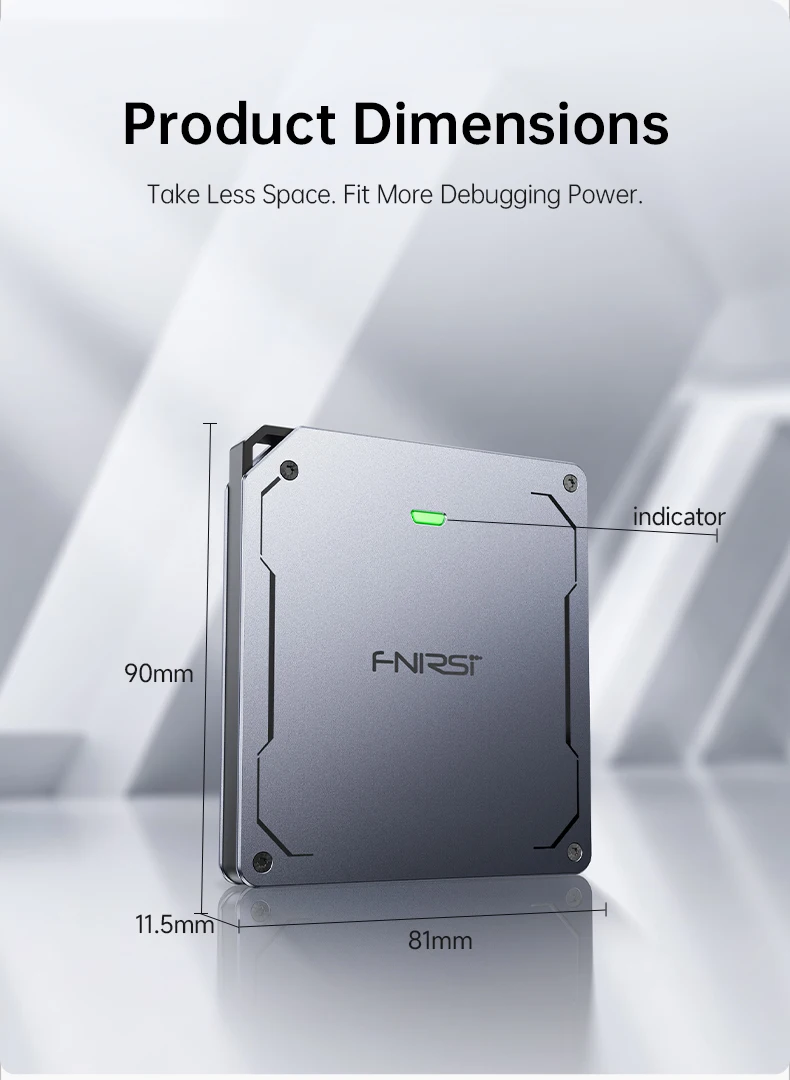

◉ Dimensions: Approx. 90 × 81 × 11.5mm

◉ Operating Temperature: 0–70°C

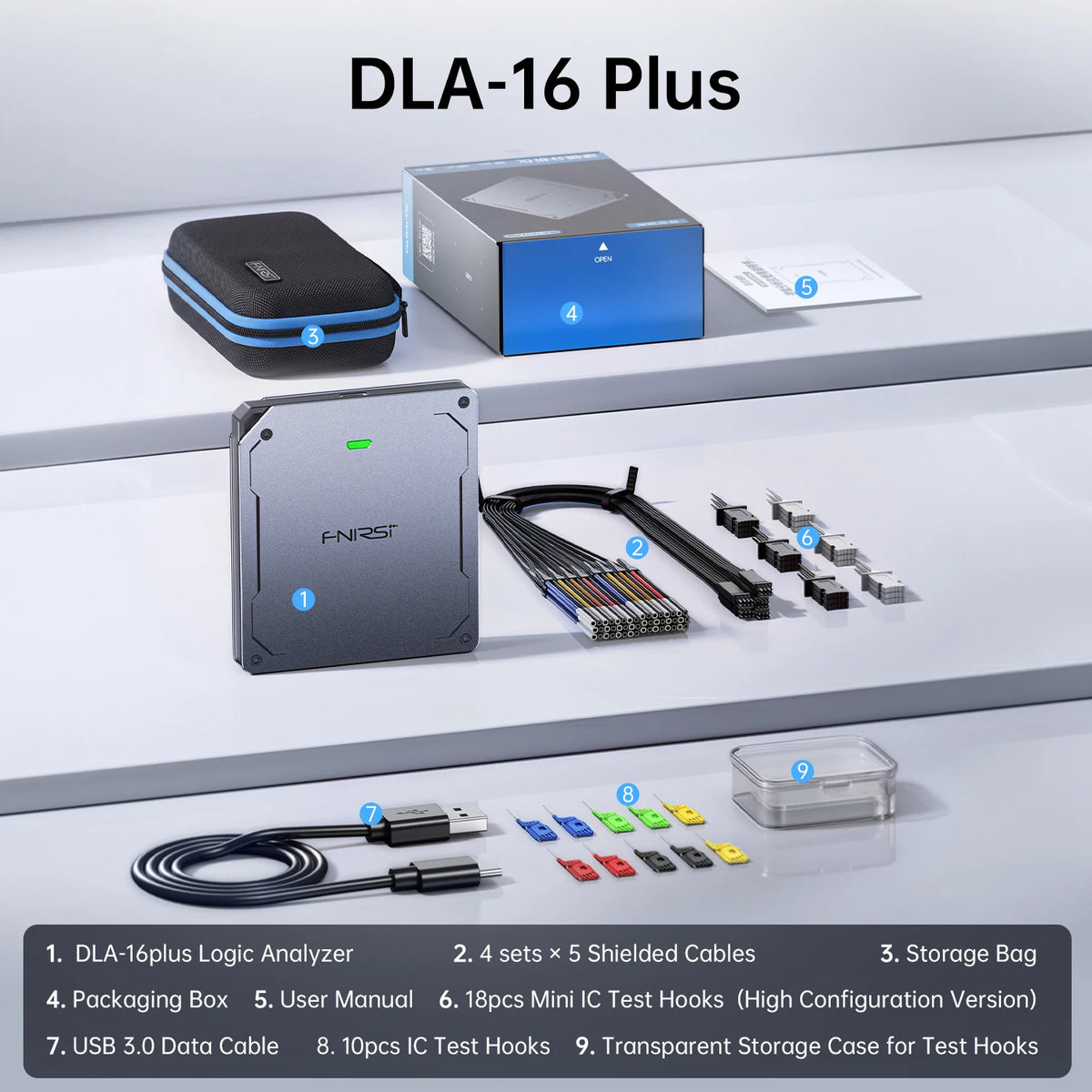

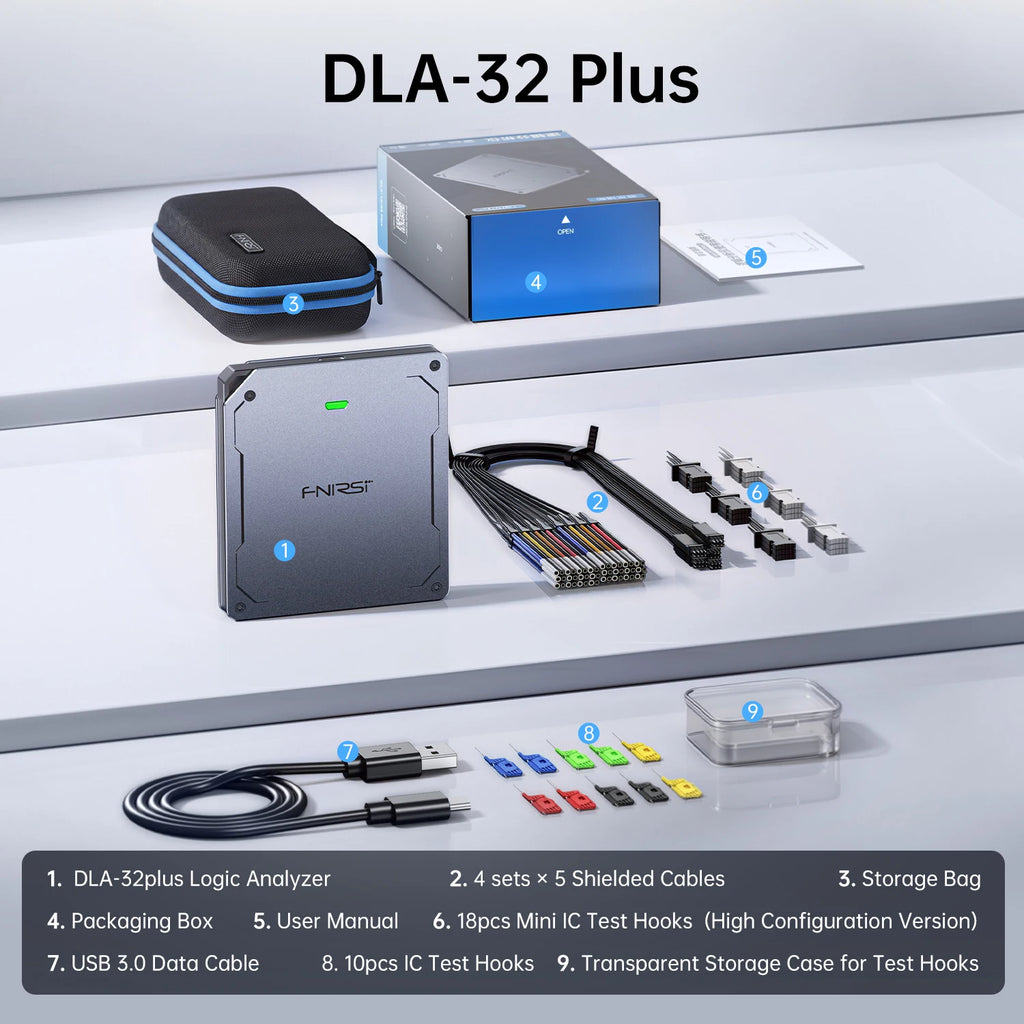

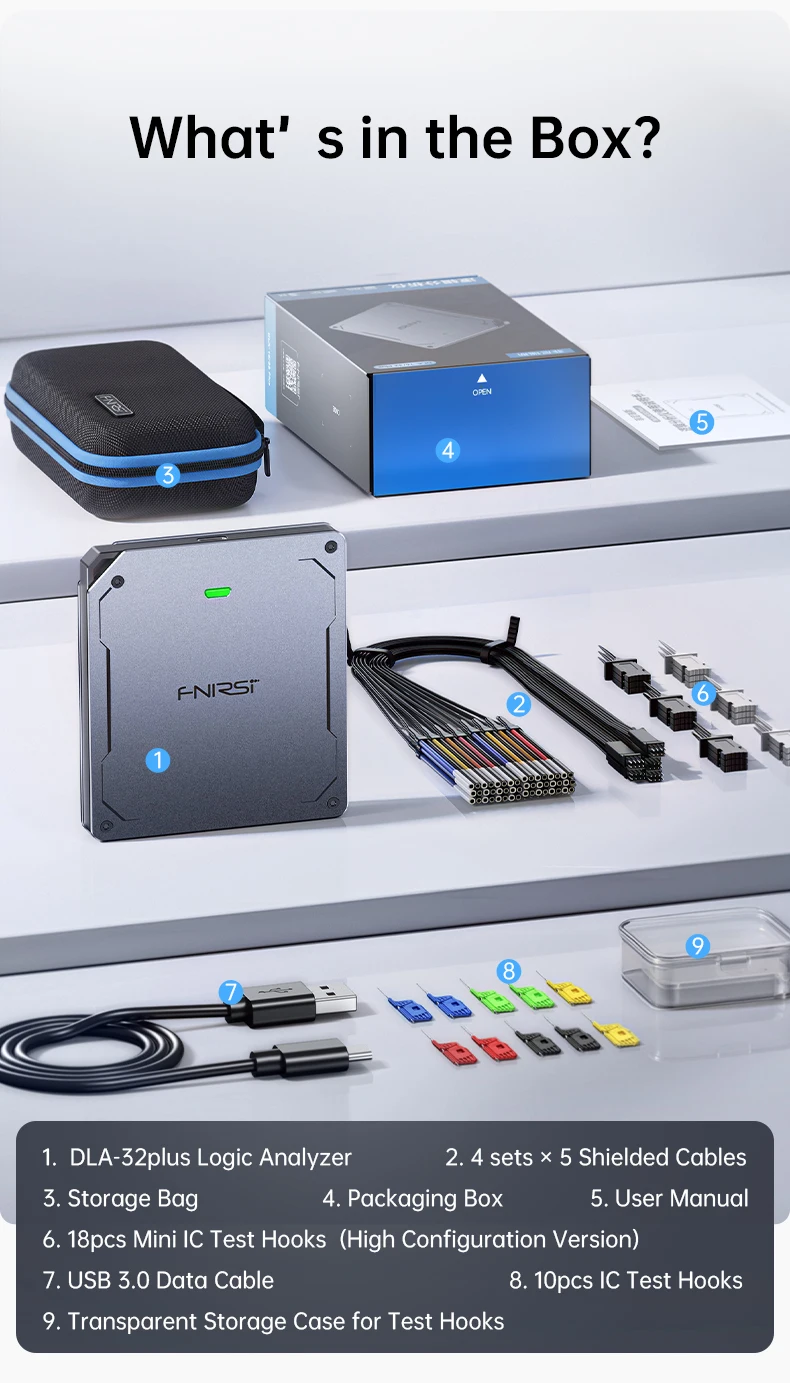

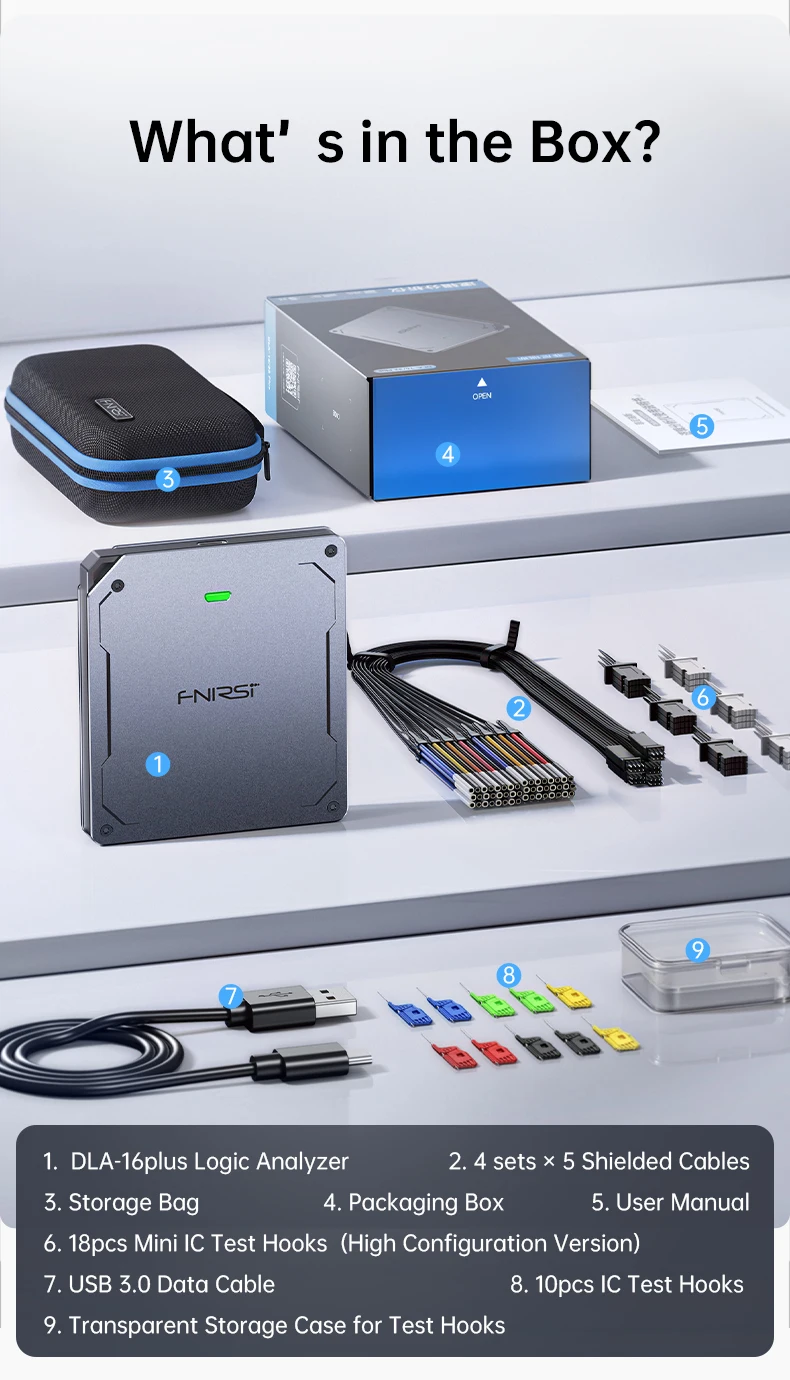

DLA-16 Plus / DLA-32 Plus Package List

◉ Up to 32CH / 1GHz High-Speed Sampling

◉ USB 3.0 Up to 5Gbps High-Speed Data Transfer

◉ 4Gbit Hardware Memory for High-Speed Buffer Capture

◉ 170+ Protocol Decoders with Custom Protocol Support

◉ 4-Channel PWM Output, 3.3V, 1Hz–20MHz

◉ Buffer / Stream / Roll Modes for Flexible Acquisition

◉ Advanced Serial & Parallel Trigger Functions
