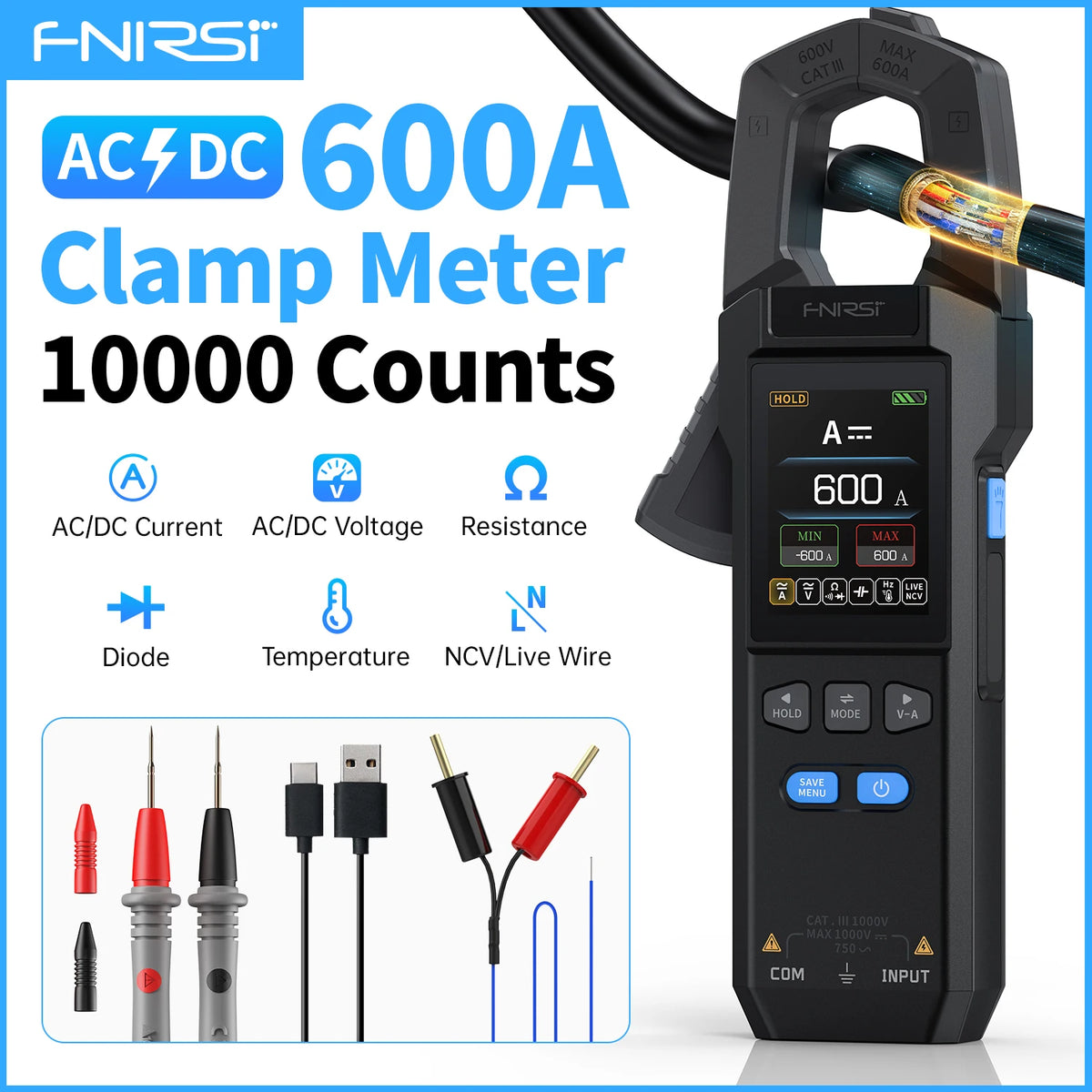

FNIRSI DMC-100 10000 Counts DC AC Current USB rechargeable Clamp Meter Digital Multimeter 600A Amperimetric Clamp NCV Meter Tool
DMC -100 / Mexico
$138.20
Sale price
$138.20
Regular price
$0.00
Skip to product information
FNIRSI DMC-100 10000 Counts DC AC Current USB rechargeable Clamp Meter Digital Multimeter 600A Amperimetric Clamp NCV Meter Tool
$138.20
Sale price
$138.20
Regular price
$0.00
Description
SPECIFICATIONS
AC Current: 600.0A
AC Voltage: 750.0V
Battery Included: Yes
Brand Name: FNIRSI
DC Current: 600.0A
DC Voltage: 999.9V
DIY Supplies: Electrical
Display Type: Digital Display
FNIRSI Model: DMC-100
High-concerned chemical: none
Measuring Capacitance Range: 9.999mF
Measuring Resistance Range: 99.99MΩ
Model Number: DMC-100
Operating Mode: Auto Range
Origin: Mainland China
Semi-finishedproduct: No

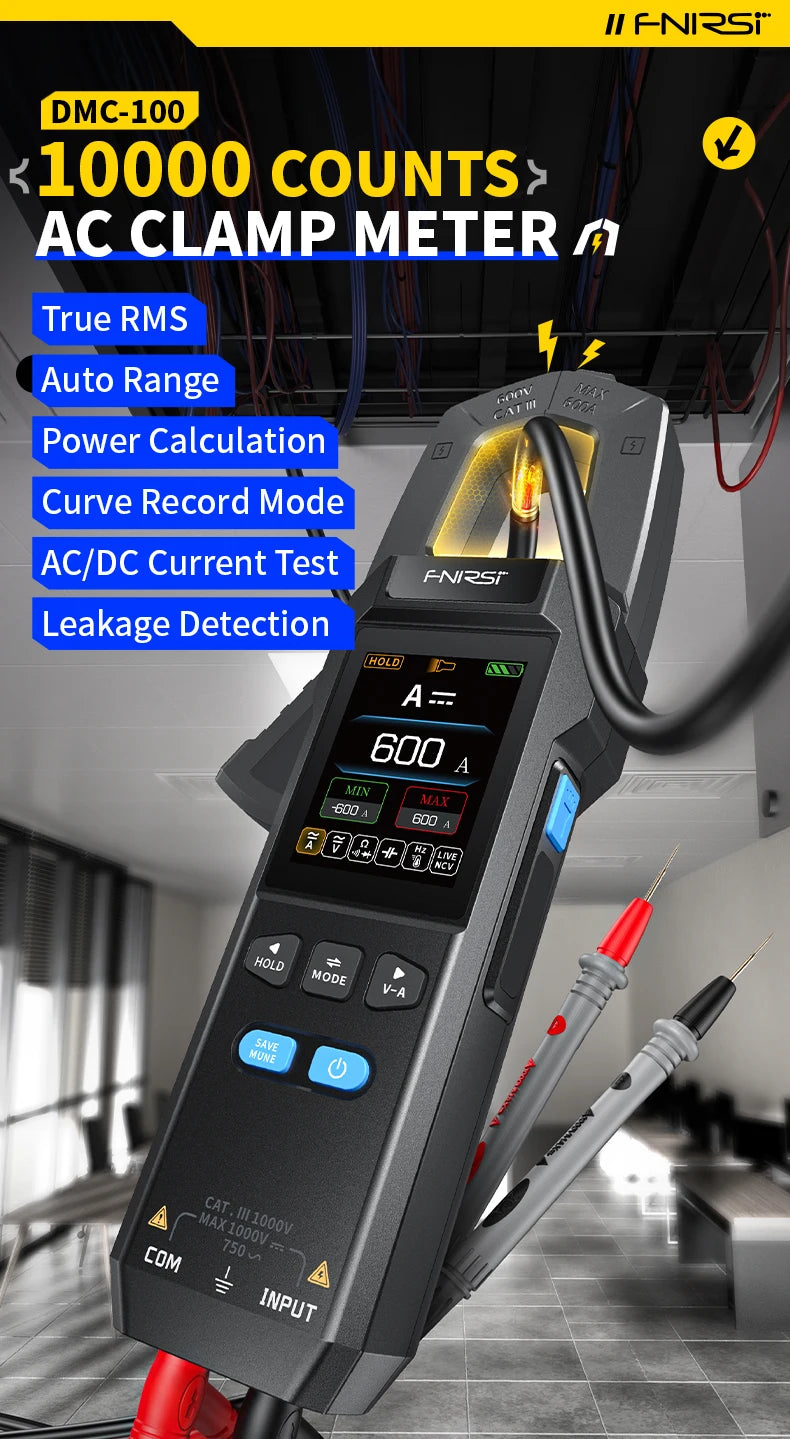

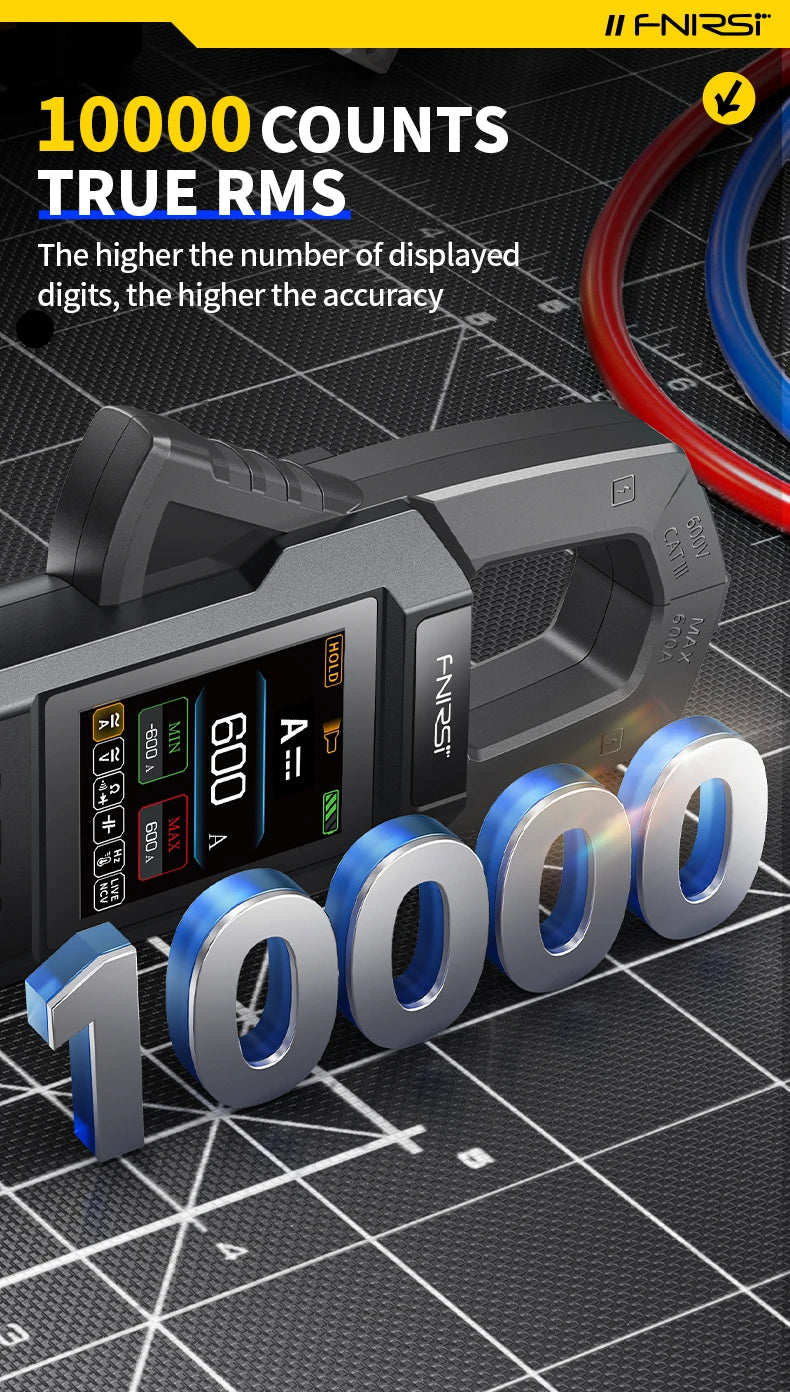

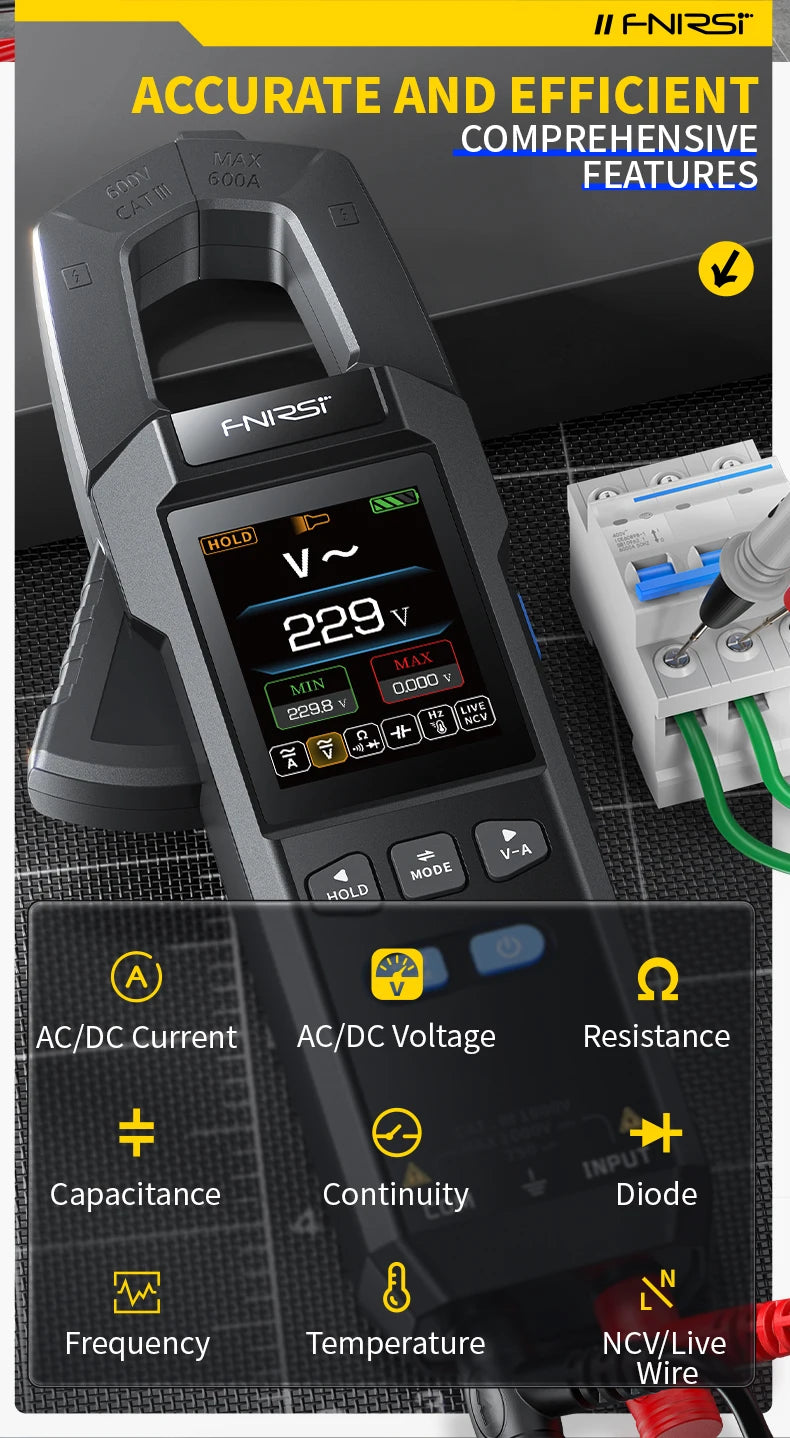

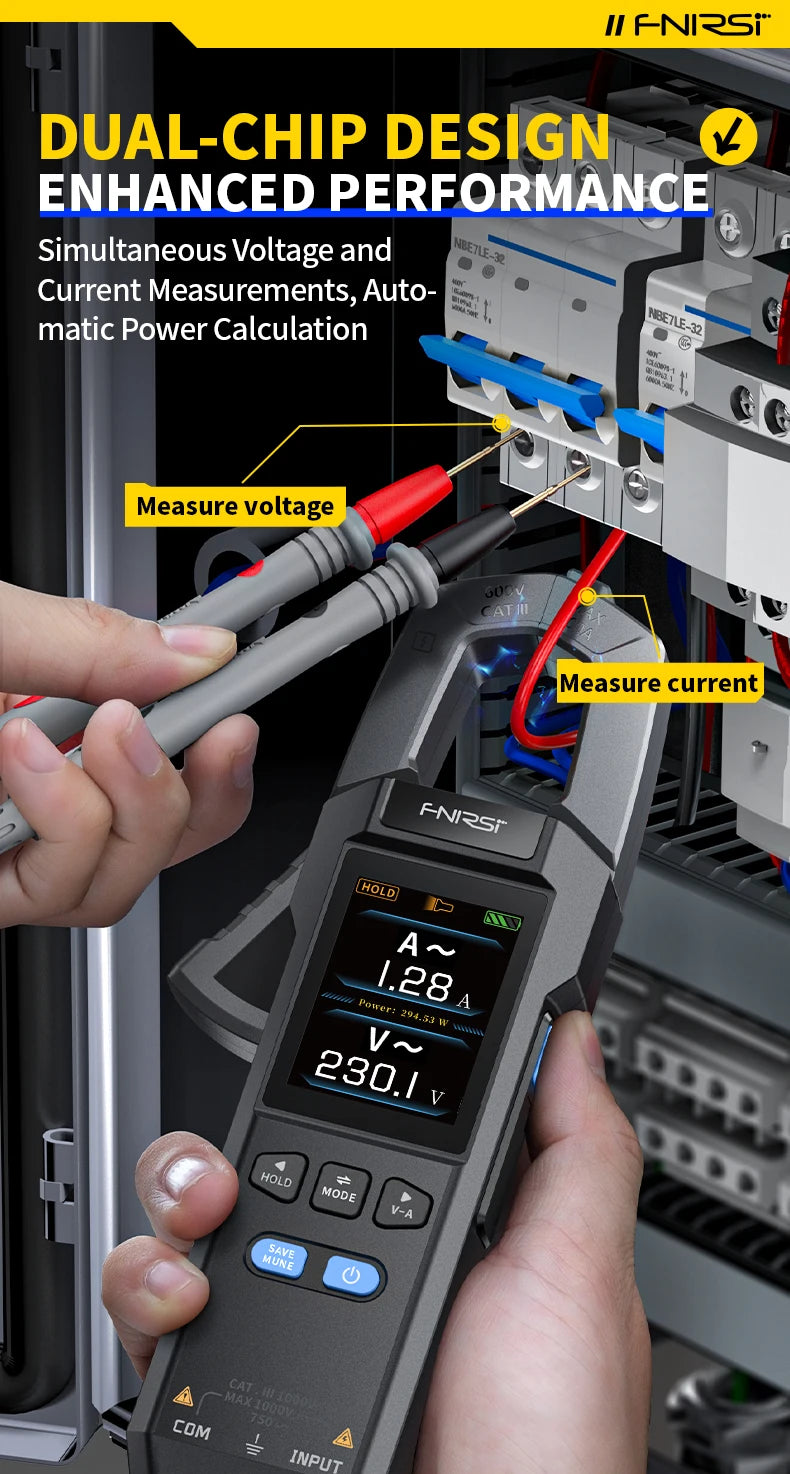

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle. Equipped with a 2.0-inch 240 * 320 full-color TFT screen, the new UI and data curve intuitive presentation, so that readings at a glance. Routine measurement, waveform display, power measurement of the three modes of switching at will, with 3.7V 1500mAh long-lasting battery, lasting battery life. NCV non-contact power measurement, zero fire line identification, temperature -55 ~ 1300 ℃ wide range of measurement and other powerful features, supplemented by flashlight, screen backlight, data saving and other thoughtful design, Type-C interface to achieve charging and data transmission double convenient. Intelligent automatic shutdown, temperature unit free switching, brightness adjustable, firmware upgradeable, DMC-100, your indispensable electronic maintenance all-round assistant!

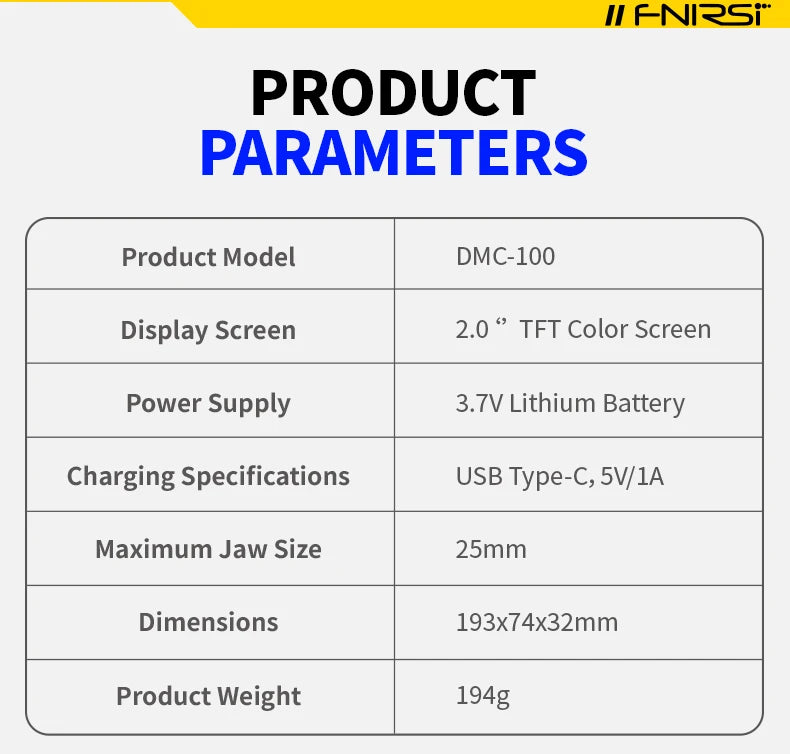

Main Specifications of the Device
Model：DMC-100 clamp multimeter

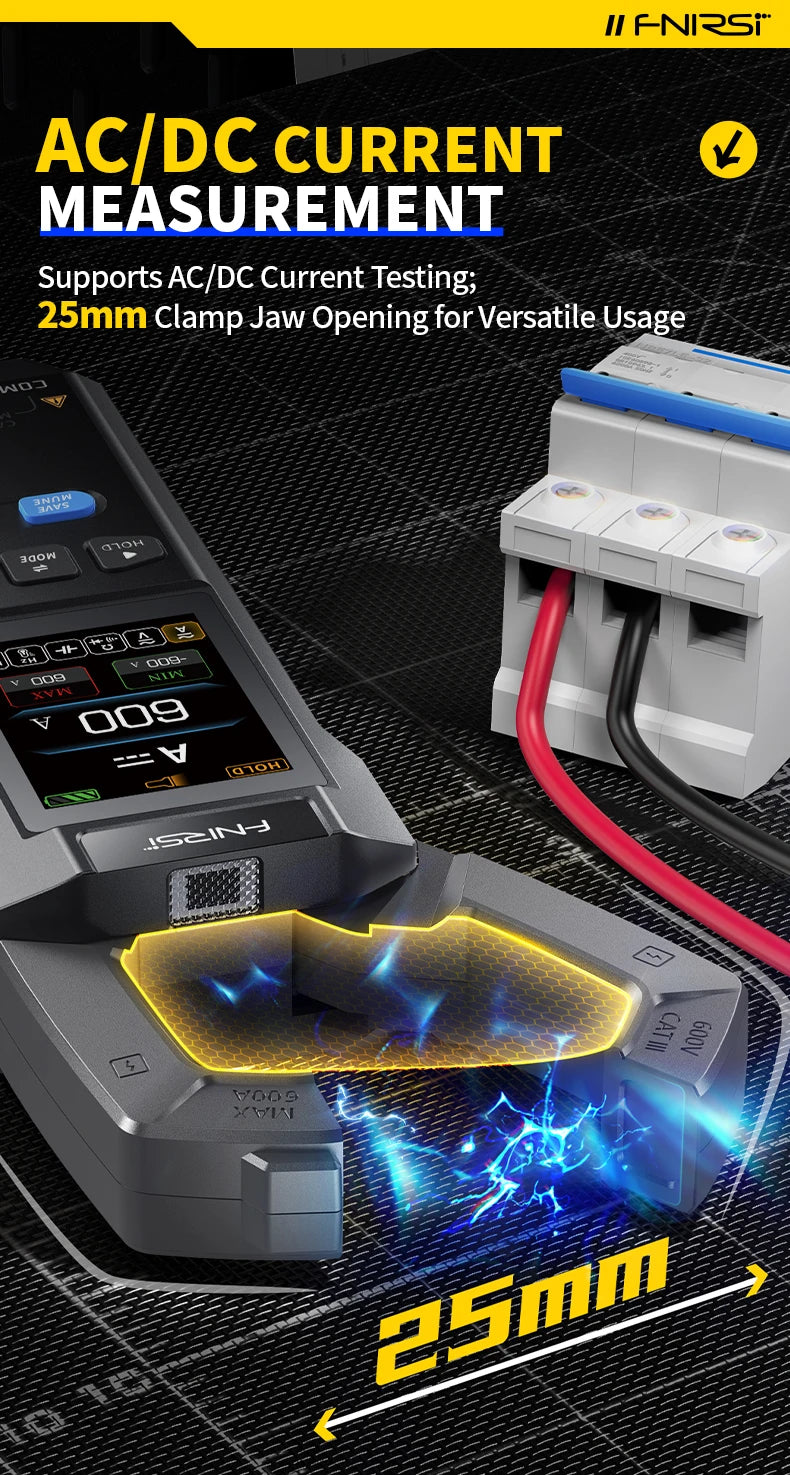

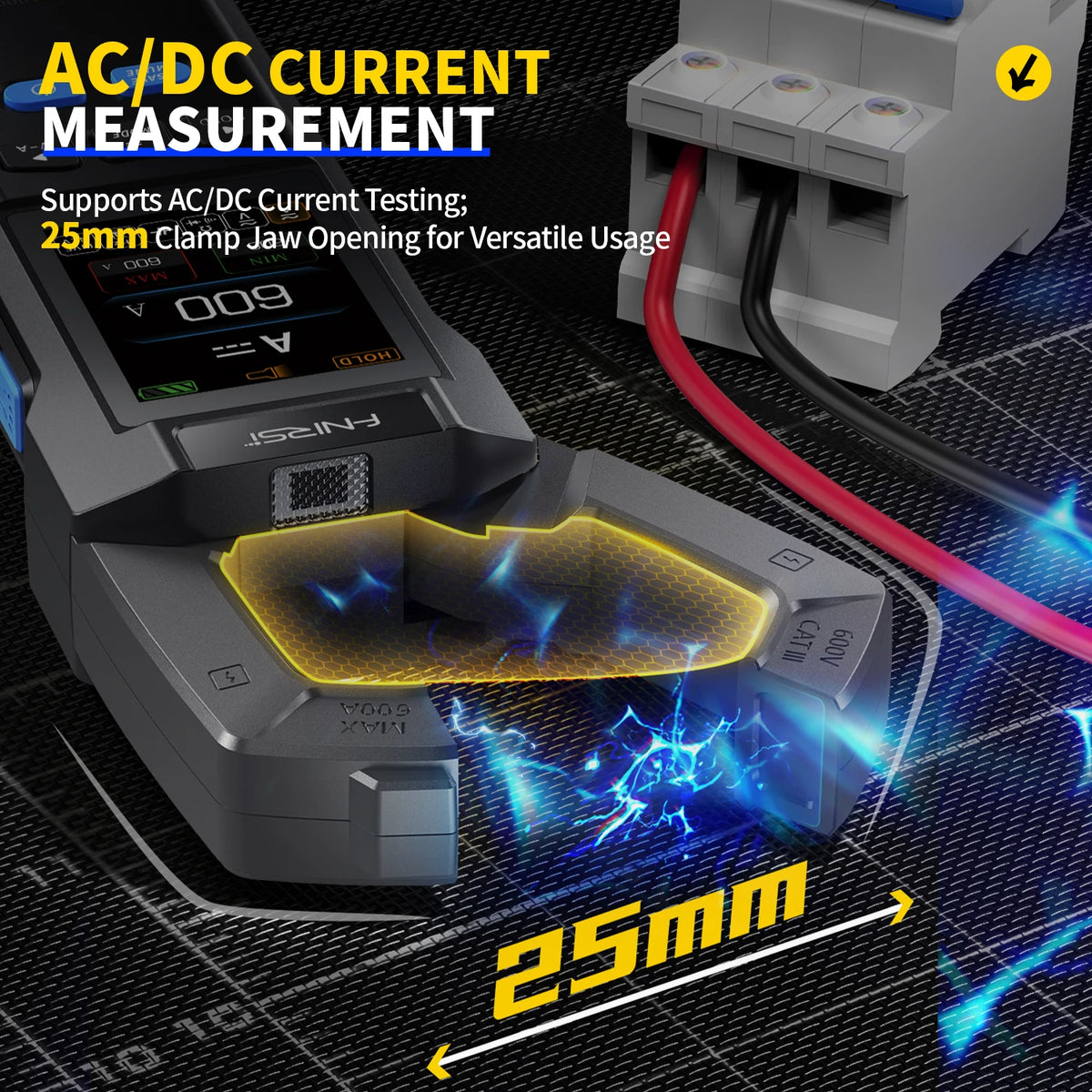

Maximum size of jaws: 25mm

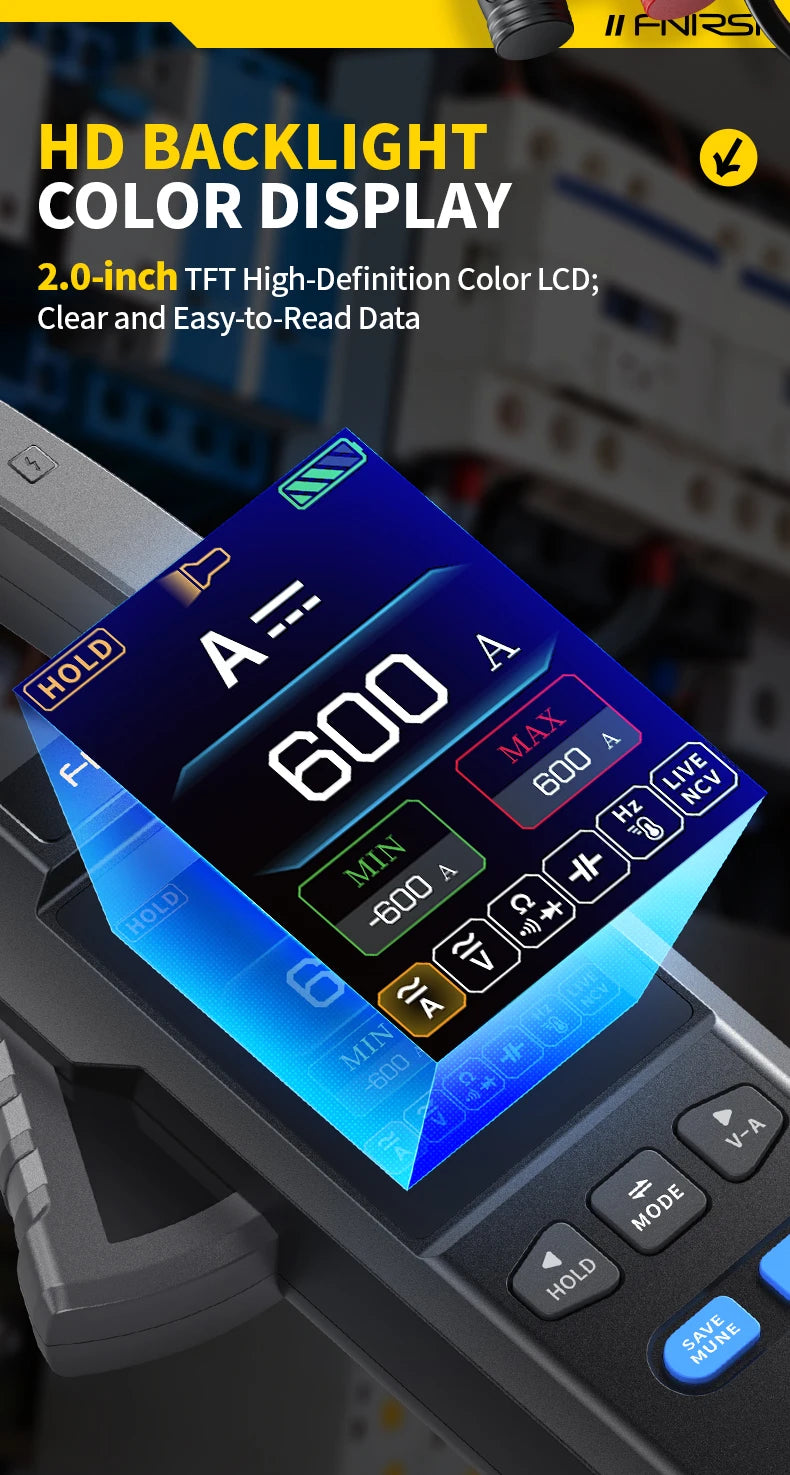

Screen: 2.0'' TFT color screen
Screen resolution：240*320 pixels

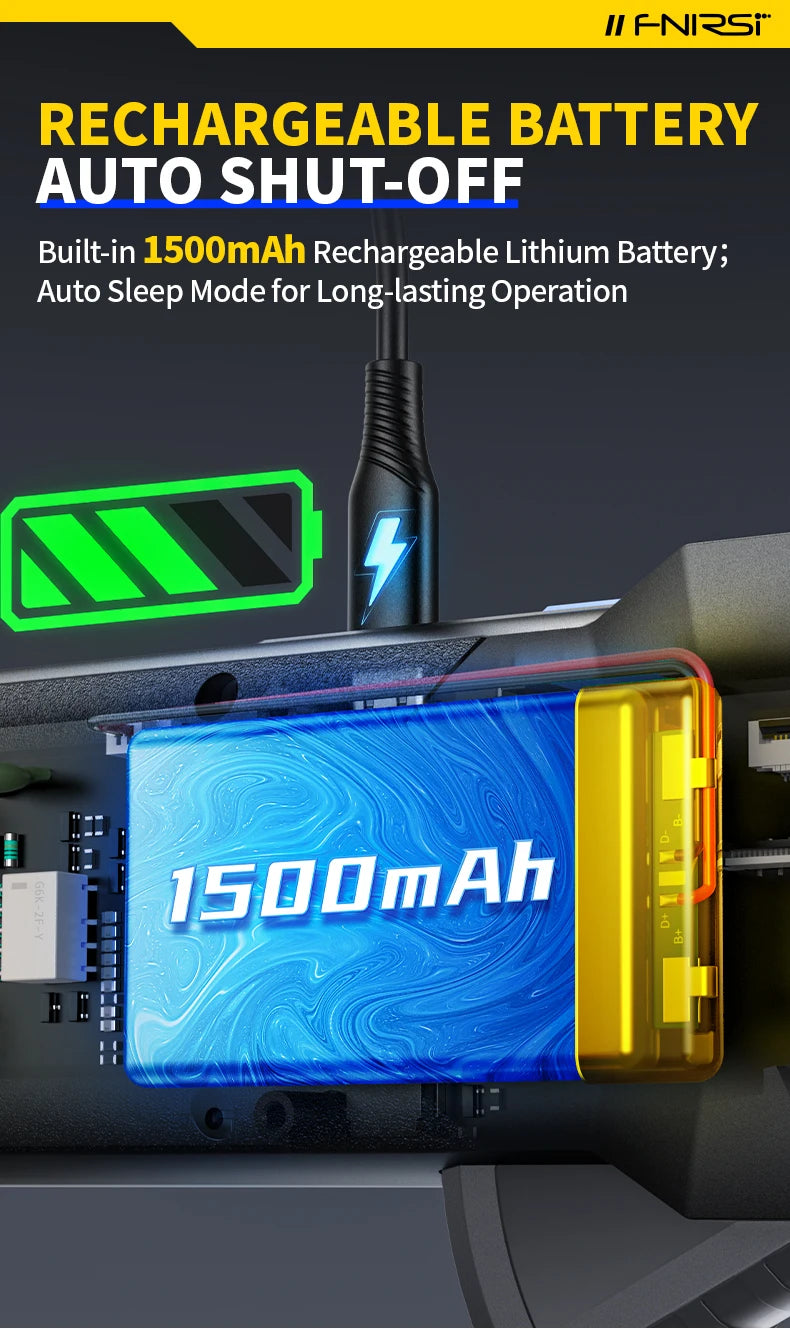

Battery capacity: 3.7V, 1500mAh battery
Charging specification: USBType-C, 5V/1A
Product weight: 194g
Product size: 193x74x32mm

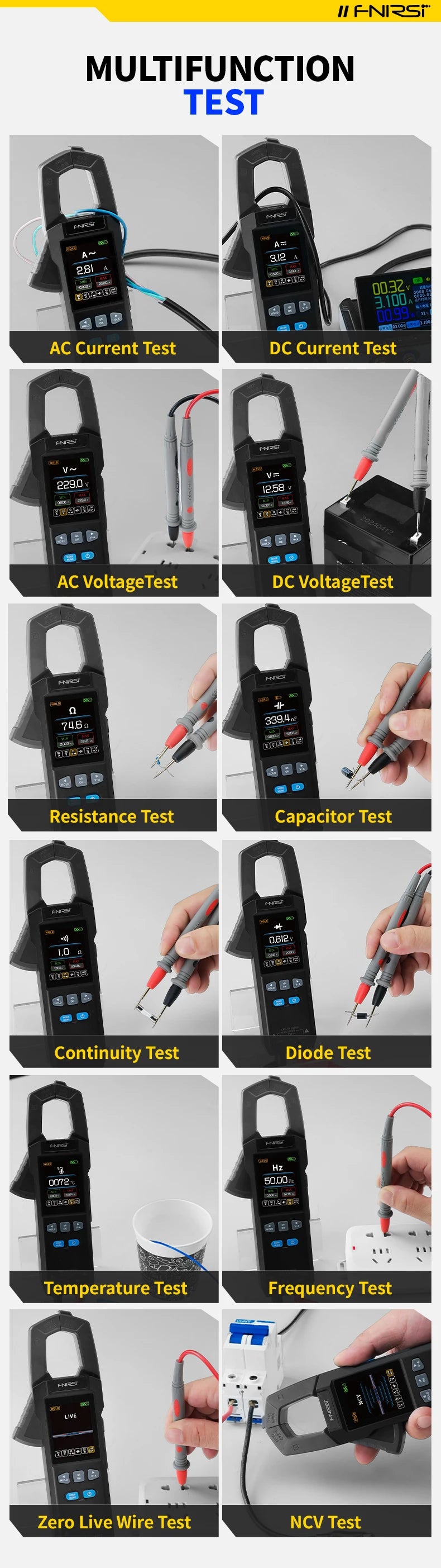

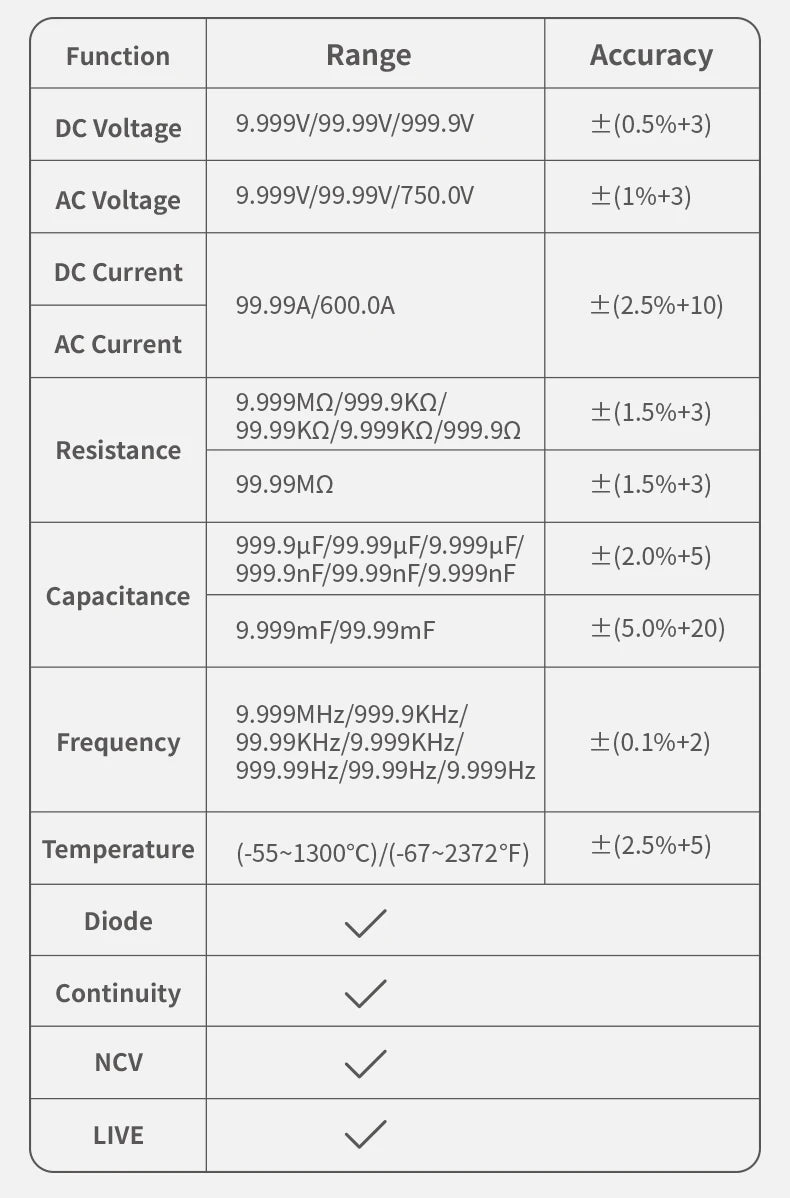

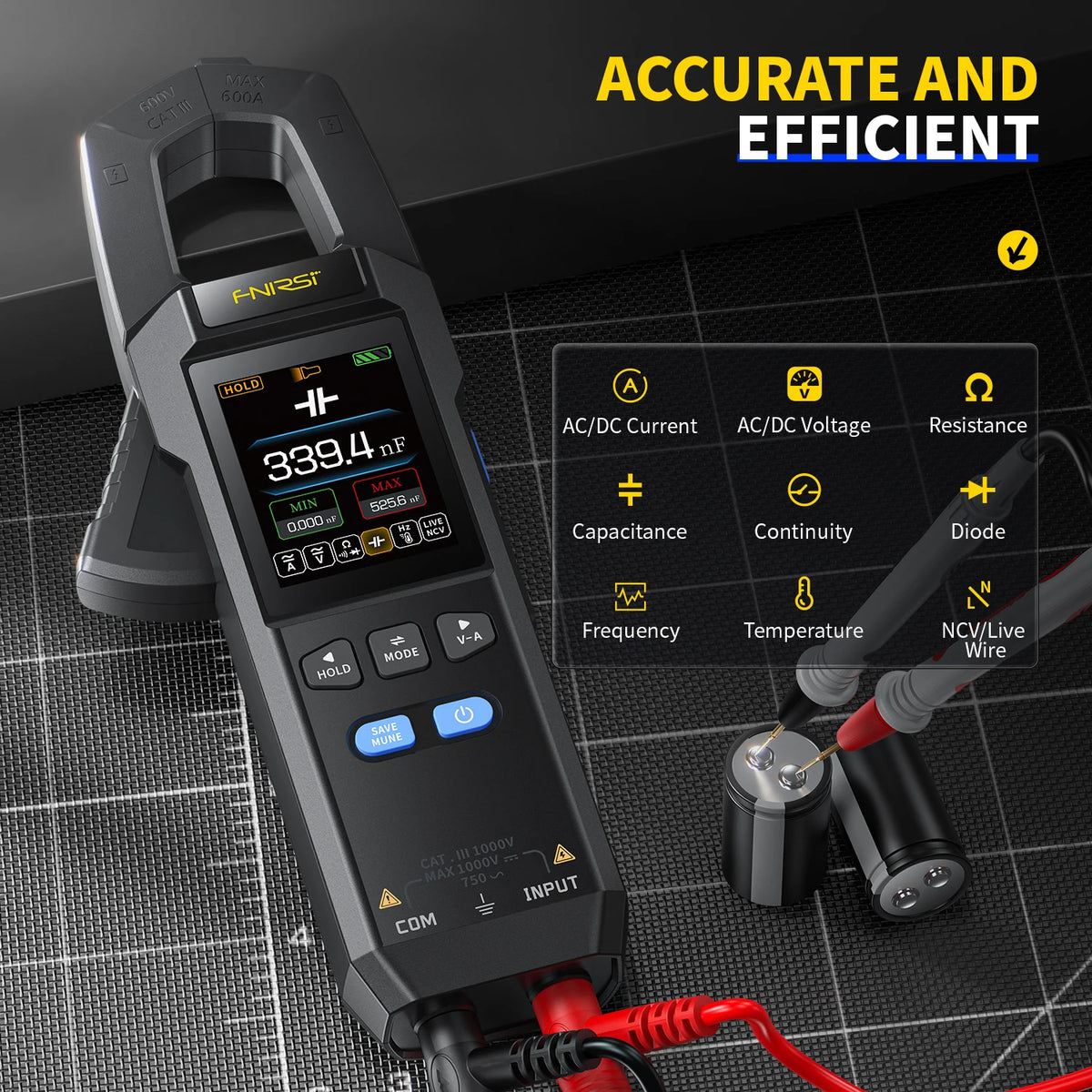

Measurement parameters
DC voltage: 9.999V/99.99V/999.9V
AC voltage: 9.999V/99.99V/750.0V
DC current/AC current: 99.99A/600.0A
Resistance: 99.99MΩ/9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.9Ω
Capacitance: 9.999mF/99.99mF/999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF
Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz
Temperature: -55~1300℃/-67~2372℉
Diode Measurement: √
On-off test: √

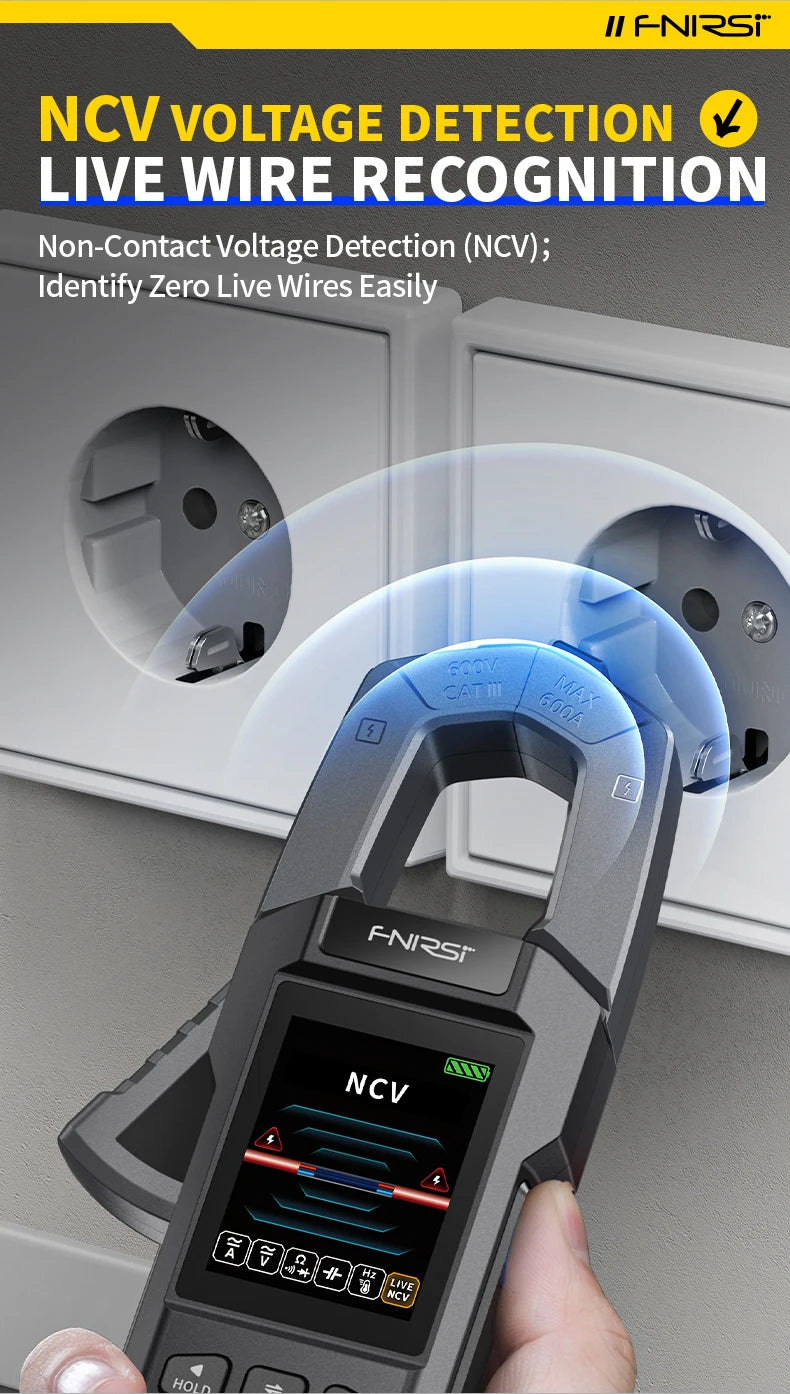

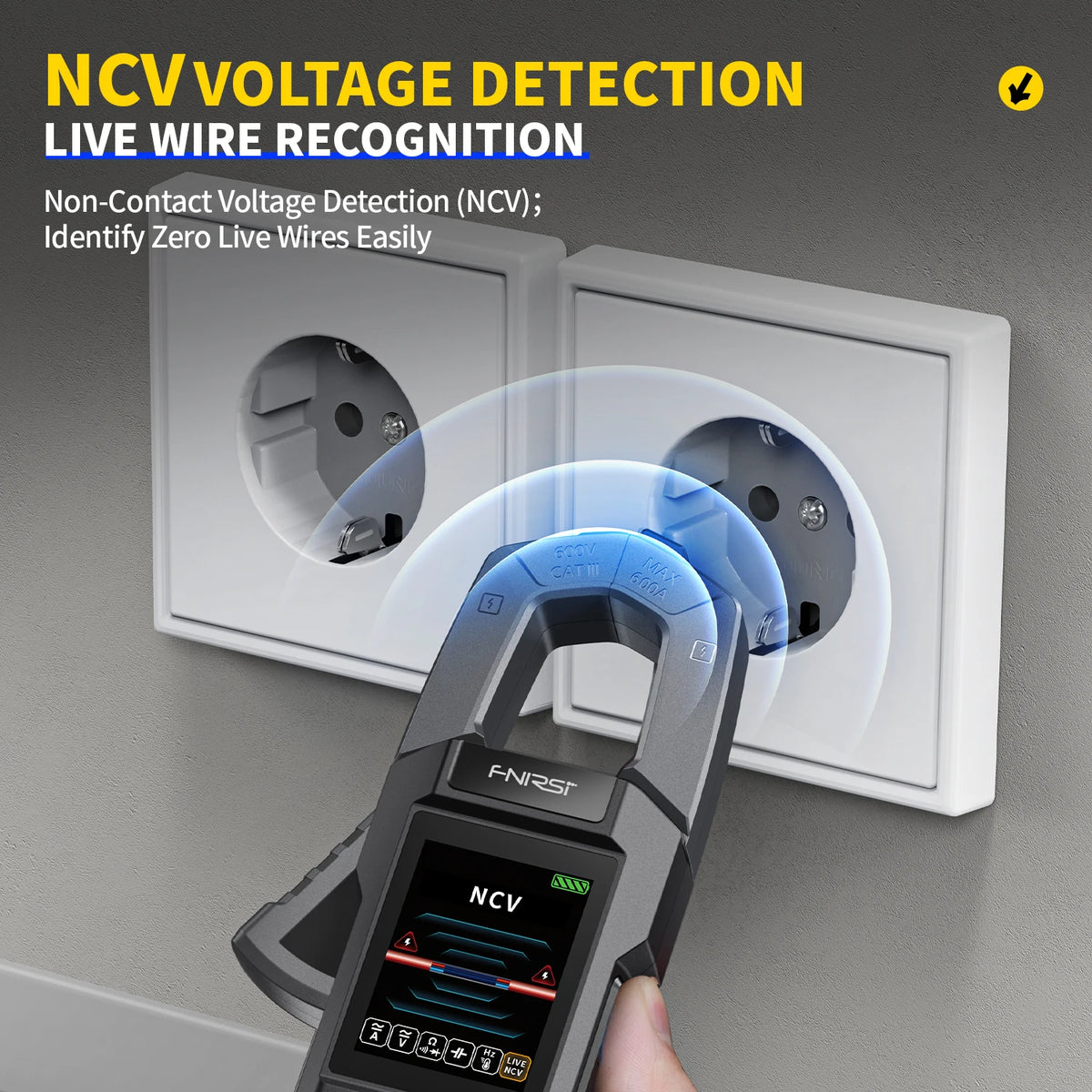

Non-Contact Voltage Check (NCV): √
Zero Fire Wire Check: √
Other Functions
Measuring Mode 1: general measurement

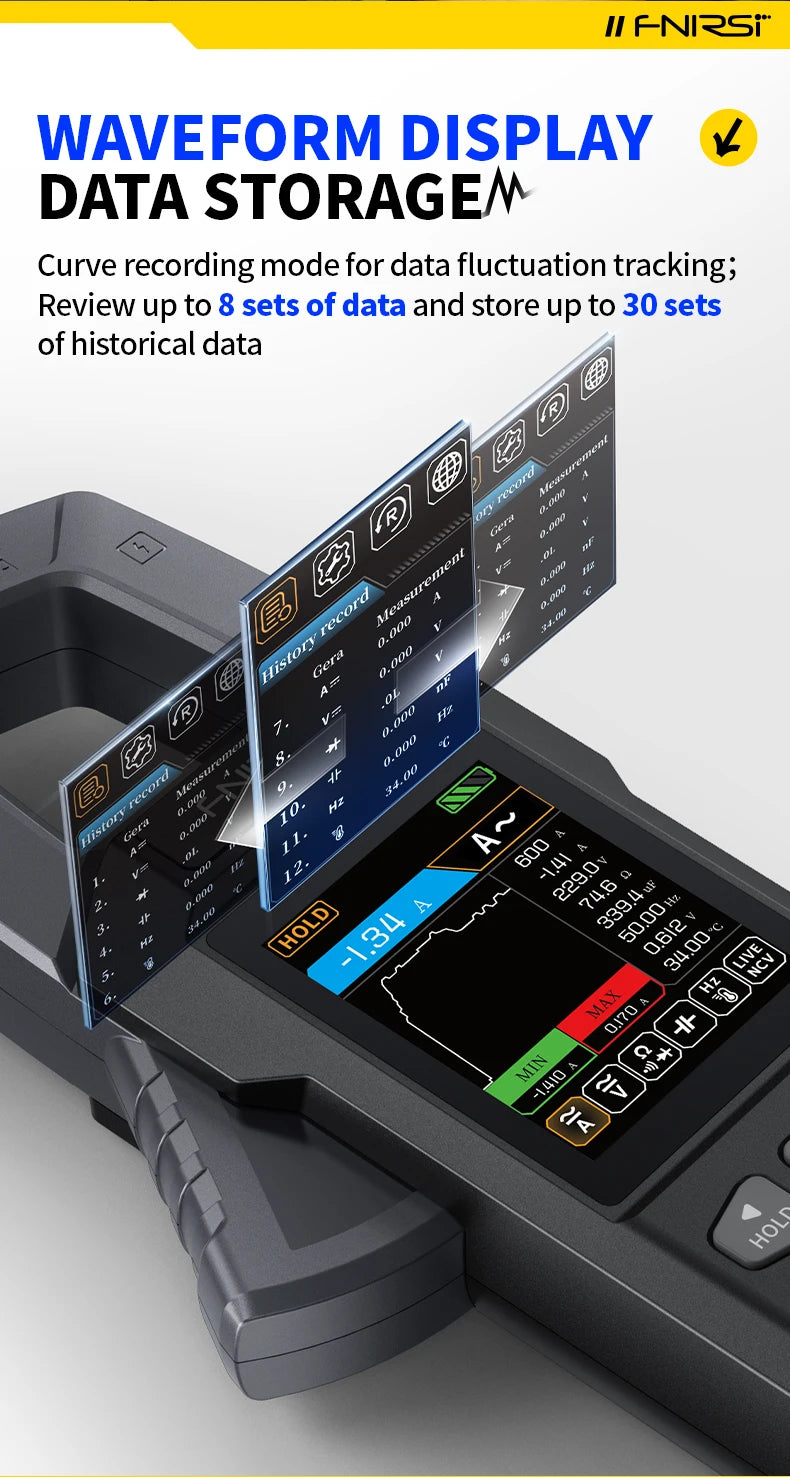

Measuring Mode 2: waveform display

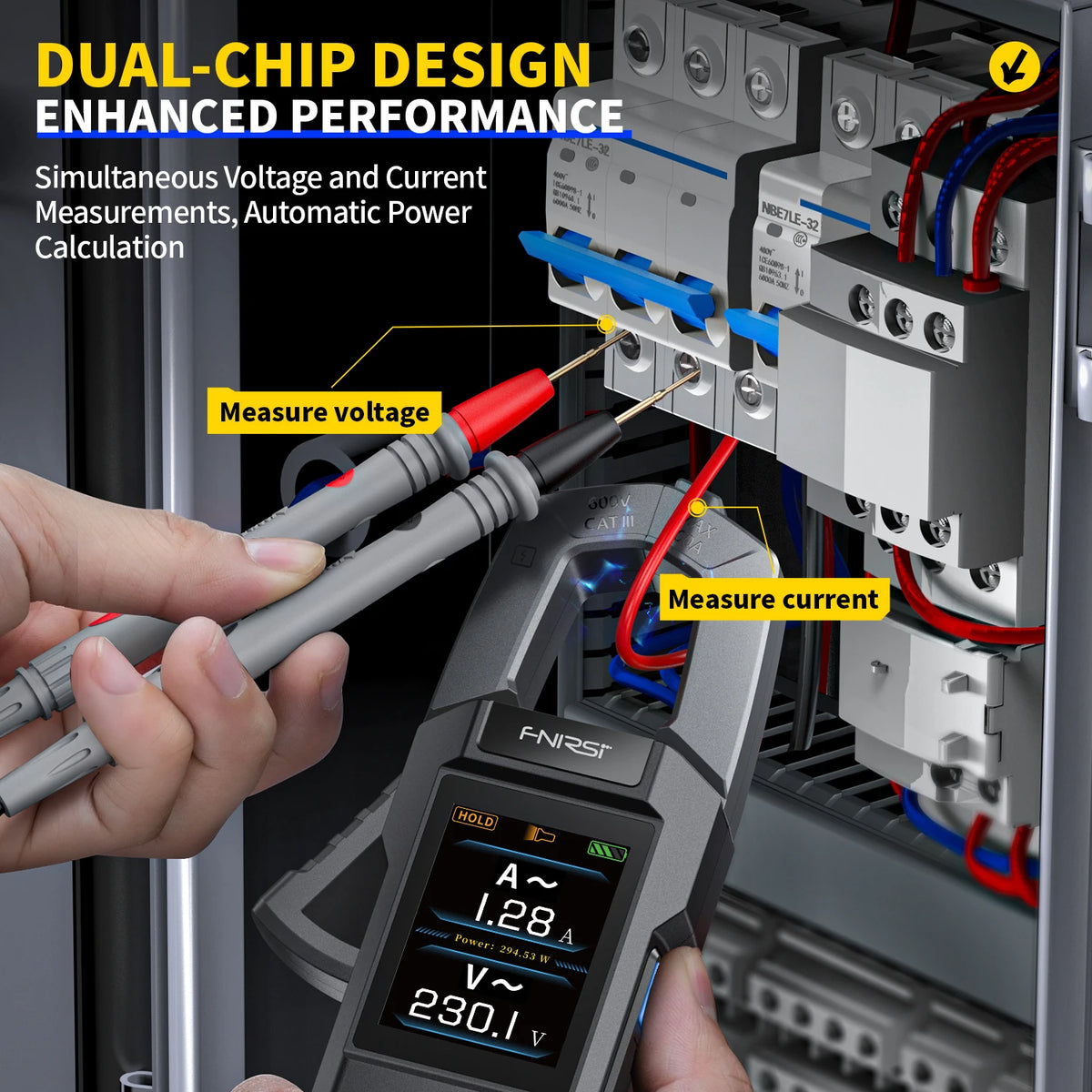

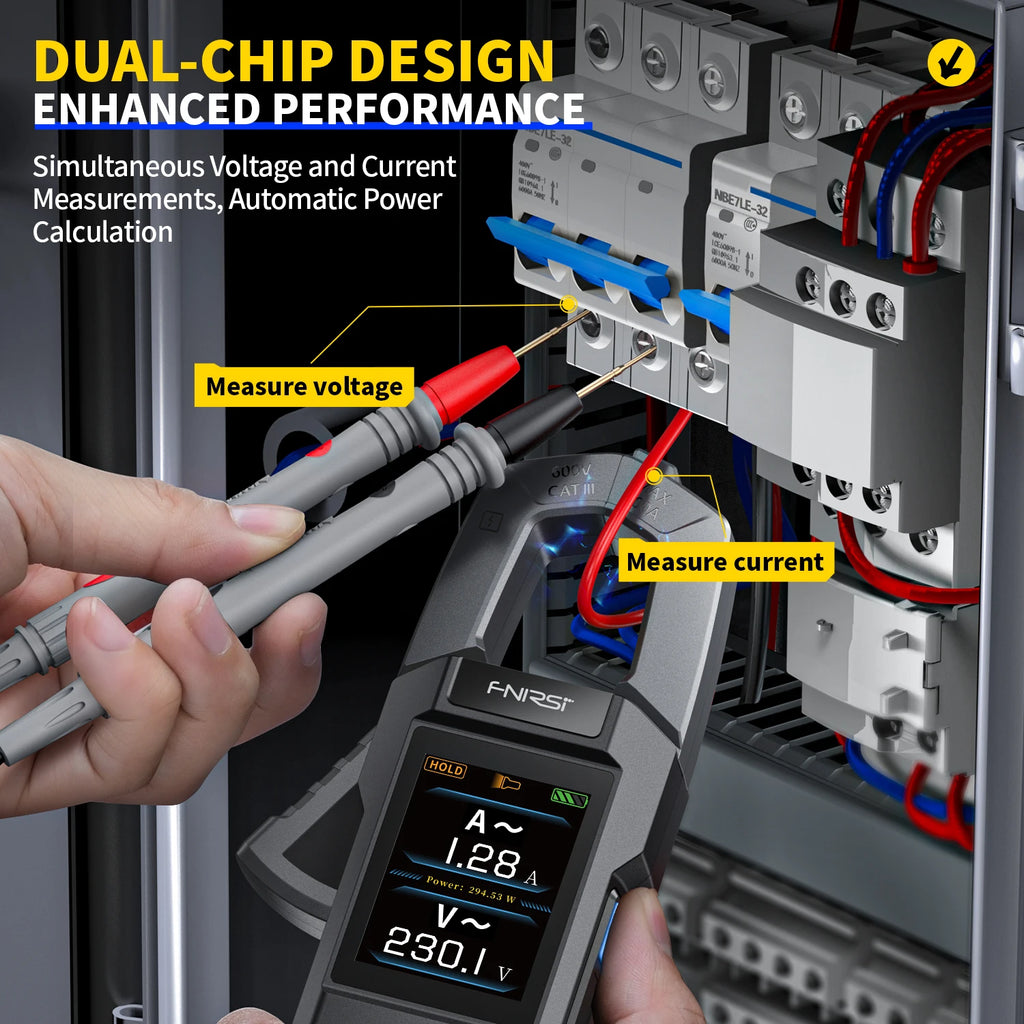

Measuring Mode 3: power measurement
Measurement gear: manual adjustment

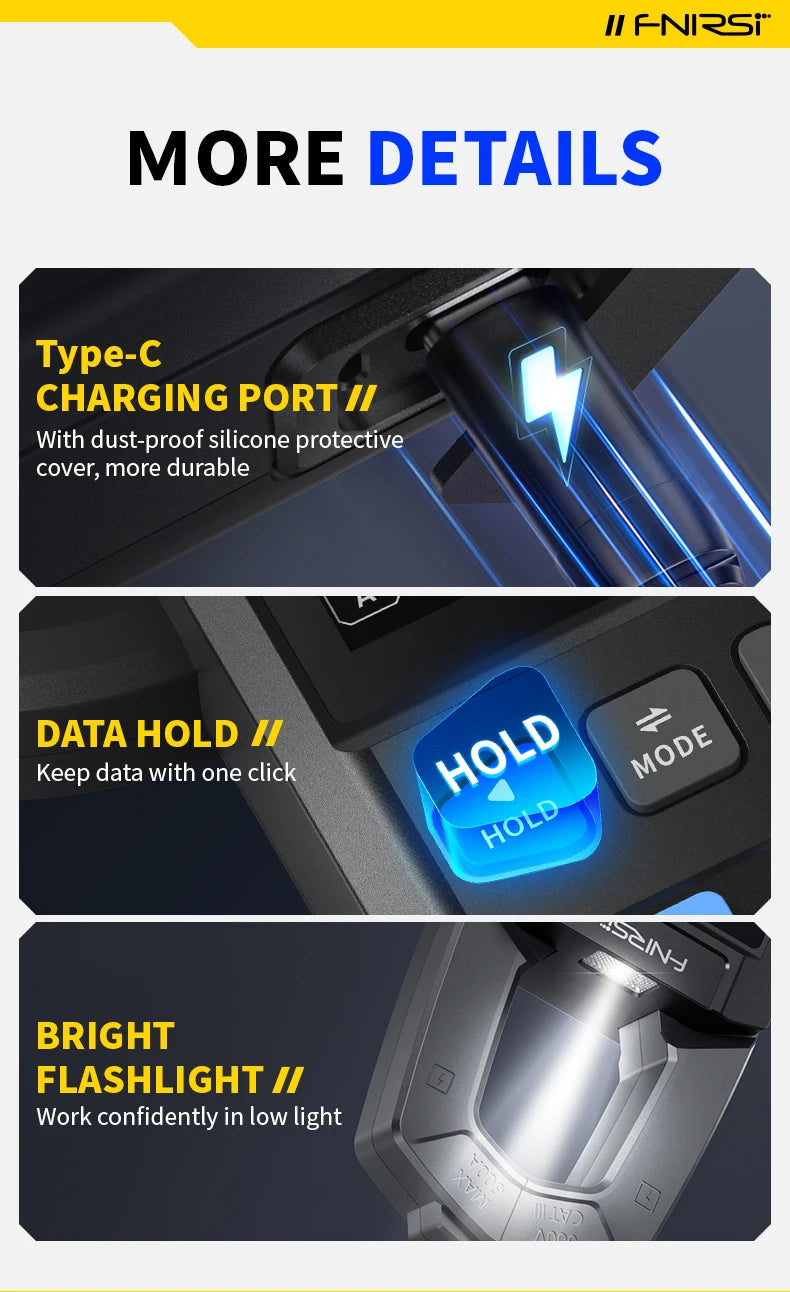

Torch: Support
Data Zeroing: Support
Maximum/Minimum Value: Support
Waveform display: Support
Power Calculation: Support
Data Hold: Support
Data Storage and Viewing: Up to 30 groups of data
Language: Chinese/English
Brightness Adjustment: 10-speed adjustment
Temperature unit: ℃/℉
Auto Power Off: OFF/5min/15min/30m
Firmware Upgrade: Support

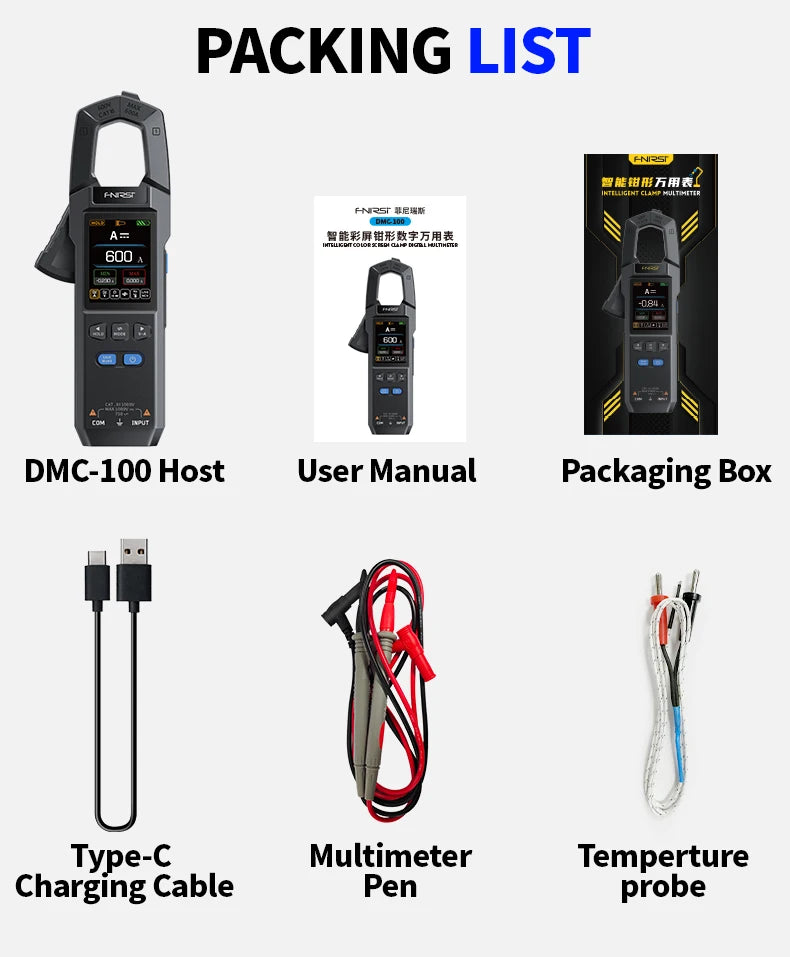

1 x DMC-100 Clamp Multimeter
1 x Multimeter Pen
1 x Temperature Probe
1 x Packing box
1 x Instruction Manual
