Description

SPECIFICATIONS

Battery Included: Yes

Brand Name: FNIRSI

High-concerned chemical: none

Origin: Mainland China

Semi-finishedproduct: Yes

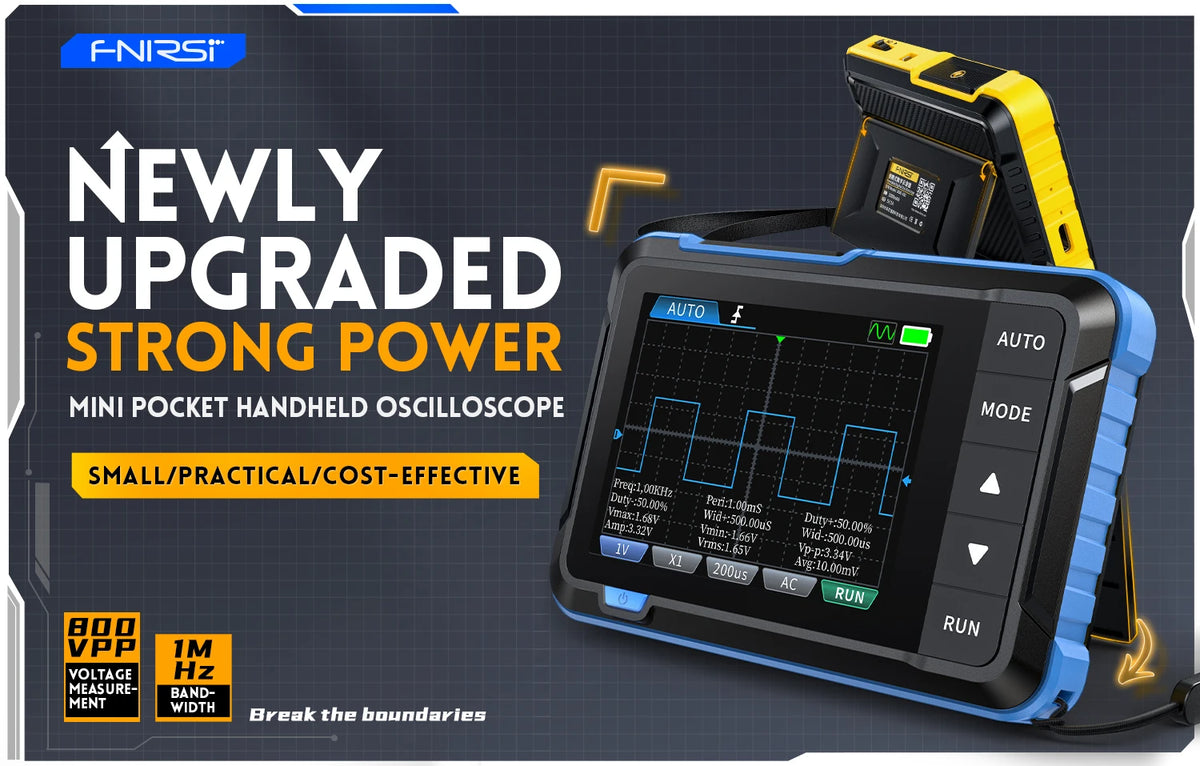

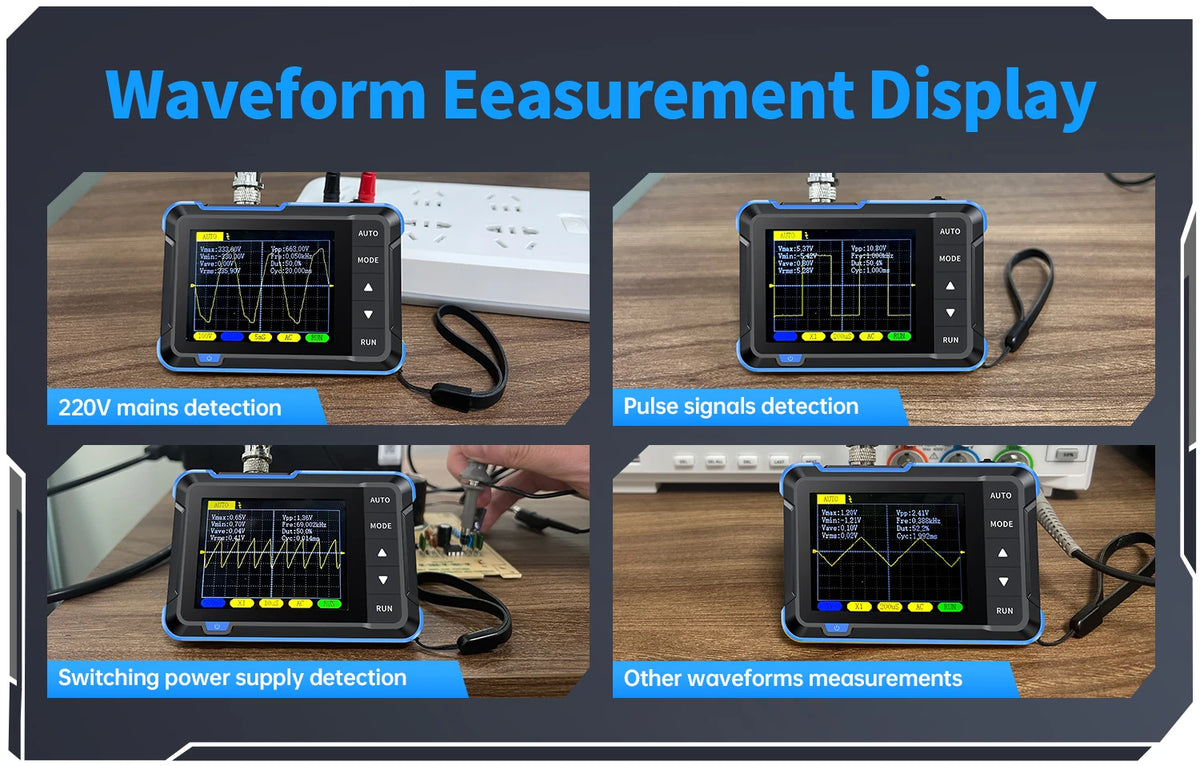

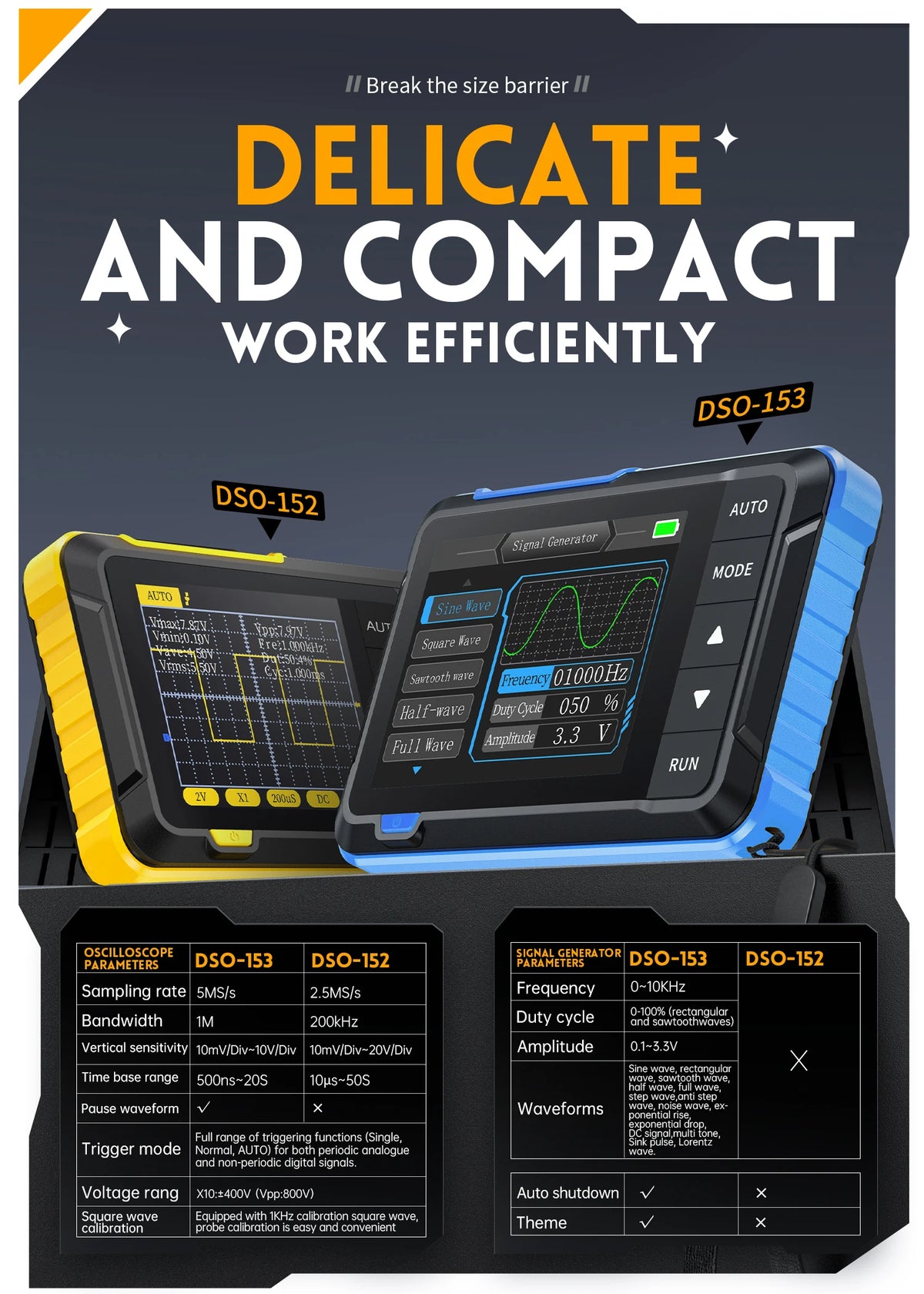

DSO-153 is a highly practical and cost-effective handheld Electronic measuring instruments launched by our company, targeting the maintenance industry and development education industry.

This Electronic measuring instruments has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.

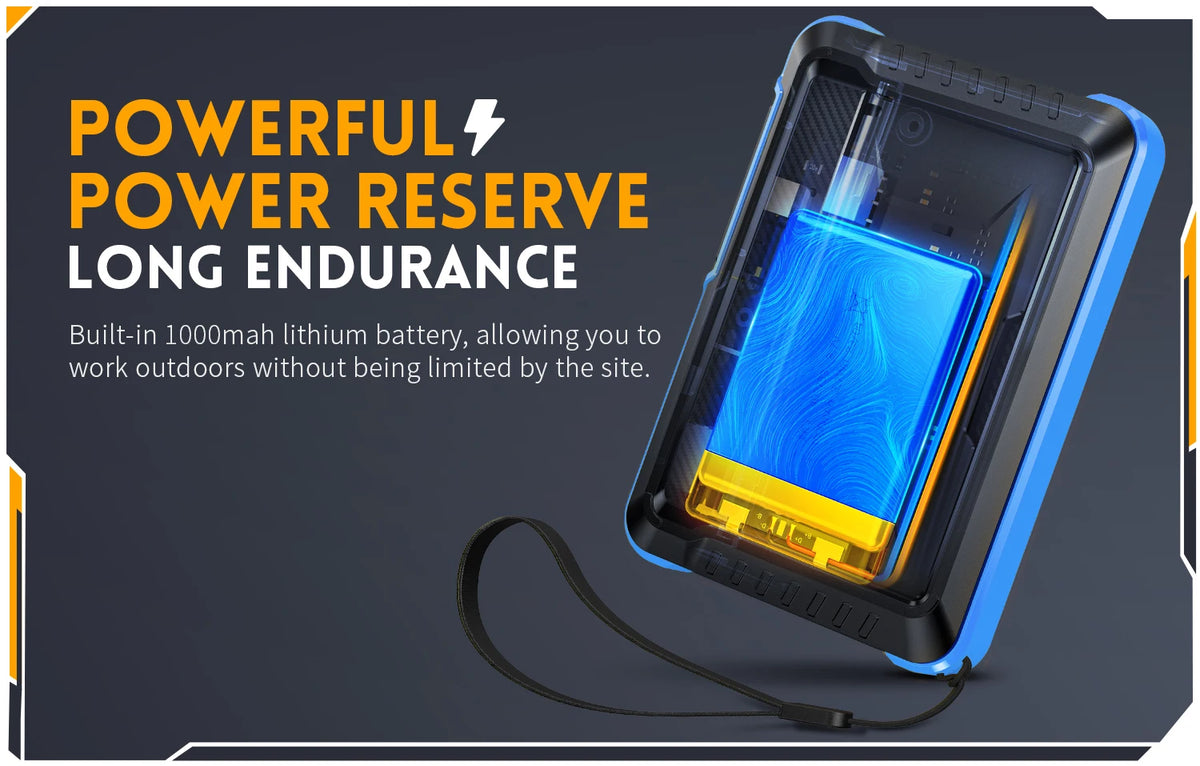

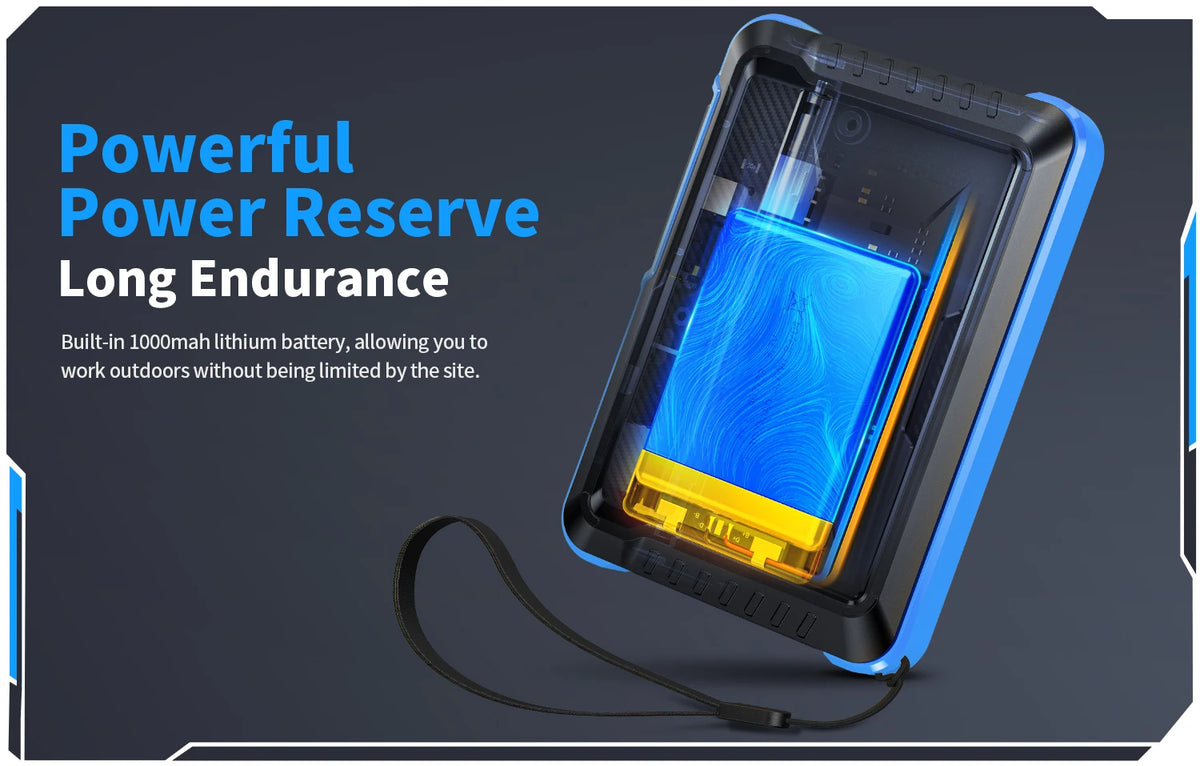

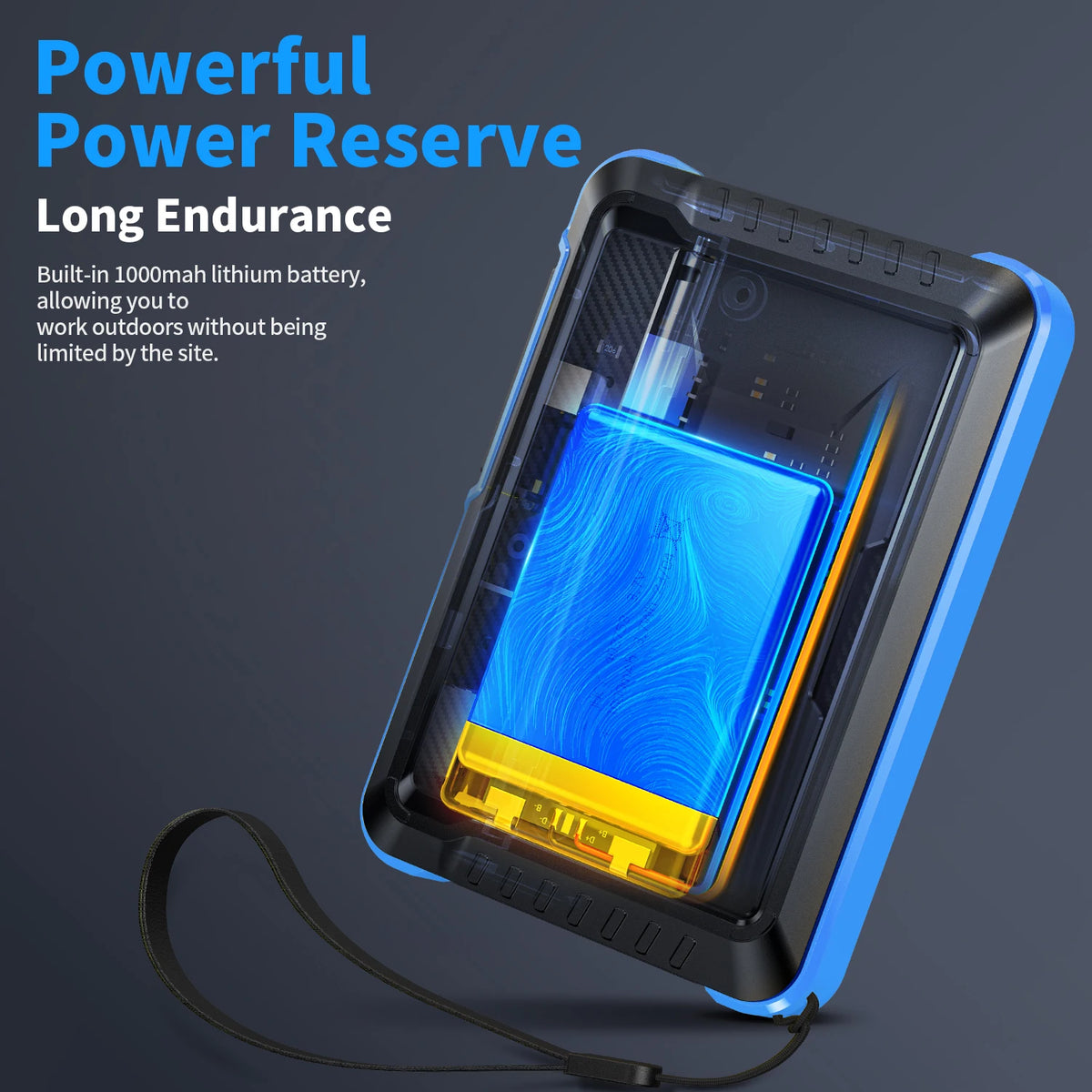

In addition, it also comes with multiple functions signal source (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.

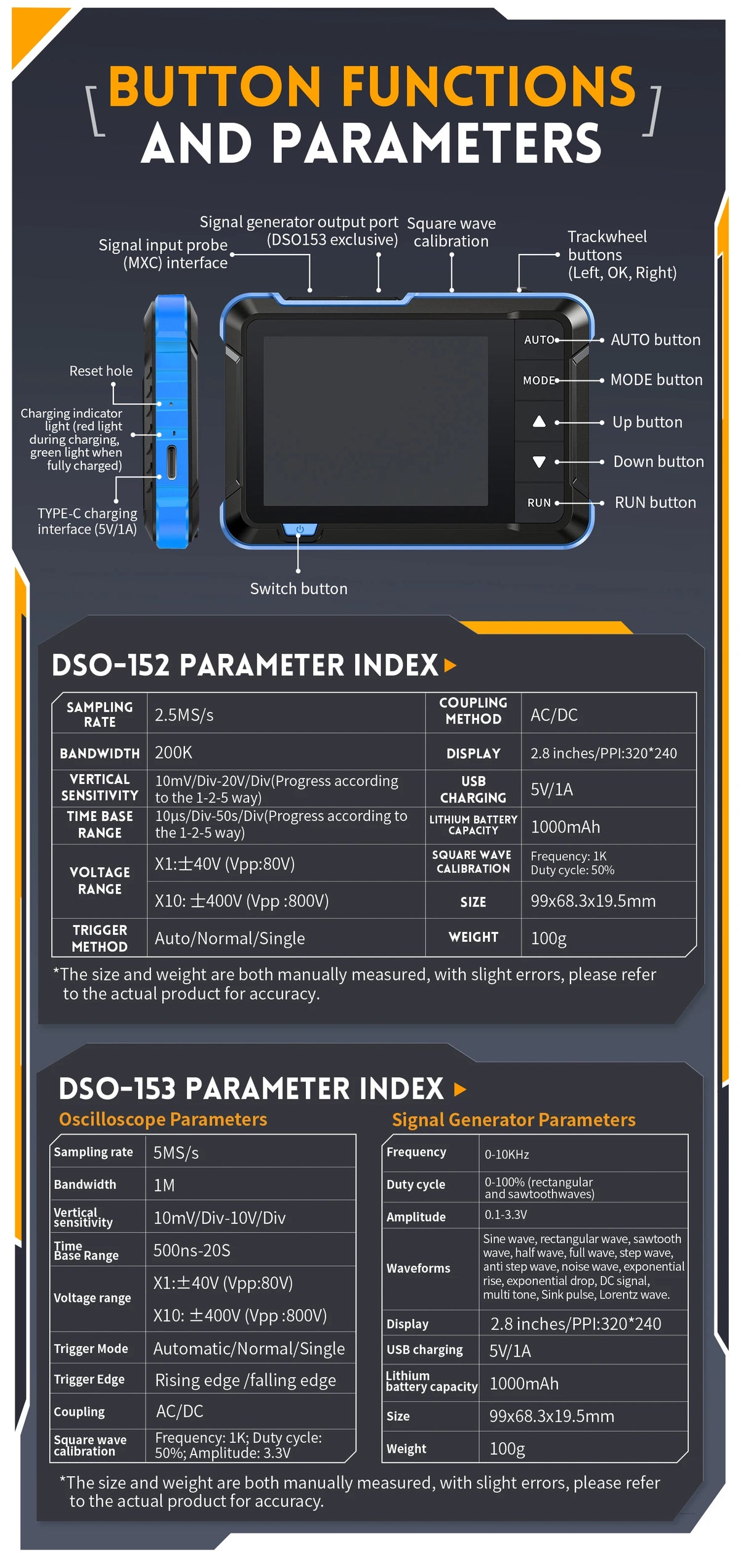

* DS-O153 Mini Electronic measuring instruments*

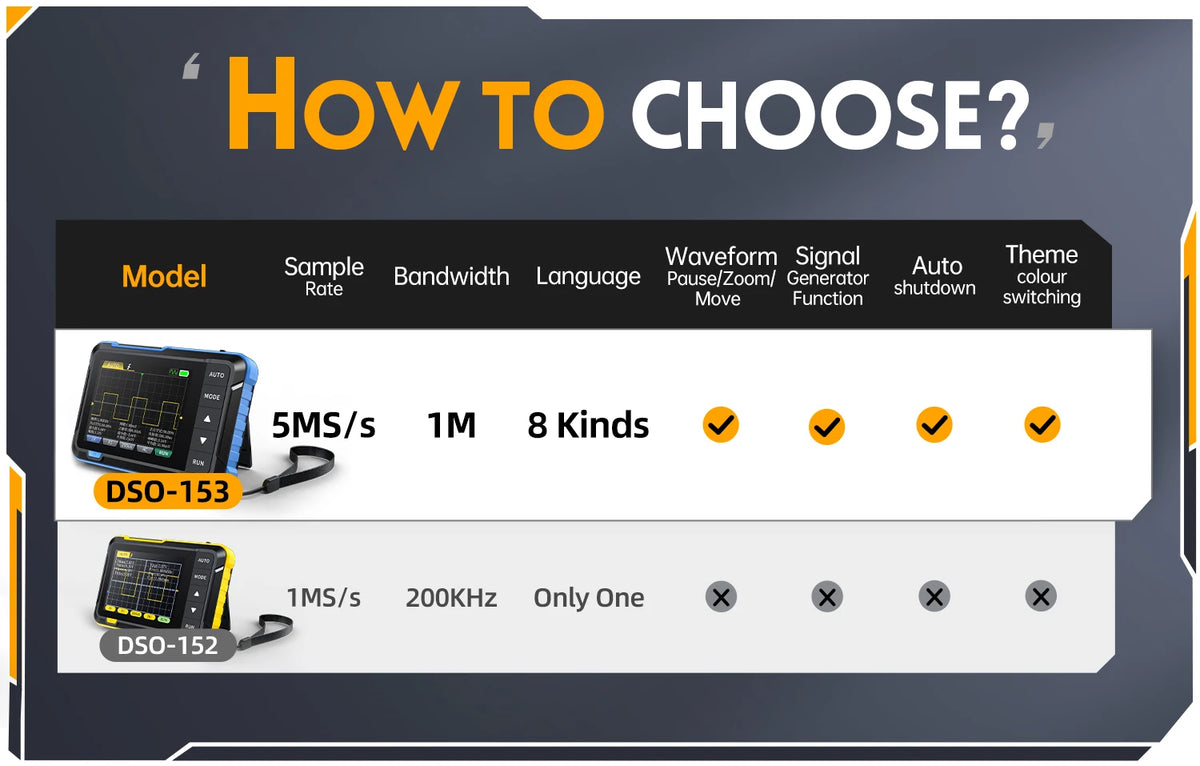

Sampling rate：5MSa/s

Bandwidth：1MHz

Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way

Time base range：500ns/Div-20s/Div（Progress according to the 1-2-5 way

Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

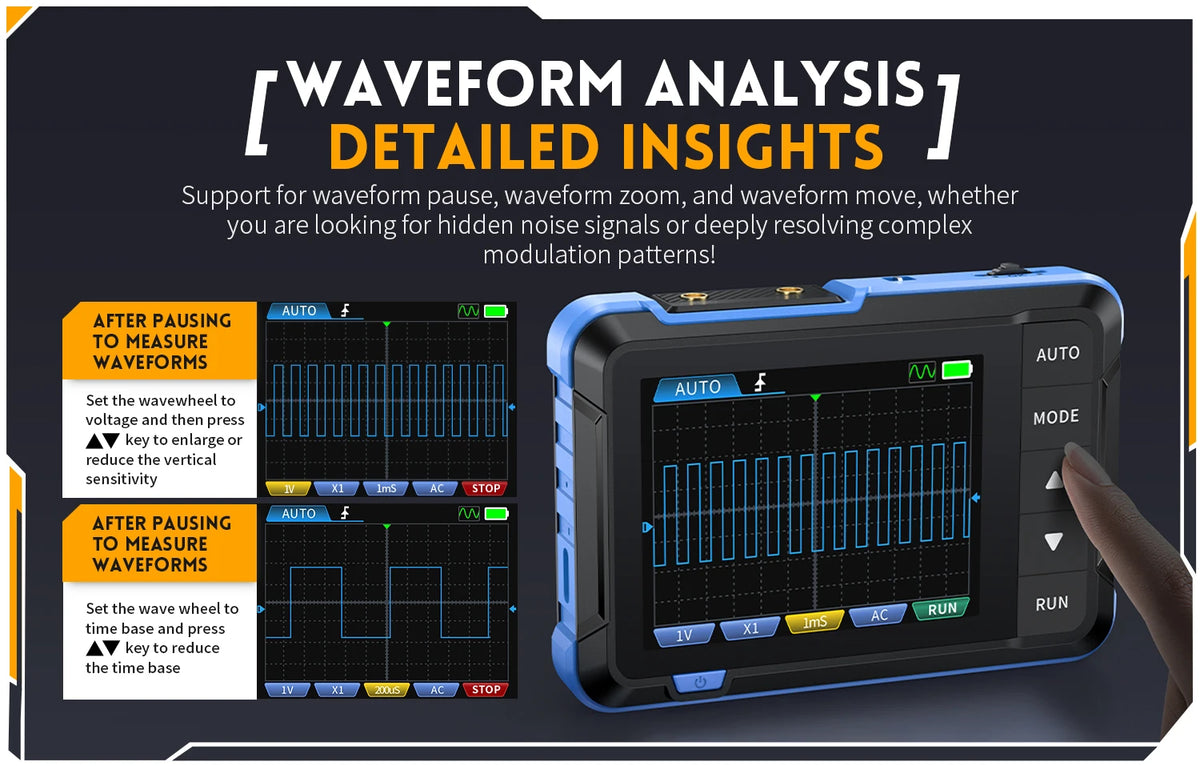

Trigger method：Auto / Normal / Single

Coupling method：AC/DC

* Signal Source *

Frequency：0-10KHz

Duty cycle0-100% (rectangular and sawtooth
waves)

Amplitude0.1-3.3V

WaveformsSine wave, rectangular wave, sawtooth
wave, half wave, full wave, step wave,
anti step wave, noise wave, exponential
rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Size：99x68.3x19.5mm

Weight：100g
