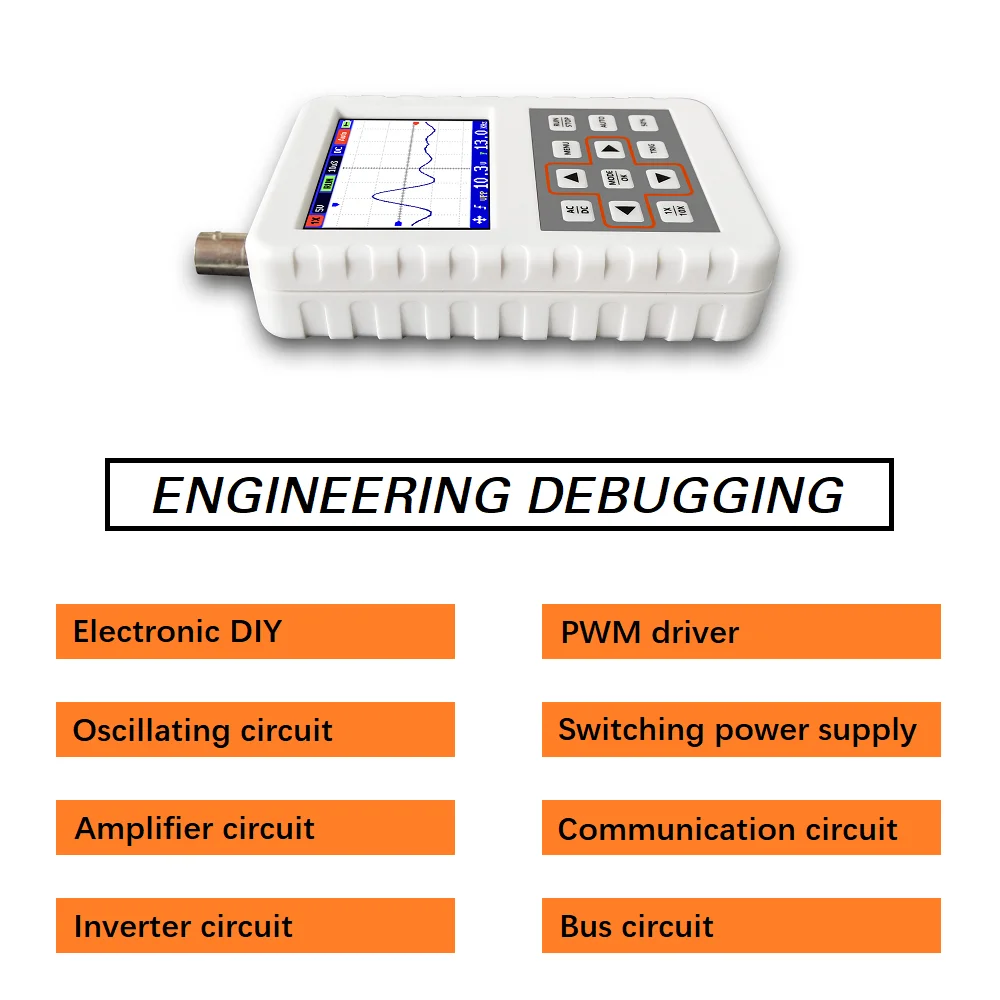

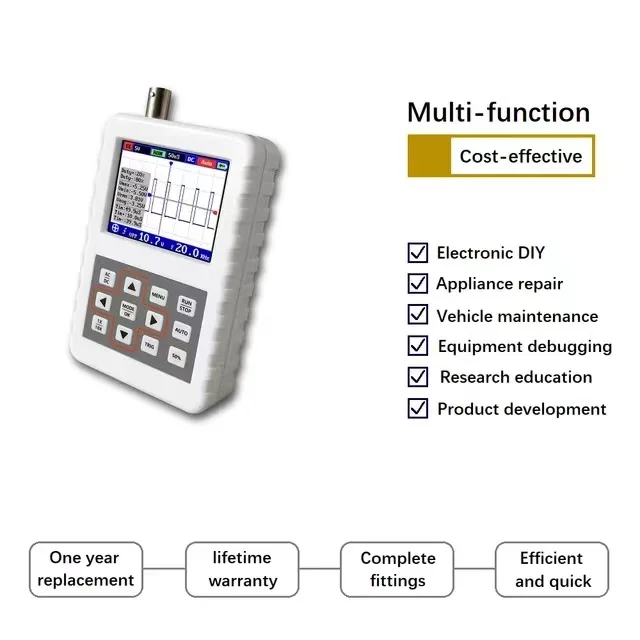

FNIRSI DSO Pro Digital Oscilloscope 5M Bandwidth 20MSps Sampling Rate For Automobile Phone Repair

Introduction:

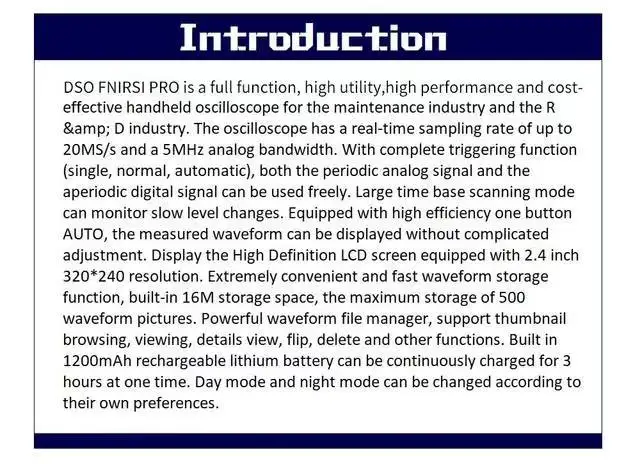

DSO FNIRSI PRO is a full function, high utility, high performance and cost-effective handheld oscilloscope for the maintenance industry and the R & D industry. The oscilloscope has a real-time sampling rate of up to 20MS/s and a 5MHz analog bandwidth. With complete triggering function (single, normal, automatic), both the periodic analog signal and the aperiodic digital signal can be used freely. Large time base scanning mode can monitor slow level changes. Equipped with high efficiency one button AUTO, the measured waveform can be displayed without complicated adjustment. Display the High Definition LCD screen equipped with 2.4 inch 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 16MB storage space, the maximum storage of 500 waveform pictures. Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions. Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time. Day mode and night mode can be changed according to their own preferences.

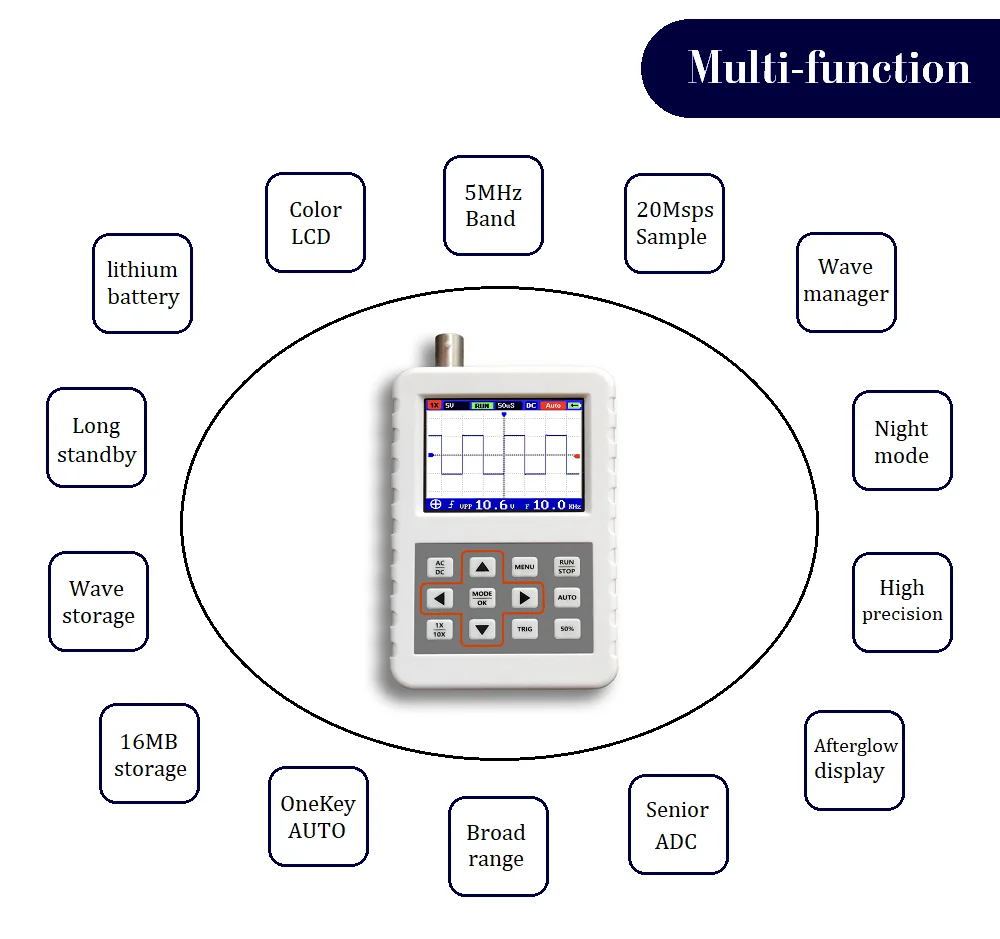

Key features:

1:Memory compression technology, waveform refresh screen does not flicker

2:Afterglow display technology

3:2.4 inch color display screen

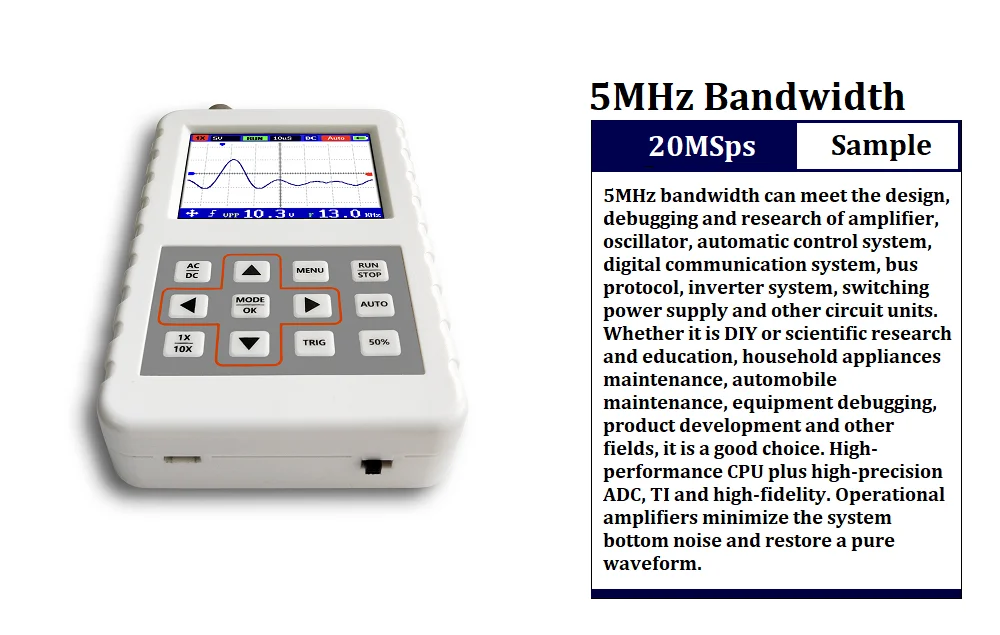

4:5MHz analog bandwidth @ 20MS/s sampling rate

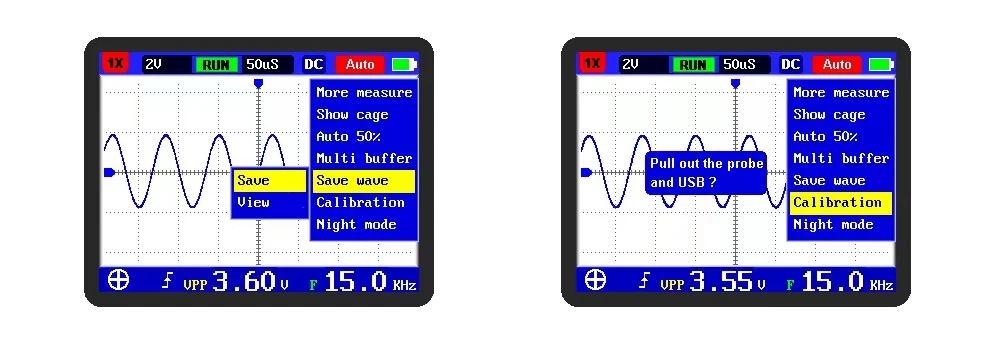

5:Fast waveform storage

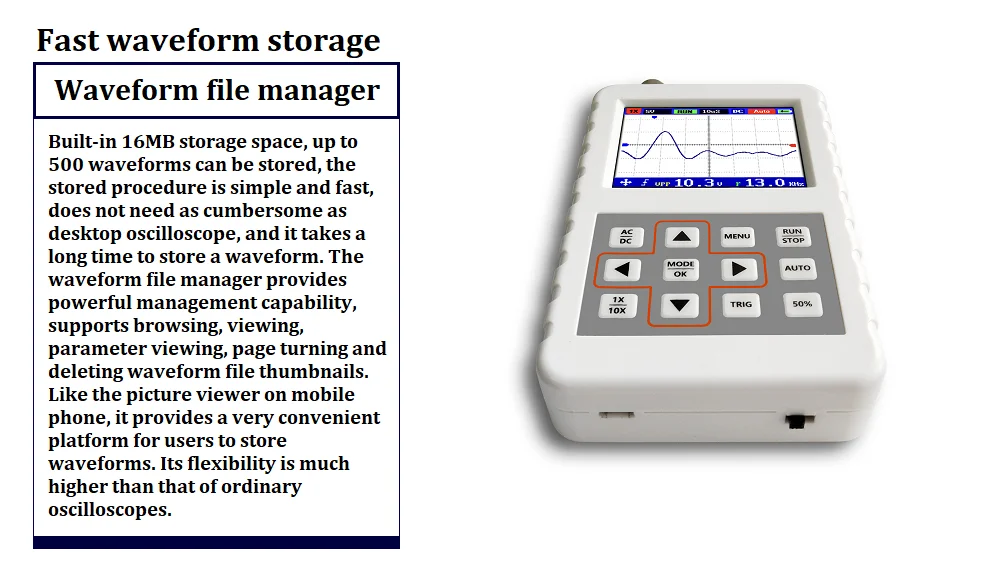

6:Built-in 16M storage space, the maximum storage of 500 waveform pictures

7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions

8:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V

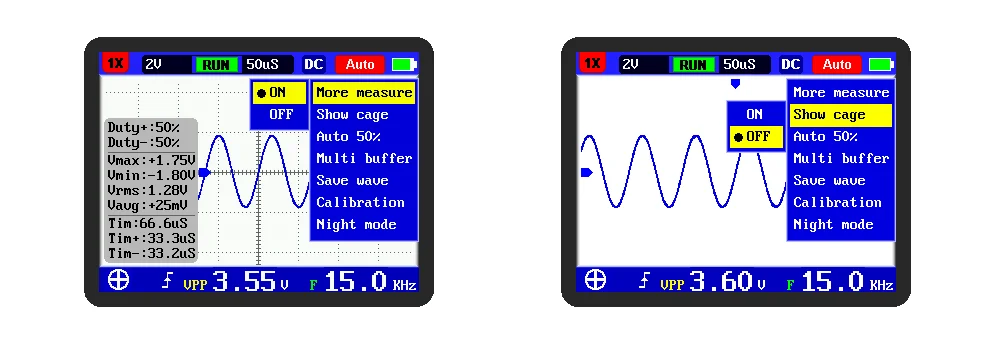

9:Up to 11 parameters measurement:VPP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time

10:At any time, the waveform display (pause function) is frozen

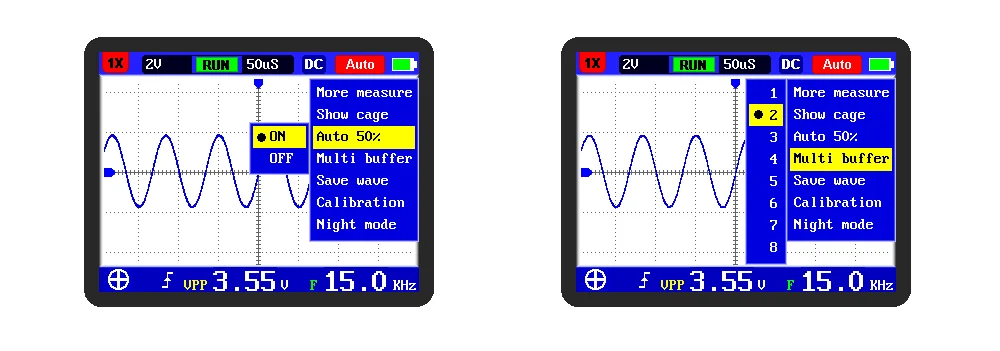

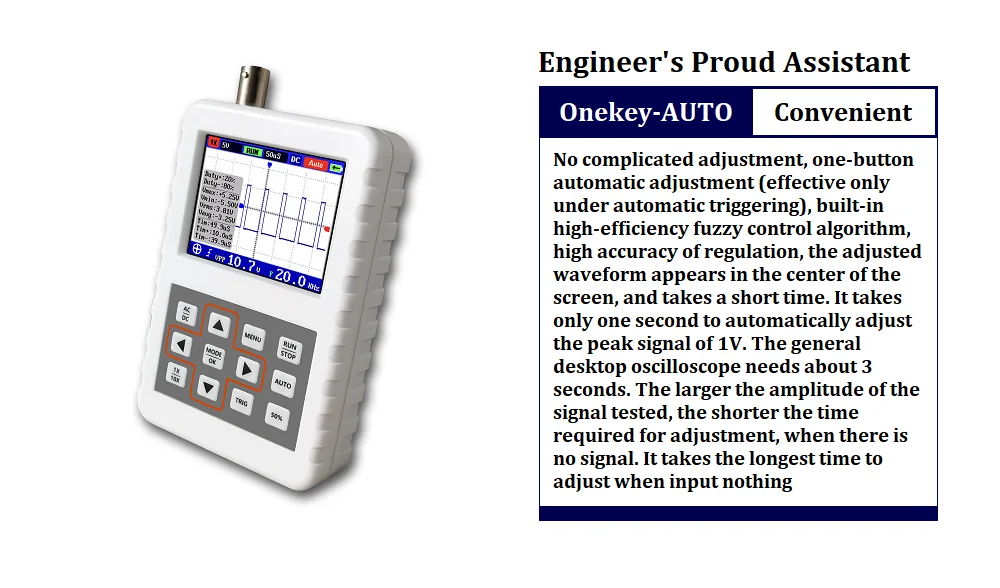

11:Equipped with high efficiency one button AUTO

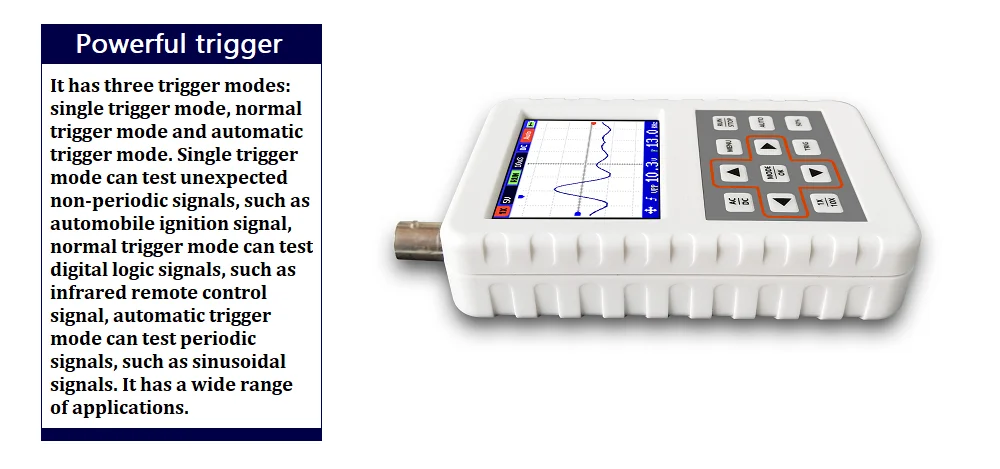

12:Complete triggering function (single, normal, automatic)

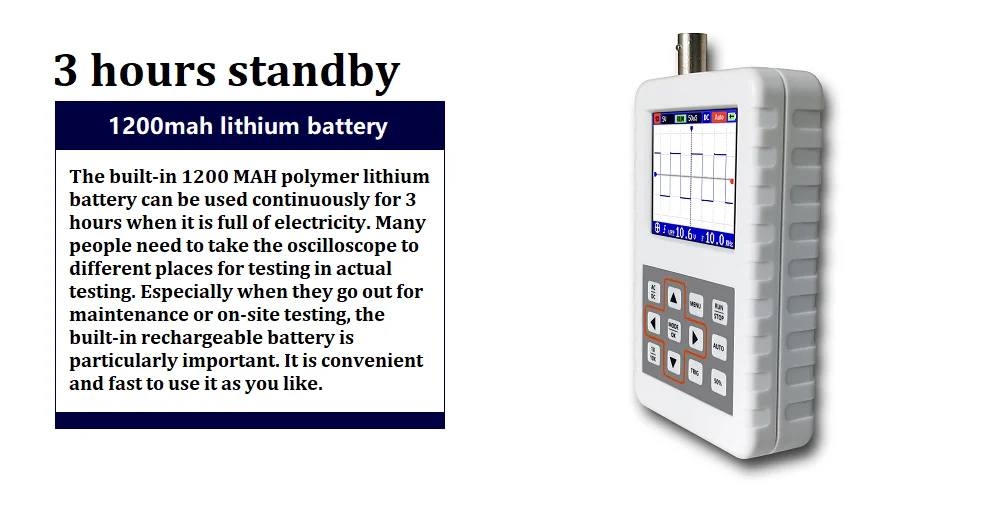

13:Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time

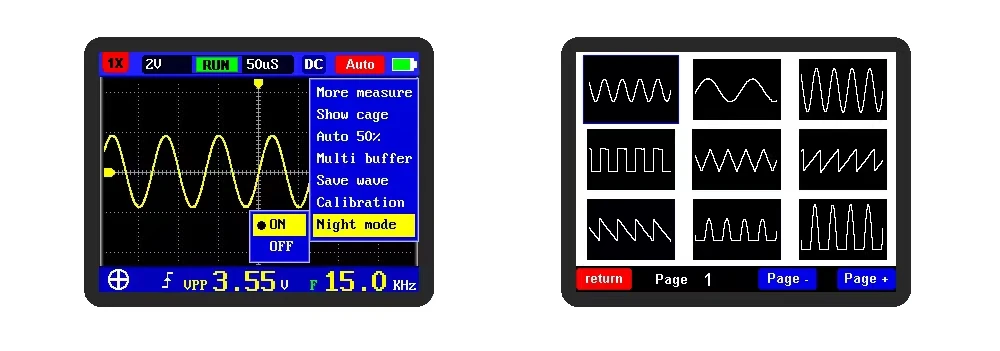

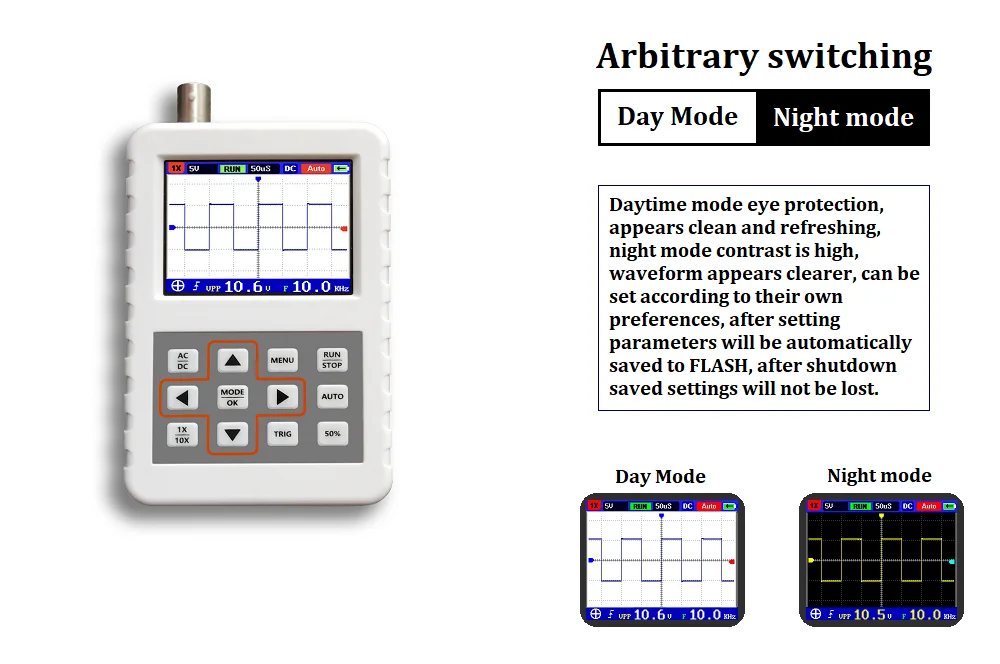

14:Day mode and night mode

15:Ultra small volume, easy to carry

Specifications:

1:Analog band width: 5MHz

2:Maximum real time sampling rate: 20MS/s

3:Vertical sensitivity: 50 mV/div ~ 200 V/div

4:Horizontal time base range: 50S/div ~ 250nS/div

5:Maximum input voltage: 40 V (1X probe), 800 V (10X probe)

6:Storage depth: 40KB

7:Input resistance: 1M

8:ADC precision: 8bits

9:Coupling mode: AC/DC

10:Trigger mode: Single, Normal, Automatic

11:Trigger edge: Ascending/descending edge

12:External trigger voltage 0 – 40 V

13:Display: 2.4 inch @ 320 * 240

14:Power supply: 1200 mAh lithium battery

15:Size: 107 x 70 x 24mm

16:Weight: 150g

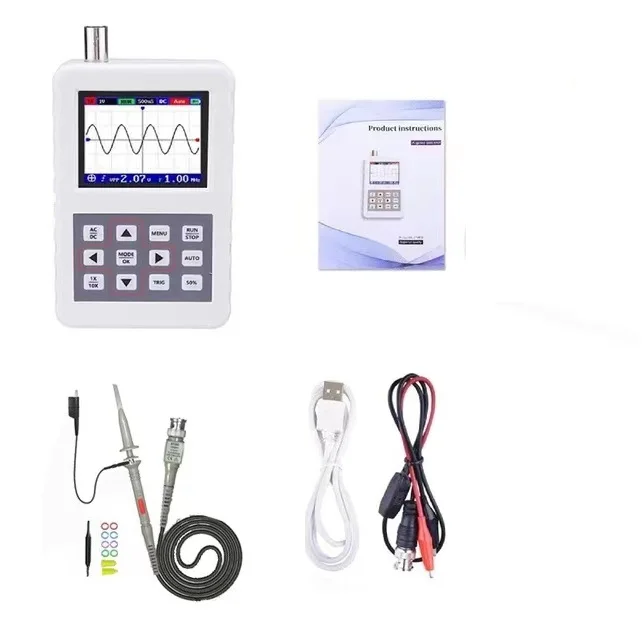

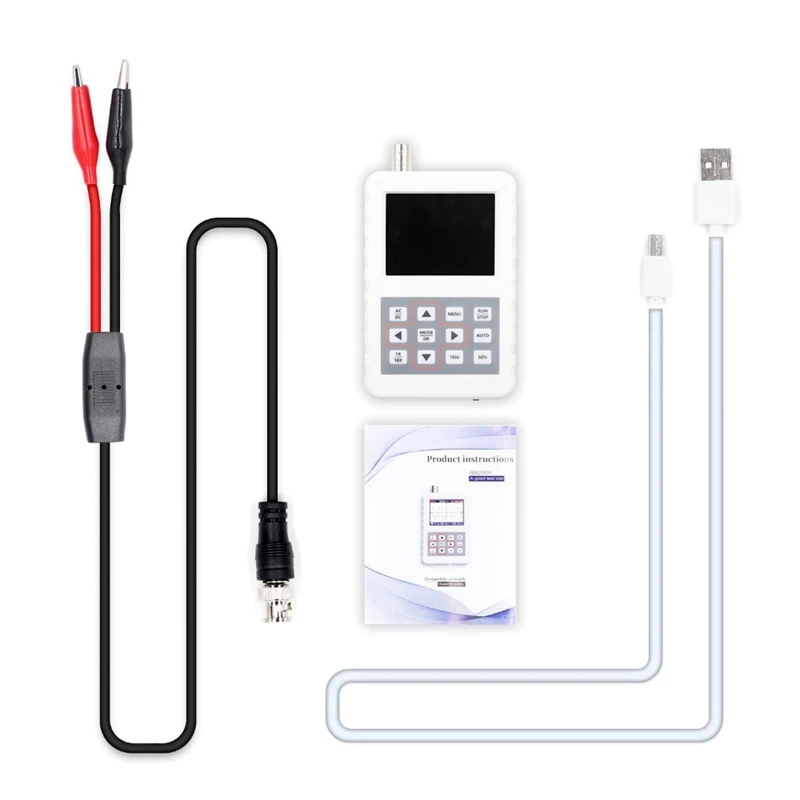

Standard Package includes:

1 x DSO FNIRSI PRO oscilloscope host

1 x Crocodile clip probe

1 x Micro USB data line

1 x User manual (English)

Standard Package with P6100:

1 x DSO FNIRSI PRO oscilloscope host

1 x Crocodile clip probe

1 x P6100 BNC standard probe

1 x Micro USB data line

1 x User manual (English)

Picture Details:

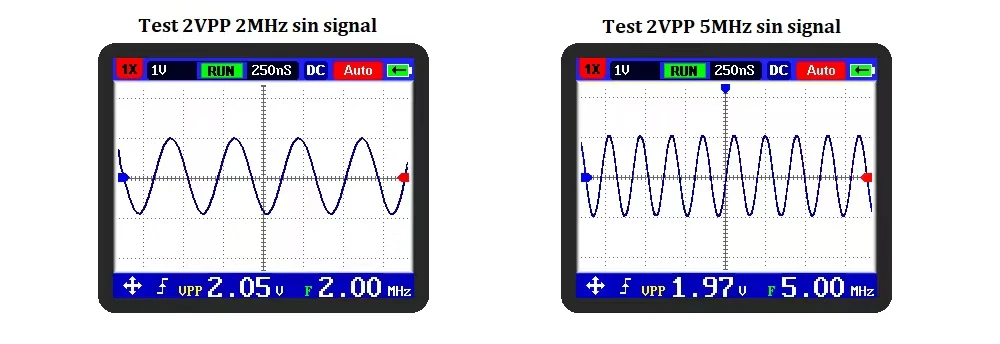

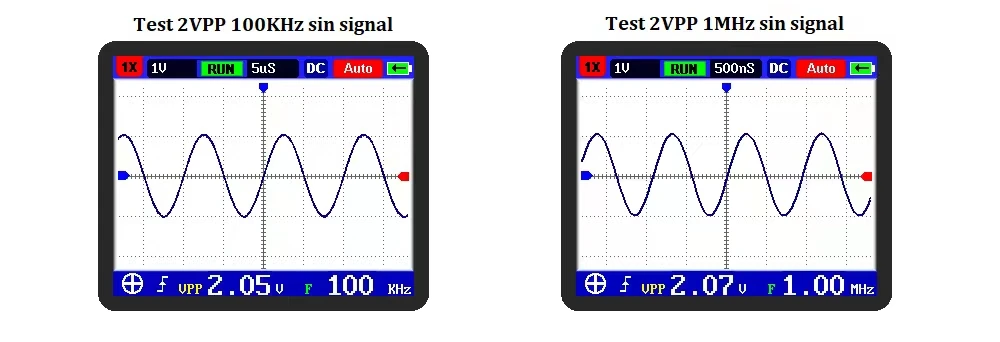

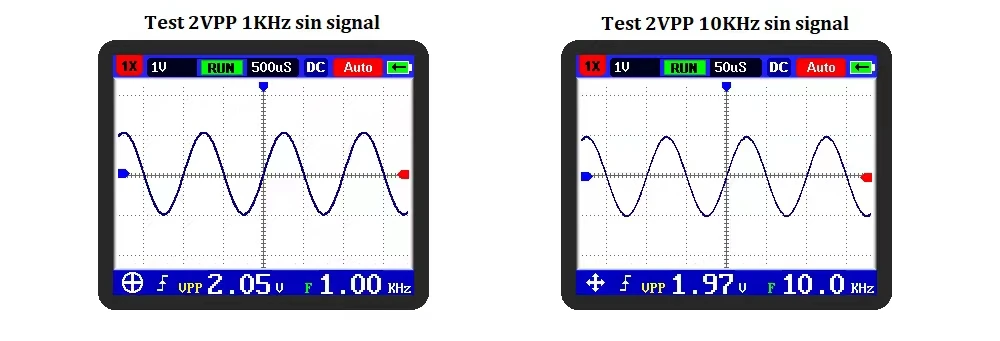

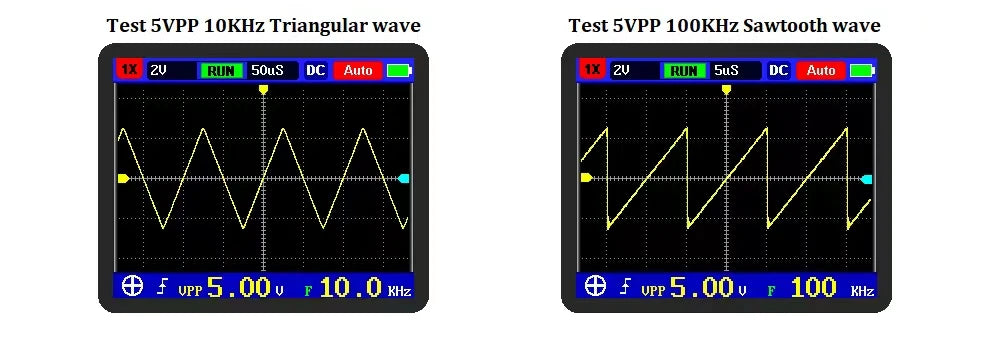

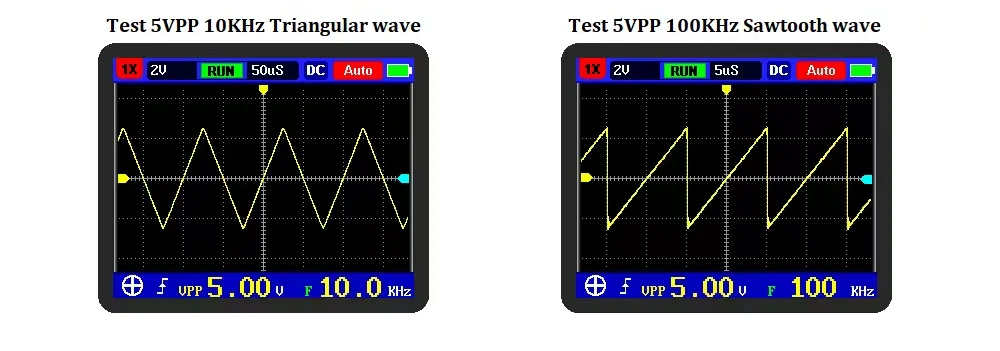

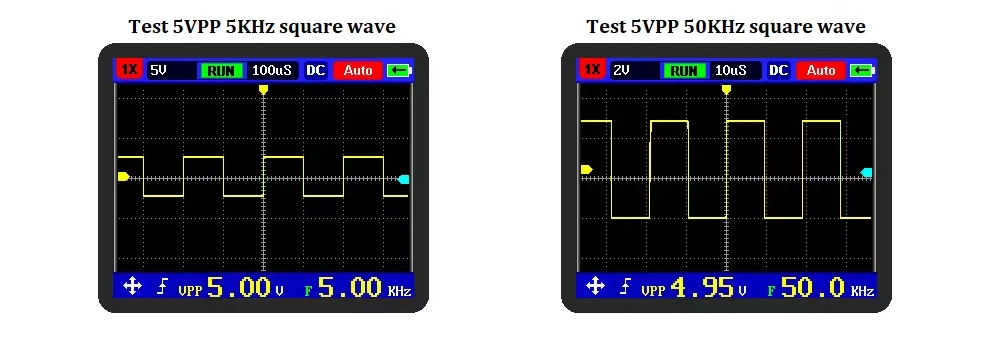

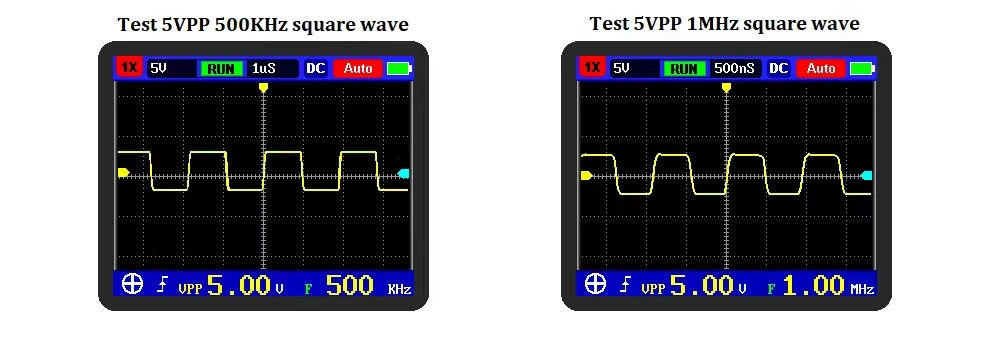

Product Testing:
