SPECIFICATIONS

Backlight: Adjustable backlight brightness

Battery: 1500mAh

Battery Included: Yes

Brand Name: FNIRSI

Certification: CE

High-concerned chemical: none

Input Voltage: ＜50VAC/75VDC

Language: Chinese, English

Model Number: LPM-10A

Origin: Mainland China

Power supply: TYPE-C (5V/1A)

Product size: 152x68x31mm

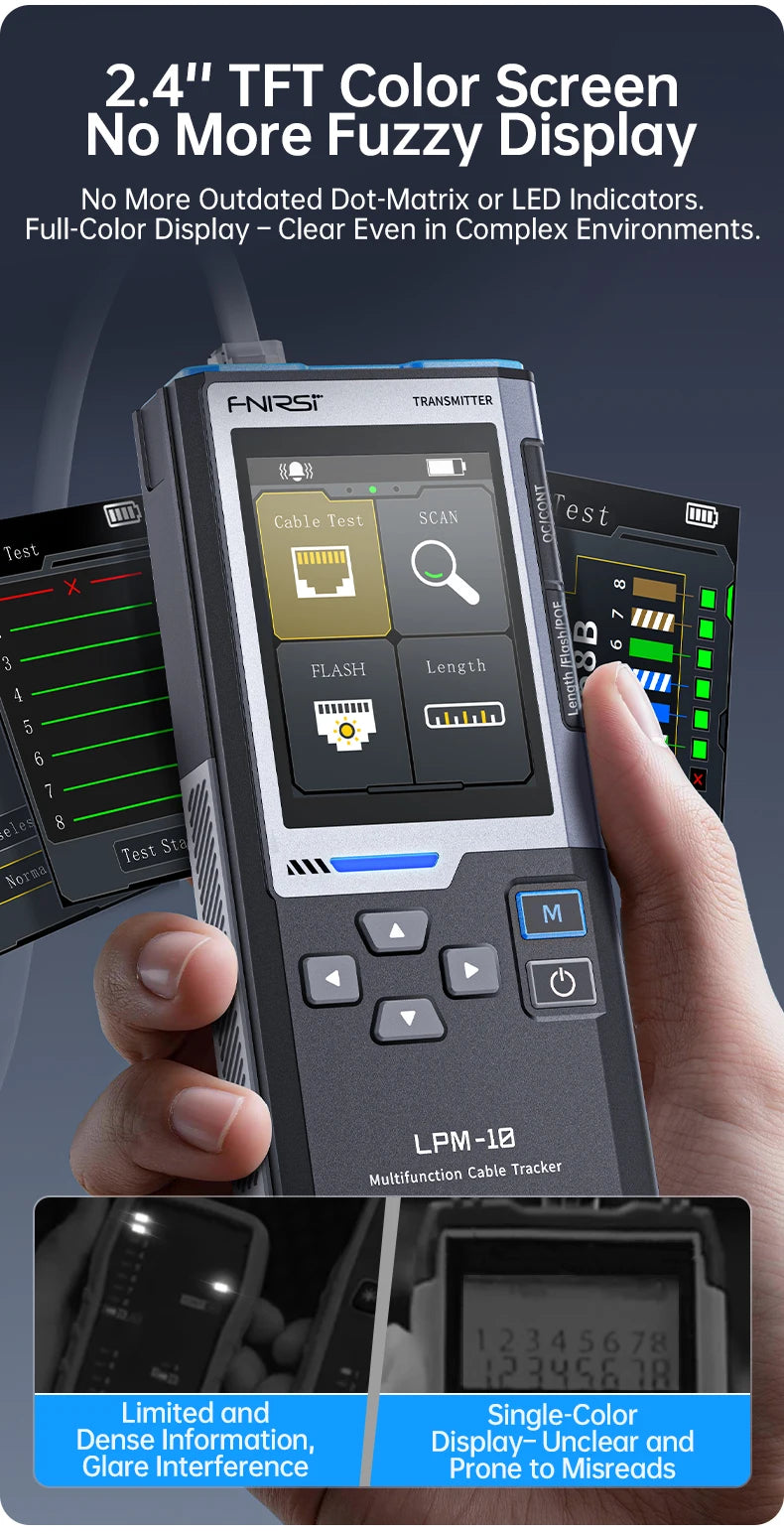

Screen material: 2.4-inch color screen

Key Features:

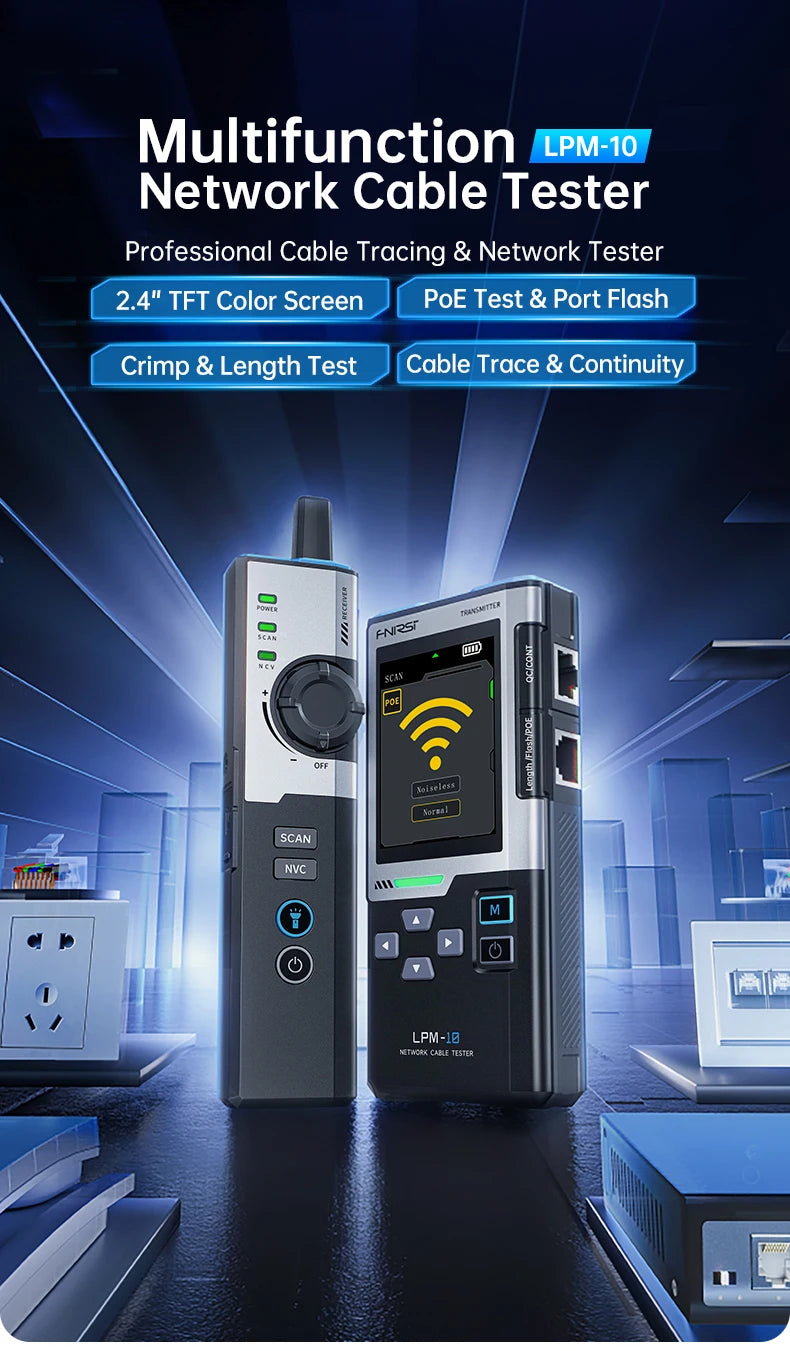

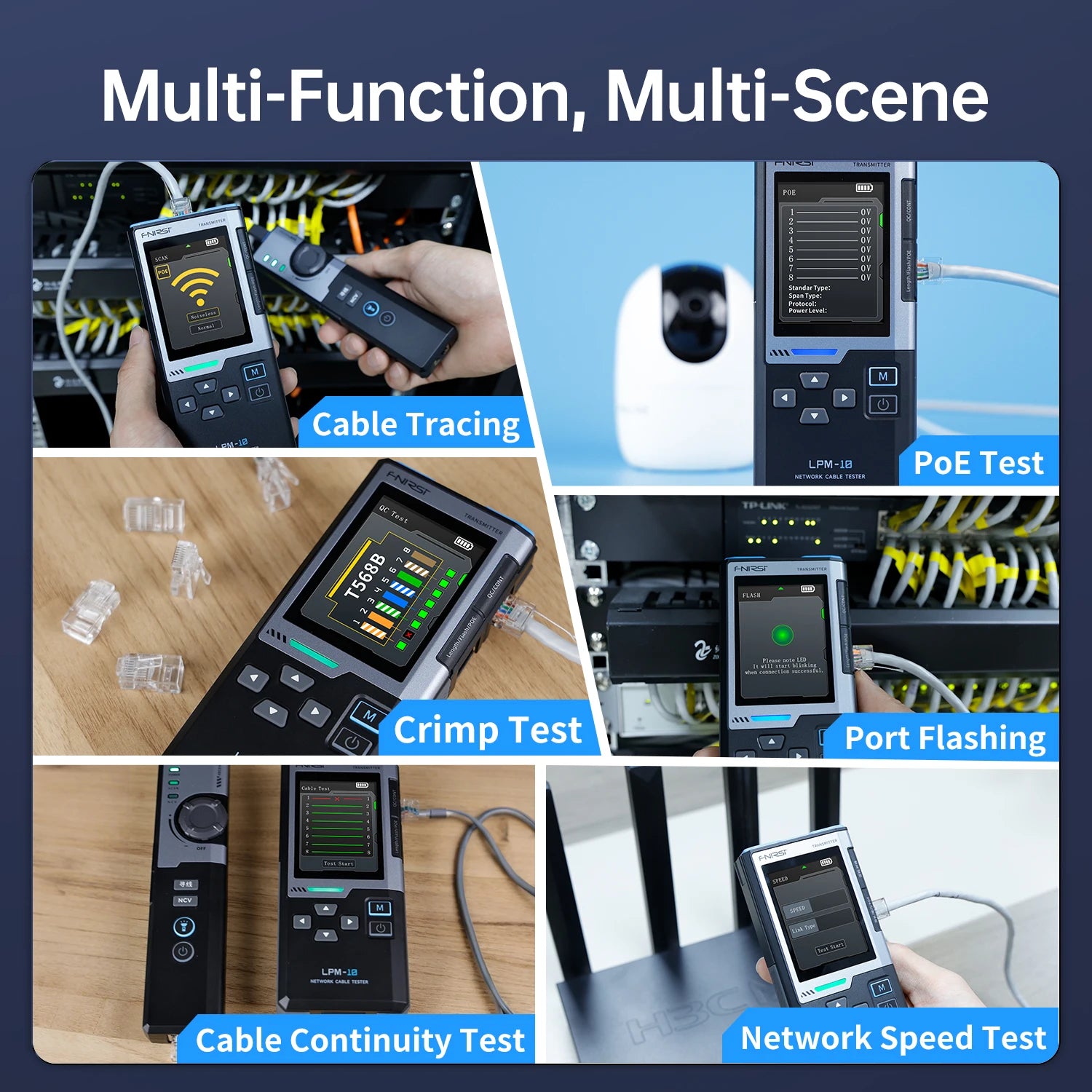

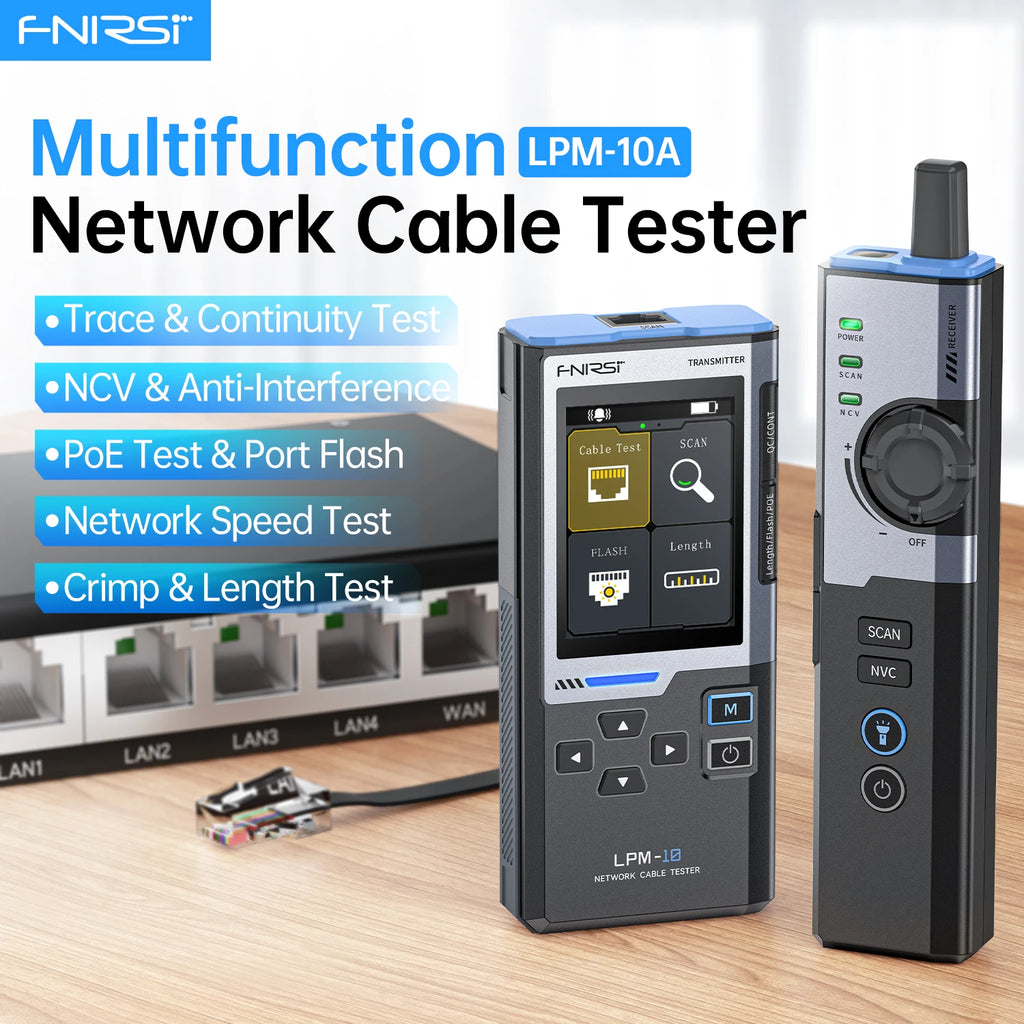

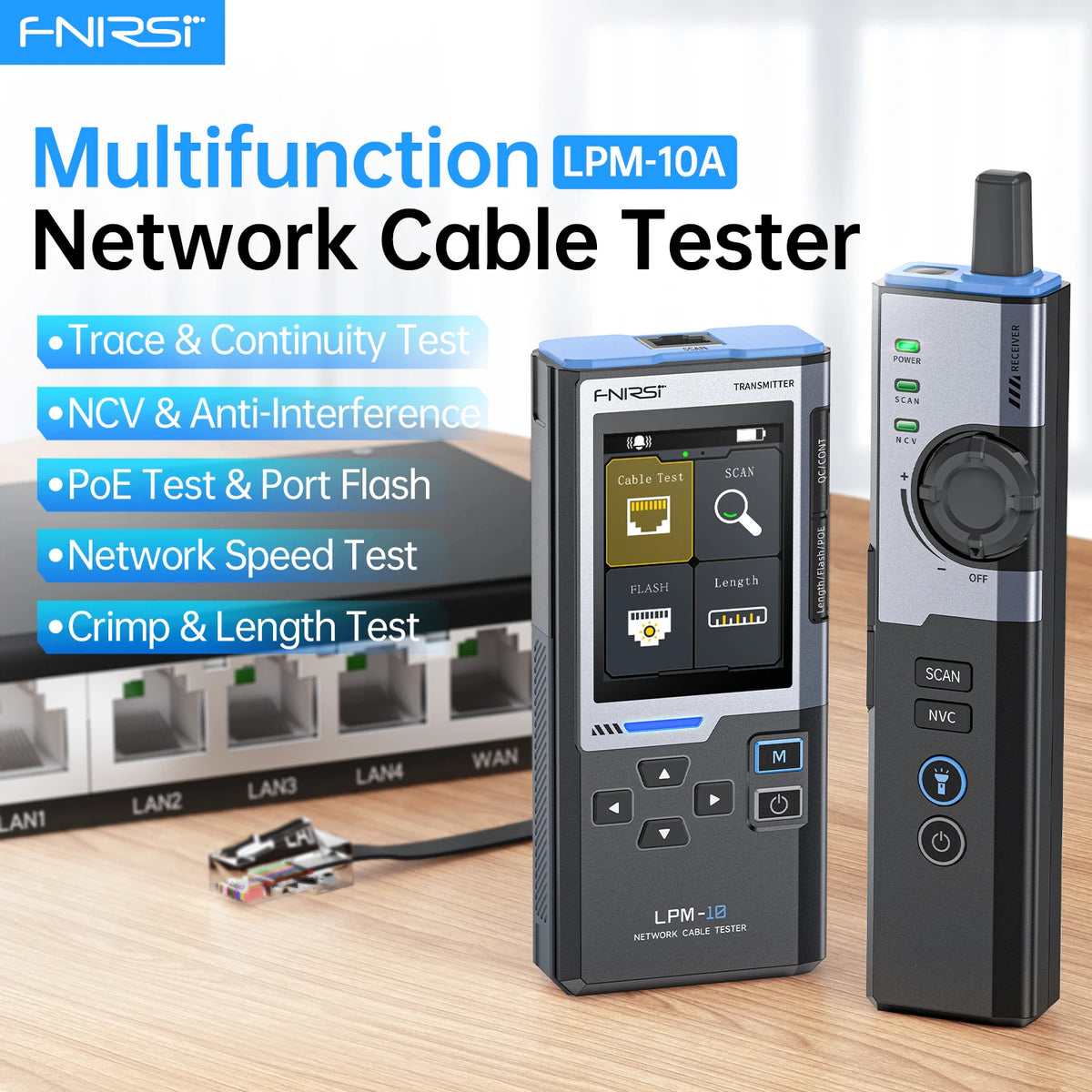

Professional line search: LPM-10 multi-function intelligent line search instrument integrates line search, length test, crimping test, network cable speed test, anti-interference and noise-free, port flashing and other functions, and is a powerful assistant for network cabling and troubleshooting.

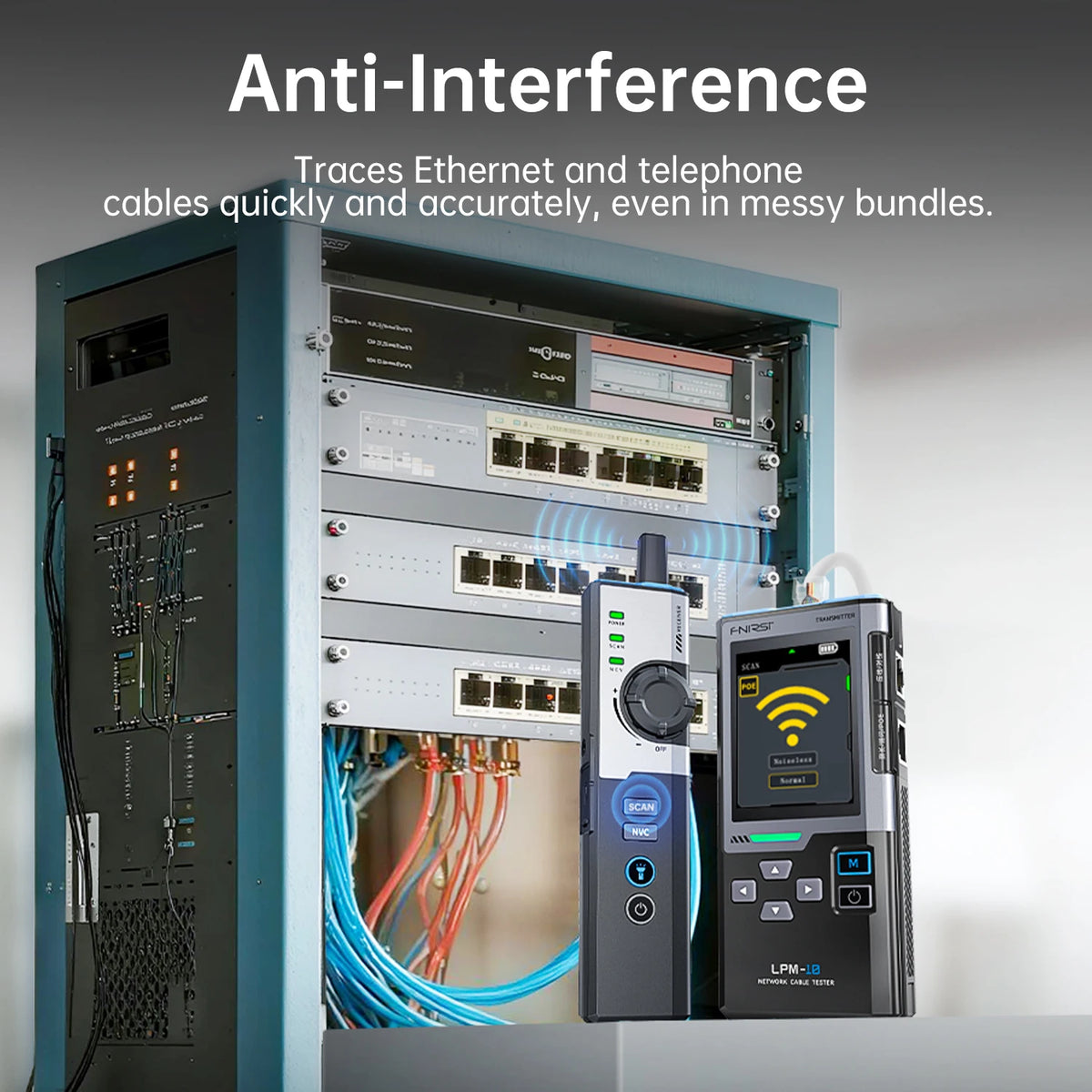

Anti-interference and noise-free: It has anti-interference line search function, reduces the impact of environmental noise, can locate the cable position, and improve work efficiency.

Convenient operation: Equipped with color screen display, function indicator light and sensitivity knob, the operation is simple and intuitive; support port flashing function, quickly identify the connection port.

Rich setting function: This function module can set language, screen brightness, volume, automatic shutdown, and allow users to customize according to personal preferences.

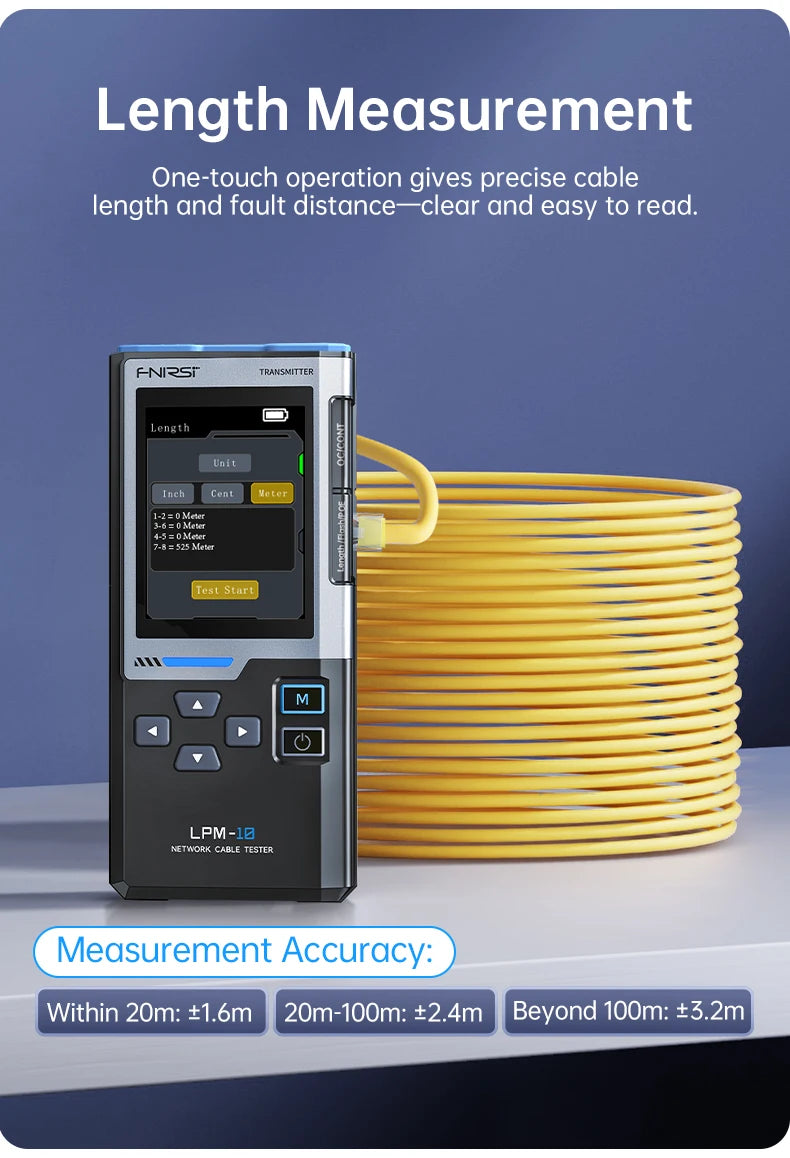

Accurate measurement: Adopt high-quality measurement technology to ensure the accuracy of network cable speed, length test and crimping test, and provide reliable data support for network maintenance.

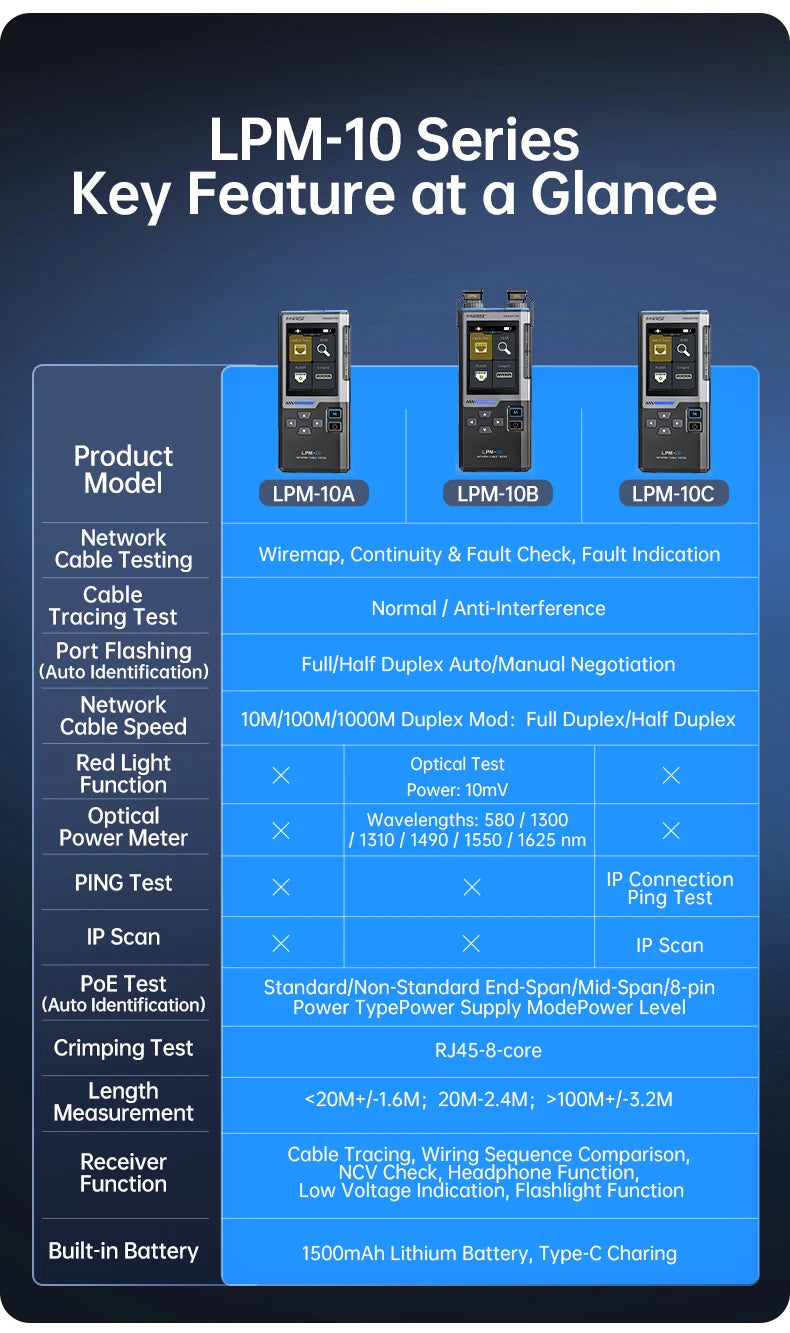

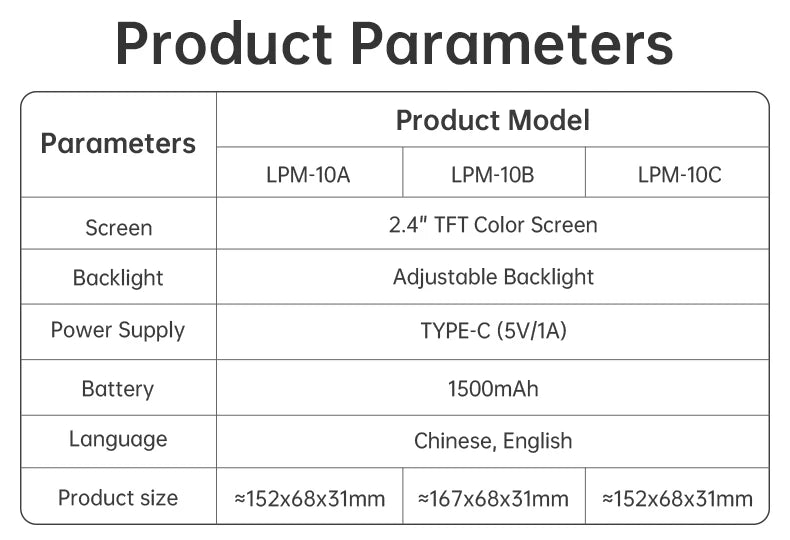

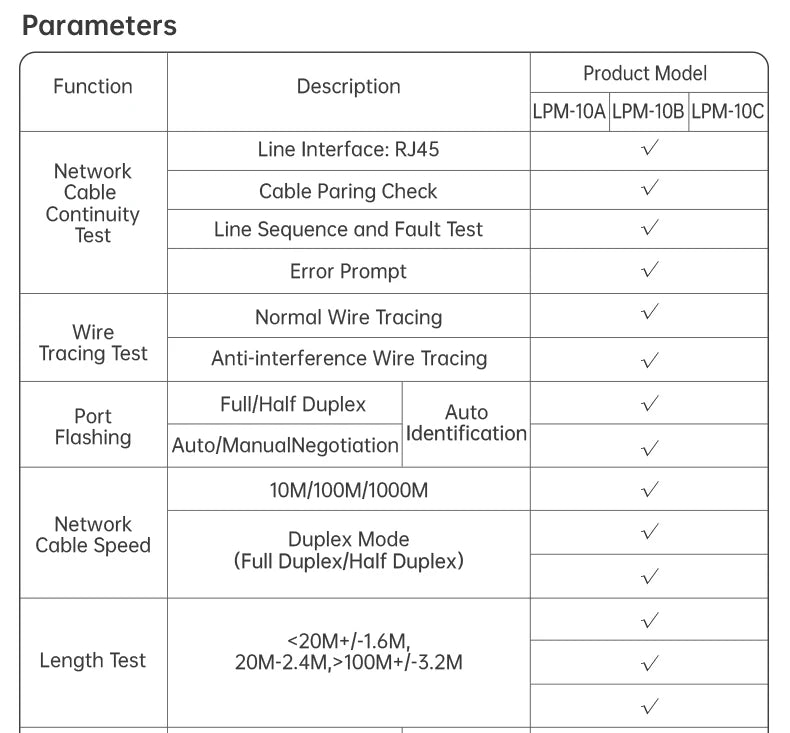

Basic Parameters

1. Product Model: LPM-10A

2. Screen material: 2.4-inch color screen

3. Backlight: Adjustable backlight brightness

4. Power supply: TYPE-C (5V/1A)

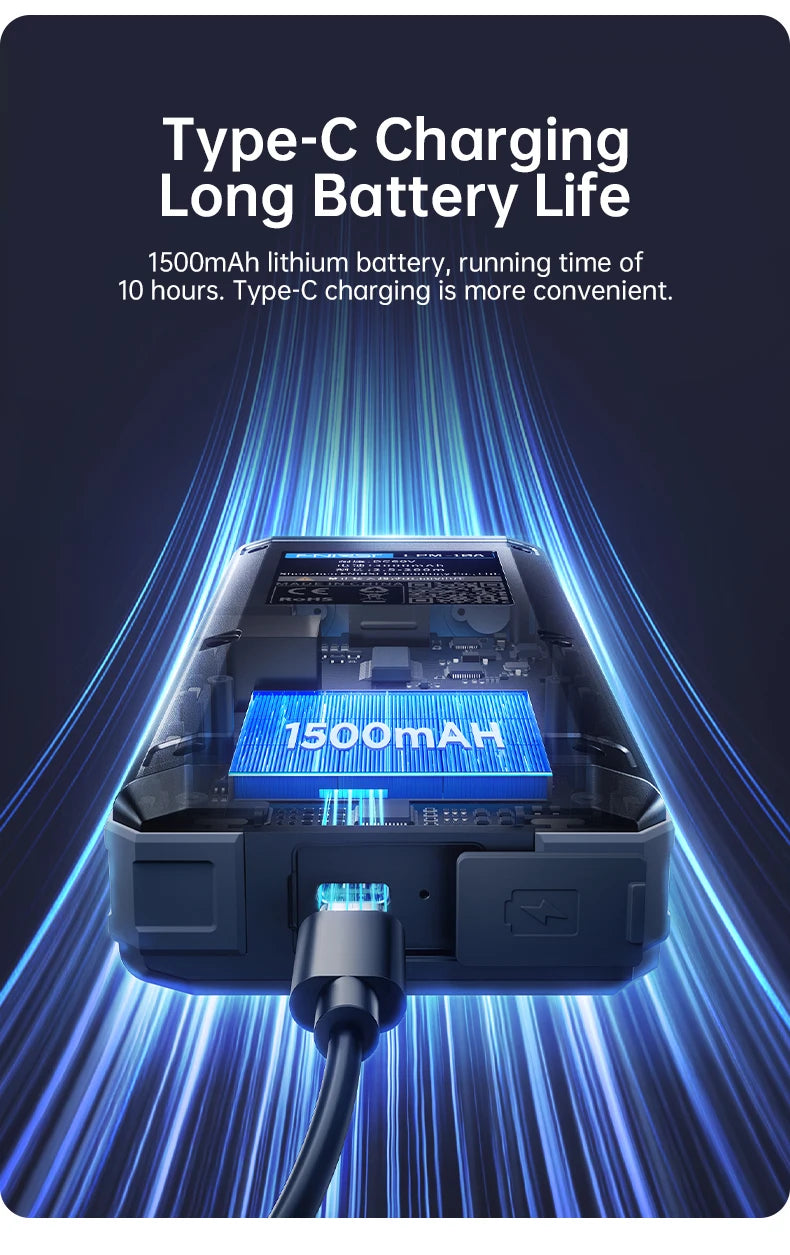

5. Battery: 1500mAh

6. Language: Chinese, English

7.Product size:

LPM-10A: ≈152 × 68 × 31mm

LPM-10B: ≈167 × 68 × 31mm

LPM-10C: ≈152 × 68 × 31mm

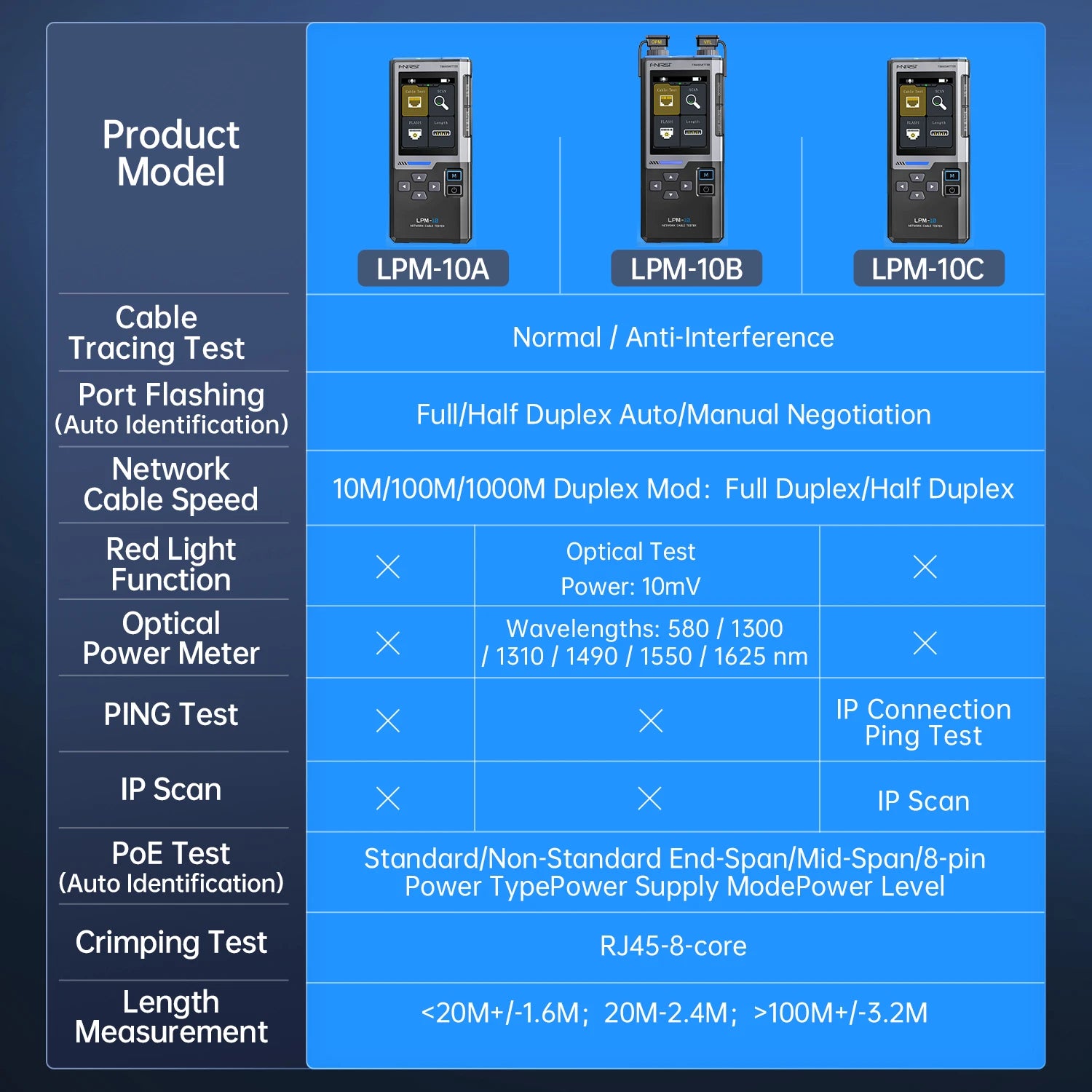

Parameters 1

Equipment: Transmitter

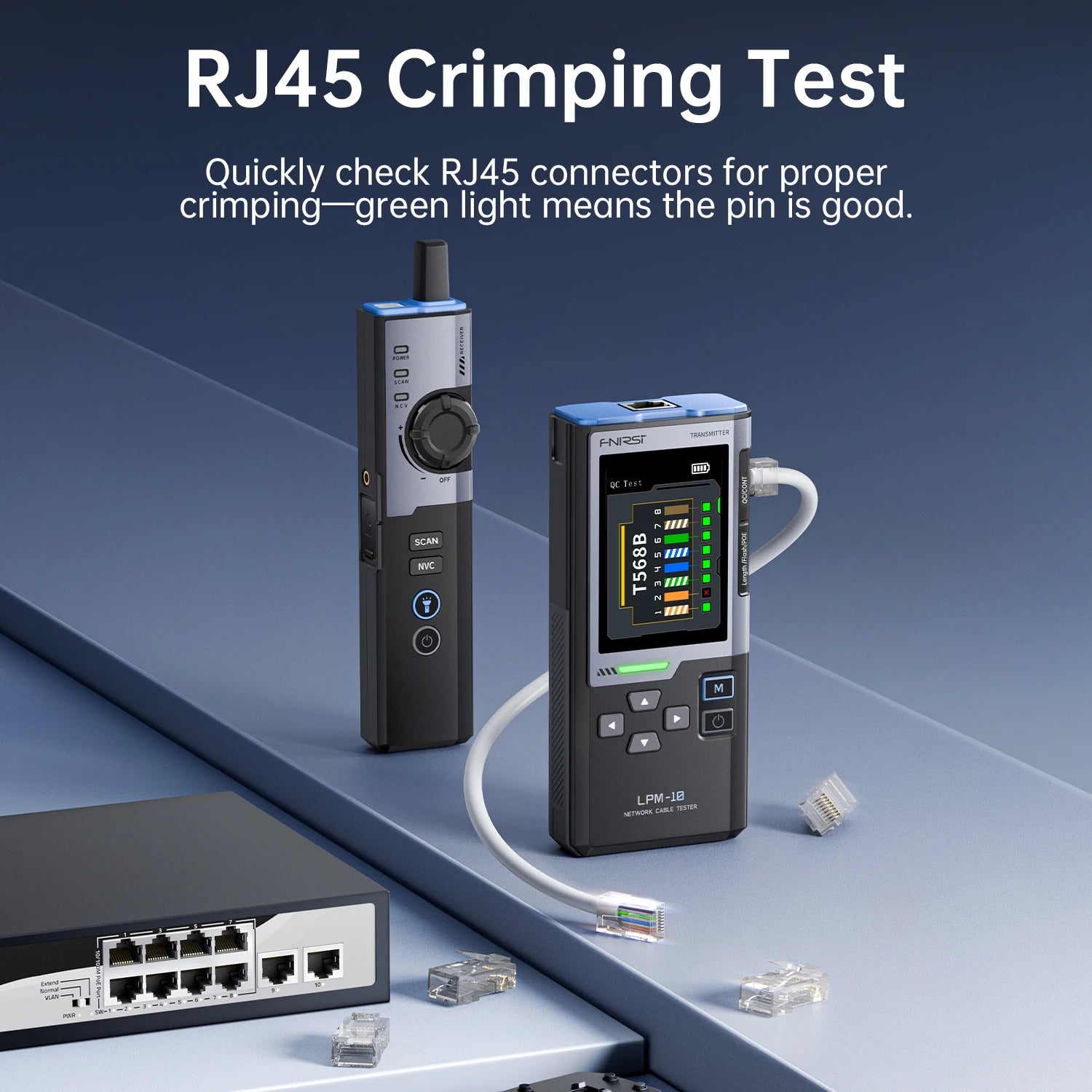

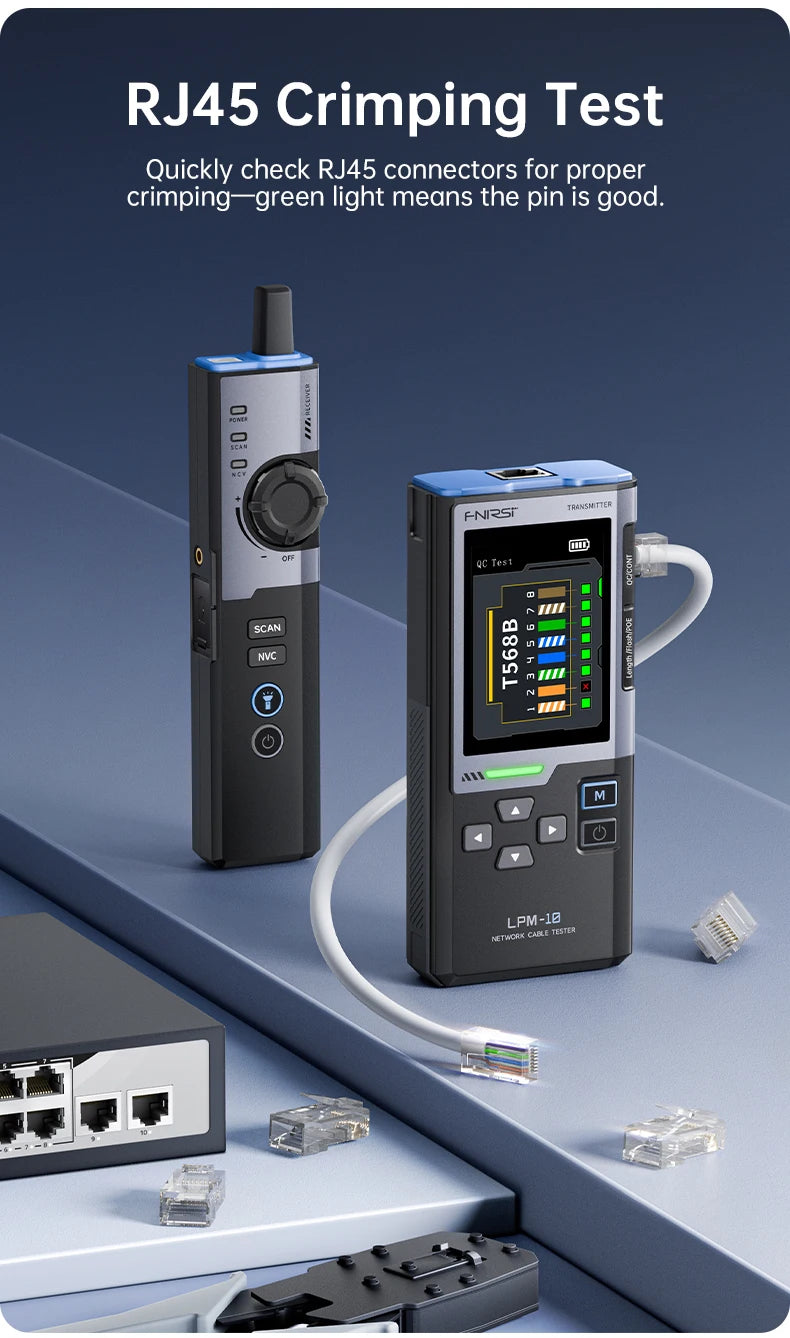

Network cable connection test function:

All three devices support measuring line interfaces: RJ45, line, line sequence and fault test, error prompt.

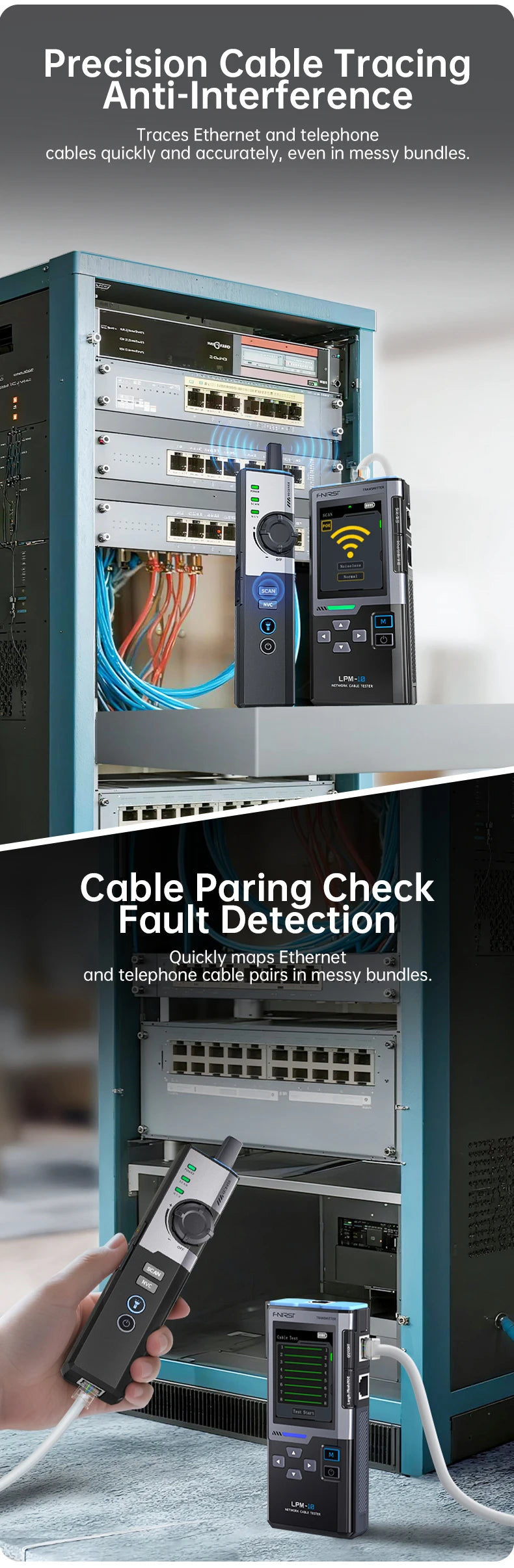

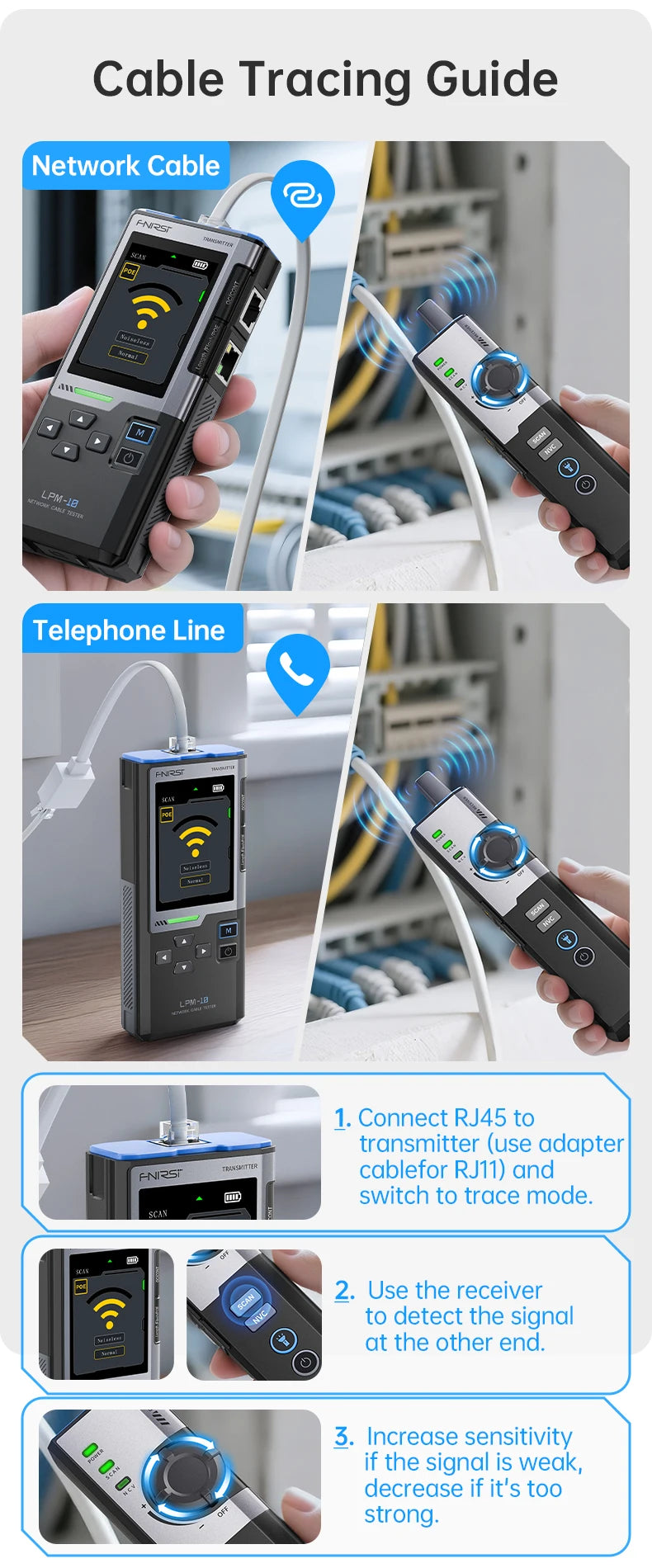

Line search test:

Support all models: normal line search, anti-interference line search.

Port flashing:

Support all models: full-duplex/half-duplex automatic identification, auto-negotiation/non-auto-negotiation automatic identification.

Network cable rate:

Support all models: 10M/100M/1000M, duplex mode (full-duplex/half-duplex).

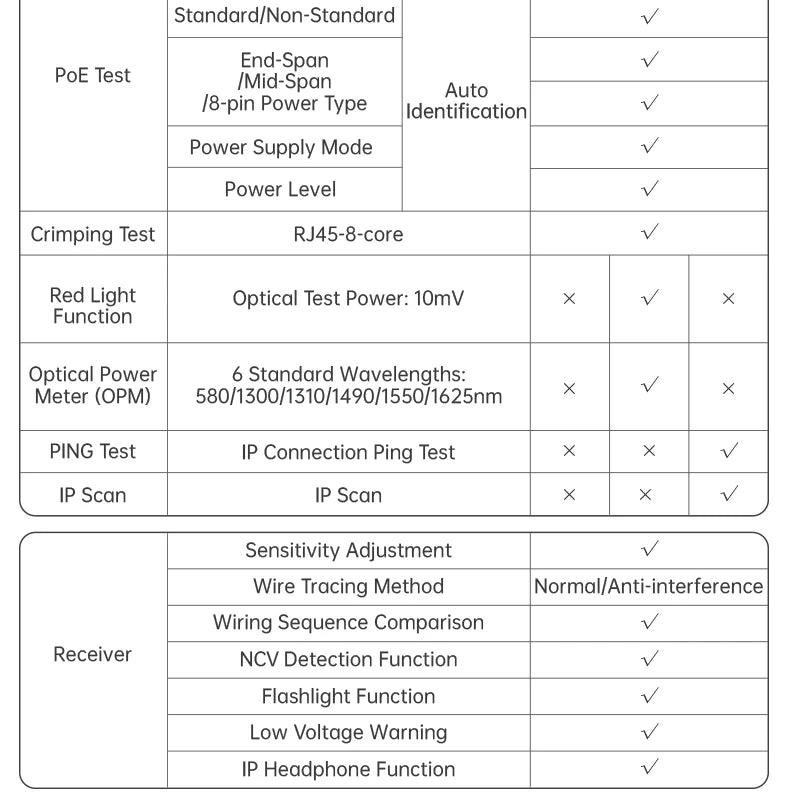

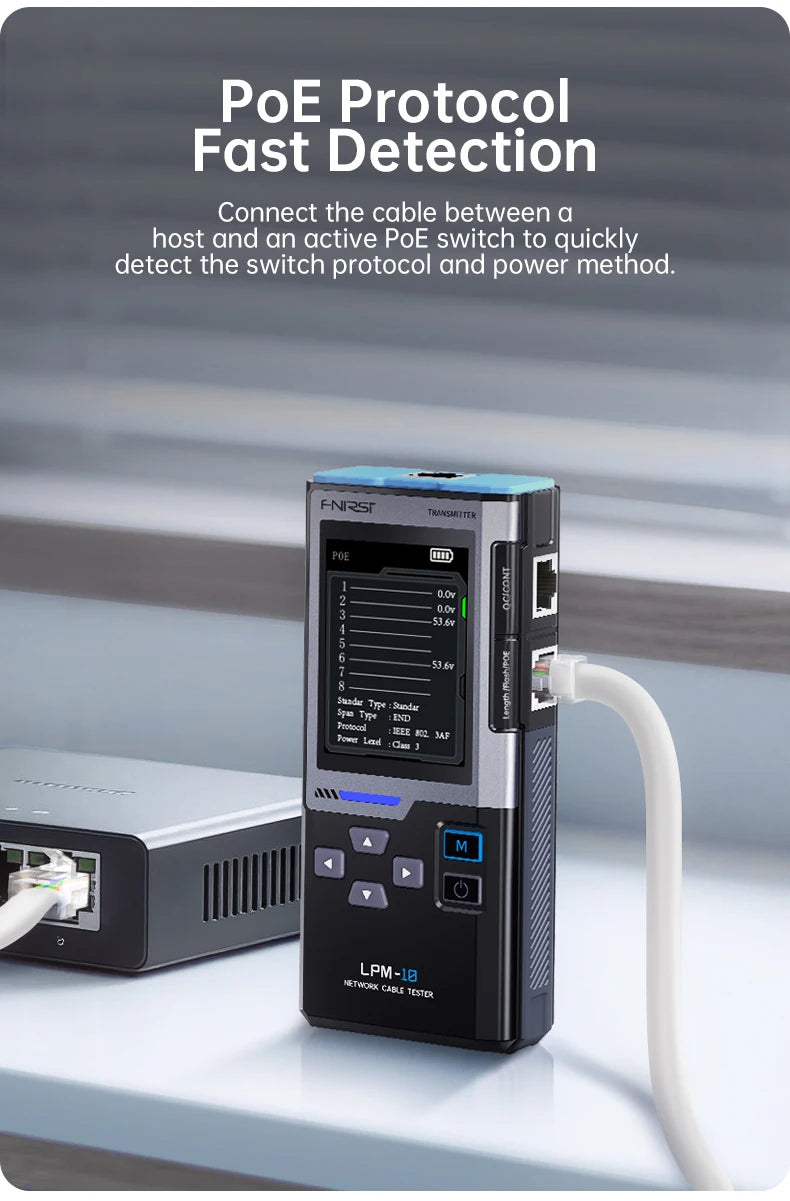

POE test:

Support all models: standard and non-standard, end-span/mid-span/8-core power supply automatic identification, power supply mode, power level.

Line withstand voltage test:

Support all models: RJ45-8 core.

Red light function:

LPM-10B supports: optical power test power 10mW.

Optical power meter function:

LPM-10B supports: 580/1300/1310/1490/1550/1625 (wavelength).

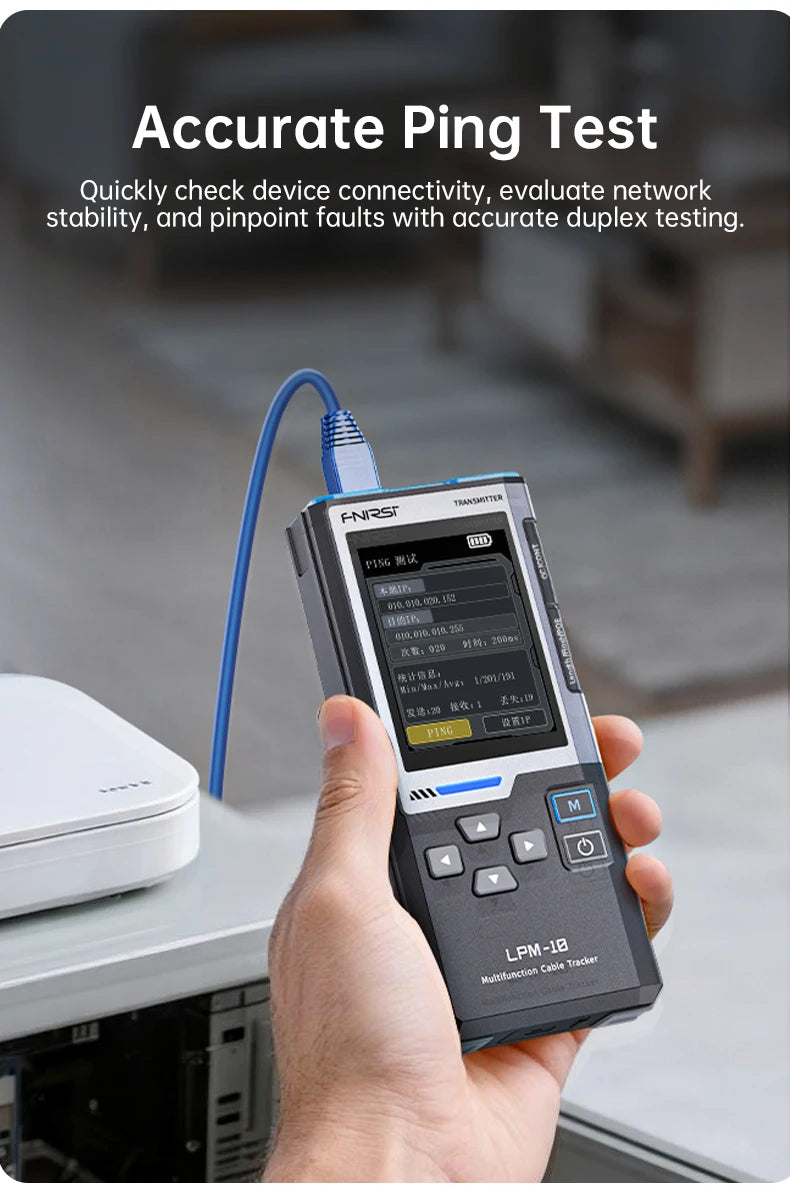

PING test:

LPM-10C supports: IP connection Ping test.

IP scan:

LPM-10C supports: IP scan.

Parameters 2

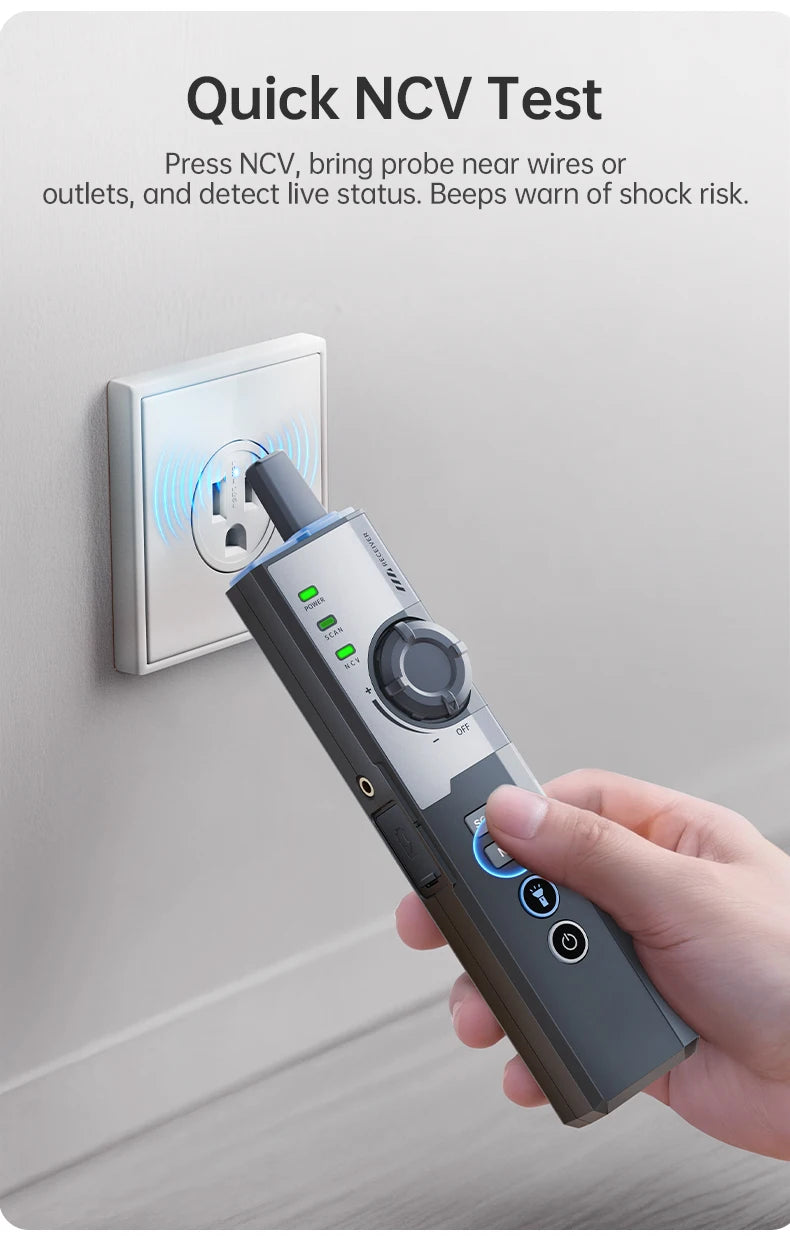

Receiver function supports sensitivity adjustment, line search mode, line alignment, NCV detection function, flashlight function, low voltage prompt, headphone function

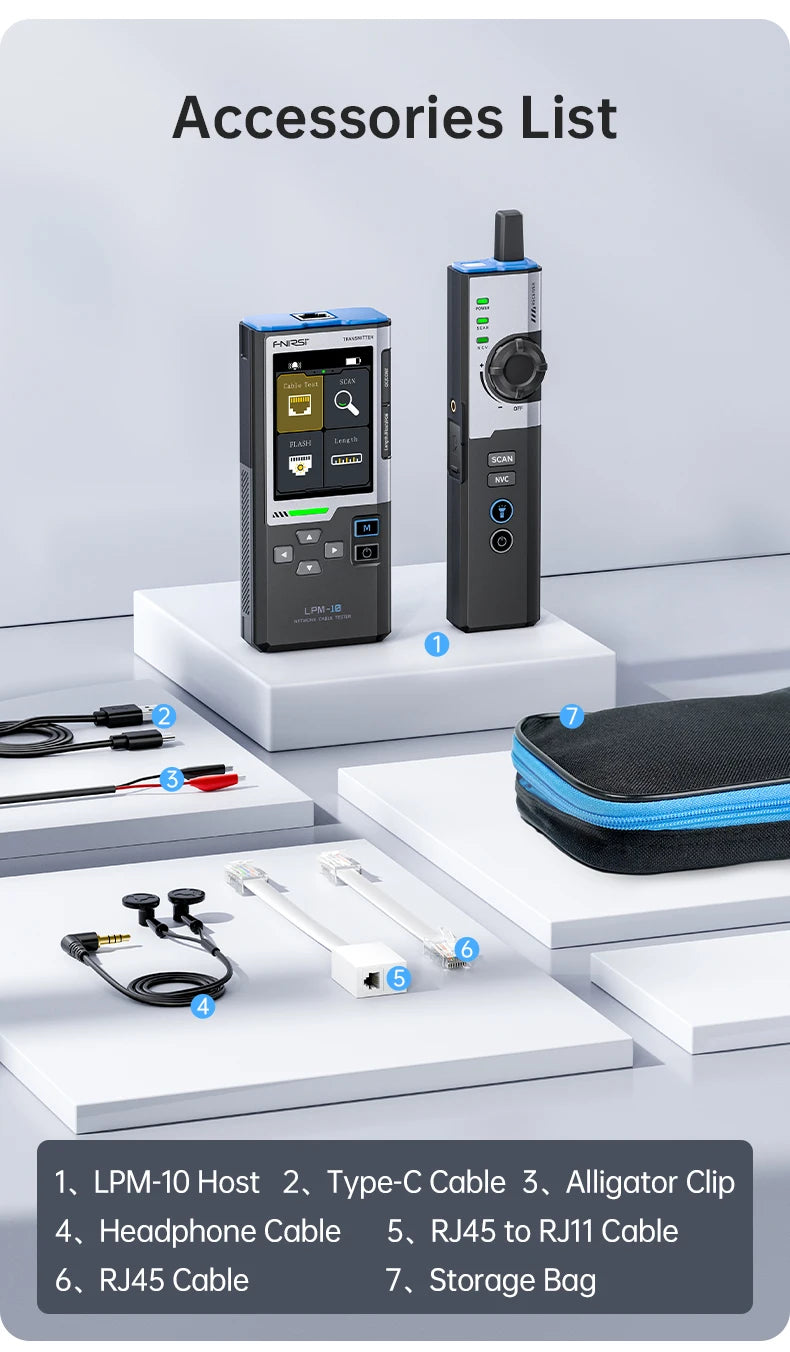

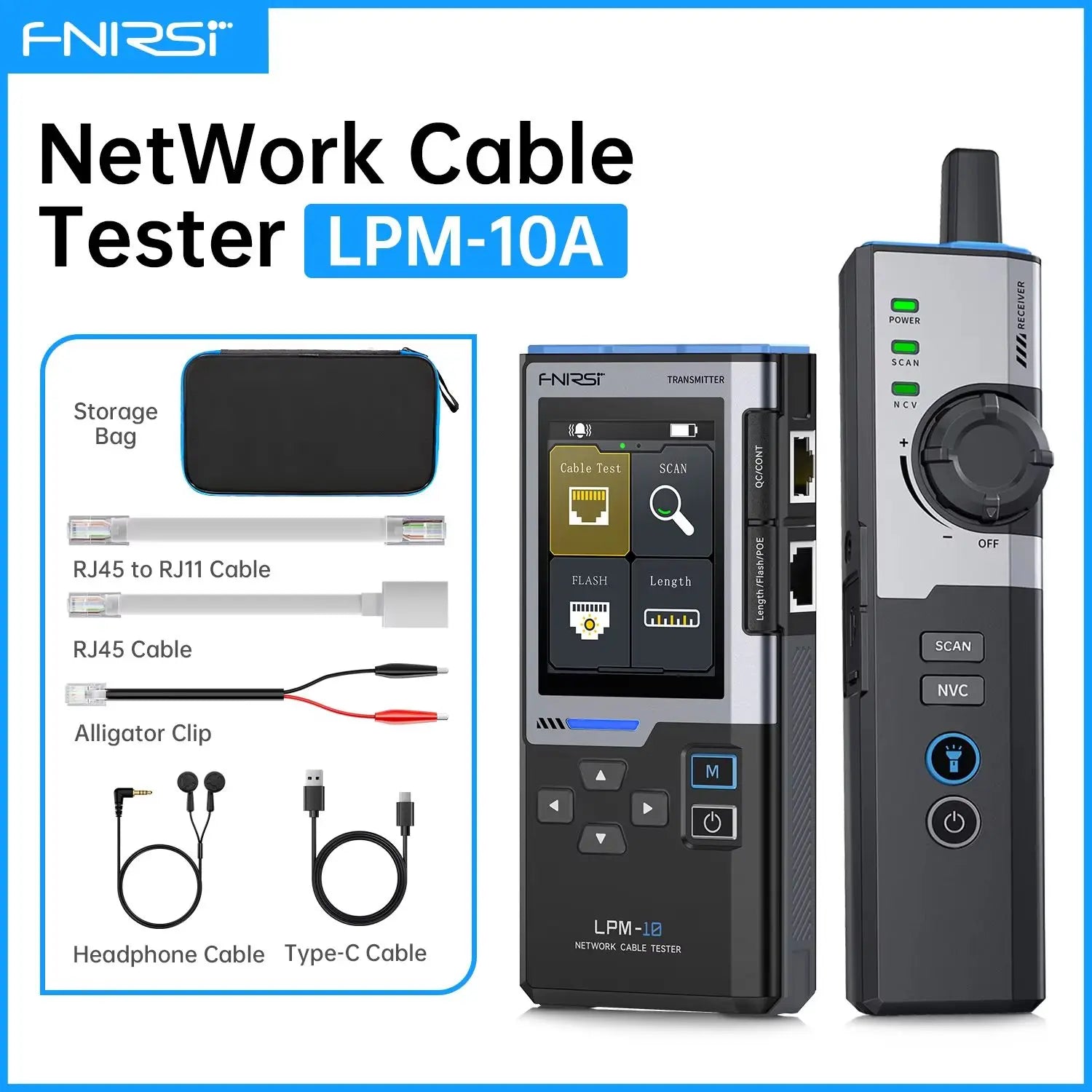

1. LPM-10A Main Unit

2. RJ45 Network Cable

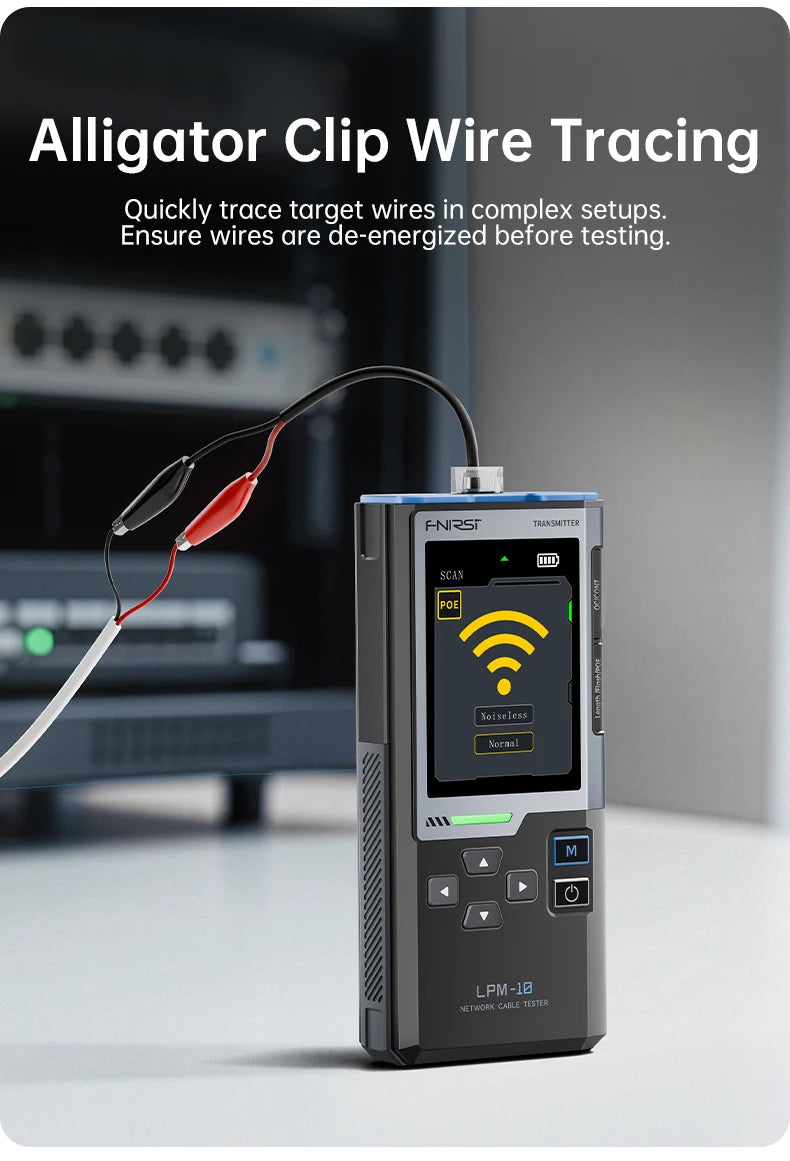

3. RJ11 Alligator Clip Test Cable

4. RJ45 to RJ11 Adapter Cable

5. Earpiece Cable

6. Type-C Charging Cable

7. Storage Bag
