FNIRSI USB Logic Analyzer 16/32 Channels USB3.0 Protocol Debug Protocol Decoding Software 1GHz Sample Rate Digital Analyzer Tool
DLA-32 Plus
$1,214.96
Sale price
$1,214.96
Regular price
$0.00
Skip to product information
FNIRSI USB Logic Analyzer 16/32 Channels USB3.0 Protocol Debug Protocol Decoding Software 1GHz Sample Rate Digital Analyzer Tool
$1,214.96
Sale price
$1,214.96
Regular price
$0.00
Description

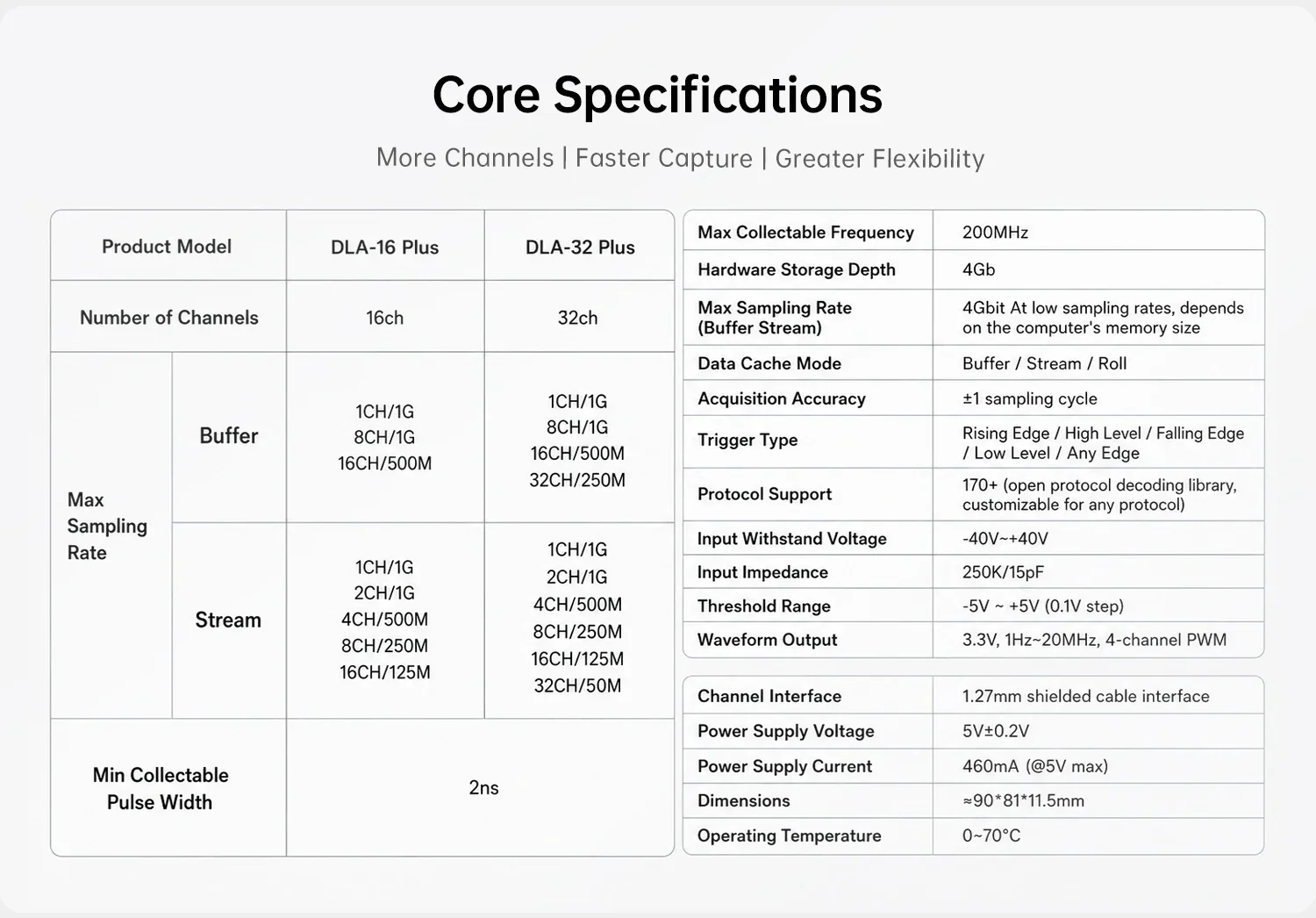

SPECIFICATIONS
Acquisition Modes: Buffer / Stream / Roll
Battery Included: no
Brand Name: FNIRSI
Certification: CE,RoHS
Channels: 16CH / 32CH
Choice: yes
High-concerned chemical: none
Input Frequency: Up to 200MHz
Input Voltage Range: -40V to +40V
Min Pulse Width: 2ns
Origin: Mainland China
Output Voltage: 3.3V
PC Interface Connection: USB Type-C
PWM Output: 4CH, 3.3V, 1Hz-20MHz
Product Model: DLA-16 Plus / DLA-32 Plus
Product Type: USB Logic Analyzer
Protocol Decoding: 120+ Protocols
Sampling Depth: Up to 4Gbit
Sampling Rate: Up to 1GHz
Semi-finishedproduct: No
Trigger Modes: Rising / Falling / High / Low / Any Edge
semi_Choice: yes
The FNIRSI DLA-16 Plus / DLA-32 Plus USB Logic Analyzer is designed for capturing, displaying and analyzing digital circuit signals.
With up to 1GHz sampling rate, 16/32 input channels, 120+ protocol decoding, deep memory and multiple acquisition modes, it helps users analyze timing and waveform data, diagnose circuit faults, verify digital designs and improve debugging efficiency.
It is suitable for MCU development, FPGA debugging, embedded systems, digital circuit testing, communication protocol analysis and electronic engineering applications.
Highlights
◉ Up to 32CH / 1GHz High-Speed Sampling

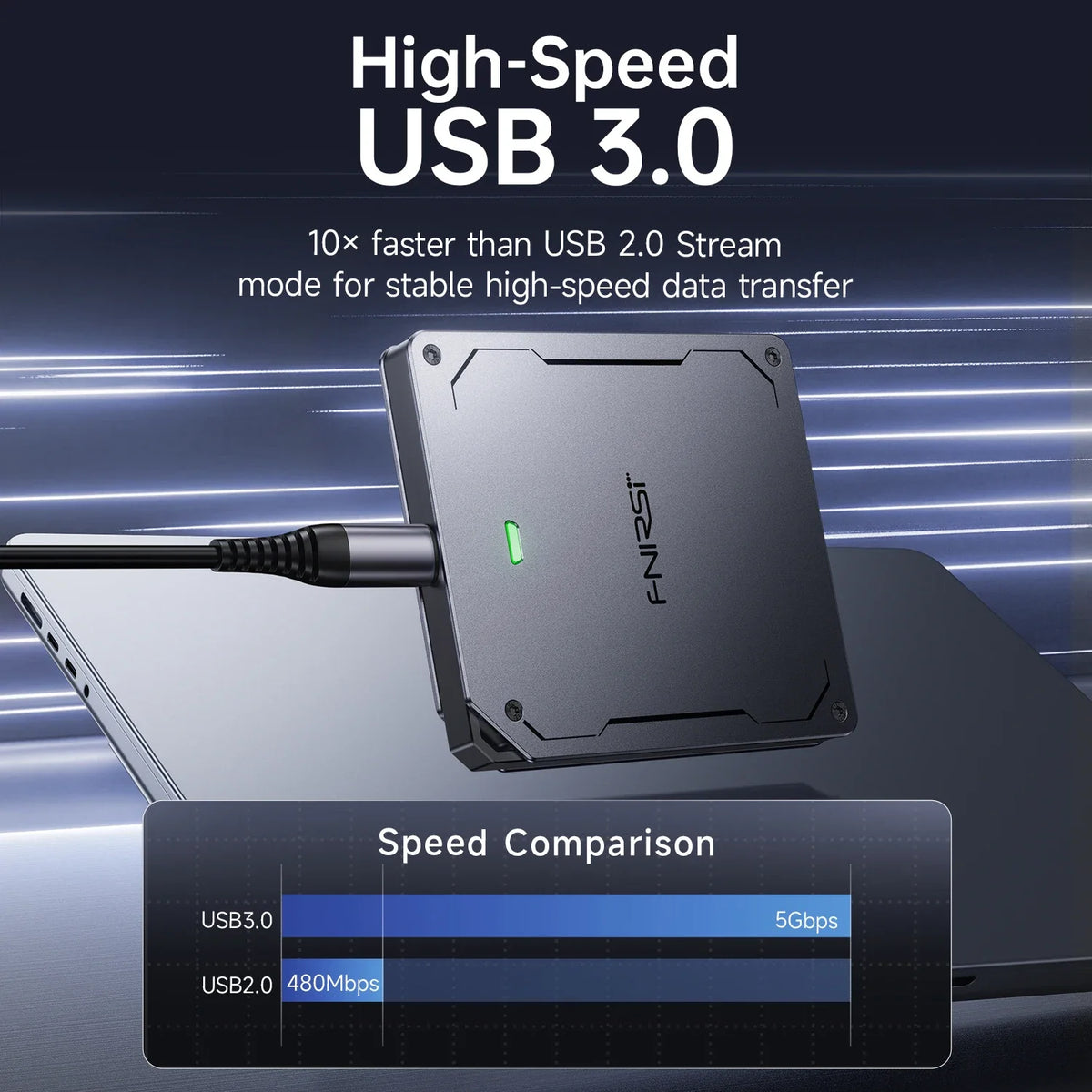

◉ USB 3.0 Up to 5Gbps High-Speed Data Transfer
◉ 4Gbit Hardware Memory for High-Speed Buffer Capture
◉ 170+ Protocol Decoders with Custom Protocol Support
◉ 4-Channel PWM Output, 3.3V, 1Hz–20MHz
◉ Buffer / Stream / Roll Modes for Flexible Acquisition
◉ Advanced Serial & Parallel Trigger Functions
◉ Product Type: USB Logic Analyzer
◉ Model: DLA-16 Plus / DLA-32 Plus
◉ Channels: 16CH / 32CH
◉ Max Sampling Rate: Up to 1GHz
◉ Max Input Frequency: 200MHz
◉ Min Detectable Pulse Width: 2ns
◉ Hardware Memory Depth: 4Gb
◉ Max Sampling Depth: Up to 4Gbit
◉ Acquisition Modes: Buffer / Stream / Roll
◉ Acquisition Resolution: ±1 Sample Period
◉ Protocol Support: 120+ Protocols, Custom Protocol Supported
◉ Trigger Types: Rising Edge / Falling Edge / High Level / Low Level / Any Edge
◉ Input Voltage Rating: -40V to +40V
◉ Input Impedance: 250KΩ / 15pF
◉ Threshold Voltage Range: -5V to +5V, Adjustable in 0.1V Steps
◉ Waveform Output: 3.3V, 1Hz–20MHz, 4-Channel PWM
◉ Channel Interface: 1.27mm Shielded Cable Connector
◉ PC Connection: USB Type-C, USB 3.0 Port Recommended
◉ Supply Voltage: 5V ±0.2V
◉ Supply Current: 460mA Max @ 5V
◉ Dimensions: Approx. 90 × 81 × 11.5mm
◉ Operating Temperature: 0–70°C

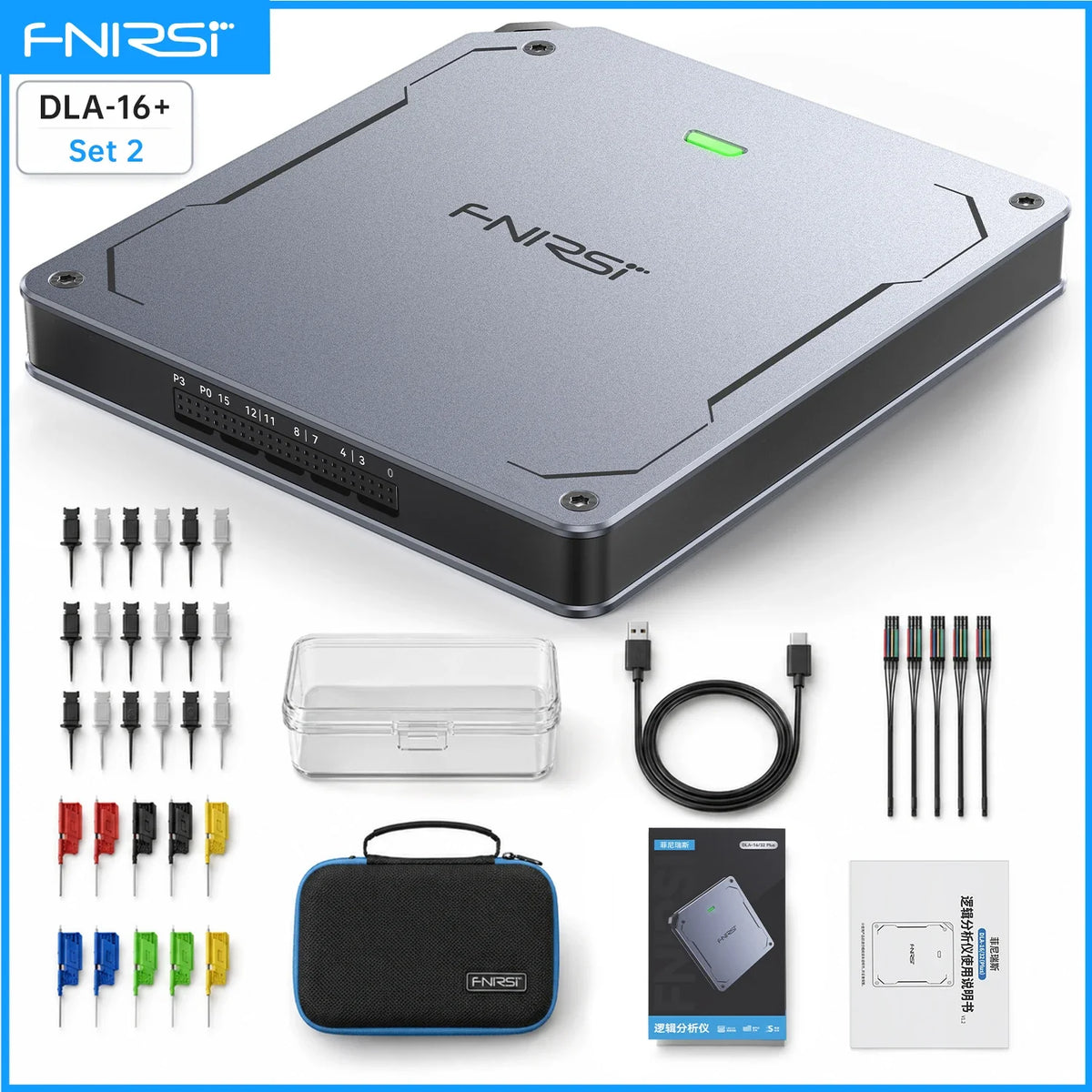

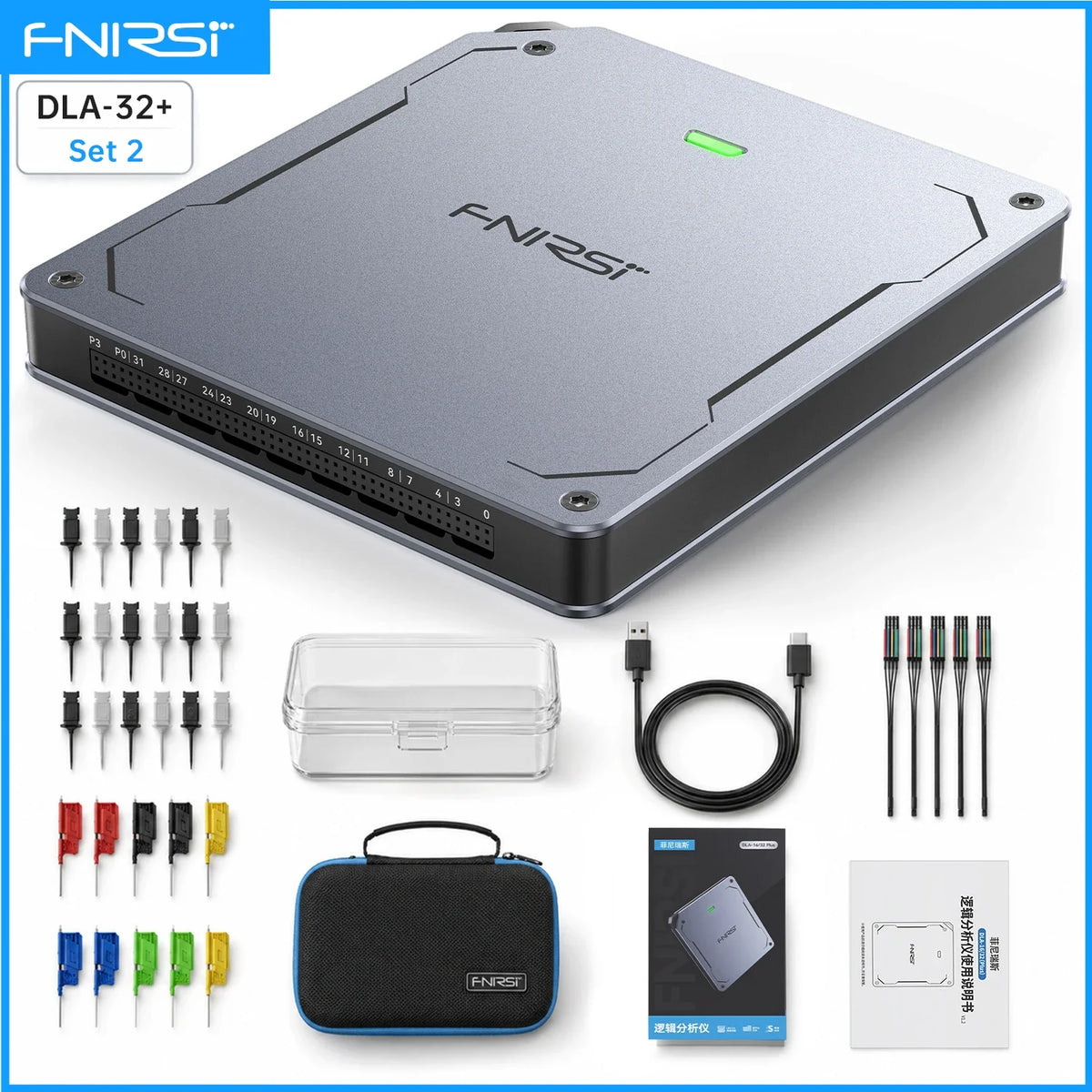

DLA-16 Plus / DLA-32 Plus Package List
◉ Up to 32CH / 1GHz High-Speed Sampling
◉ USB 3.0 Up to 5Gbps High-Speed Data Transfer
◉ 4Gbit Hardware Memory for High-Speed Buffer Capture
◉ 170+ Protocol Decoders with Custom Protocol Support
◉ 4-Channel PWM Output, 3.3V, 1Hz–20MHz
◉ Buffer / Stream / Roll Modes for Flexible Acquisition
◉ Advanced Serial & Parallel Trigger Functions
