SPECIFICATIONS

Alarm Type: The Alarm,sms,PSTN,GPRS,Apps Control

App name: ST-panel

Arming Type: APP

Brand Name: NONE

Certification: CE,FCC,RoHS

Communication Interface: WireLess

Display: Yes

Frequency: 433Mhz

High-concerned chemical: none

Kit Configuration: Door/Window Sensor

Max current of battery: 350Am

Model Number: FC-7668Pro

Model number: FC-7668pro

Network: TCP/IP RJ 45 Ethernet Port

Origin: Mainland China

Output Number: 12V

Password Keyboard: Yes

Power: (please note that backup battery is not included)

Power (W): 15V 2A

Protocol: SIA2013 and CID Protocol

Size: 25X19X3CM

Smart home platform: Other

Video Interface: No

Zone: 8 wired zone +32 wireless zone + 88 wired bus zone

Zone Number: 8 wired zone +32 wireless zone + 88 wired bus zone

color: Grey

network support: TCP/IP GSM And PSTN 3 network in 1

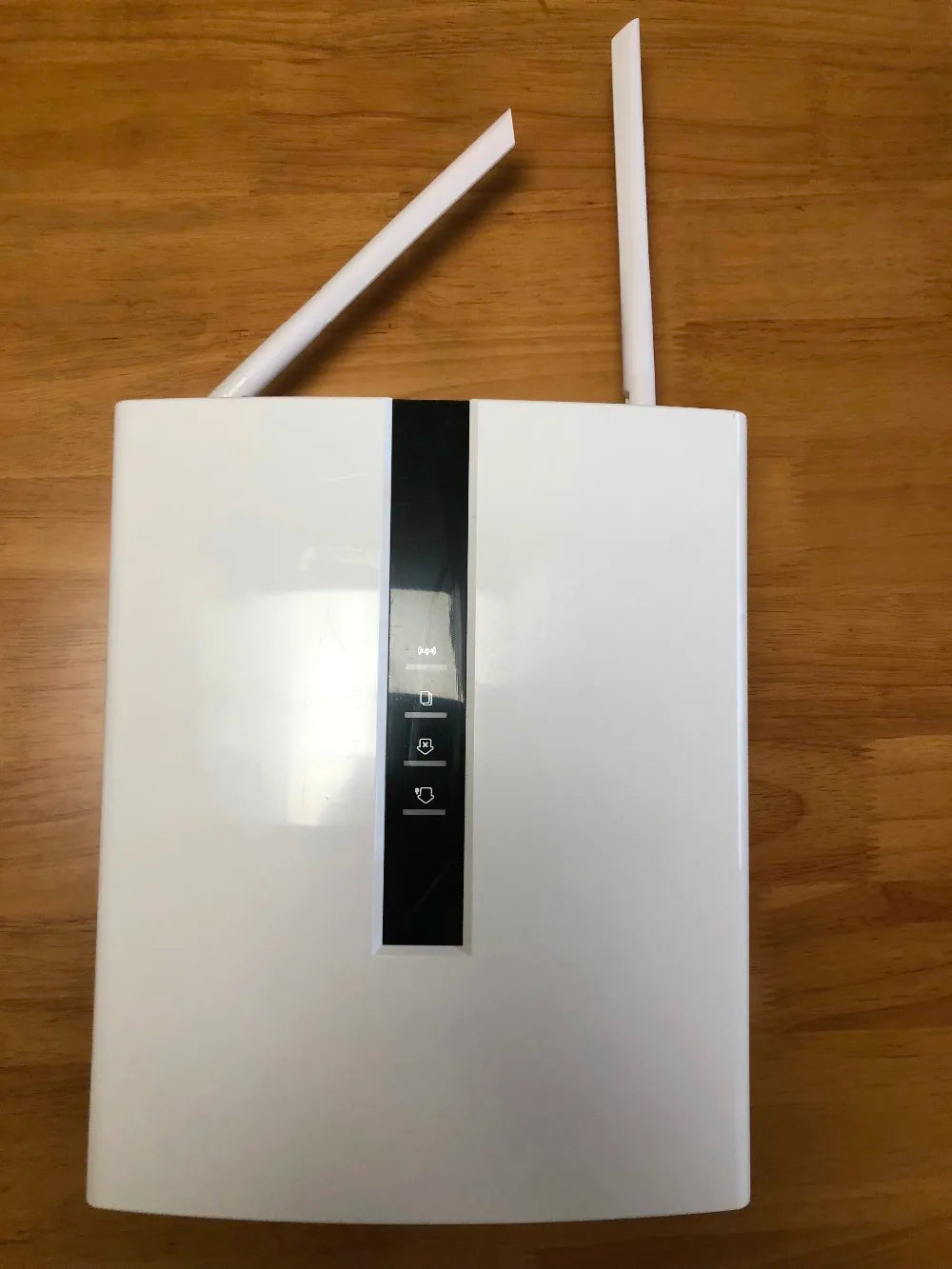

Focus FC-7668Pro TCP IP Security GSM Alarm 96 Wired Smart Home Smart System PCB ONLY

Package included:

FC-7668pro alarm host Only (Price not inlcuded the FC-76XX keypad if you need please buy extra !!!)  433Mhz or 868Mhz for option when you buy !

Accessories: Antenna 1 pc, EOL Resistors 1 bag

FC-7668pro is a intelligent alarm control system which integrated with burglar proof, fireproof, gas leak proof. it is compatible with wired and wireless alarm mode. it use advanced coding techniques of BUS zone and multi-bit random code hopping techniques in security and reliability. to avoid false alarm and interference effectively. adopt SMS, GSM, high-speed Contact ID alarm transmission mode. this system is widely used in residence community, villa, shops, offices.

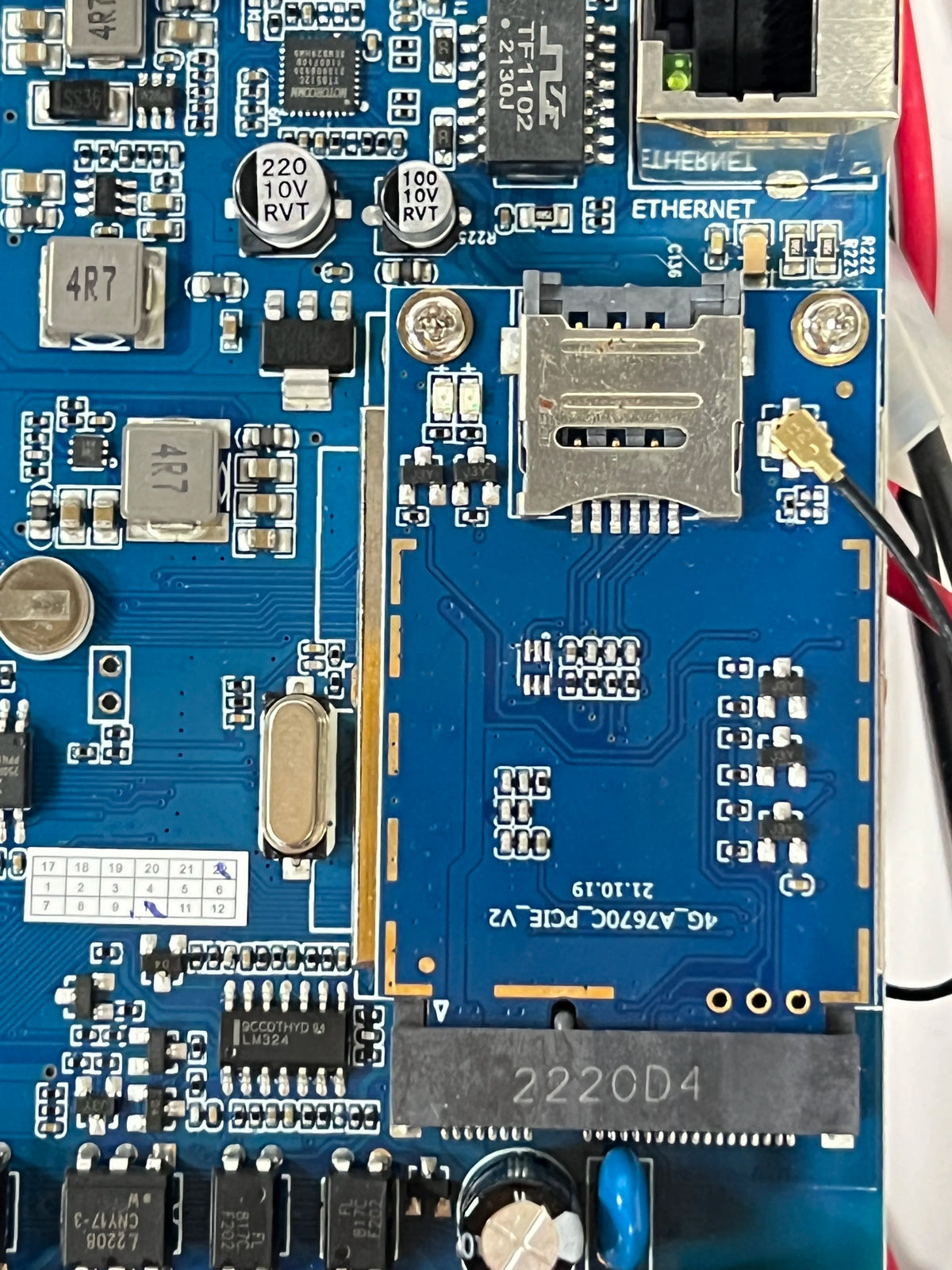

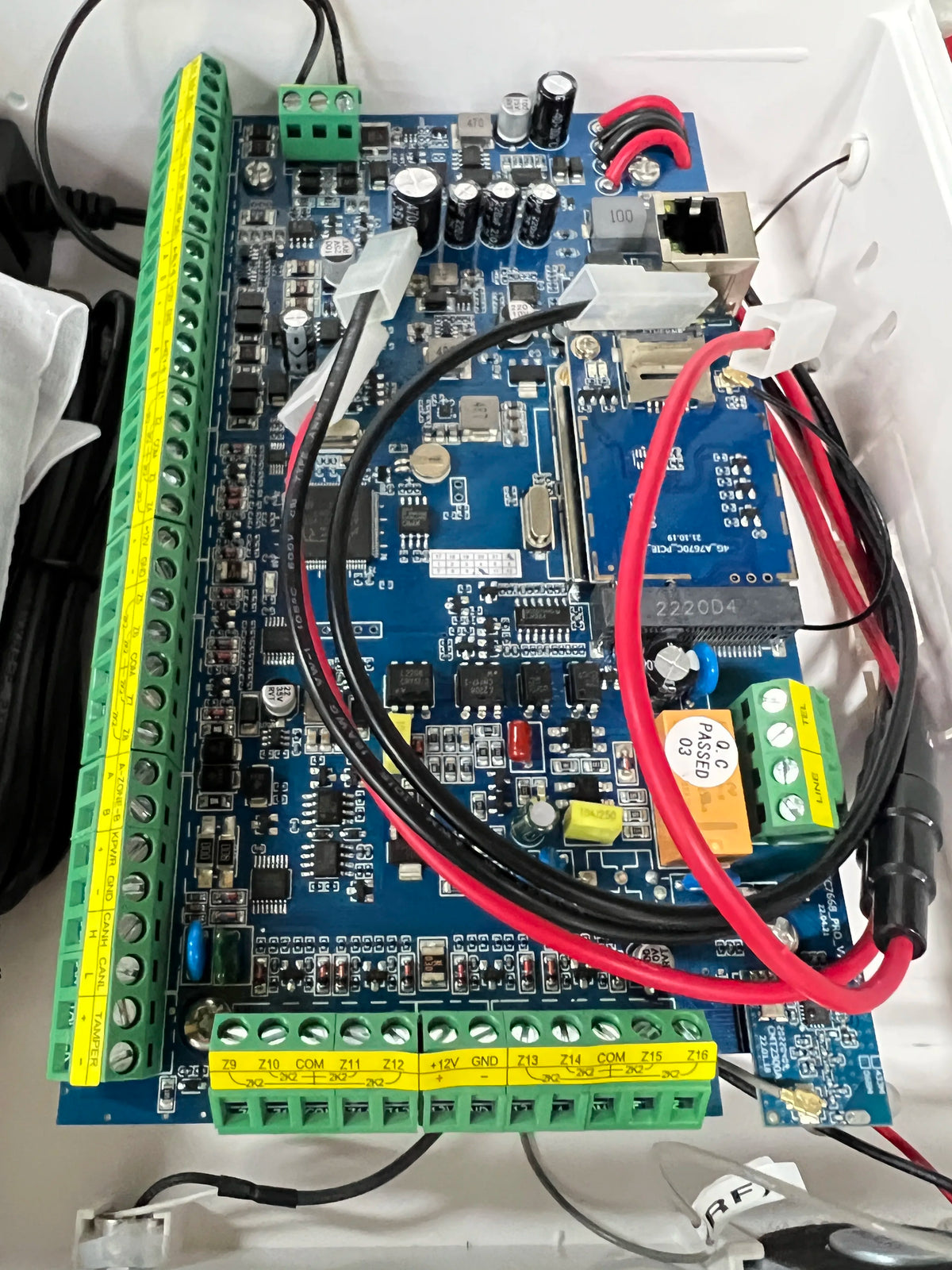

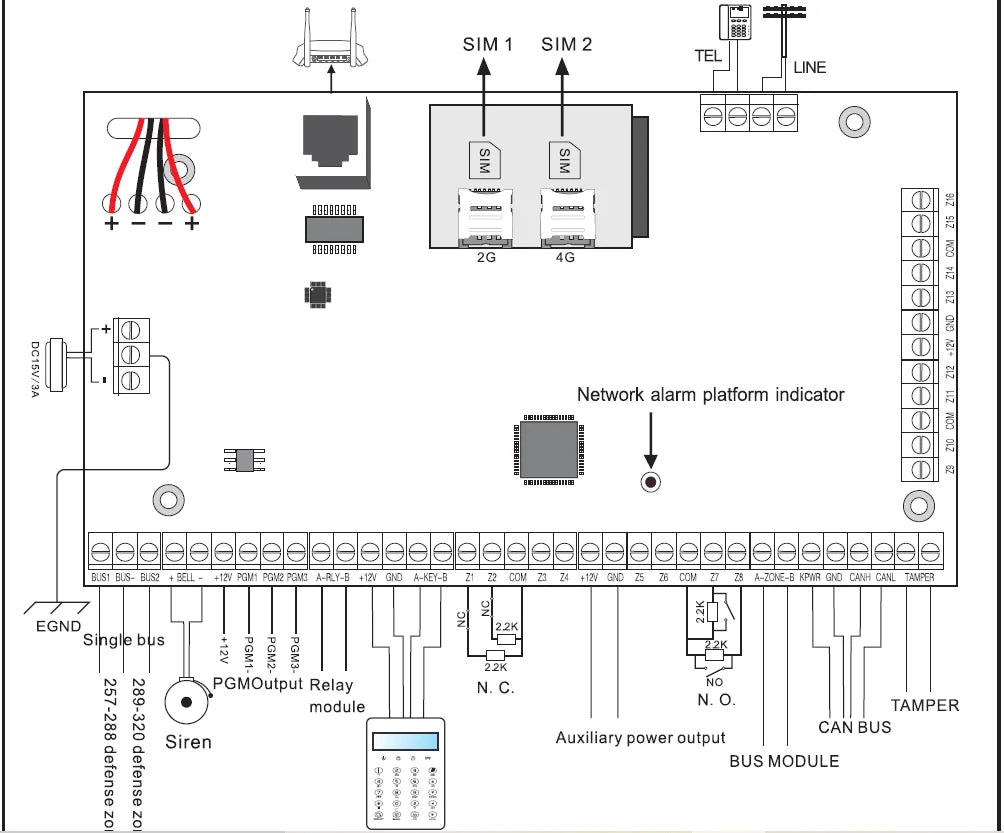

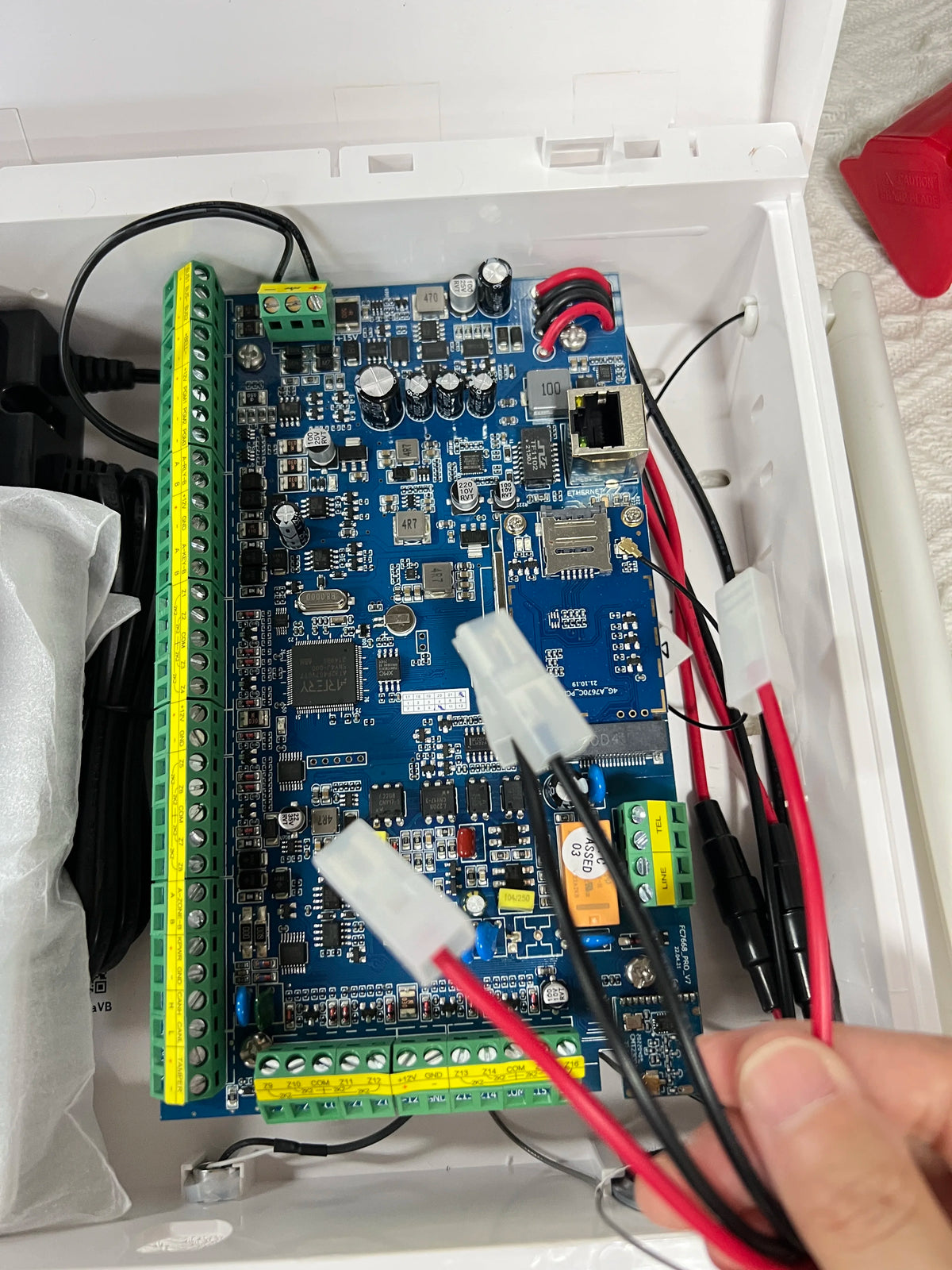

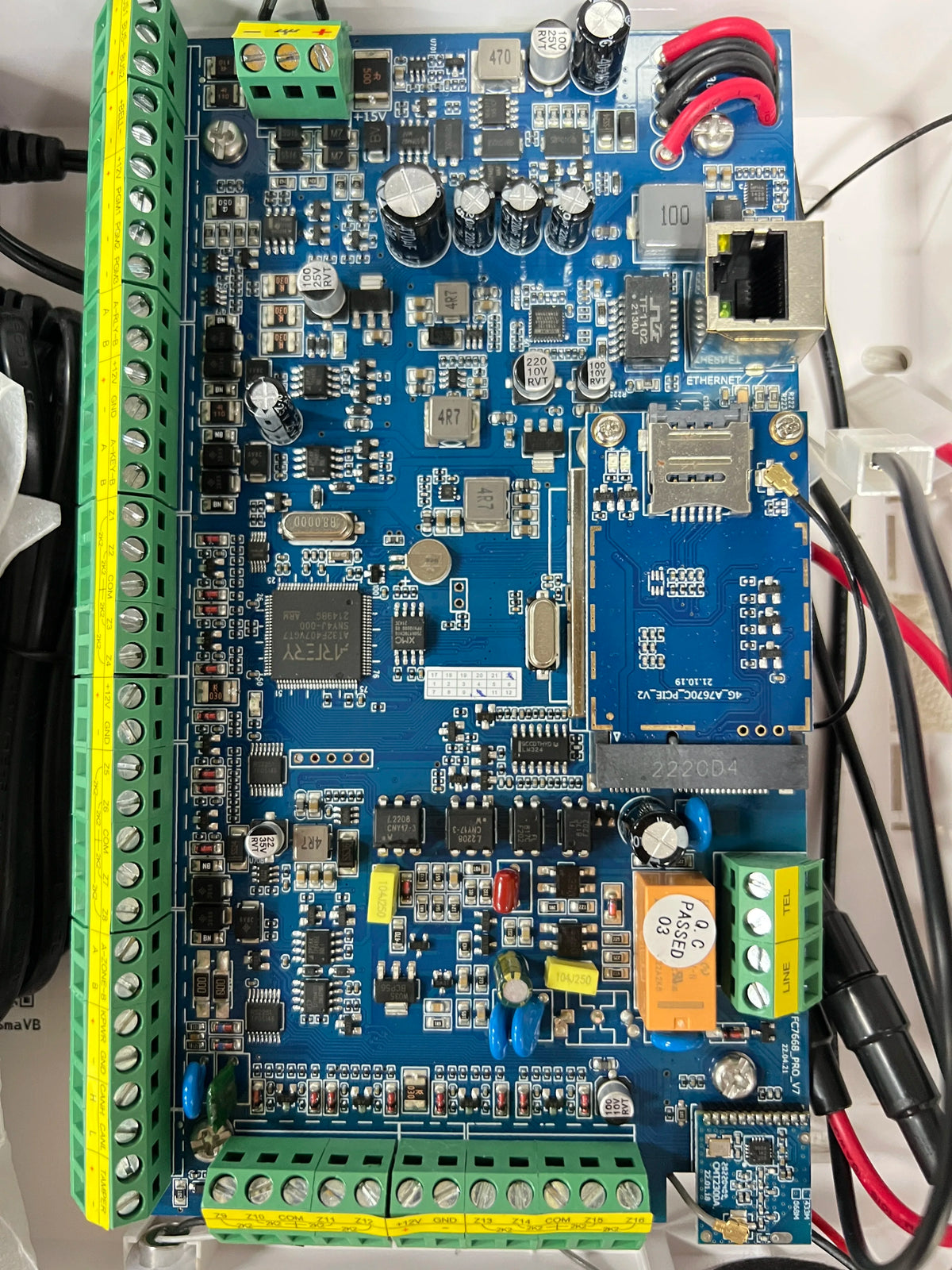

The inside PCB board structure

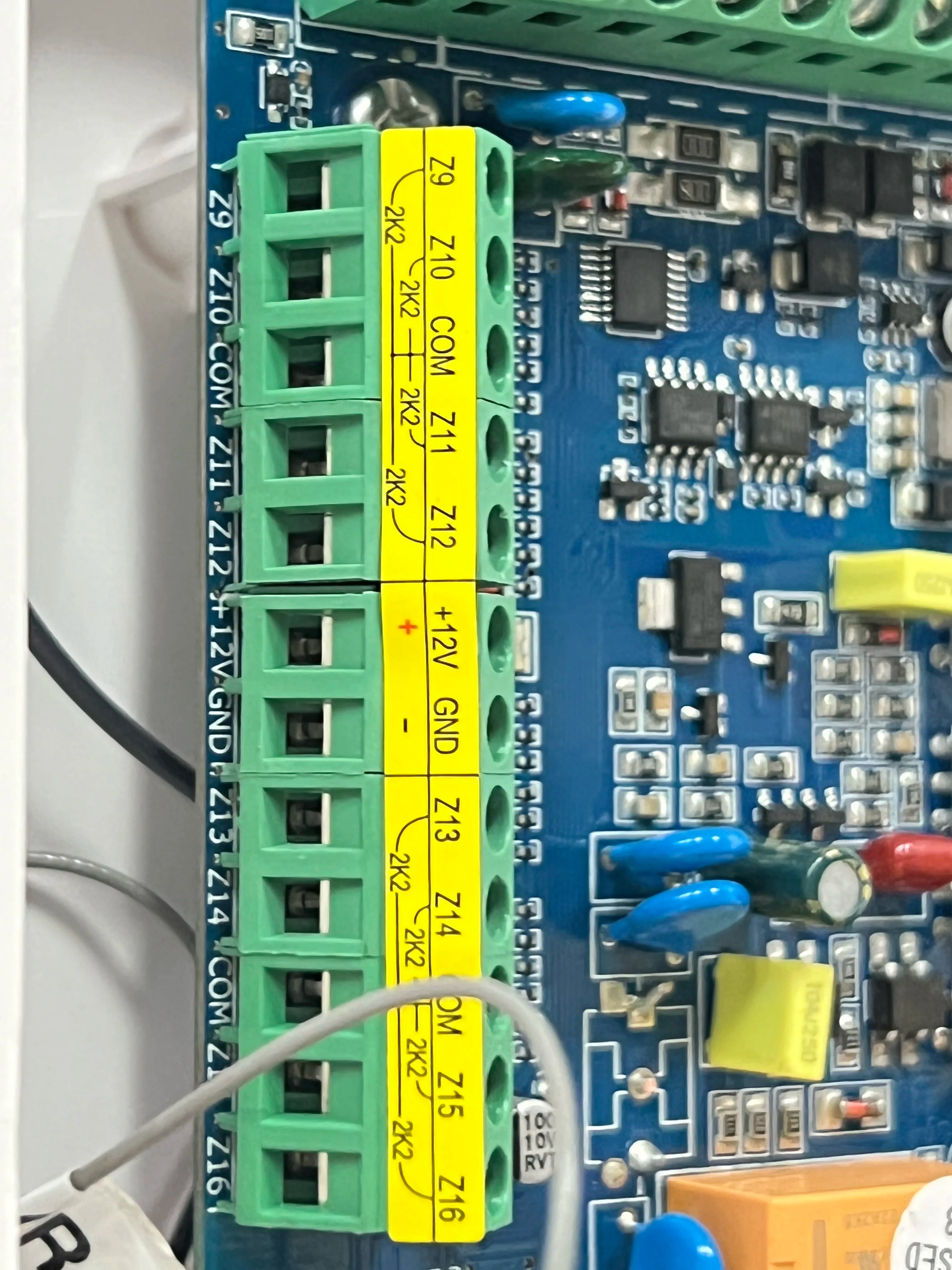

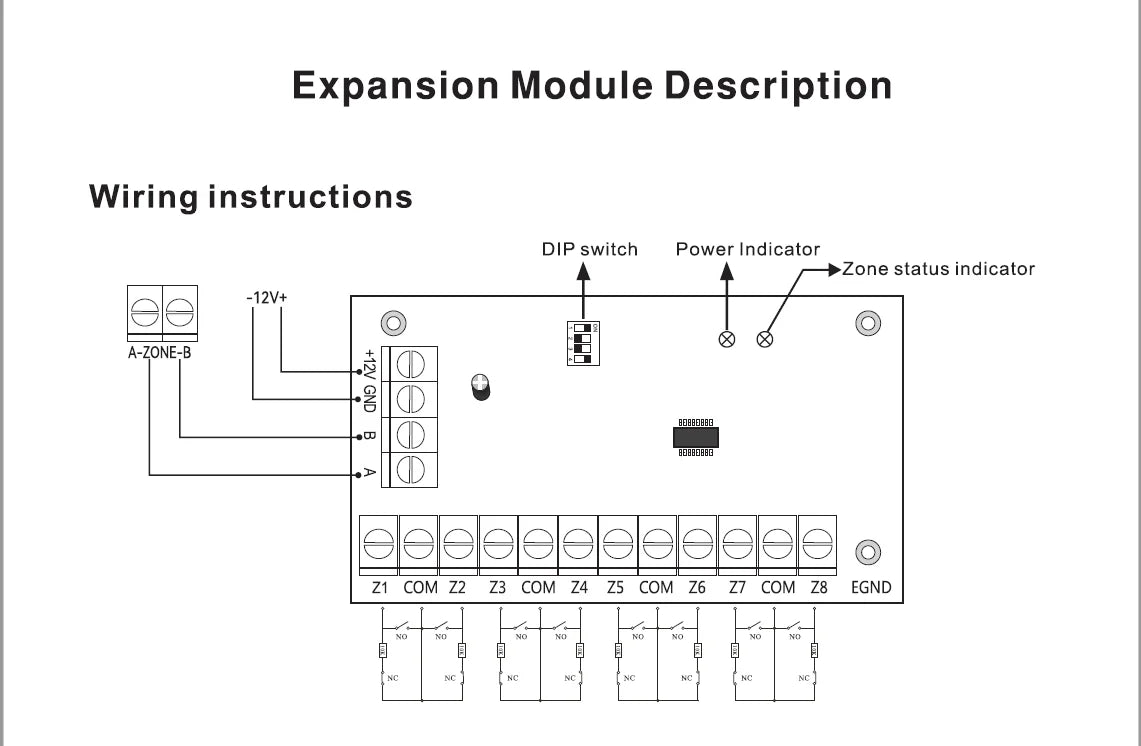

8 wired zones , zone 1 to zone 8 If you need more wired zones, welcome to buy our zone expander

https://www.aliexpress.com/item/32965697102.html?spm=2114.12010612.8148356.9.768a77f7qy9RaA

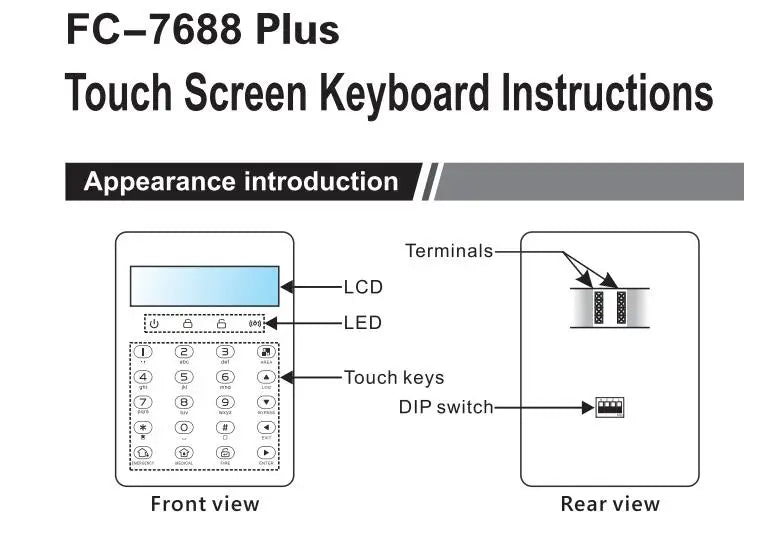

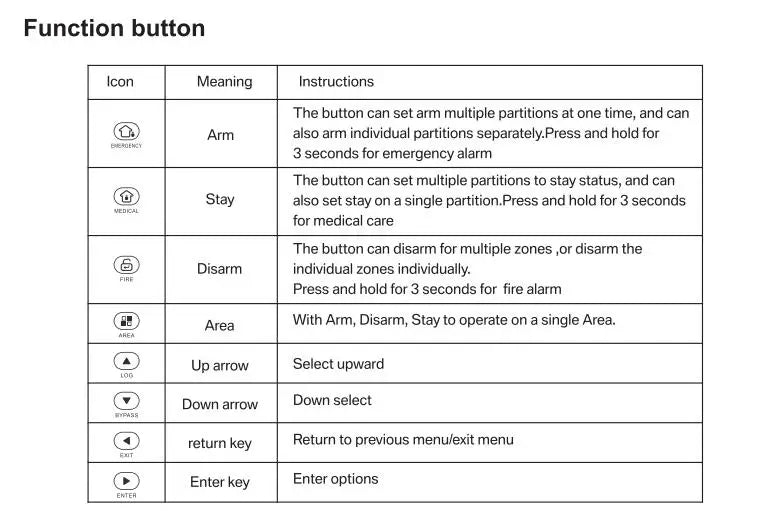

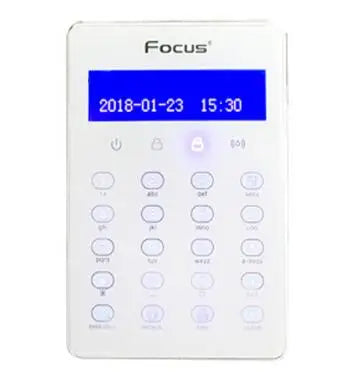

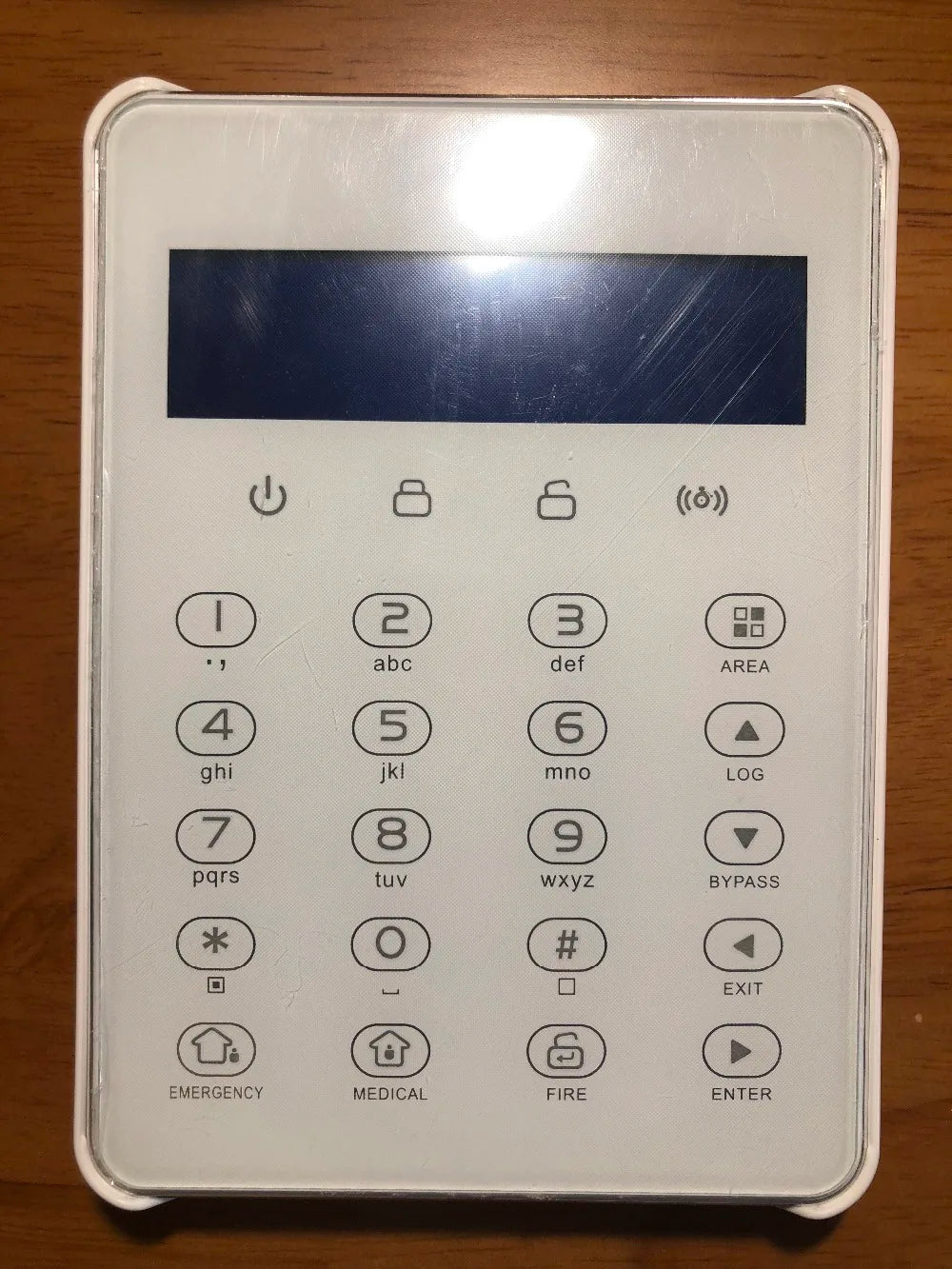

The English Menu Touch Wired keypad

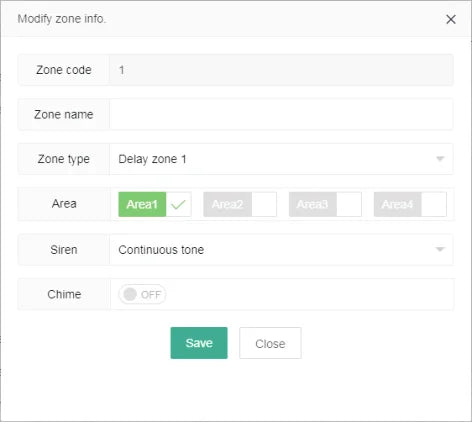

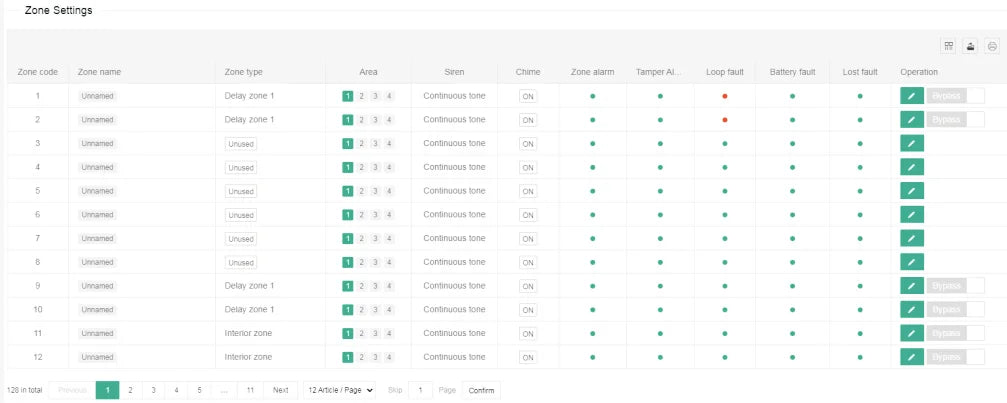

Zone Setting

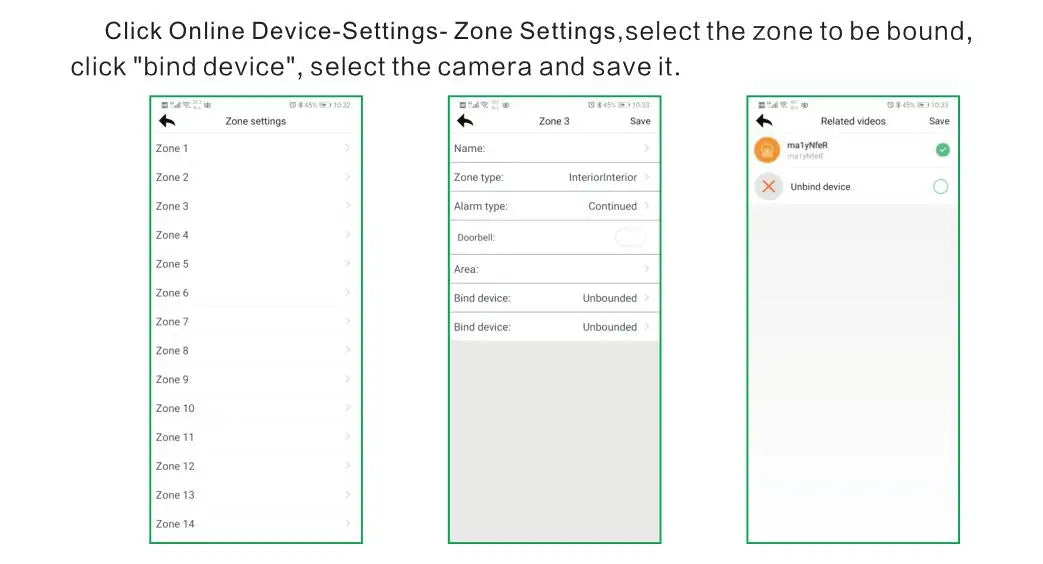

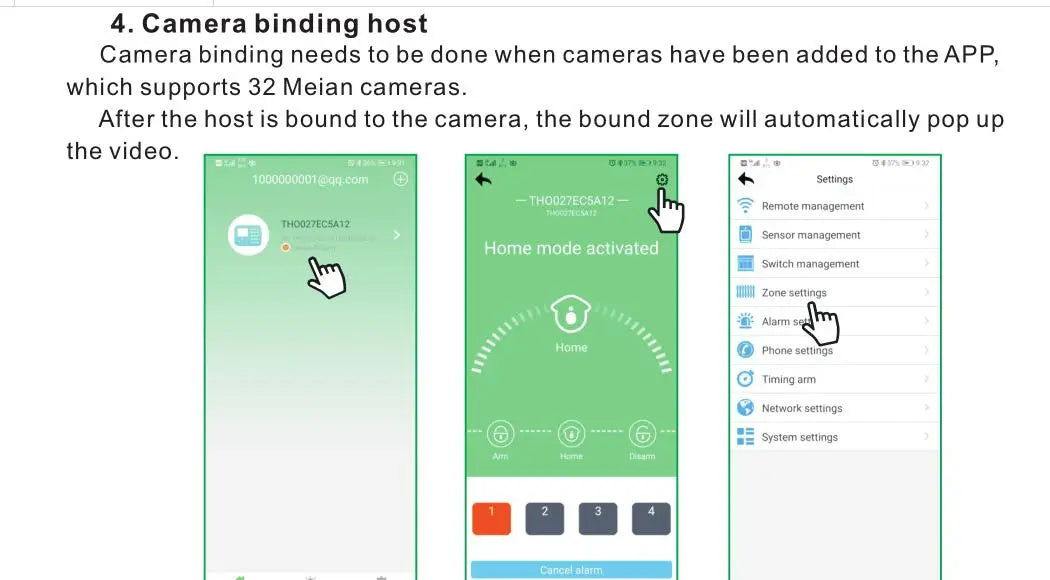

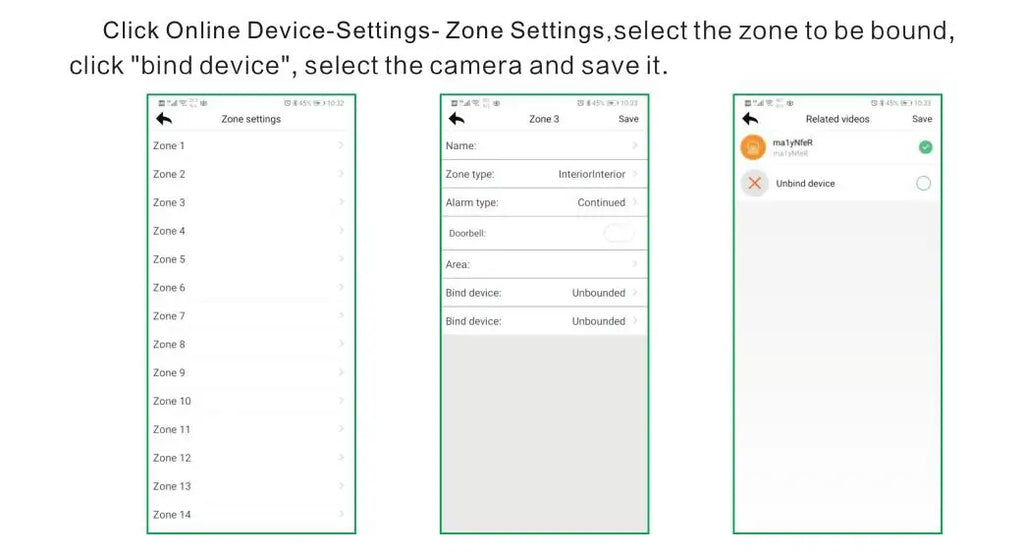

Camera Binding

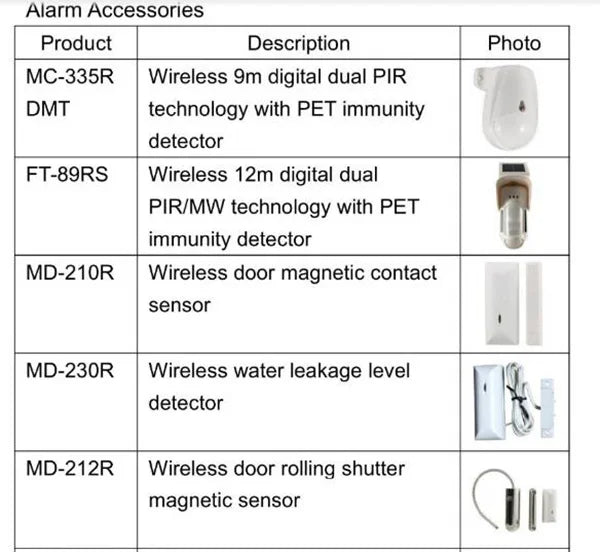

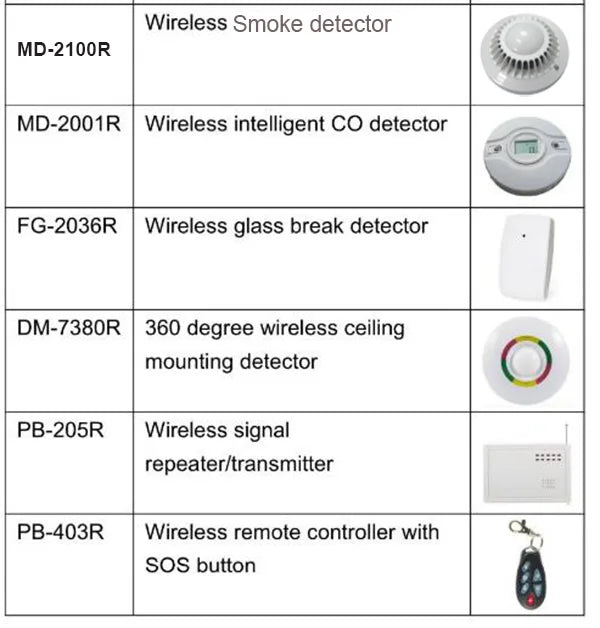

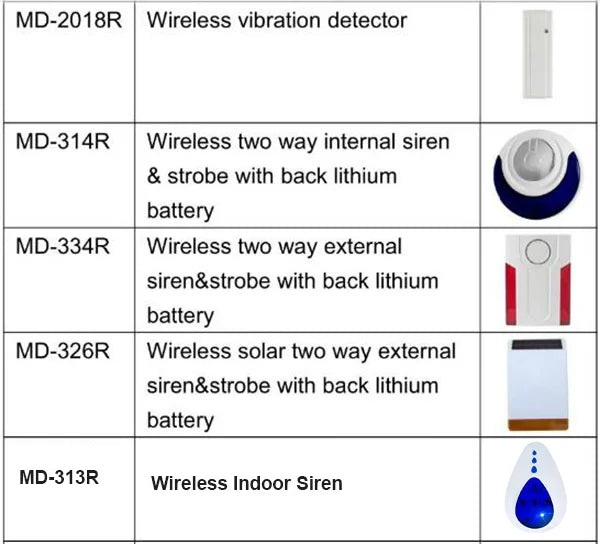

More sensors contact us before order

8. Two SIM cards can be inserted, and the priority SIM card can be set.

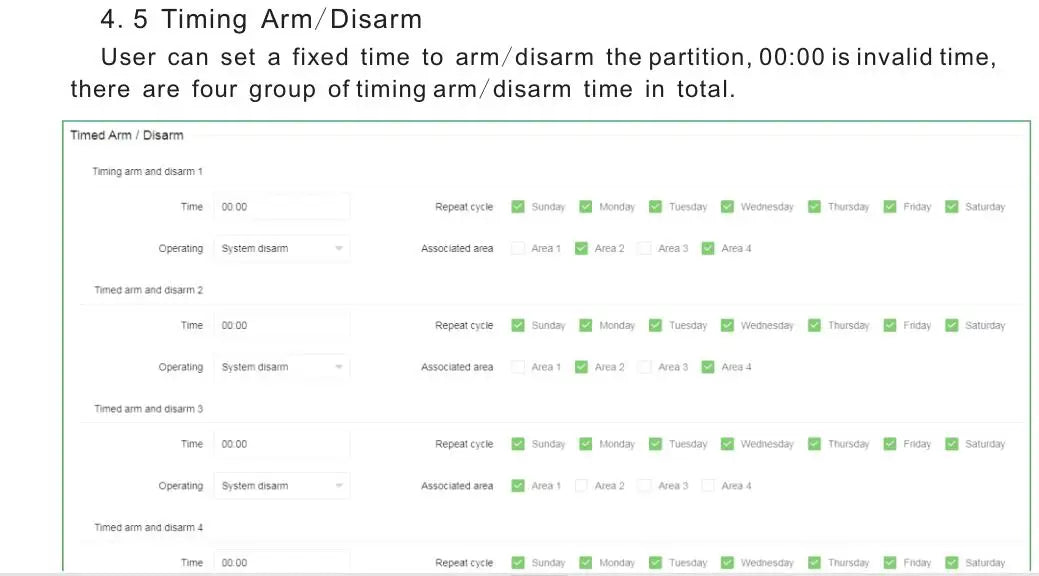

7. Timing arm and disarm: 4 groups of timing arm and disarm time, you can assign any one or several partitions to be effective.

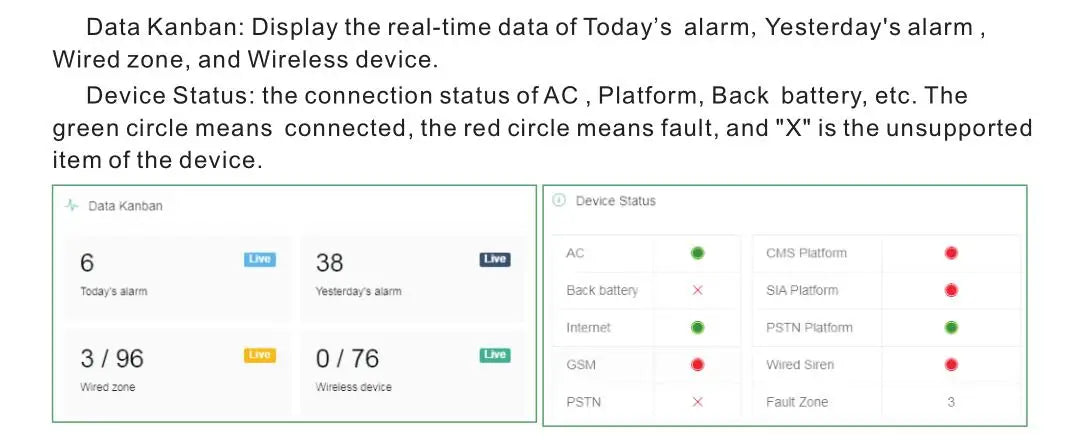

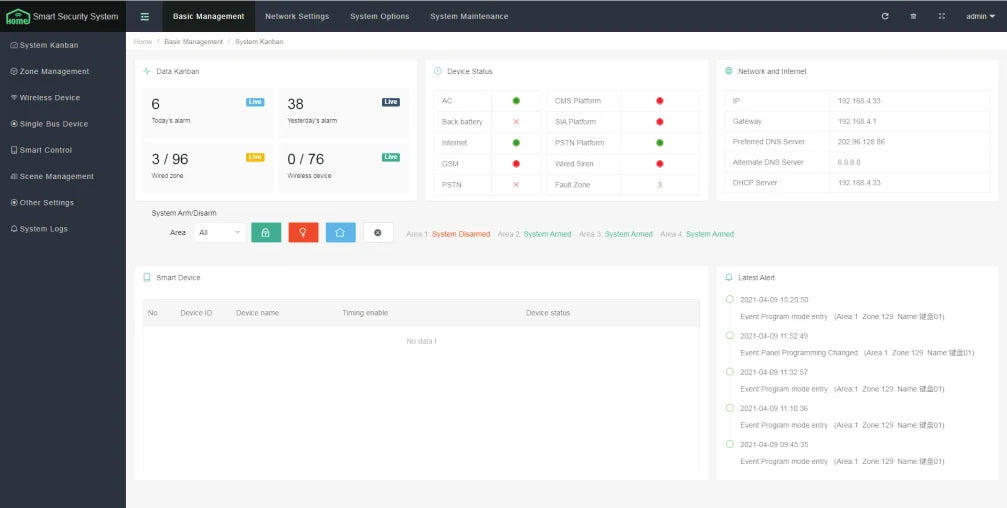

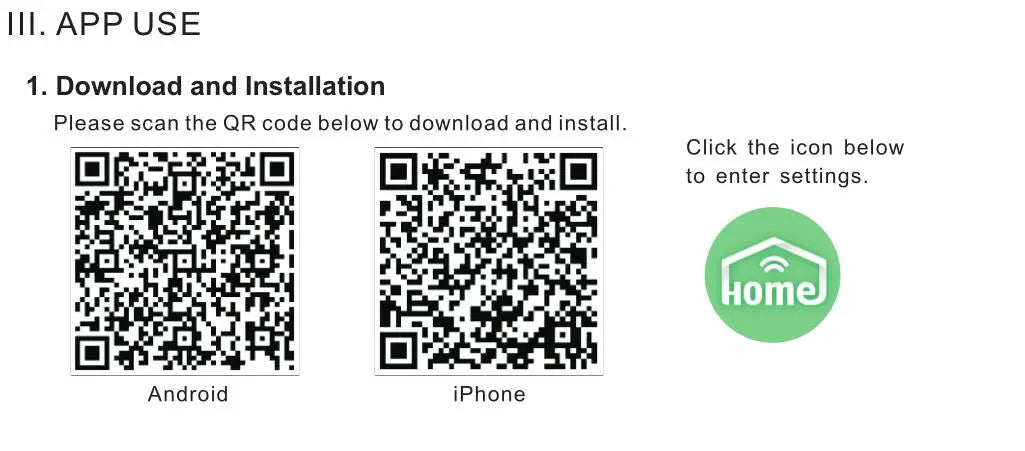

6. Support mobile APP remote control and alarm information push

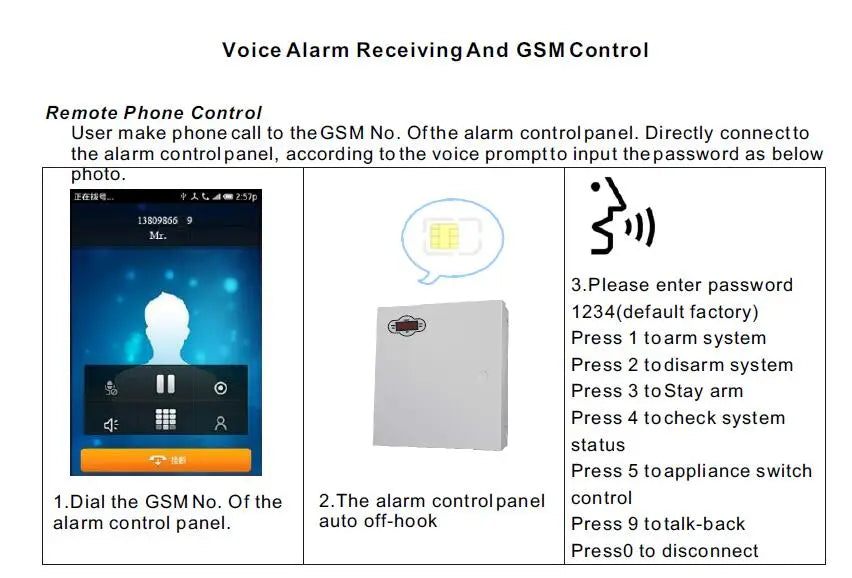

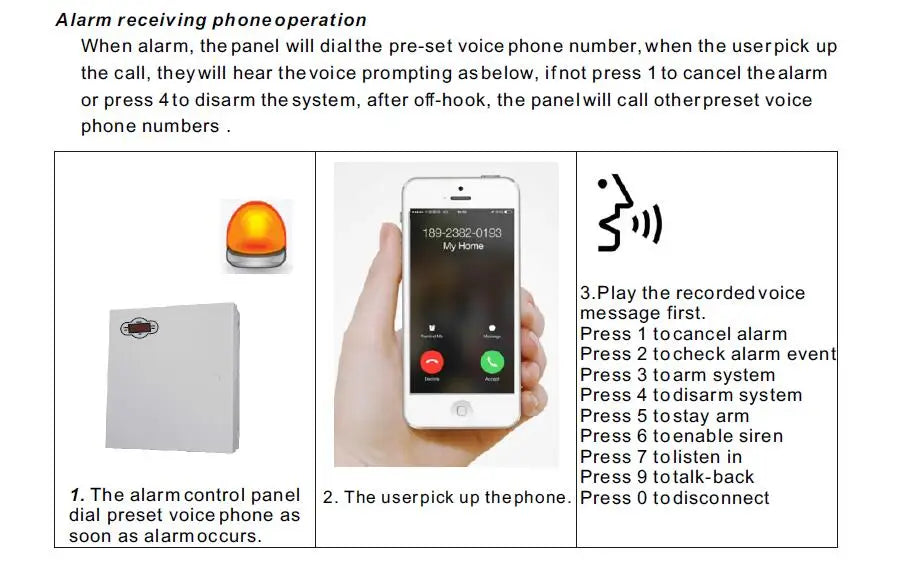

5. Support 4 voice phones to send voice and text messages

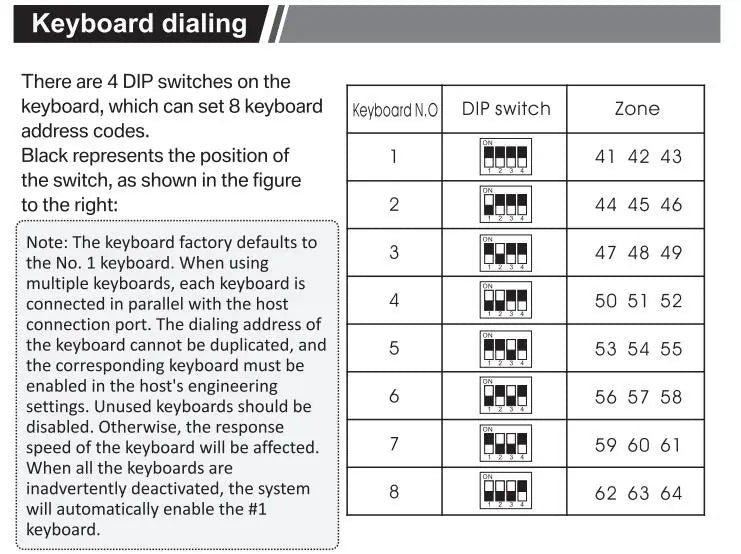

3. Support 8 remote controls, 4 two-way wireless siren, 8 keyboards, 32 appliance switches.

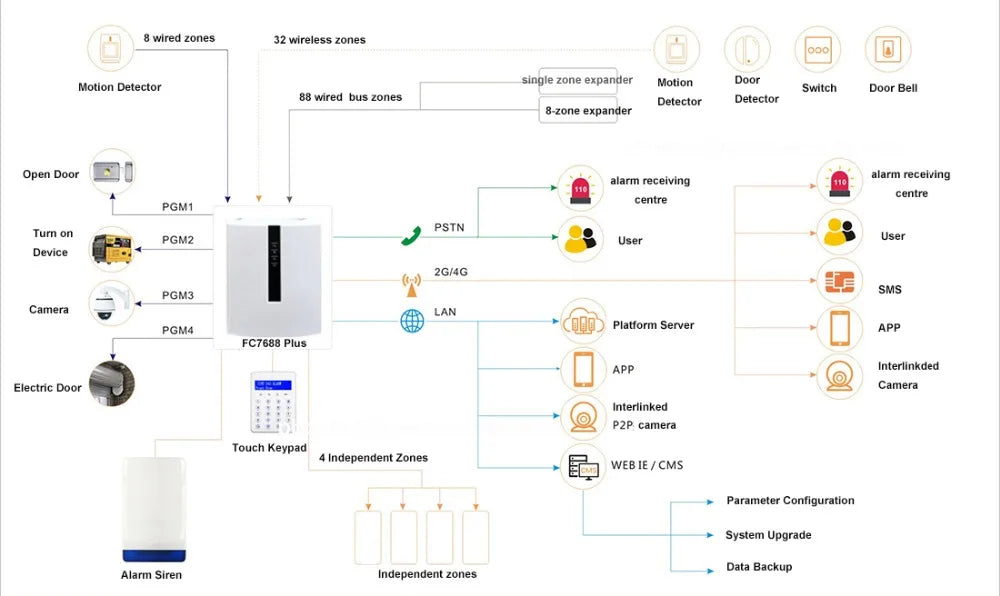

1. Can be divided into 4 independent areas, with 32 wireless zones, 8 wired zones, 56 expansion zones can be expanded by bus port (including 24 keyboard expansion zones and 32 bus zones), 32 single-bus zones, total support 128 zones.
