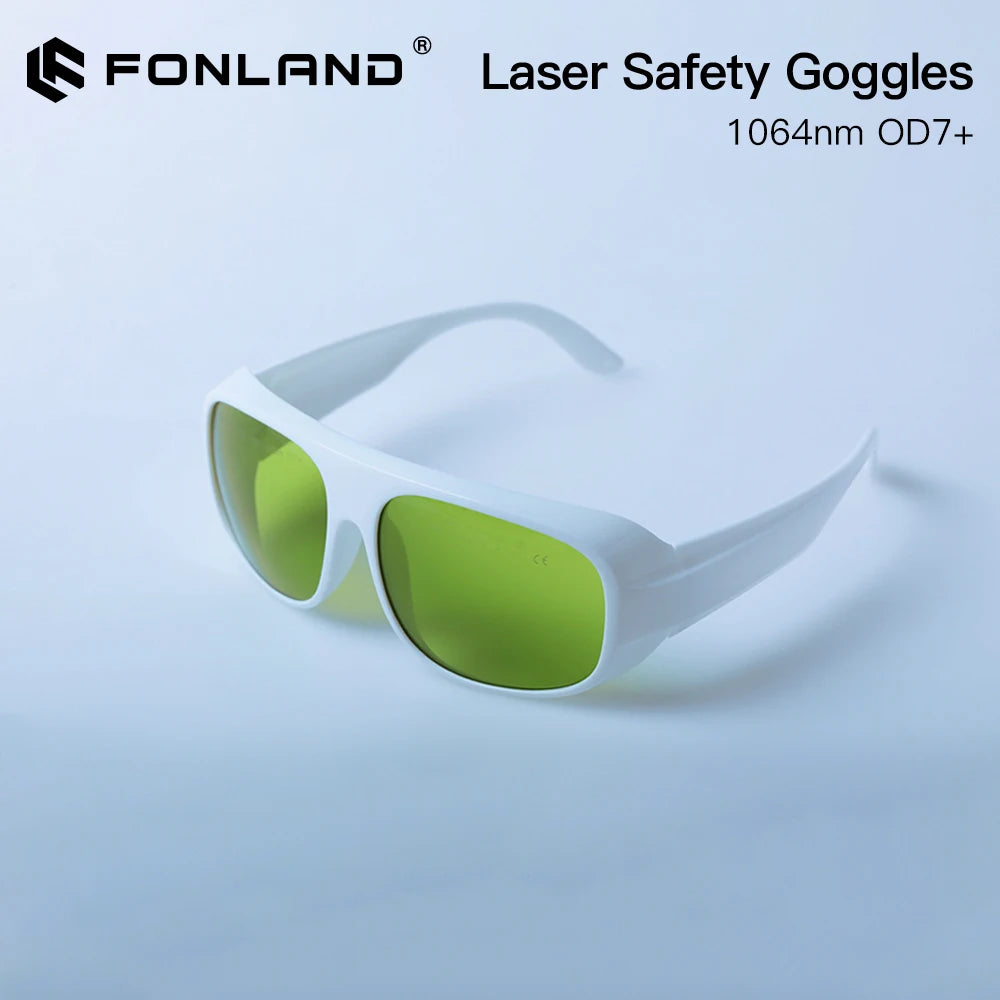

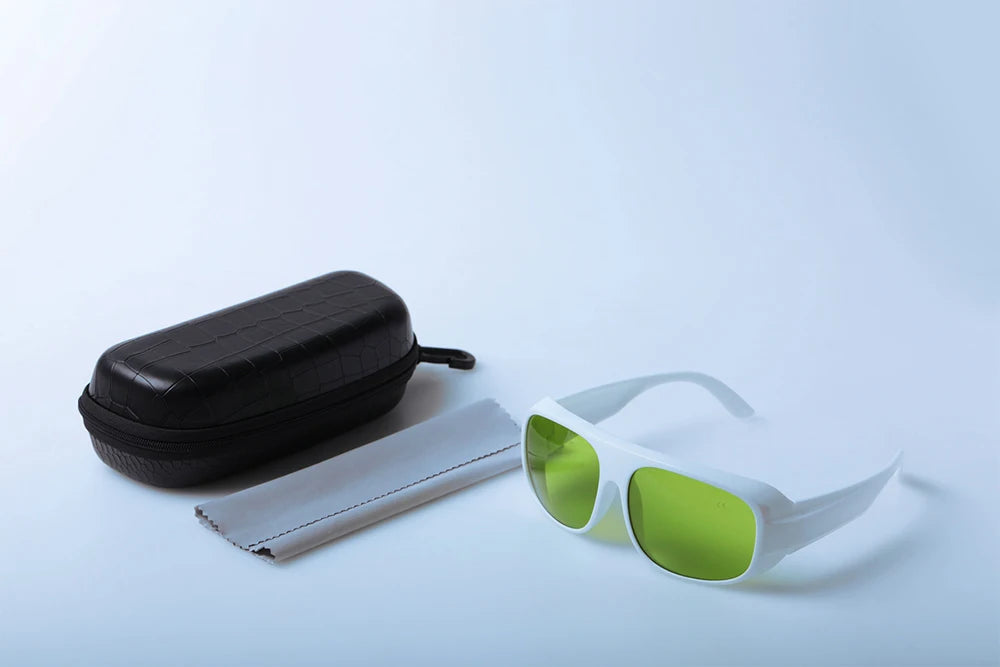

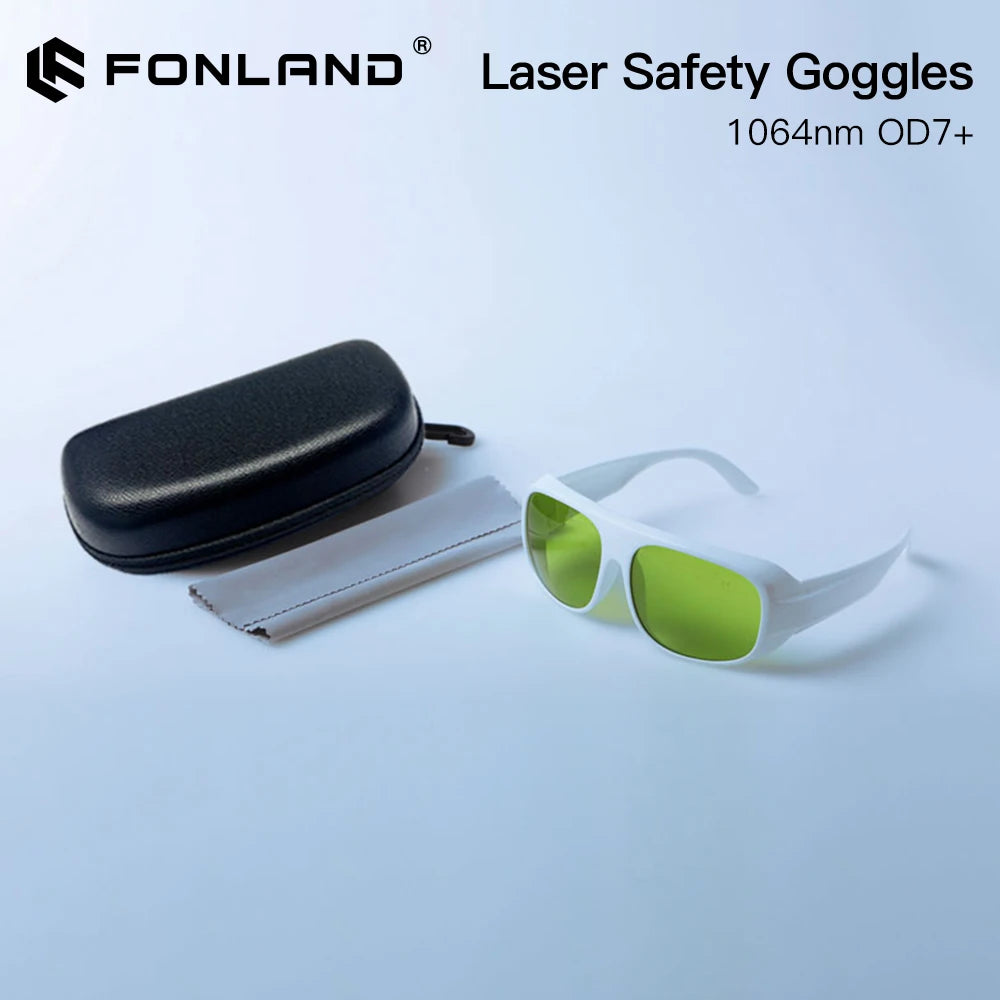

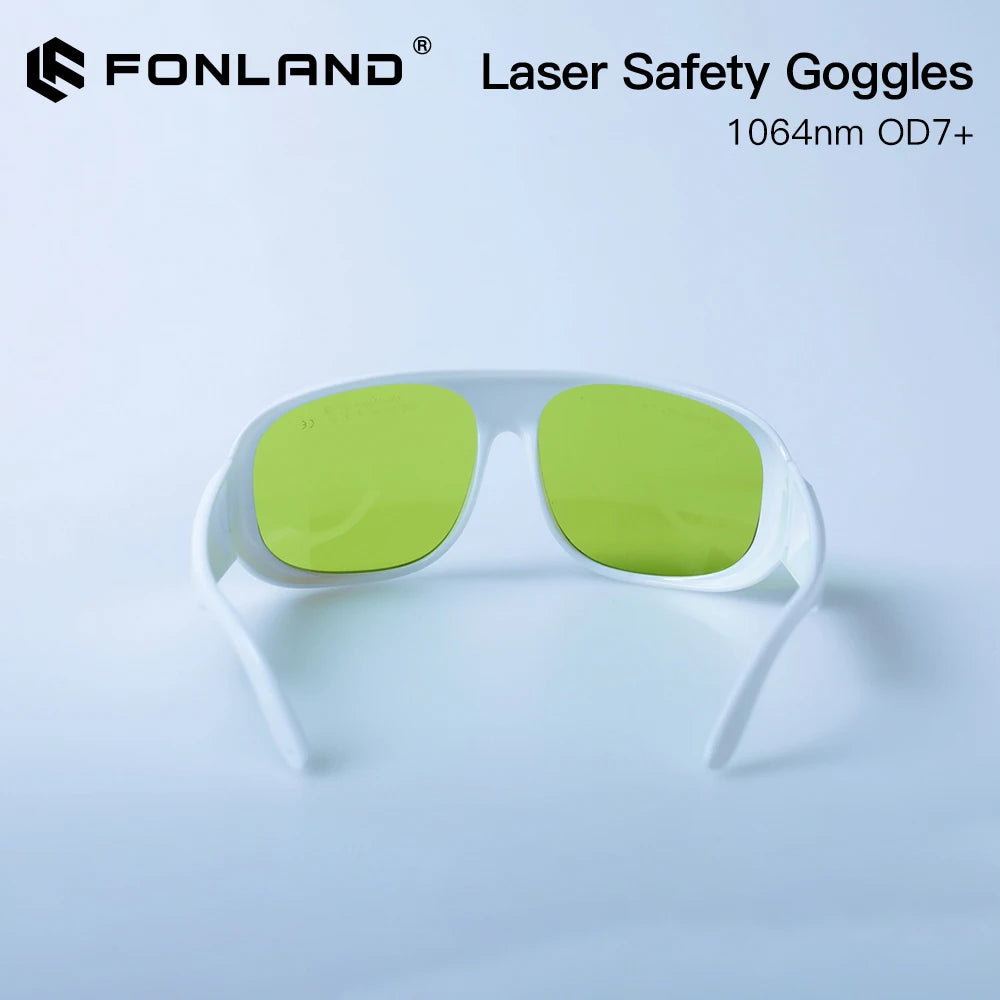

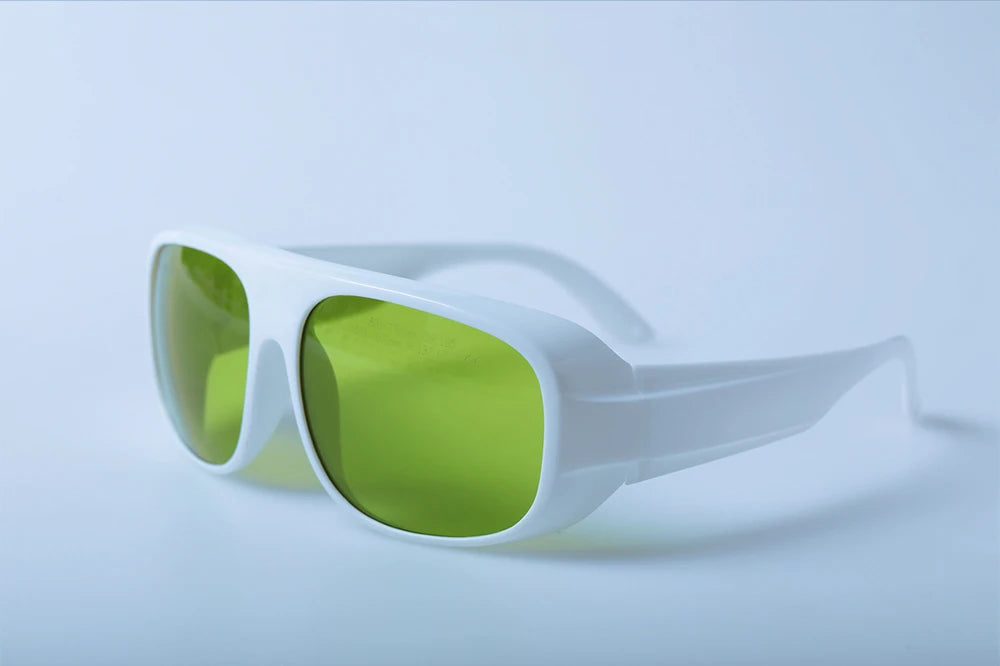

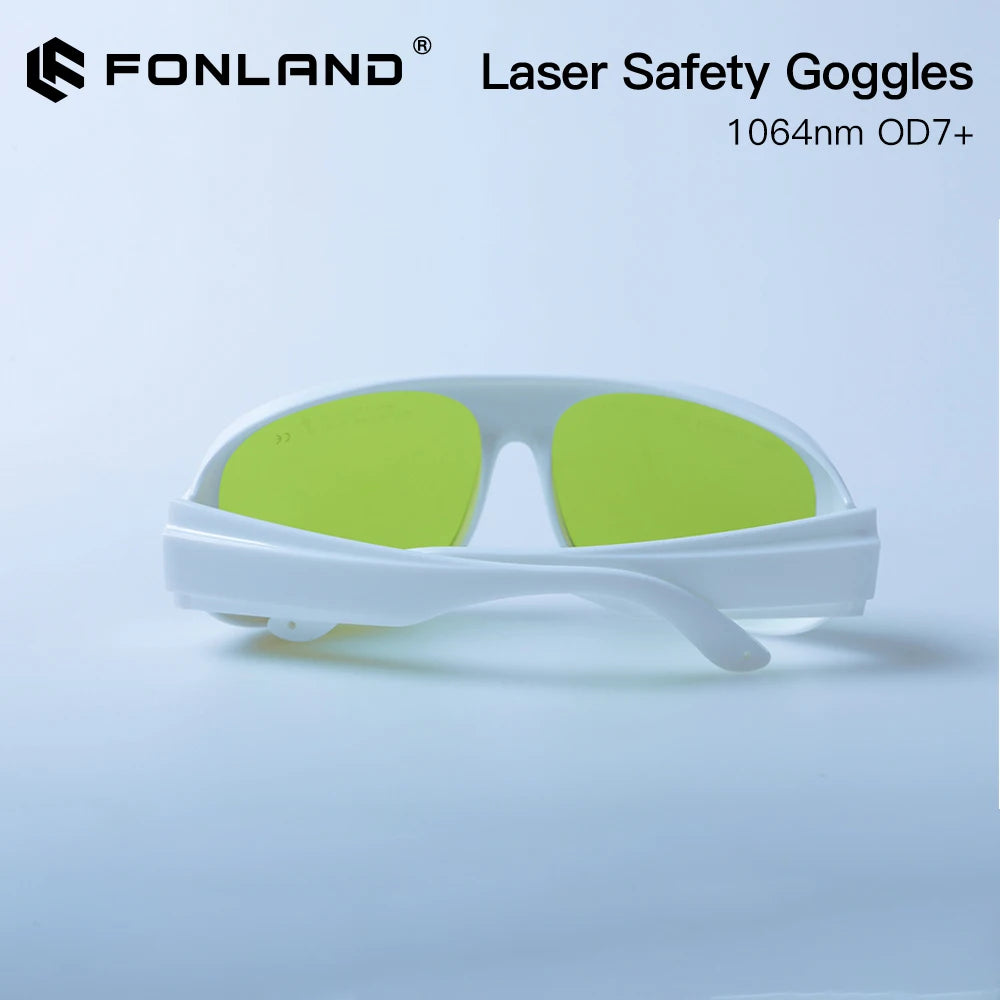

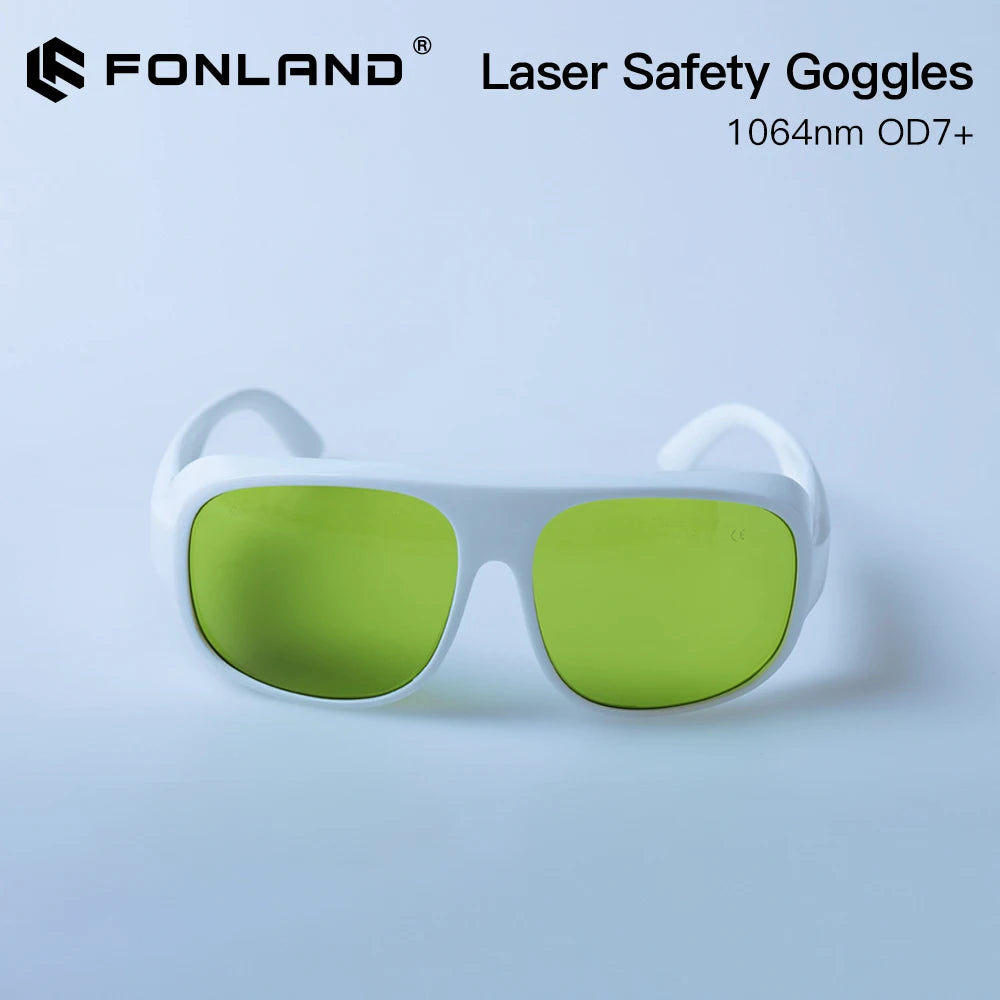

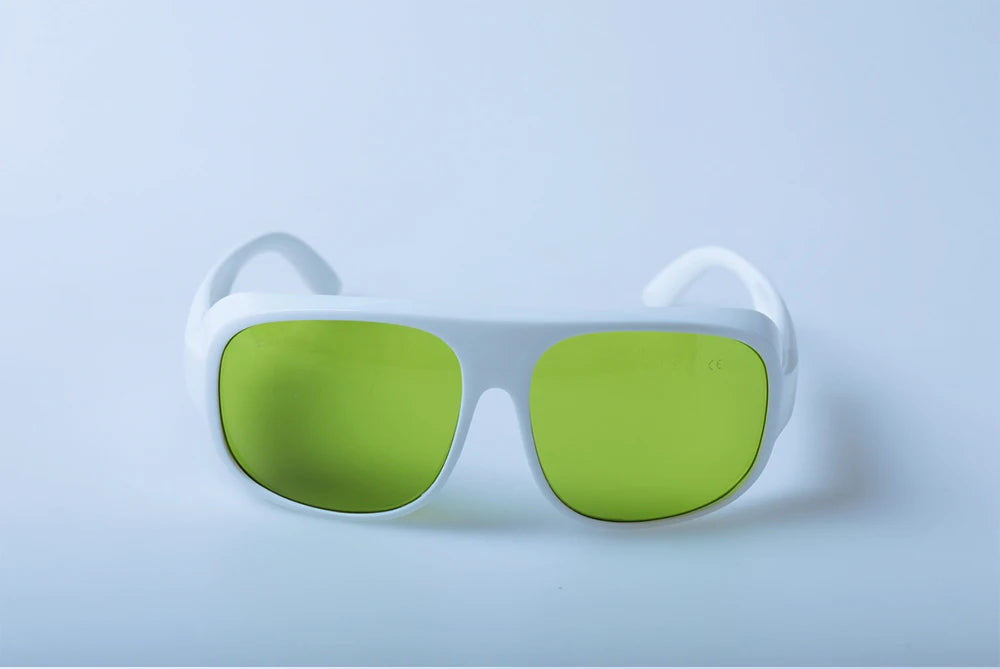

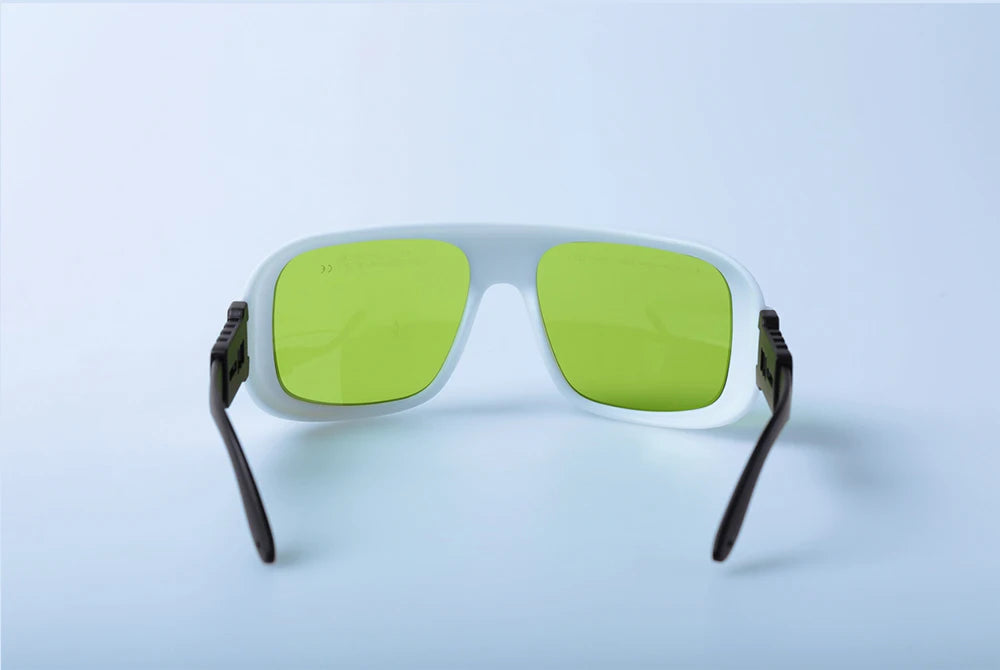

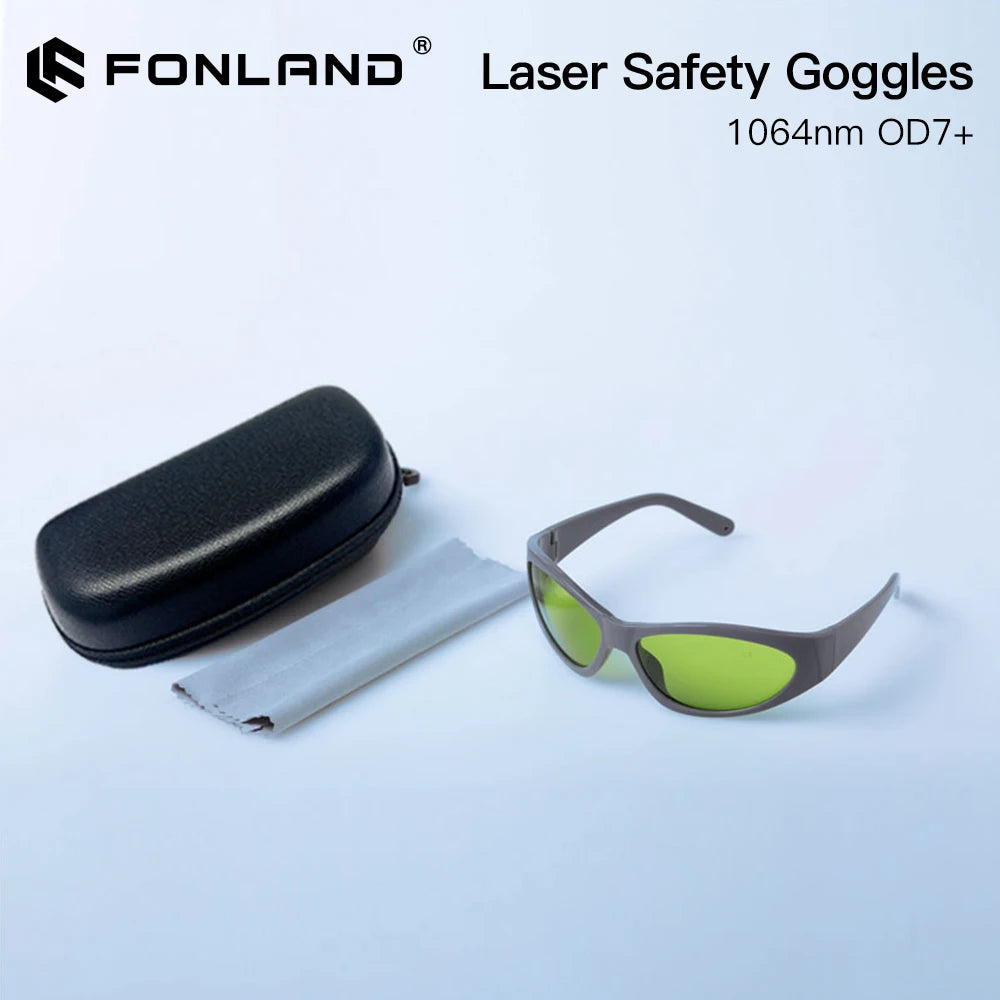

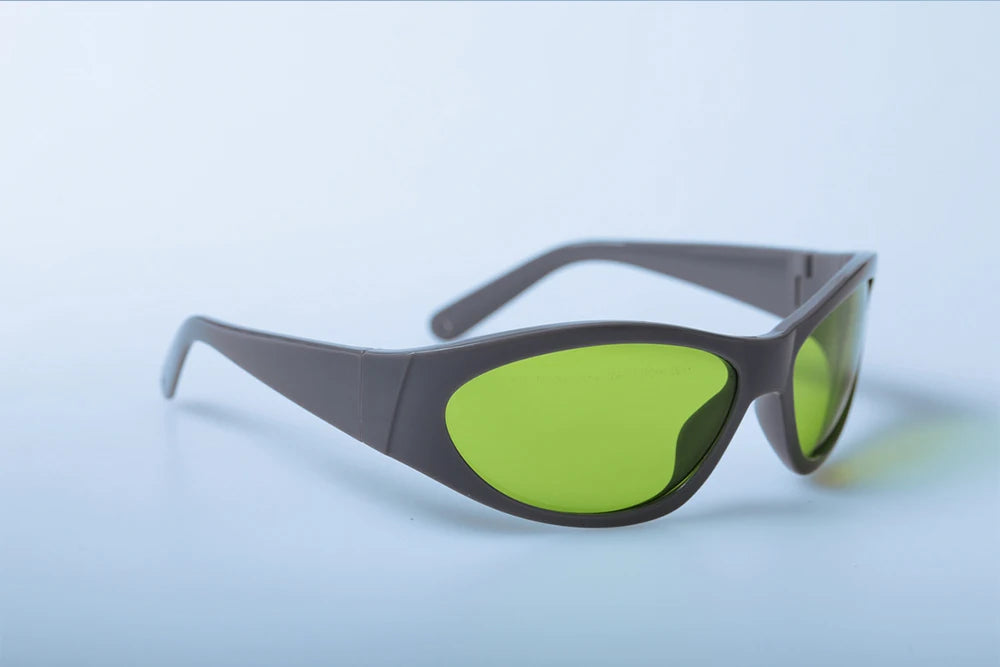

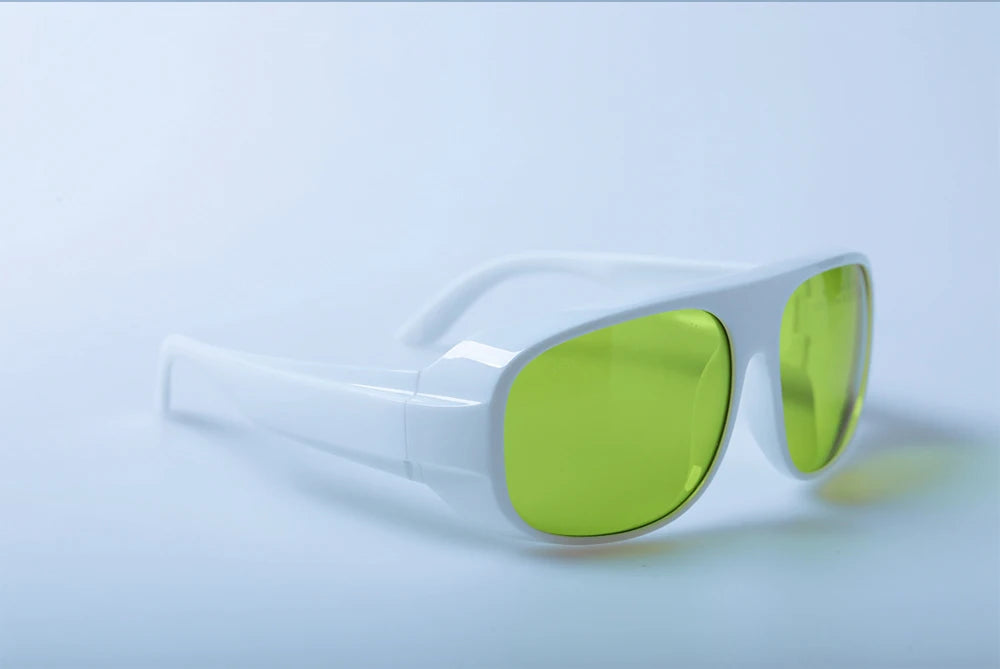

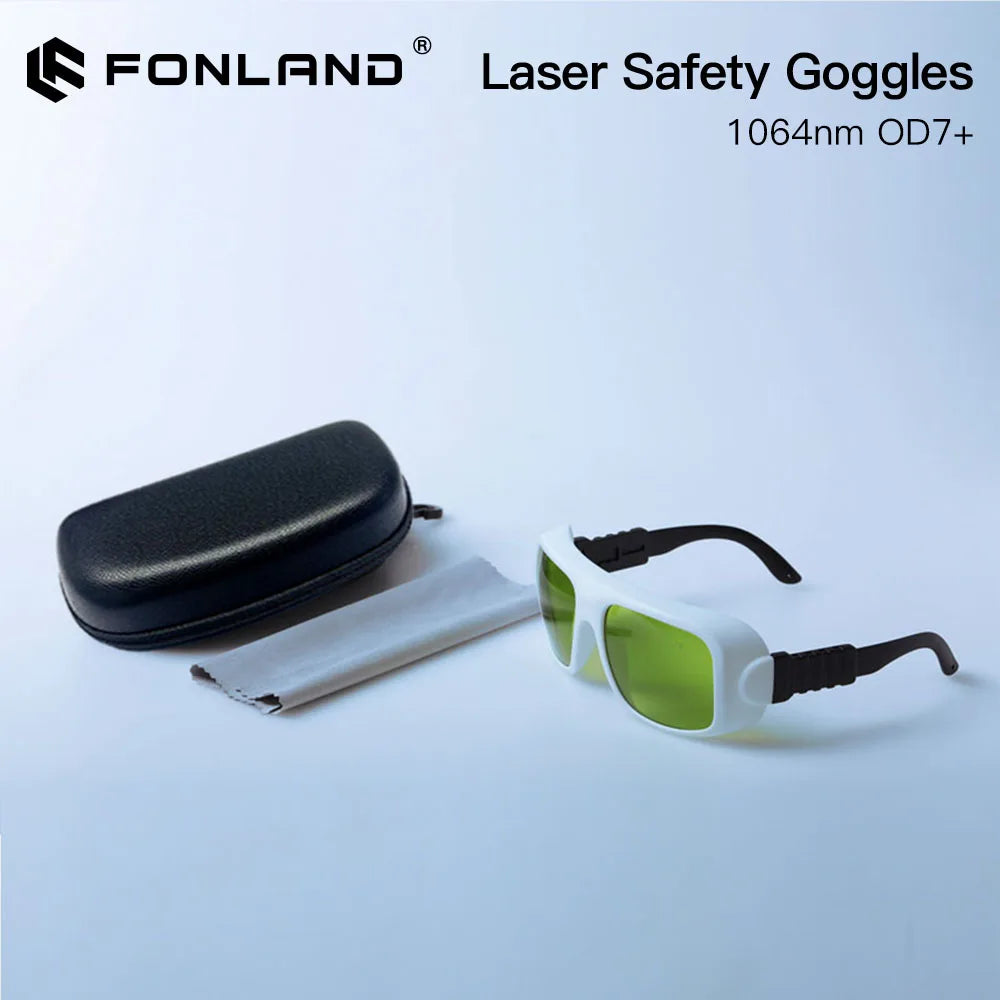

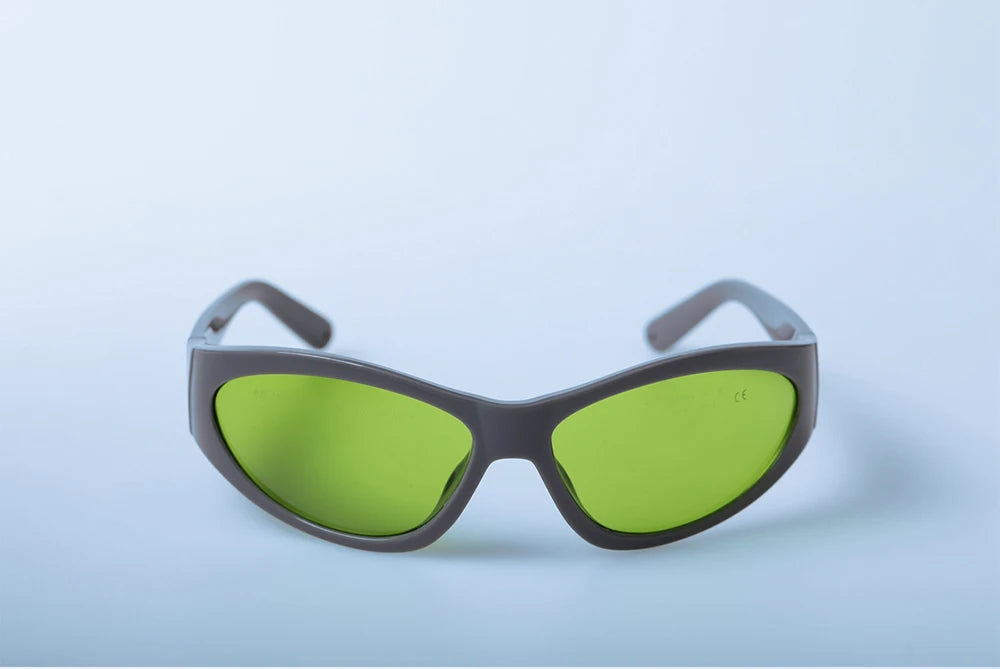

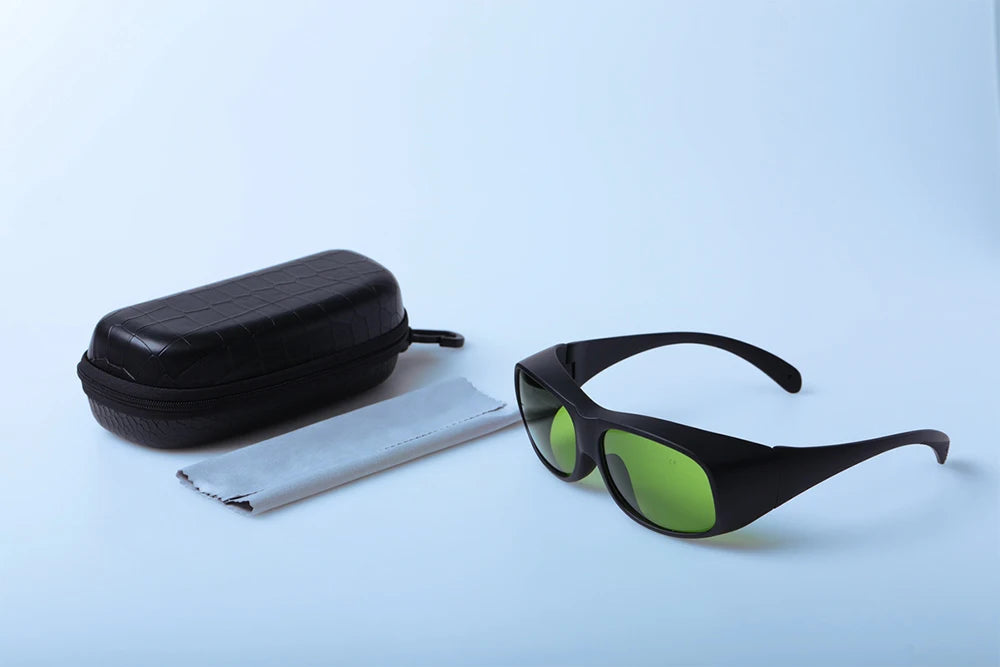

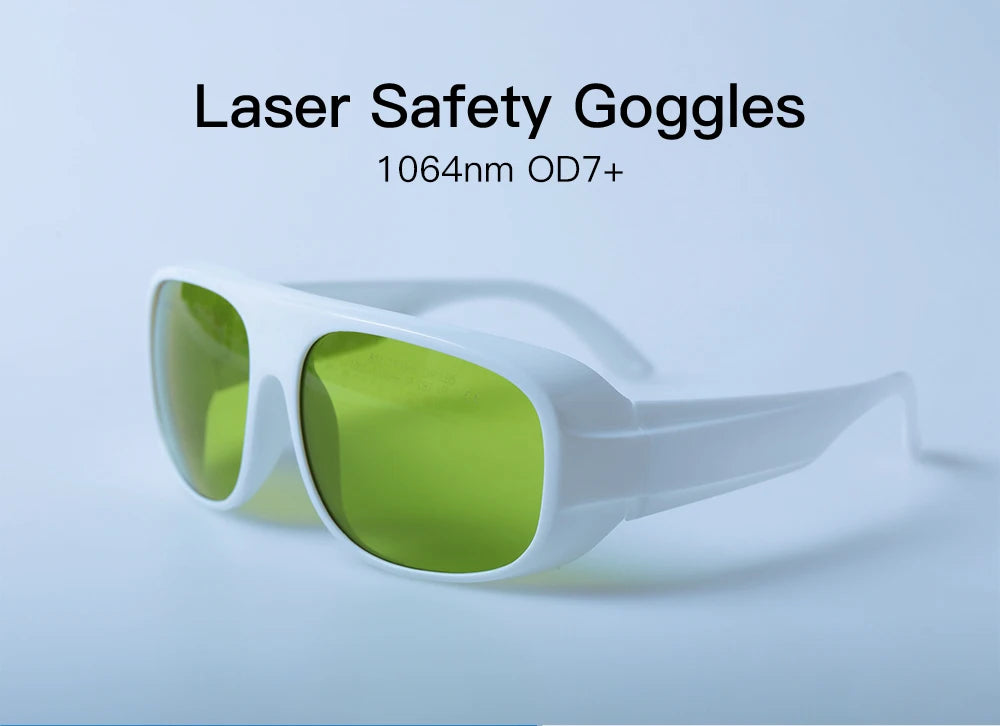

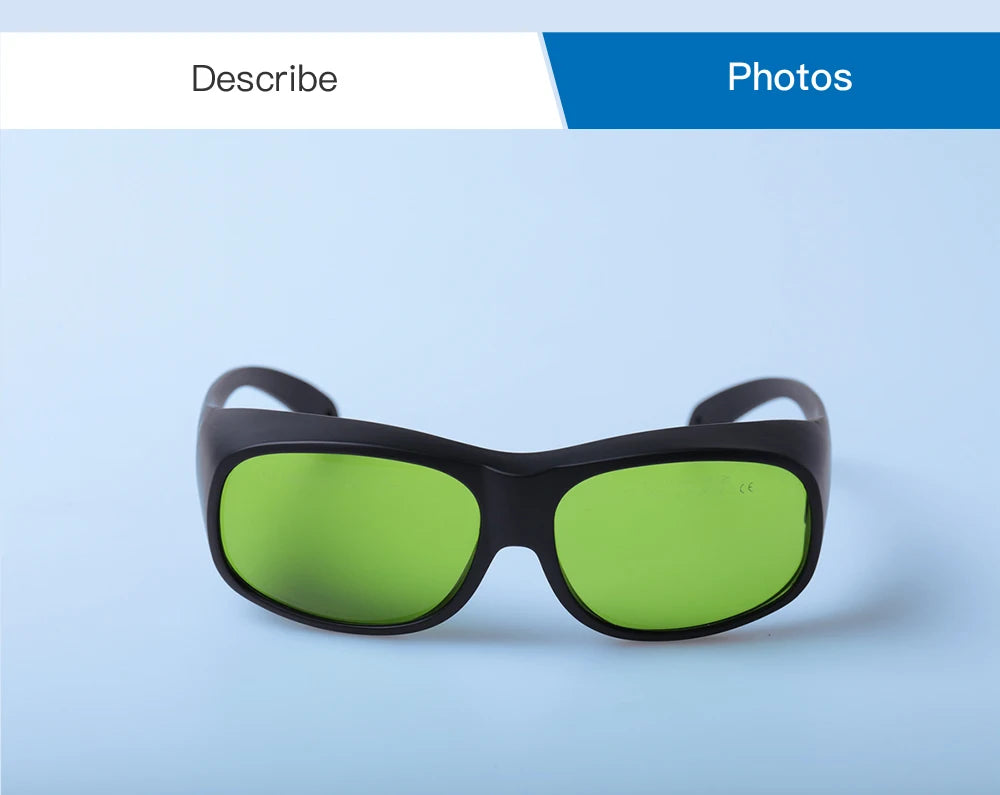

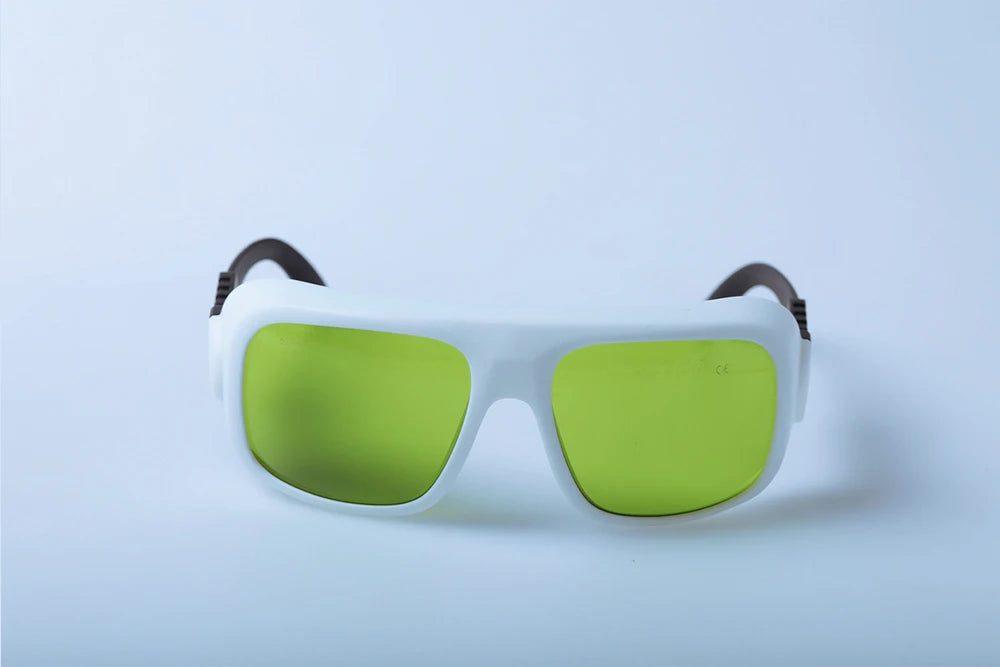

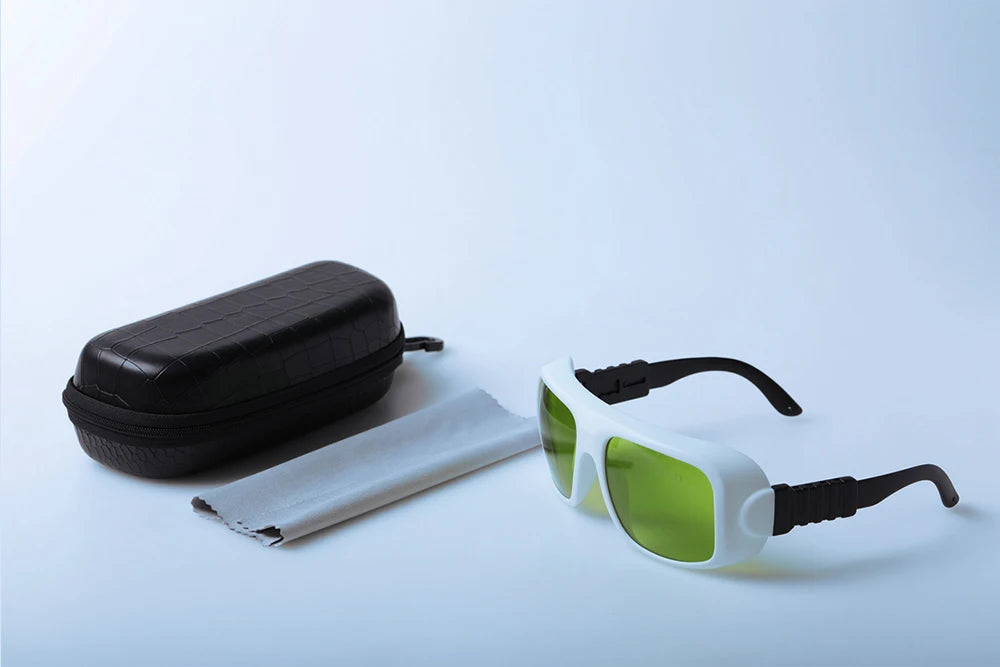

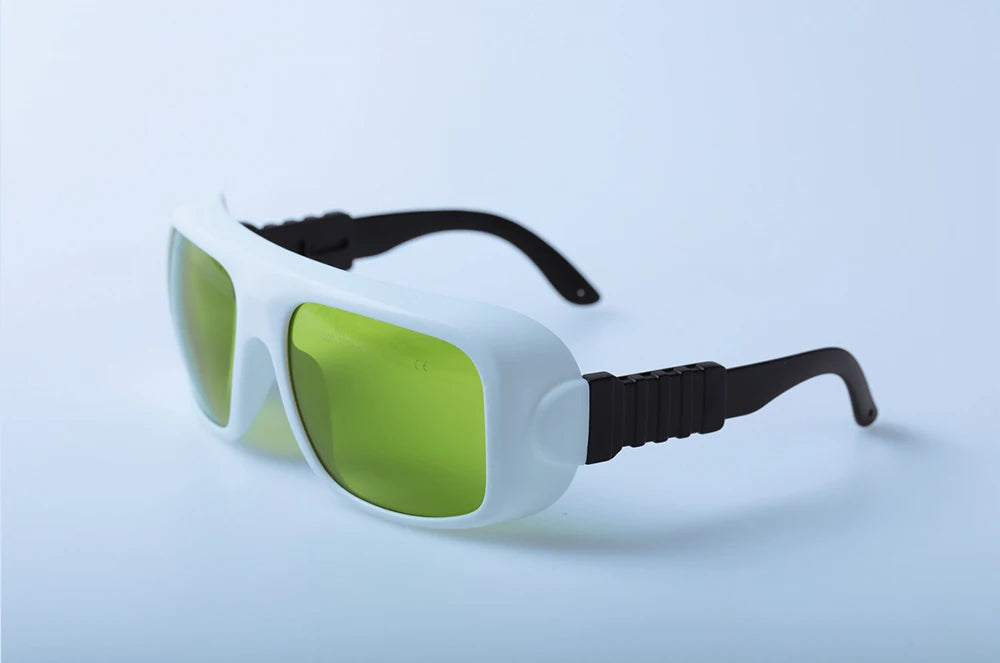

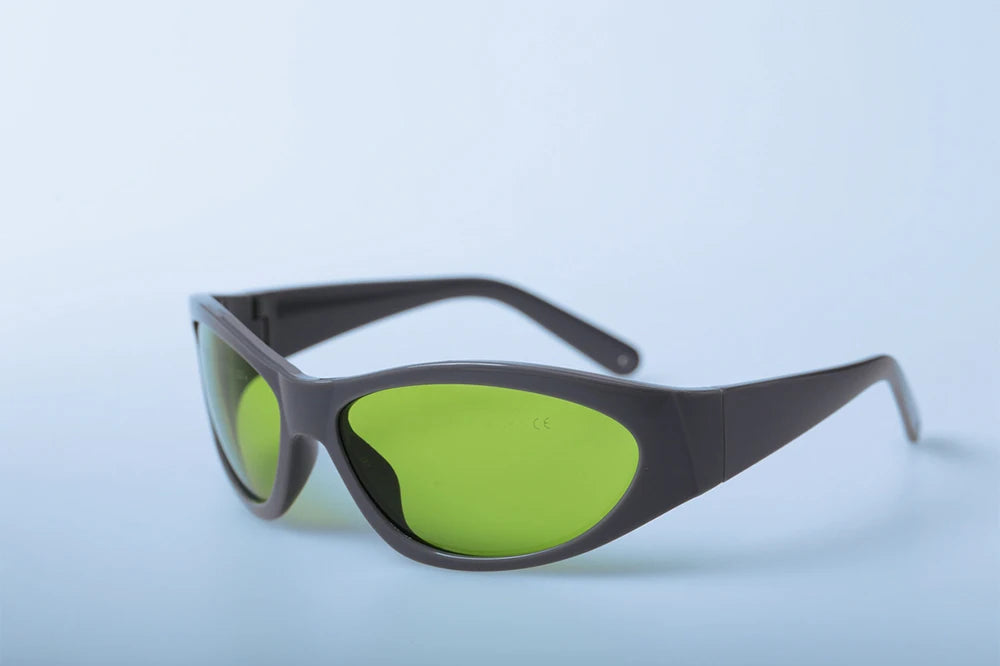

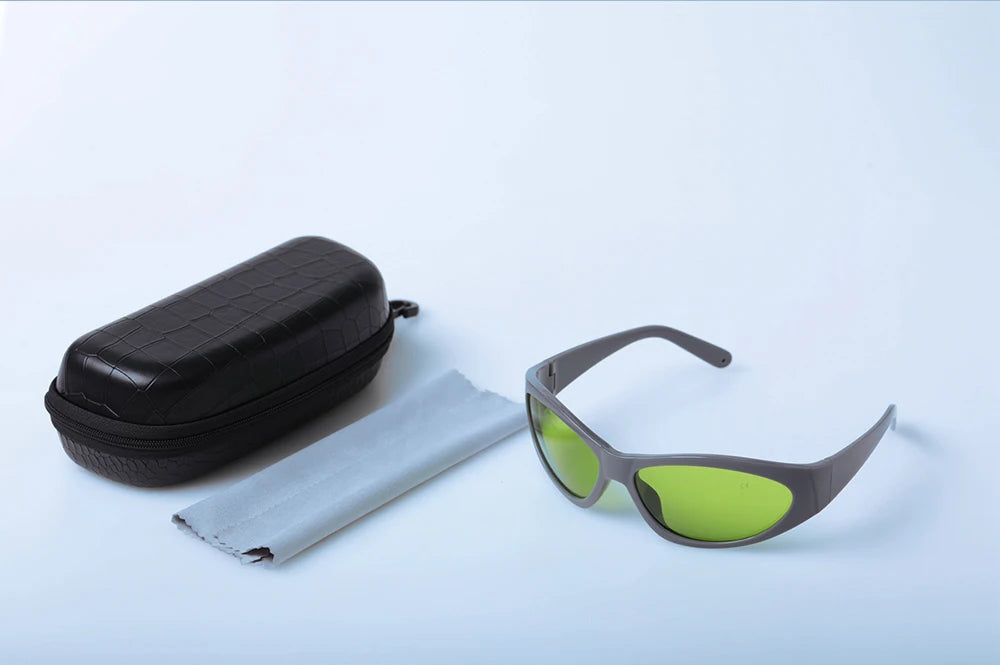

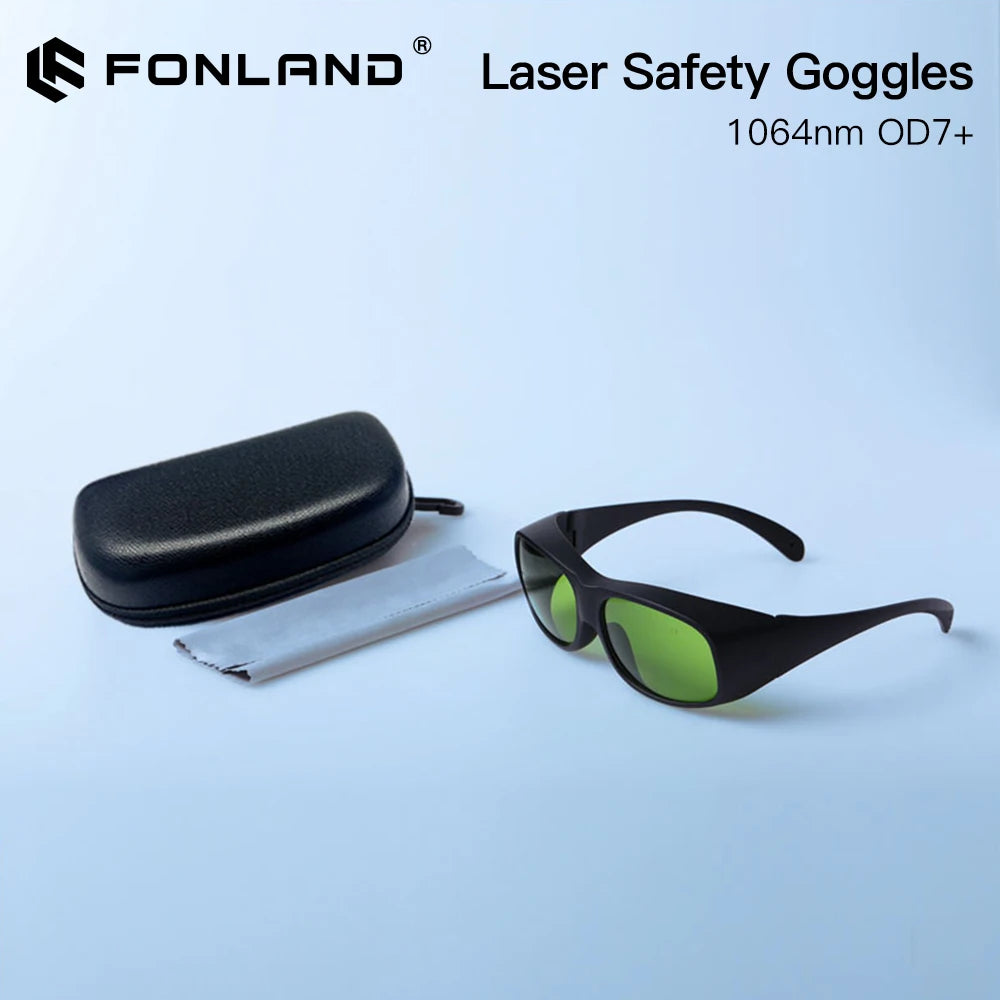

Fonland 1064nm Laser Safety Goggles Protective Glasses Shield Protection Eyewear LPYHP2 800nm-1100nm For YAG DPSS Fiber Laser

Fonland 1064nm Laser Safety Goggles Protective Glasses Shield Protection Eyewear LPYHP2 800nm-1100nm For YAG DPSS Fiber Laser

$143.28

$143.28 $0.00

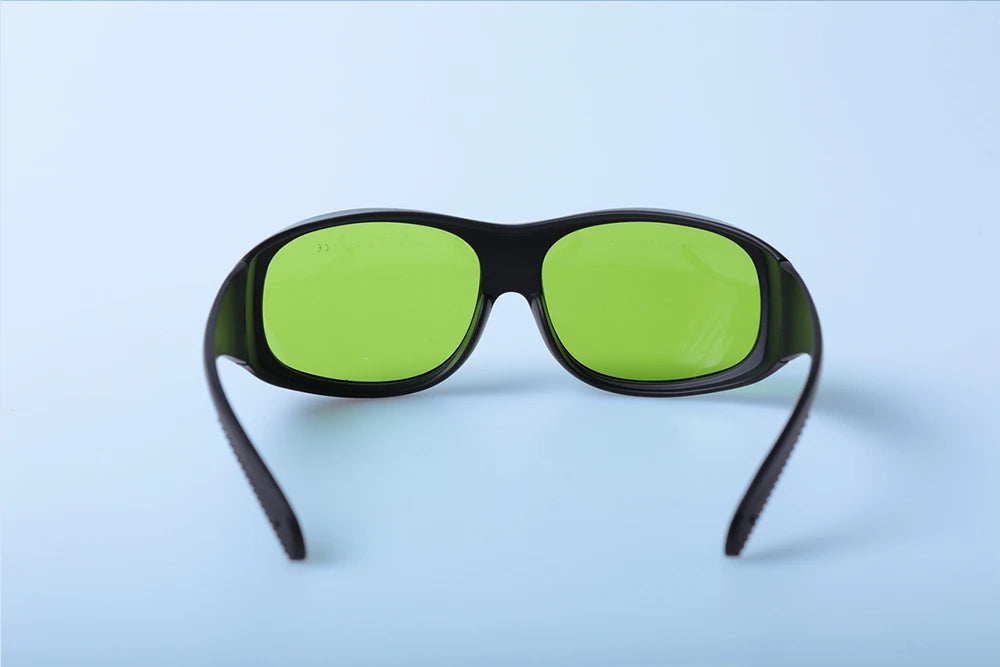

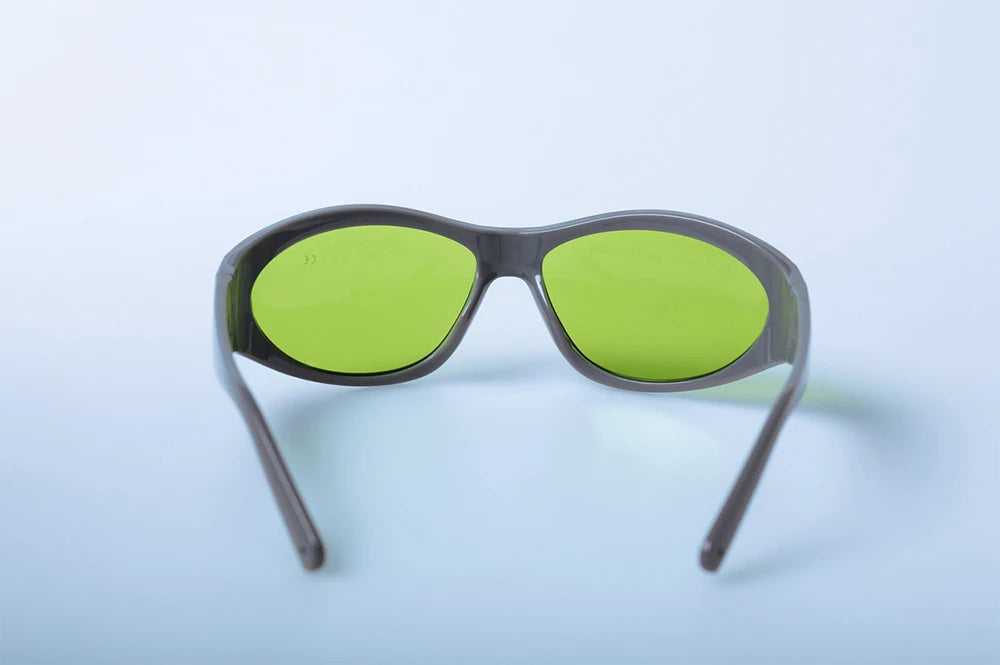

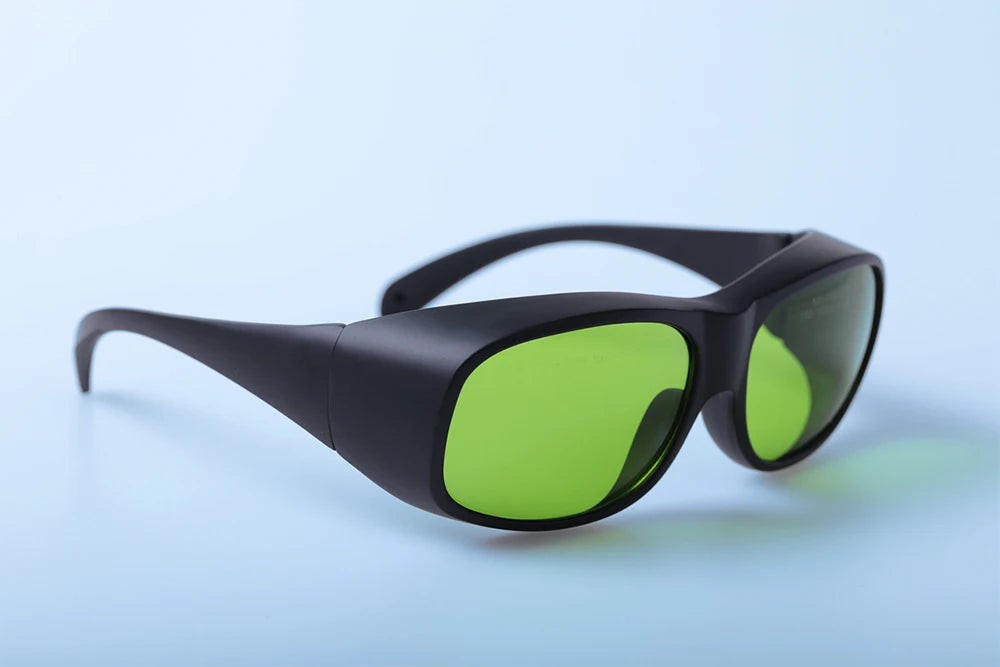

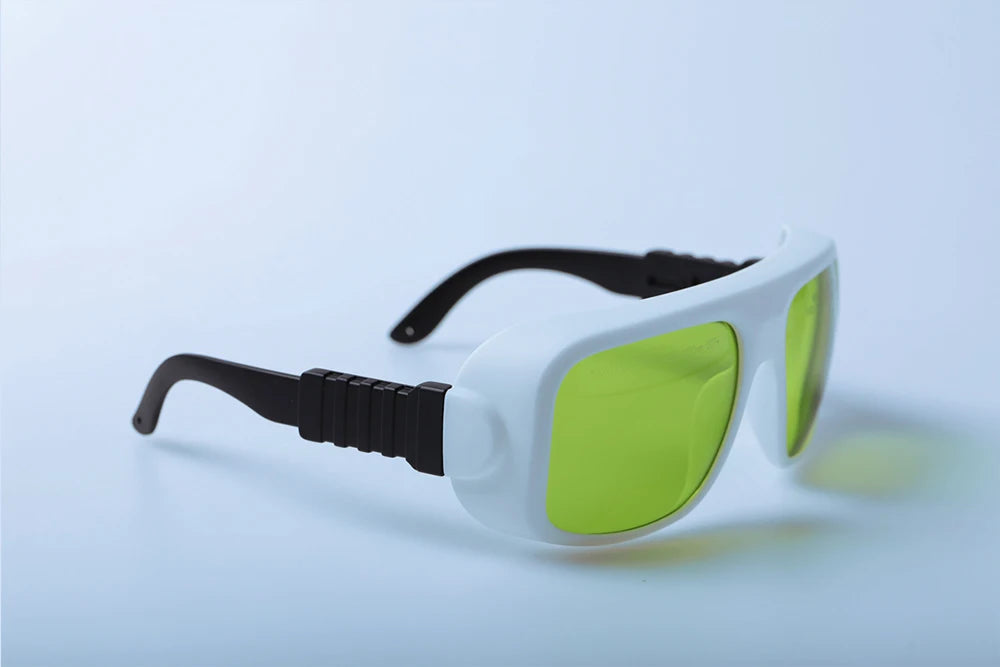

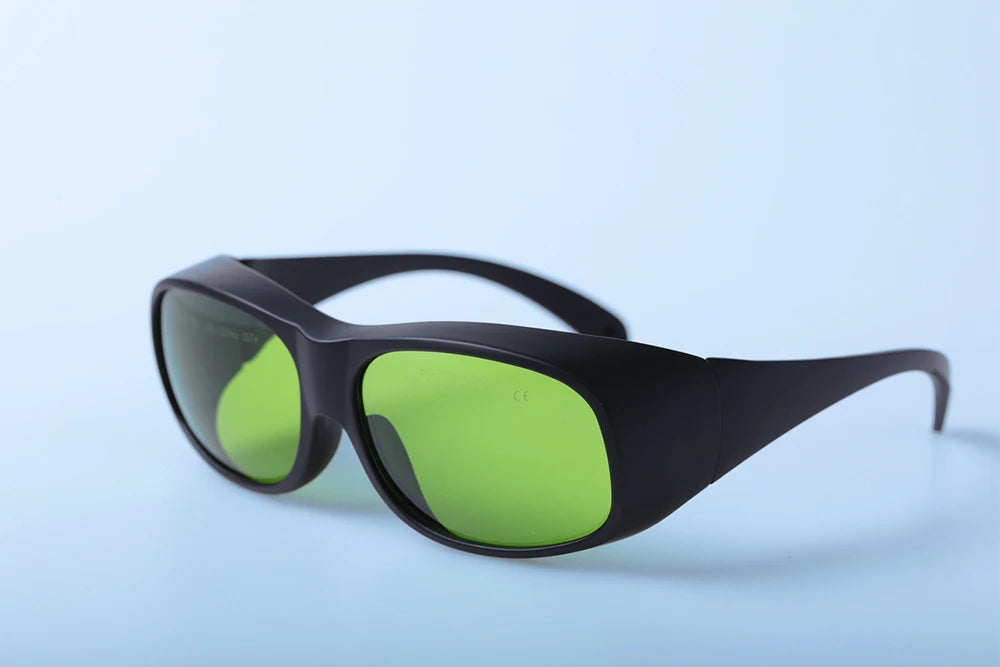

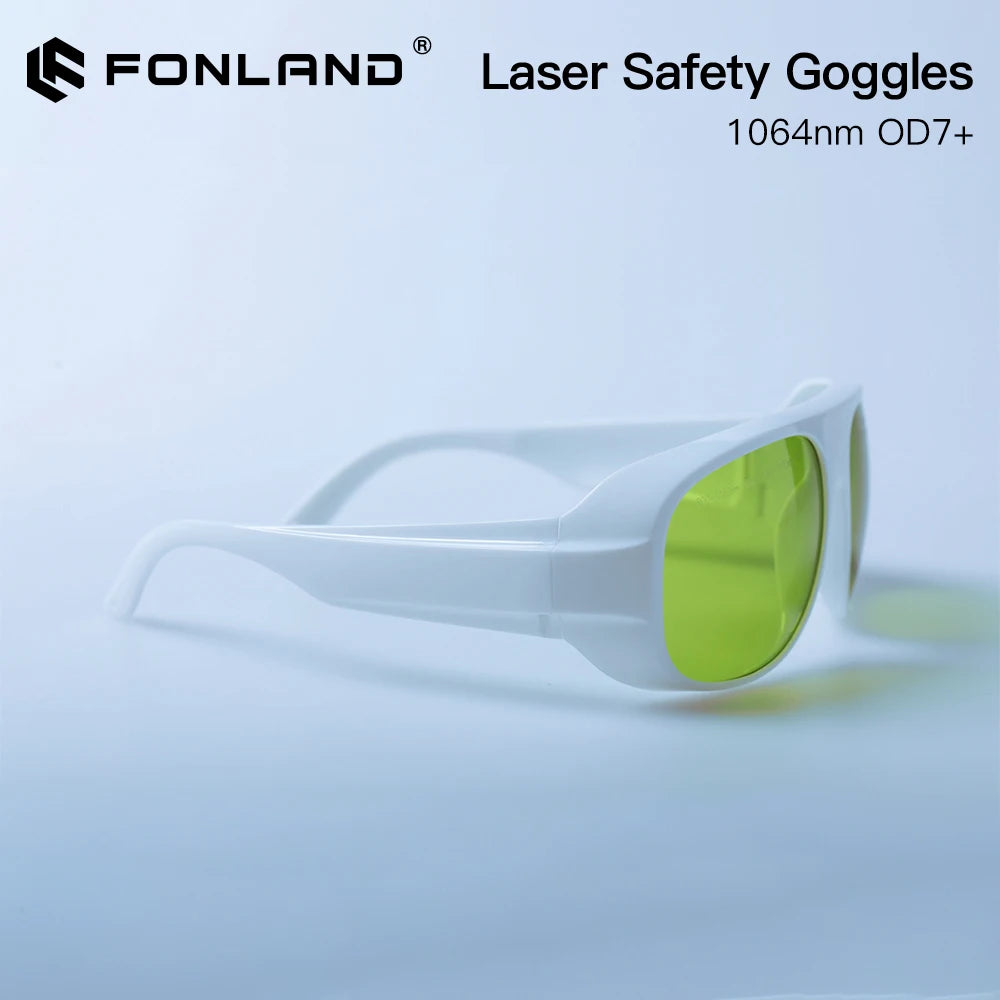

Color White Grey White with Black Black

Ships FromChina Mainland

Description

SPECIFICATIONS

According: CE EN207

Application: Dental lasers, Diodes, ND: YAG, Fiber laser

Are they goggles: Yes

Available for: 808nm, 980nm,1064nm

Brand Name: FONLAND,Fonland

Certification: CE,RoHS

Choice: yes

Frame Material: TR90

High-concerned chemical: none

LB-Rating: 800 - 900nm D LB5 + IR LB6 900 - 1080nm D LB5 + IR LB7

Lens Material: PC + Laser Absorber

Model Number: 800-1100 OD 7+ LP-YHP-2 Laser Goggles

Name: Laser Safety Goggles Protective Glasses

OD: 800 - 900nm OD>6 900 - 1100nm OD>7

Origin: Mainland China

Protection Glasses Laser Application: Fiber laser machine

Protection Glasses Laser Style: LP-YHP-2

VLT: 41%

Wavelength: 1064nm,1070nm,1080nm,1100nm

semi_Choice: yes

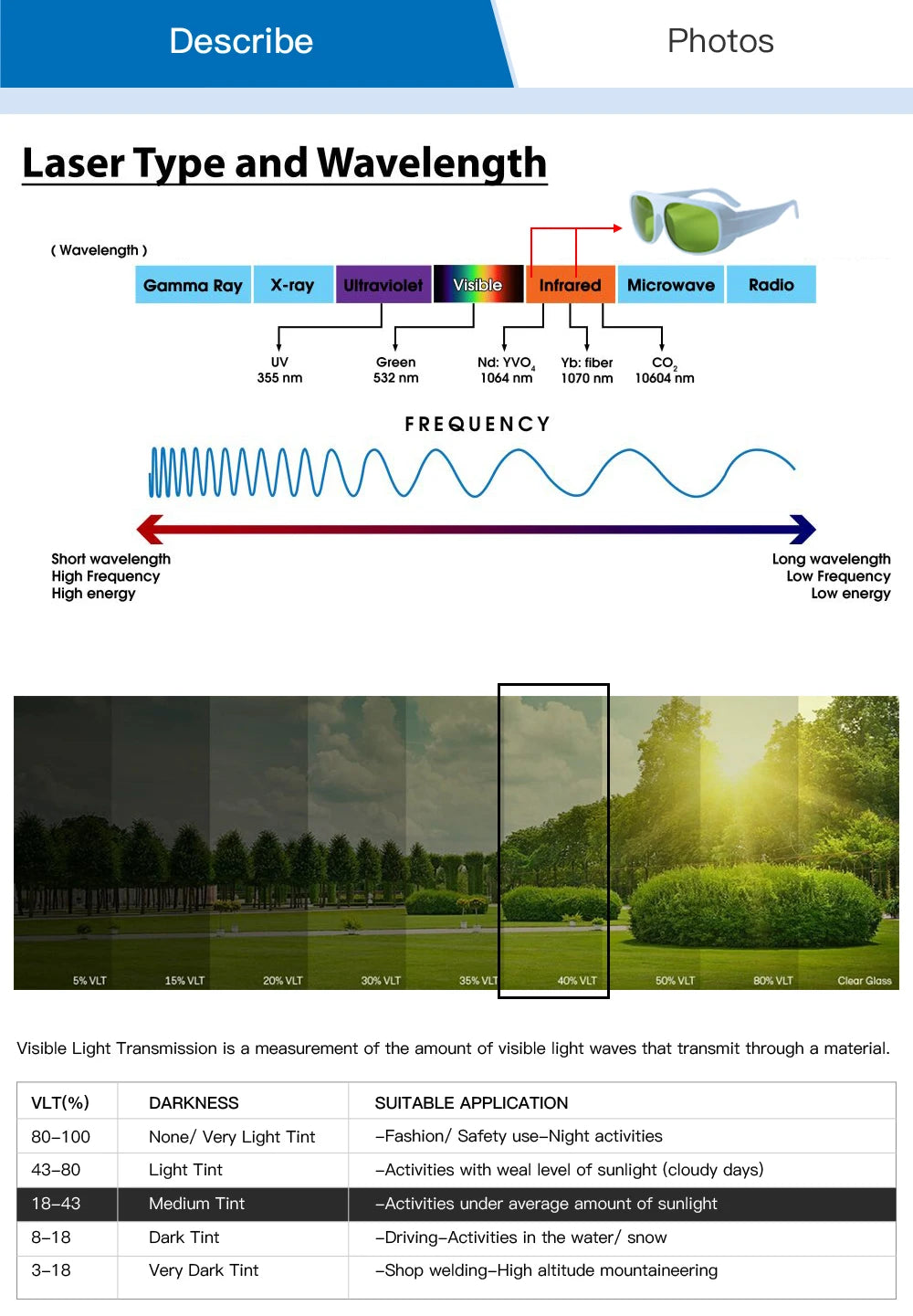

How to choose Laser Safety Goggles Protective Glasses?
①laser protection wavelength
1.Diode Laser: Diode lasers can provide various wavelengths, including visible and near-infrared light. They are often used in laser printers, laser pointers, medical devices, and communication systems.

2.532-nanometer Green Laser: Lasers with this wavelength are typically used in laser displays, biological microscopy, and laser therapy.

3.633-640-nanometer Red Laser: These wavelengths are used in flow cytometers, scanning microscopes, and biomedical imaging.

4.785-nanometer Near-Infrared Laser: Lasers at this wavelength are commonly used in Raman spectrometers, fluorescence spectrometers, and material detection.

5.1064-nanometer Infrared Laser: This is a common infrared wavelength used in laser hair removal machine, laser cutting, laser marking, laser radar, and scientific research.

6.1550-nanometer Laser: This wavelength is crucial for optical communications, used for signal transmission in fiber optic communication systems.

7.10.6-micrometer CO2 Laser: This is a common wavelength used for laser cutting, laser welding, and laser engraving.

②OD(Optical Density)
The term "OD" stands for "Optical Density," It represents the percentage of harmful light passing through the glasses, with higher values indicating greater safety. :

OD1 = 0.1, which is equivalent to 10% transmittance.
OD2 = 0.01, which is equivalent to 1% transmittance.
OD3 = 0.001, which is equivalent to 0.1% transmittance.
OD4 = 0.0001, which is equivalent to 0.01% transmittance.
OD5 = 0.00001, which is equivalent to 0.001% transmittance.
OD6 = 0.000001, which is equivalent to 0.0001% transmittance.
OD7 = 0.0000001, which is equivalent to 0.00001% transmittance.

These OD values represent the level of attenuation or reduction in the amount of light that passes through a material or optical system within a specific wavelength range. A lower OD value indicates higher transmittance, meaning more light passes through, while a higher OD value indicates lower transmittance and greater attenuation of light.

③VLT (Visible Light Transmission)
VLT (Visible Light Transmission), in simple terms, refers to how much natural light can pass through eyewear. If a product is labeled as having a 41% VLT, it means that 41% of natural light can pass through. VLT can impact certain delicate operations, such as machinery maintenance and laser surgery.
