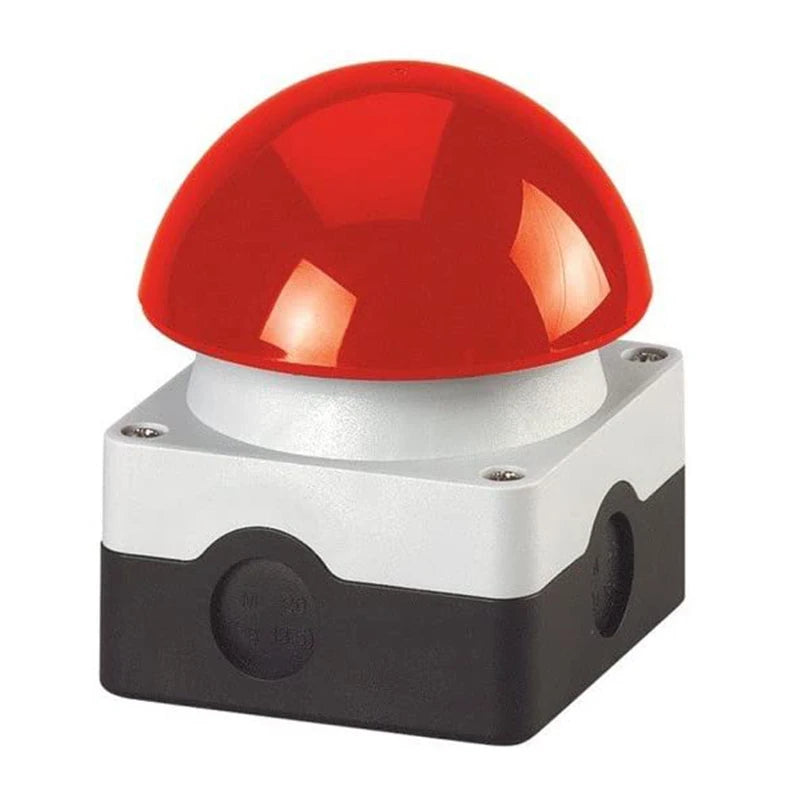

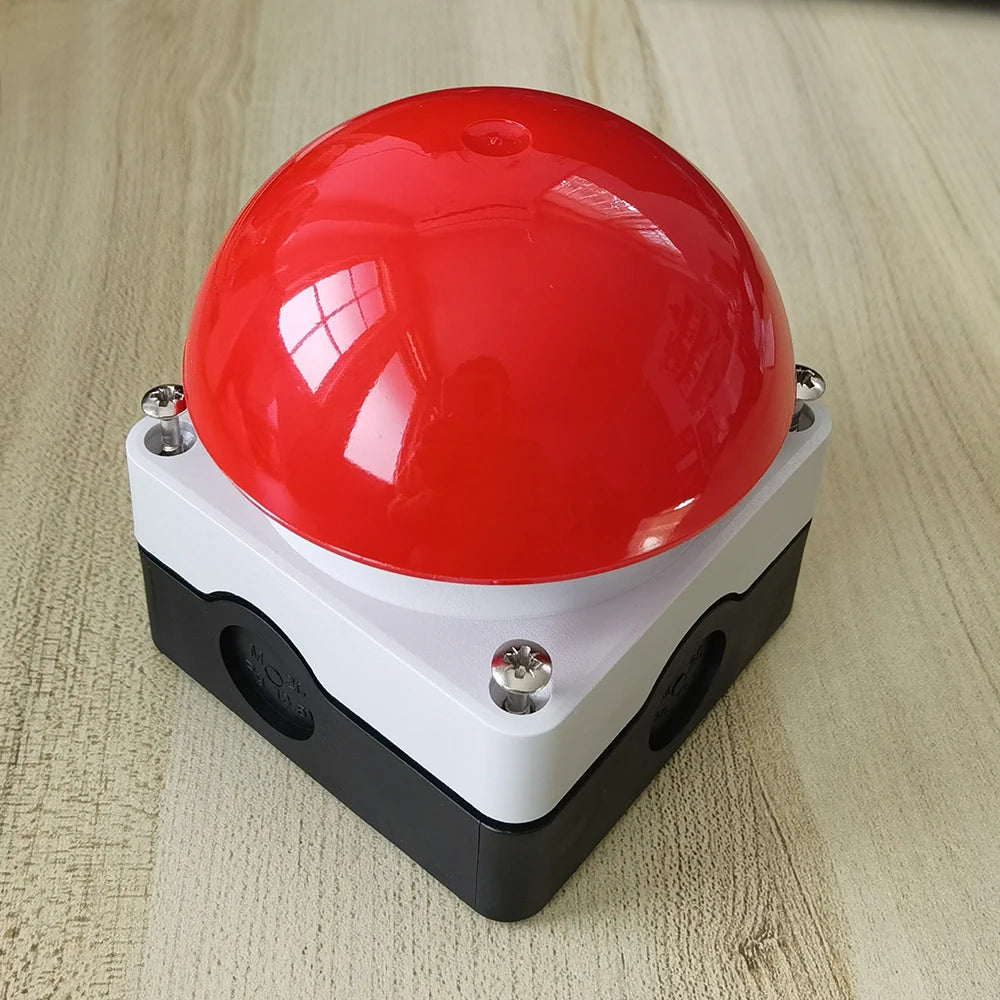

Foot Palm Switch FAK-R/KC11/I Mushroom Push Button Switch Emergency Stop Pedal Switch Manual Foot Switch 1NO+1NC
Default Title
$65.07
Sale price
$65.07
Regular price
$0.00
Skip to product information
Foot Palm Switch FAK-R/KC11/I Mushroom Push Button Switch Emergency Stop Pedal Switch Manual Foot Switch 1NO+1NC
$65.07
Sale price
$65.07
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: PROHEAT
Certification: CE,ce
Contacts configuration: NC+NO
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
IP rating: IP67
Item Type: SWITCHES
Material: Plastic
Model Number: FAK-R/KC11/I
Operating temperature: -25...40deg C
Origin: Mainland China
Switch power: 6A/230Vac
Type of switch: manual and foot
Foot and palm switches
Technical Specifications:
Function: Momentary
Spring return: Yes
Contacts: 1NO+1NC
Colour: Red, Light grey (RAL 7035) ·
Content: 1 Units ·
Dimensions: (Ø x H) 94 mm x 101 mm ·
Height: 101 mm ·
Illumination type: without ·
Protection type: IP67 ·
Specification: pressing ·
Switch position: SPST, Off-On, SPST, On-Off ·
Switching current: 6 A ·
Switching power: 6 A/230 Vac · ·
Type: Nominal voltage FAK-R/KC11/I
Description: The typical "buzzer" as a complete unit.
Symbol |
Contacts layout |
Positions |
Actuator colour |
FAK-R/KC11/I |
NC + NO |
2 |
red |
FAK-S/KC11/I |
NC + NO |
2 |
black |
FAK-R/V/KC01/IY |
NC |
2 |
red |
FAK-R/V/KC11/IY |
NC + NO |
2 |
red |
