SPECIFICATIONS

Color: As shown
Material: PC

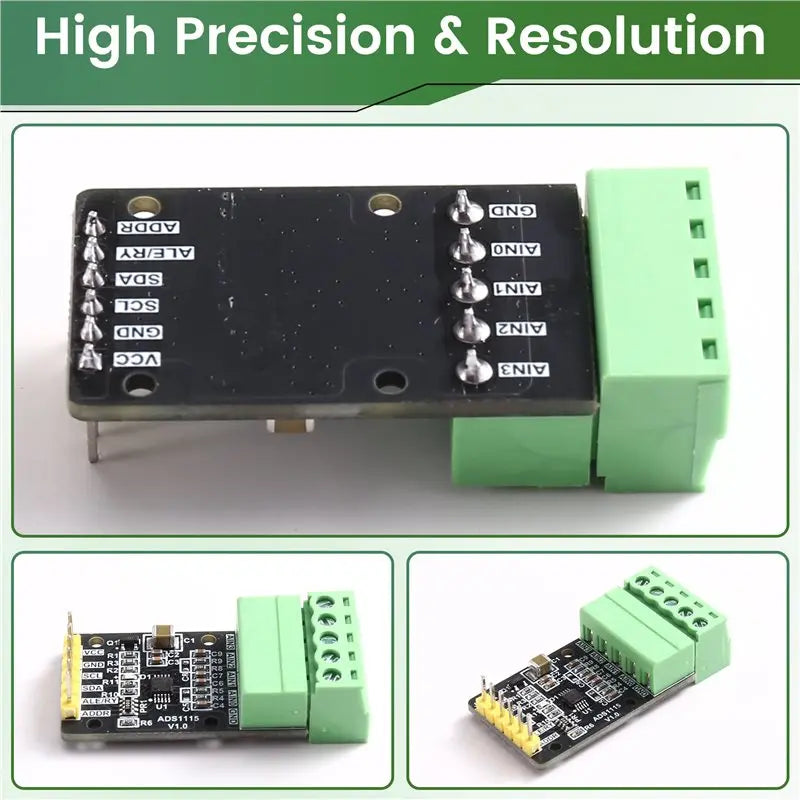

High Precision & Resolution: Features true 16-bit resolution for highly accurate signal measurement, ensuring minimal error in your readings.

Flexible Input Modes: Supports 4 single-ended inputs or 2 differential input channels with time-multiplexed sampling, providing adaptability for various sensor types and signal sources.

Programmable Gain Amplifier (PGA): Offers six software-selectable input ranges (±256mV to ±6.144V), allowing you to measure tiny signals with high precision or larger voltages without external circuitry.

Wide Operating Range: Powered efficiently from a single 2.0V to 5.5V supply, making it compatible with both 3.3V and 5V systems

High-Speed I2C Interface: Communicates via a standard for I2C protocol, simplifying connections to microcontrollers. It achieves a fast sampling rate of up to 860 samples per second (SPS).

Integrated Digital Comparator: Includes a built-in comparator which can be configured to generate an alert signal when measurements exceed a predefined threshold, useful for real-time monitoring.

High Input Impedance: Boasts a very high input impedance (3MΩ to 100MΩ), minimizing the load on the signal source being measured for greater accuracy.
Color: As Shown
Material: PC

Package Contents:
1*Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
