SPECIFICATIONS

Description:

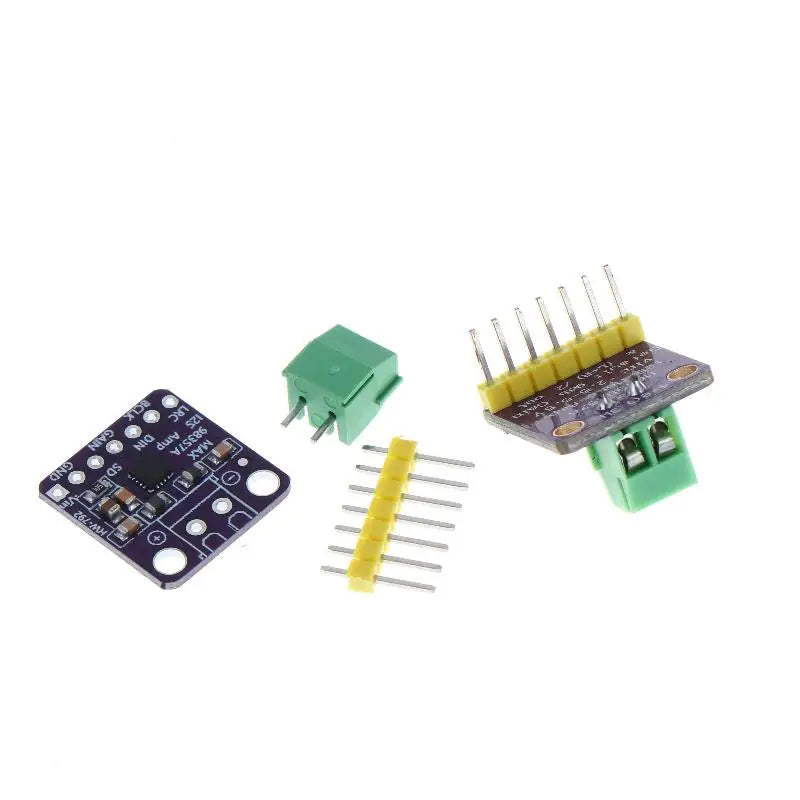

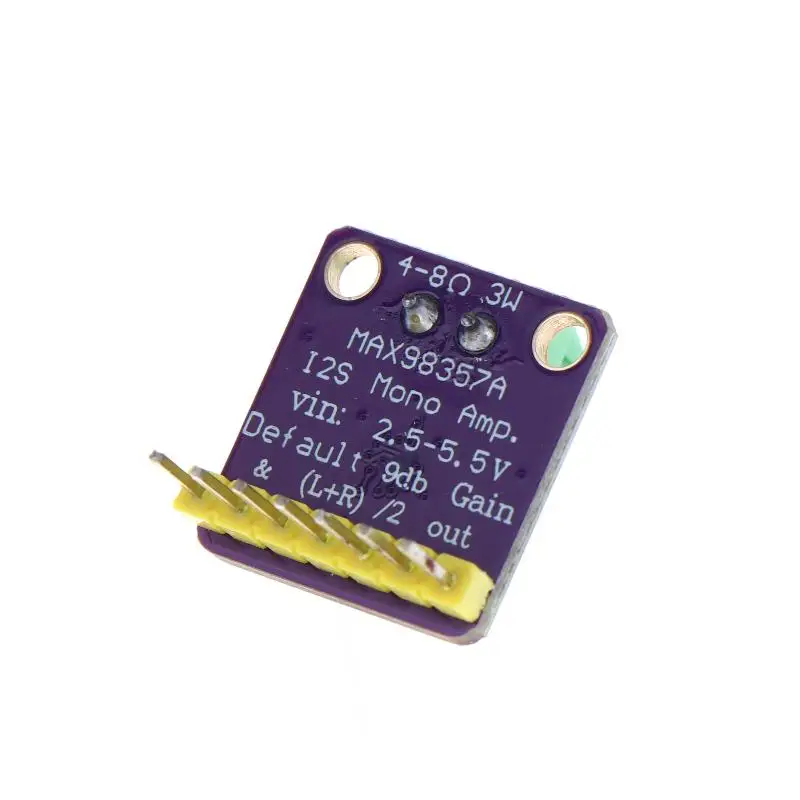

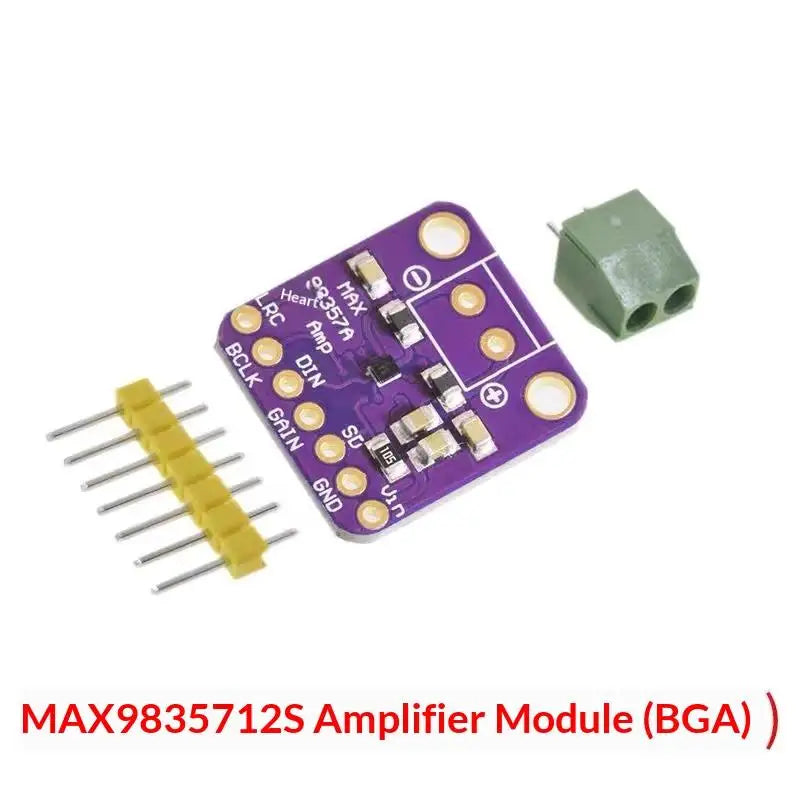

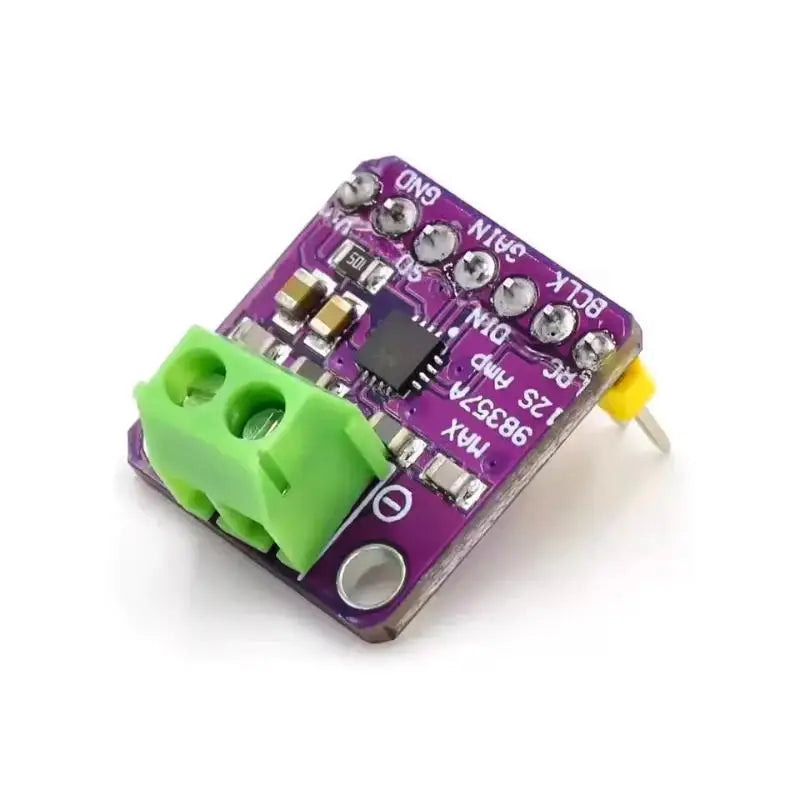

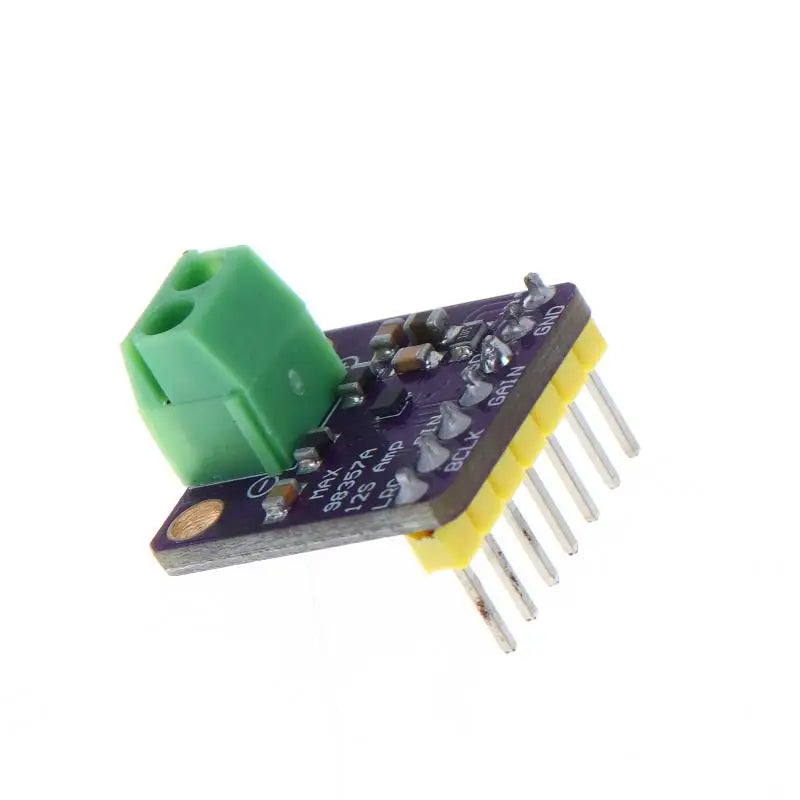

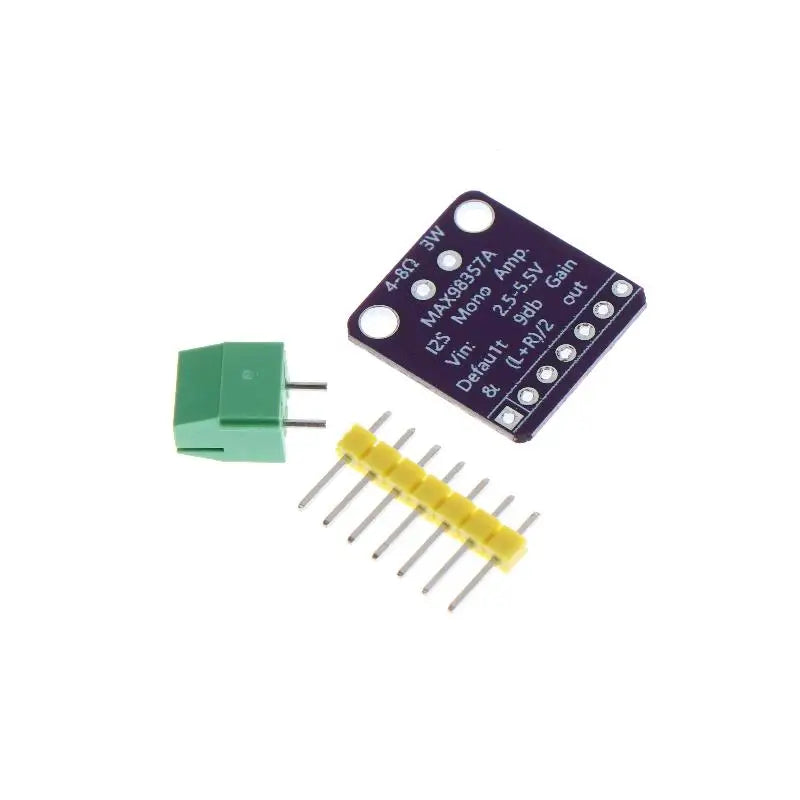

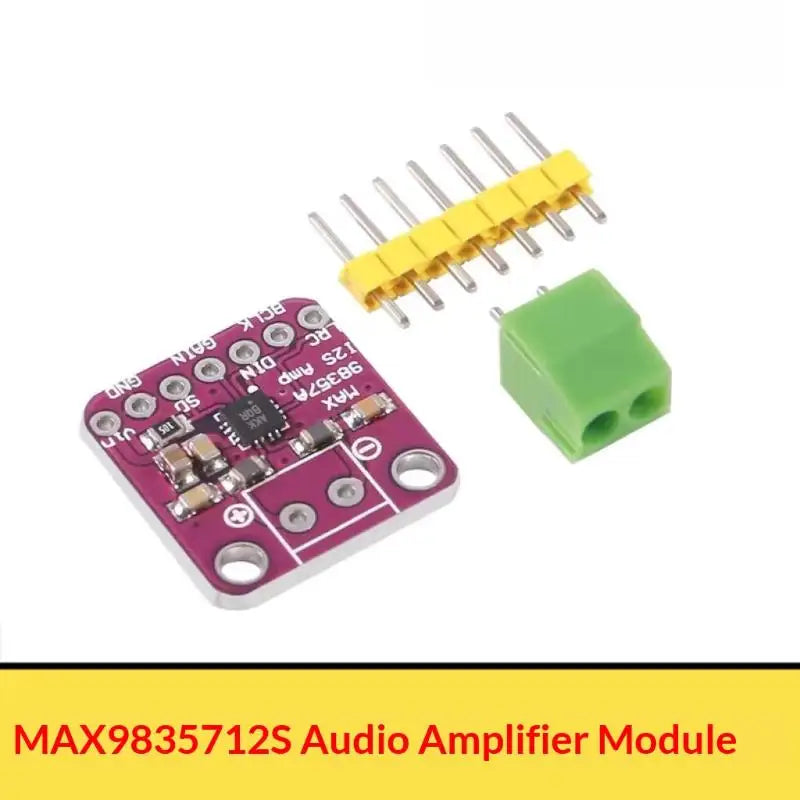

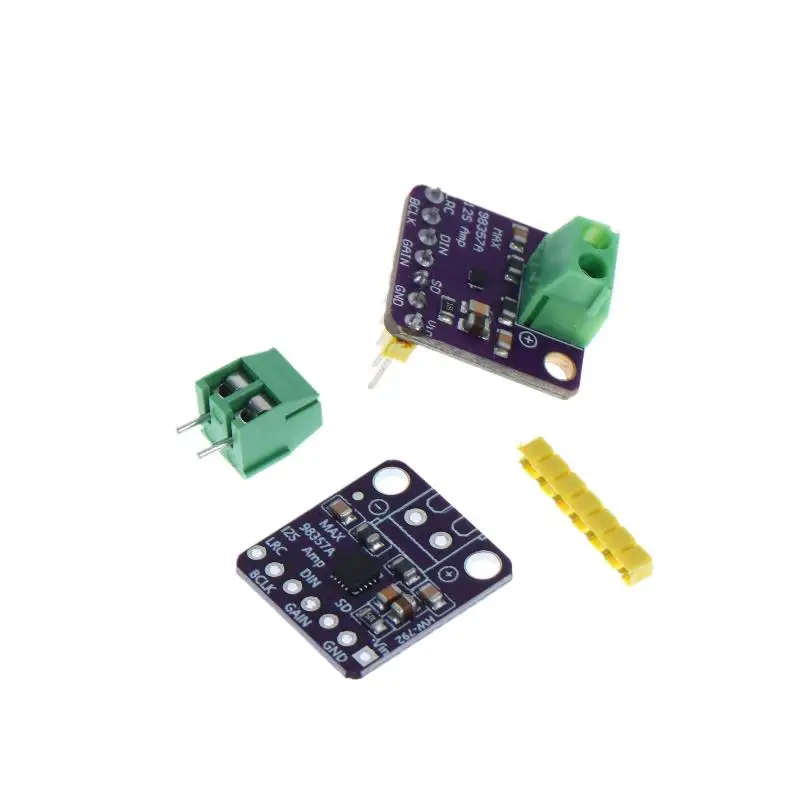

Superior Quality MAX98357 & MAX98357A I2S 3 Watt Class D Audio Amplifier, Breakout Board with I2S DAC Decoder.

Main Attributes:

3.2 Watts output at 4Ω, 10 percent THD

At 8Ω, 1.8 Watts output at 10 percent THD

Compatible with I2S sample rates from 8KHz up to 96KHz

Amplifier gain can be set to 3dB, 6dB, 9dB, 12dB, or 15dB – master clock (MCLK) not needed

Single-power-supply, plug-in ready, can auto-configure with 35 varied clocks & 128 digital audio formats

Ideal for Raspberry Pi, ESP32, and controllers or development boards with I2S output

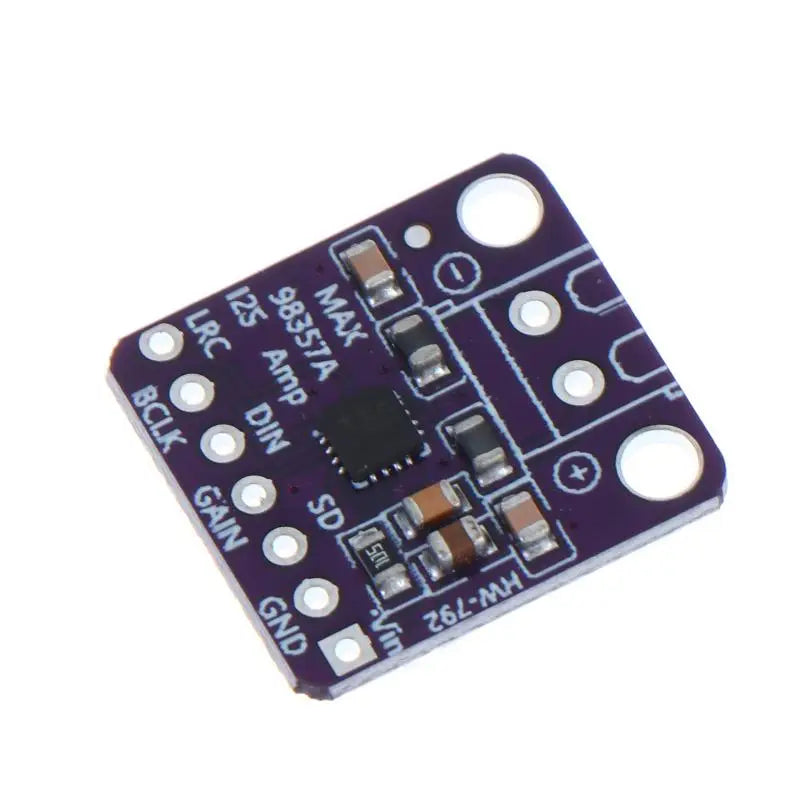

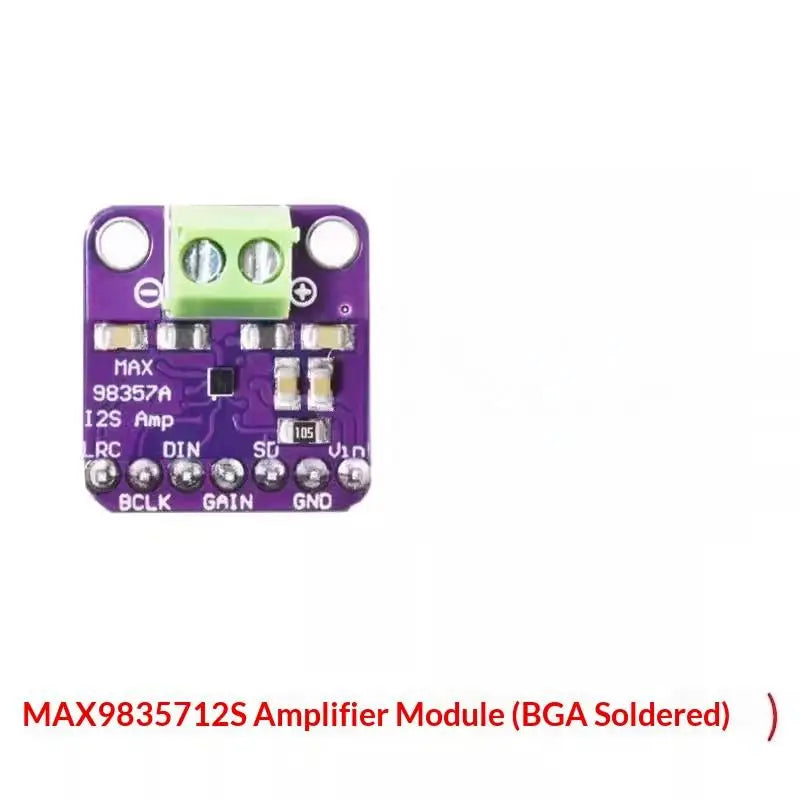

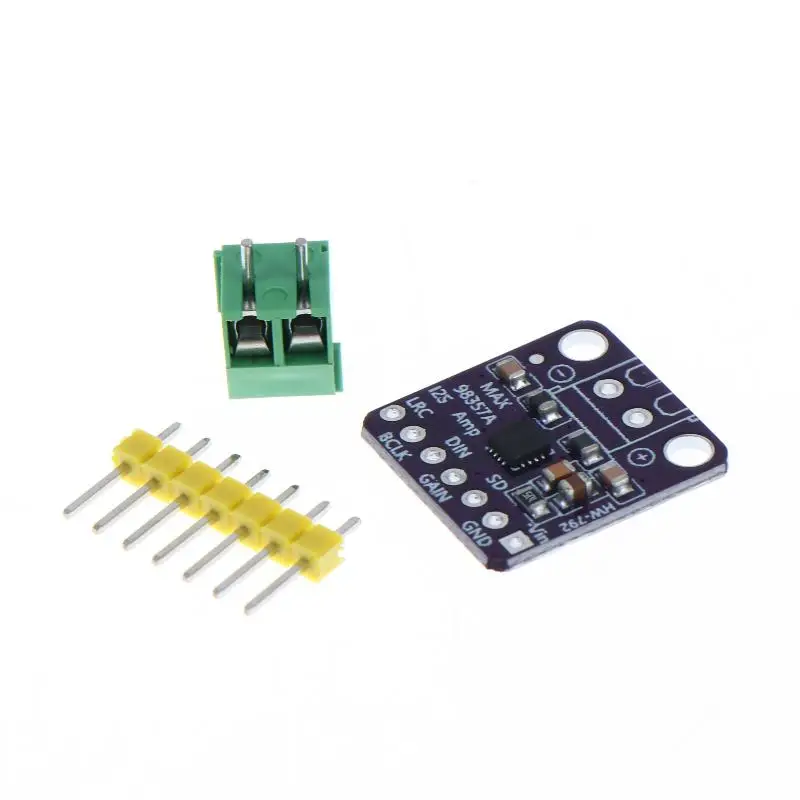

Pinout Information:

LRC: Left/right clock sync for I2S/LJ; also for TDM modes

BCLK: Entry for bit clock signals

DIN: Port for digital input

GAIN: Specifies gain/channel; TDM locks gain at 12dB

GND: Ground connection

VCC: Accepts DC between 2.5 and 5.5 Volts

Material: Mixture of Plastic and Metal

Measurement: 19.1mm × 17.7mm

Includes: 1 item/set

Kind Reminder:

1. Colour of item may differ from due to monitor or lighting; rely on received product.

2. Expect minor measurement variations from hand measuring.
