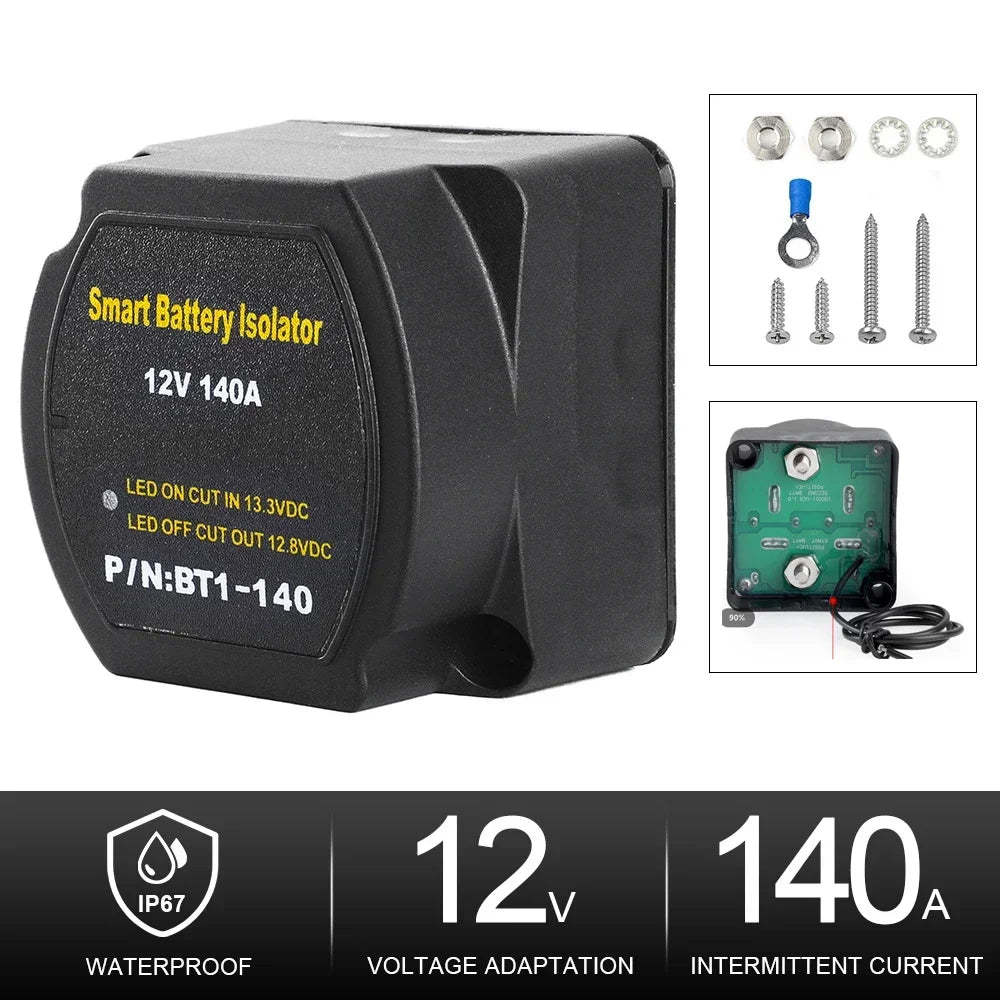

For Car RV Boat Marine Turck 12V 140A Dual Smart Battery Isolator Relay Voltage Sensitive Protection VSR Split Charge

For Car RV Boat Marine Turck 12V 140A Dual Smart Battery Isolator Relay Voltage Sensitive Protection VSR Split Charge

$125.42

$125.42 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

External Testing Certification: GS

Feature 1: For Car RV Boat Marine Turck

Feature 2: 12V 140A

Feature 3: Dual Smart Battery Isolator Relay Voltage Sensitive Protection VSR Split Charge

High-concerned chemical: none

Item Diameter: 0

Item Height: 0

Item Length: 0

Item Weight: 0.3

Item Width: 0

Material: CN(Origin)

Model Name: CN(Origin)

OEM NO.: YC101987-BKS

Origin: Mainland China

Special Features: Battery Isolator

Year: YC101987-BK

Voltage Sensitive Relay 12V 140A Dual Battery Isolator Relay Protection VSR Voltage Split Charge For Boat Automotive Marine

Description:
The split charge relays are CE approved products with a red LED indicator and allows the split charging of a second battery without discharging the primary battery or the start battery.

NOTE:

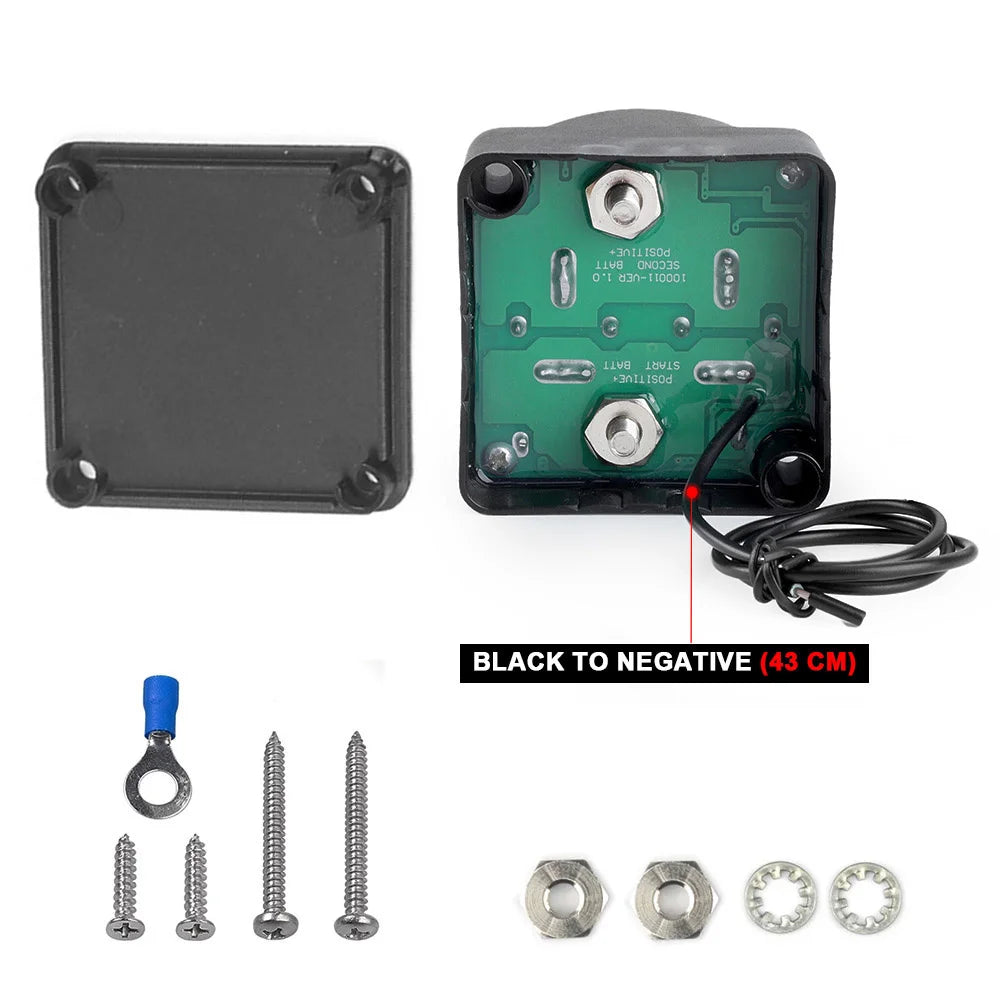

Single cable version (integrated negative-)

Product Specifications:
-Automotive Dual Battery Isolator Relay Protection Voltage Split Charge 12V 140A
Material: Nylon
Color: Black

12v
Nominal Voltage: DC 12V
Combine Voltage: DC 13.3V
Open Voltage: DC 12.8V
Continuous Rating: DC 100A
Intermittent Rating: DC 140A
Power Consumption: 10mA (Standby)/ 330mA(Engage) / 0mA (Storage)
Terminal Studs|: M6(1/4”)
Notes: ISO8846/SAE J1171 (Ignition Protected)
Certification: CE IP67

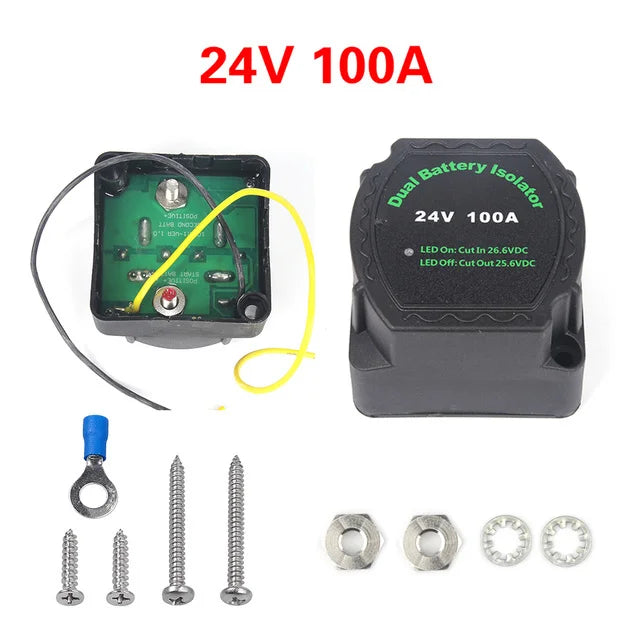

24v

Nominal Voltage: DC 24V
Combine Voltage: DC 26.6V
Open Voltage: DC 12.8V
Continuous Rating: DC 100A
Intermittent Rating: DC
Power Consumption: 10mA (Standby)/ 330mA(Engage) / 0mA (Storage)
Terminal Studs|: M6(1/4”)
Notes: ISO8846/SAE J1171 (Ignition Protected)
Certification: CE IP67

Features:

The Voltage Sensitive Relay (VSR) allows two batteries to be charged at the same time. When the engine is started and the start battery reaches 13.3 volts, the VSR engages, allowing two battery banks (start and house) to be charged simultaneously.

When the voltage drops below 12.8 volts (eg the engine is stopped), the VSR disengages, separating the batteries. This system eliminates the possibility of draining the start battery and protects sensitive electronic equipment powered from the house battery from harmful engine start up spikes.

Features:

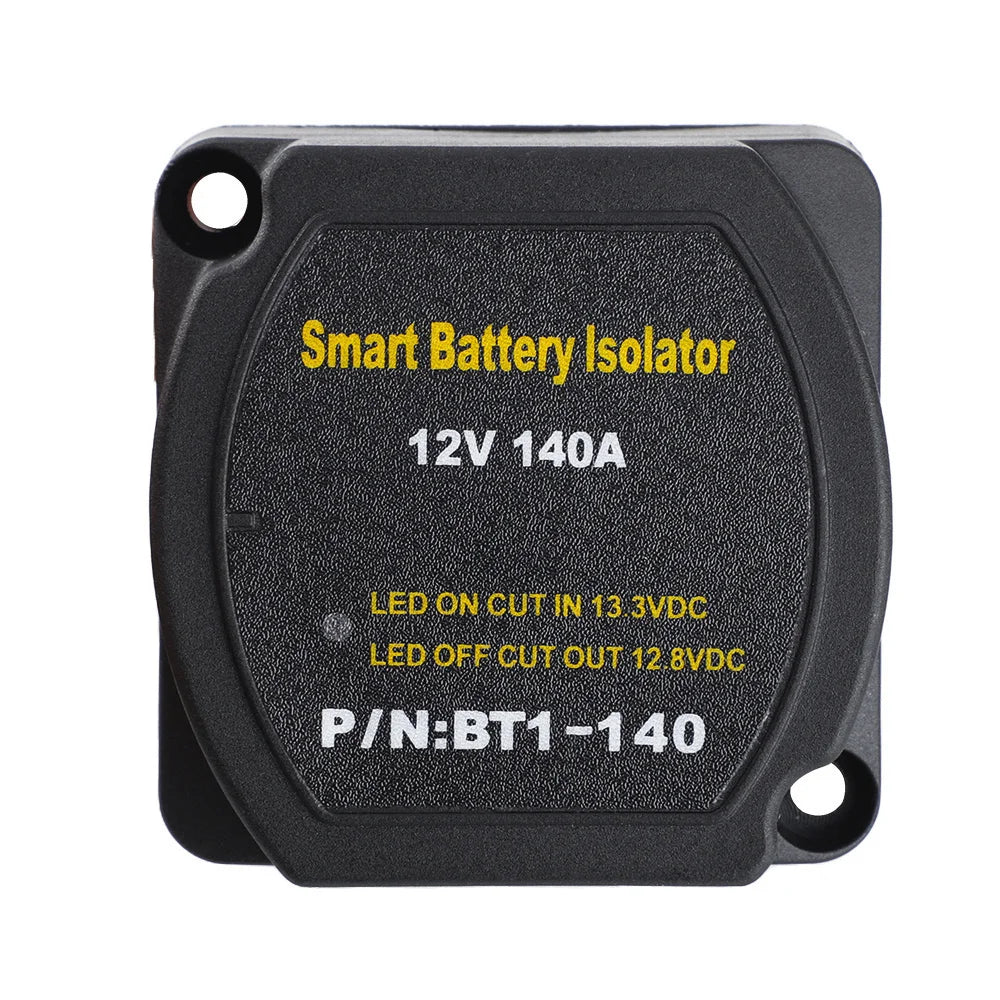

Voltage sensitive relay12 volt 140 ampRed LED indicator.Allows split charging of the 2nd battery bank without discharging the primary/start battery.The relay makes at 13.3 volts and breaks at 12.8 volt.

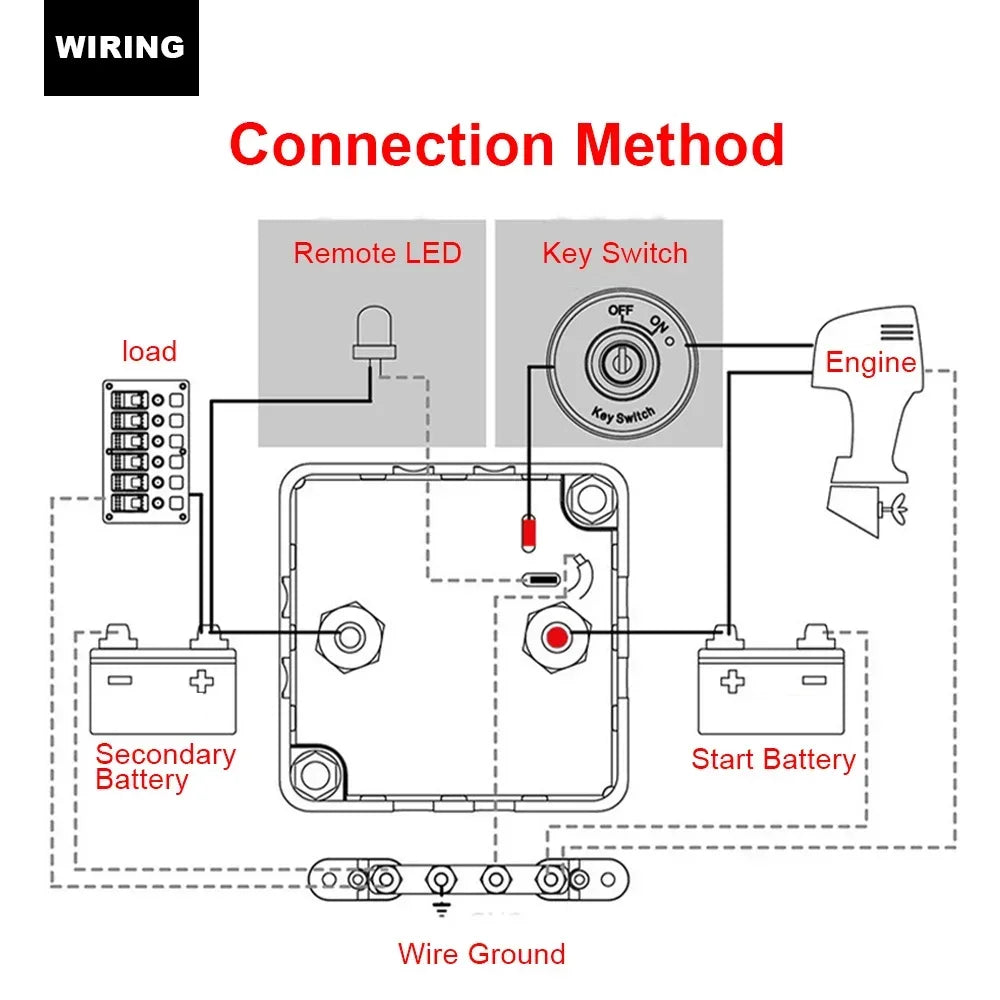

Advantages of fitting a VSR over conventional charge (diode isolators). Easy 3 wire connection at the battery. No need to bypass existing alternator wiring. VSR have no volt drop. Conventional diode isolators incur a minimum of 0.6 volt drop. Compact size - No large heat sink Cost effective solutionQuality products; affordable prices

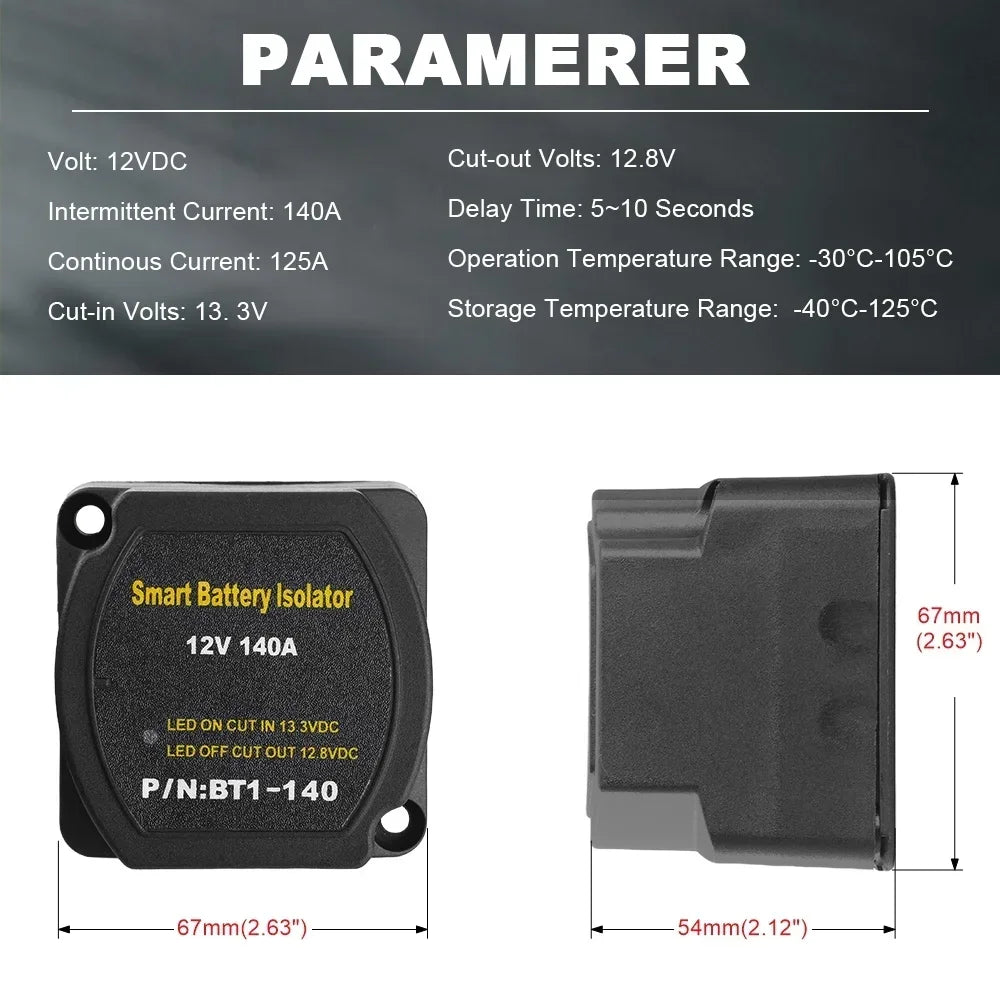

Dimensions:

68mm (L) x 68mm (W) x 52mm (H)

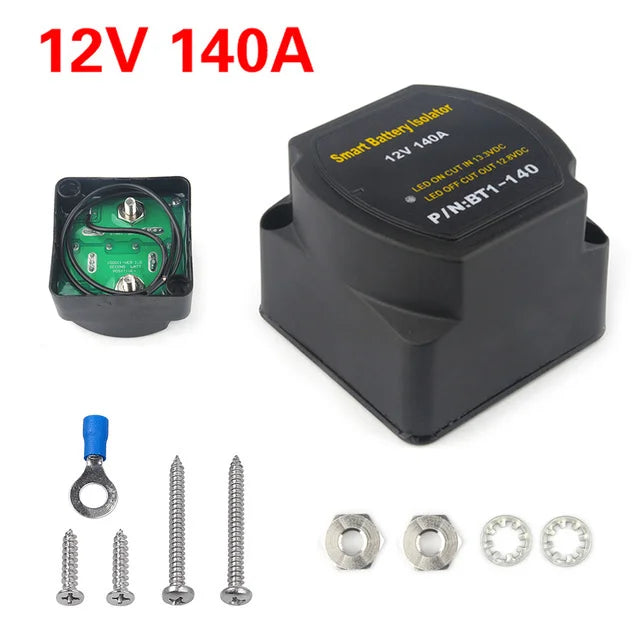

Package Includes:

1 x Voltage Sensitive Relay

1ser Fastening screws
