SPECIFICATIONS

Battery Included: no

Brand Name: NONE

DIY Supplies: Electrical

High-concerned chemical: none

Model Number: DSlogic

Origin: Mainland China

Semi-finishedproduct: No

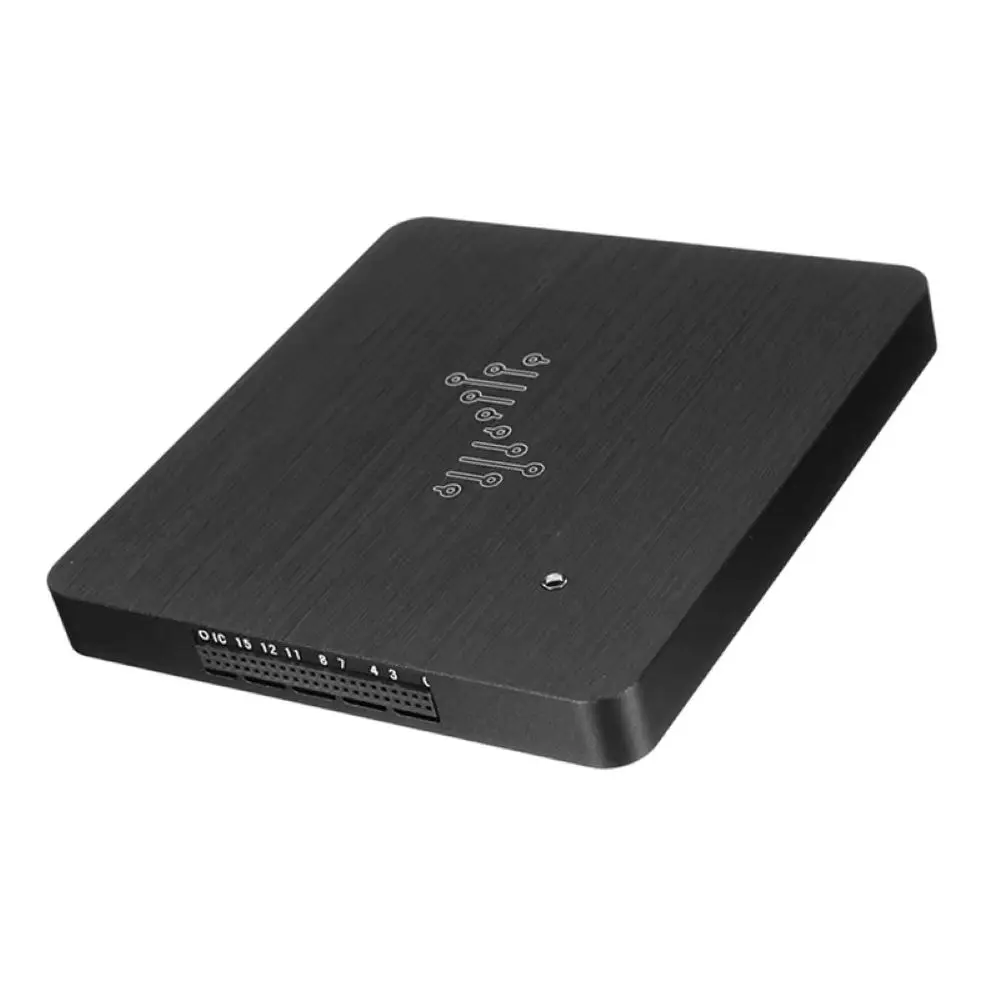

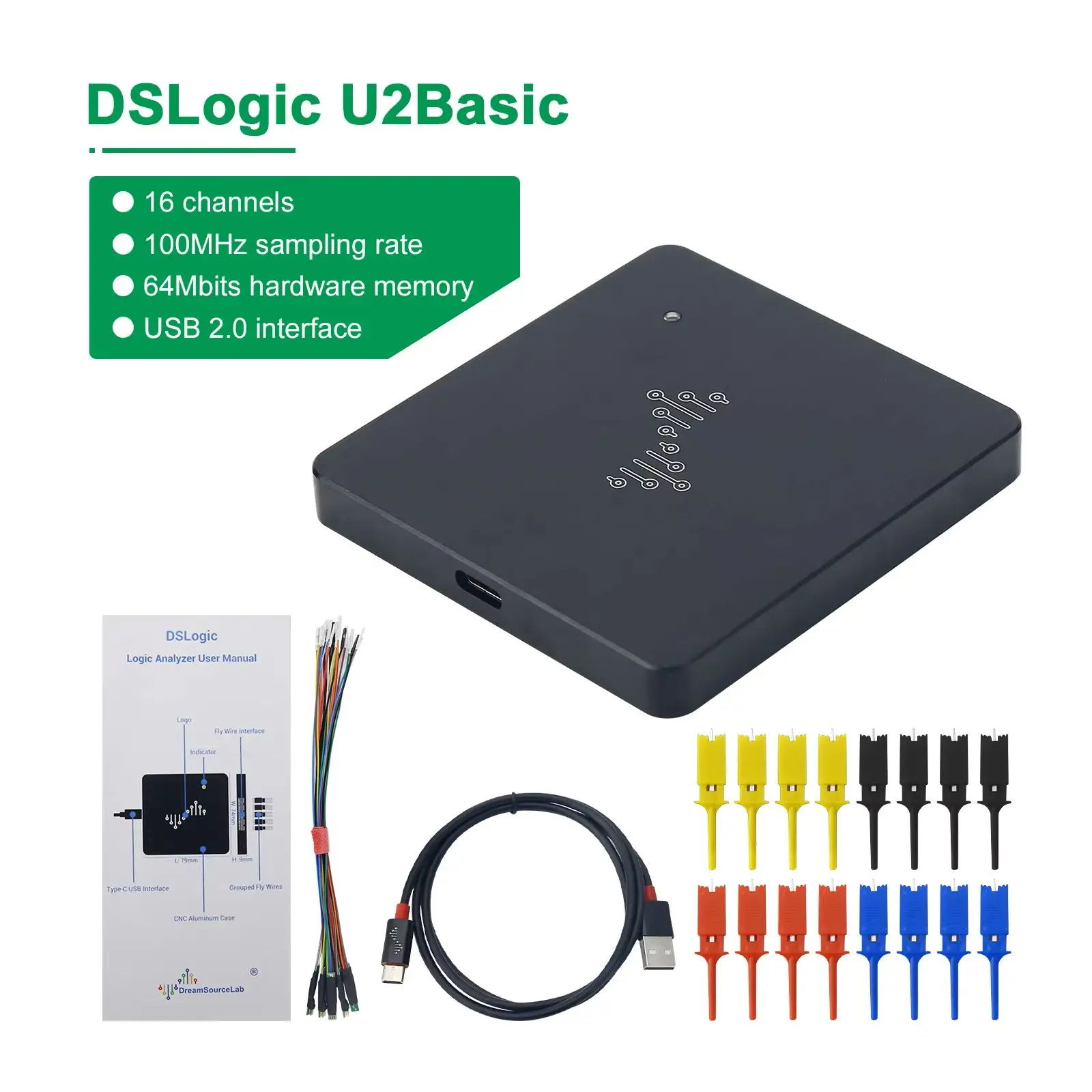

DSLogic U2Basic 16CH Logic Analyzer USB 2.0 100MHz Sampling Rate 64Mbits Hardware Memory Debugging

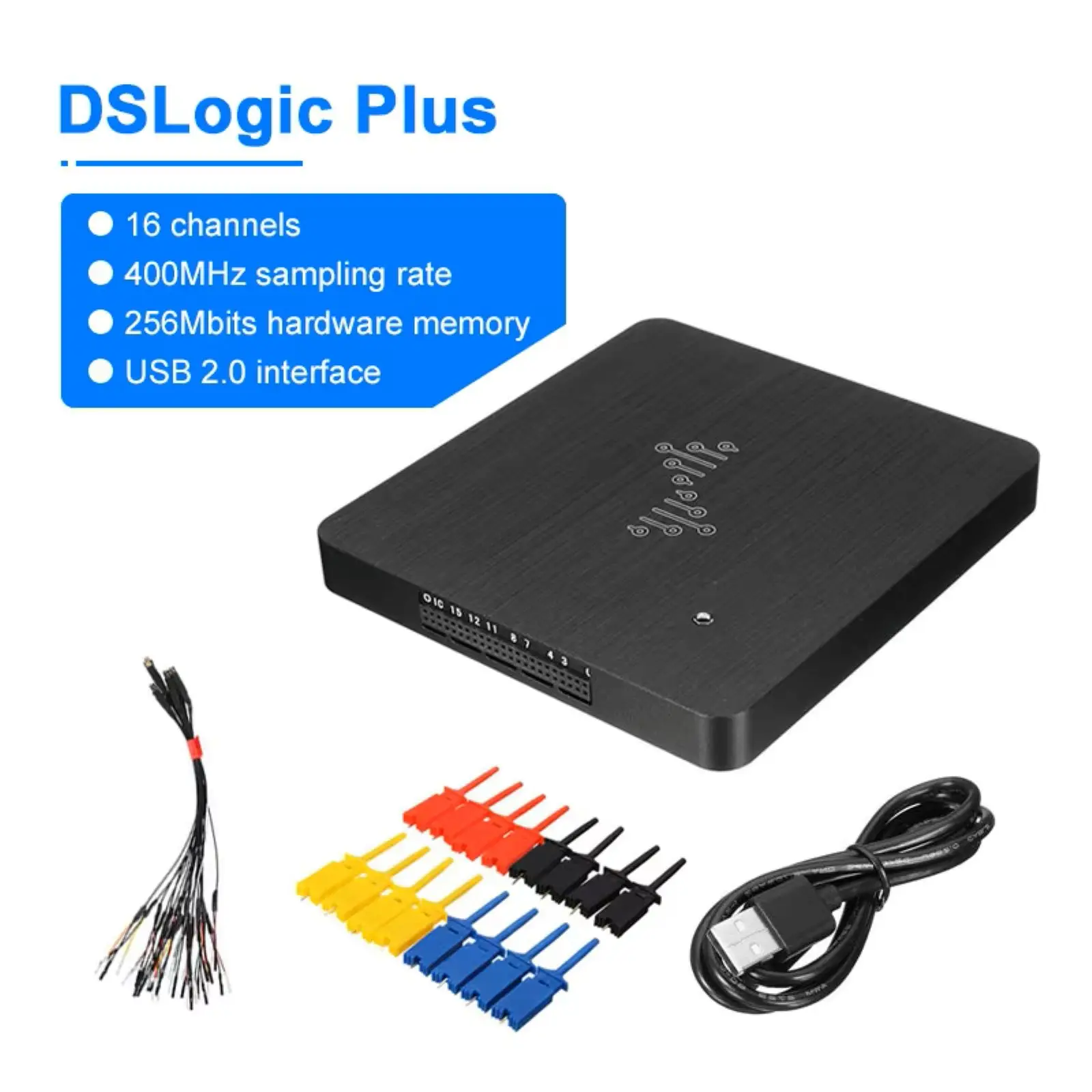

DSLogic Plus 16CH Logic Analyzer USB 2.0 400MHz Sampling Rate 256Mbits Hardware Memory Debugging Kit

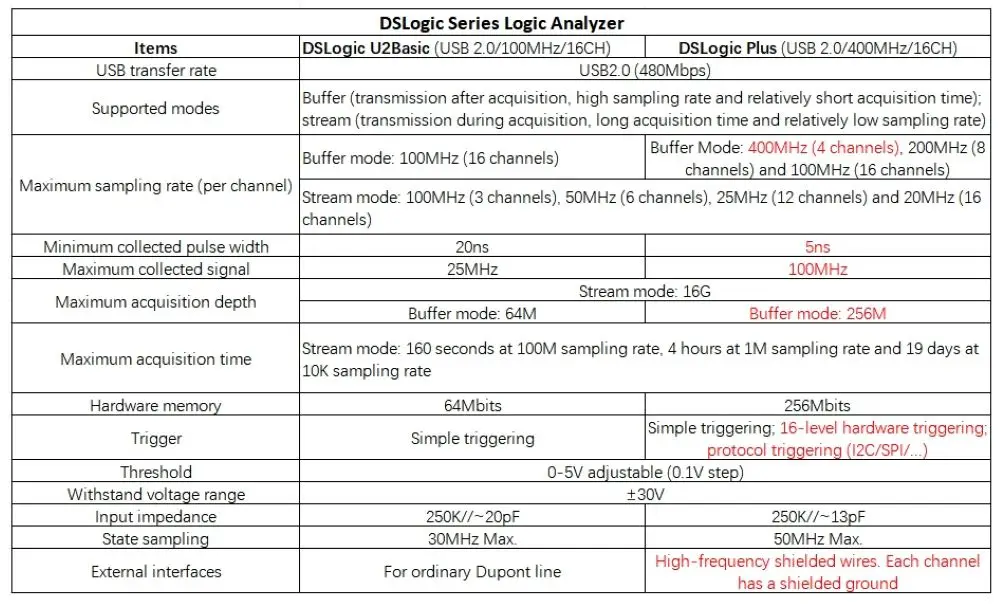

DSLogic U2Basic Technical Parameters:

1. USB transfer rate: USB2.0 (480Mbps)

2. Supported mode: Buffer (transmission after acquisition, high sampling rate, relatively short acquisition time). Stream (transmit while

collecting, the collection time is long, and the sampling rate is relatively low)

3. The highest sampling rate (per channel):

* Buffer mode: 100MHz (16 channels)

* Stream mode: 100MHz (3 channels); 50MHz (6 channels); 25MHz (12 channels); 20MHz (16 channels)

4. The smallest pulse width that can be collected: 20ns

5. The highest signal that can be collected: 25MHz

6. Maximum acquisition depth:

* Stream mode: 16G

* Buffer mode: 64M

7. The longest acquisition time: stream mode: 160 seconds at 100M sampling rate; 4 hours at 1M sampling rate; 19 days at 10K sampling rate

8. Hardware memory: 64Mbits

9. Trigger: simple trigger

10. Threshold: 0-5V adjustable (0.1V step)

11. Withstand voltage range: ±30V

12. Input impedance: 250K//~20pF

13. State sampling: Max. 30MHz

14. External interface: for ordinary DuPont line

Logic analyzer is a dedicate debug tool for digital signals, which support long-time acquisition, no dead time, complex trig conditions and rich

protocol decoders.

Why Choose DSLogic?

1. Independent research and development, continuous software update. For all Windows platforms, Mac OS, and Linux. Native driver for Windows, genuine digital signature

2. Support dual mode: buffer mode with high sampling rate, stream mode with long acquisition time. The recommended sampling rate

is 10-100 times the frequency of the signal under test. Stream mode: Transmit the collected data to the computer memory in real time via USB.

Maximum 16G depth, greatly improving the waveform recording time

3. Unique design to optimize the integrity of high-frequency signals. Multi-layer high frequency PCB design

4.Support nearly a hundred kinds of protocol analysis: DSLogic not only supports common protocol analysis, directly displays the content of the protocol data, but also supports multi-layer protocol stacking, making the data display more intuitive and easy to understand. Directly display the EEPROM Page read and write content. Supports nearly a hundred protocols of the open source protocol library. Support specific protocol content trigger. For example, sampling is triggered when specific data appears in the I2C data stream. Support protocol analysis content export text file. Support specific protocol content search

5. Software control, handy. Support scroll wheel/area/gesture zoom, mouse follow measurement.Insert any number of cursors, support edge adsorption; edge interval measurement. Support multiple methods of edge statistics. File storage, configuration memory, easy to review, share, and reprocess.

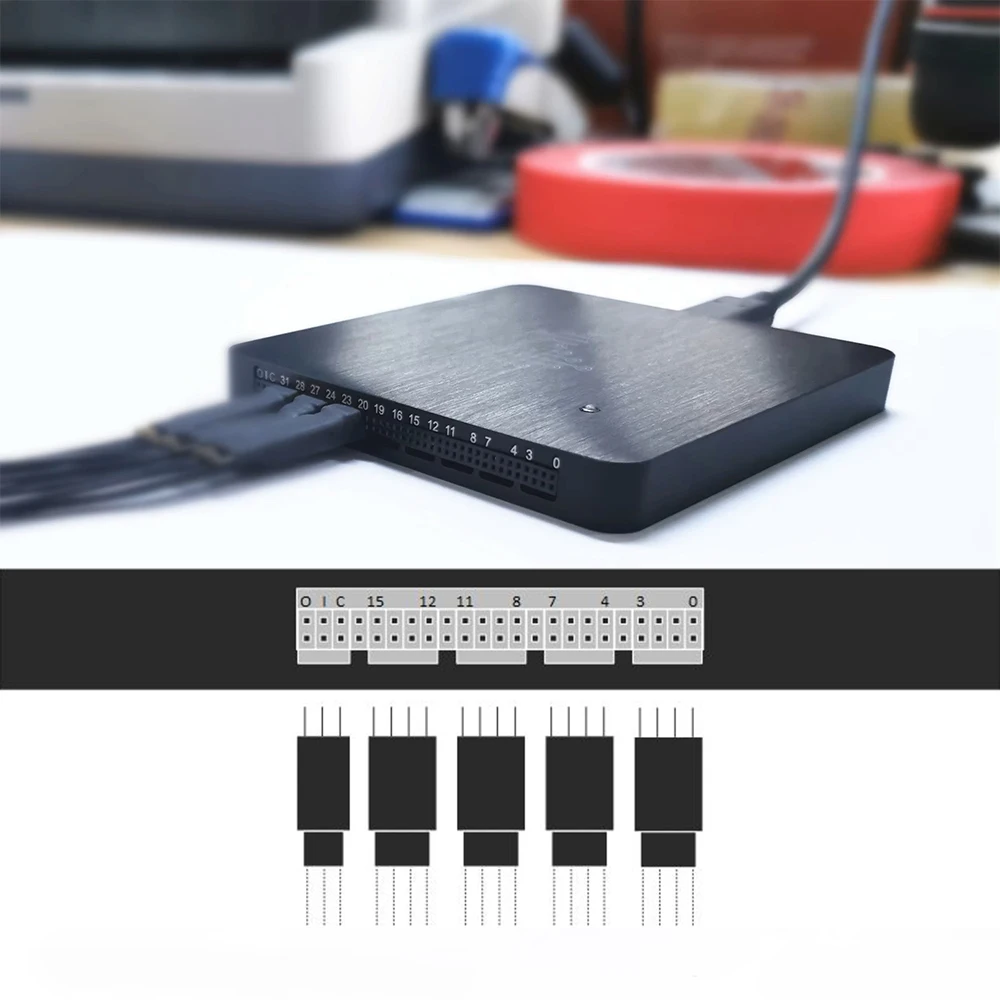

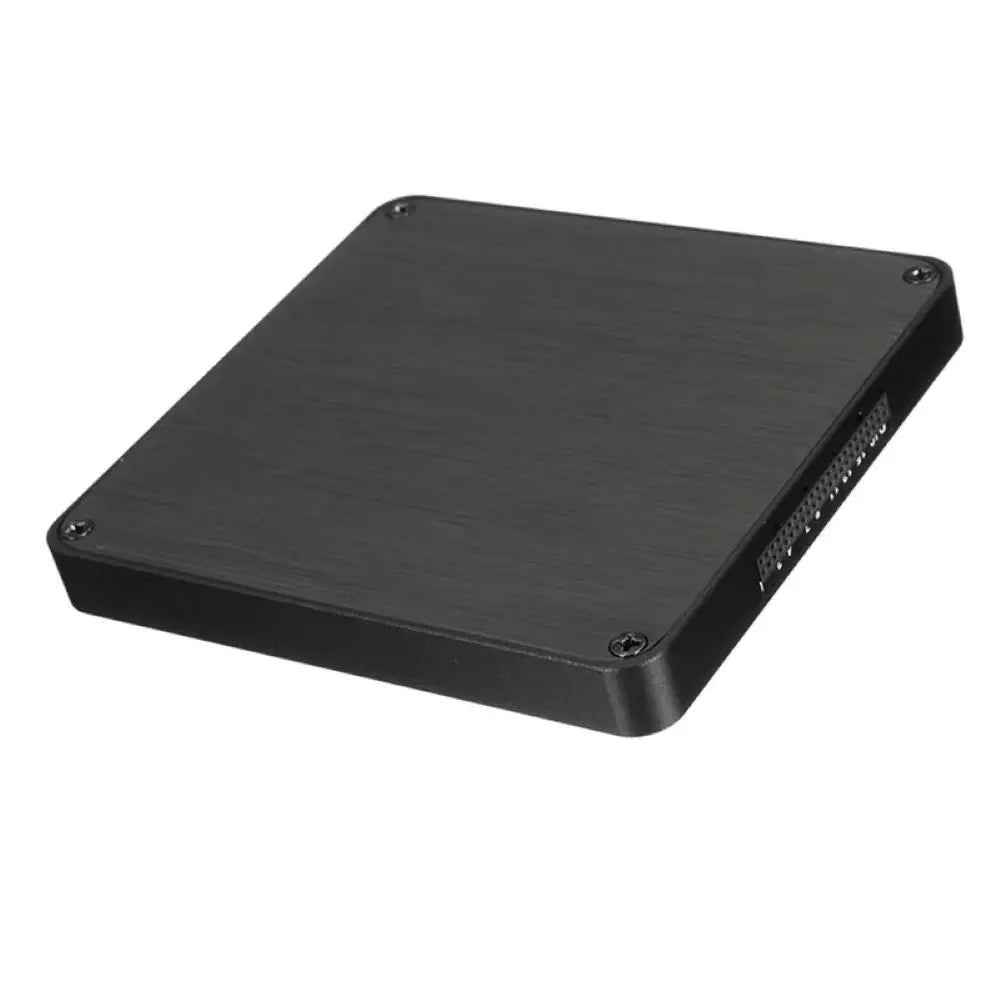

6.Design carefully and pursue unremittingly. Grouping & anti-reverse plug-in cable interface. Type-C interface, long life, support positive and

negative plug. Adjustable threshold, compatible with various voltage standards 1.2V/1.8V/2.5V/3.3V/5.0V, etc. The all-metal CNC integrated

shell has better shielding performance and better heat dissipation

Supported Protocols:

1. Basic Protocols:

For I2C, UART, SPI, CAN, I2S, JTAG, 1-Wire link layer, DMX 512, PWM, Parallel, SWD, USB PD, USB signalling, SWIM, SD card (SD mode), PS/2,

MDIO, Stepper motor, Timing, Z80, AC'97, Counter, IR NEC, IR RC-5, AM230x, AUD, AVR PDI, CEC, DALI, DCF77, DSI, EM4100, EM4305, GPIB, Gray

code, Guess bitrate, Jitter, LPC, Maple bus, MCS-48, Microwire, Miller, Morse, OOK, Qi, RC encode, RGB LED (WS281x), SDA2506, S/PDIF, ST7735,

T55xx, TITLC5620, Wiegand...

2.High-level Protocols:

For LIN, 24xx EEPROM, 93xx EEPROM, USB request, USB packet, 1-Wire network layer,AVR ISP, nRF24L01(+), RGB LED(SPI), SD card(SPI mode), SPI flash/EEPROM, Modbus, MIDI, I2C demux, I2C filter, ETMv3, ARM ITM, ARM TPIU, ATSHA204A, DS1307, EDID, LM75, MLX90614, MXC6225XU, Nunchuk, RTC-8564, TITCA6408A, XFP, JTAG/E JTAG, JTAG/STM32, CFP, DS243x, DS28EA00, Oregon, OOK visualisation, ADE77xx, ADF435X, ADNS-5020, MAX7219, MRF24J40, RFM12, SSI32, PAN1321...

Package Included:

- 1 x Set of Logic Analyzer
