SPECIFICATIONS

Features:

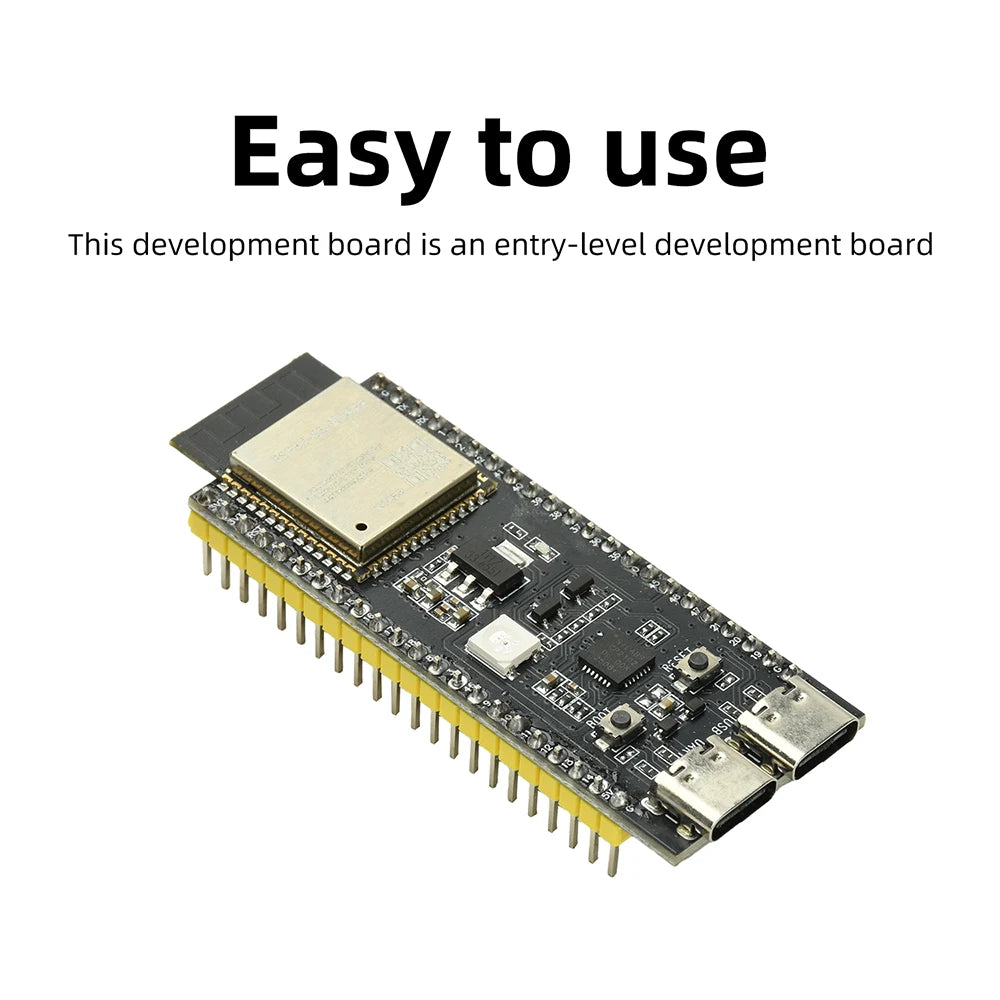

1.This development board is an entry-level board that is easy to use.

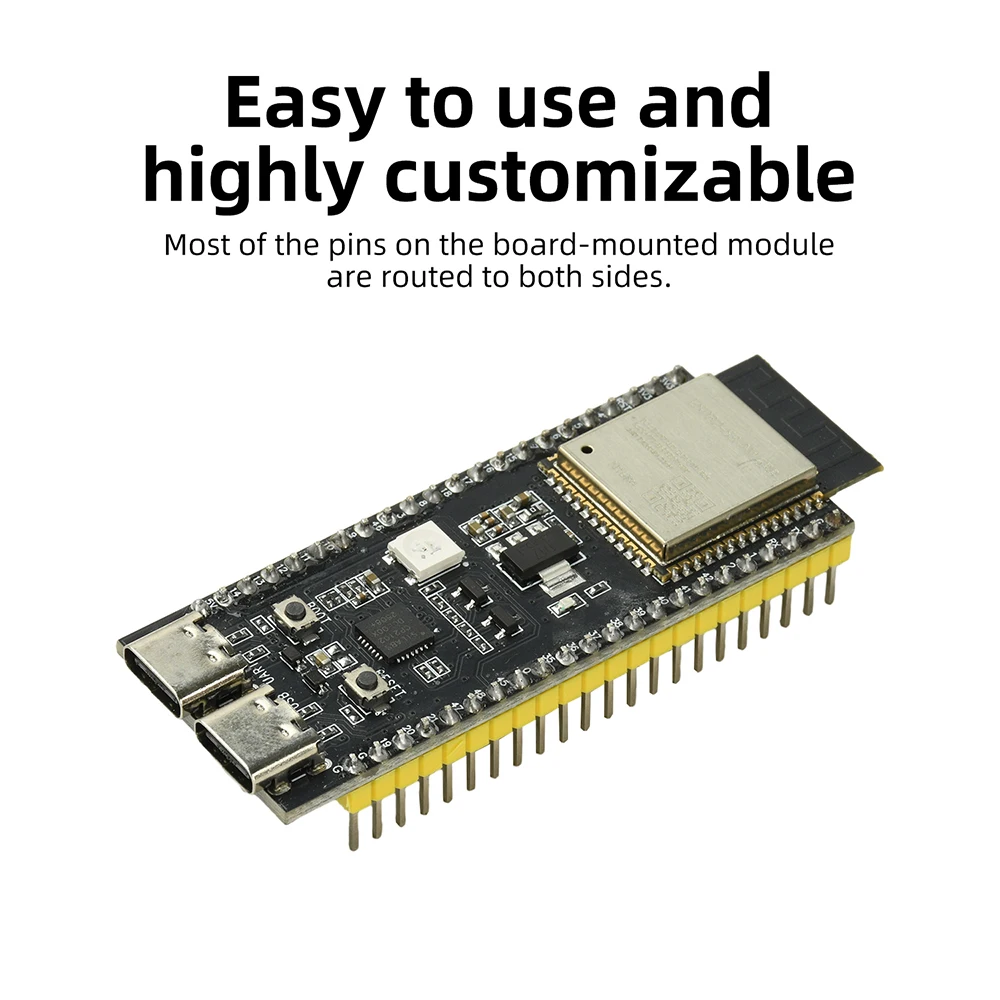

2. Easy to use, flexible expansion, and most of the pins on the board module have been extended to both sides.

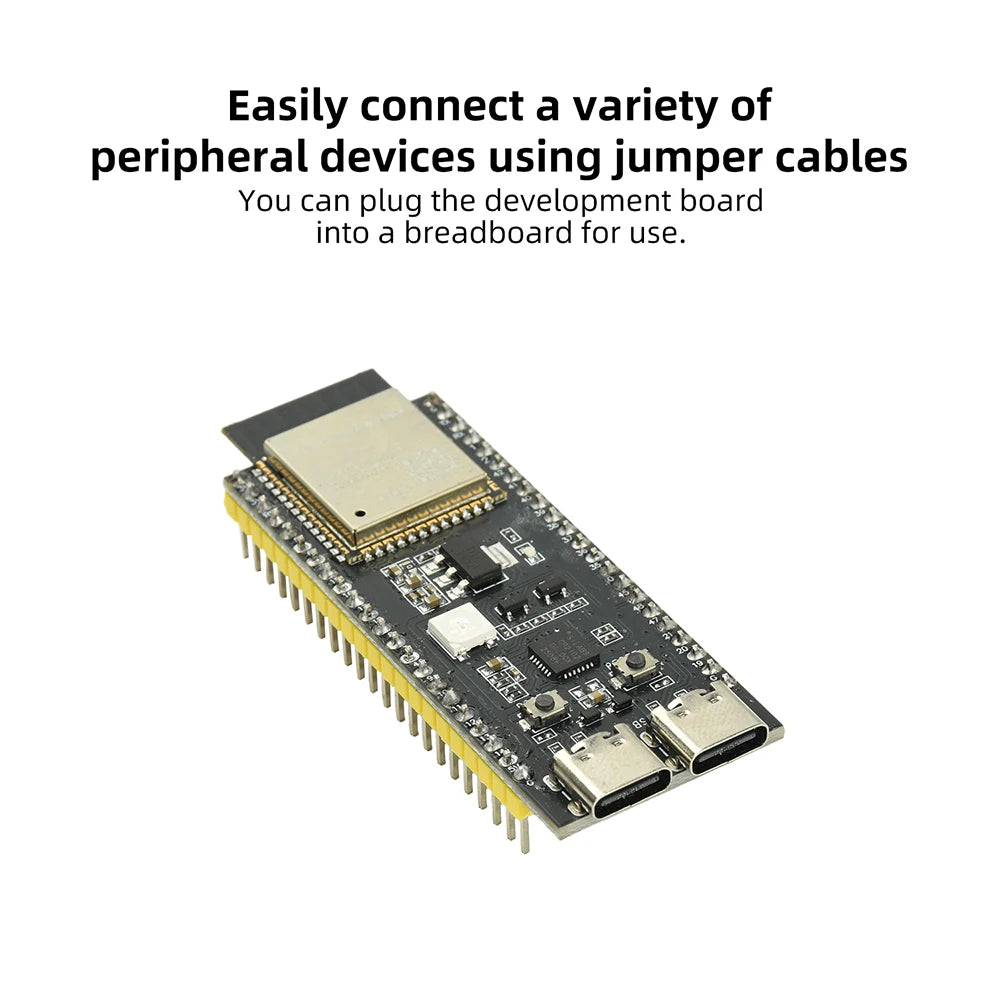

3. Easily connect various peripheral devices through jumper cables, and the development board can be plugged into a breadboard for use.

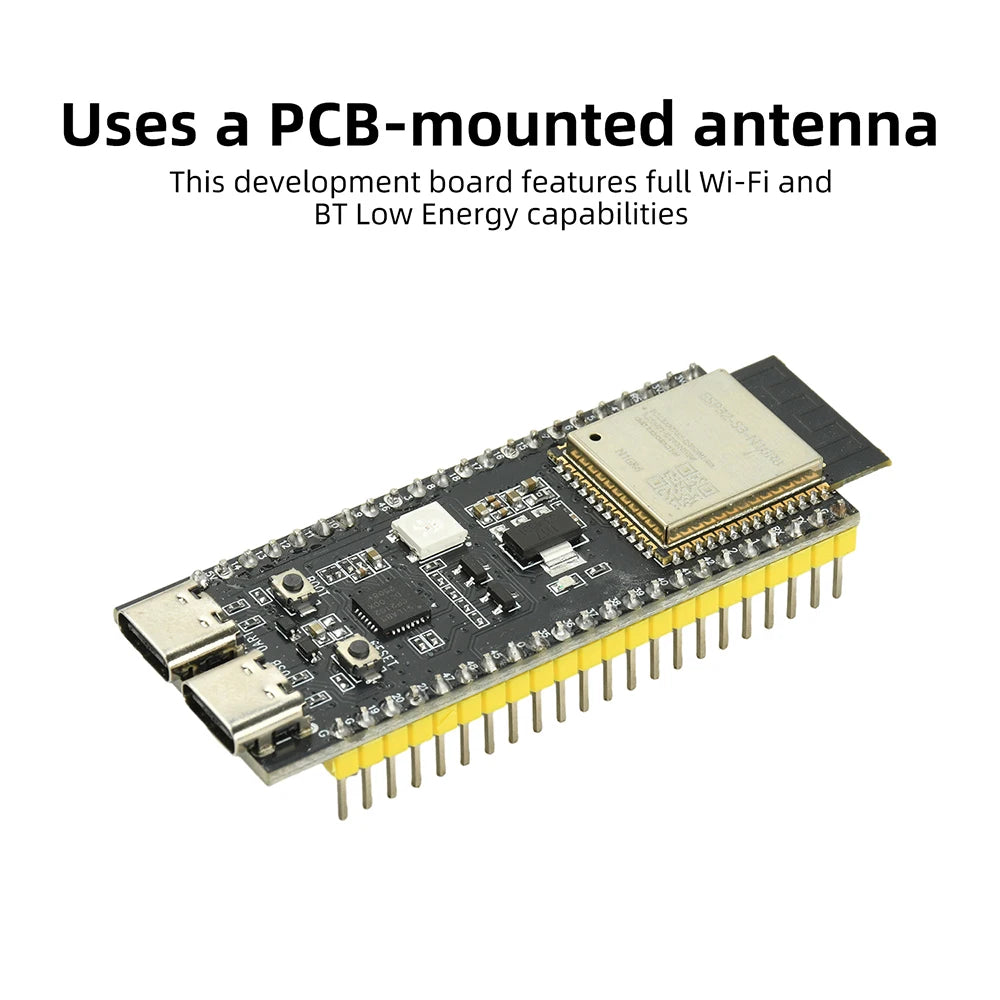

4. Adopting PCB board mounted antenna, this development board has complete Wi Fi and low-power BT functions.

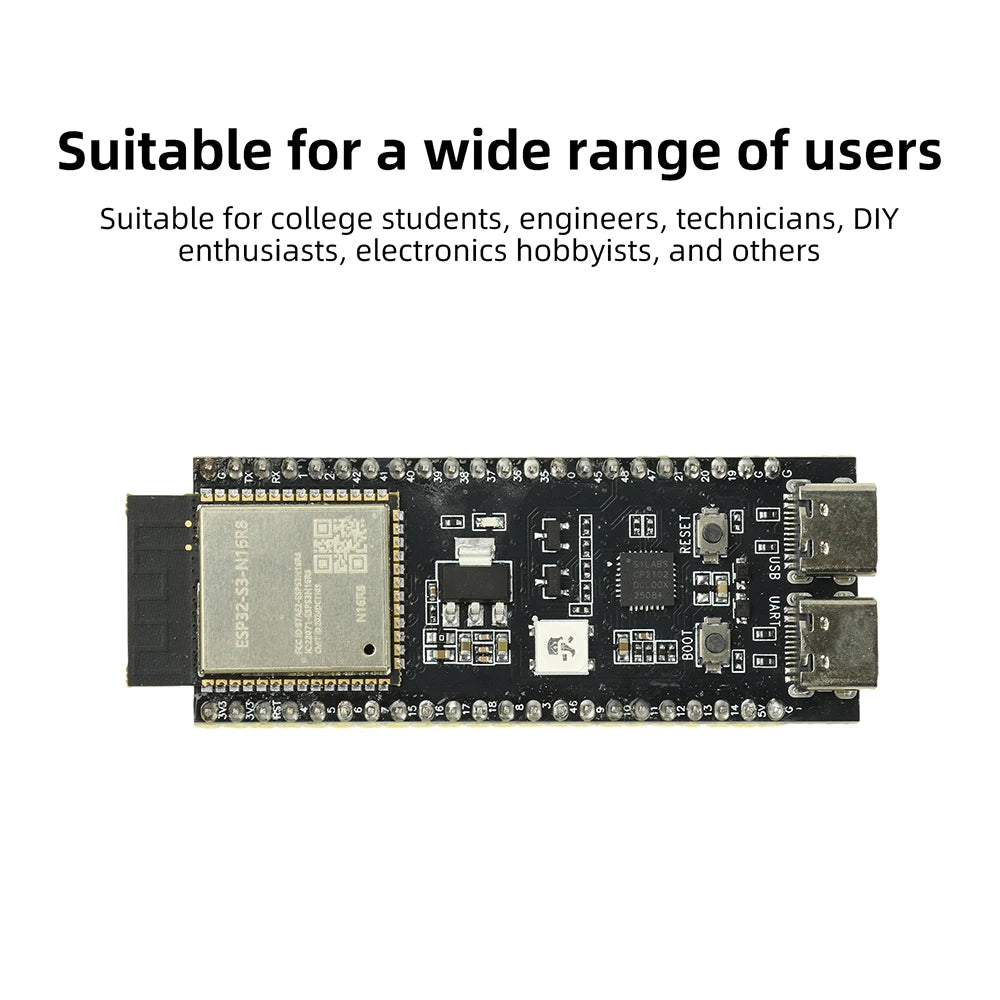

5. Suitable for a wide range of users, including college students, engineers, technicians, personal DIY, electronics enthusiasts, etc.

Product Introduction

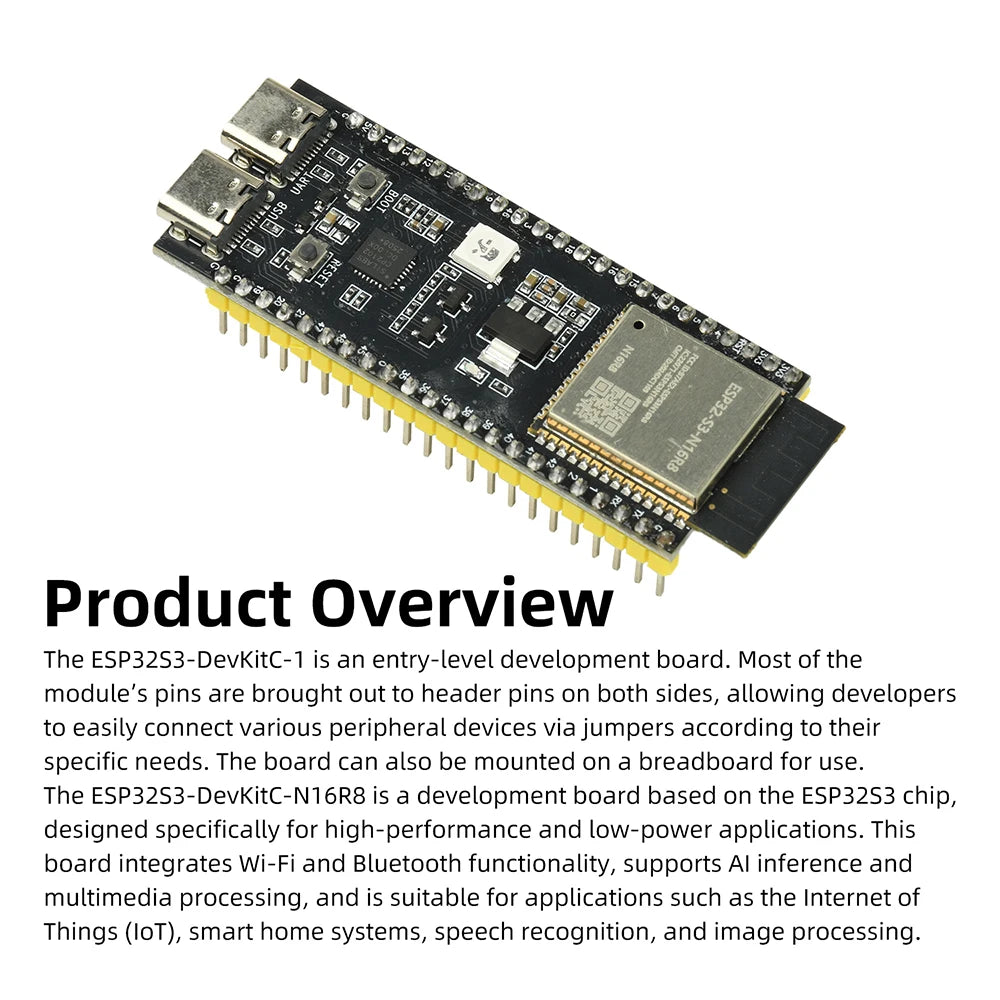

ESP32S3 DevKitC-1 is an entry-level development board. Most of the pins of the module on the board have been led out to the pin banks on both sides. Developers can easily connect various peripheral devices through jumpers according to their actual needs, and the development board can also be plugged into a breadboard for use. ESP32S3 DevKitC-N16R8 is a development board based on the ESP32S3 chip, designed specifically for high-performance and low-power applications. This development board integrates Wi Fi and BT functions, supports AI inference and multimedia processing, and is suitable for applications such as the Internet of Things (IoT), smart homes, speech recognition, and image processing.

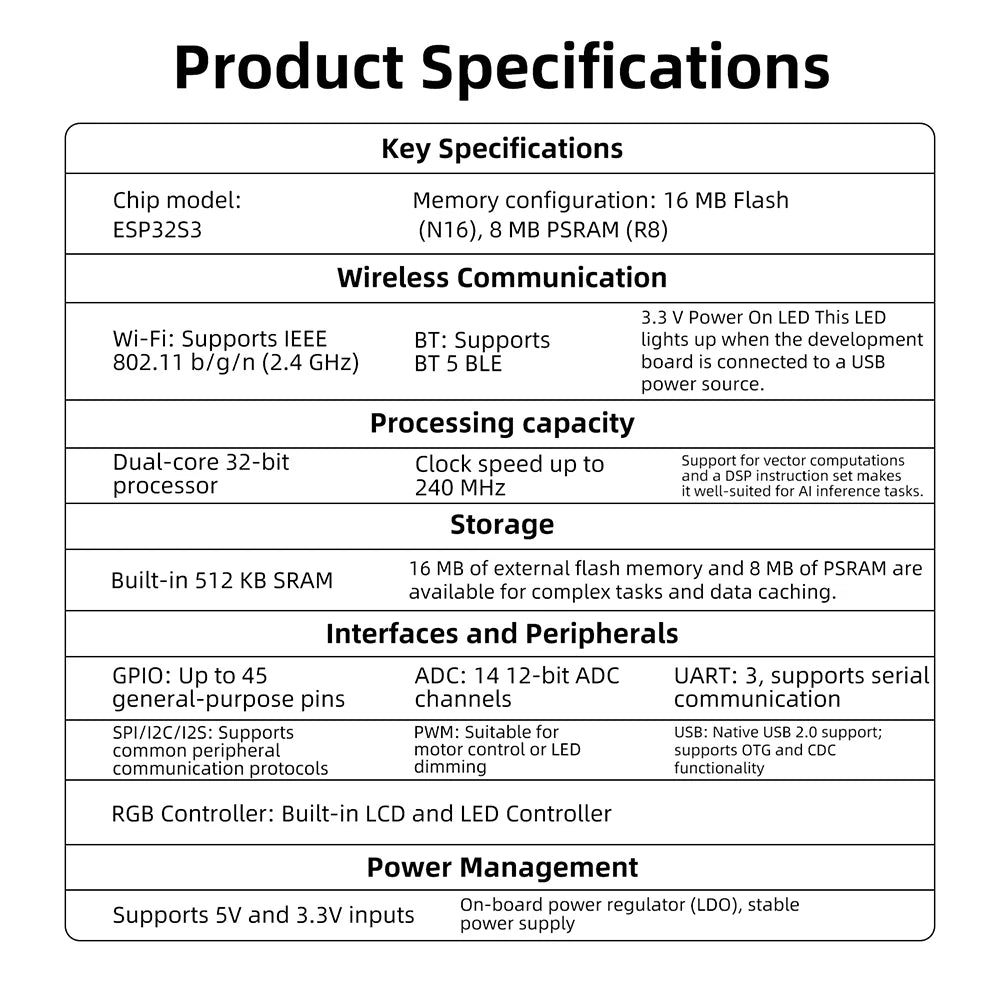

Core parameters:
Chip model: ESP32S3

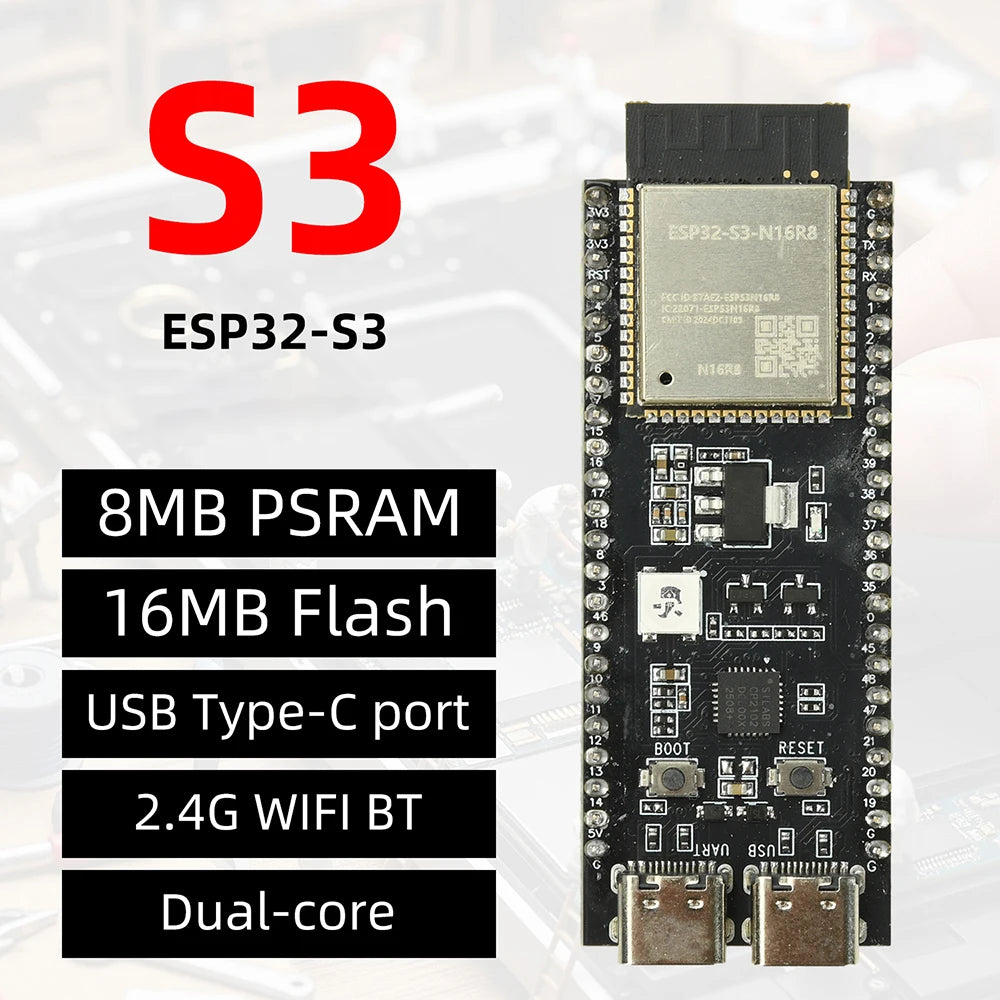

Memory configuration: 16MB Flash (N16), 8MB PSRAM (R8)
Wireless communication:
Wi Fi: Supports IEEE 802.11 b/g/n (2.4 GHz).
• BT: Supports BT 5 BLE

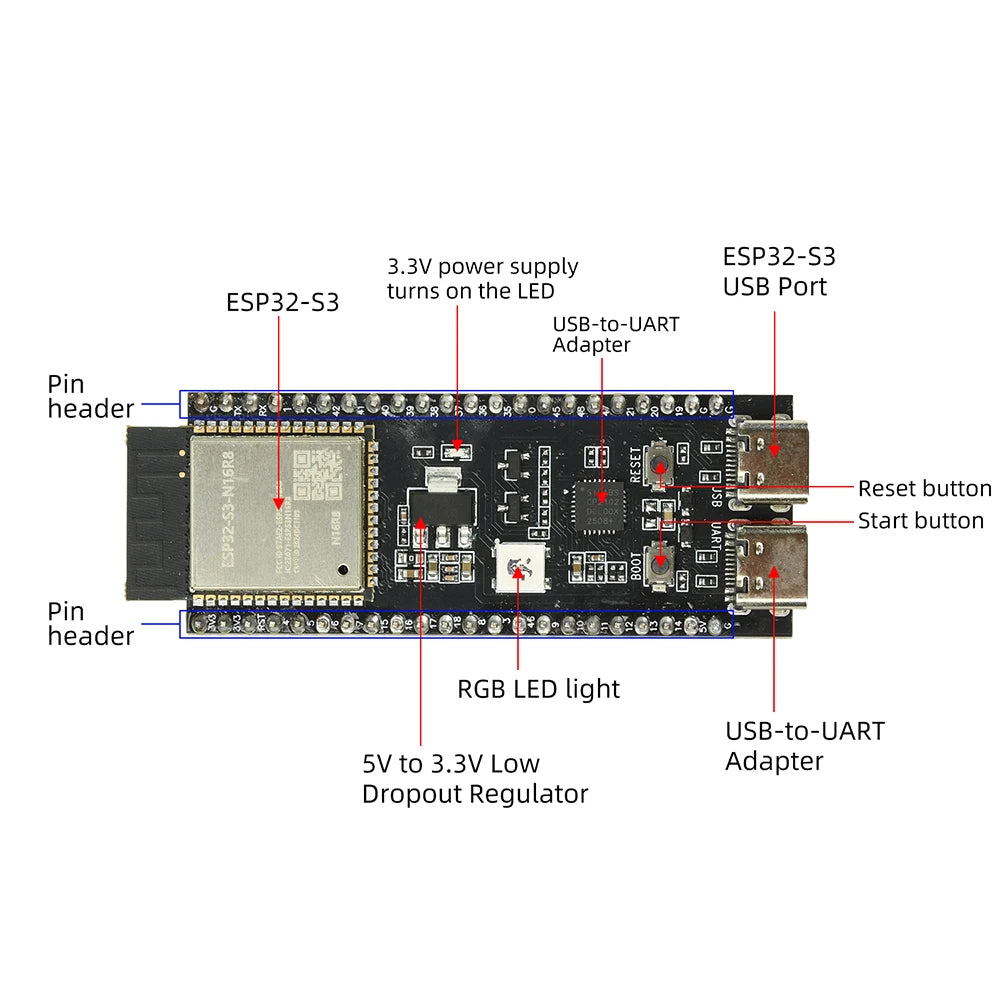

The 3.3 V Power On LED lights up when the development board is connected to a USB power source.
Processing ability:
Dual core 32-bit processor
• Main frequency up to 240MHz
Supports vector computing and DSP instruction set, suitable for AI inference tasks.
Storage:
• Built in 512KB SRAM.
External 16MB Flash and 8MB PSRAM, suitable for complex tasks and data caching.
Interfaces and peripherals

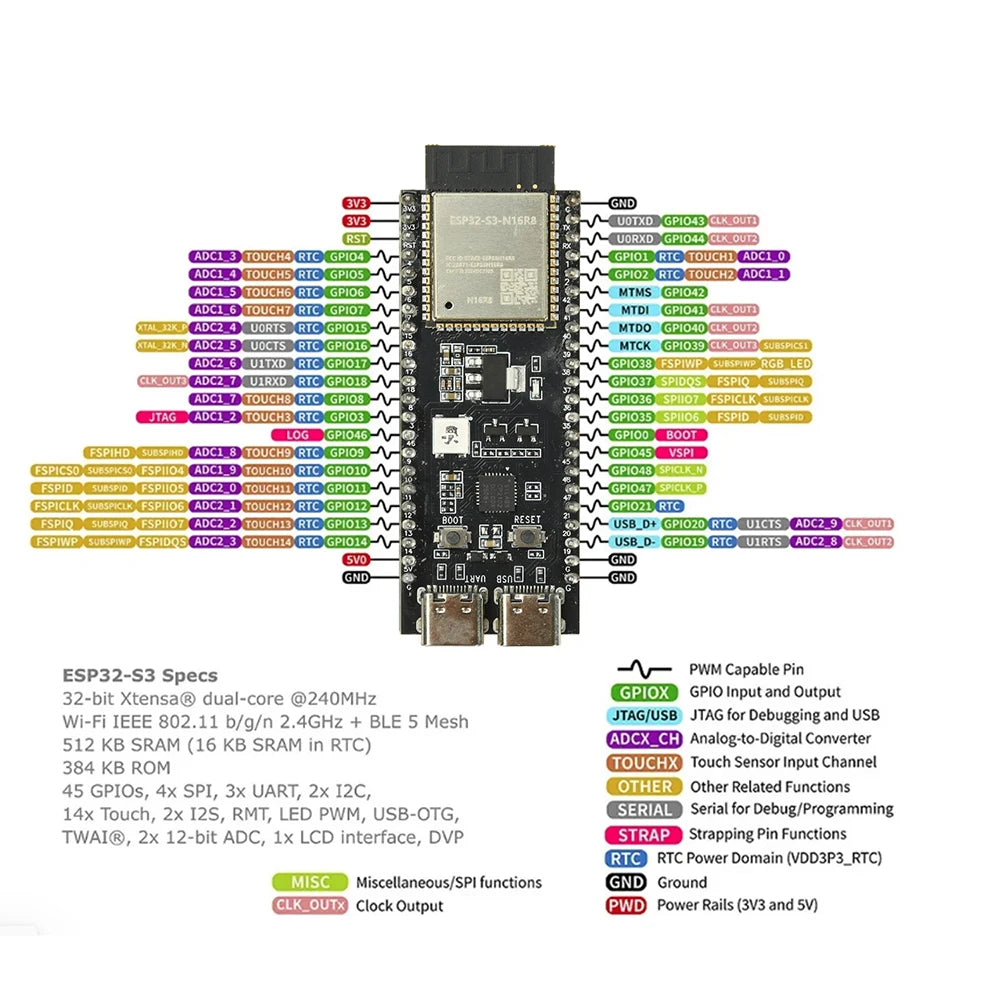

GPIO: Up to 45 general-purpose pins.
ADC: 14 12 bit ADC channels.
3 UARTs, supporting serial communication.
SPI/I2C/I2S: Supports common peripheral communication protocols.
PWM: Suitable for motor control or LED dimming.
USB: Supports native USB 2.0, OTG and CDC functions.
RGB controller: Built in LCD and LED controller.
power management
Supports 5V and 3.3V inputs.
On board power regulator (LDO) provides stable power supply.

Product list:
1X development board

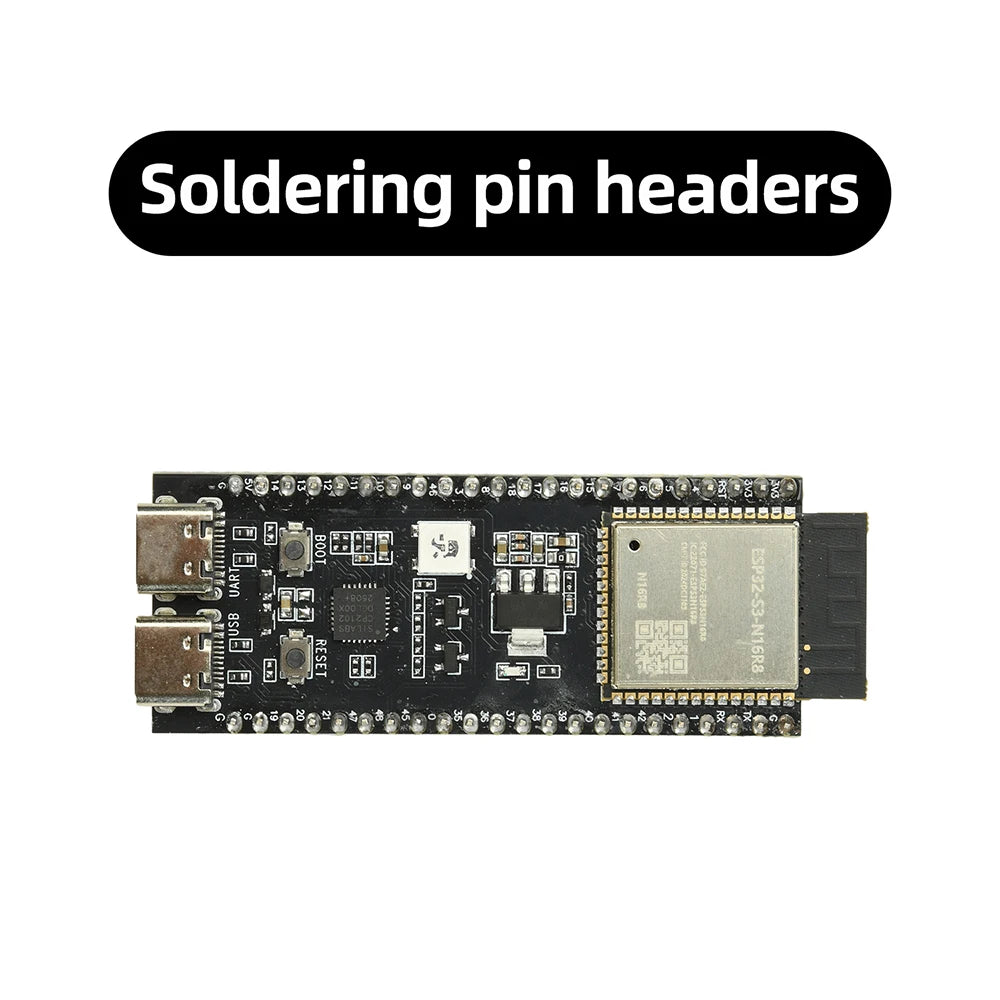

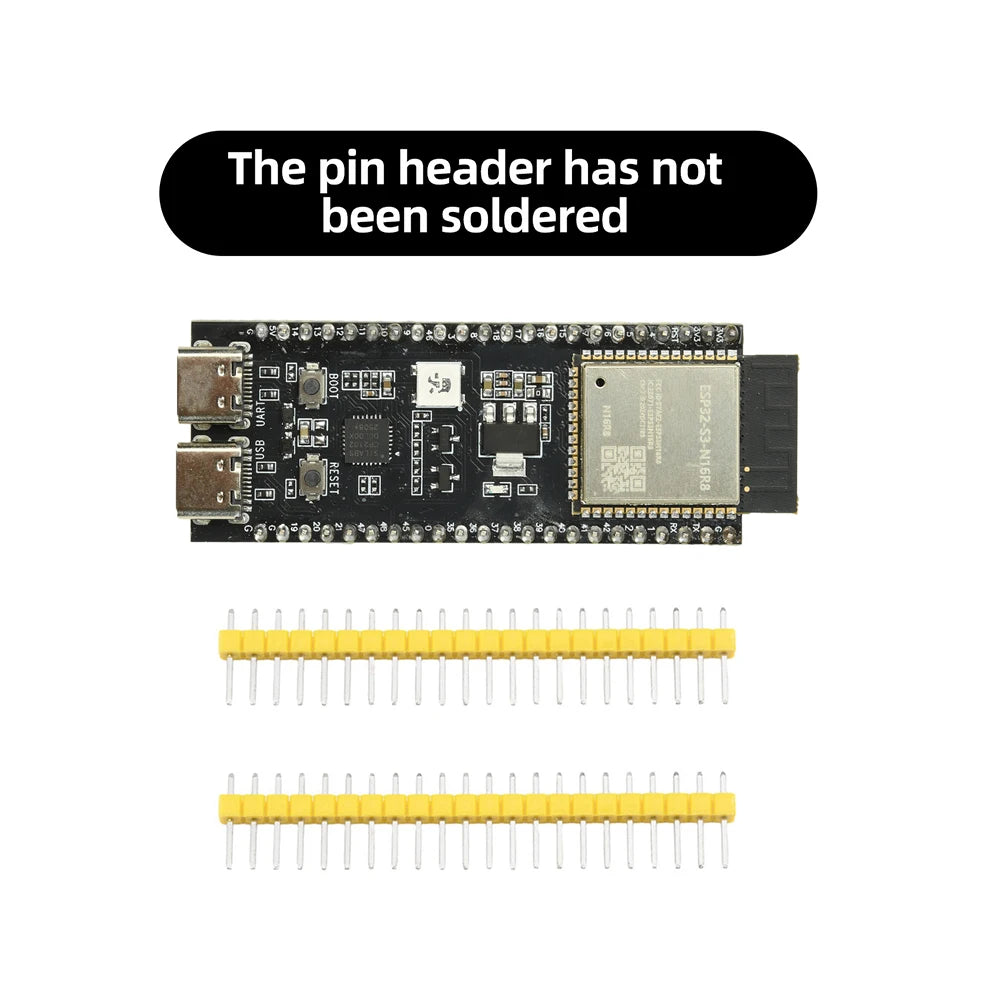

2X pin arrangement (welded pin arrangement/optional without welding)
