SPECIFICATIONS

Features:

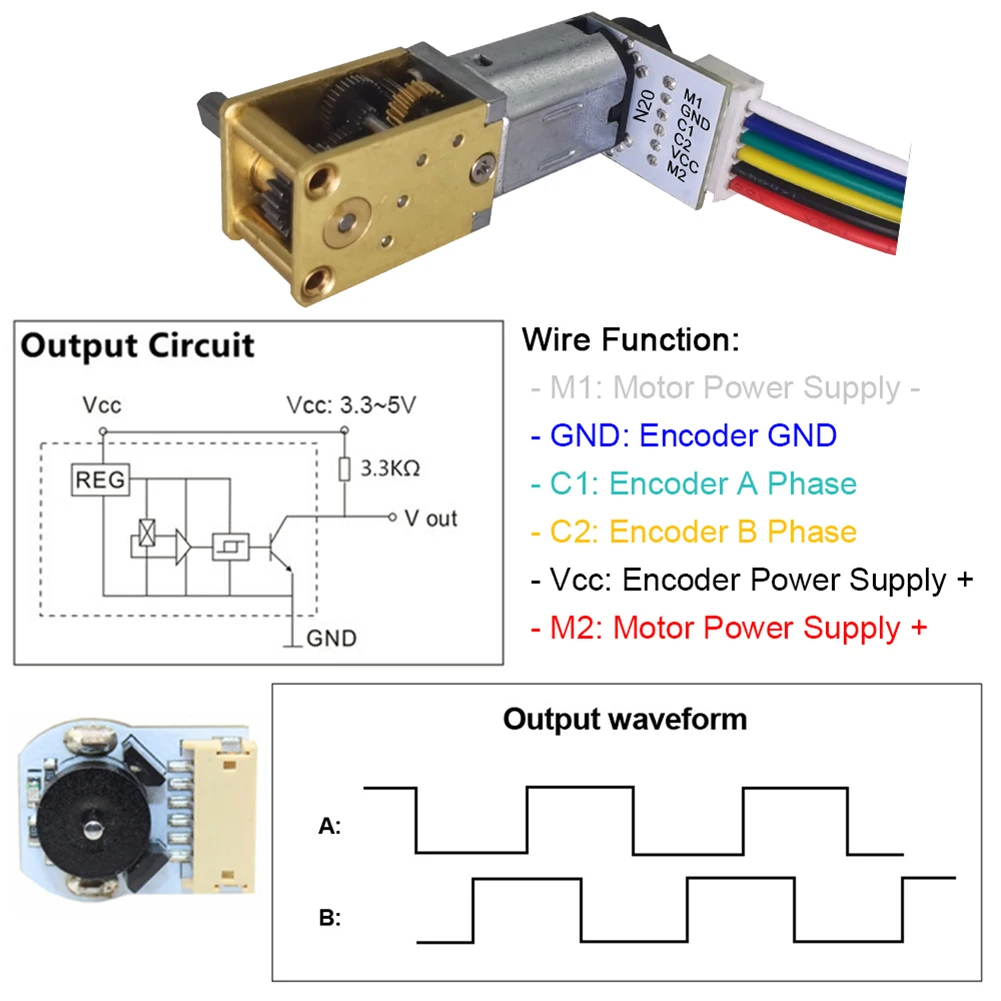

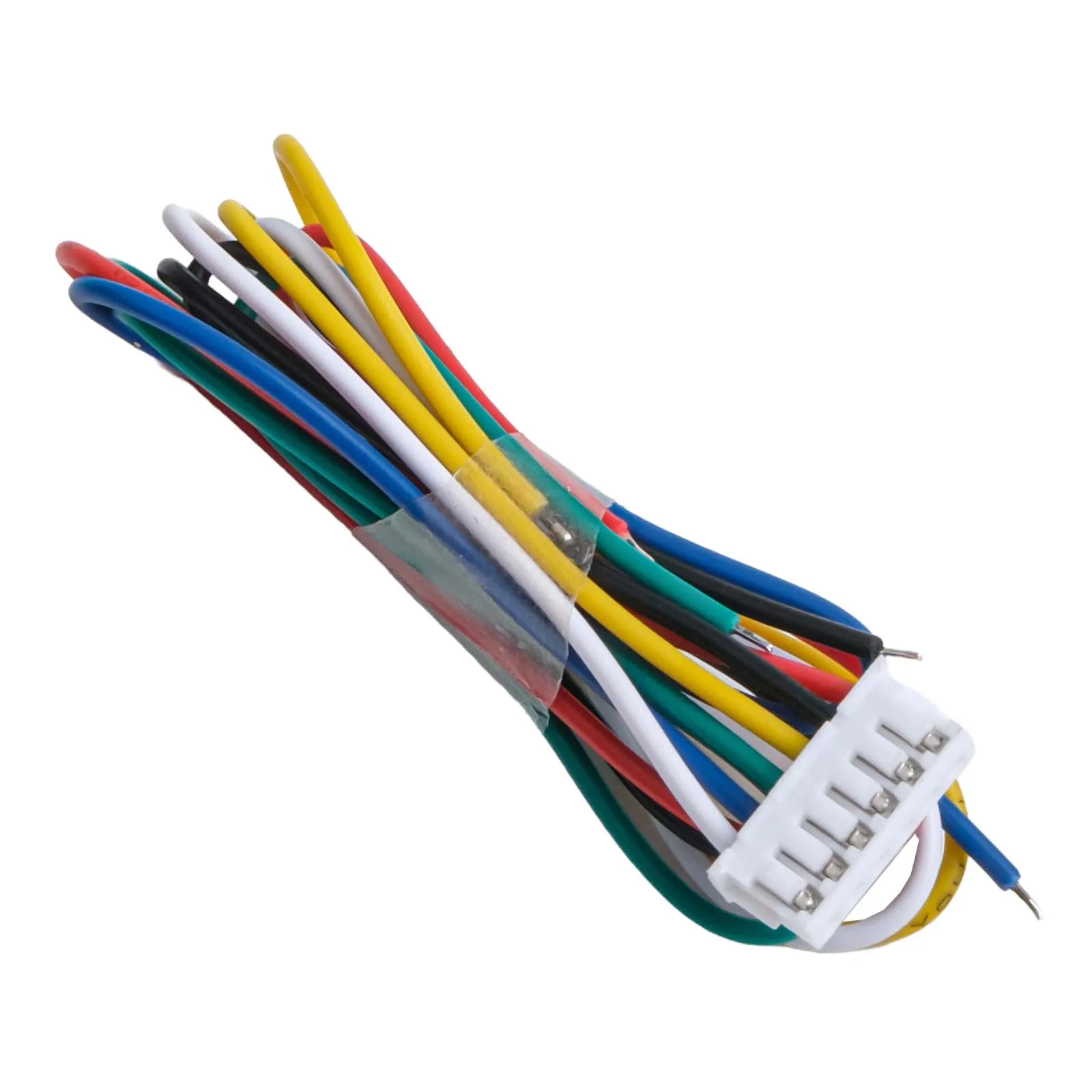

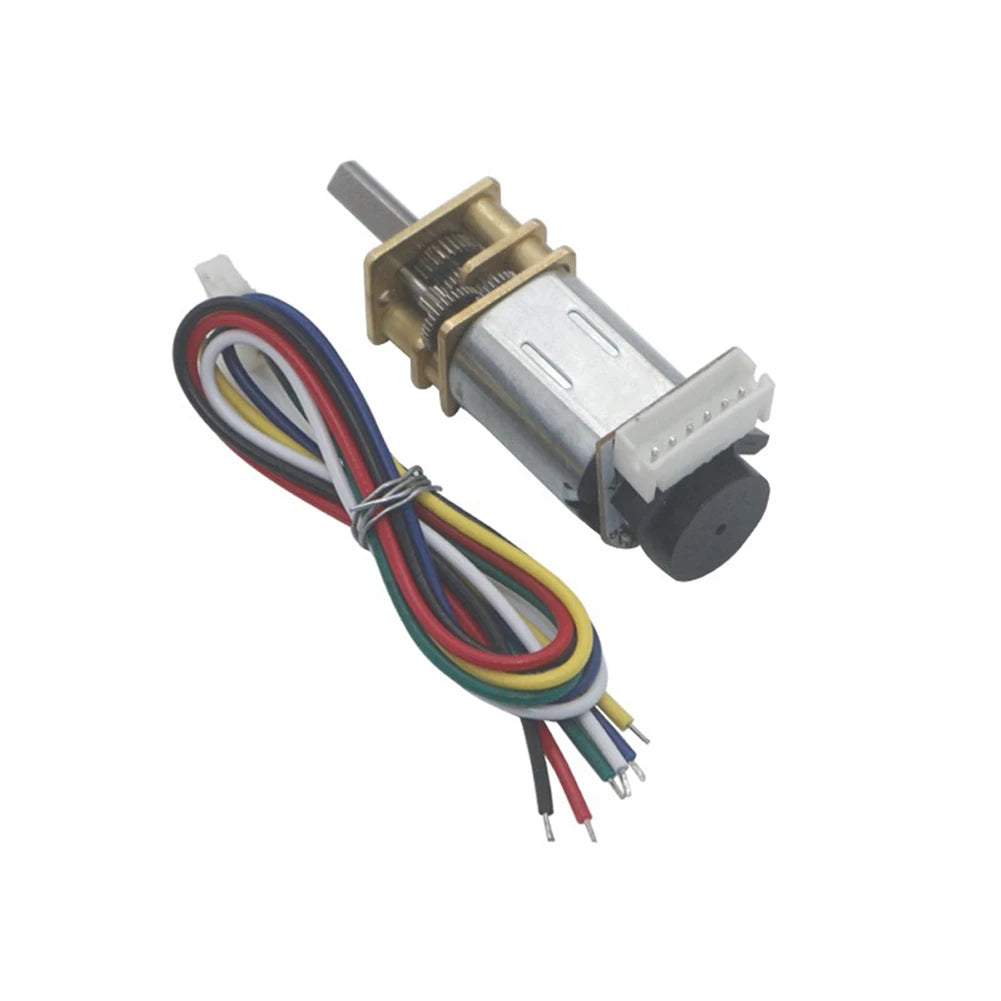

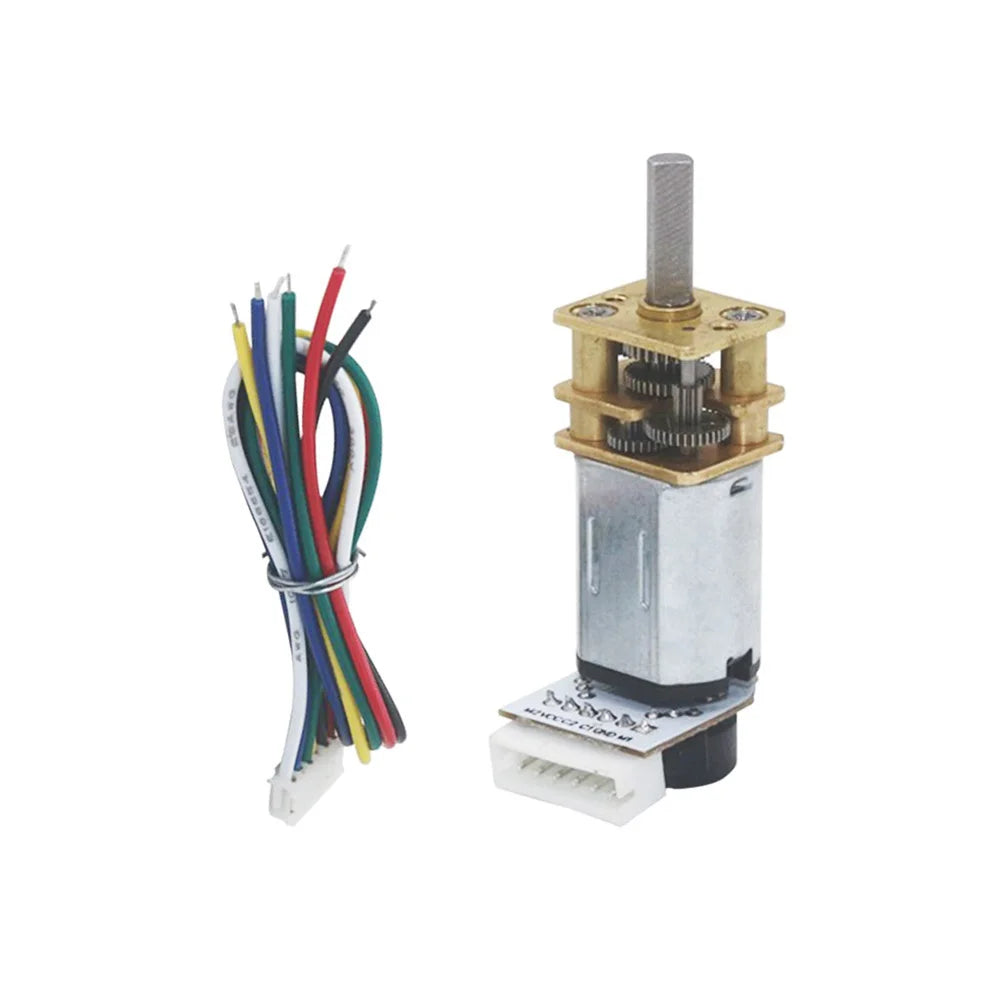

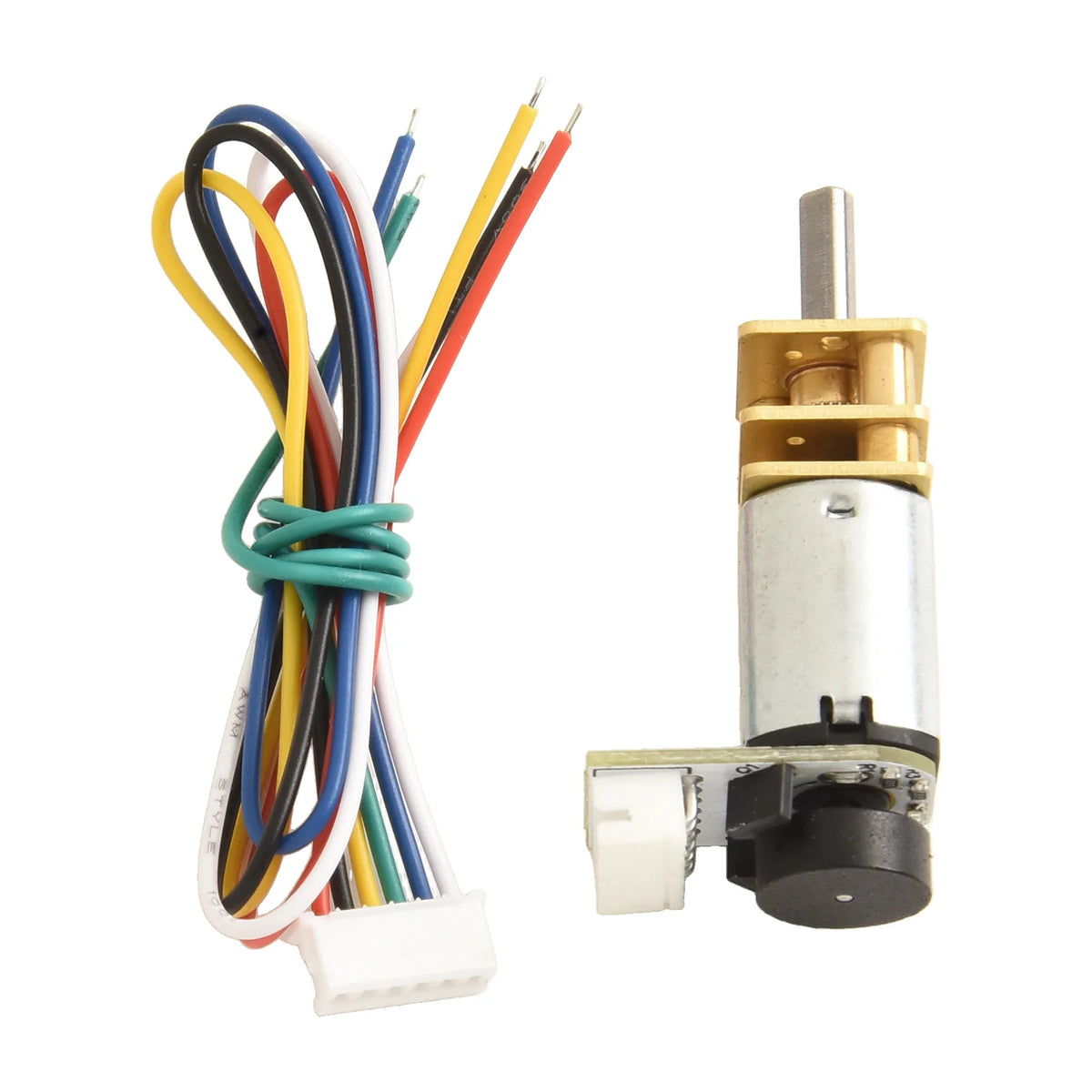

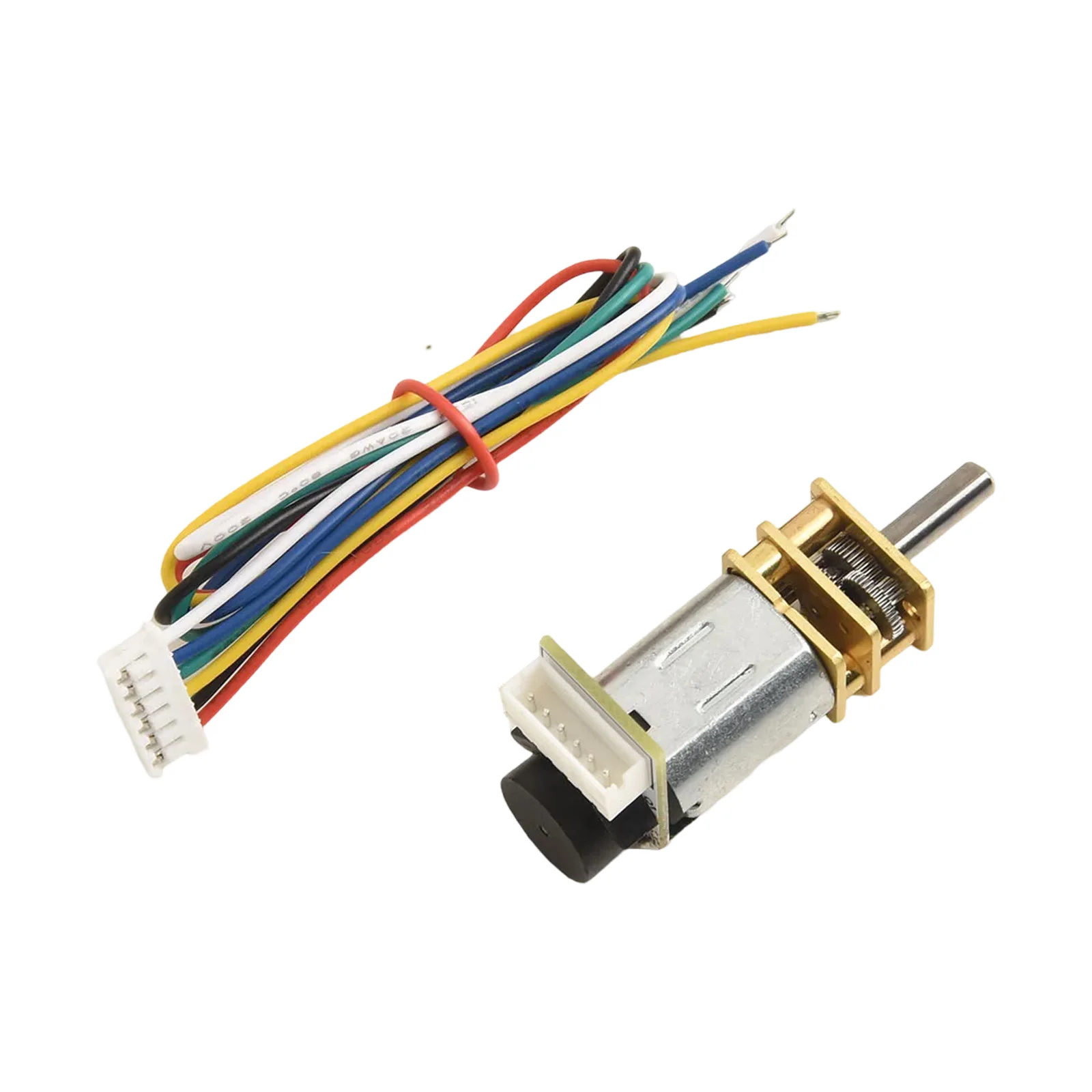

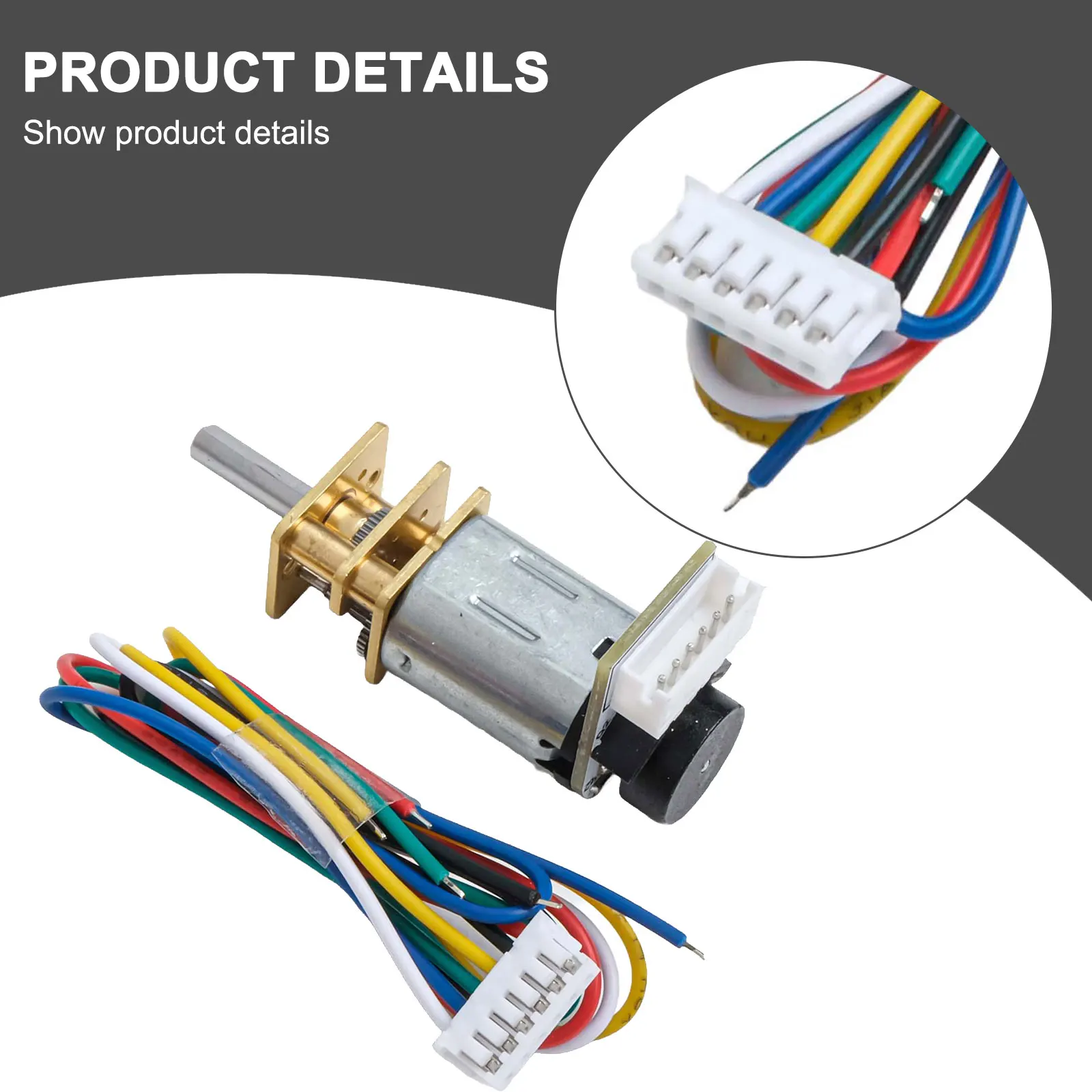

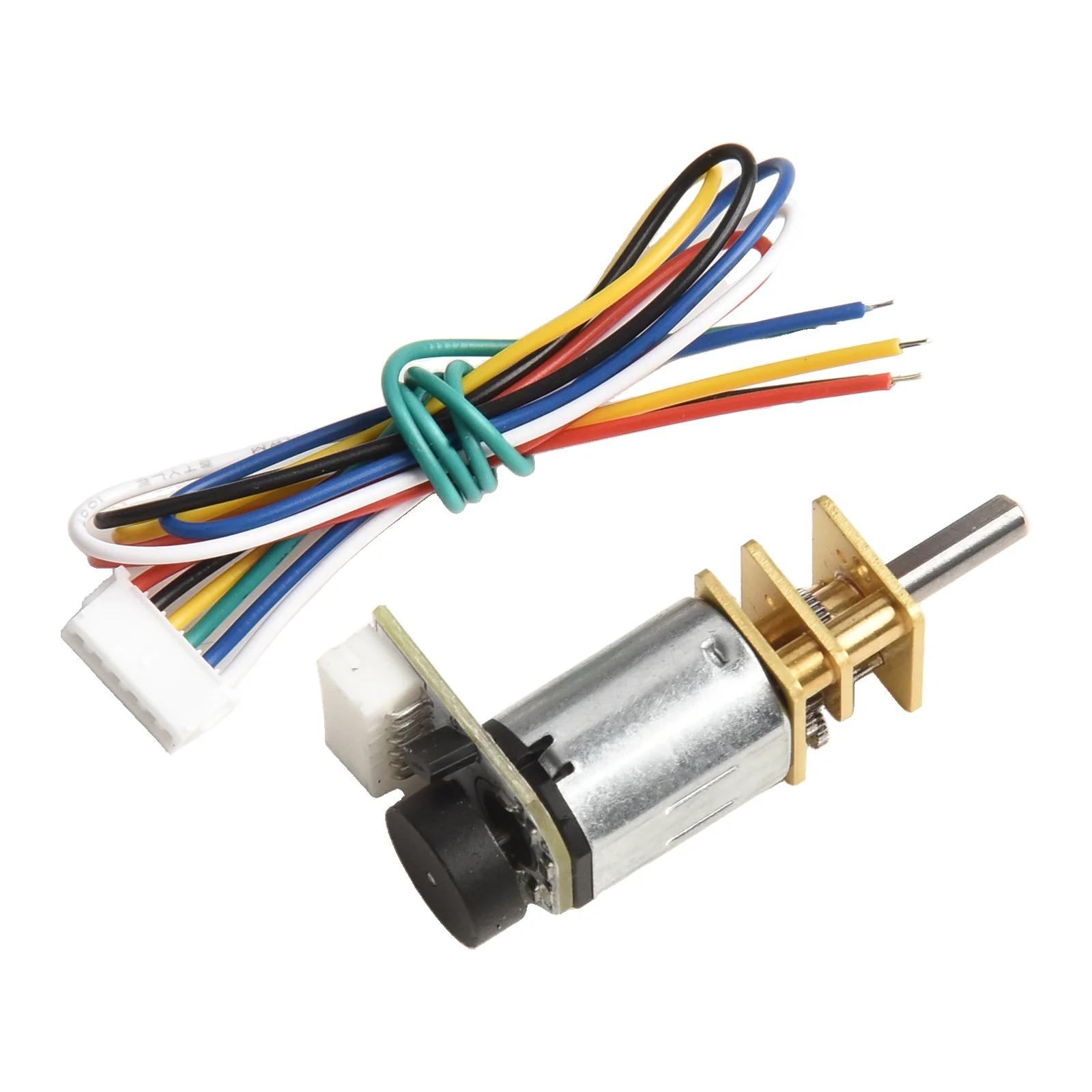

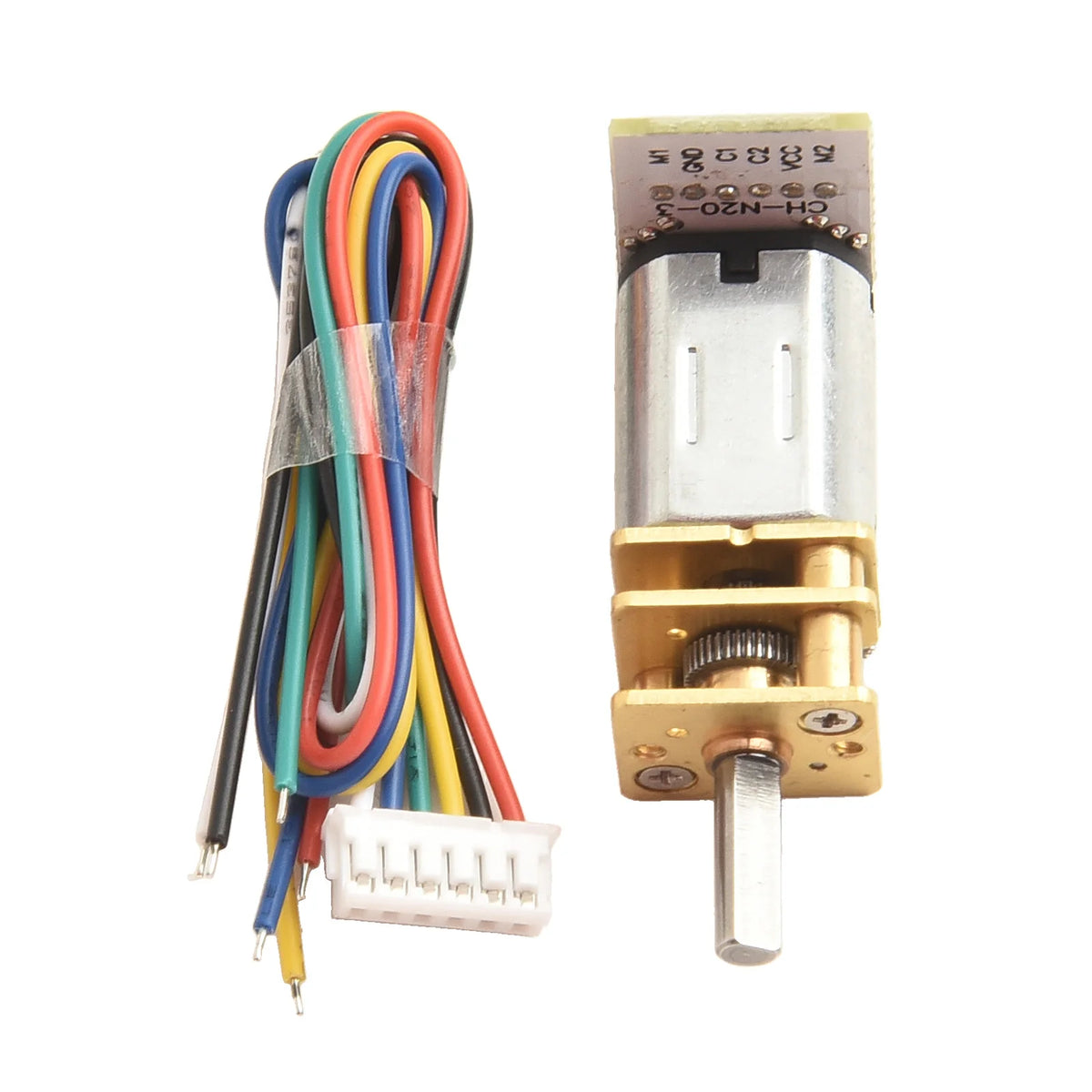

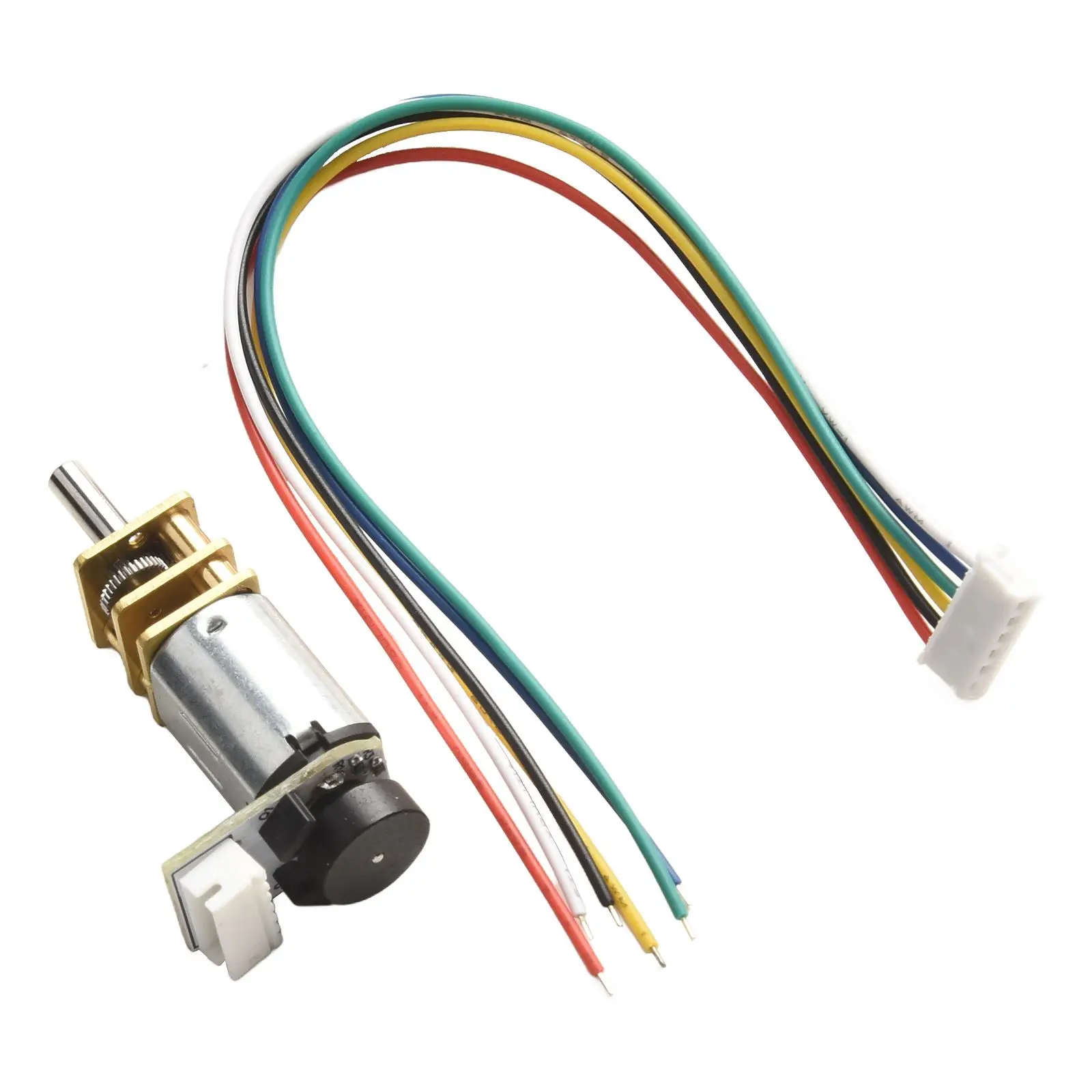

*Specifications: This DC geared motor operates at a rated voltage of 6V. The package includes a motor and encoder test wire.

*Replacement Option: This motor serves as an excellent replacement DC geared motors, making it great for applications requiring speed control. It is particularly suited for use in small robots and similar devices.

*Lightweight : This geared electric motor is lightweight yet powerful, offering high torque and low noise levels. Its compact size delivers significant torsion, while improved bearing quality and gear enhance its overall toughness and resistance.

*Versatile Applications: Gear motors like this a can be utilized in various projects, including for DIY for RC hobbies, car modules, airplanes, and more, showcasing their flexibility  for across different domains.

*Usage Guidelines: Before operating the motor, it's important to check its current and voltage specifications. Avoid overloading the motor to  for ensure optimal performance and longevity.

Specifications:

Part Name: Gear Motor

Material: Metal

Size: Standard

Color: Sliver,Brass

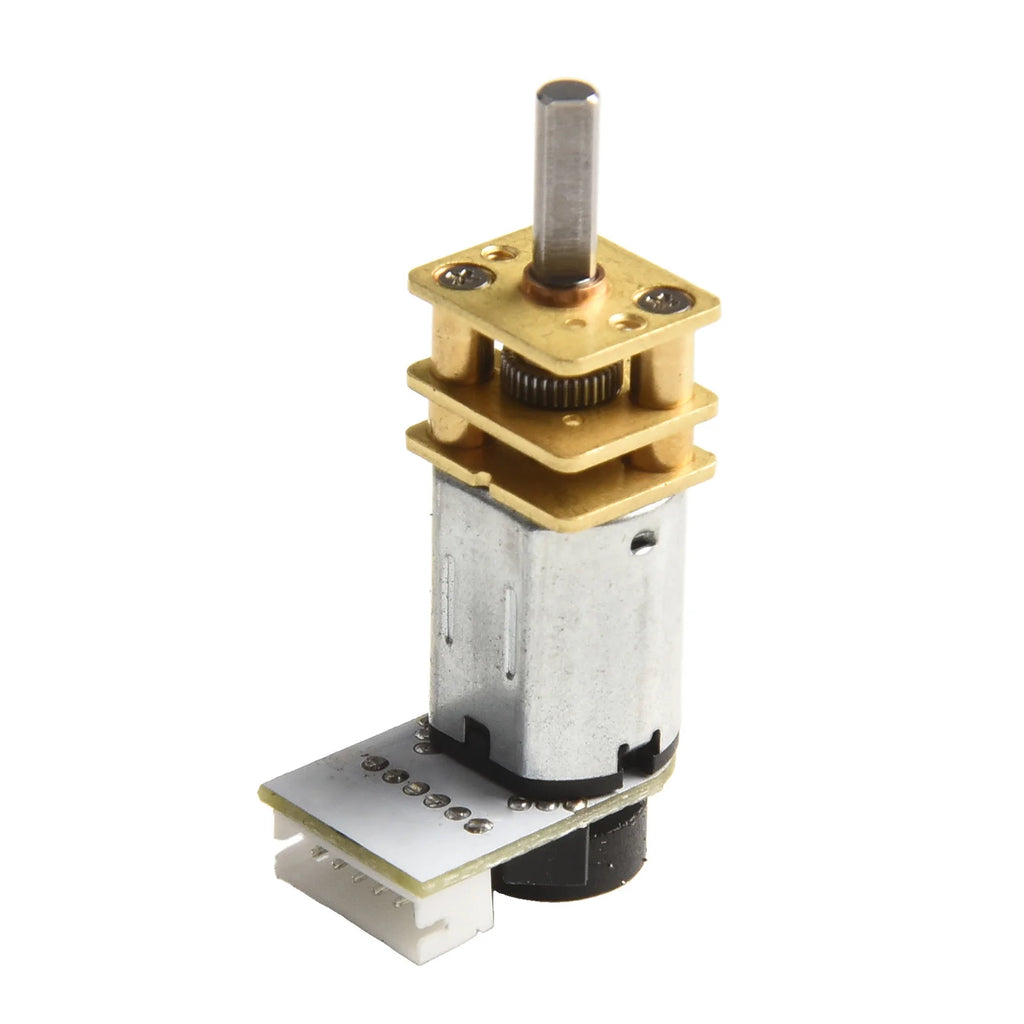

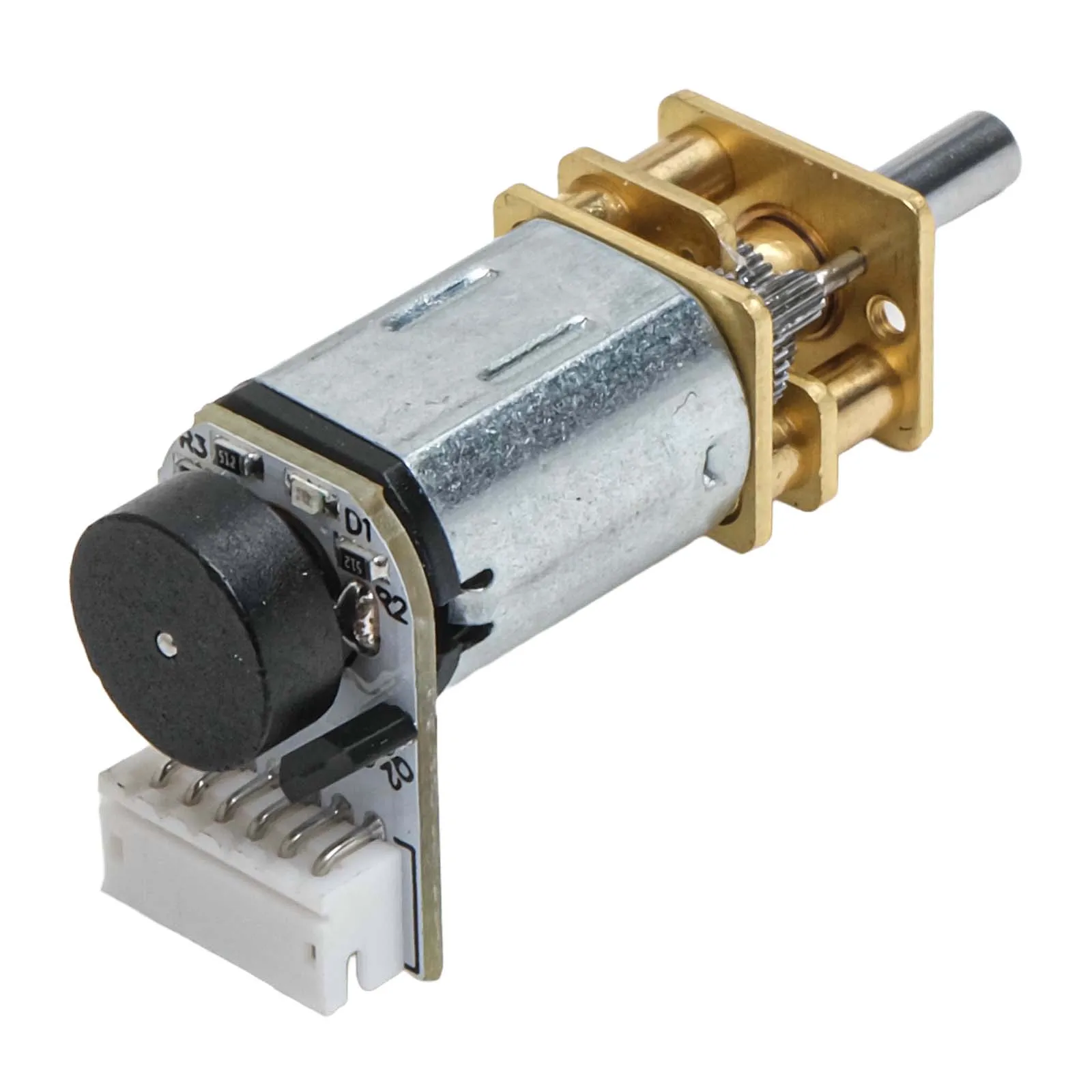

Model: for GA12-N20-S0310D-E

Gear Box Name: for GA12

Gear Box Type: Spur Gear

Motor Body Name: N20 (B1215)

Motor Body Type: DC Brushed Motor (for BDC)

Rated Voltage: DC 6V

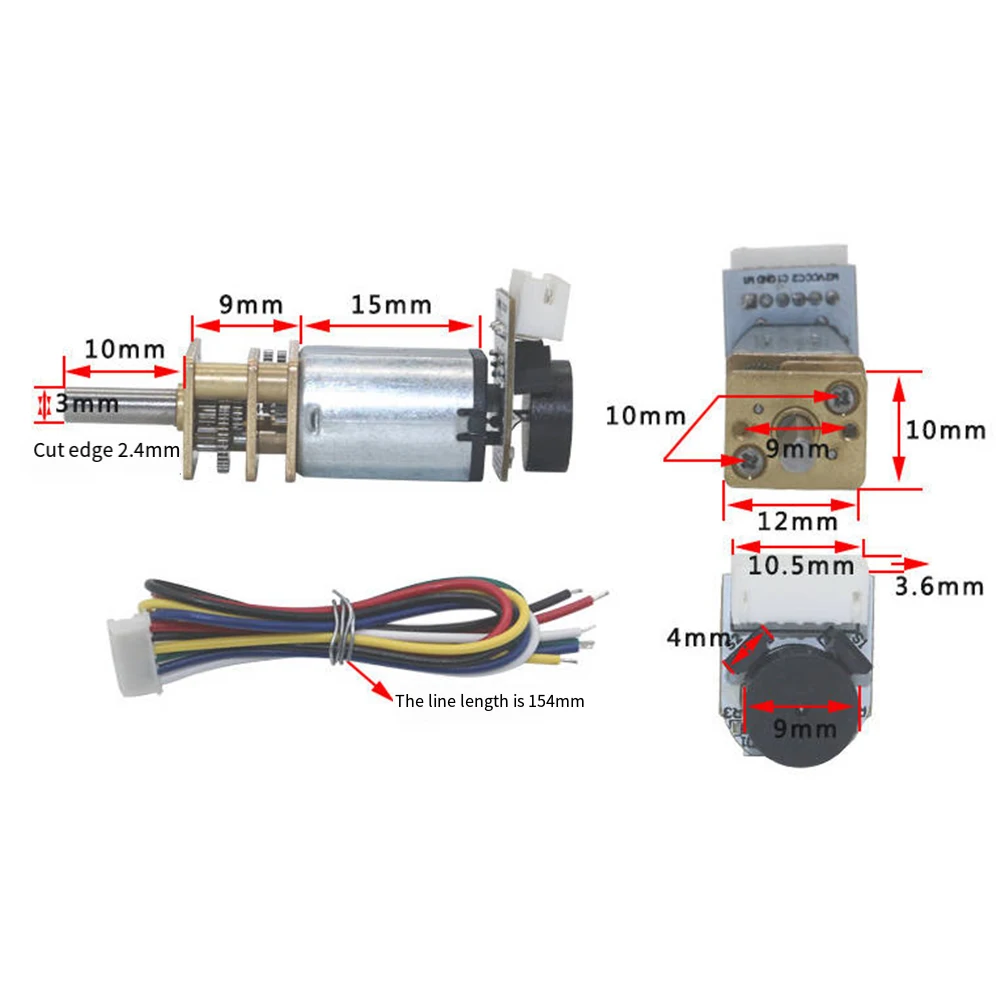

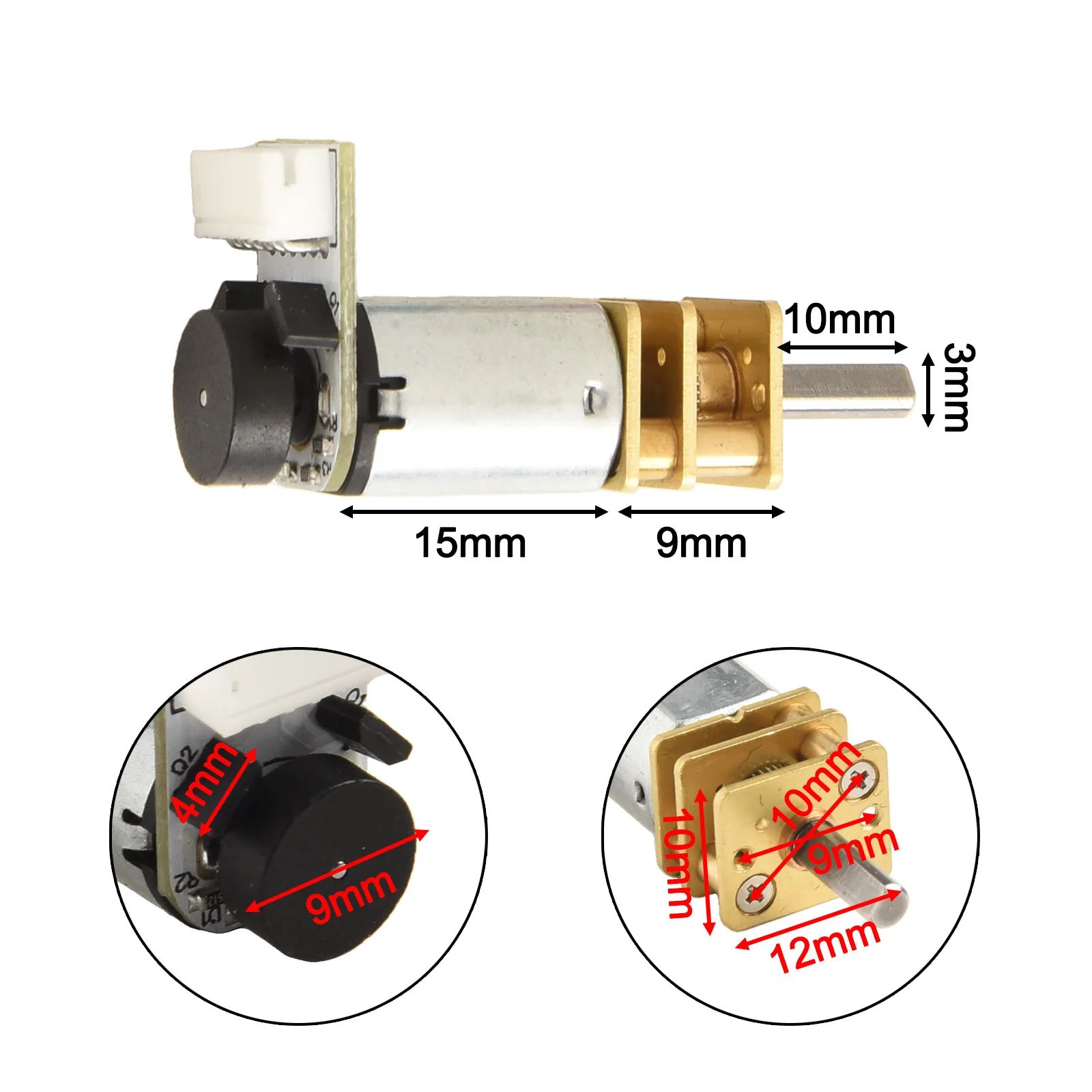

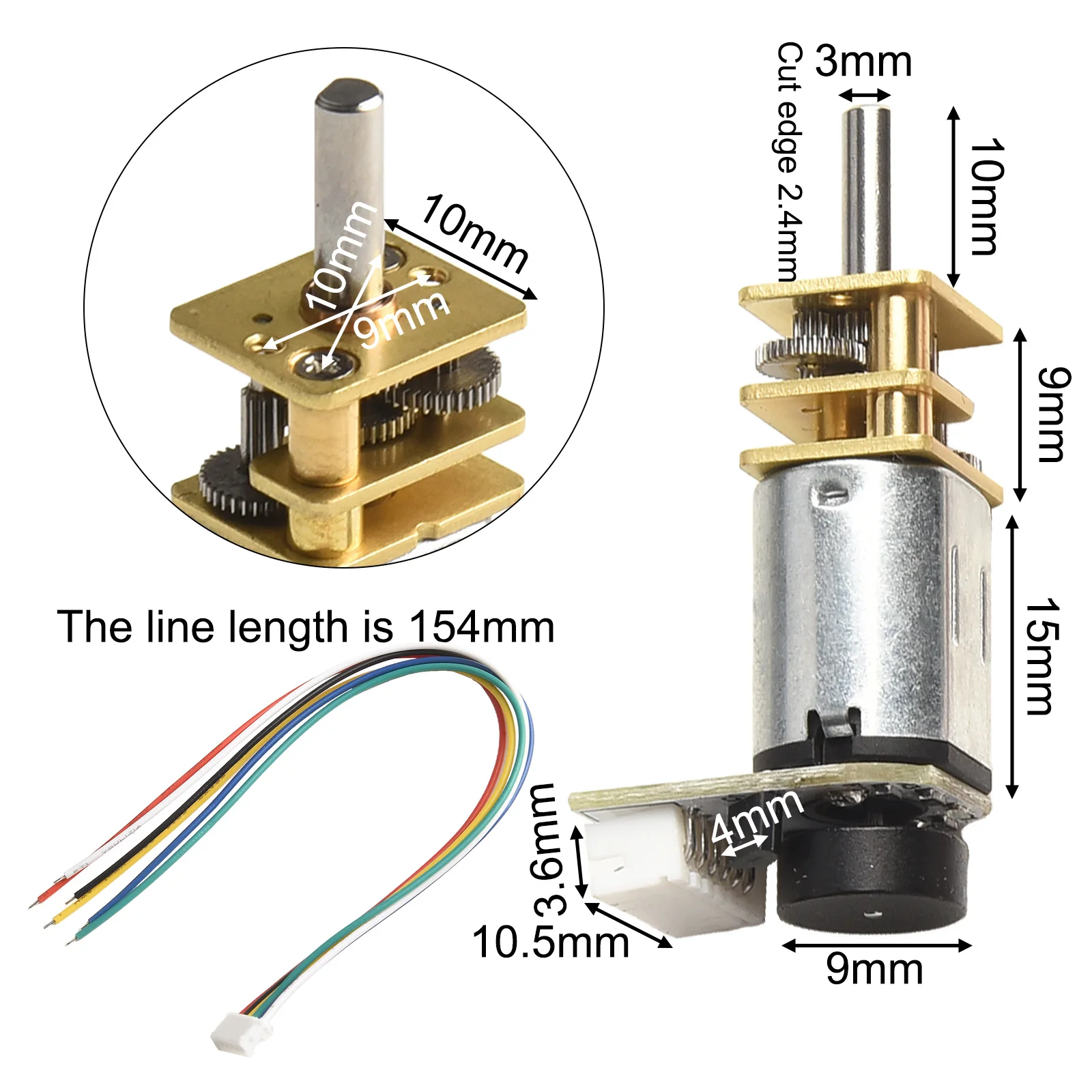

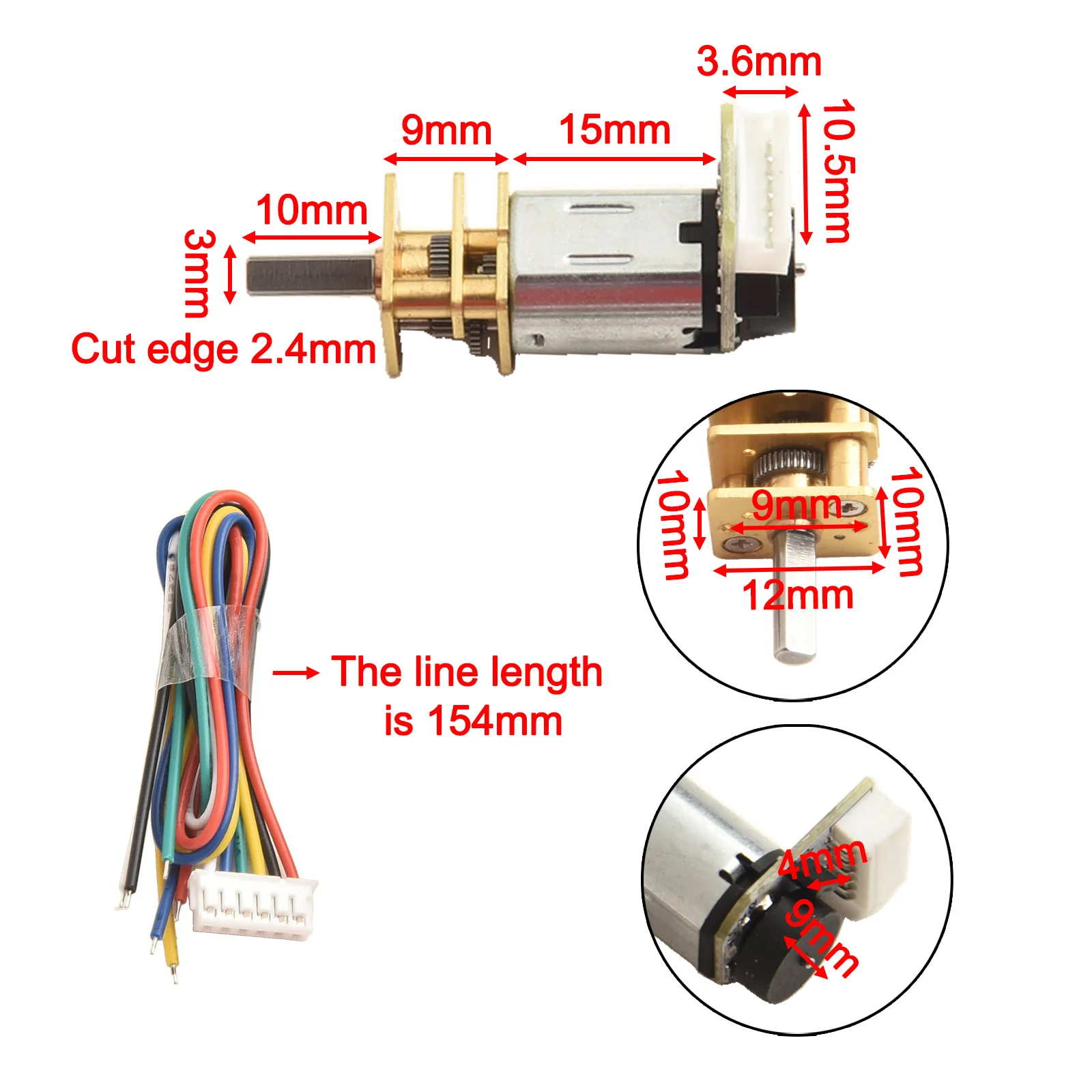

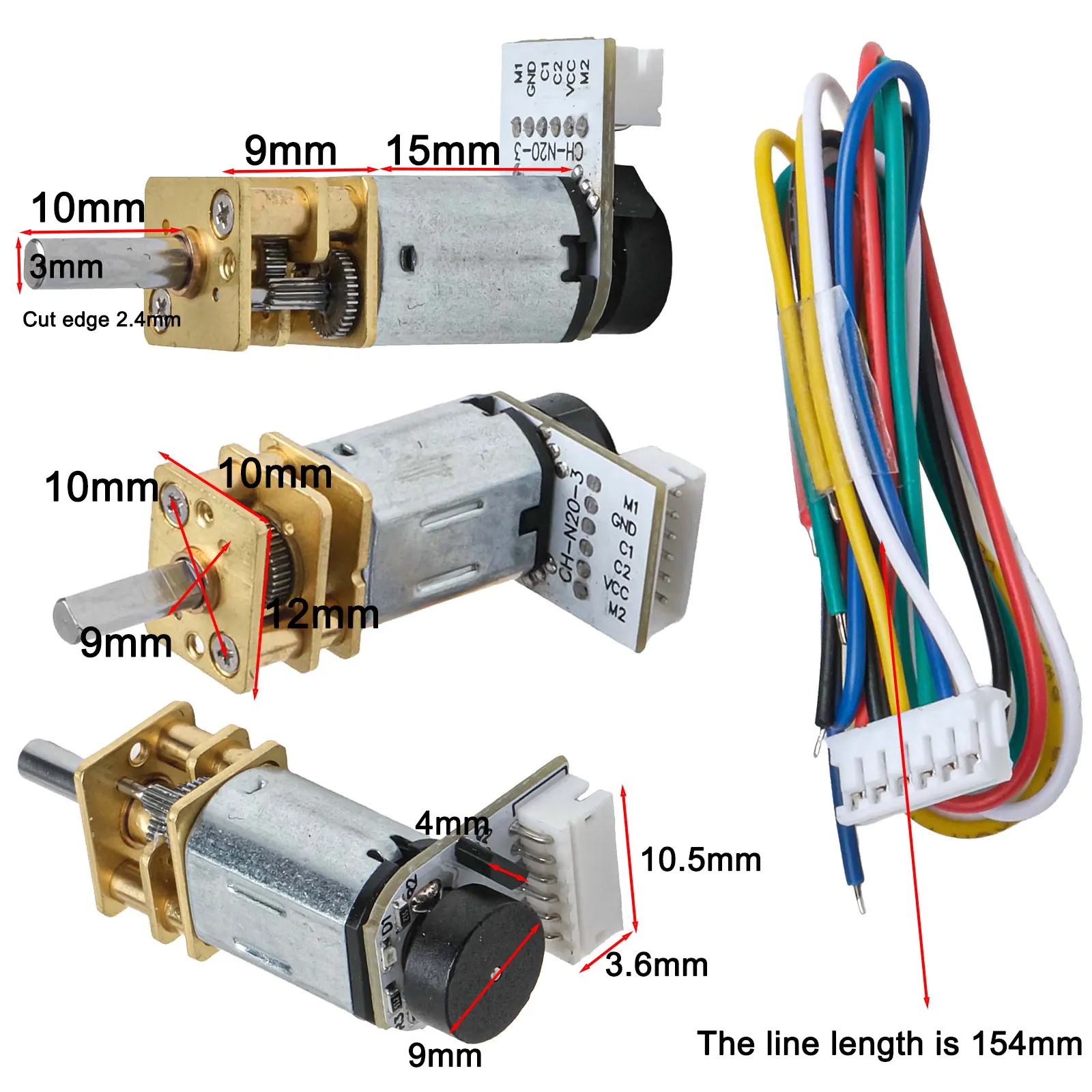

Motor Length: 36mm

Motor Body Size: 12mm(diameter) * 30.5mm(height)

Shaft Number: Single

Shaft Size: 3mm(diameter) * 10mm(length)

Shaft Shape: for D-Cut, 2.5mm(thickness) * 9.5mm(length)

Motor use temperature: 0℃ - 70℃

Motor storage:

- Temperature: 0℃ - 40℃

- Humidity: 15% -90% RH

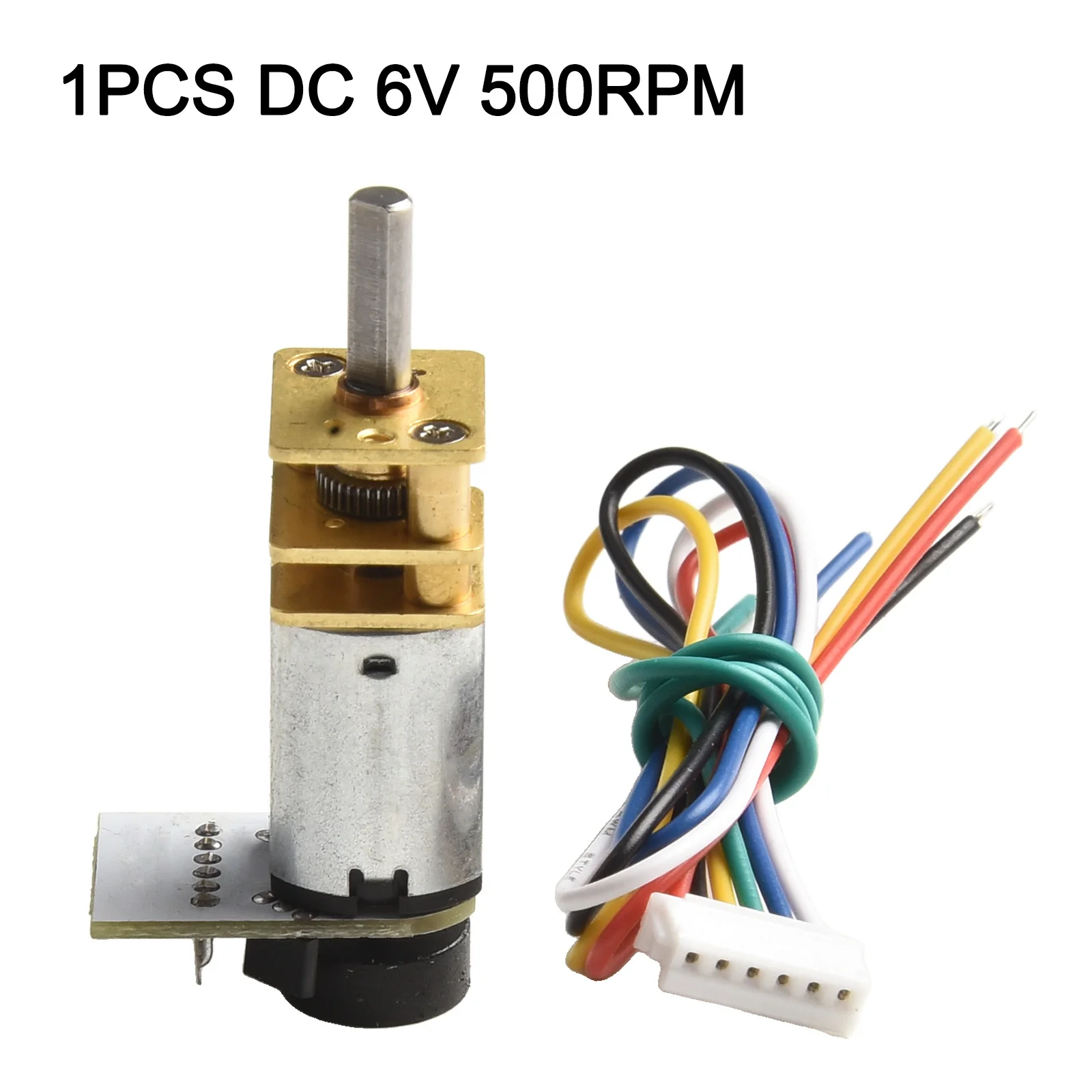

Speed(Optional): 150RPM,300RPM,500RPM,750RPM,1500RPM,3000RPM

Package Content:

1 x Gear Motor

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
