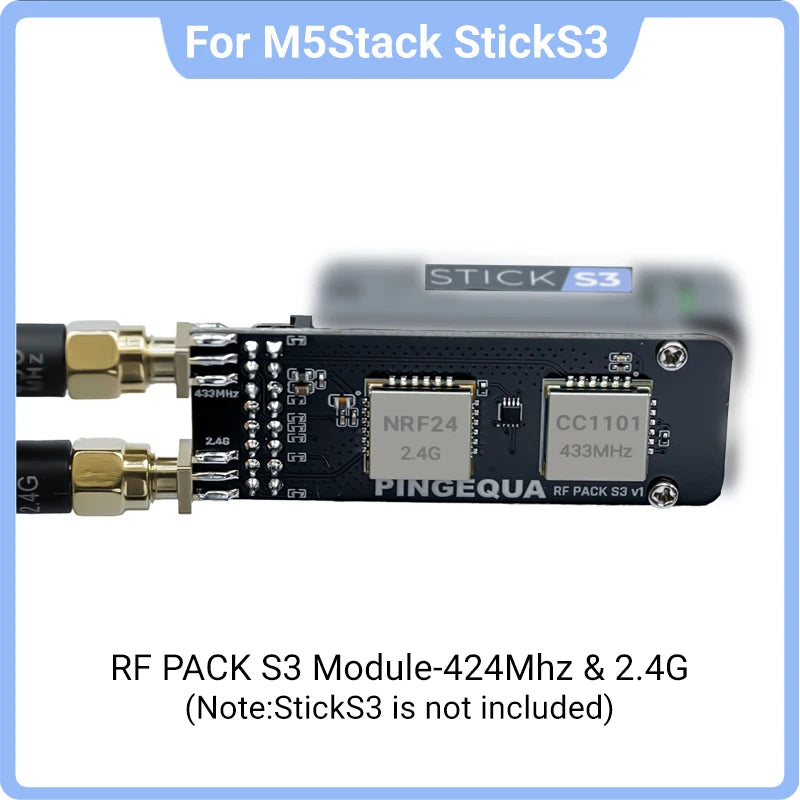

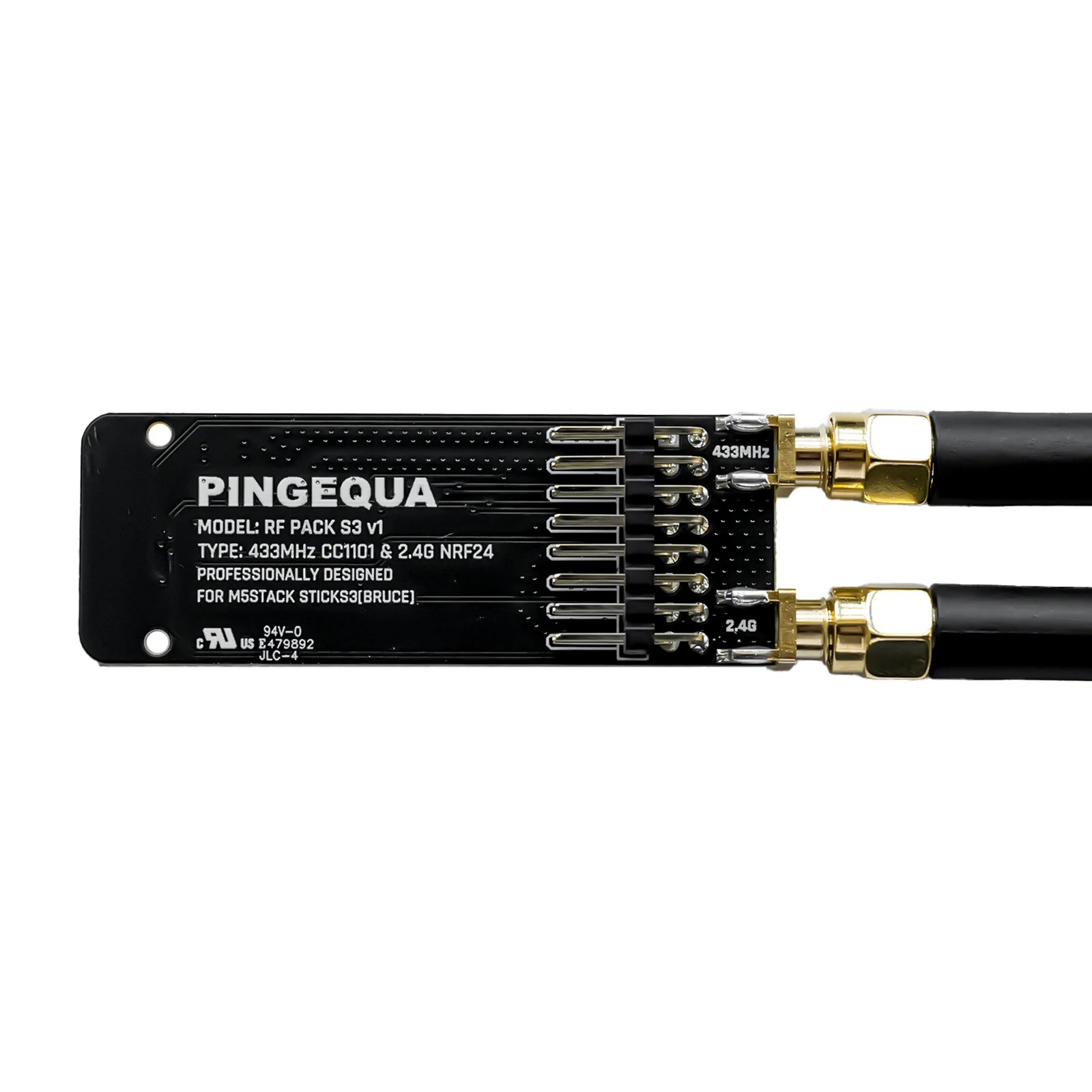

Pingequa RF Pack S3 | RF 2 In 1 Dual-Band CC1101 433MHz & nRF24L01 Transceiver Shield for M5Stack StickS3

Unleash the Full Potential of Your StickS3

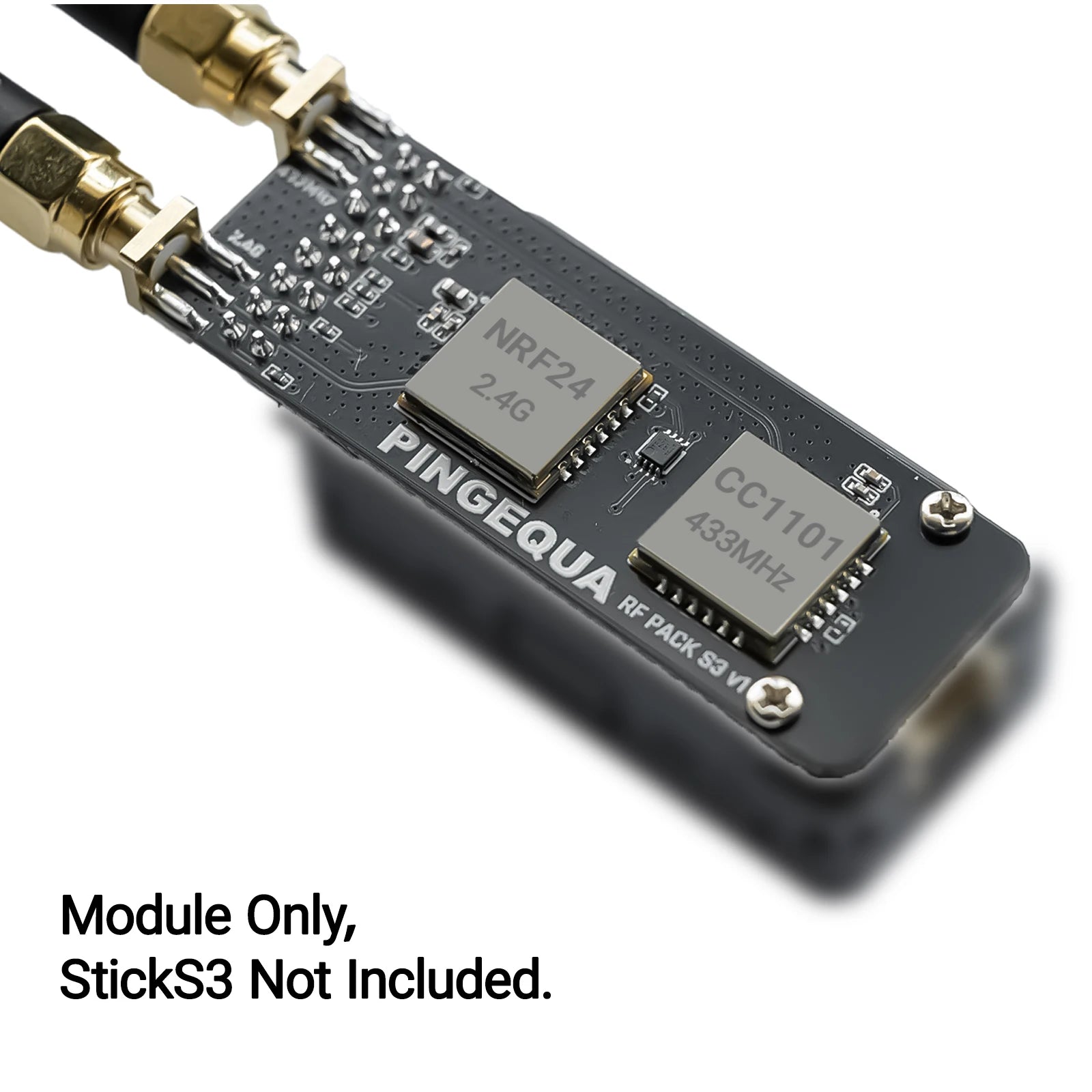

Built for security researchers and IoT developers, the Pingequa RF Pack S3 delivers uncompromising dual-band performance. By fusing a high-power 20dBm NRF24L01+ and a CC1101 transceiver onto a single, meticulously engineered 4-layer PCB, we've created the ultimate wireless companion for your M5Stack StickS3.

Why This is the Only RF Board You’ll Ever Need:

⚡ Native Bruce OS Integration

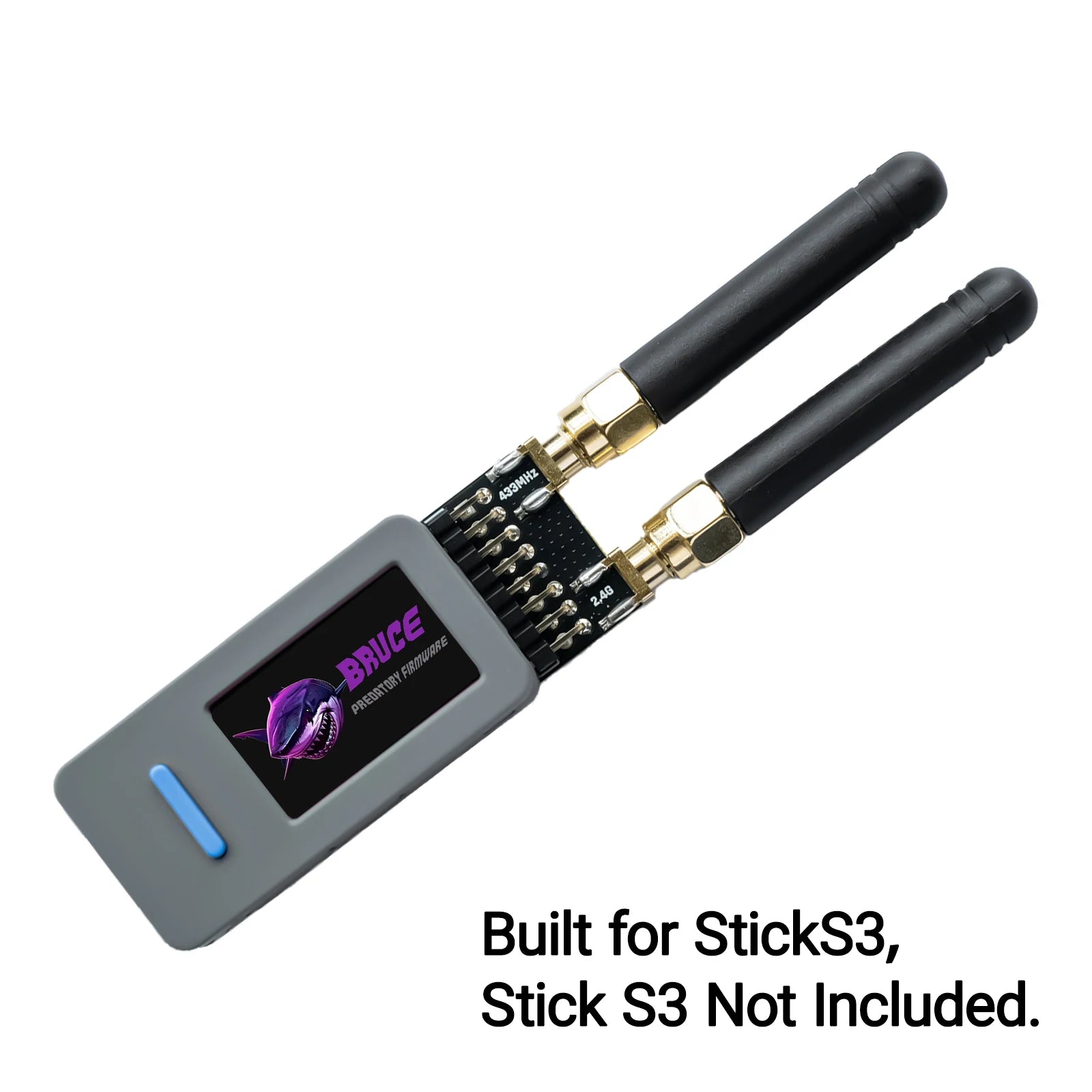

Stop wrestling with source code. The RF Pack S3 is hardwired to match the default pinout (io0=CE) of popular open-source frameworks like Bruce. Flash the firmware, snap on the board, and start analyzing Sub-1GHz and 2.4GHz traffic in seconds.

🛡️ Hardware-Level SPI Isolation
The biggest flaw in DIY dual-boards is SPI bus crashing. We engineered a proprietary architecture using an SN74 Logic Buffer to actively arbitrate data traffic. The result? Flawless packet sniffing and 100% system stability under heavy loads.

🔋 Clean Power, Max Range
20dBm output requires serious power. Our onboard LC filtering network ensures transient current spikes are handled effortlessly, delivering a pure signal with maximum transmission range.

📐 Tactical, Permanent Form Factor

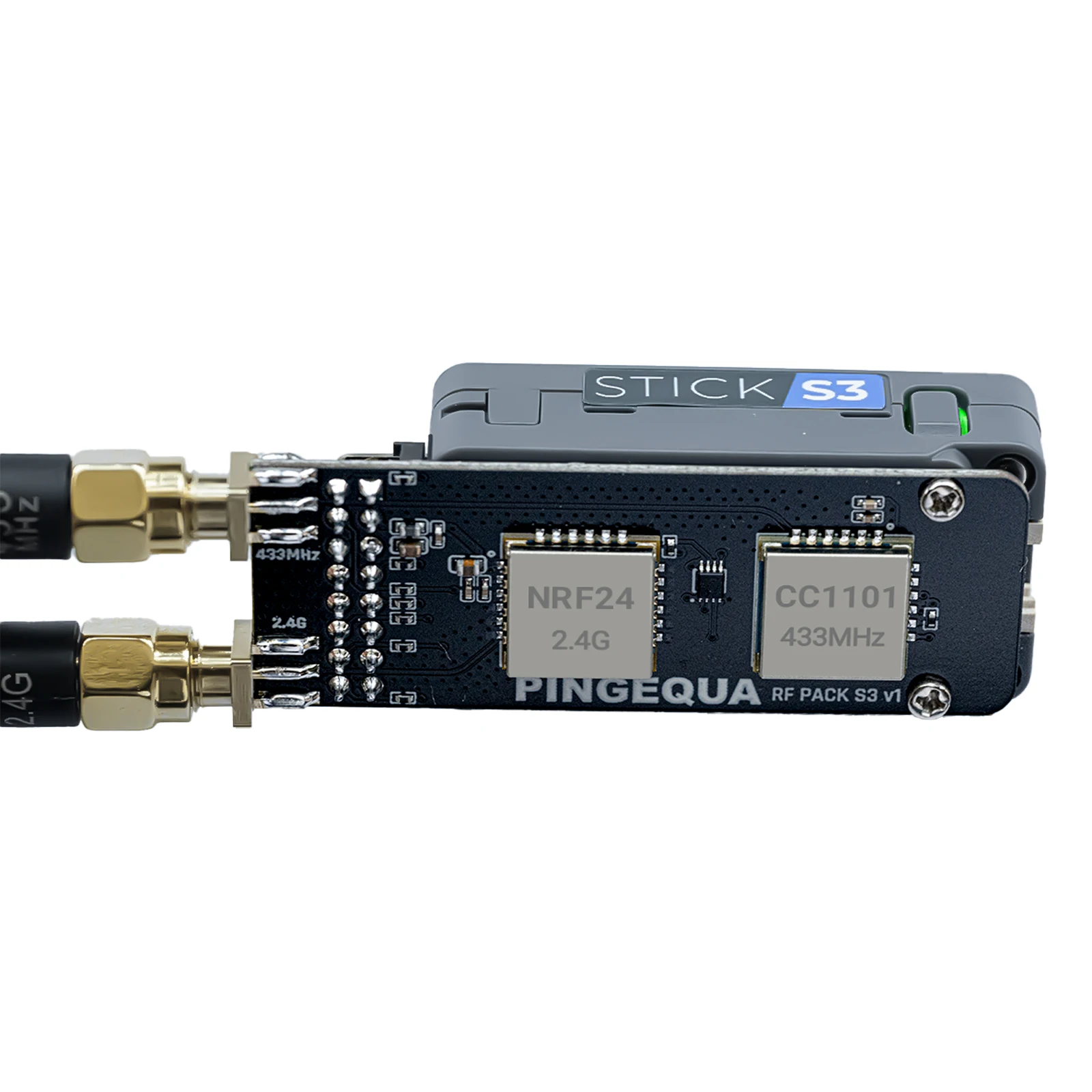

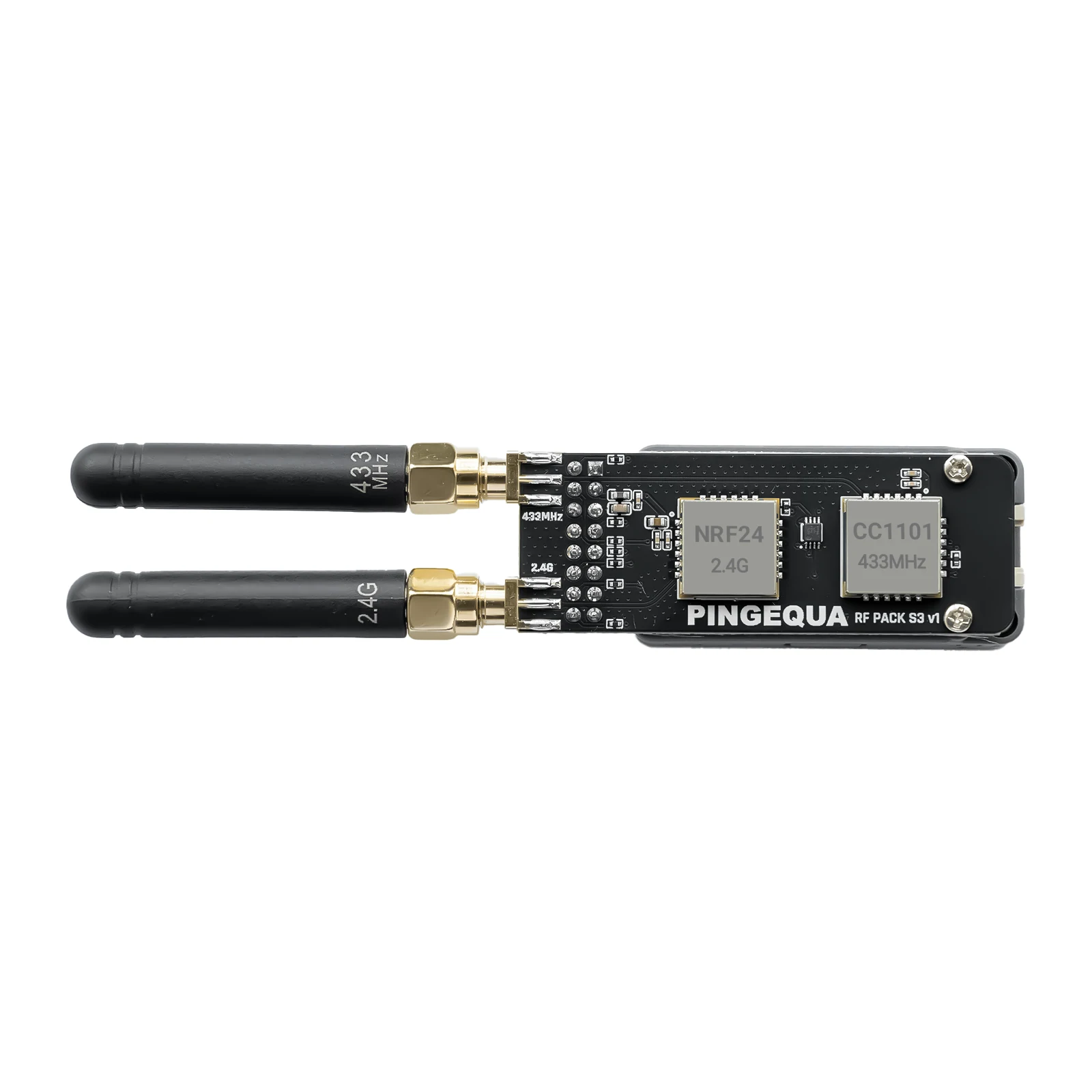

Designed to be a permanent upgrade. The top-mounted dual SMA layout keeps your hands clear during operation, while the precision bottom cutouts ensure your original Grove expansion port remains fully accessible for GPS or I2C screens.

Technical Specifications:

Frequencies: 2.4GHz (NRF24L01+ PA/LNA) & 433MHz (CC1101)

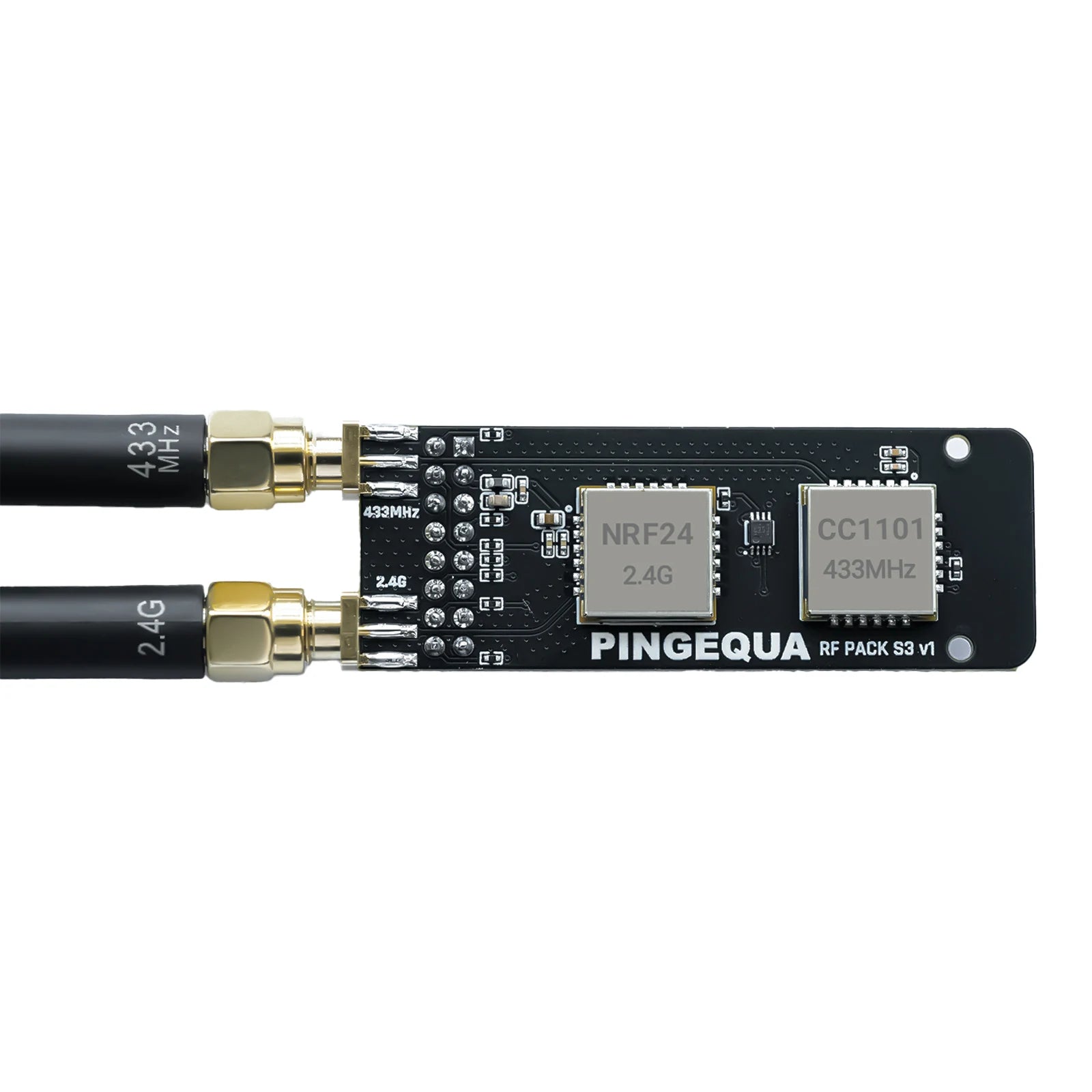

PCB Details: 4-Layer Board, 50Ω Impedance Matched, Solid Ground Plane

Protection: Integrated SPI Buffer & Current-Limiting IO Resistors

Compatibility: M5Stack StickS3 (Fits via M2 Screws)
