SPECIFICATIONS

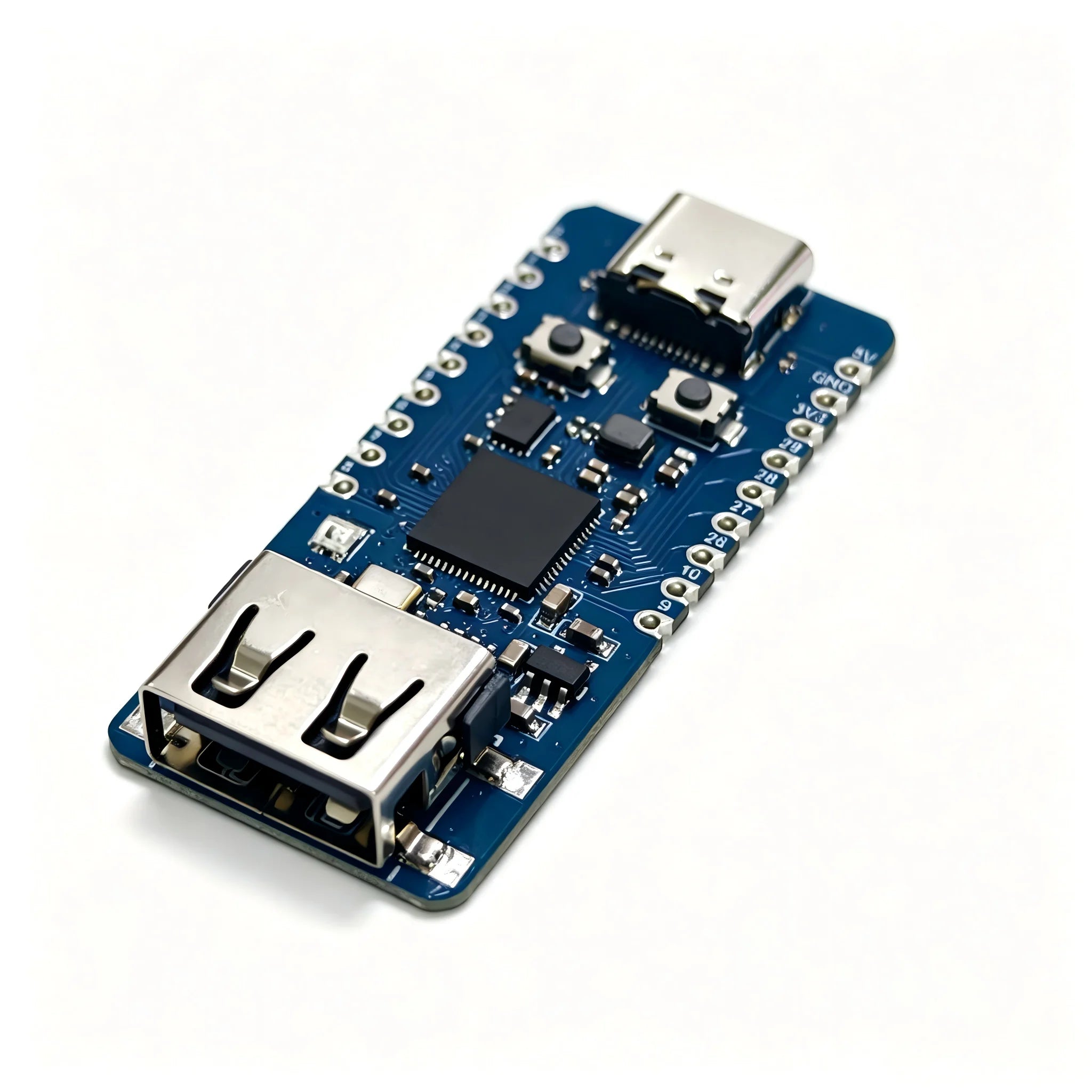

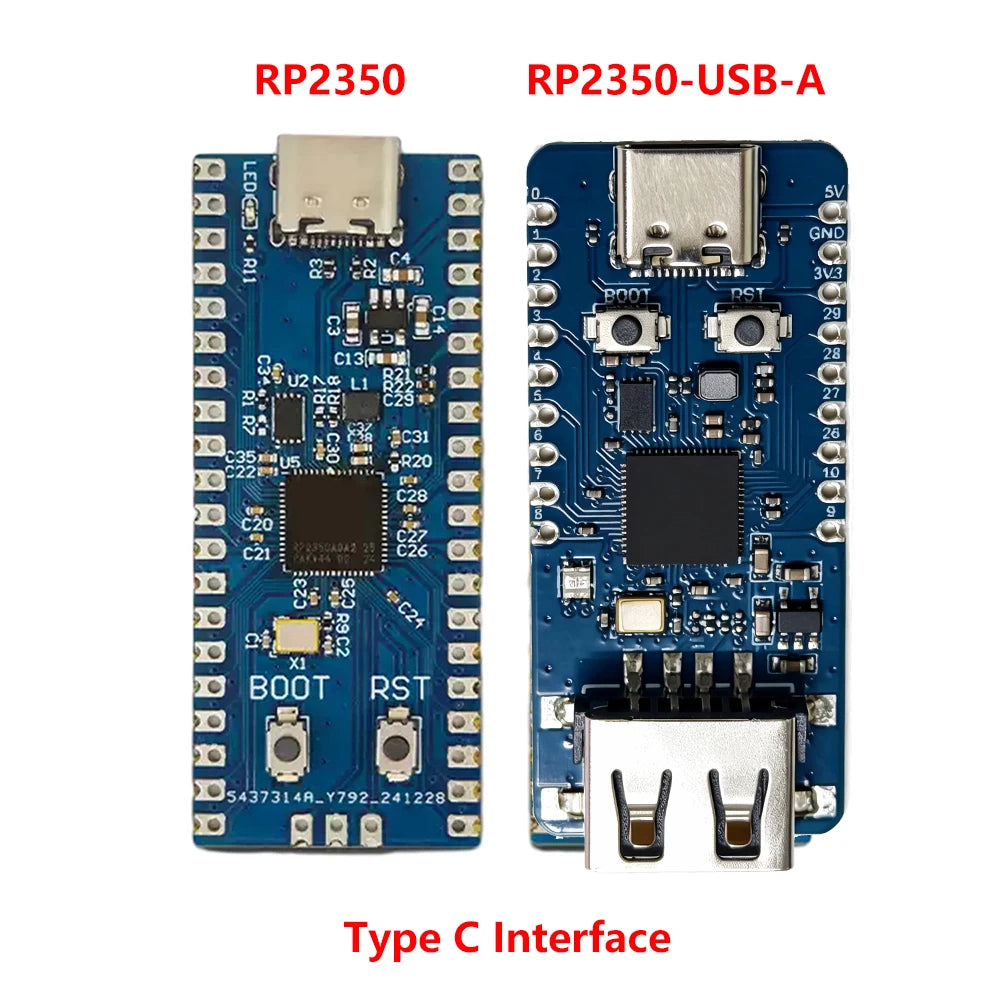

For Raspberry Pi Pico 2 RP2350 USB A Development Board RP2350 Microcontroller Module Type C Interface

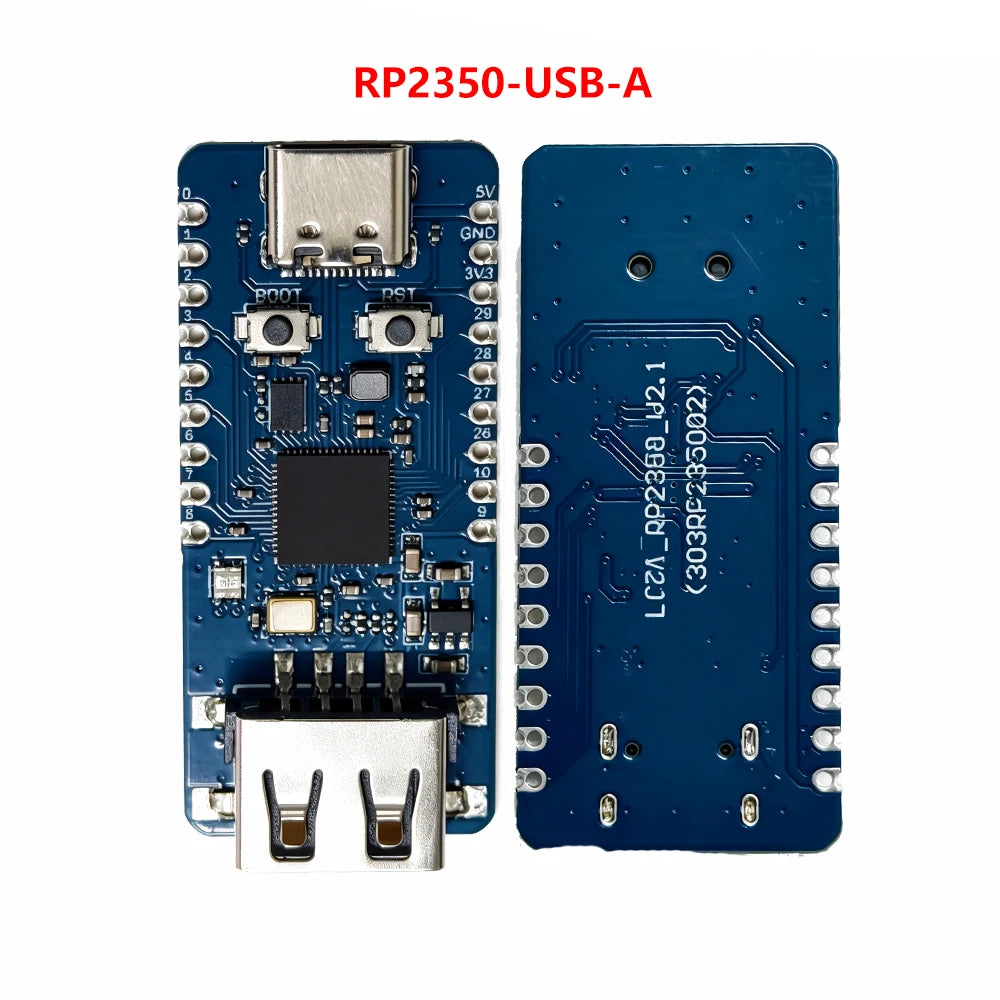

RP2350-USB-A

Product Features:

1. Equipped with RP2350A controller and onboard W25Q16 high-capacity Flash
2. Extract all IO, equipped with BOOT and RST function buttons
3. Type-C power supply, with built-in USB-A expansion interface for easy debugging
4. Support multilingual development, drag and drop files to quickly burn programs
5. Half hole miniaturization design, suitable for embedded control project development

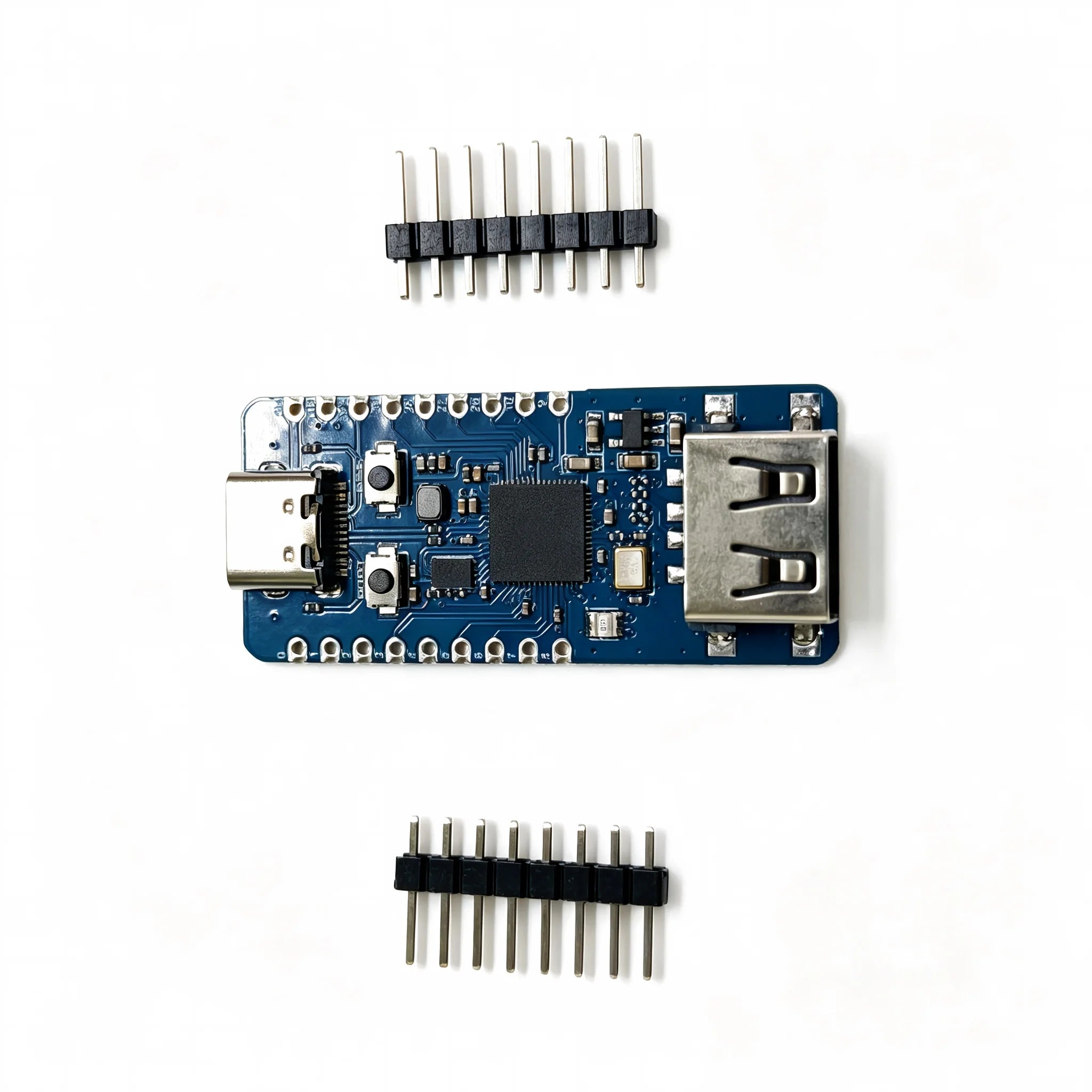

Overview:

This RP2350_V2 USB expansion development board is developed based on RP2350A, with a small-sized FLASH-W25Q16JVUXIQ onboard. It uses a Type-C port, an IO port, and onboard BOOT and RST keys. There is also one USB expansion port onboard for easy user debugging. It supports various development environments such as C, C++, Micro Python, Ard, etc. The module can be recognized as a large capacity storage through USB for program burning.

Features:

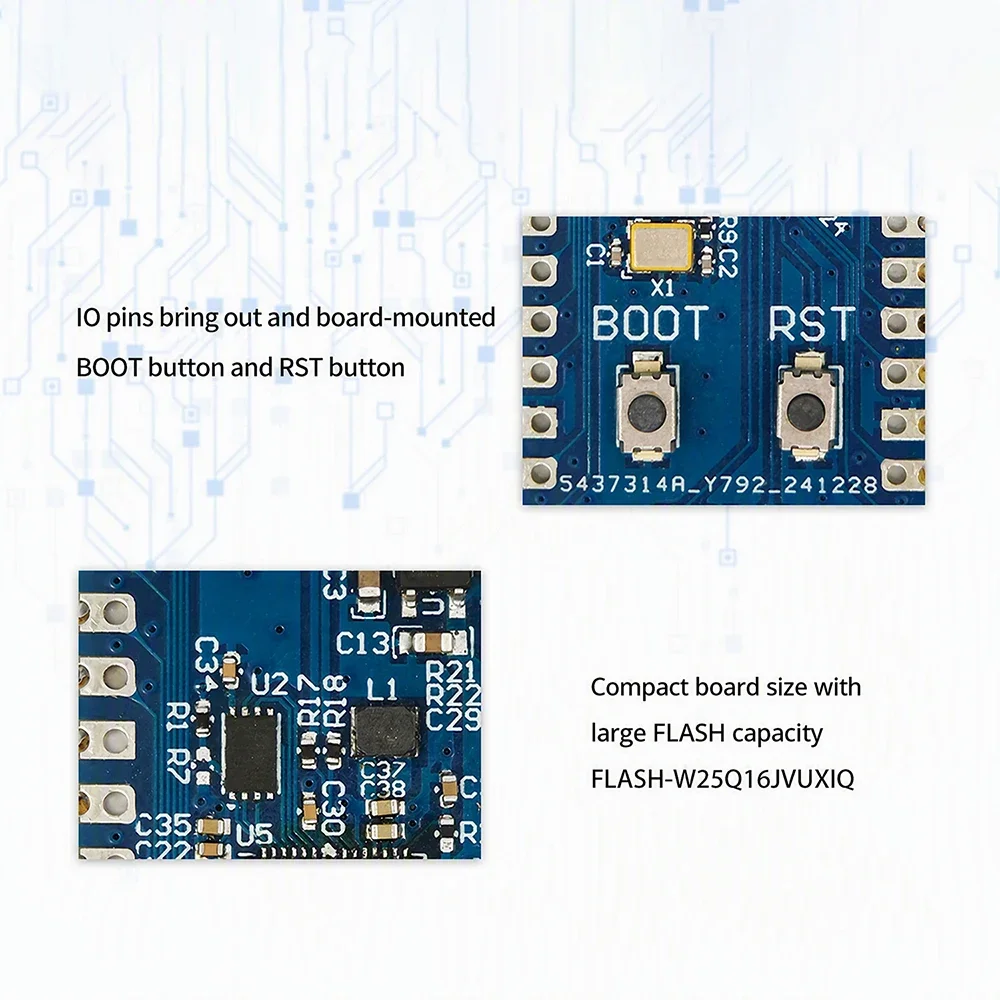

IO port output and onboard BOOT and RST keys
FLASH-W25Q16JVUXIQ with small size and large capacity onboard
Supports multiple development environments such as C, C++, Micro Python, Ard, etc
Designed with half hole technology, it can be embedded and combined into various products
Support computer USB recognition, copy the program into a large capacity storage device to achieve burning
Onboard 1 USB expansion port

Product Parameters:

Interface: Type-C port, USB A port
RESET button: Reset button
BOOT button: Press it during reset to enter the burning module
FLASH with small size and large capacity: W25Q16JVUXIQ
MCU：RP2350A（LQFN-60）
RGB lights, GPIO16
USB-A interface, GPIO12,GPIO13
Voltage regulator chip
GPIO output port
Product size: 45mm * 20mm

Product List:

1X development board



RP2350

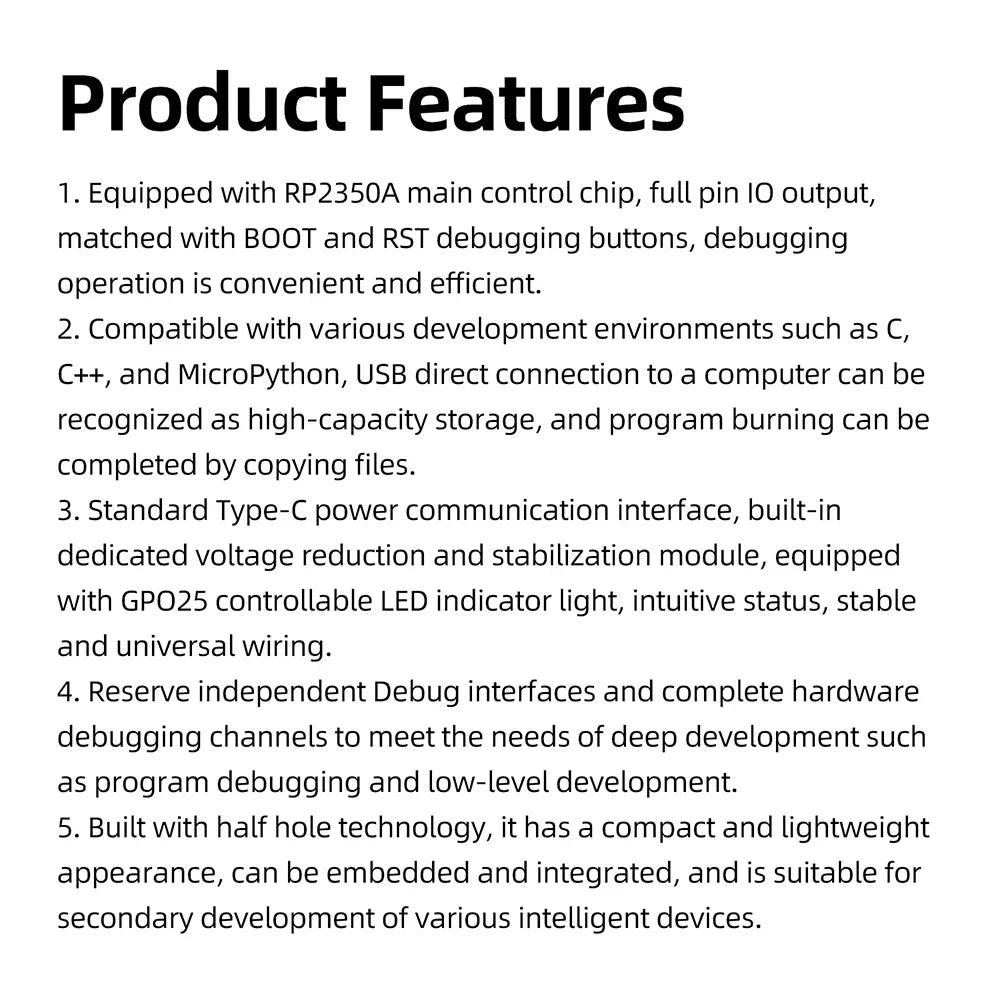

Features

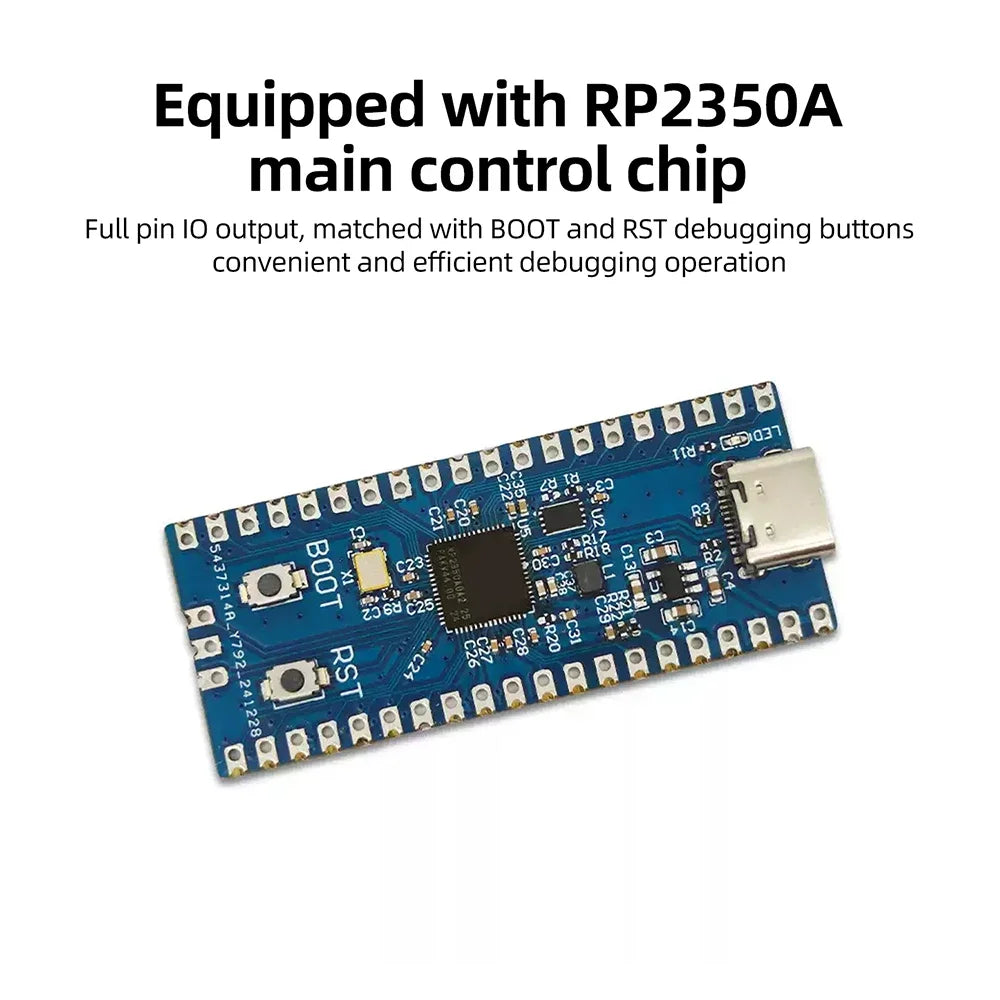

1. Equipped with RP2350A main control chip, full pin IO output, matched with BOOT and RST debugging buttons, debugging operation is convenient and efficient.

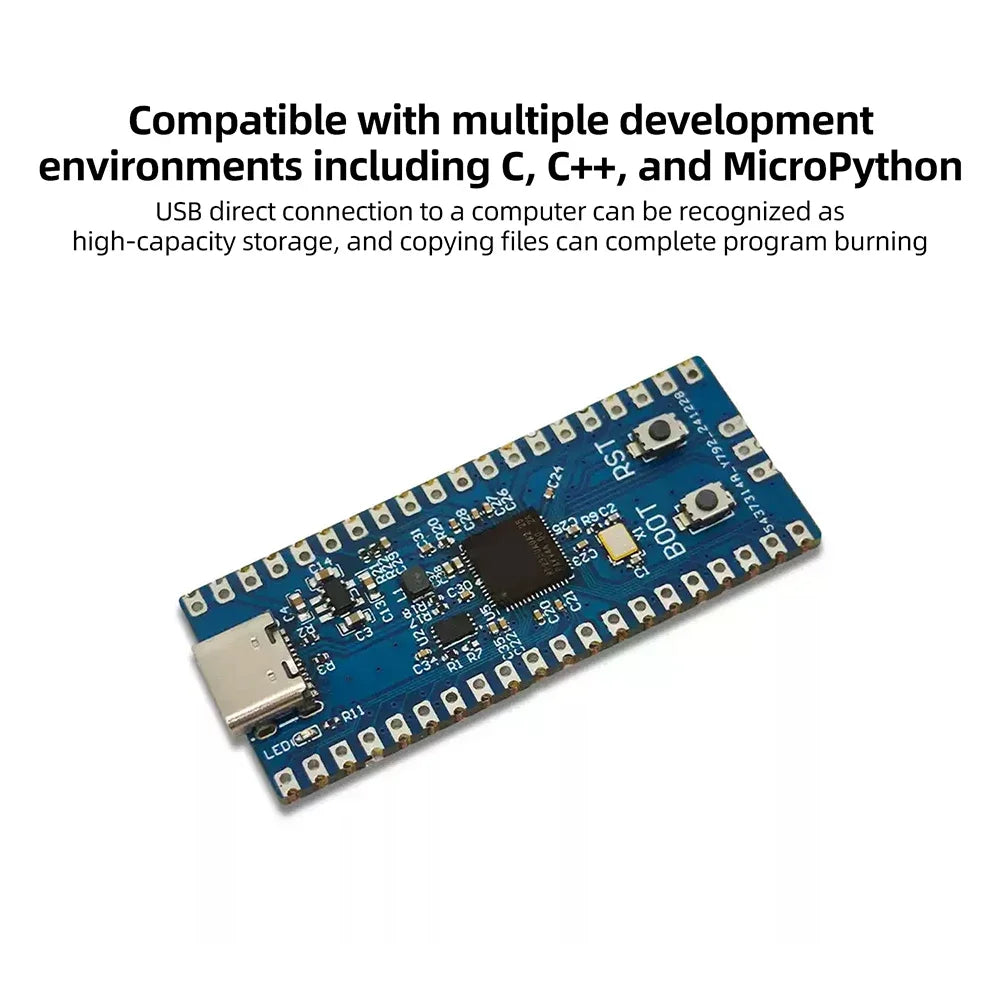

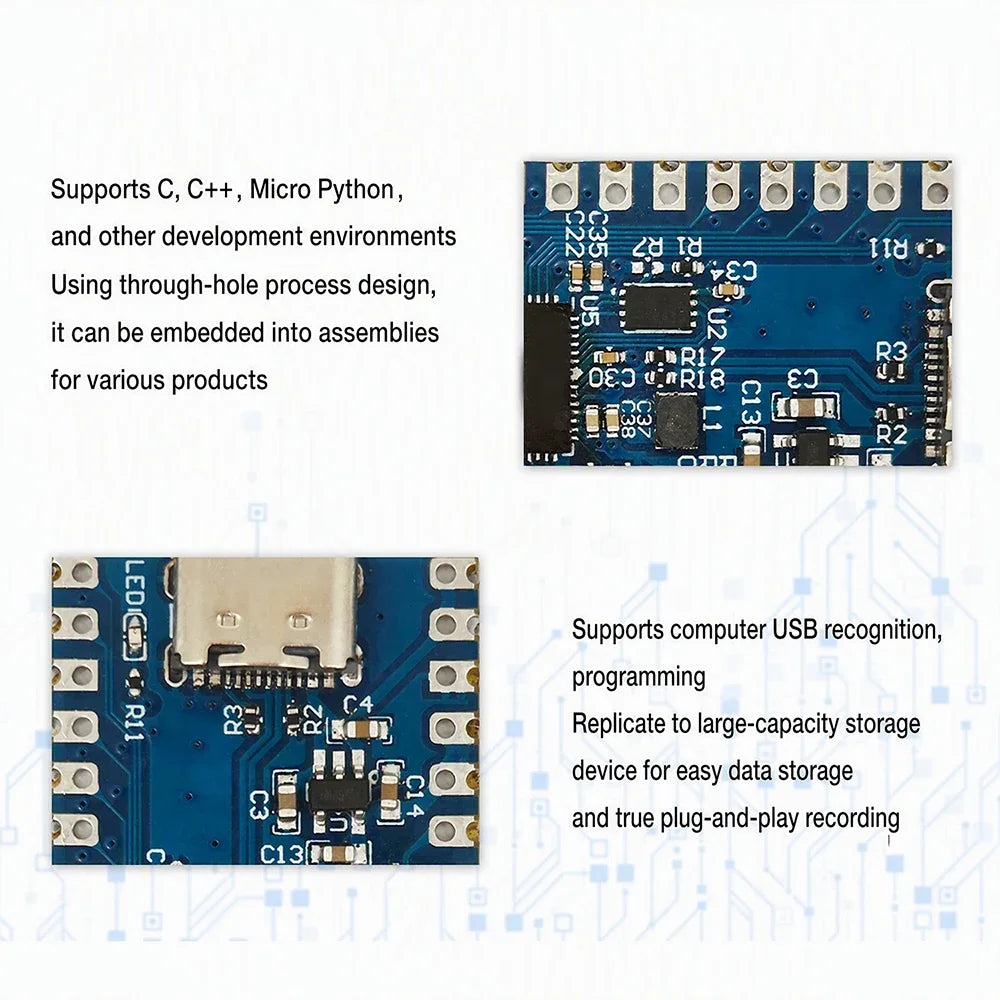

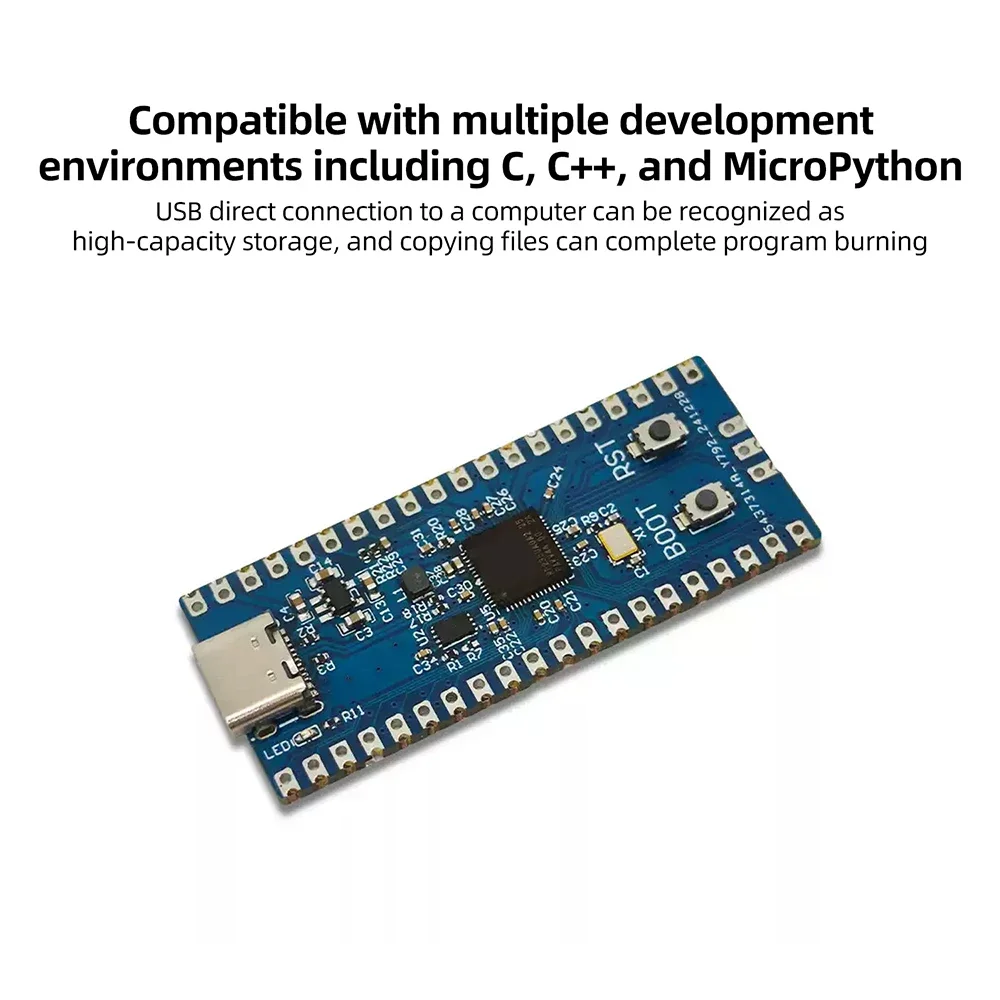

2. Compatible with various development environments such as C, C++, and MicroPython, USB direct connection to a computer can be recognized as high-capacity storage, and program burning can be completed by copying files.

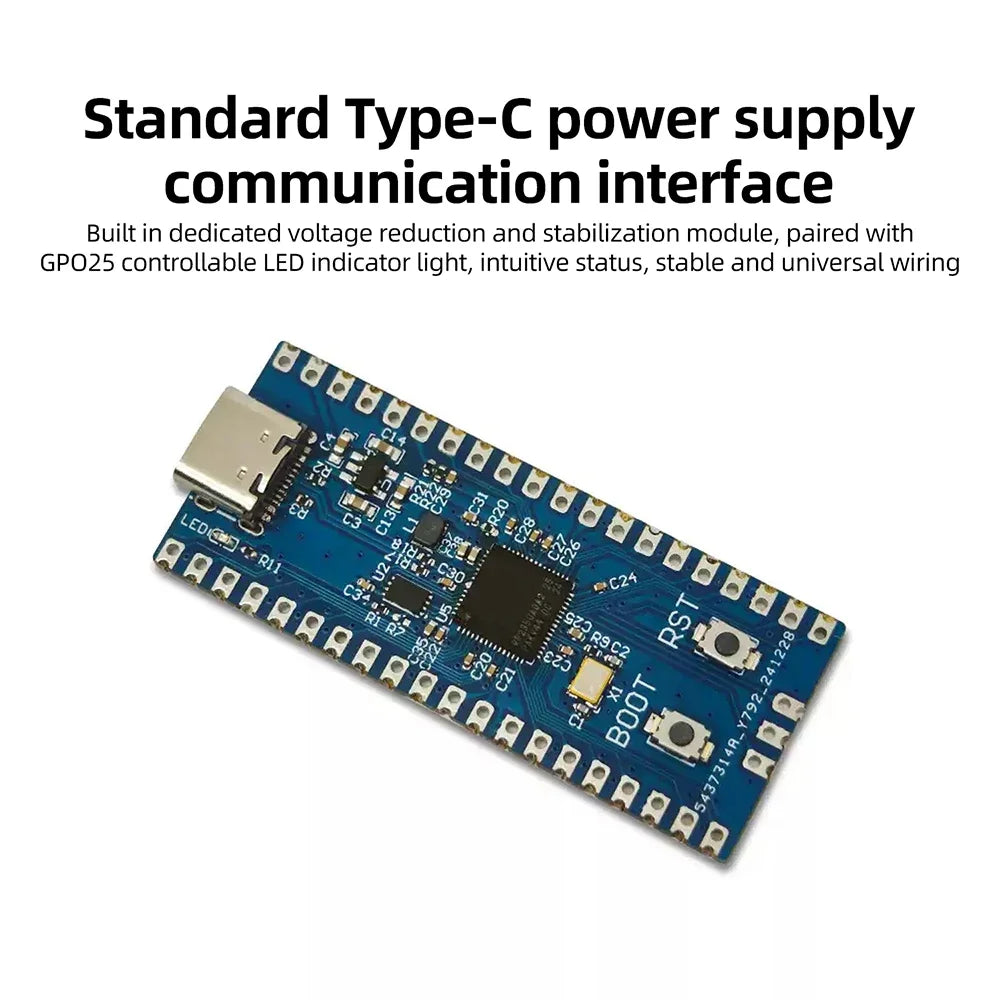

3. Standard Type-C power communication interface, built-in dedicated voltage reduction and stabilization module, equipped with GPO25 controllable LED indicator light, intuitive status, stable and universal wiring.

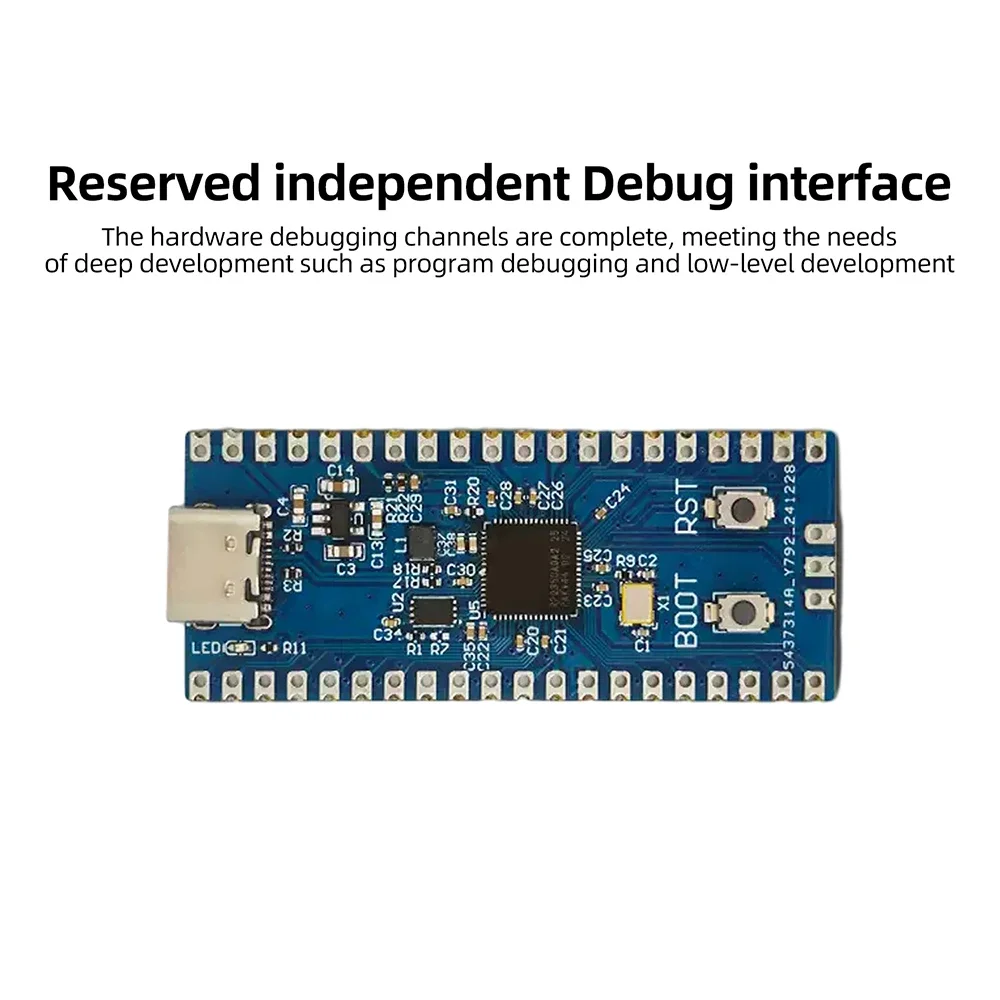

4. Reserve independent Debug interfaces and complete hardware debugging channels to meet the needs of deep development such as program debugging and low-level development.

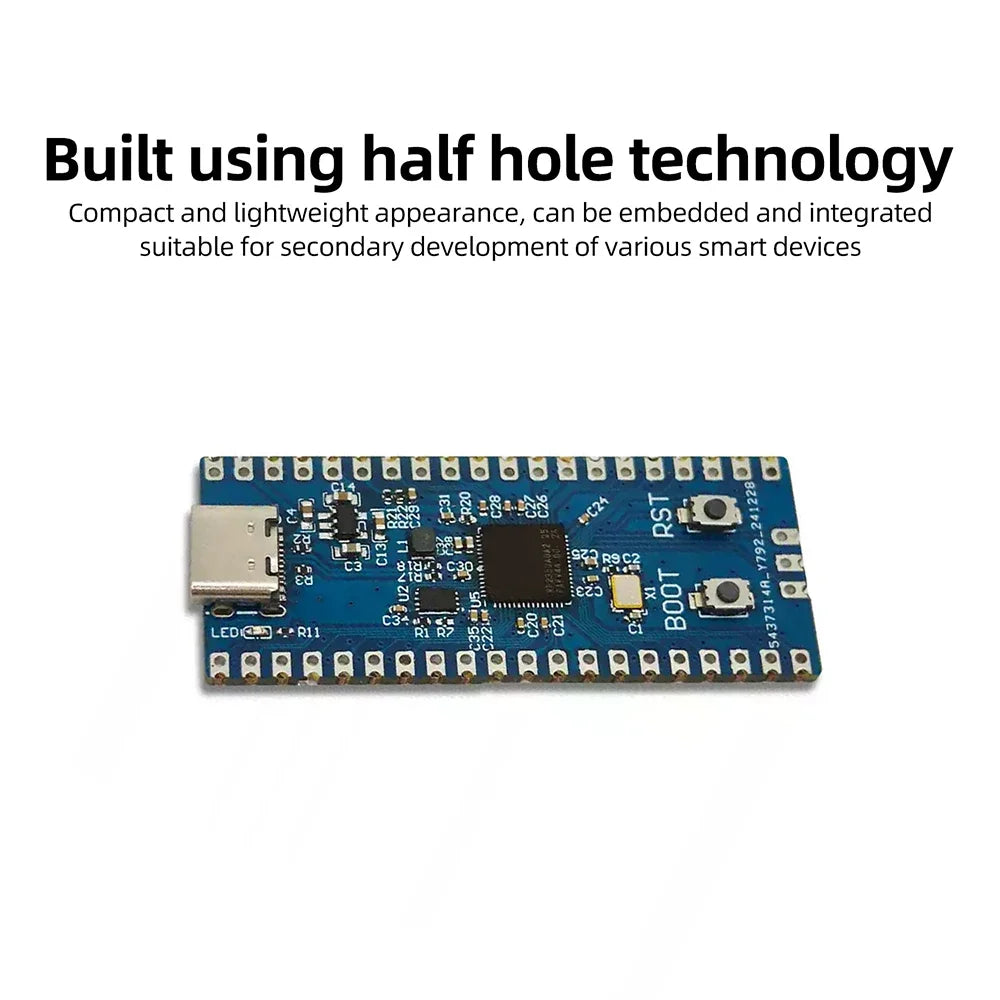

5. Built with half hole technology, it has a compact and lightweight appearance, can be embedded and integrated, and is suitable for secondary development of various intelligent devices.

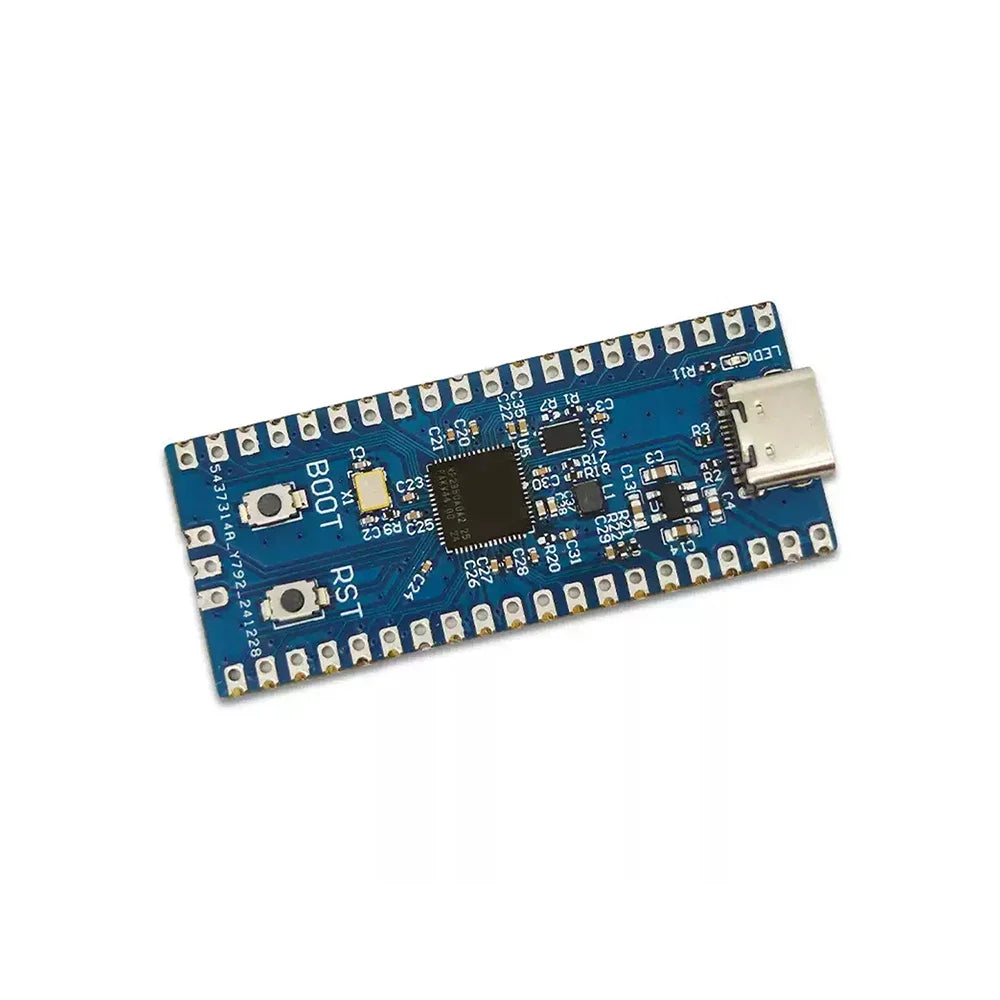

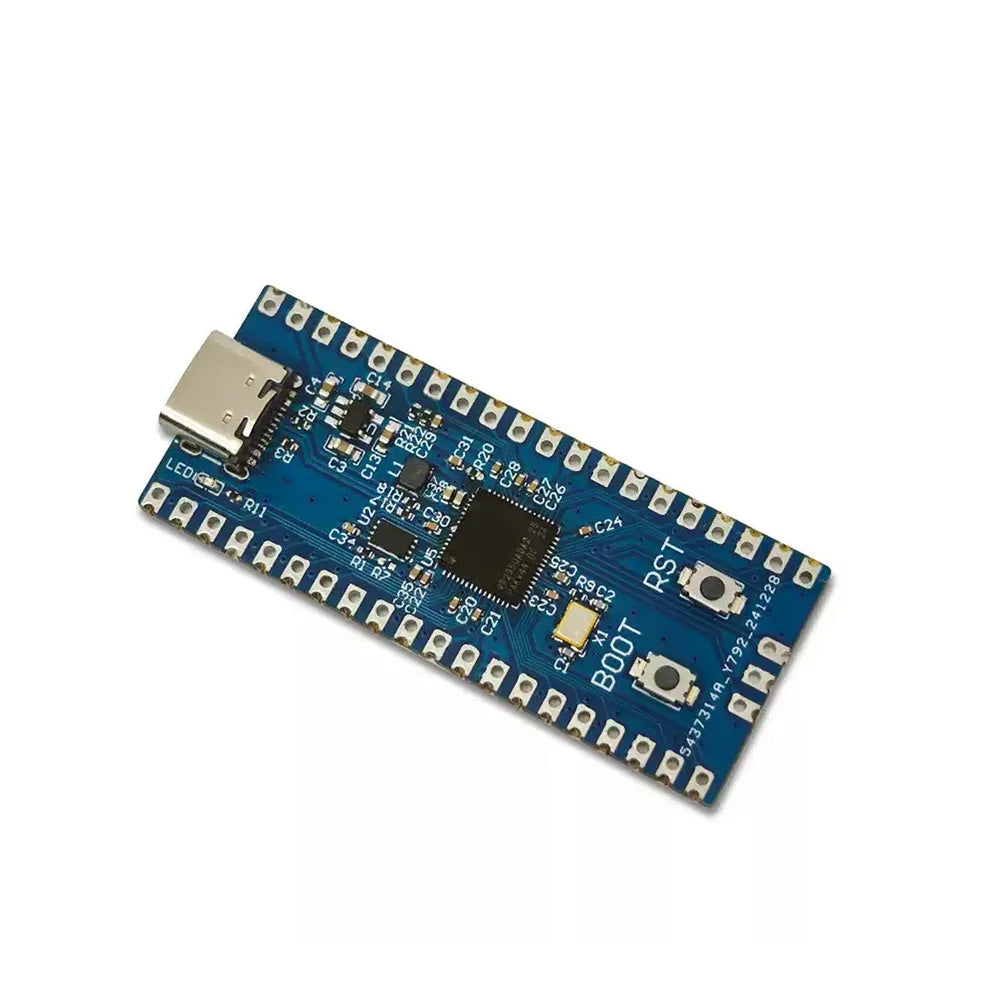

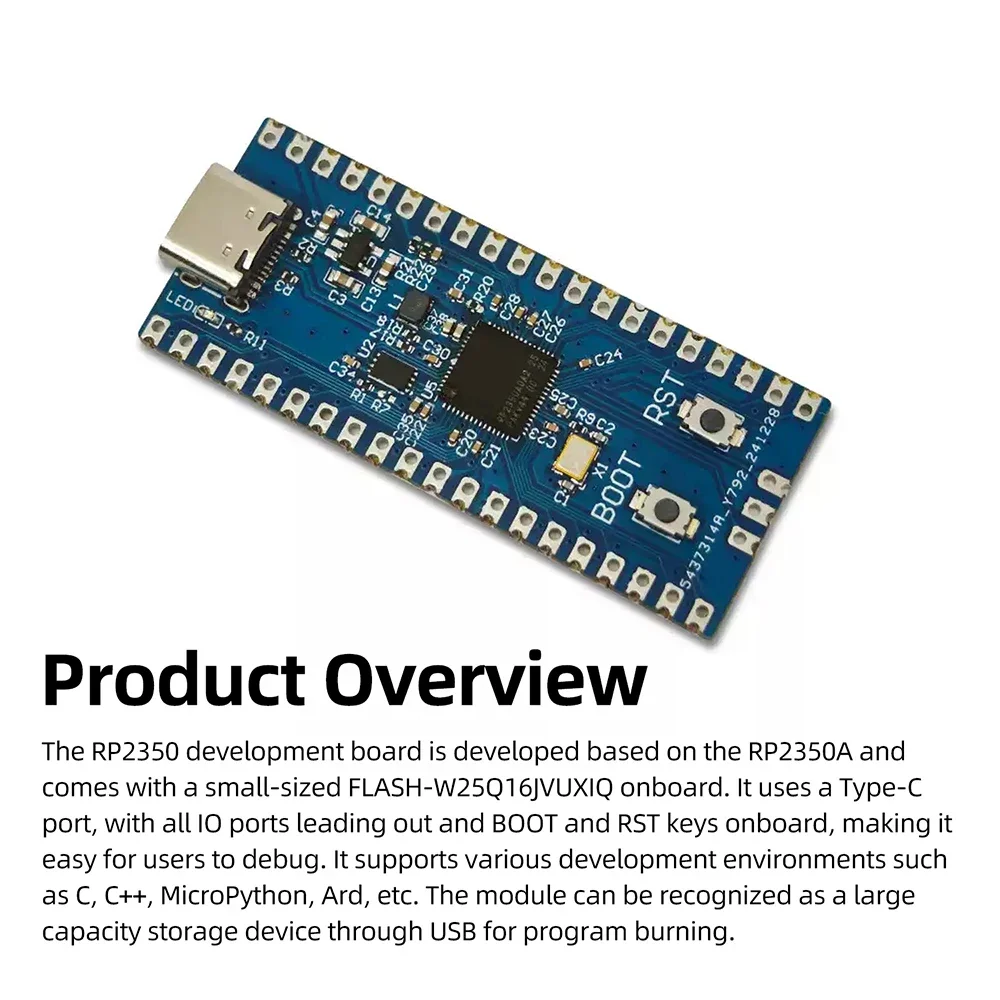

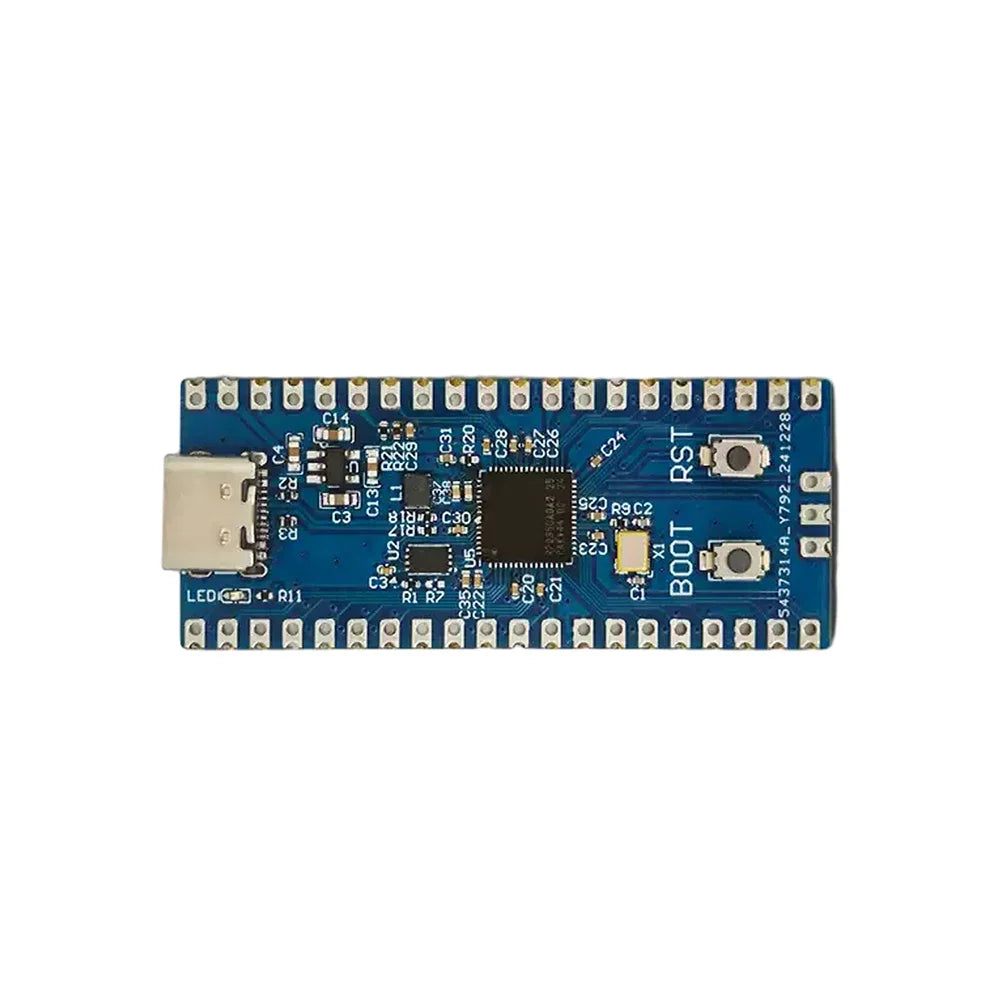

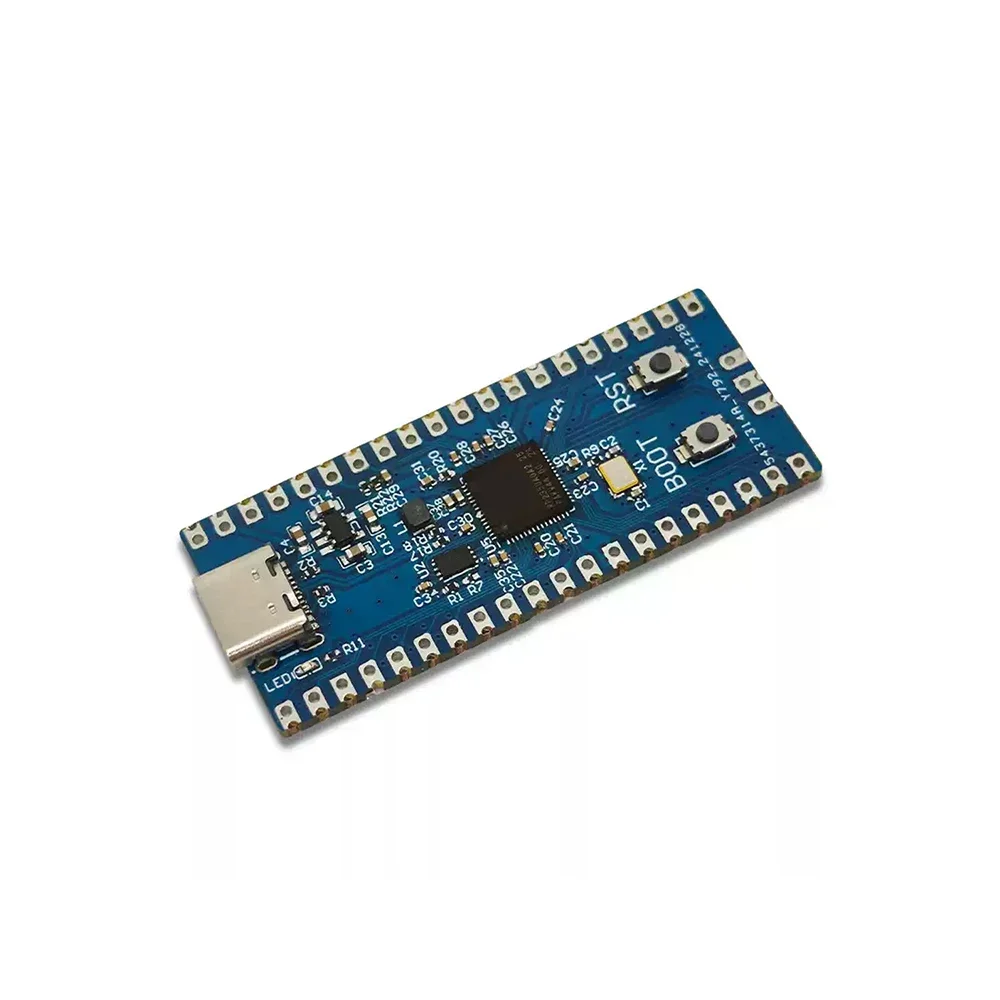

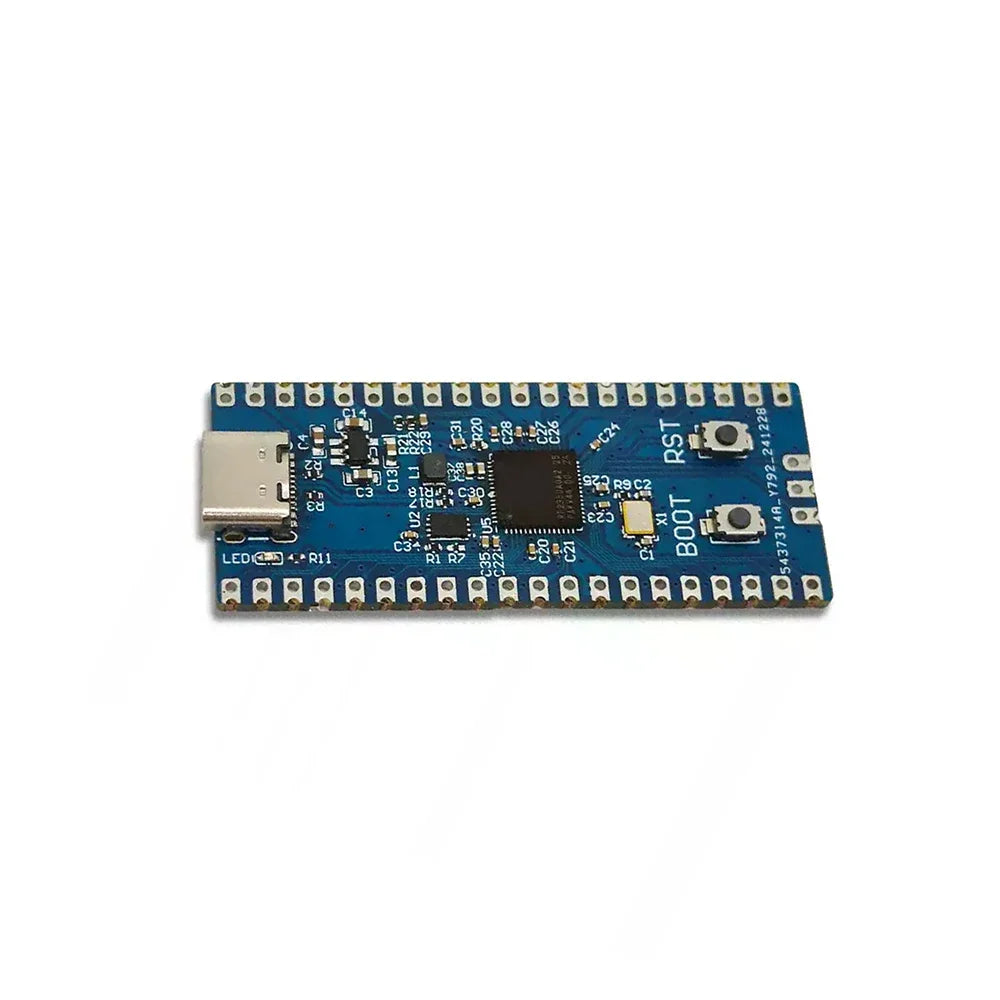

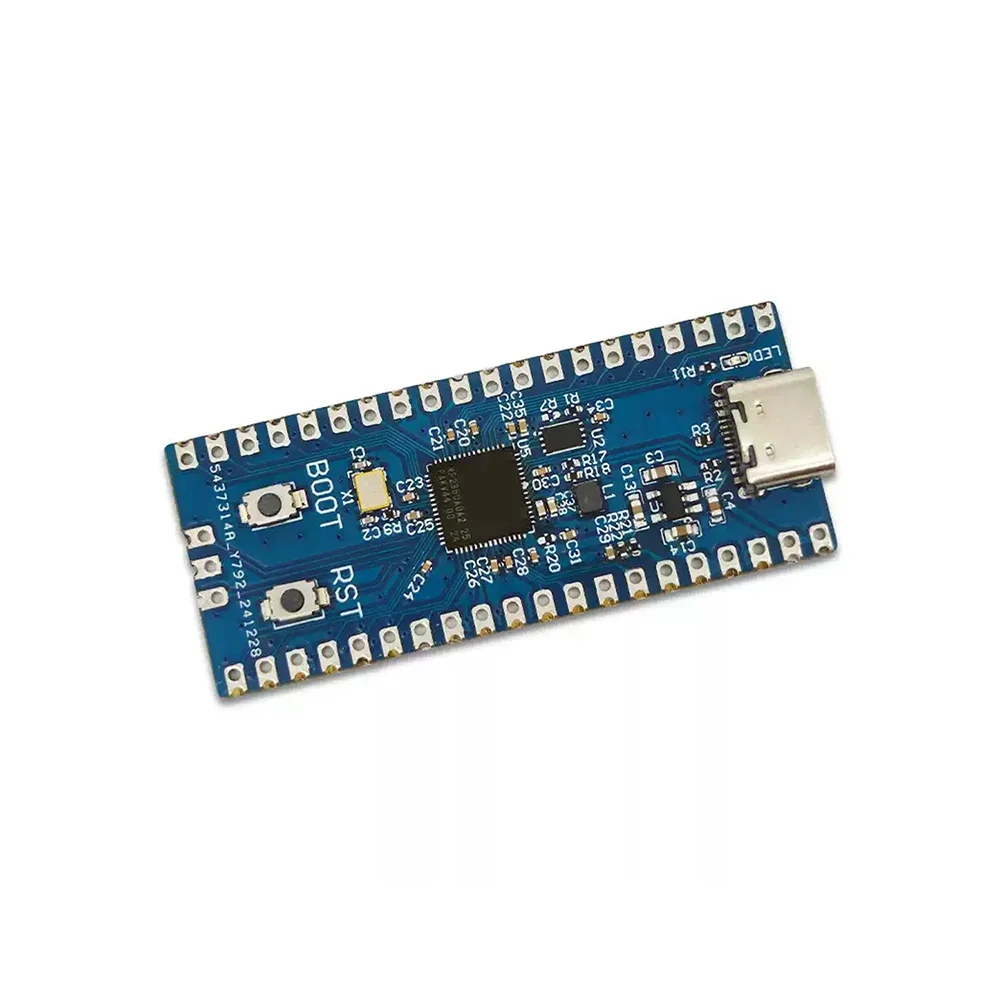

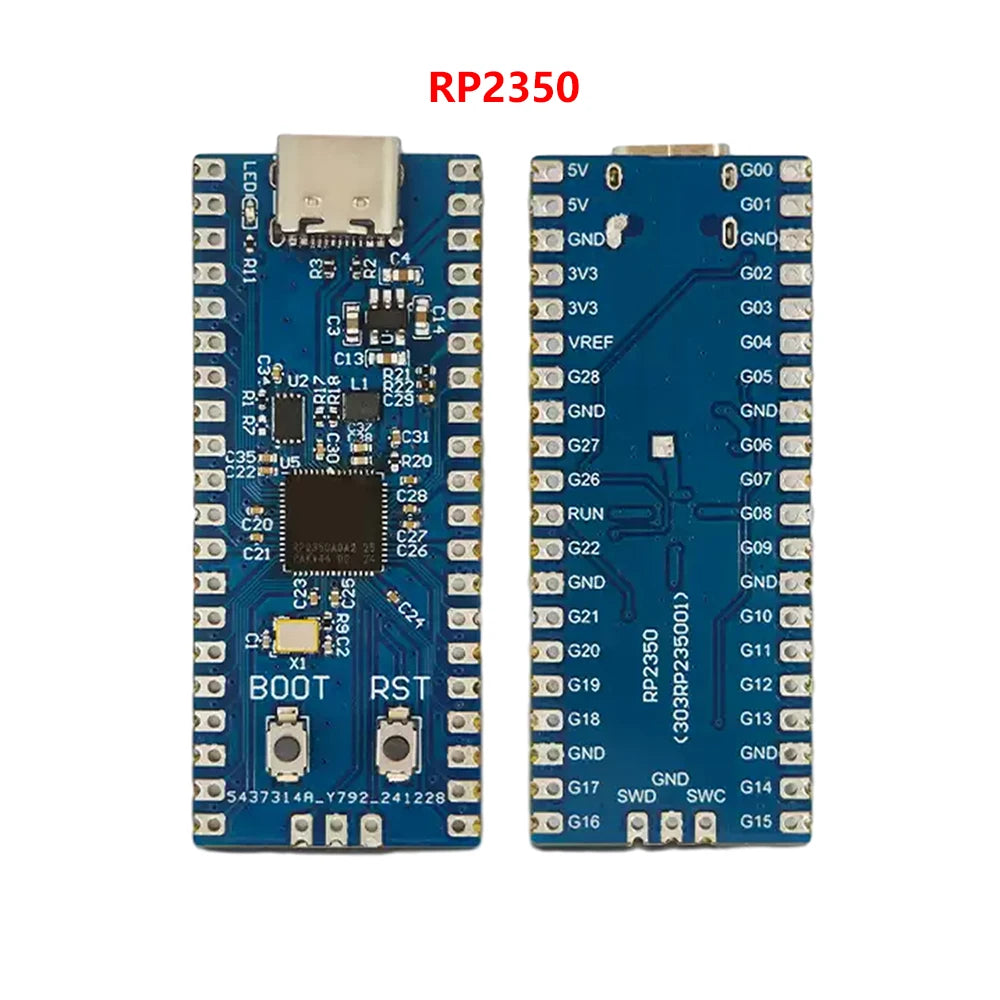

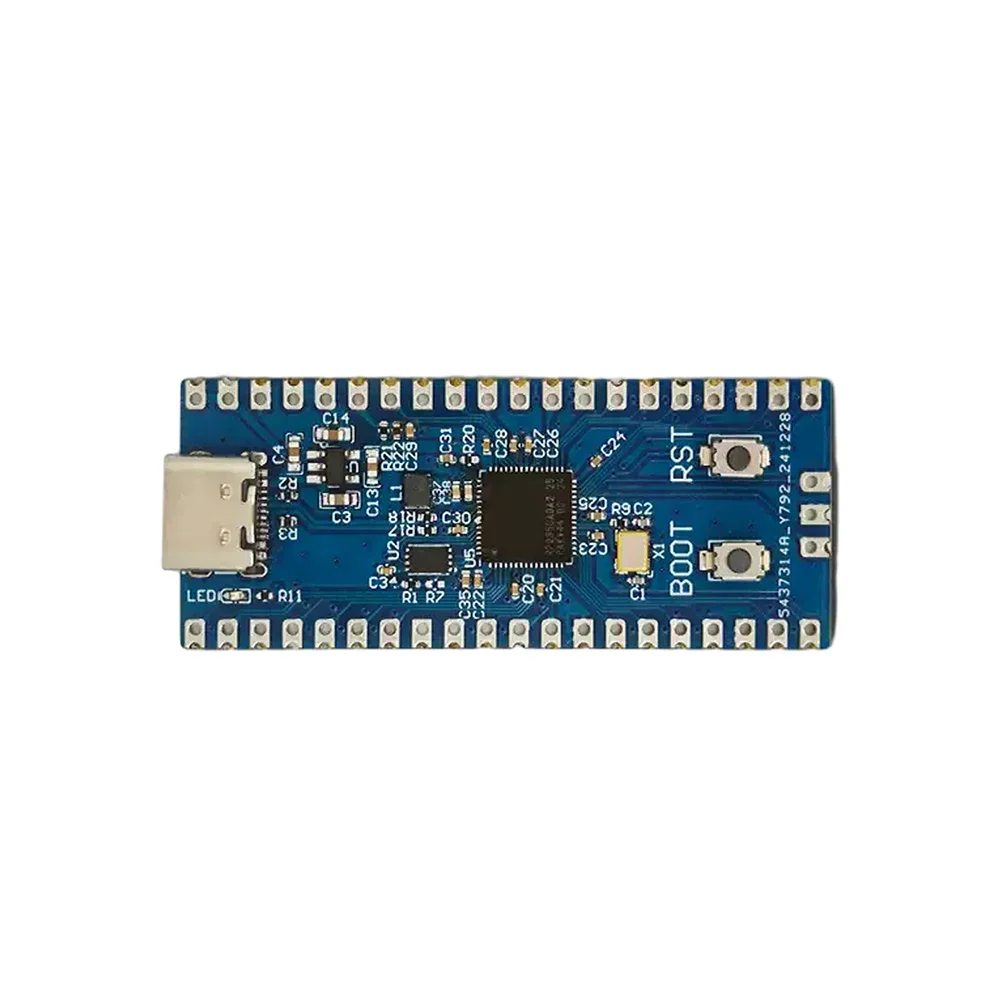

Product Overview:

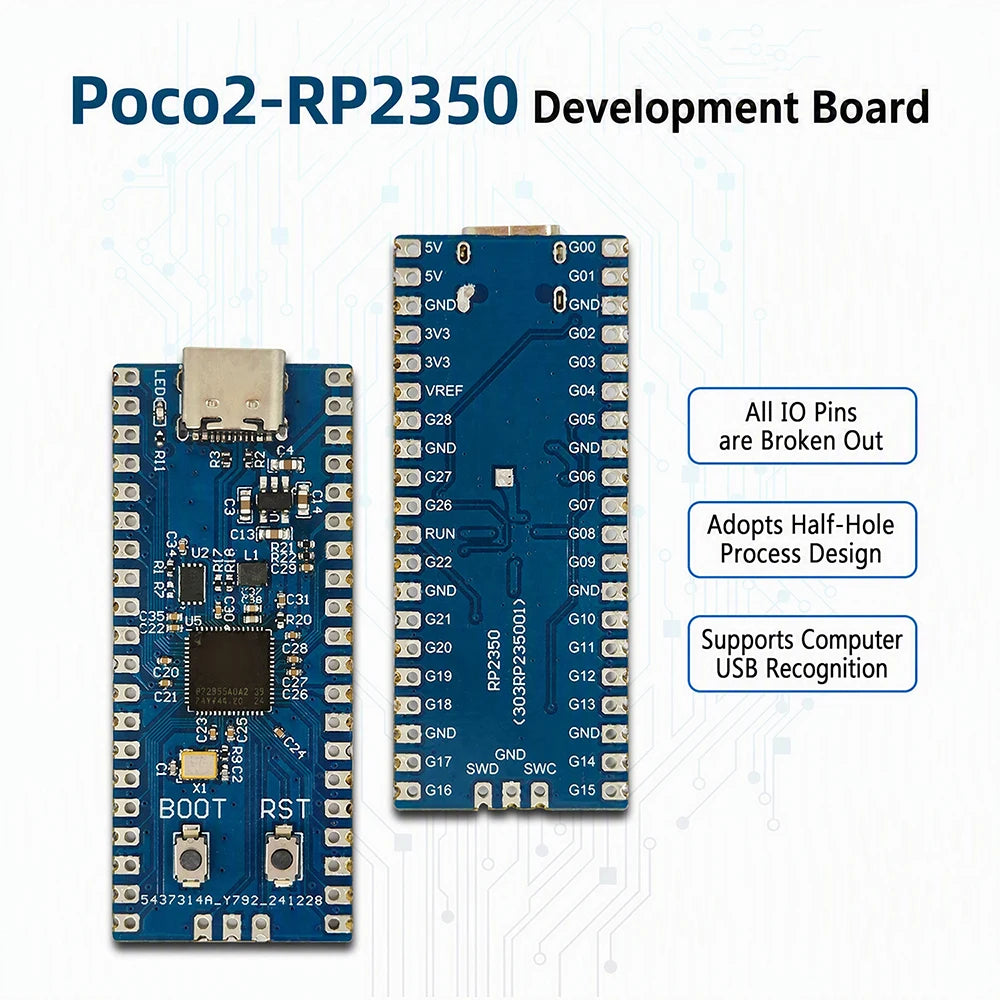

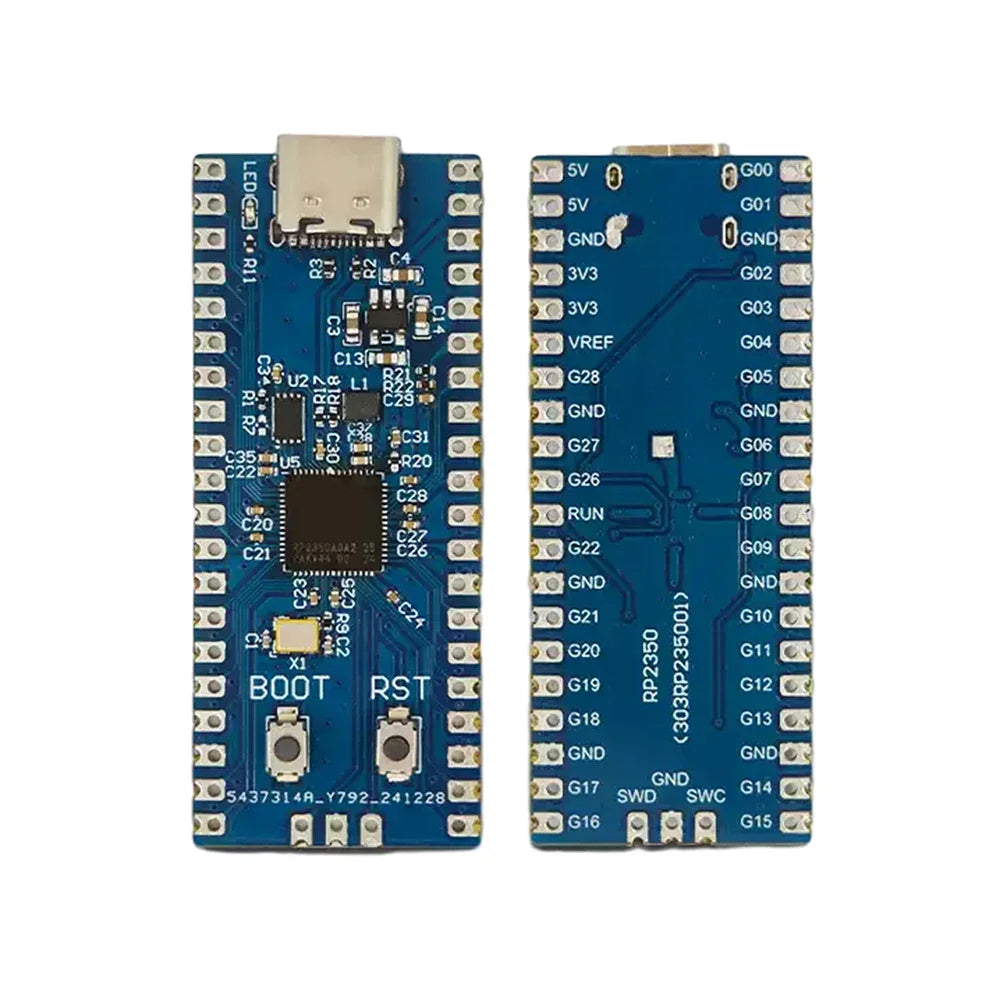

The RP2350 development board is developed based on the RP2350A and comes with a small-sized FLASH-W25Q16JVUXIQ onboard. It uses a Type-C port, with all IO ports leading out and BOOT and RST keys onboard, making it easy for users to debug. It supports various development environments such as C, C++, MicroPython, Ard, etc. The module can be recognized as a large capacity storage device through USB for program burning.

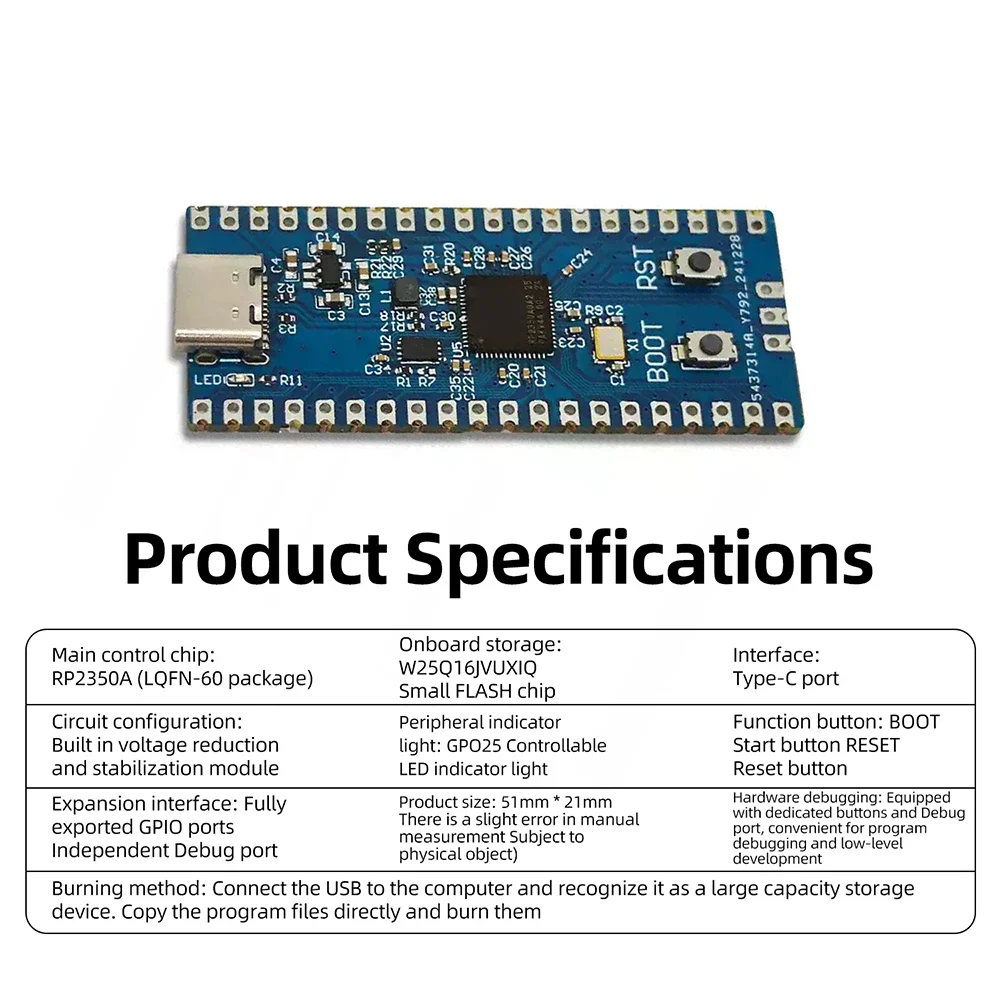

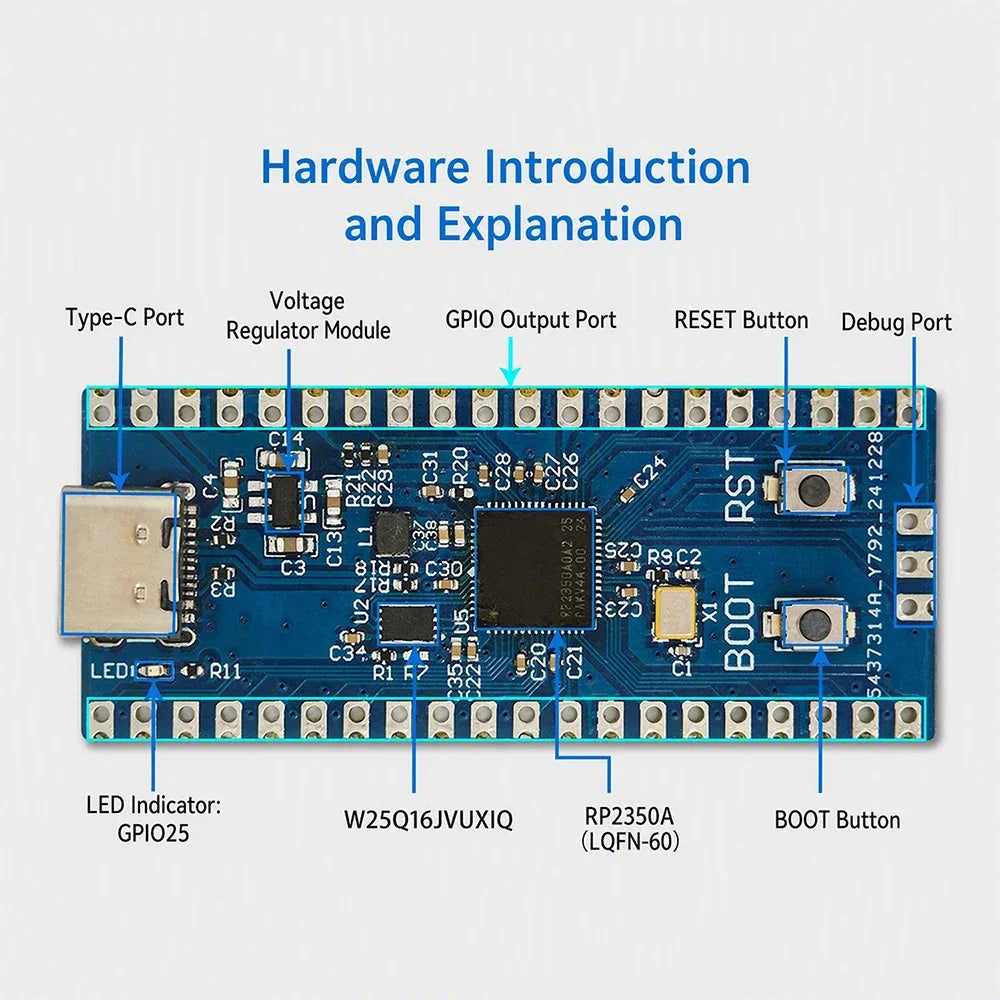

Parameters:
Main control chip: RP2350A (LQFN-60 package)
Onboard storage: W25Q16JVUXIQ small FLASH chip
Interface: Type-C interface
Circuit configuration: Built in voltage reduction and stabilization module
Peripheral indicator light: GPO25 controllable LED indicator light
Function buttons: BOOT start button, RESET reset button
Expansion interface: fully exported GPIO port, independent Debug port

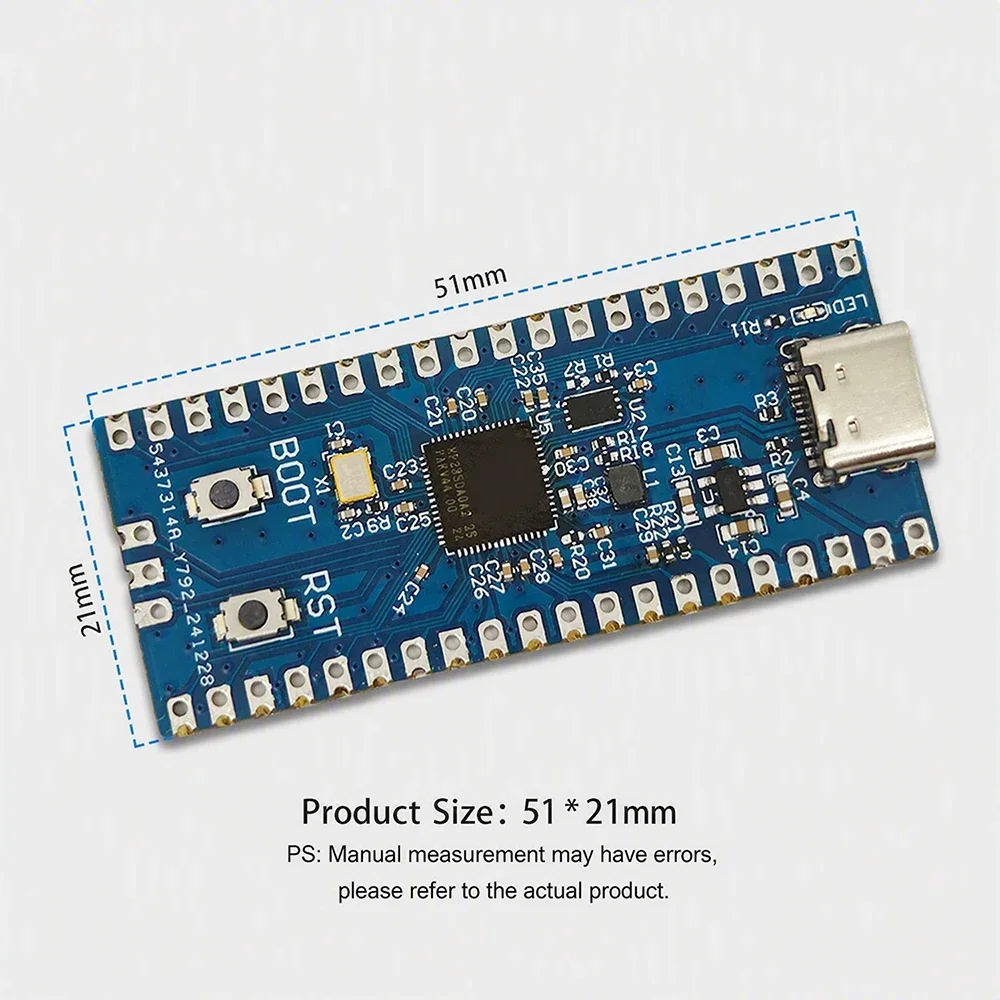

Product size: 51mm * 21mm (there may be slight errors in manual measurement, please refer to the actual product)

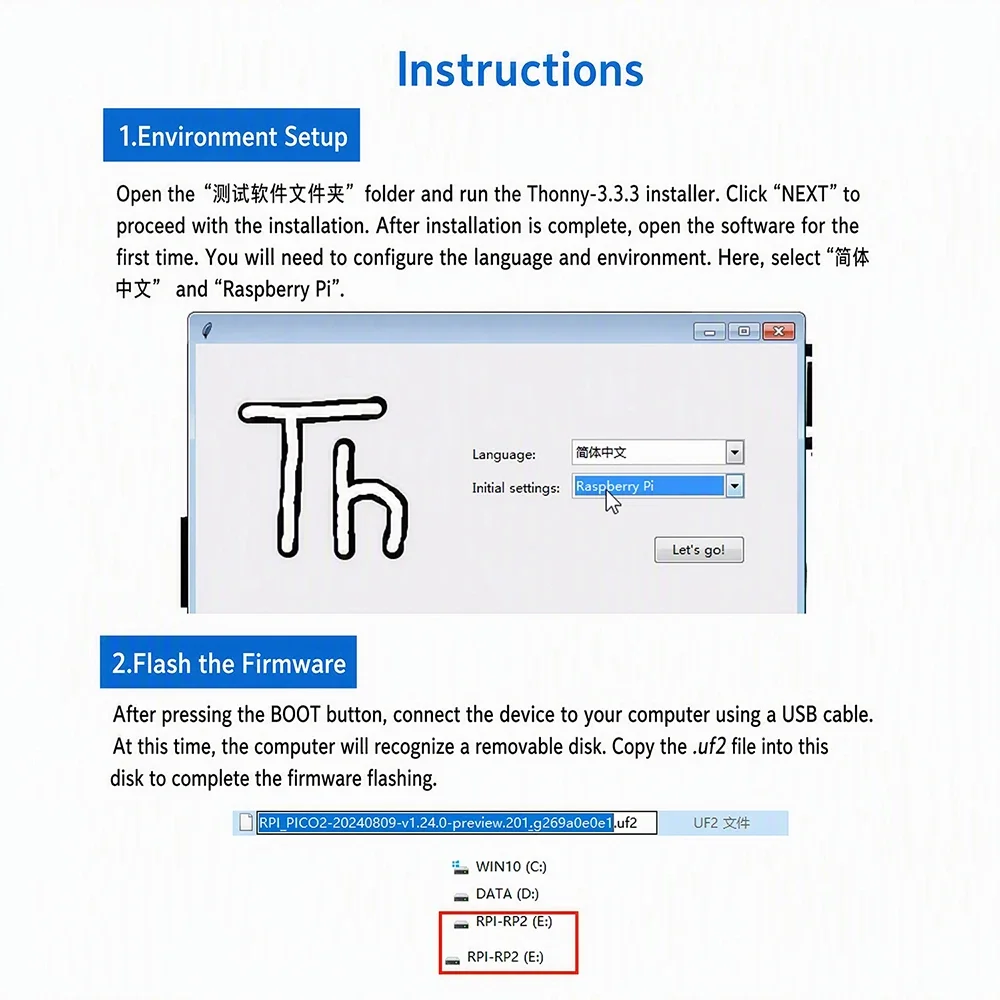

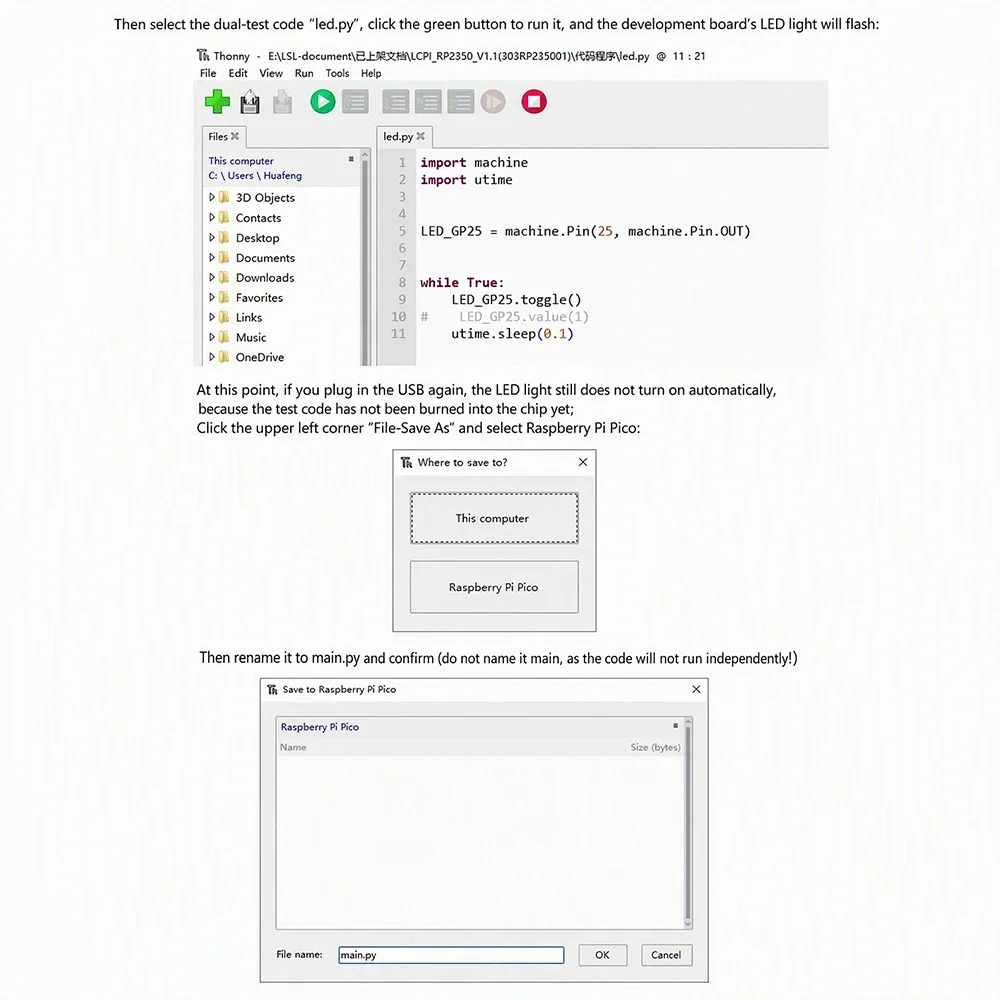

Burning method: Connect the USB to the computer and recognize it as a large capacity storage device. Copy the program files directly and burn them
Hardware debugging: Equipped with dedicated buttons and Debug port, convenient for program debugging and low-level development

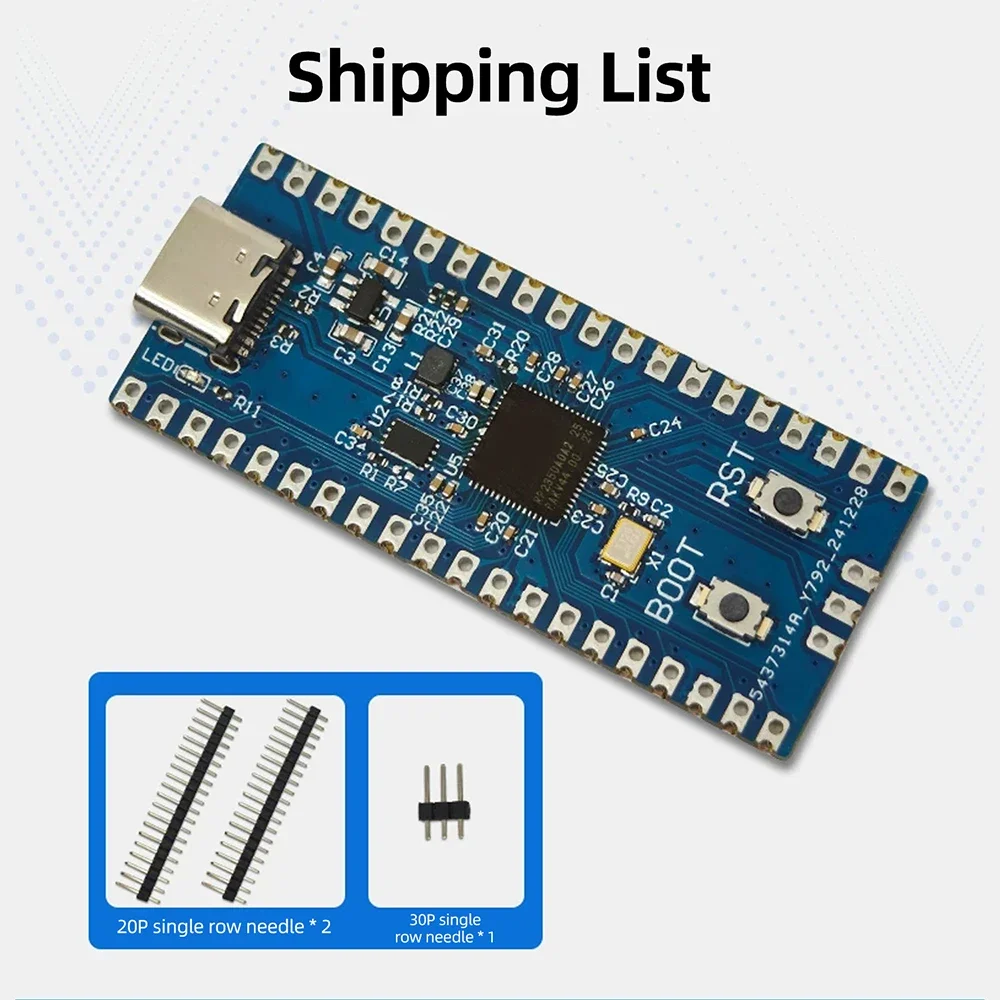

Product List:
1X development board
3X needle arrangement
