SPECIFICATIONS

ePaper display extension designed for Seeed Studio XIAO boards: Provide 24-pin FPC connector, to allow you driving ePaper display seamlessly
Additional 8-pin 2.54 Header: Offers flexibility by letting you connect to any microcontroller like for Arduino UNO or for Rasbperry Pi
Plug and Play: All pins are led out, no soldering is needed

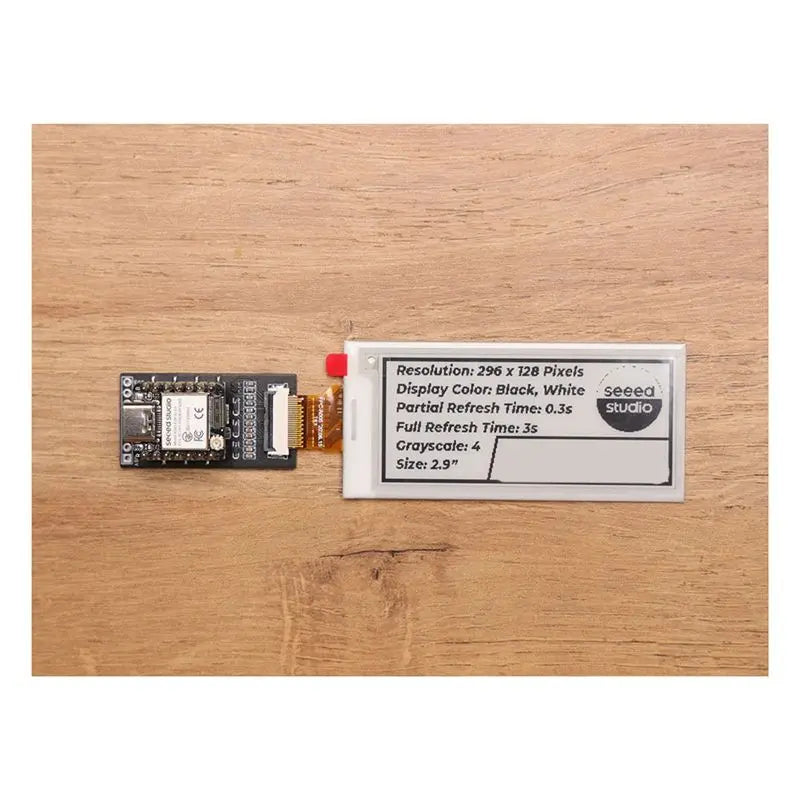

This ePaper Breakout Board is an extension board, built with 24-pin FPC connector, designed for SeeedStudio XIAO series boards, for allowing you driving ePaper display seamlessly. It also comes with a 8-pin 2.54 header, letting you connect to any microcontroller like for Arduino UNO or for Rasbperry Pi.
It is suitable for a wide range of ePaper displays, from small to large sizes. Supporting by different functional SeeedStudio XIAO boards and without any soldering, this extension board can be easily deployed in various scenarios.

Application
Digital Signage: Use the ePaper Breakout Board to create dynamic and energy-efficient digital signs.
E-Readers: Build your own customized e-reader with features tailored to your needs.
Smart Home Control Panels: Integrate the board into a smart home system for a sleek and modern control panel.
Retail Price Tags: Create electronic price tags for a more efficient and eco-friendly retail experience.
Educational Tools: Develop interactive educational materials that can be easily updated and are energy-efficient.

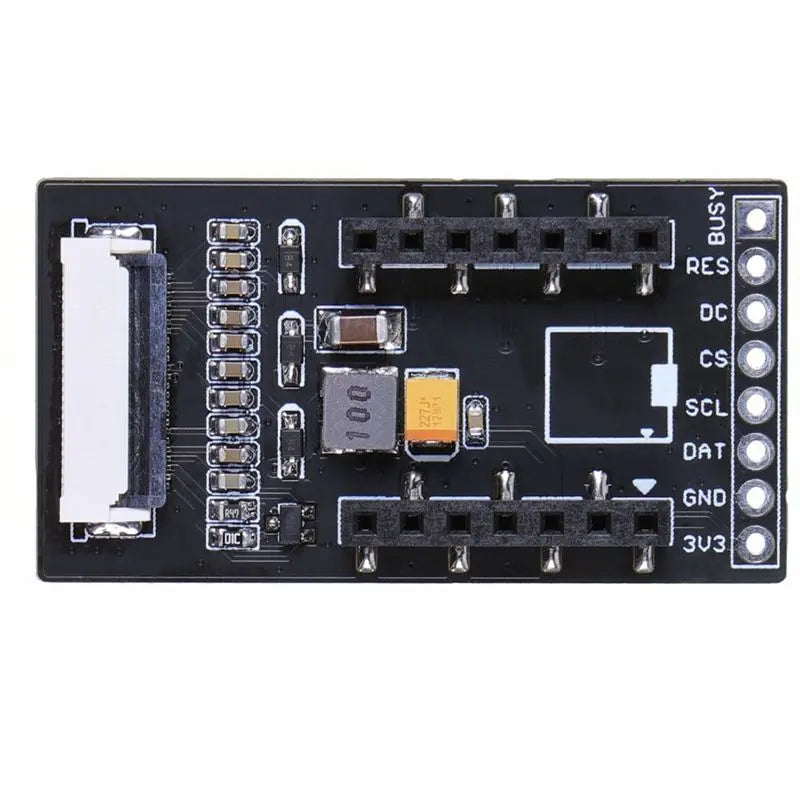

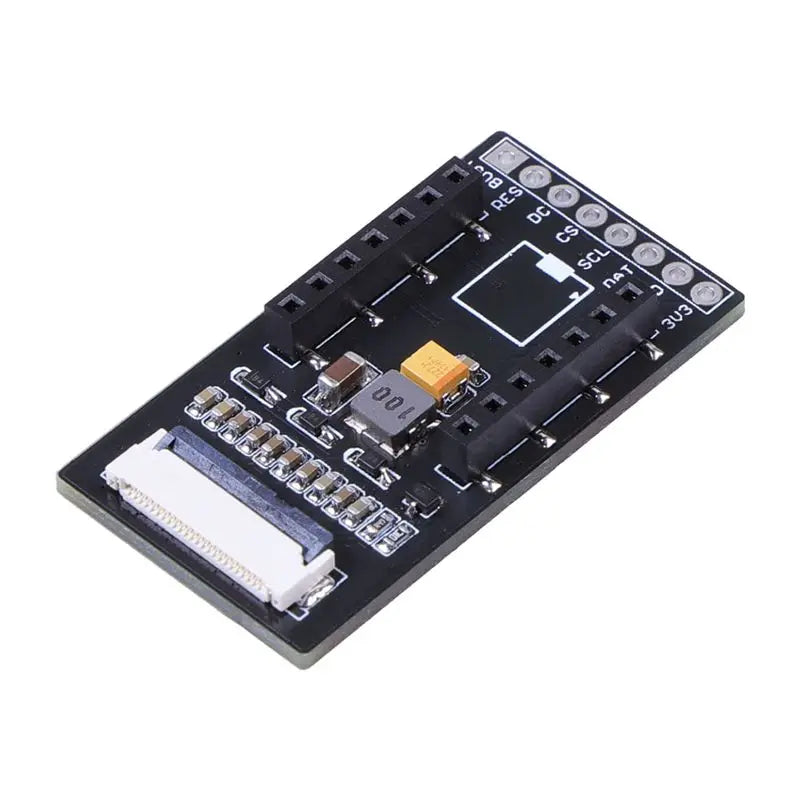

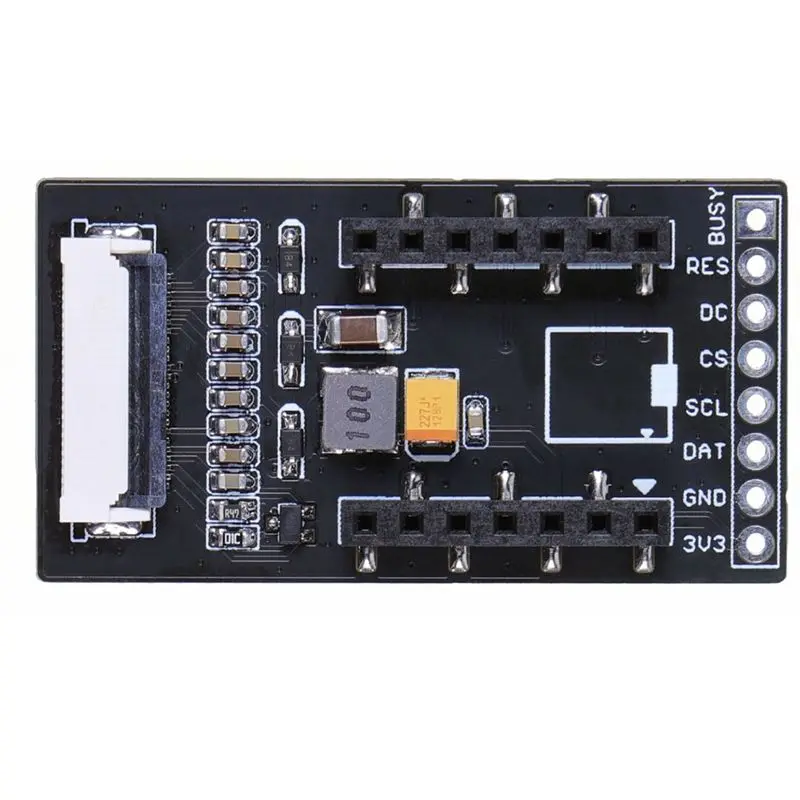

Hardware Overview
24-pin FPC Conncctor: For the 2.13 inch ePaper.
XIAO Socket: For connecting the Seeed Studio XIAO development board.
IO Break out: For connecting the others controller, such for Arduino UNO or for Raspberry Pi.
Colour:As Shown
Material:PC

Package Contents:
1 x ePaper Breakout Board(Due to different product batches, the appearance may vary, which does not affect the use)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
