SPECIFICATIONS

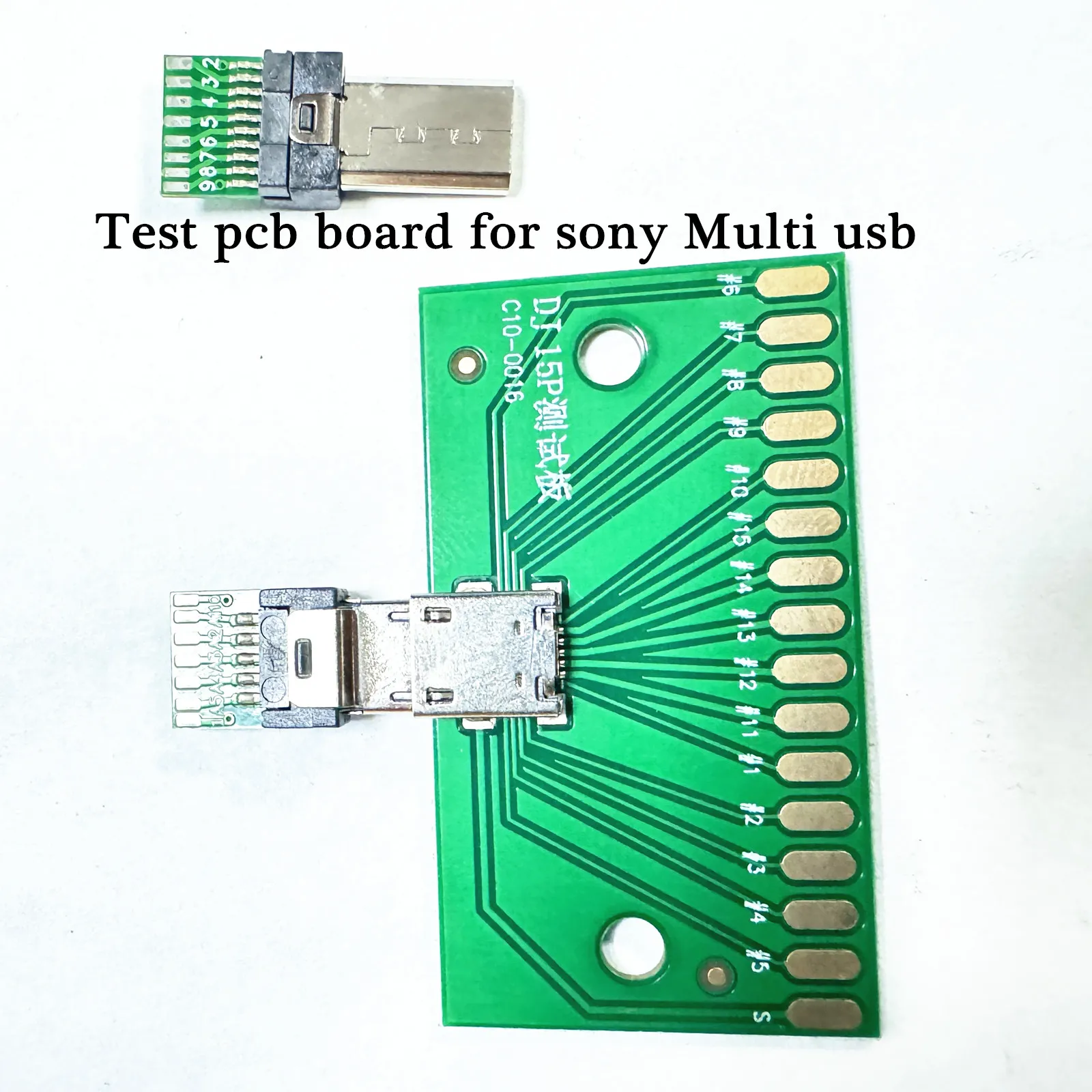

Test pcb board for sony Multi usb

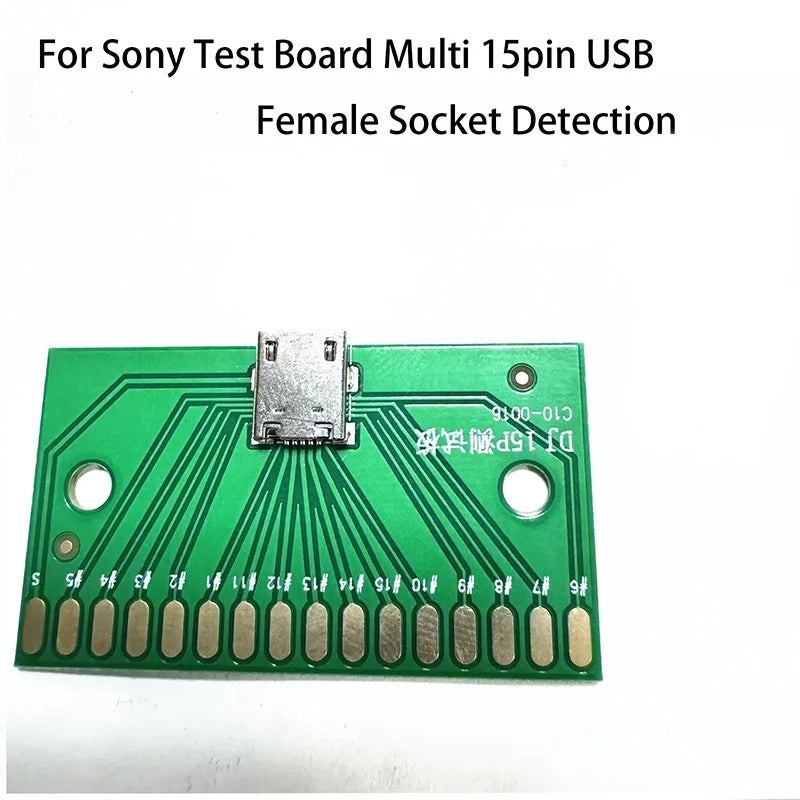

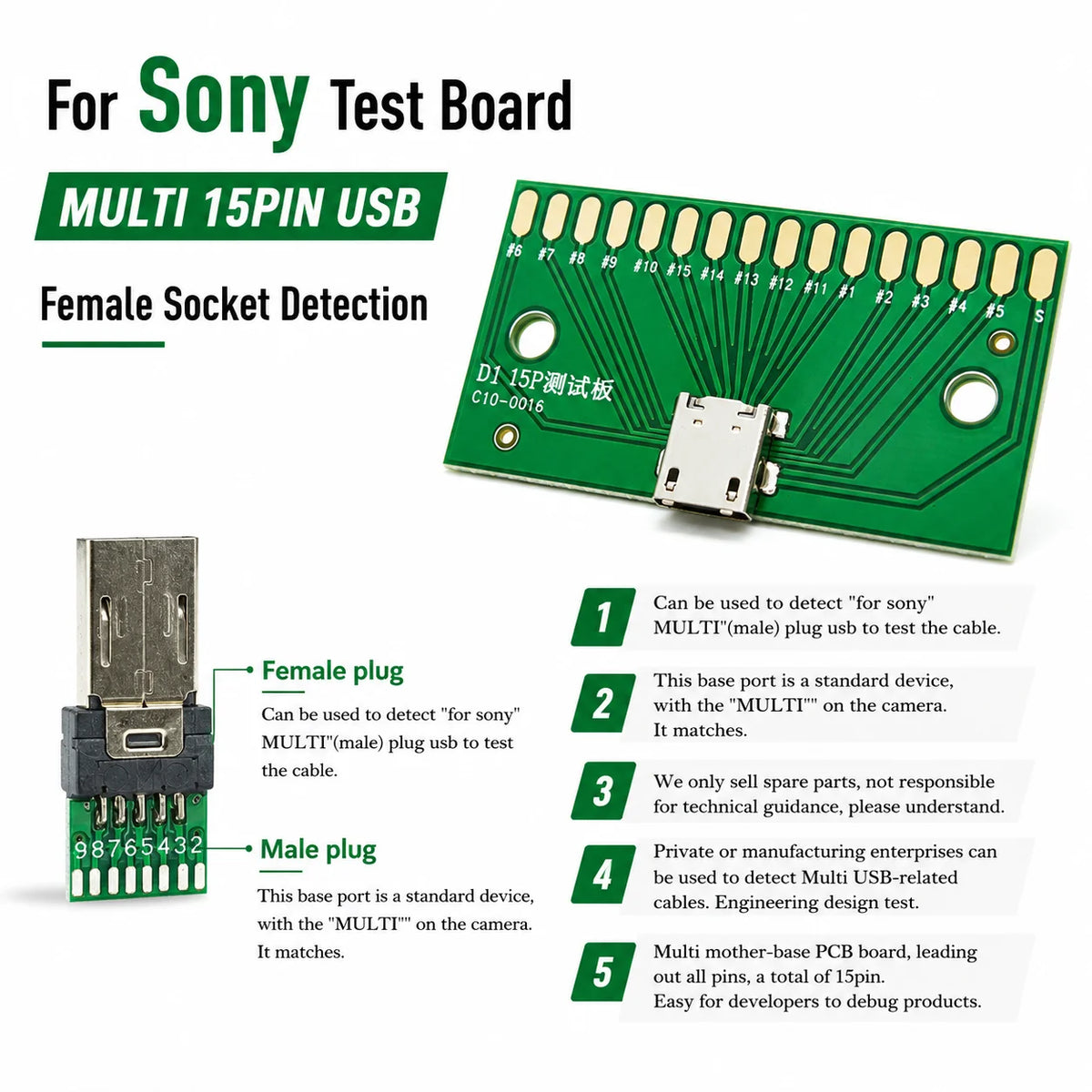

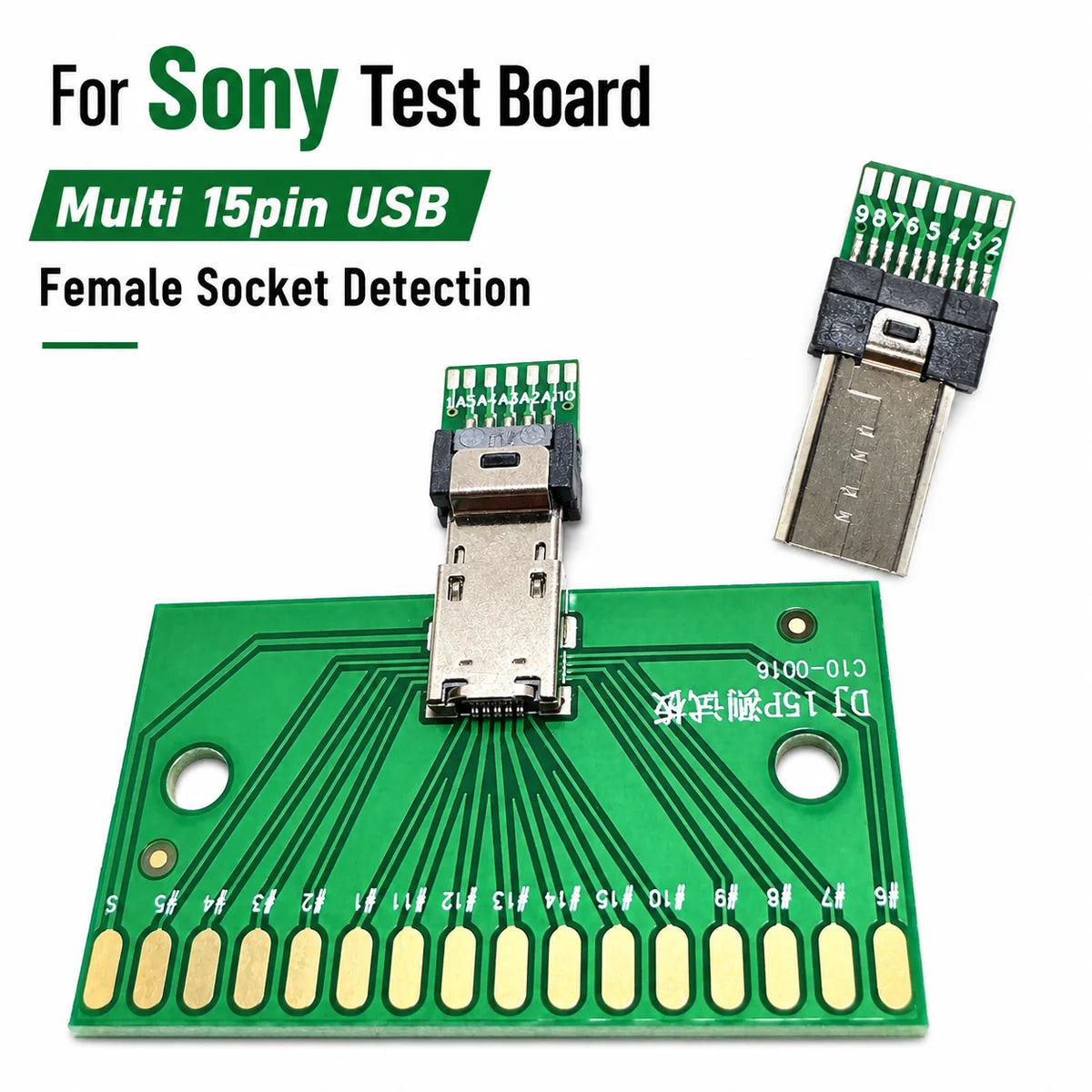

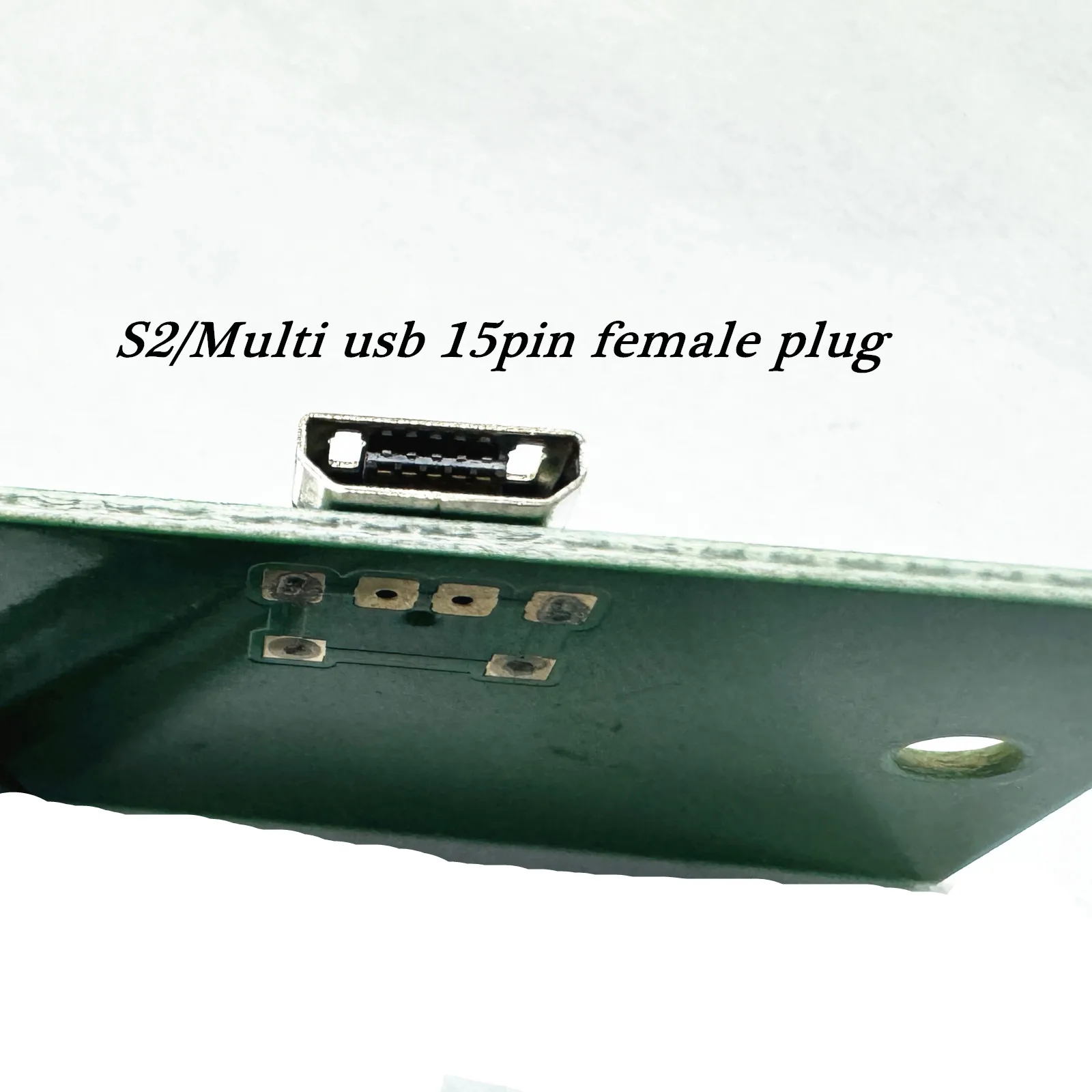

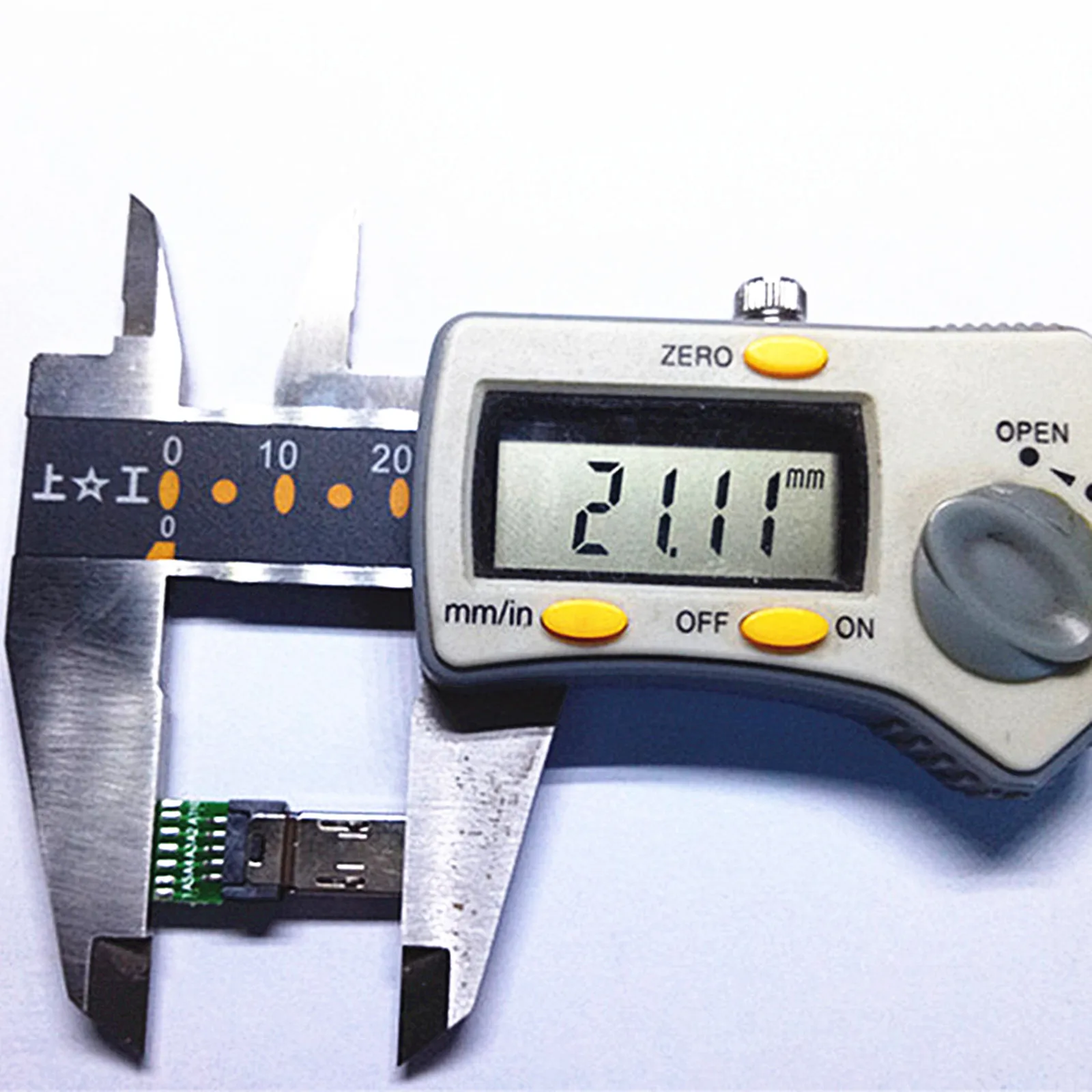

MULTI USB for sony camera plug test board 15pin female terminal is suitable for testing R&D debugging use.

1) Usage; Can be used to test for sony “MULTI” (male) plug usb, test the cable is good or bad.

2) This female port is a standard device, which is compatible with the “MULTI” on the camera.

3) We only sell spare parts, we are not responsible for technical guidance, please understand.

4）Private or manufacturing companies can use it to test Multi usb related cables. For engineering design testing.

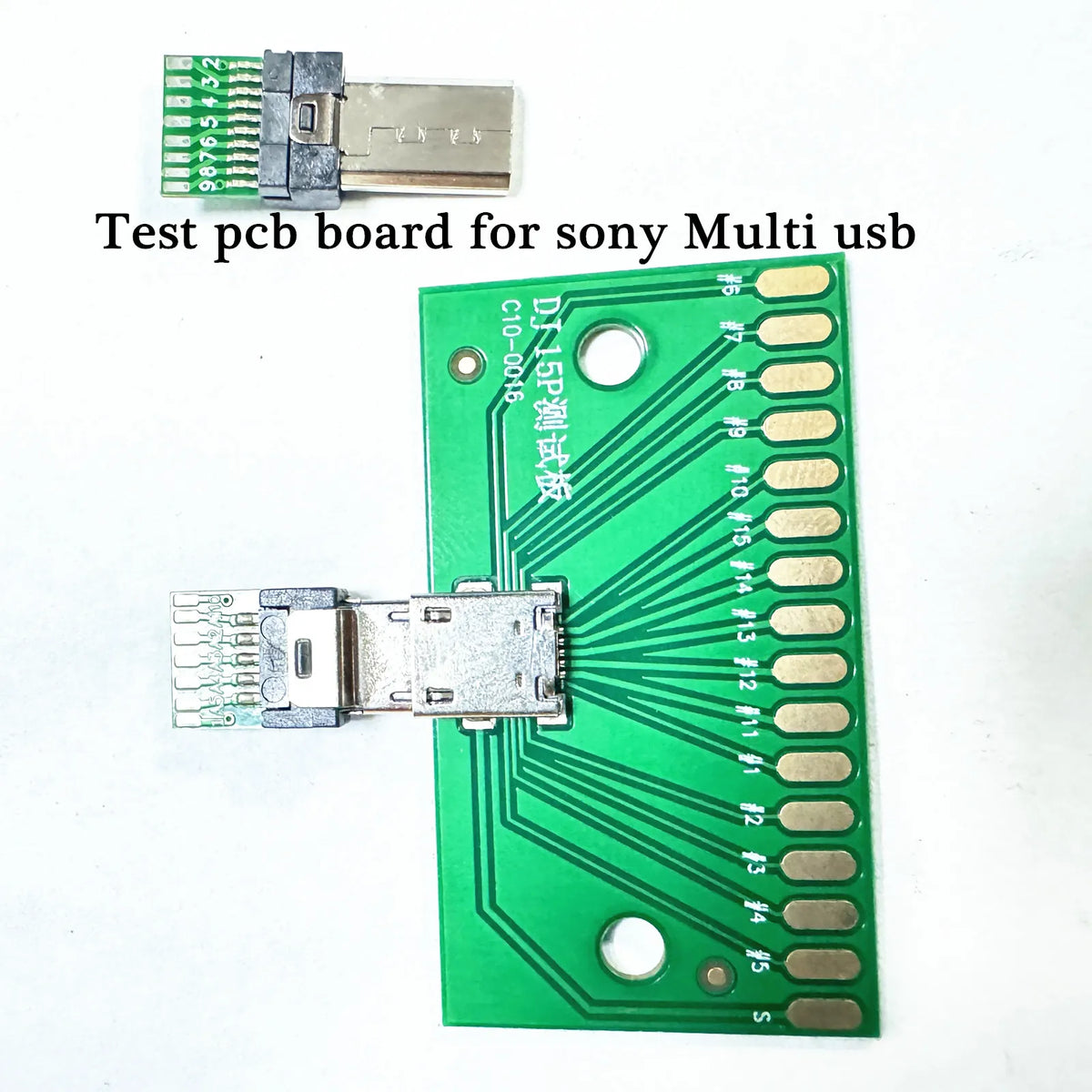

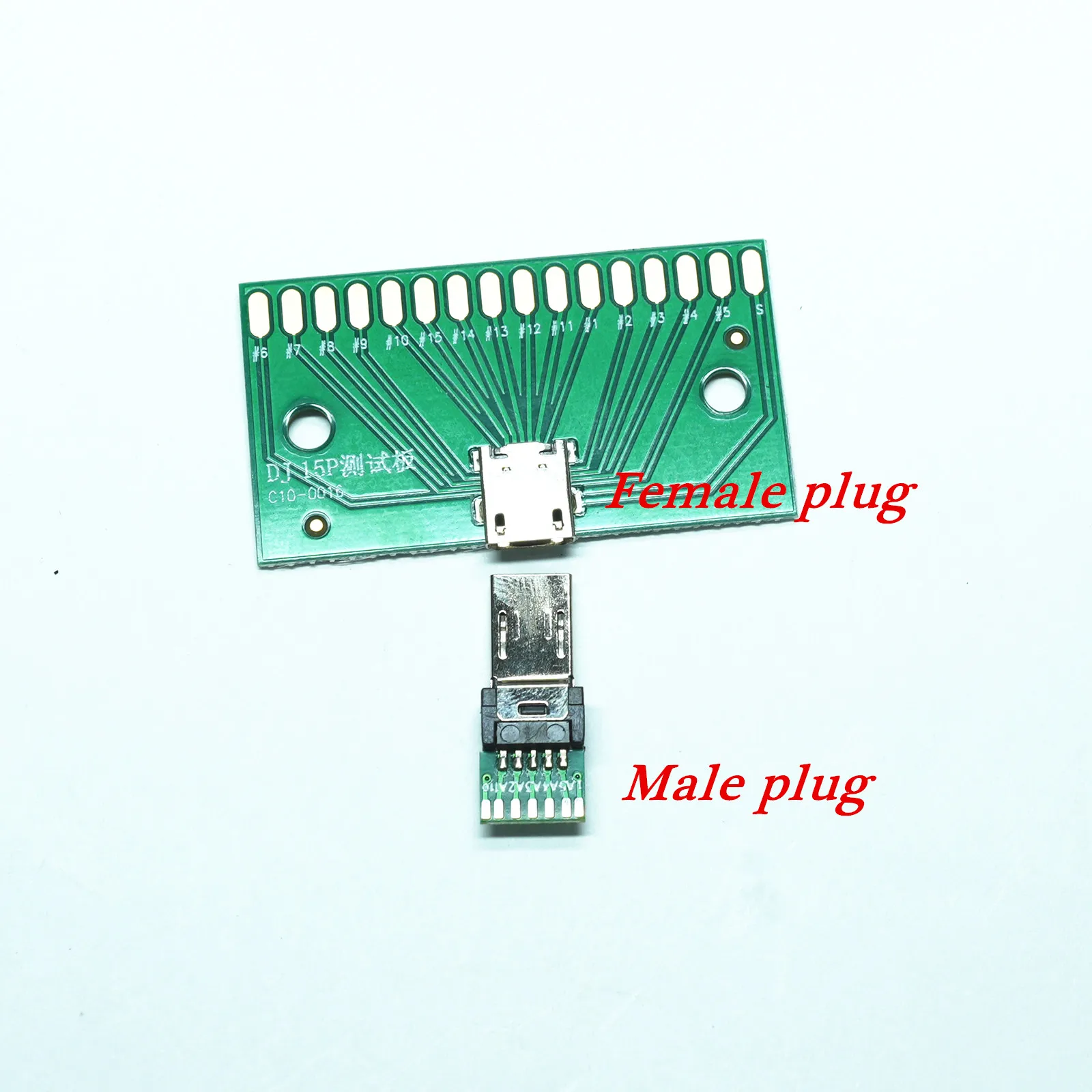

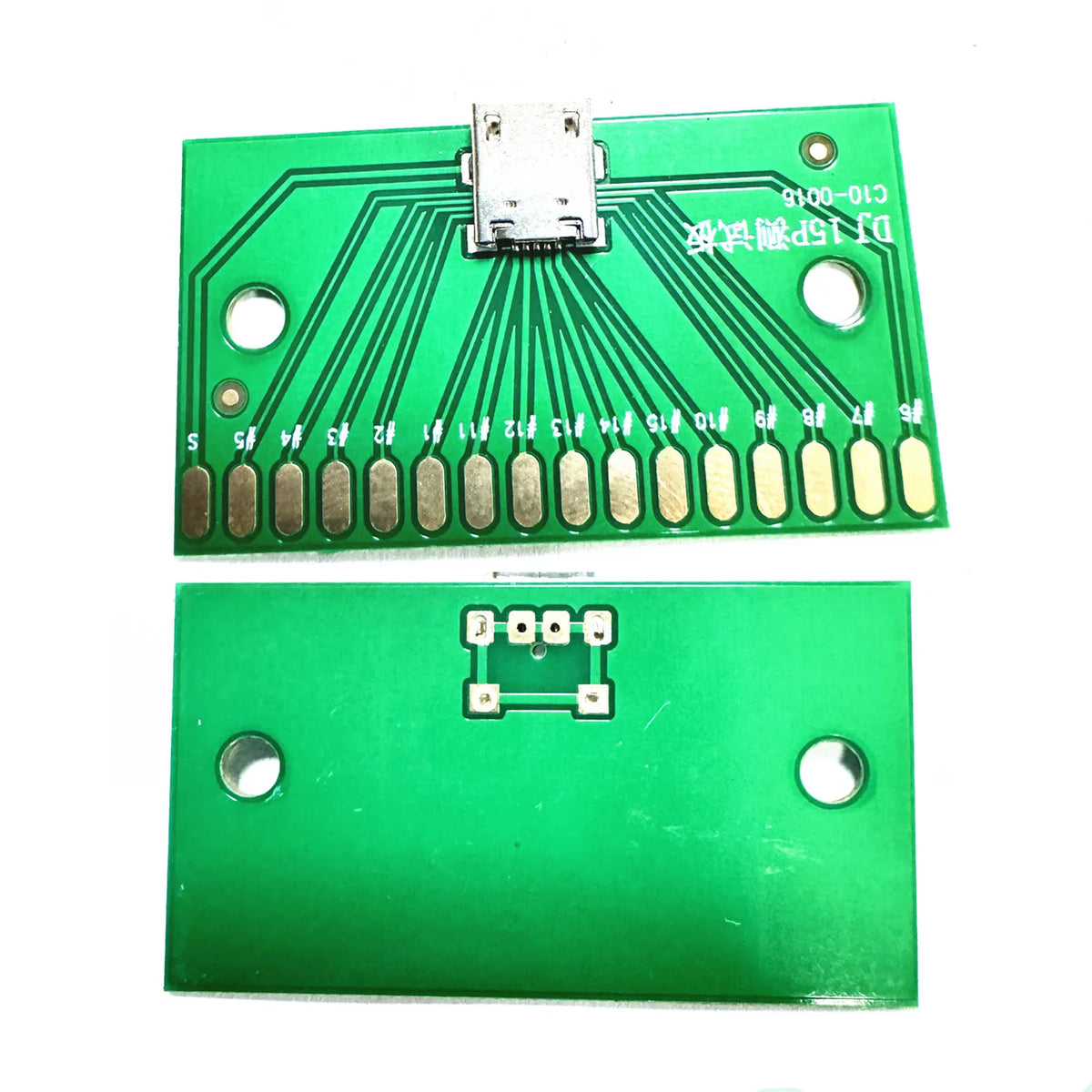

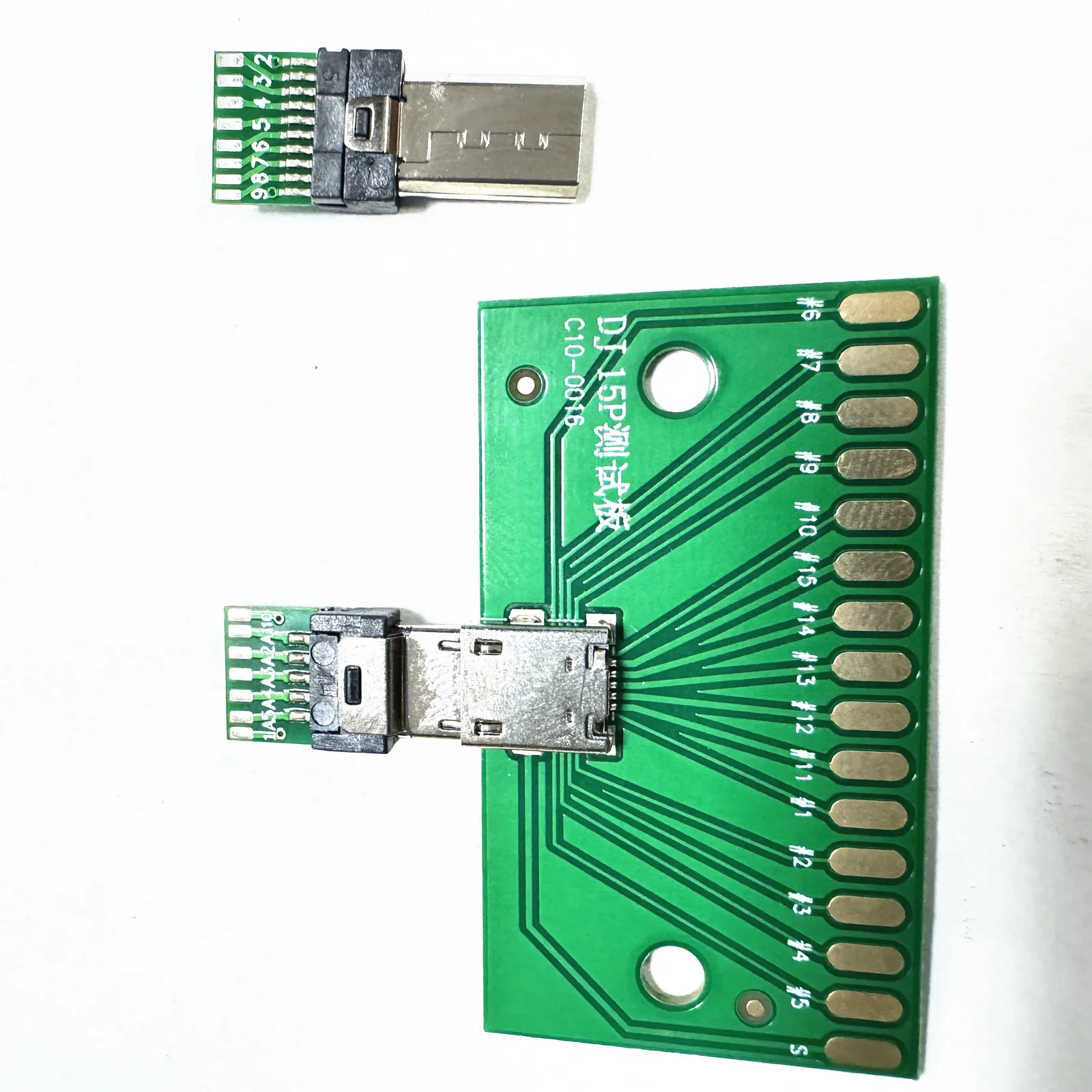

5) Multi female PCB board, lead out all pins, a total of 15pin. convenient for developers to debug the product with.

Pin corresponds to the meaning Pinout chart of our Sony Multi Port Connector or We sell Sony Multi Terminal Connector. Pinout diagram is the way of labeling our Sony Multi Port Connector

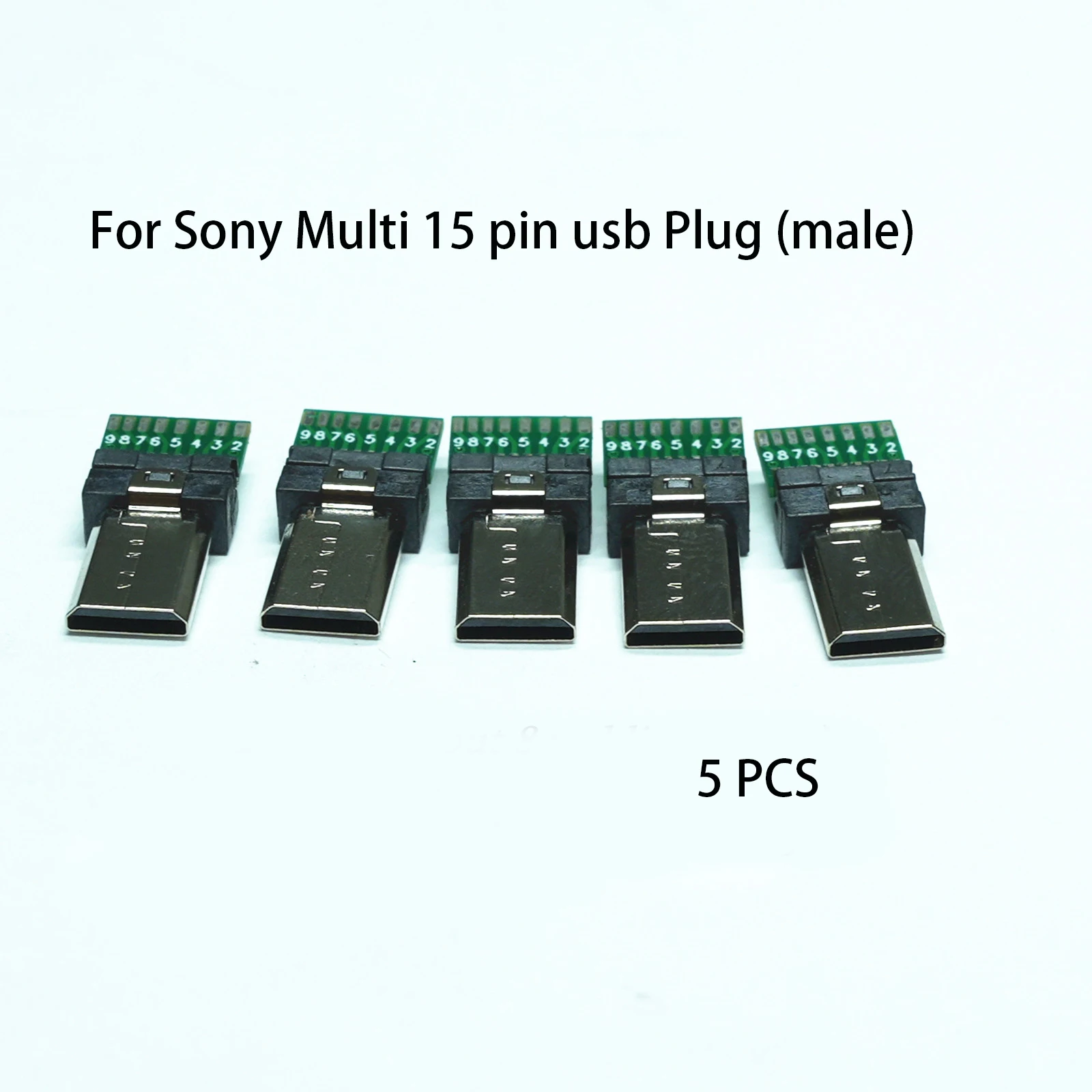

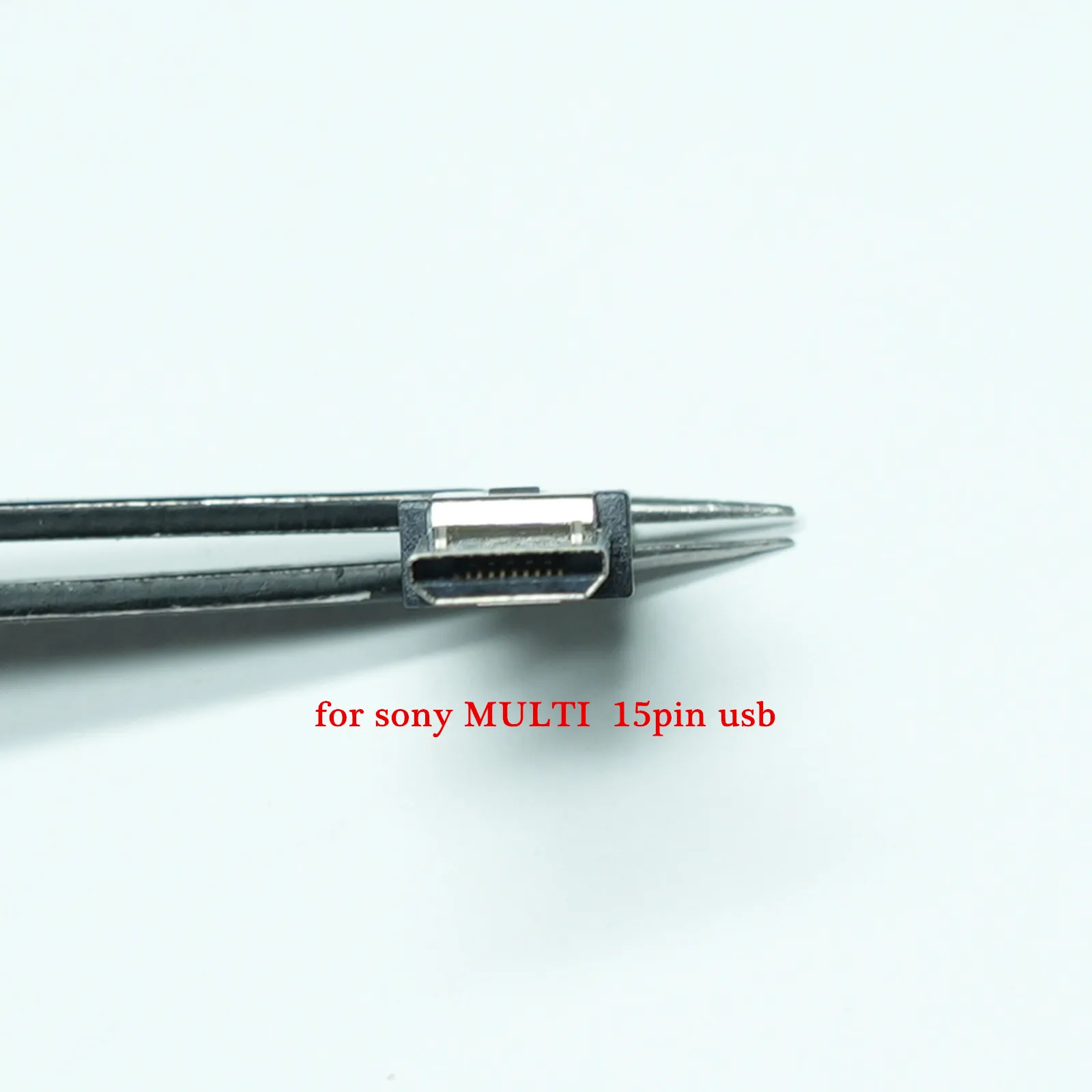

for sony Multi 15 pin usb Plug (male)

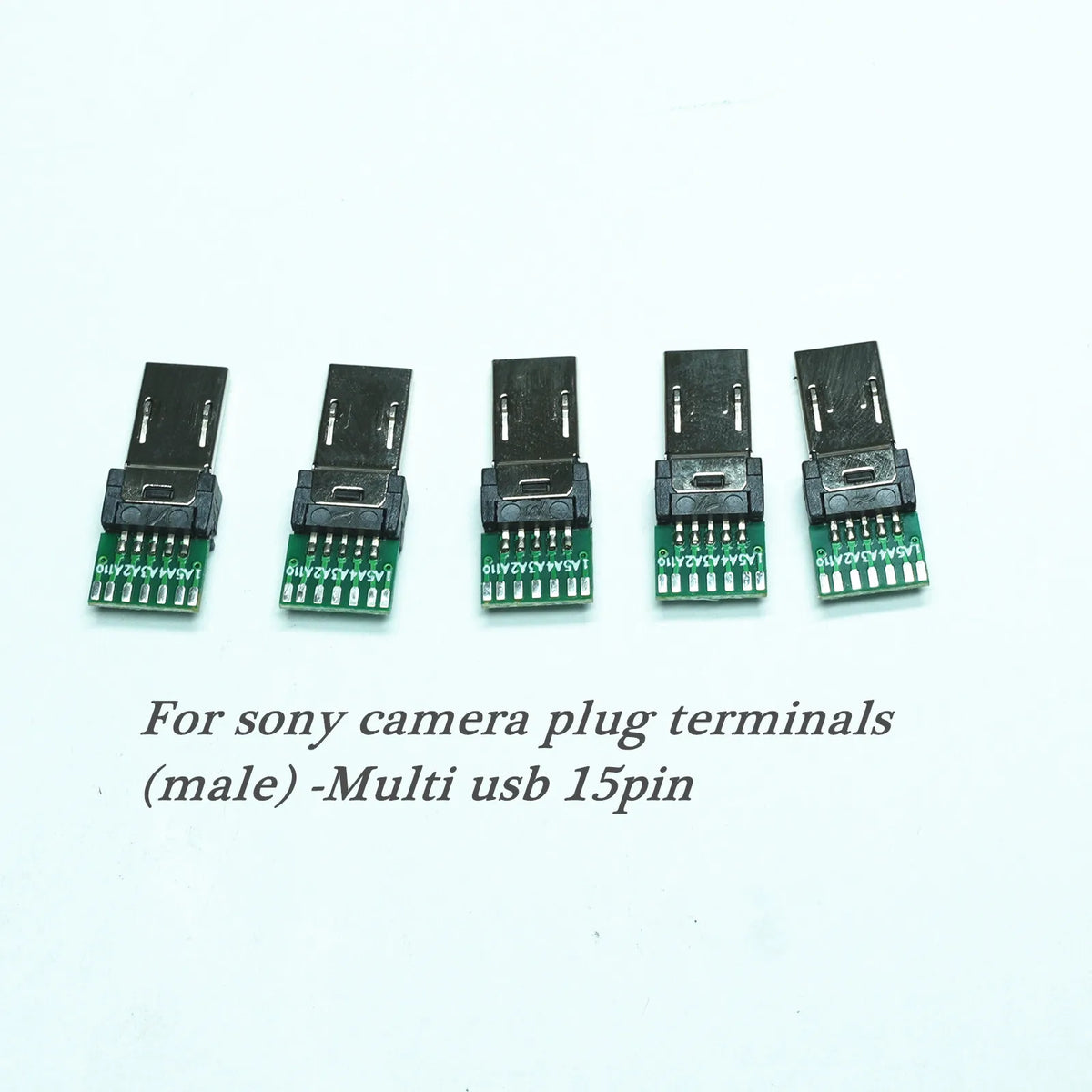

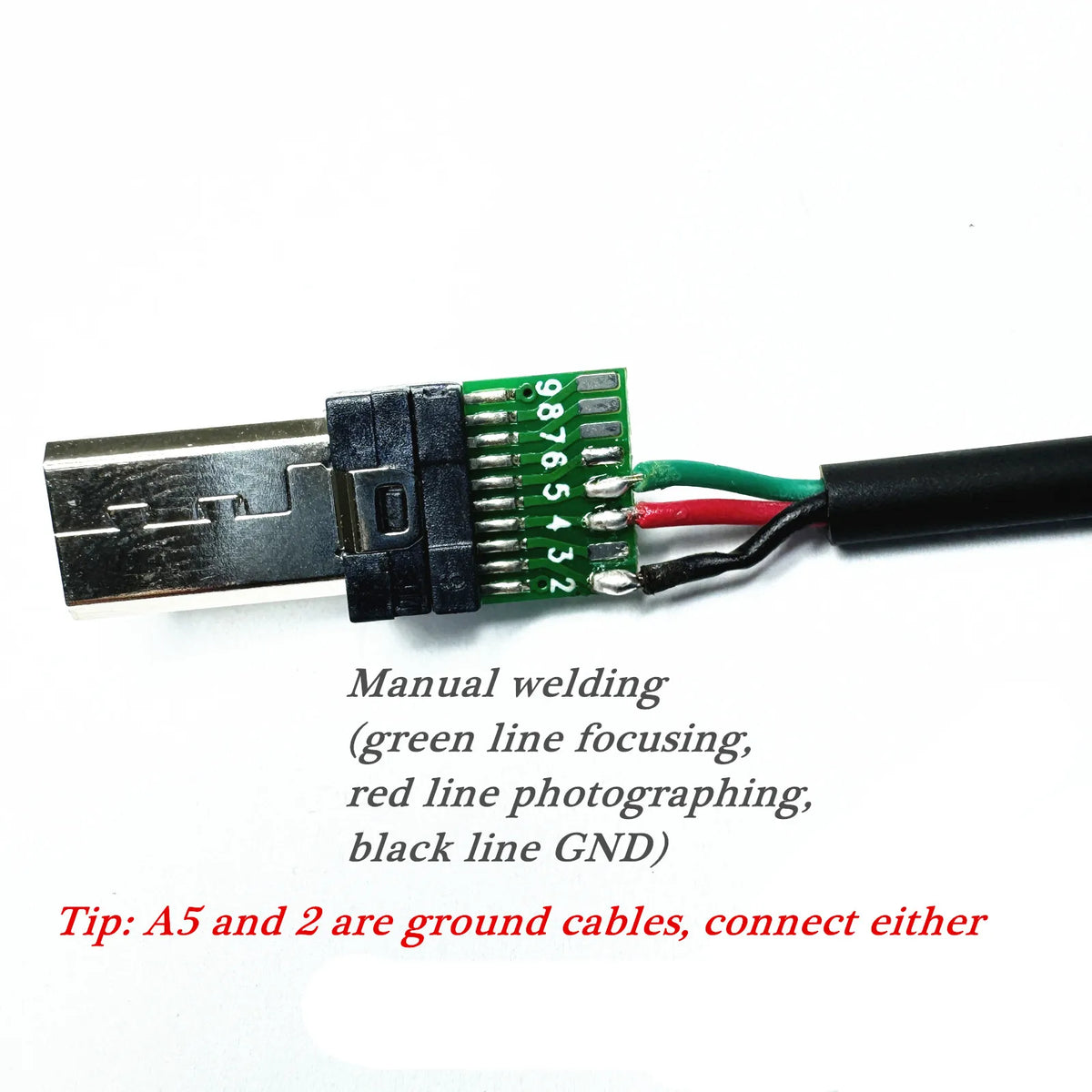

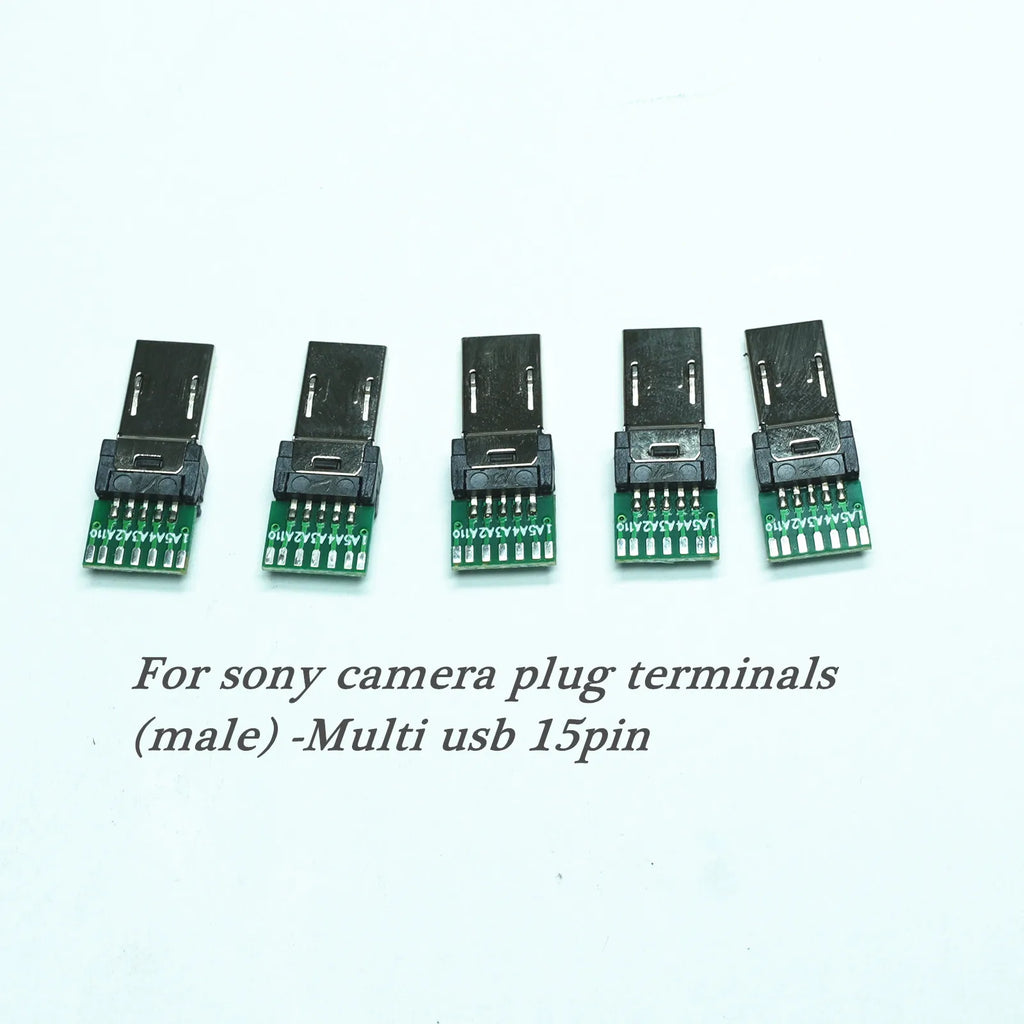

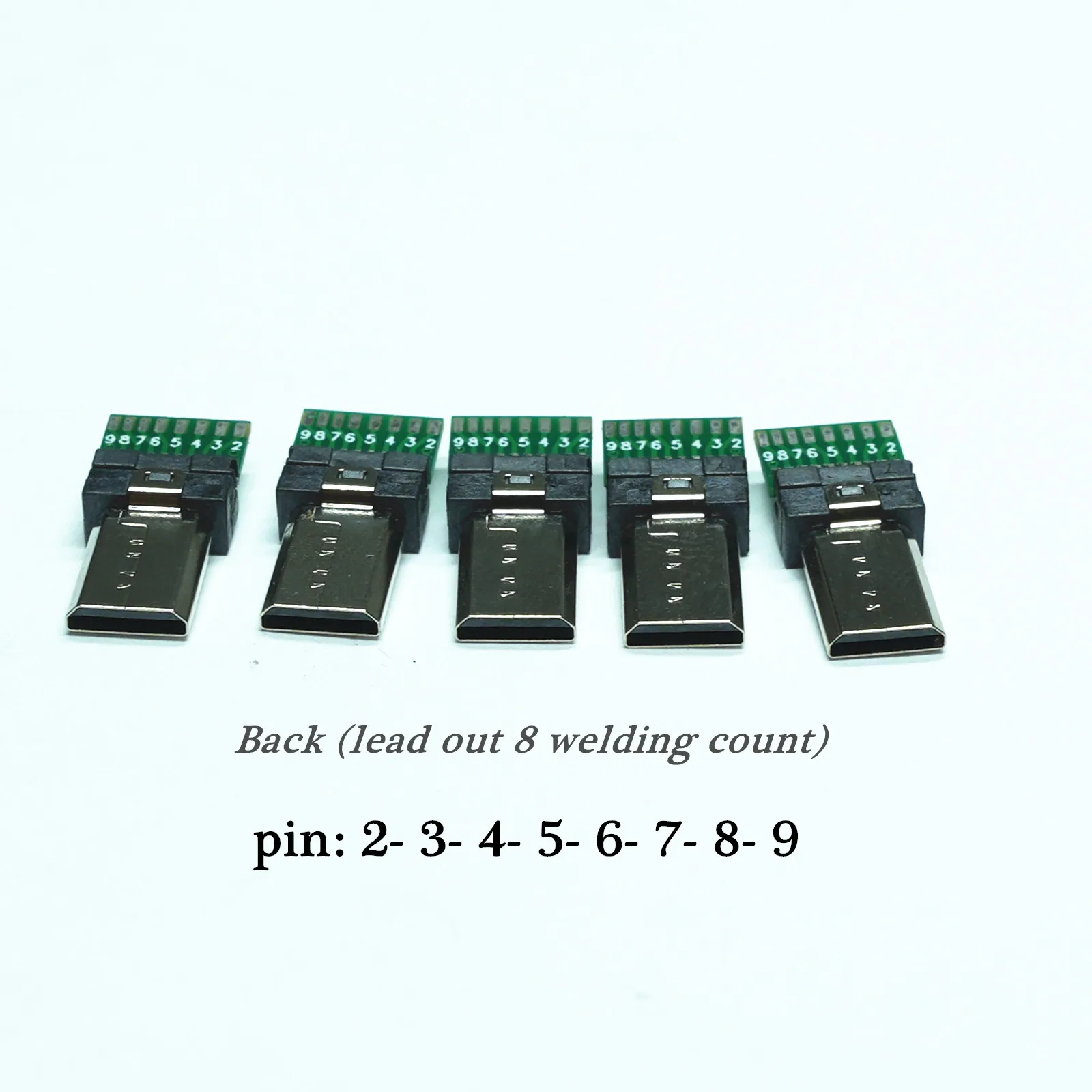

S2 for sony camera male plug terminal Multi 15pin usb suitable for DIY handmade shutter, video, charging and other cables.

Packing: 5pcs in a bag.

1) Usage; Can be used to weld the cable by yourself manually, plug it into the camera to control the corresponding function.

For example: shutter release, computer data connection, picture transfer, USB/external power supply to charge the camera and so on.

2) This is a standard device, which is compatible with the “MULTI” port on the camera.

3）We only sell spare parts, we are not responsible for technical guidance, please understand.

4) This plug fits all Sony cameras with a “MULTI” port on the camera body.

5) Since the camera itself has an internal current limiting protection on the port, a short circuit on each pin will not damage the camera.

6) If an external power supply is required for the camera, the voltage must be kept within DC 5V.

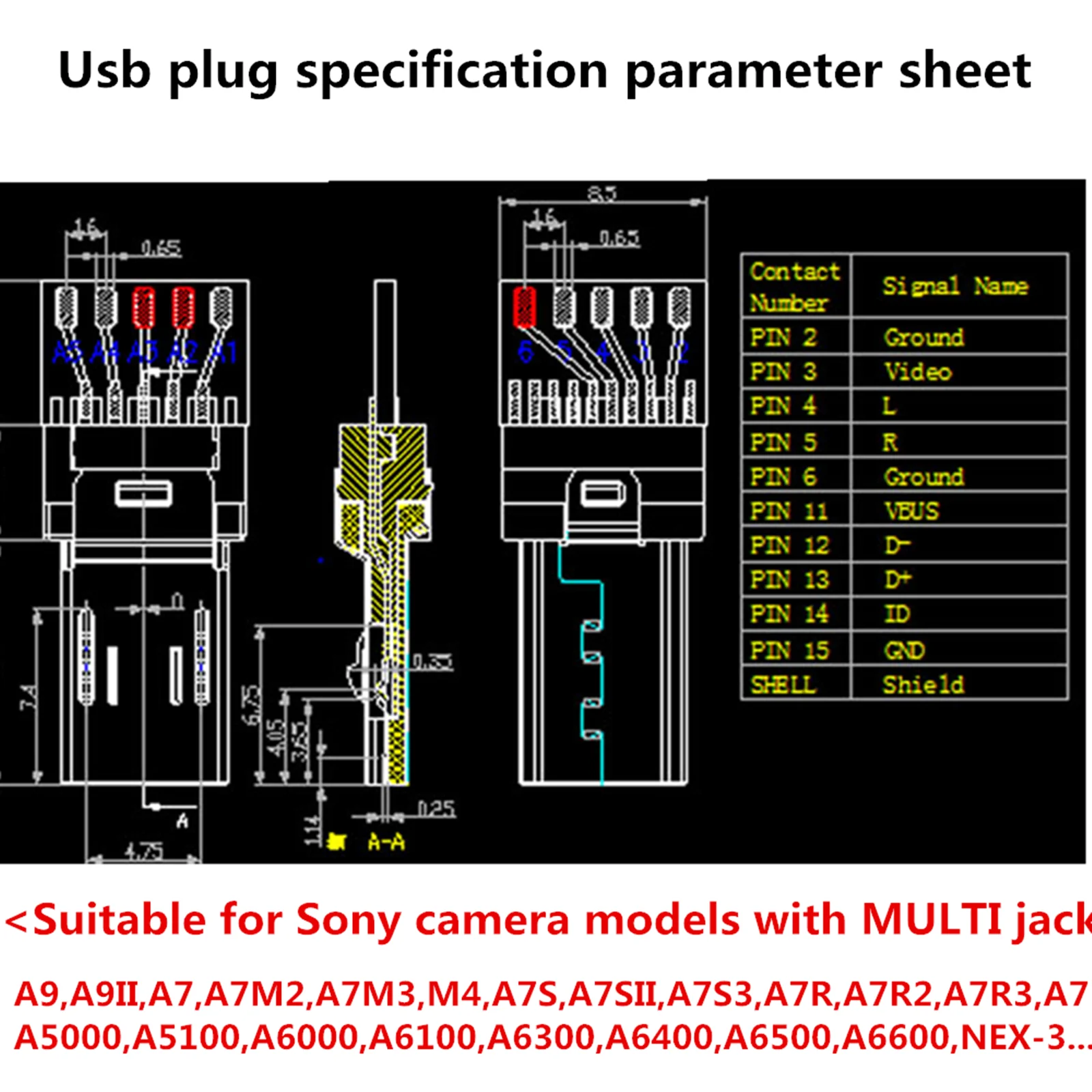

Meaning of Pin Correspondence The pinout diagrams are for our Sony Multi-Port Connector or the Sony Multi-Terminal Connector we sell. The pin-out diagram is the way our Sony multi-port connectors are labeled

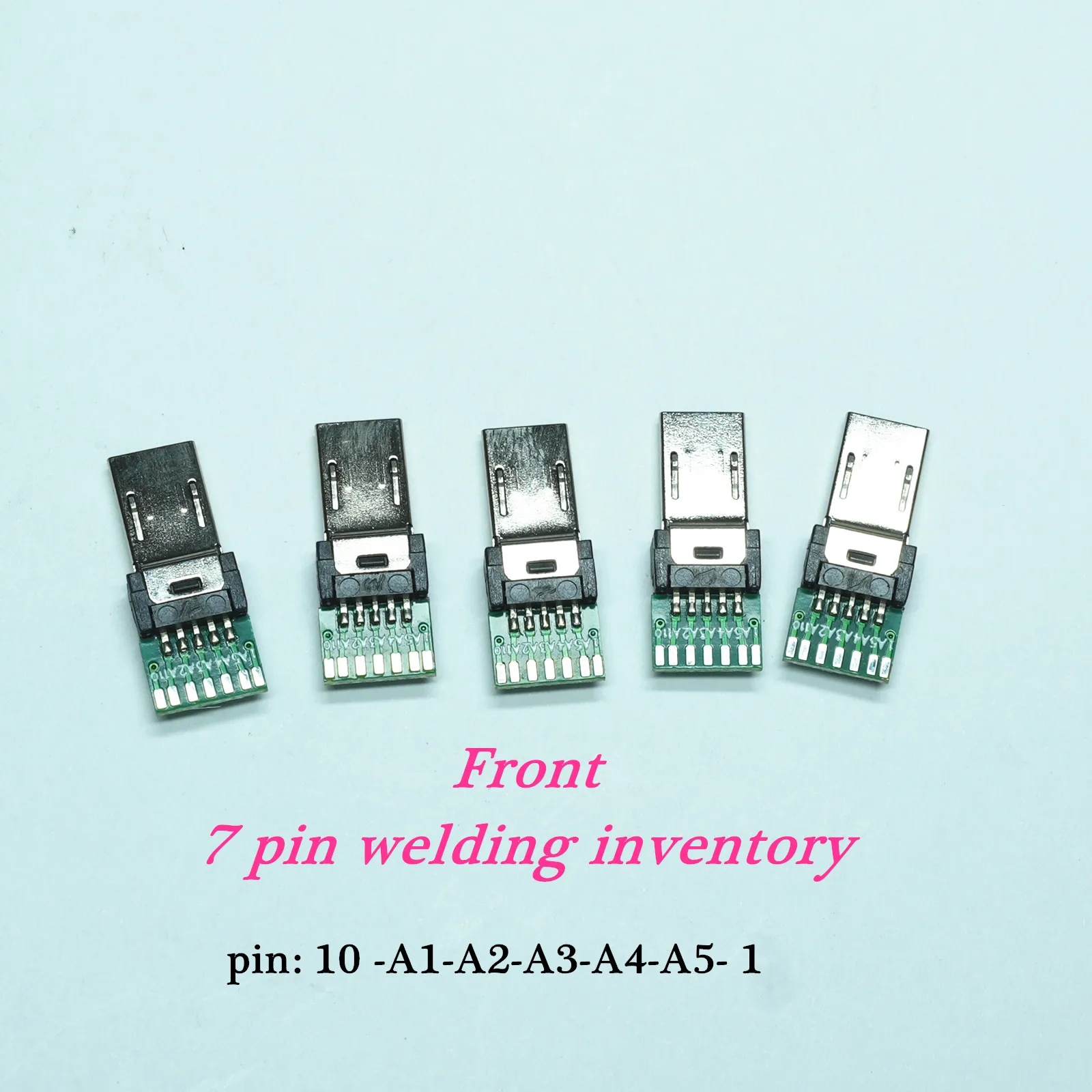

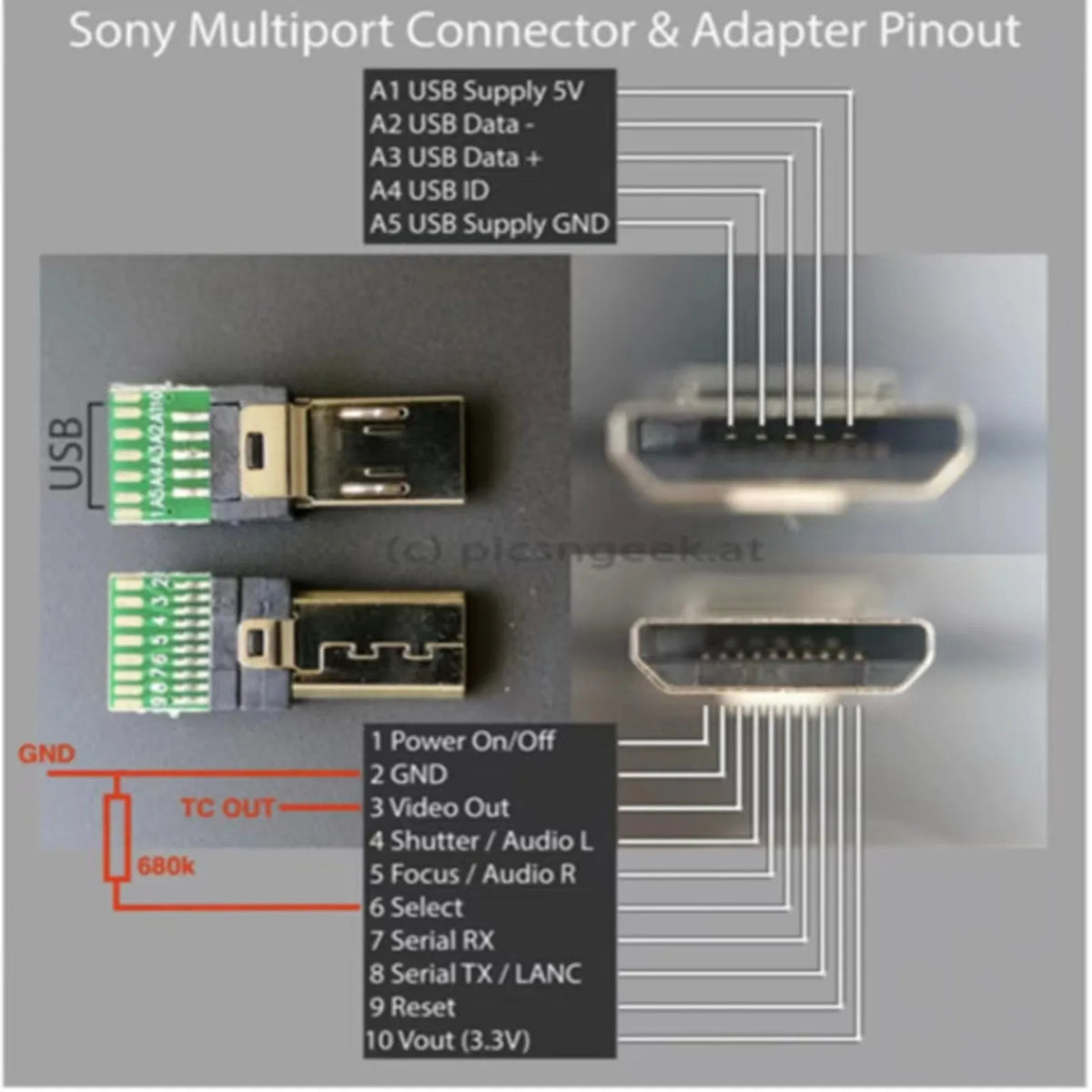

MULTI USB 15PIN Pin Meaning :

A1-VBUS(5 volt,max 2A)

A2-USB D-1

A3-USB D+1

A4-USB ID

A5-Ground

1-Power On /Off-Short to Ground to toggle between Power On or Off.

2-Ground

3-Composite Video Out-Not supported when using a wired remote control unit.

4-Audio Out L/ Shutter Release -Shutter with direct trigger cable.Note: Audio is not supported when using a wired remote control unit.

5-Audio Out R Audio / Activate Camera / Focus-Focus with direct trigger cable. Note: Audio is not supported when using a wired remote control unit.
