SPECIFICATIONS

Brand Name: NONE

Display: HD-MI, VGA/DP, LVDS/eDP

High-concerned chemical: none

I/O: 4*USB 3.0 ;1*Line out ,1*Mic in;1*RJ45; 1*DB9 RS232 interface

Material: BAMBOO

Memory: 2x DDR4 SO-DIMM , up to 64GB

Network: 2*Intel I226 network cards

Operating System: Win11, Wins10, Ubuntu

Origin: Mainland China

Power Supply: DC12-19V, 90W

Product Name: mini itx motherboard

Storage: 1 M.2 2280 (SATA & NVMe adaptive),1 SATA Gen3 port

Type: Furniture non-hardware parts

application: Desktop

cpu type: Core I7/Core I5/Core I3

form factor: Mini-ITX Motherboard

graphics card type: Integrated

hard drive interface: SATA

item condition: New

maximum ram capacity: 64 GB

memory bank: 2 DDR4 DIMM

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: Wi-Fi, SATA, VGA , USB 2.0, Ethernet, M.2

private mold: Yes

products status: New

socket type: Other

with cpu: Yes

Our store supports customization and wholesale. If you want to learn more about product models or prices, please contact Liss! Add my WhatsApp:+8619074926013 (available 24 hours)


Products Description

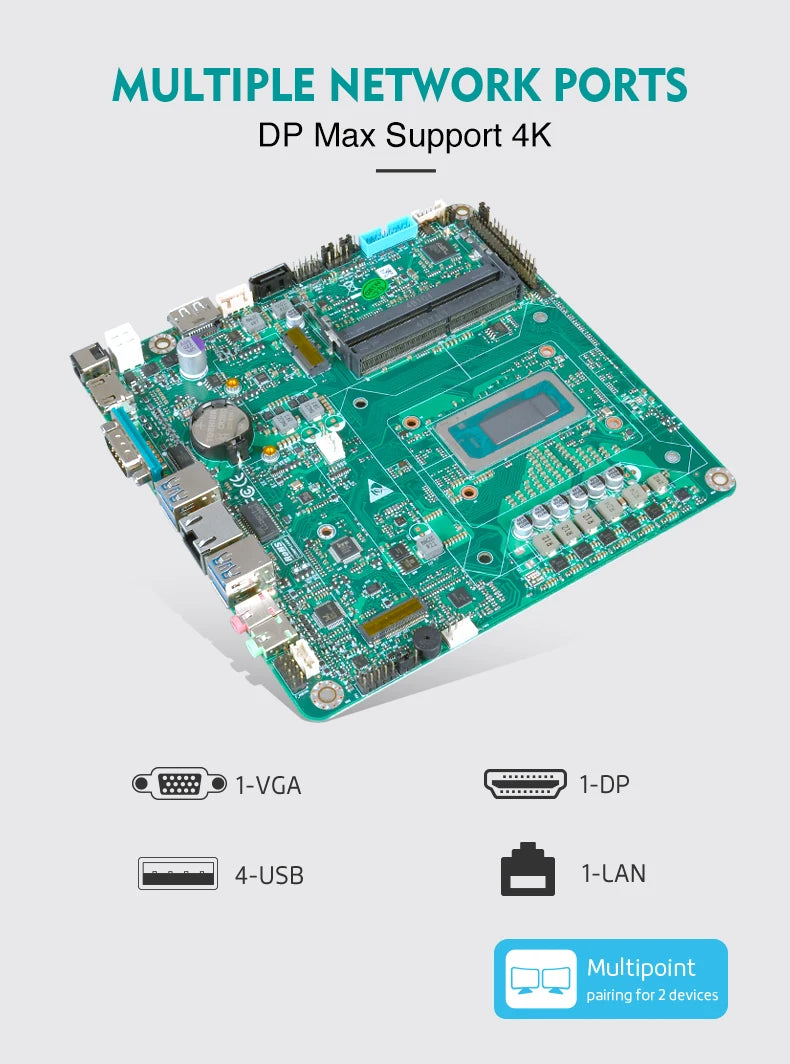

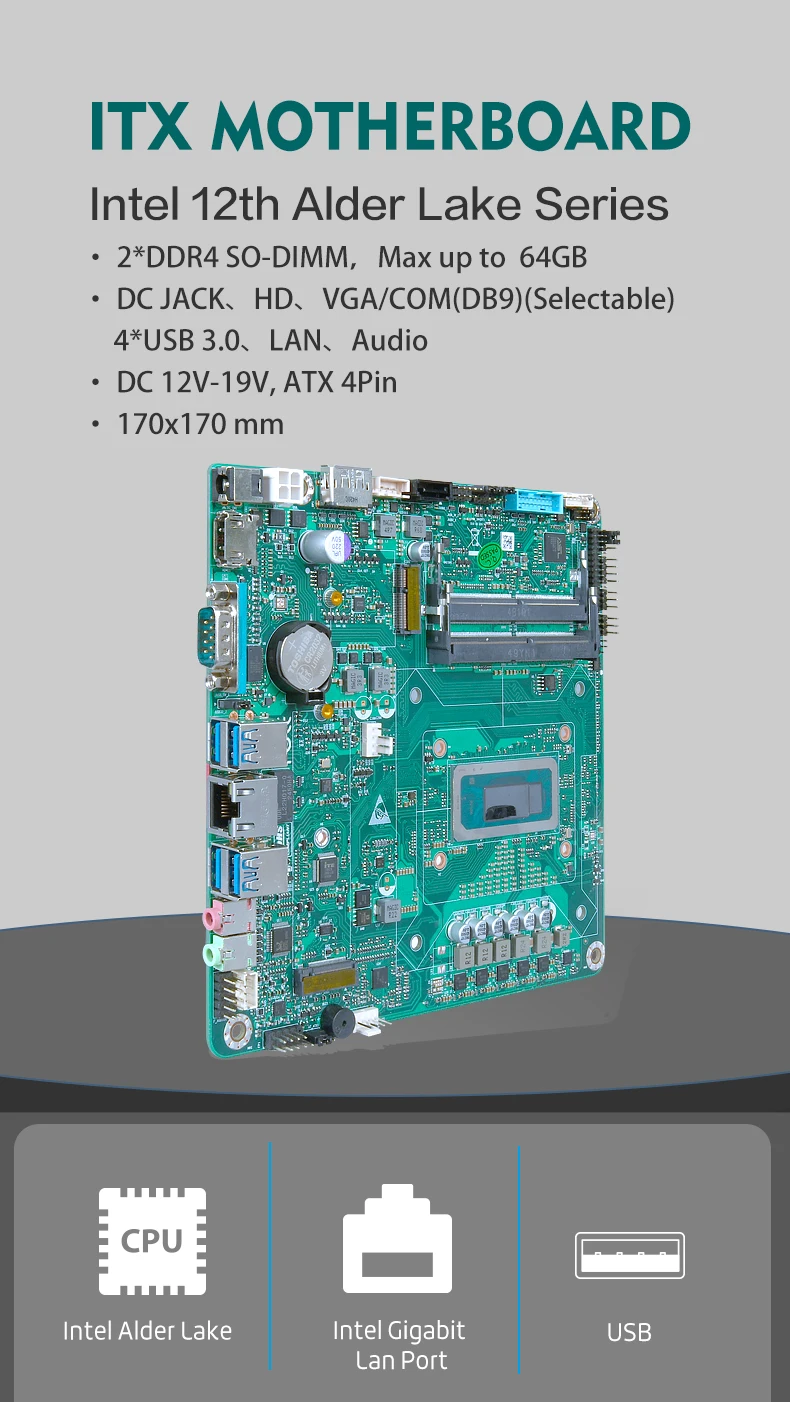

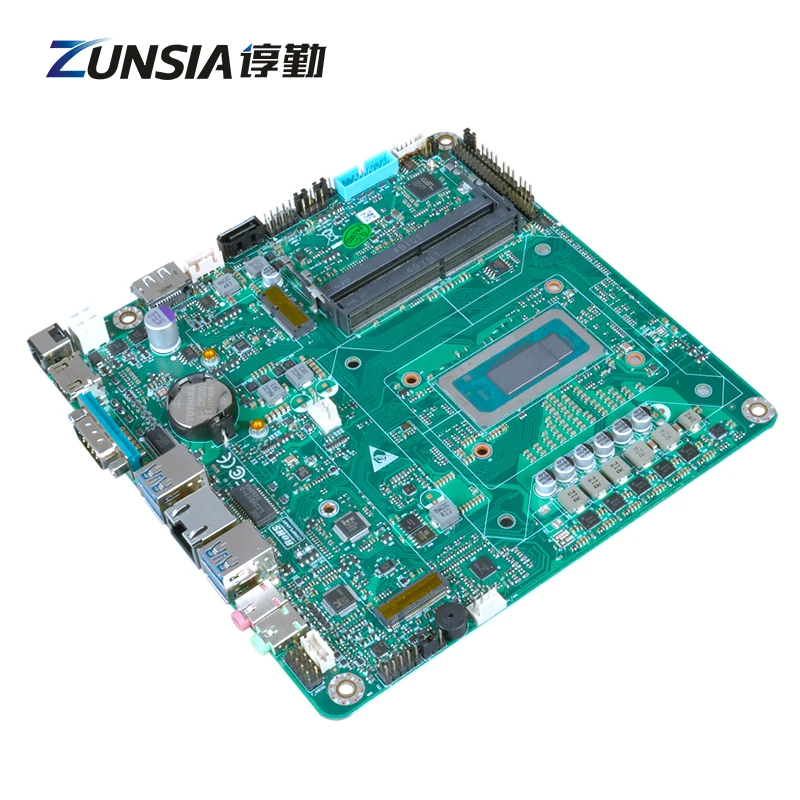

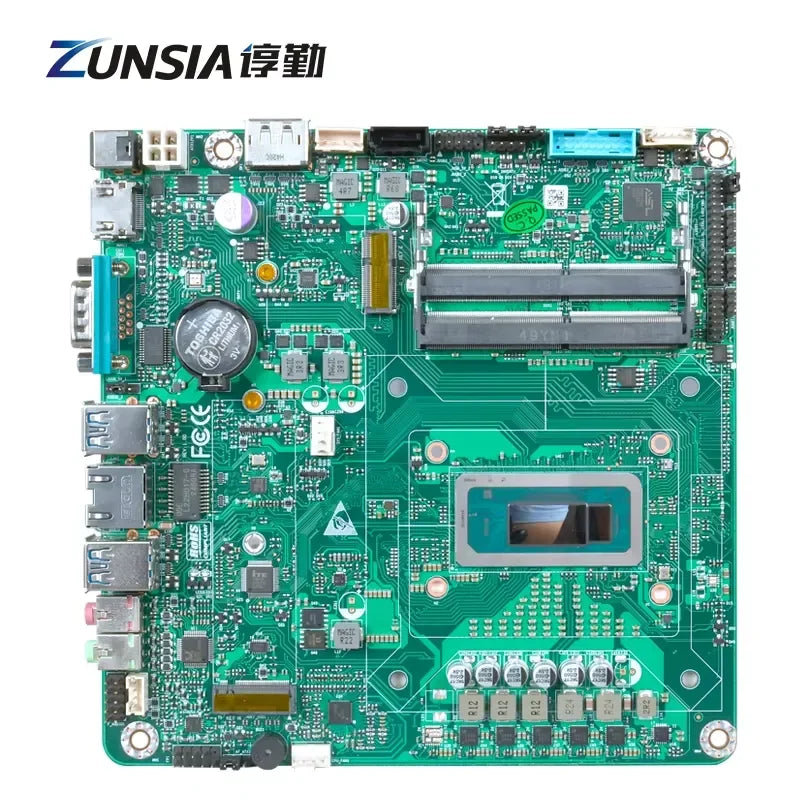

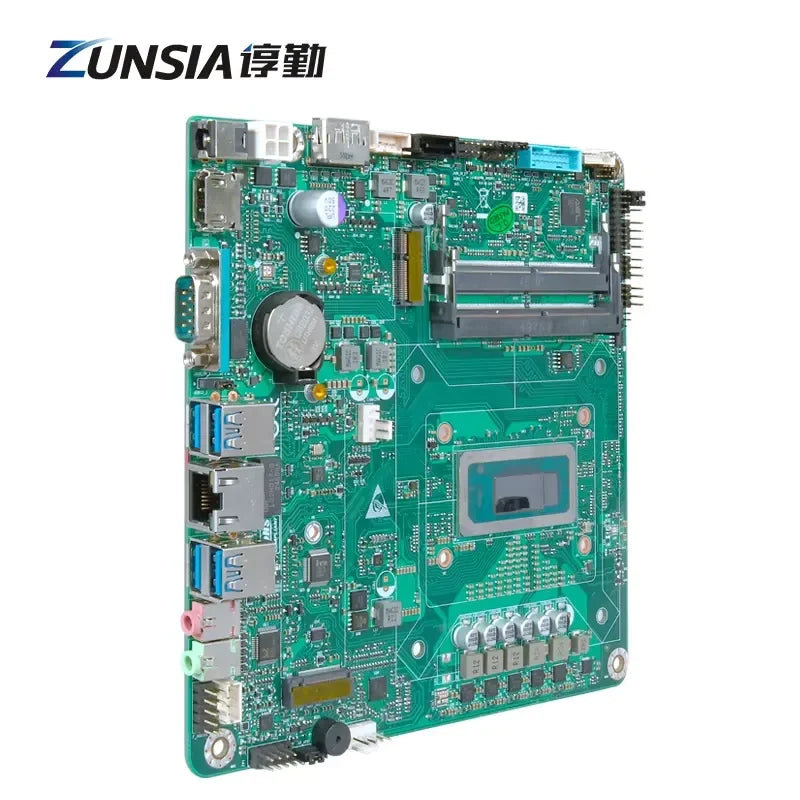

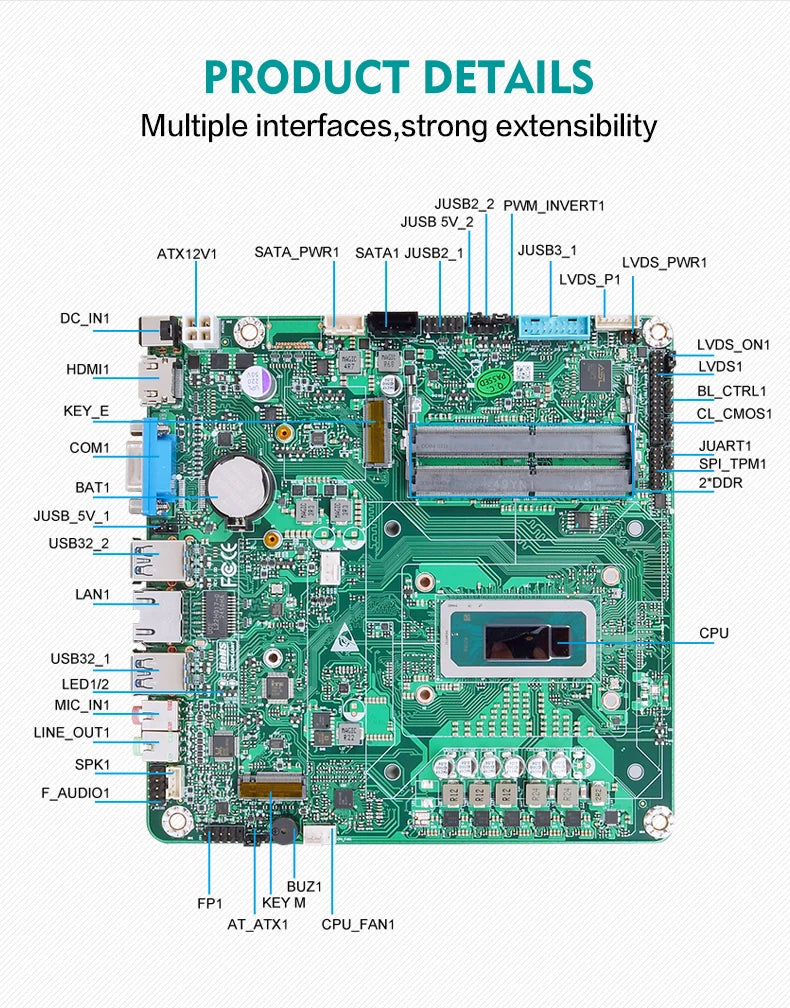

Mini ITX Motherboard

* Processor: Alder Lake series

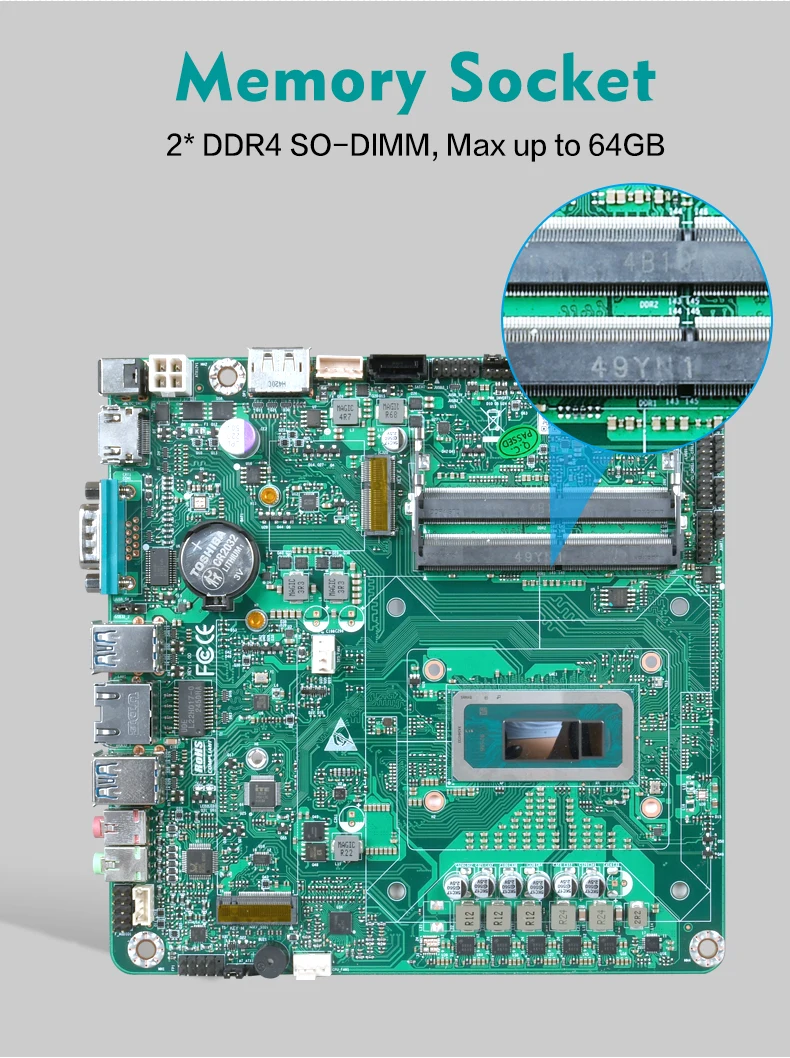

* Memory: 2 x DDR4 SO-DIMM, up to 64GB
* Hard Drive: 1 x M.2 2280, 1 x SATA
* Interfaces: HDMI, VGA/DP, LVDS/eDP
* Power Supply: DC 12V-19V, ATX 4-pin
* Dimensions: 170x170mm

Processor	Alder Lake series processor, 45W TDP
Memory	2 DDR4 SO-DIMMs, 3200MHz, up to 64GB
Storage	1 M.2 2280 (SATA & NVMe adaptive)
	1 SATA Gen3 port (4-pin 2.0mm power connector)
Display	1 x HDMI 2.0, 4K@60Hz, 1 x VGA/DP 1.4 (4K@60Hz) (choose one)
	24-bit dual-channel LVDS, 1920x1200; eDP, 4K@60Hz (choose one)

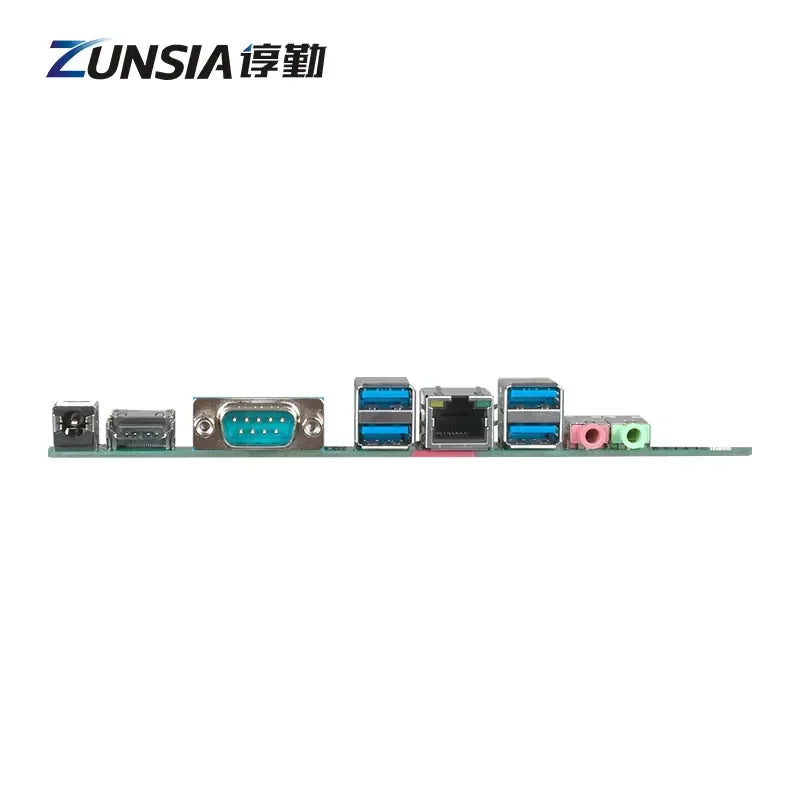

Edge I/O	4*USB 3.0 ；1*Line out 、1*Mic in；1*RJ45
	1*DB9 RS232 interface (optional VGA, co-layout design)
Extended interface functions	1 E-Key M.2 2230 (PCIe+USB 2.0 protocol, supports Wi-Fi/BT/CNVI)
	3 USB 2.0 headers; 1 TPM_SPI header
	1*F_PANEL panel header; 1*F_AUDIO 9-pin header; 1*CLR_CMOS 2-pin header
	1*Speaker (4-pin) header, supports 4Ω 3W
	1*4-pin CPU fan, 1*4-pin SYS fan, 1*2-pin UART; 1*3-pin AT/ATX
Other Features	Supports gravity sensing; automatically switches between landscape and portrait modes.
	Supports LVDS 120Hz display and one-click system restore.
Power Supply	DC 12V-19V, ATX 4-pin power socket
Operating Environment	Operating temperature: -20°C to +60°C; Operating humidity: 5% to 90%
	Storage temperature: -40°C to +85°C; Storage humidity: 5% to 90%
OS Support	WINDOWS 10 / WINDOWS 11 / Ubuntu
Weight	About 150g without radiator, about 250g with radiator
Dimensions	170x170 mm

Product purchasing information

Support OEM & ODM !

Optional categories	Optional configuration	Optional configuration
CPU	Alder Lake series	I5-12450H

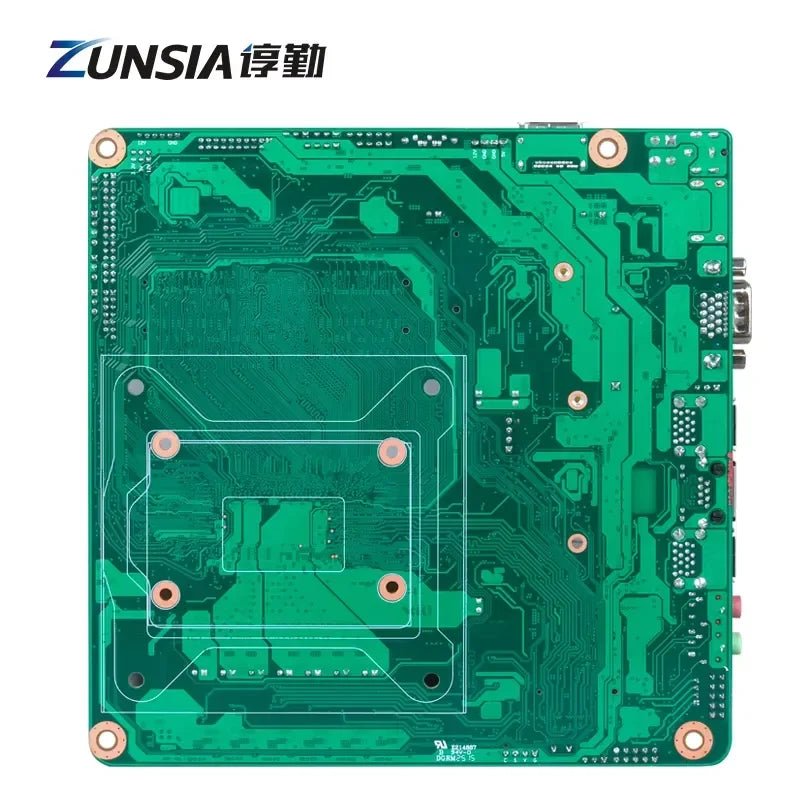

Details Images



Our Services

1.Quality: we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer

Company Profile

Certifications

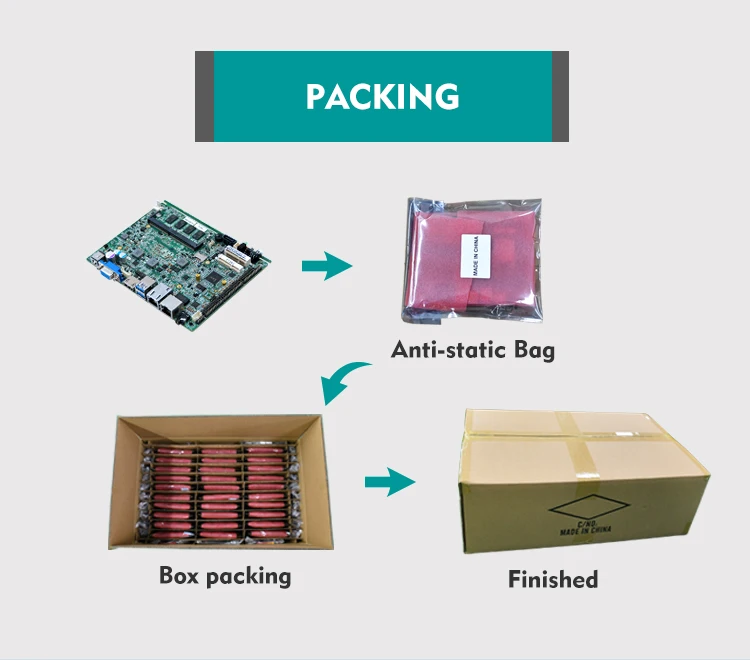

Package&Delivery

Exhibition

FAQ

Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.

Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order;
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
