SPECIFICATIONS

Brand Name: OMDAZZ

Condition: New

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: 5V

Type: Logic ICs

Altera CPLD EPM7128SLC84 Development Board

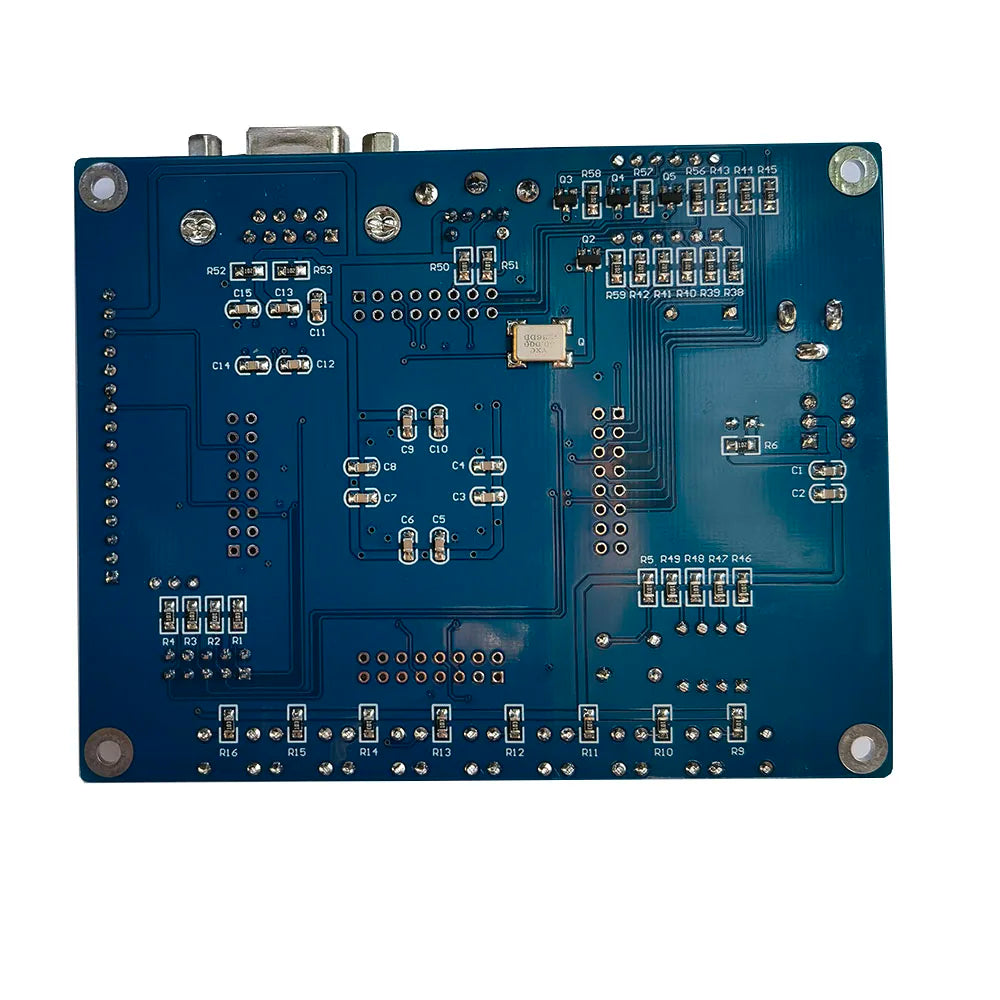

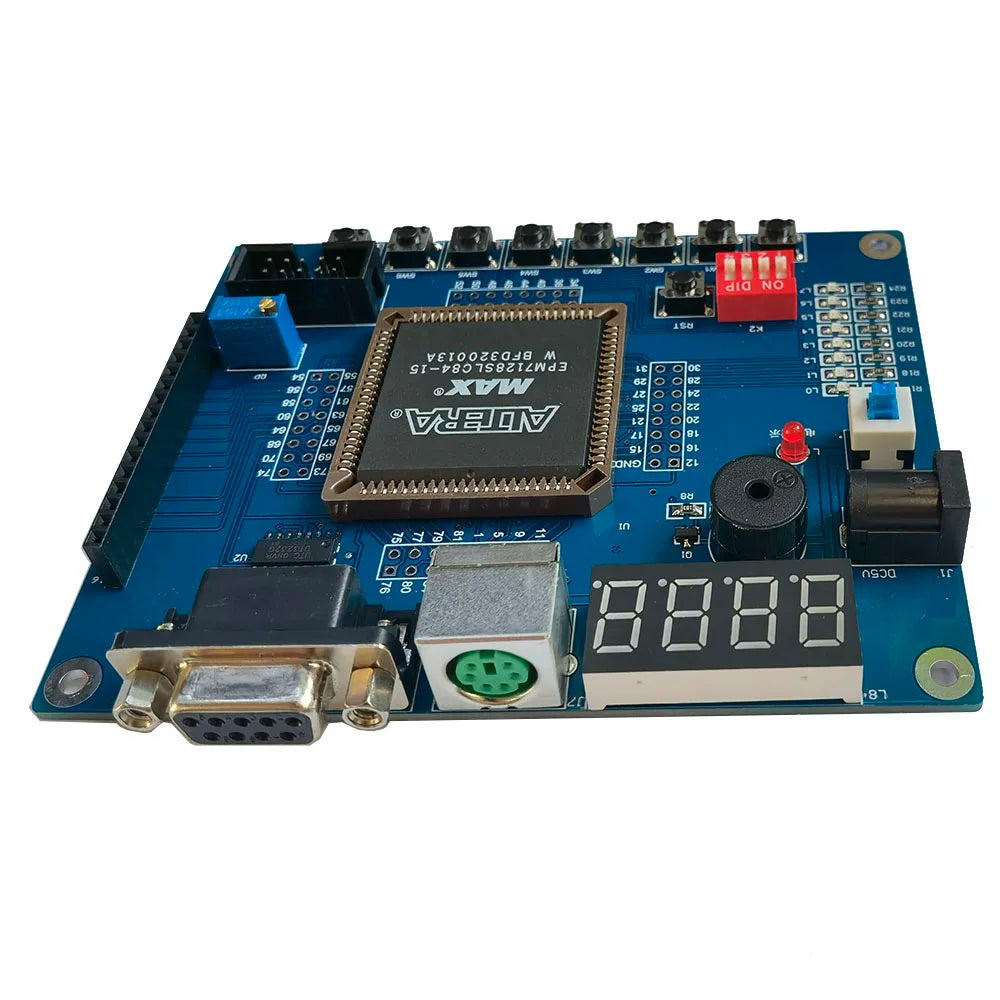

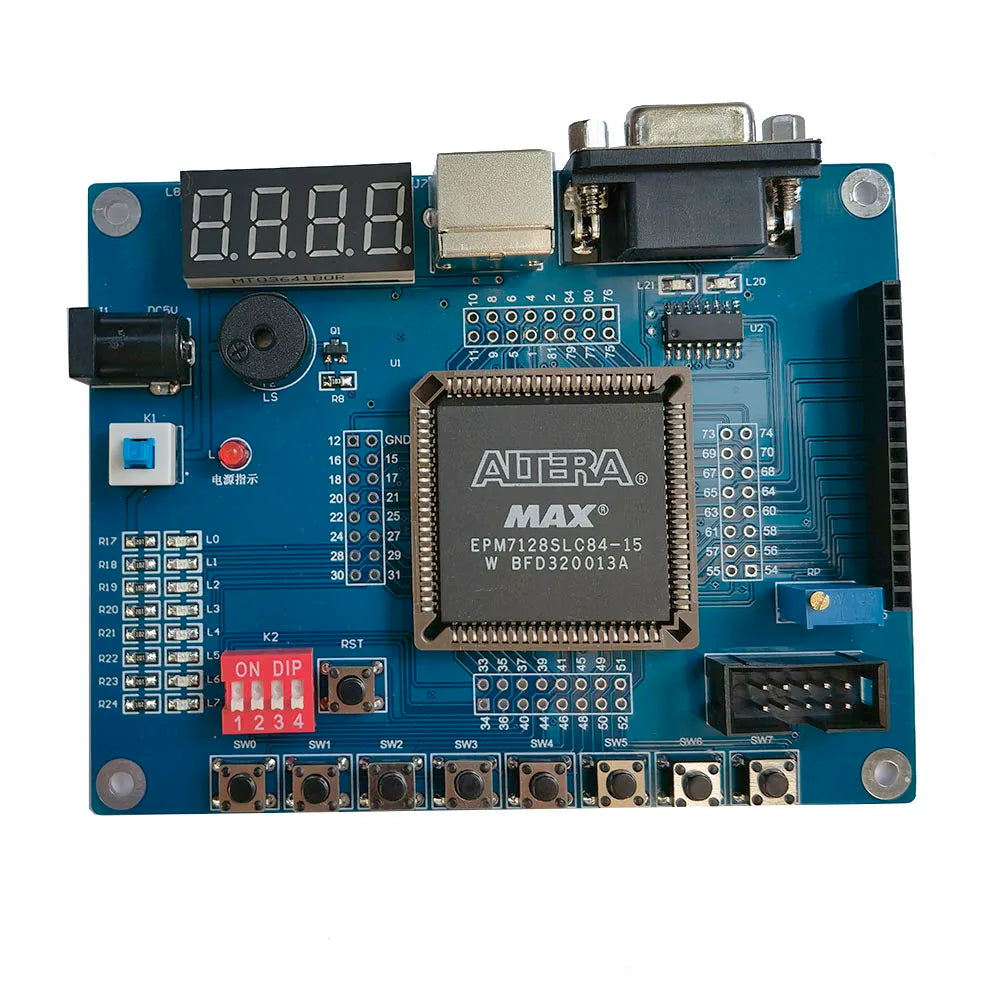

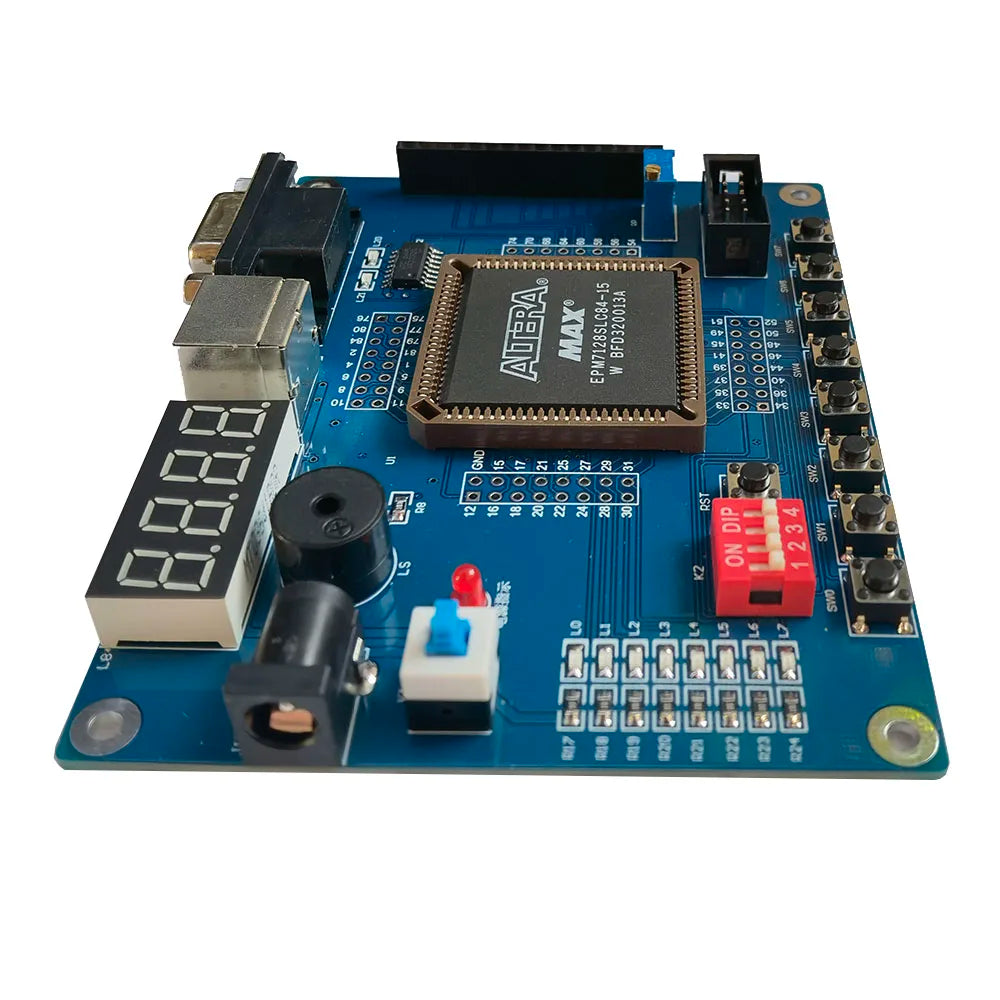

On-board resources:

1. The main chip is Altera CPLD EPM7128SLC84

2. The development board is powered by DC5V±10% power supply, and the no-load current is 0.08 A±10%

3. I/O port output level form: TTL

4. 50MHz active crystal oscillator

5. Global clock GCLK1

6. All the pins of CPLD chip are led out, which is convenient for user input and output

7. Power port: 1 DC 5V power port

8. 1 power switch

9. 1 red power indicator.

10. 1 reset switch

11. 8 independent buttons

12. 4-bit DIP switch

13. 1 JTAG interface, you can download logic programs

14. 8 LED status indicators

15. 4-digit digital tube

16. 1 LCD1602 interface (5V)

17. 1 buzzer

18. 1 PS/2 interface

19. 1 serial port

20. All I/O ports are led out, which is convenient for users to carry out secondary development

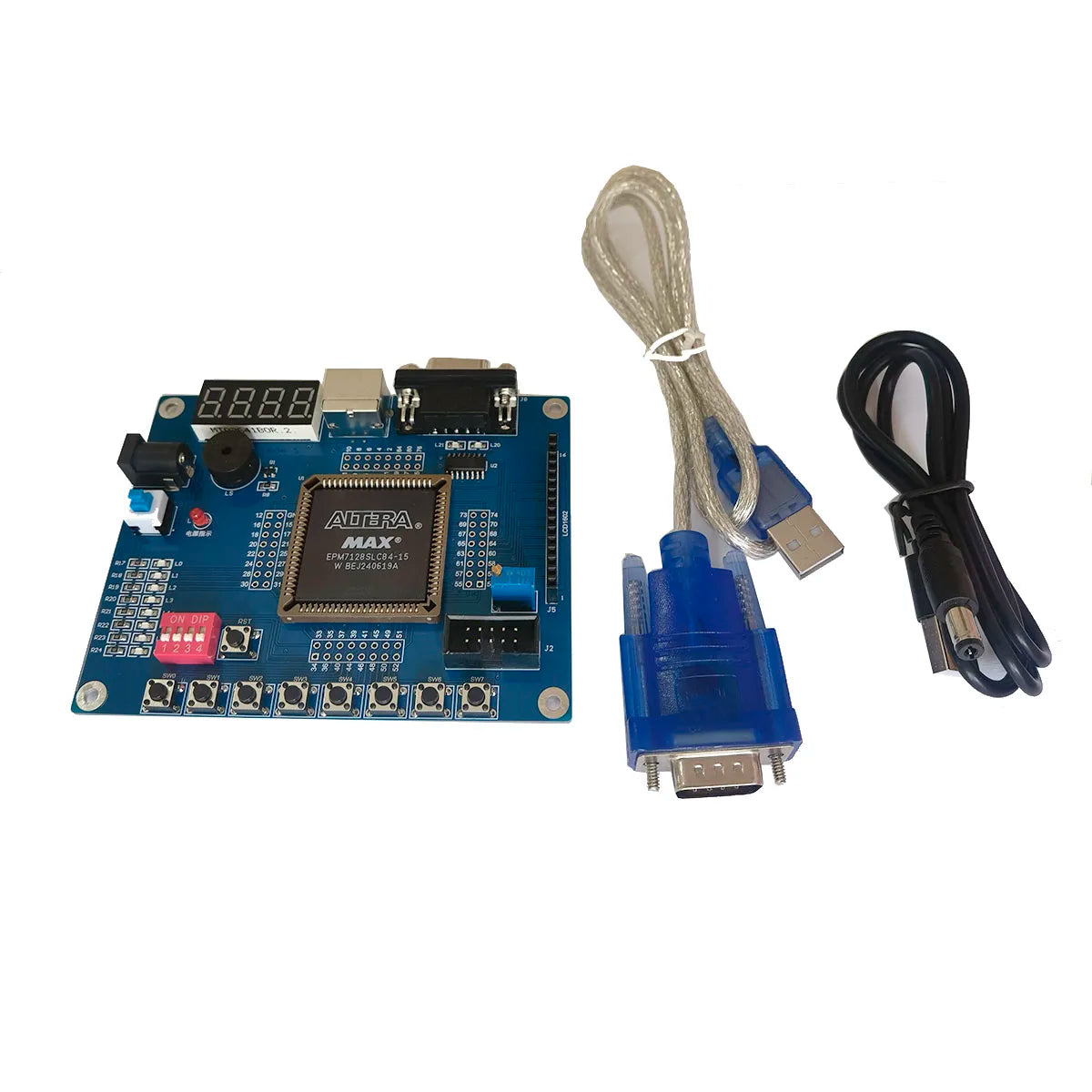

21. 1 USB cable for power supply to the development board

22. 1 serial cable for serial communication
